Isuzu WW
▶
TRUCKS
▶
NHR
▶
50785 - NHR(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶

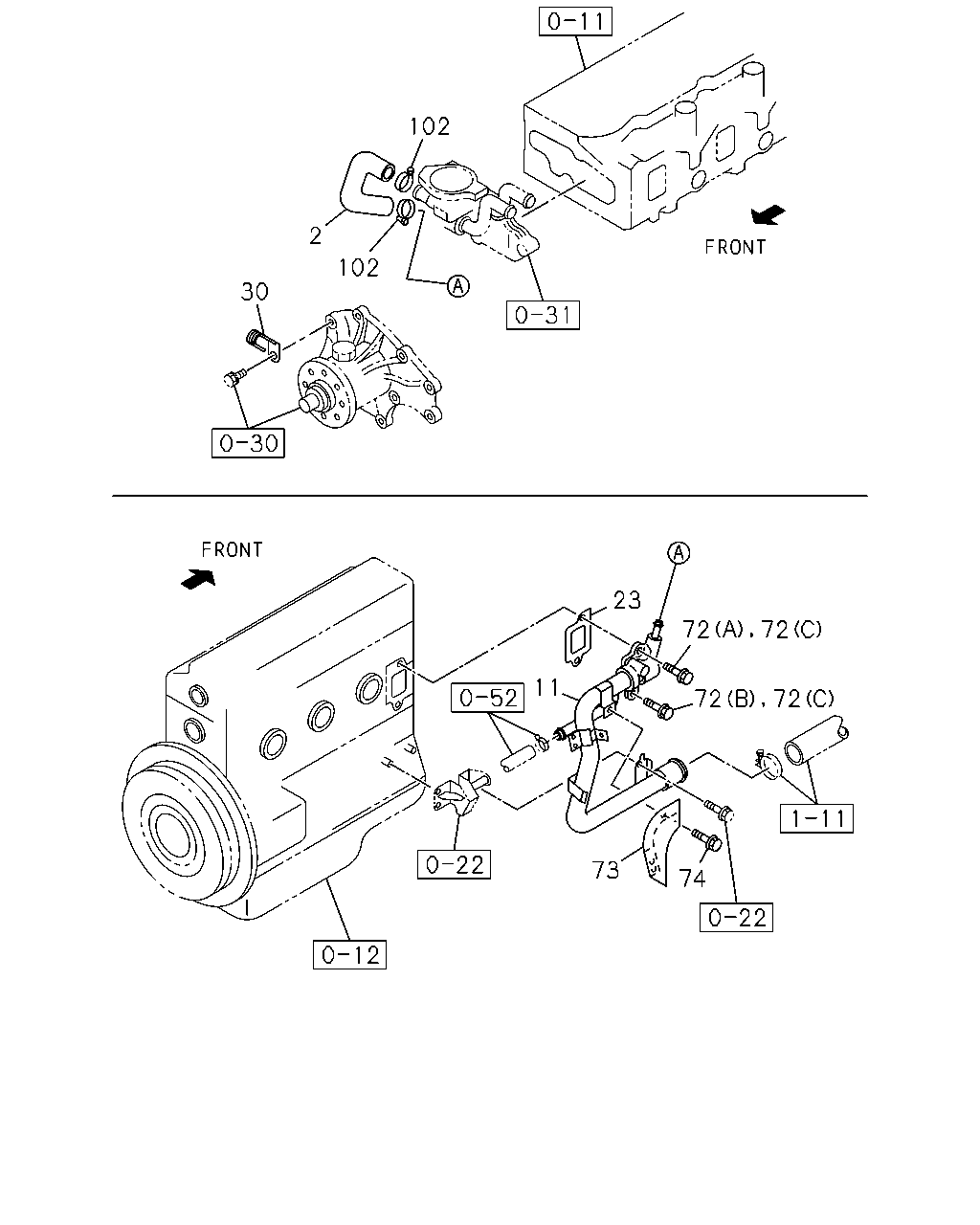

0-32 — WATER PIPING; ENGINE
(#72654) — 17 parça
73
74
30
2
102
102
23
72
72
72
72
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; WATER,BY-PASS
8-97037-464-0
01
1
9704-
11
PIPE; INL,WATER PUMP
8-97063-639-3
01
1
9704-1011
11
PIPE; INL,WATER PUMP
8-97264-243-0
01
1
1012-
23
GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
9704-
30
CLIP; HARNESS
ID=12
5-09700-331-0
01
1
9704-0302
30
CLIP; HARNESS
ID=12
8-97367-983-1
01
1
0303-
72
BOLT; WATER PIPE
(A) M8X22 W/LK WASHER
0-50040-822-0
01
1
9704-0212
72
BOLT; WATER PIPE
(A) M8X20 FLANGE
0-28080-820-0
01
1
0301-0512
72
BOLT; WATER PIPE
(A) M8X20 FLANGE
0-28050-820-0
01
1
0601-1011
72
BOLT; WATER PIPE
(C) M8X50 W/LK WASHER
0-50540-850-0
02
1
1012-
72
BOLT; WATER PIPE
(B) M8X45 W/LK WASHER
0-50040-845-0
01
1
9704-0909
72
BOLT; WATER PIPE
(B) M8X45 W/LK WASHER
0-50540-845-0
01
1
0910-1011
73
PROTECTOR; HEAT,WATER PIPE
8-97043-743-1
01
1
9704-1403
73
PROTECTOR; HEAT,WATER PIPE
8-97520-577-0
01
1
1404-
74
BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER
0-50140-816-0
03
1
9704-0512
74
BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER
0-50640-816-0
03
1
0601-
102
CLIP; WATER HOSE
ID=20.8
8-94125-862-1
02
1
9704-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
