◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#72644) — 10 parça

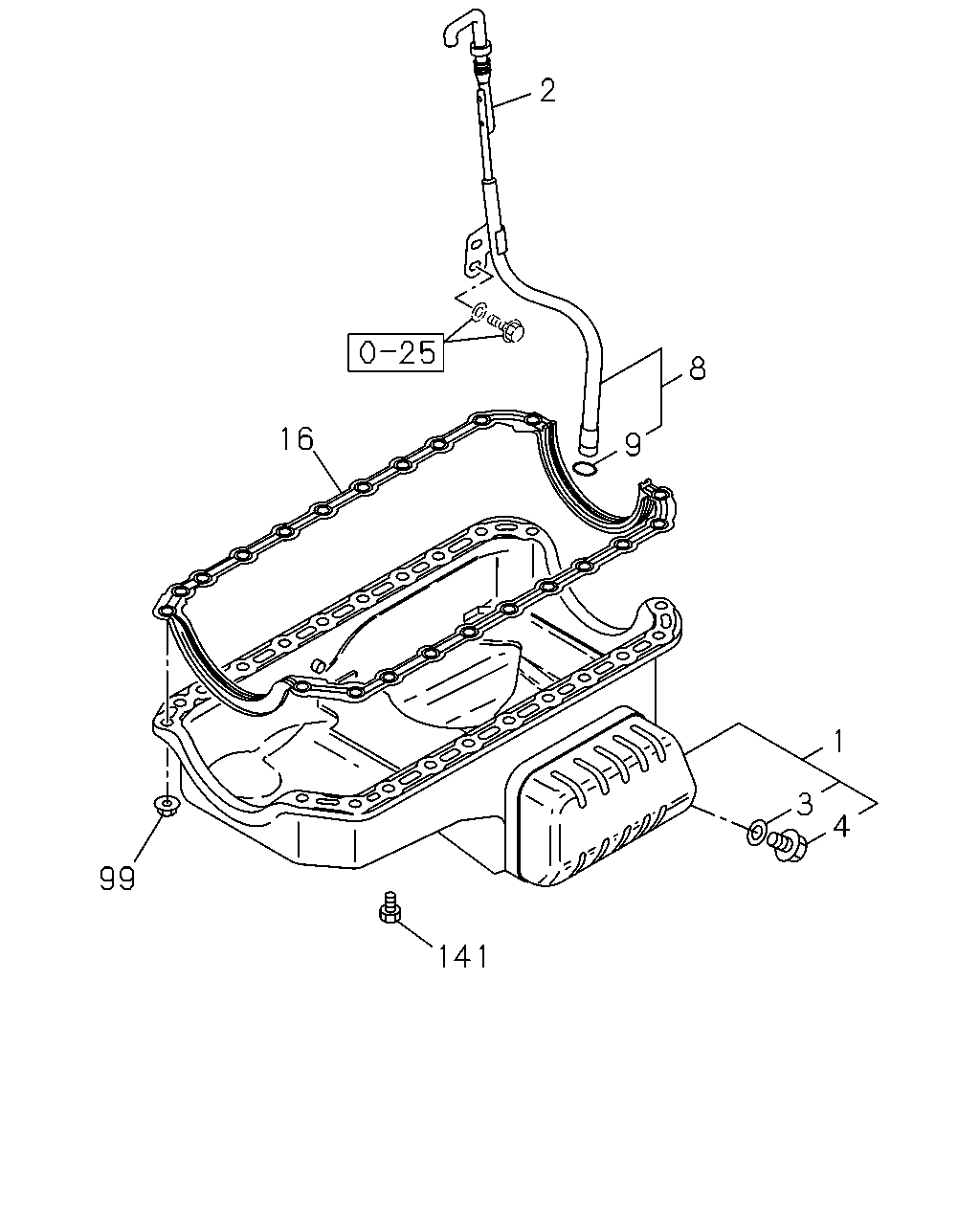

çizim 73820
2 8 16 9 1 3 4 99 141
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL 8-97083-322-3 01 1 9704-0411
1 PAN ASM; OIL 8-98000-123-0 01 1 0412-
2 GAUGE; OIL LEVEL 8-97092-924-0 01 1 9704-
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9704-
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9704-
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97044-886-0 01 1 9704-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 9704-
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 9704-
99 NUT; BRKT TO OIL PAN FIX
M8 FLANGE 		5-09440-010-0 10 1 9704-
141 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 9704-
