0-12 — CYLINDER BLOCK (#72643) — 57 parça

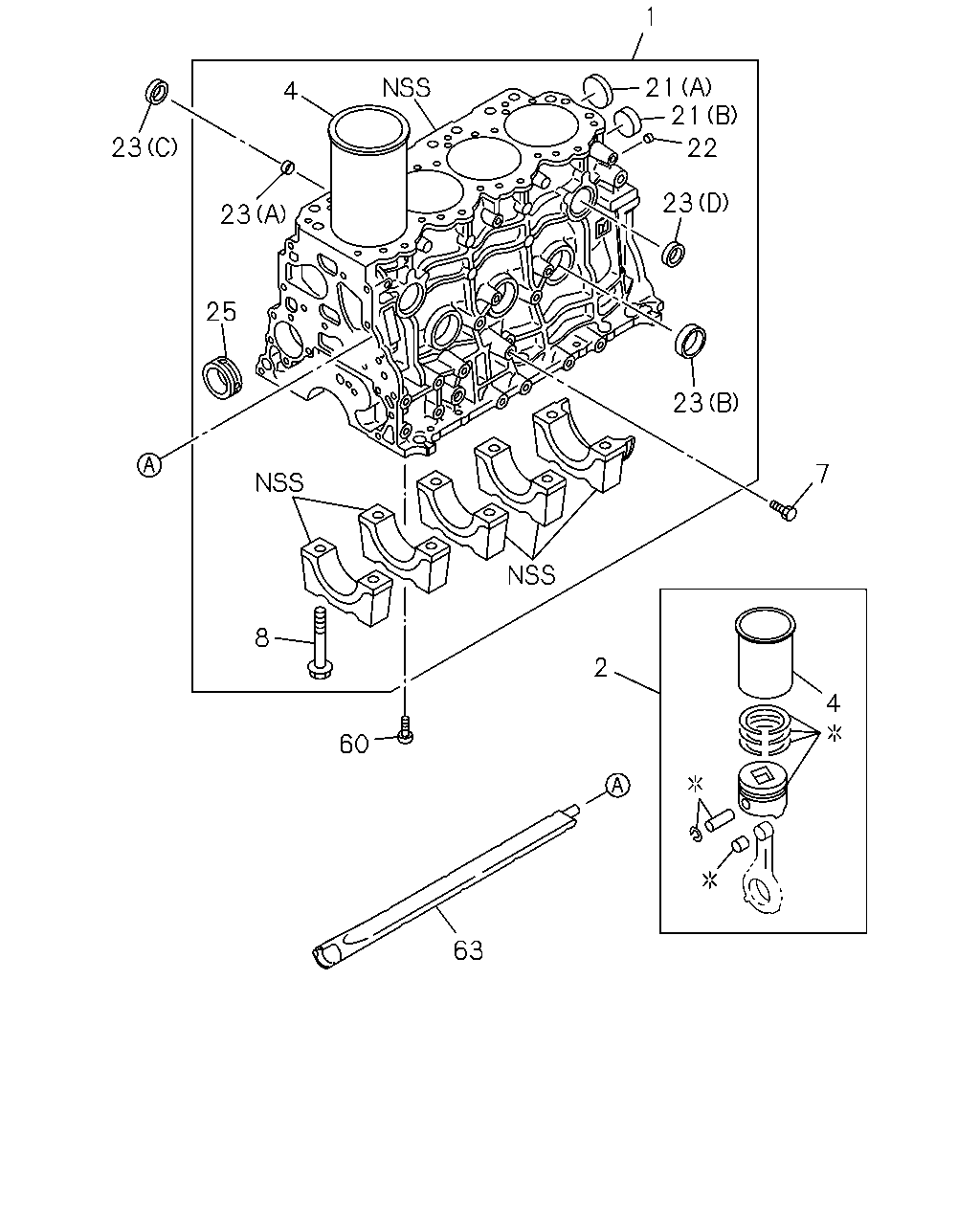

1 21 21 4 23 22 23 23 25 23 7 8 2 4 60 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-94437-397-7	01	1	9704-0209
1	BLOCK ASM; CYL	8-97352-707-2	01	1	0210-
2	LINER SET; ENG CYL GRADE=1	5-87813-181-3	04	1	9704-
2	LINER SET; ENG CYL GRADE=2	5-87813-182-3	04	1	9704-
2	LINER SET; ENG CYL GRADE=3	5-87813-183-3	04	1	9704-
2	LINER SET; ENG CYL GRADE=4	5-87813-184-3	04	1	9704-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9704-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9704-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9704-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9704-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9704-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9704-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9704-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9704-
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9704-
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9704-
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9704-
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9704-
22	CUP; SEALING,DUCT HOLE OD=12.3	5-09600-013-0	01	1	9704-0410
22	CUP; SEALING,DUCT HOLE OD=12.3	5-09600-013-0	03	1	0411-
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	1-09600-005-1	03	1	9704-0209
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0210-
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	9704-
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9704-
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9704-
25	METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9704-0307
25	METAL; CM/SHF CENTER & REAR	8-97378-147-0	02	1	0308-
25	METAL; CM/SHF FRONT	8-94427-206-2	01	1	9704-0411
25	METAL; CM/SHF FRONT	8-97378-148-0	01	1	0411-
60	BOLT; OIL JET M16X12	9-99202-316-0	01	1	9704-0606
60	BOLT; OIL JET M16X12	0-92002-416-0	01	1	0607-
63	DUCT; WATER,C/BL	8-94419-436-2	01	1	9704-

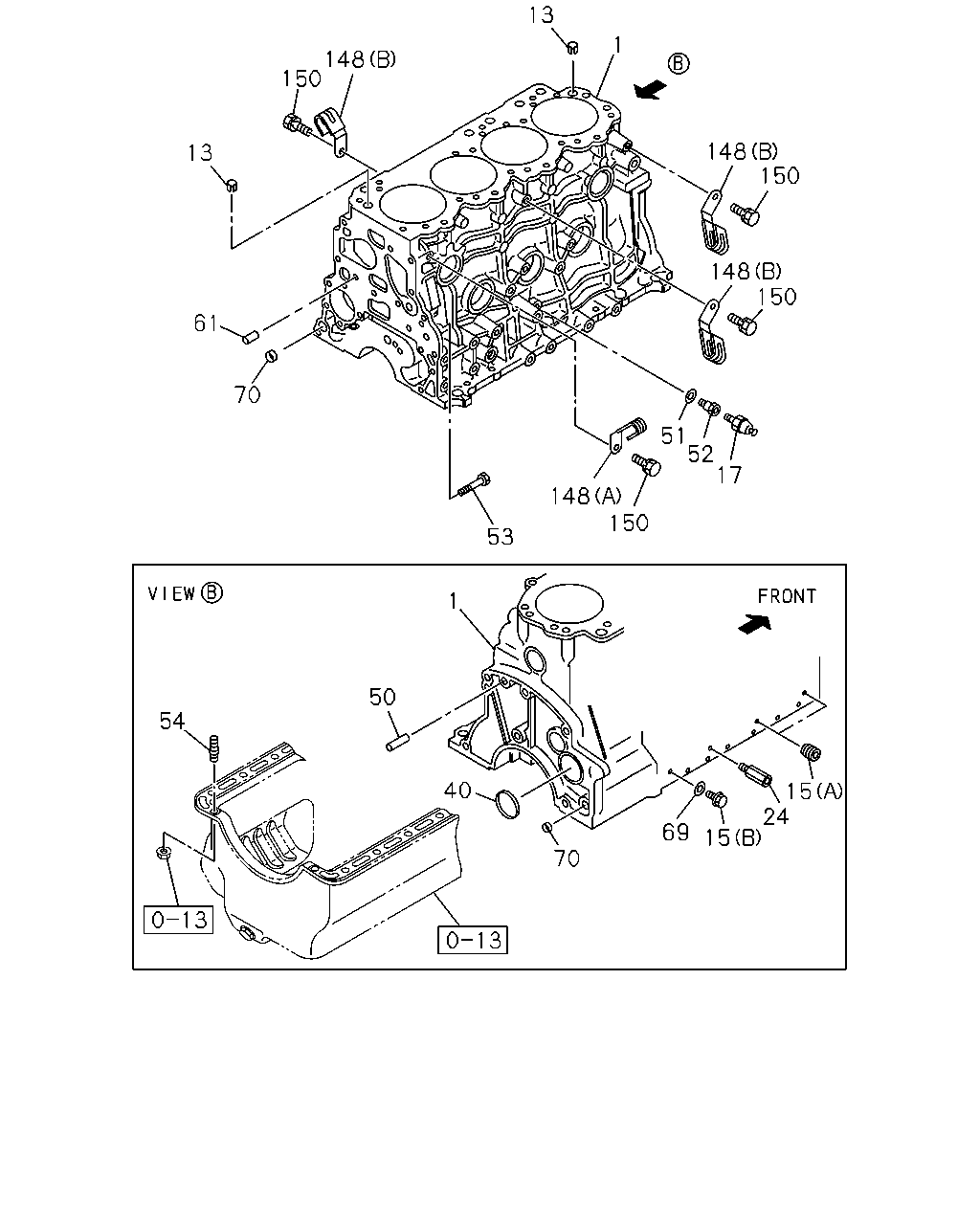

13 1 148 150 148 150 13 148 150 61 70 51 52 17 148 150 53 1 50 54 40 15 24 15 69 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-94437-397-7	01	1	9704-0209
1	BLOCK ASM; CYL	8-97352-707-2	01	1	0210-
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9704-
15	PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	9704-
15	PLUG; OIL GALLERY (B) M14X14	8-94152-613-0	01	1	9704-
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9704-
24	NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9704-
40	CUP; SEALING,C/BL RR OD=56	8-94250-514-1	01	1	9704-
50	PIN; STRAIGHT,RR PLATE OD=10 L=32	9-08161-032-0	01	1	9704-
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9704-
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-749-2	01	1	9704-
53	BOLT; REAMER M10X52	9-09806-020-0	01	1	9704-
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9704-
61	PIN; STRAIGHT OD=10 L=20	9-08151-020-0	02	1	9704-0201
61	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	0202-
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	01	1	9704-
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	9704-
148	CLIP; HARNESS (B) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9704-9812
148	CLIP; HARNESS (B) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9901-9906
148	CLIP; HARNESS (B) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9907-0801
148	CLIP; HARNESS (B) ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-0907
148	CLIP; HARNESS (B) ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0908-
148	CLIP; HARNESS (A) L=91 ID=8.5	8-94329-956-0	01	1	9907-
150	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	03	1	9704-0512
150	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	03	1	0601-
