◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#72640) — 12 parça

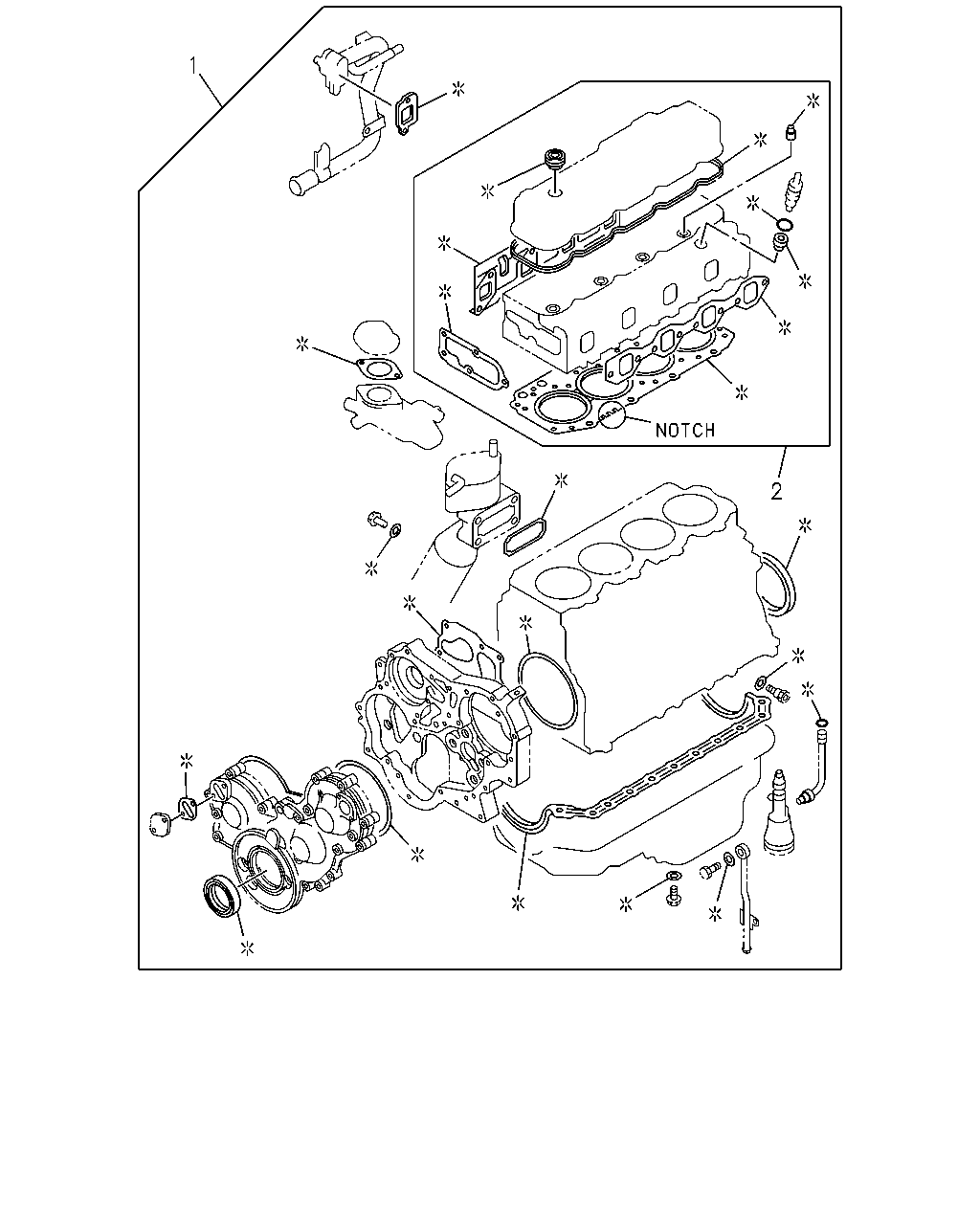

çizim 102788
1 2
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87812-892-9 01 1 9704-0706
1 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-169-3 01 1 0707-
1 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87812-893-9 01 1 9704-0706
1 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-170-3 01 1 0707-
1 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87812-894-9 01 1 9704-0706
1 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-171-3 01 1 0707-
2 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87812-898-2 01 1 9704-9905
2 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-691-6 01 1 9906-
2 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87812-899-2 01 1 9704-9905
2 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-692-6 01 1 9906-
2 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87812-900-2 01 1 9704-9905
2 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-693-6 01 1 9906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
