9-01 — TOOLS (#72638) — 64 parça

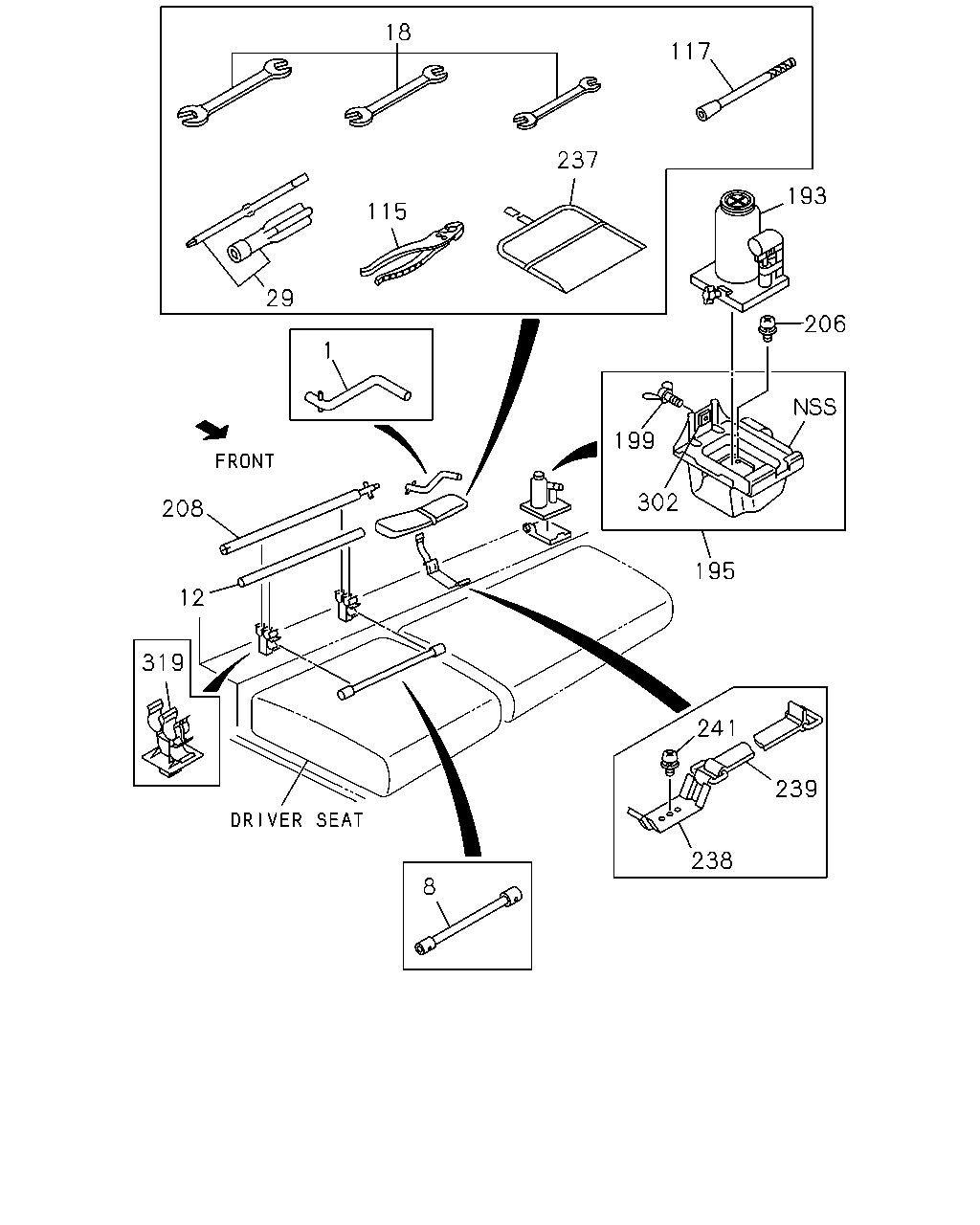

çizim 14571
18 117 237 193 115 29 206 1 199 302 208 195 12 319 241 239 238 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER 9-85512-608-0 01 1 9704-9908 ●
1 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 9909-0209 ●
1 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 0210- ● ●
8 WRENCH; WHEEL
B=41X19 L=330 		8-94386-490-1 01 1 9704-1005 ●
8 WRENCH; WHEEL
B=41X19 L=330 		8-94386-490-1 02 1 1006- ●
8 WRENCH; WHEEL
B=23 L=300 		9-85113-935-0 01 1 0210-1005 ●
8 WRENCH; WHEEL
B=23 L=300 		9-85113-935-0 02 1 1006- ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 9704-0204 ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0205-1001 ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1408- ●
18 WRENCH KIT 9-85161-902-0 02 1 1006- ●
18 WRENCH KIT
8X10,12X14,17X22 		9-85161-902-0 01 1 9704-0209 ●
18 WRENCH KIT
8X10,12X14,17X22 		9-85161-902-0 01 1 0210-1005 ● ●
18 WRENCH KIT
8X10,12X14,17X22 		9-85161-902-0 01 1 1006- ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 02 1 1006- ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9704-0209 ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0210-1005 ● ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1006- ●
115 PLIER 5-85171-002-0 01 1 9704-0209 ●
115 PLIER 5-85171-002-0 01 1 0210-1410 ● ●
115 PLIER 8-98282-845-0 01 1 1411- ● ●
117 WRENCH; VALVE CAP 9-85163-906-1 02 1 1006- ●
117 WRENCH; VALVE CAP 9-85163-906-1 01 1 9704-1005 ●
193 JACK ASM
4TON 		8-97131-075-2 01 1 9704-0308 ●
193 JACK ASM
4TON 		8-97371-123-0 01 1 0309-0504 ●
193 JACK ASM
4TON 		8-98012-285-0 01 1 0505- ●
193 JACK ASM
5TON 		8-97131-076-2 01 1 0210-0308 ●
193 JACK ASM
5TON 		8-97371-124-0 01 1 0309-1004 ●
193 JACK ASM
5TON 		8-98114-047-0 01 1 1005- ●
195 BRACKET; JACK 8-94262-068-2 01 1 9704-0209 ●
195 BRACKET; JACK 8-94262-068-3 01 1 0210-1004 ● ●
195 BRACKET; JACK 8-94262-068-3 01 1 1005- ●
195 BRACKET; JACK 8-94273-287-7 01 1 1005- ●
199 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 9704-0209 ●
199 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0210-1004 ● ●
199 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 1005- ●
199 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 1005- ●
206 SCREW; OIL JACK BRKT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9704-0209 ●
206 SCREW; OIL JACK BRKT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0210- ● ●
208 HANDLE; JACK 9-85512-607-0 01 1 9704-9909 ●
208 HANDLE; JACK
L=642 		8-97217-800-0 01 1 9910-0209 ●
208 HANDLE; JACK
L=642 		8-97217-800-0 01 1 0210-1108 ● ●
208 HANDLE; JACK
L=642 		8-98181-477-0 01 1 1109- ● ●
237 BAG; TOOL 8-97130-902-0 01 1 9704-9811 ●
237 BAG; TOOL 8-97130-903-0 01 1 9812-0209 ●
237 BAG; TOOL 8-97130-903-1 01 1 0210- ● ●
238 SUPPORT; TOOL BAG 8-97866-879-0 01 1 9704-0101 ●
238 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0102-0209 ●
238 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0210- ● ●
239 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 9704-0209 ●
239 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0210- ● ●
241 SCREW; TOOL BAG SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9704-0209 ●
241 SCREW; TOOL BAG SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0210- ● ●
302 NUT; JACK BRKT 8-94279-522-0 01 1 9704-0209 ●
302 NUT; JACK BRKT 8-94279-522-0 01 1 0210- ● ●
319 CLIP; TOOL BAR 8-97853-077-2 02 1 9704-0209 ●
319 CLIP; TOOL BAR 8-97853-077-2 02 1 0210- ● ●

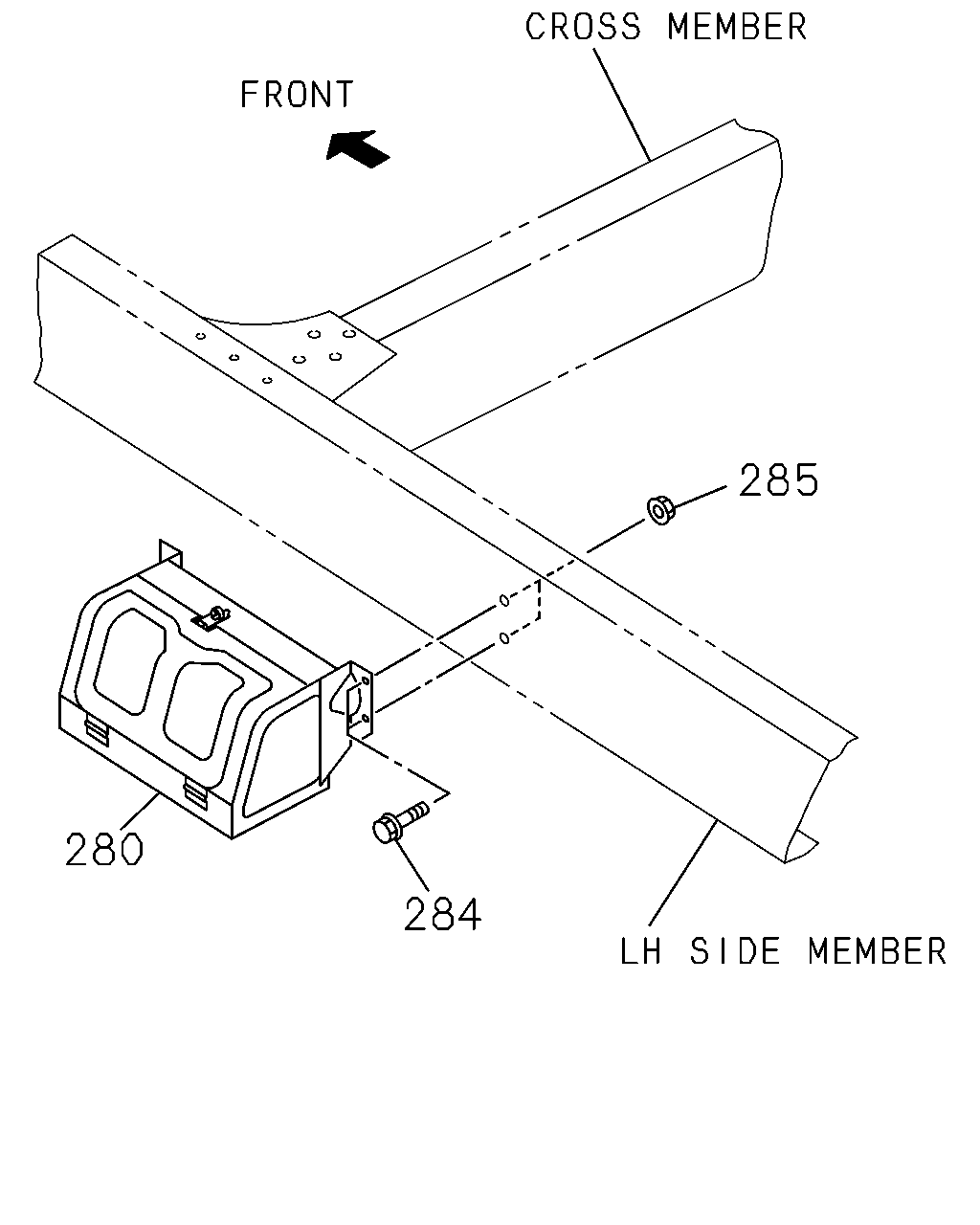

çizim 190566
285 280 284
BalonParca AdiParca NoAdetTipApplied Date A B
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97161-497-0 01 1 9704-9904 ●
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 9905- ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8X25 FLANGE 		0-28680-825-0 04 1 9704-0512 ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8 FLANGE 		0-91150-108-0 03 1 9704-0602 ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8 FLANGE 		0-91180-108-0 03 1 0603- ●
