8-65 — CONTROL LEVER; HEATER AND AIR CON (#72634) — 44 parça

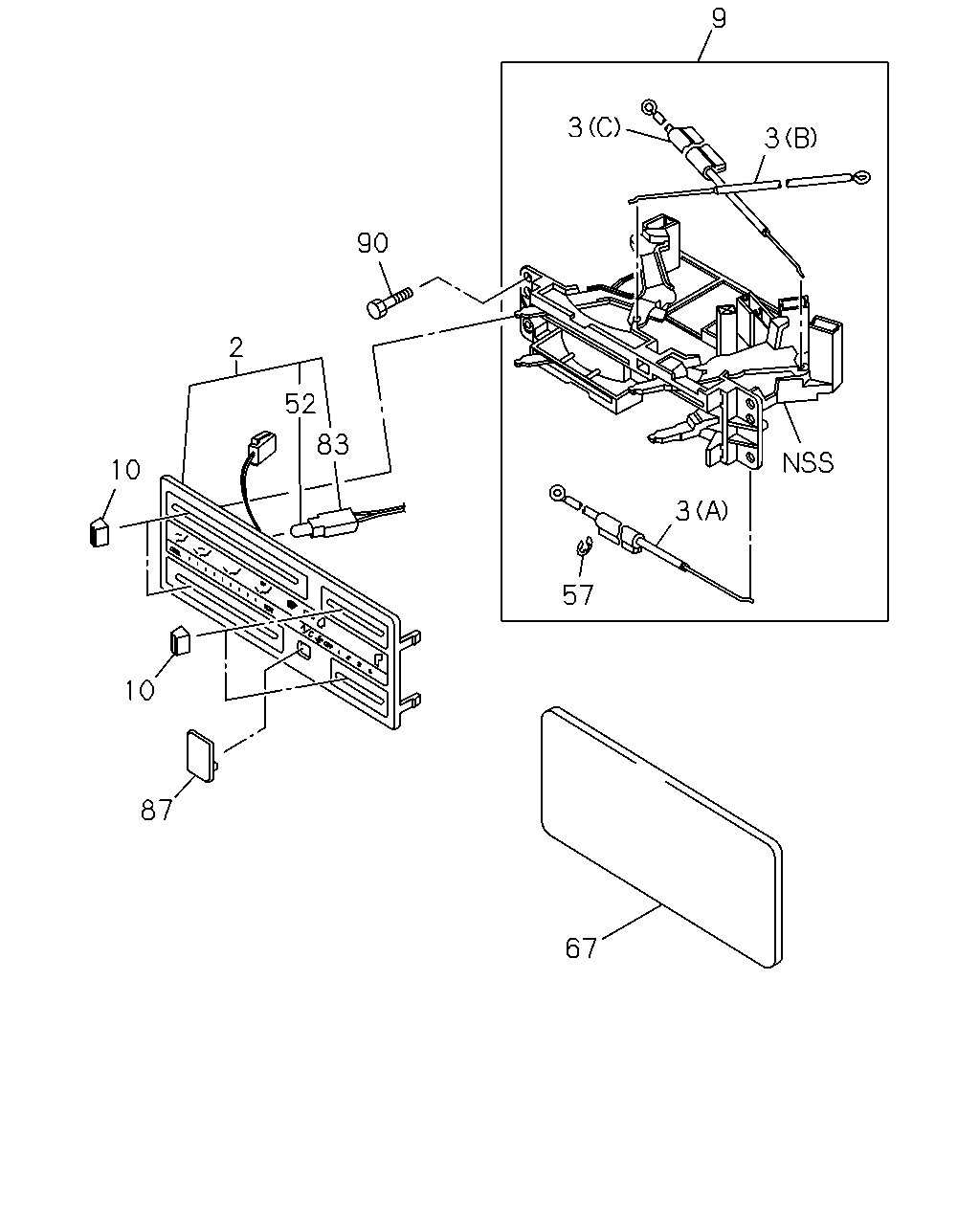

çizim 140899
9 3 3 90 2 52 83 10 3 57 10 87 67
BalonParca AdiParca NoAdetTipApplied Date A B
2 PANEL ASM; CONT,ILLUMINATION 8-97048-330-1 01 1 9704-0209 ●
2 PANEL ASM; CONT,ILLUMINATION 8-97048-330-1 01 1 0210- ● ●
3 CABLE; HTR CONT LVR
(B) MODE 		8-97085-618-1 01 1 9704-0209 ●
3 CABLE; HTR CONT LVR
(B) MODE 		8-97085-618-1 01 1 0210-1110 ● ●
3 CABLE; HTR CONT LVR
4JB1 ENG(RLF) (B) MODE 		8-97085-618-1 01 1 1111-1111 ● ●
3 CABLE; HTR CONT LVR
4JB1 ENG(RLF) (B) MODE 		8-97085-618-1 01 1 1112- ●
3 CABLE; HTR CONT LVR
(B) MODE 		8-97085-618-1 01 1 1112- ●
3 CABLE; HTR CONT LVR
(C) FRESH 		8-97087-578-0 01 1 9704-0209 ●
3 CABLE; HTR CONT LVR
(C) FRESH 		8-97087-578-0 01 1 0210-1110 ● ●
3 CABLE; HTR CONT LVR
4JB1 ENG(RLF) (C) FRESH 		8-97087-578-0 01 1 1111-1111 ● ●
3 CABLE; HTR CONT LVR
4JB1 ENG(RLF) (C) FRESH 		8-97087-578-0 01 1 1112- ●
3 CABLE; HTR CONT LVR
(C) FRESH 		8-97087-578-0 01 1 1112- ●
3 CABLE; HTR CONT LVR
(A) MIX 		8-97085-617-2 01 1 9709-0209 ●
3 CABLE; HTR CONT LVR
(A) MIX 		8-97085-617-2 01 1 0210-1110 ● ●
3 CABLE; HTR CONT LVR
4JB1 ENG(RLF) (A) MIX 		8-97085-617-2 01 1 1111-1111 ● ●
3 CABLE; HTR CONT LVR
4JB1 ENG(RLF) (A) MIX 		8-97085-617-2 01 1 1112- ●
3 CABLE; HTR CONT LVR
(A) MIX 		8-97085-617-2 01 1 1112- ●
9 LEVER ASM; HTR & A/C CONT 8-97069-832-0 01 1 9704-9708 ●
9 LEVER ASM; HTR & A/C CONT 8-97048-456-4 01 1 9709-0209 ●
9 LEVER ASM; HTR & A/C CONT 8-97048-456-4 01 1 0210-1110 ● ●
9 LEVER ASM; HTR & A/C CONT
4JB1 ENG(RLF) 		8-97048-456-4 01 1 1111-1111 ● ●
9 LEVER ASM; HTR & A/C CONT
4JB1 ENG(RLF) 		8-97048-456-4 01 1 1112- ●
9 LEVER ASM; HTR & A/C CONT 8-97048-456-4 01 1 1112- ●
10 KNOB; CONT LEVER 8-97114-430-0 03 1 9704-9708 ●
10 KNOB; CONT LEVER 8-97114-430-0 04 1 9709-0209 ●
10 KNOB; CONT LEVER 8-97114-430-0 04 1 0210-1110 ● ●
10 KNOB; CONT LEVER
4JB1 ENG(RLF) 		8-97114-430-0 04 1 1111-1111 ● ●
10 KNOB; CONT LEVER
4JB1 ENG(RLF) 		8-97114-430-0 04 1 1112- ●
10 KNOB; CONT LEVER 8-97114-430-0 04 1 1112- ●
52 BULB; PANEL ILLUMINATION
14V 140MA 		8-97100-290-0 01 1 9704-0209 ●
52 BULB; PANEL ILLUMINATION
14V 140MA 		8-97100-290-0 01 1 0210- ● ●
57 RING; SNAP,HTR CONT LVR 8-97262-535-0 01 1 0005-0209 ●
57 RING; SNAP,HTR CONT LVR 8-97262-535-0 01 1 0210-1110 ● ●
57 RING; SNAP,HTR CONT LVR
4JB1 ENG(RLF) 		8-97262-535-0 01 1 1111-1111 ● ●
57 RING; SNAP,HTR CONT LVR
4JB1 ENG(RLF) 		8-97262-535-0 01 1 1112- ●
57 RING; SNAP,HTR CONT LVR 8-97262-535-0 01 1 1112- ●
67 CAP; BEZEL,CONT LEVER 8-97071-228-0 01 1 9704-9709 ●
83 HARNESS; CONT PANEL 8-97308-566-0 01 1 9704-0209 ●
83 HARNESS; CONT PANEL 8-97308-566-0 01 1 0210- ● ●
87 CAP; A/C SWITCH 8-97065-448-2 01 1 9704-0209 ●
87 CAP; A/C SWITCH 8-97065-448-2 01 1 0210- ● ●
90 BOLT; CONT PANEL
M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 9704-0209 ●
90 BOLT; CONT PANEL
M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 0210-1210 ● ●
90 BOLT; CONT PANEL
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 03 1 1211- ● ●
