◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50784 - NKR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#72631) — 60 parça

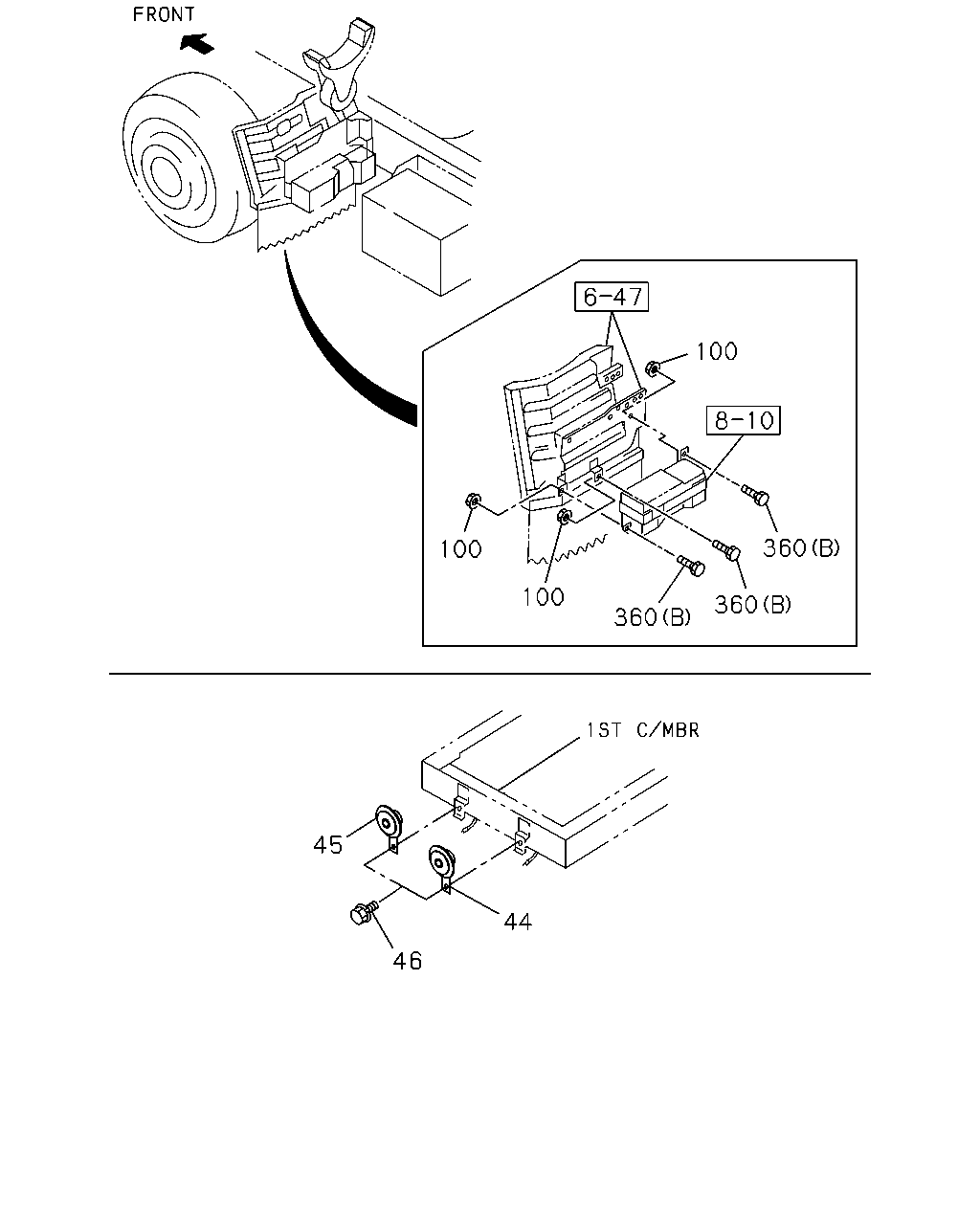

çizim 143891
100 360 100 100 360 360 45 44 46
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> 		8-97109-361-0 01 1 9704-0209 ●
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> 		8-97109-361-0 01 1 0210-0307 ● ●
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> 		8-97211-743-2 01 1 0308- ● ●
45 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 		8-97109-362-1 01 1 9704-0209 ●
45 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 		8-97109-362-1 01 1 0210- ● ●
46 BOLT; HORN TO BODY
DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9704-0209 ●
46 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9704-0209 ●
46 BOLT; HORN TO BODY
DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0210- ● ●
46 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0210- ● ●
100 NUT; RELAY BOX COVER
M8 FLANGE 		0-91150-108-0 03 1 9704-0209 ●
100 NUT; RELAY BOX COVER
M8 FLANGE 		0-91150-108-0 03 1 0210-0602 ● ●
100 NUT; RELAY BOX COVER
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 9704-0209 ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0210-0512 ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9704-0209 ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0210-1210 ● ●
360 BOLT; RELAY BOX
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ●

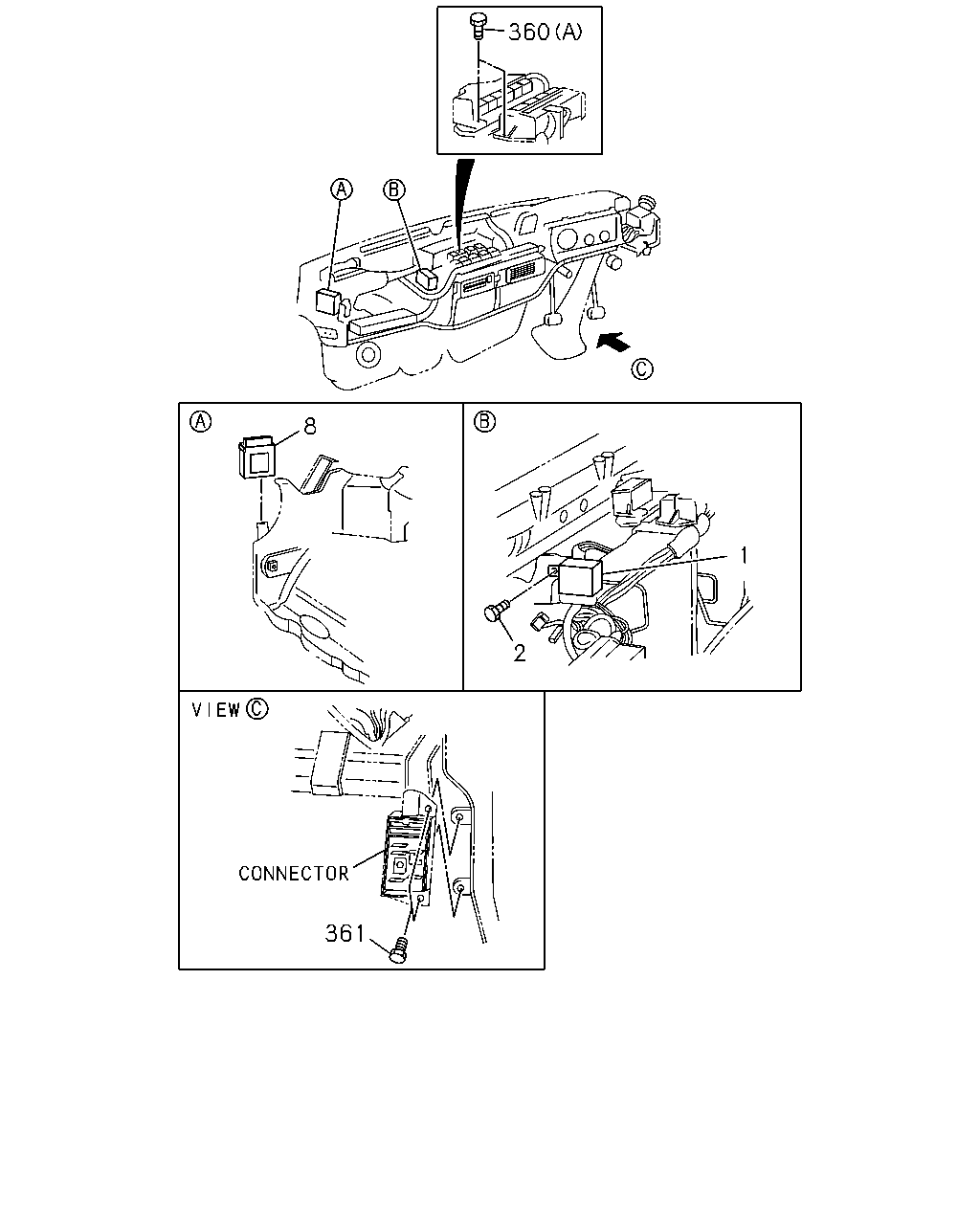

çizim 144063
360 8 1 2 361
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-97086-509-1 01 1 9704-0003 ●
1 UNIT; FLASHER 8-97228-398-0 01 1 0004-0209 ●
1 UNIT; FLASHER 8-97228-398-0 01 1 0210- ● ●
2 BOLT; FLASHER UNIT
M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 9704-0209 ●
2 BOLT; FLASHER UNIT
M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0210-1210 ● ●
2 BOLT; FLASHER UNIT
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97855-014-0 01 1 9704-0209 ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97855-014-0 01 1 0210-0307 ● ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-984-0 01 1 0308- ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 9704-0209 ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0210-0512 ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9704-0209 ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0210-1210 ● ●
360 BOLT; RELAY BOX
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ●
361 BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9704-0209 ●
361 BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0210-1210 ● ●
361 BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ●
çizim 190564
22 11 29
BalonParca AdiParca NoAdetTipApplied Date A B
11 RELAY; DIMMER
12V 20A 		8-97060-926-1 01 1 9704-0209 ●
11 RELAY; DIMMER
12V 20A 		8-97060-926-1 01 1 0210-1111 ● ●
11 RELAY; DIMMER
4JB1 ENG(RLF) 12V 20A 		8-97060-926-1 01 1 1112- ● ●
11 RELAY; DIMMER
4JB1-TC ENG(RDT) 12V 20A 		8-97173-037-1 01 1 1112- ●
22 RELAY; STOP LAMP
12V 20A 		8-97060-926-1 01 1 9704-0209 ●
22 RELAY; STOP LAMP
12V 20A 		8-97060-926-1 01 1 0210-1111 ● ●
22 RELAY; STOP LAMP
4JB1 ENG(RLF) 12V 20A 		8-97060-926-1 01 1 1112- ● ●
22 RELAY; STOP LAMP
4JB1-TC ENG(RDT) 12V 20A 		8-97173-037-1 01 1 1112- ●
29 RELAY; HORN
12V 20A 		8-97060-926-1 01 1 9704-0209 ●
29 RELAY; HORN
12V 20A 		8-97060-926-1 01 1 0210-1111 ● ●
29 RELAY; HORN
4JB1 ENG(RLF) 12V 20A 		8-97060-926-1 01 1 1112- ● ●
29 RELAY; HORN
4JB1-TC ENG(RDT) 12V 20A 		8-97173-037-1 01 1 1112- ●

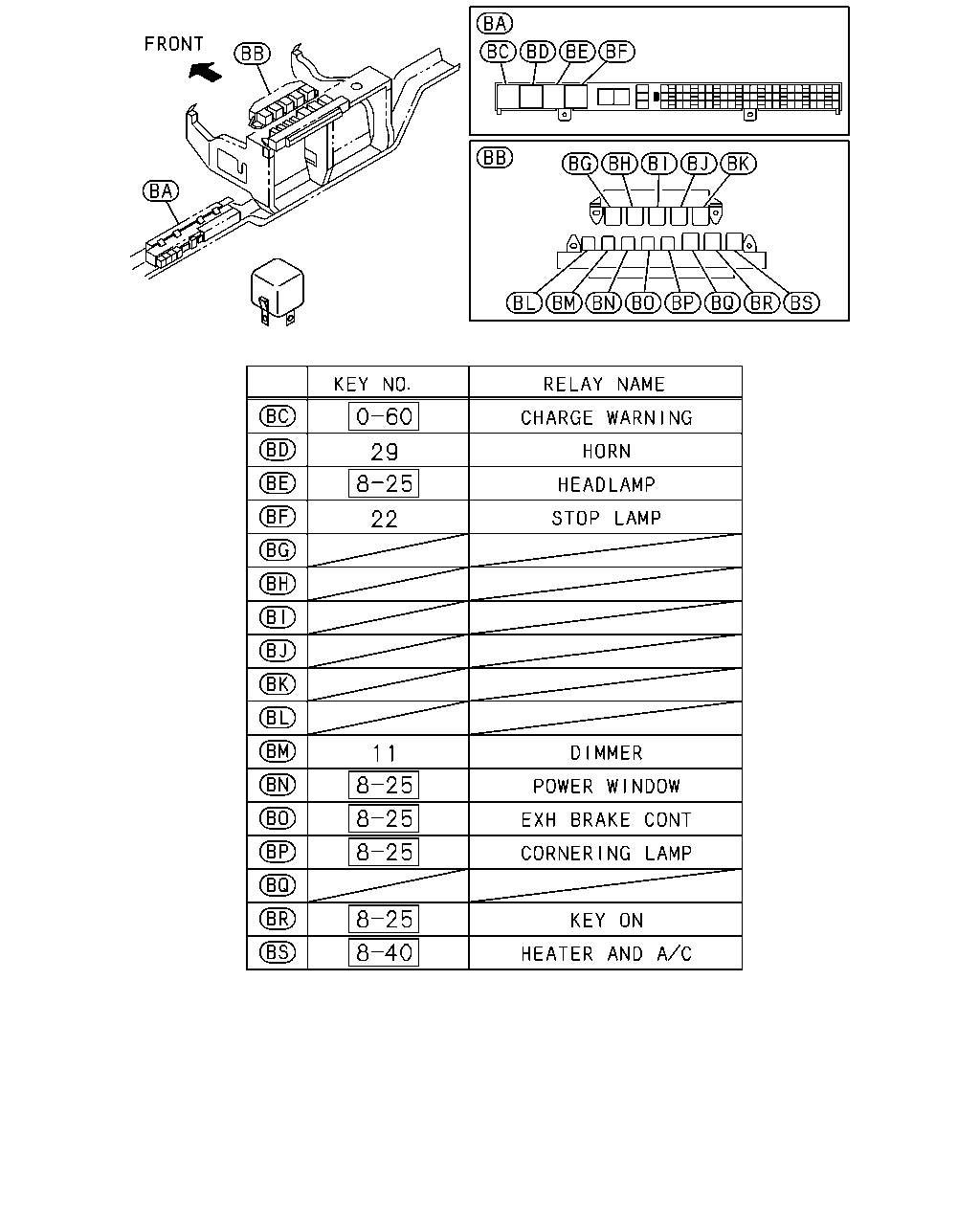

çizim 284271
29 22 11
BalonParca AdiParca NoAdetTipApplied Date A B
11 RELAY; DIMMER
12V 20A 		8-97060-926-1 01 1 9704-0209 ●
11 RELAY; DIMMER
12V 20A 		8-97060-926-1 01 1 0210-1111 ● ●
11 RELAY; DIMMER
4JB1 ENG(RLF) 12V 20A 		8-97060-926-1 01 1 1112- ● ●
11 RELAY; DIMMER
4JB1-TC ENG(RDT) 12V 20A 		8-97173-037-1 01 1 1112- ●
22 RELAY; STOP LAMP
12V 20A 		8-97060-926-1 01 1 9704-0209 ●
22 RELAY; STOP LAMP
12V 20A 		8-97060-926-1 01 1 0210-1111 ● ●
22 RELAY; STOP LAMP
4JB1 ENG(RLF) 12V 20A 		8-97060-926-1 01 1 1112- ● ●
22 RELAY; STOP LAMP
4JB1-TC ENG(RDT) 12V 20A 		8-97173-037-1 01 1 1112- ●
29 RELAY; HORN
12V 20A 		8-97060-926-1 01 1 9704-0209 ●
29 RELAY; HORN
12V 20A 		8-97060-926-1 01 1 0210-1111 ● ●
29 RELAY; HORN
4JB1 ENG(RLF) 12V 20A 		8-97060-926-1 01 1 1112- ● ●
29 RELAY; HORN
4JB1-TC ENG(RDT) 12V 20A 		8-97173-037-1 01 1 1112- ●
