4-11 — FRONT HUB AND DRUM OR ROTOR (#7263) — 58 parça

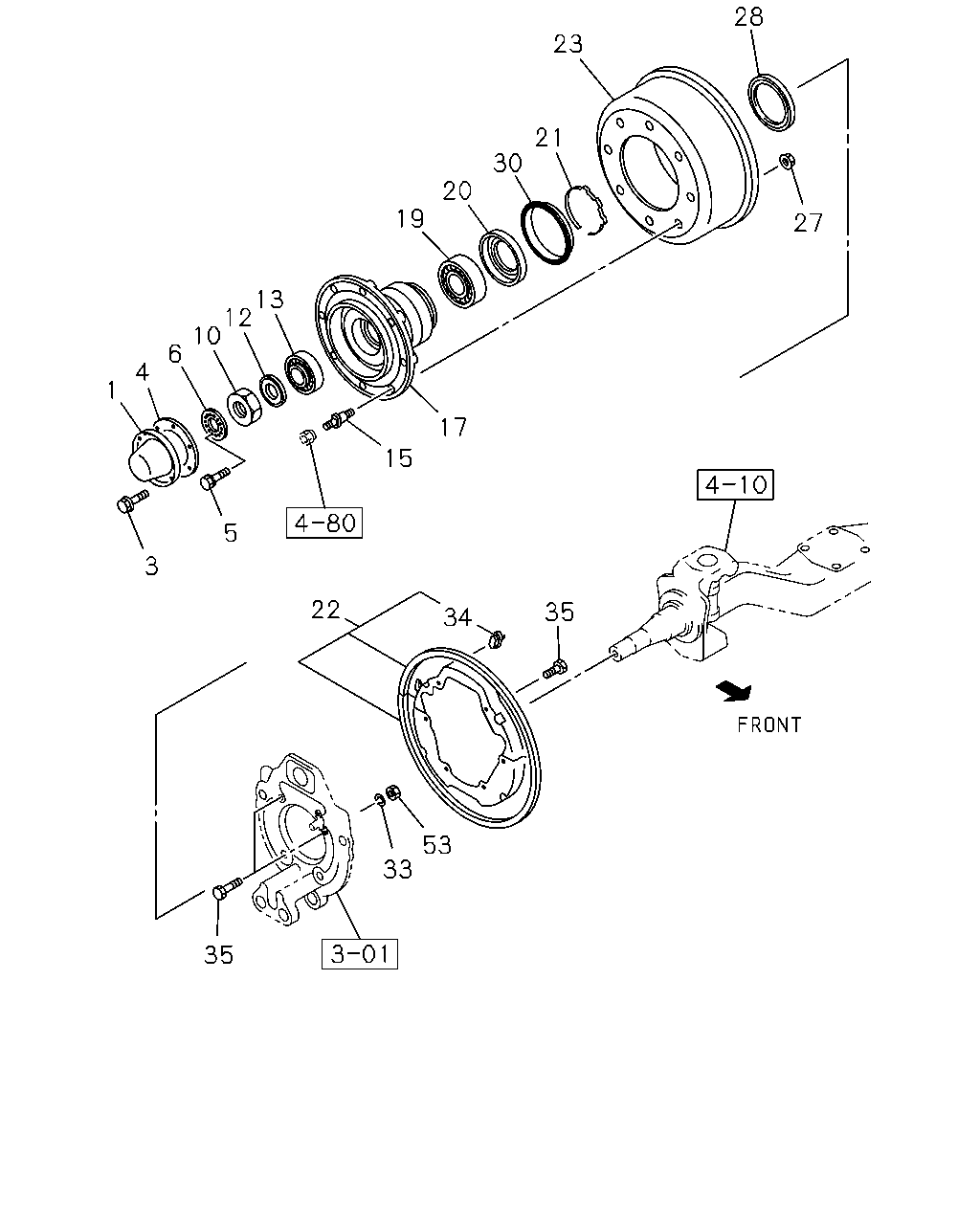

çizim 43941
28 23 21 30 20 19 27 13 12 10 6 4 1 17 15 5 3 22 35 34 53 33 35
BalonParca AdiParca NoAdetTipApplied Date
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 9906-
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 9906-
4 GASKET; HUB CAP,FRT WHEEL 1-42319-029-0 02 1 9906-9906
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-0 02 1 9907-
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 9906-
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 9906-
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 9906-
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 9906-
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-234-0 02 1 9906-
15 PIN; WHEEL,FRT AXLE
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 9906-9912
15 PIN; WHEEL,FRT AXLE
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG),TIRE FRT 12.00R20<72X> M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 0001-
15 PIN; WHEEL,FRT AXLE
TIRE FRT 12.00R20<72X> EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) M22X42.8,M22X75.5 RH THREAD 		1-42337-058-0 20 1 0001-
15 PIN; WHEEL,FRT AXLE
DISC WHEEL AL<SDM> EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) M22X48.8,M22X55.5 RH THREAD 		1-42337-011-1 20 1 0001-
15 PIN; WHEEL,FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-0 08 1 9906-9906
15 PIN; WHEEL,FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-0 08 1 9907-9912
15 PIN; WHEEL,FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) EXC. BRAKE REGULATION ECE<TDV> M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-0 08 1 0001-
15 PIN; WHEEL,FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M24X37.5,M22X57.5 RH THREAD 		1-42331-109-0 08 1 9906-9906
15 PIN; WHEEL,FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) M24X37.5,M22X57.5 RH THREAD 		1-42331-109-0 08 1 9907-9912
15 PIN; WHEEL,FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) EXC. BRAKE REGULATION ECE<TDV> M24X37.5,M22X57.5 RH THREAD 		1-42331-109-0 08 1 0001-
17 HUB; FRT AXLE
ANTILOCK BRAKE SYSTEM(BFA) 		1-42312-138-1 02 1 9906-
17 HUB; FRT AXLE
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42312-100-0 02 1 9906-9912
17 HUB; FRT AXLE
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG),TIRE FRT 12.00R20<72X> 		1-42312-100-1 02 1 0001-
17 HUB; FRT AXLE
TIRE FRT 12.00R20<72X> EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) 		1-42312-136-0 02 1 0001-
17 HUB; FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-42312-128-0 02 1 9906-9906
17 HUB; FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-42312-128-2 02 1 9907-
19 BEARING; HUB INNER,FRT AXLE
KOYO 		1-09812-231-0 02 1 9906-
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 9906-
21 RING; SNAP,HUB 1-09587-017-0 02 1 9906-
22 COVER SET; FRT BRK DRUM 1-47151-459-1 02 1 9906-
23 DRUM; BRK,FRT
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42315-337-0 02 1 9906-9912
23 DRUM; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42315-337-0 02 1 0001-0002
23 DRUM; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-42315-337-0 02 1 0001-0002
23 DRUM; BRK,FRT
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> BRAKE LINING MATERIAL NON ASBESTOS<SKR> BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),TIRE FRT12.00R20<72X> 		1-42315-337-0 02 1 0003-
23 DRUM; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM> 		1-42315-337-0 02 1 0003-
23 DRUM; BRK,FRT
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,BRAKE REGULATION ECE<TDV>,TIRE FRT 12.00R20<72X> 		1-42315-337-0 02 1 0003-
23 DRUM; BRK,FRT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42315-336-1 02 1 9906-9906
23 DRUM; BRK,FRT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) 		1-42315-336-1 02 1 9907-9912
23 DRUM; BRK,FRT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) EXC. BRAKE REGULATION ECE<TDV> 		1-42315-336-1 02 1 0001-
27 NUT; WHEEL PIN,FRT AXLE
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 		1-09400-071-0 20 1 9906-9912
27 NUT; WHEEL PIN,FRT AXLE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 		1-09400-071-0 20 1 0001-0002
27 NUT; WHEEL PIN,FRT AXLE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> M22 		1-09400-071-0 20 1 0001-0002
27 NUT; WHEEL PIN,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> BRAKE LINING MATERIAL NON ASBESTOS<SKR> BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),TIRE FRT12.00R20<72X> M22 		1-09400-071-0 20 1 0003-
27 NUT; WHEEL PIN,FRT AXLE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM> M22 		1-09400-071-0 20 1 0003-
27 NUT; WHEEL PIN,FRT AXLE
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,BRAKE REGULATION ECE<TDV>,TIRE FRT 12.00R20<72X> M22 		1-09400-071-0 20 1 0003-
27 NUT; WHEEL PIN,FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 FLANGE 		1-09440-065-0 16 1 9906-9906
27 NUT; WHEEL PIN,FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) M22 FLANGE 		1-09440-065-0 16 1 9907-9912
27 NUT; WHEEL PIN,FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) EXC. BRAKE REGULATION ECE<TDV> M22 FLANGE 		1-09440-065-0 16 1 0001-
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 9906-
30 RING; EXCITER,FRT HUB
ANTILOCK BRAKE SYSTEM(BFA) 		1-42319-163-0 02 1 9906-
33 WASHER; LK,DRUM COVER
ID=16.2 		9-09150-816-0 04 1 9906-
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 9906-
35 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 9906-
35 BOLT; DRUM COVER
M16X59 FLANGE 		1-09044-002-2 04 1 9906-0002
35 BOLT; DRUM COVER
EXC. ANTILOCK BRAKE SYSTEM(BFA) M16X59 FLANGE 		1-09044-002-2 04 1 0003-
35 BOLT; DRUM COVER
ANTILOCK BRAKE SYSTEM(BFA) M12X40 		0-20801-240-0 02 1 9906-
35 BOLT; DRUM COVER
ANTILOCK BRAKE SYSTEM(BFA) M16X59 FLANGE 		1-09044-002-2 02 1 9906-
35 BOLT; DRUM COVER
ANTILOCK BRAKE SYSTEM(BFA) M16X74 FLANGE 		1-09044-057-2 02 1 9906-
53 NUT; DRUM COVER
M16 		9-99110-516-0 04 1 9906-
