8-10 — WIRING HARNESS AND FUSE (#72626) — 302 parça

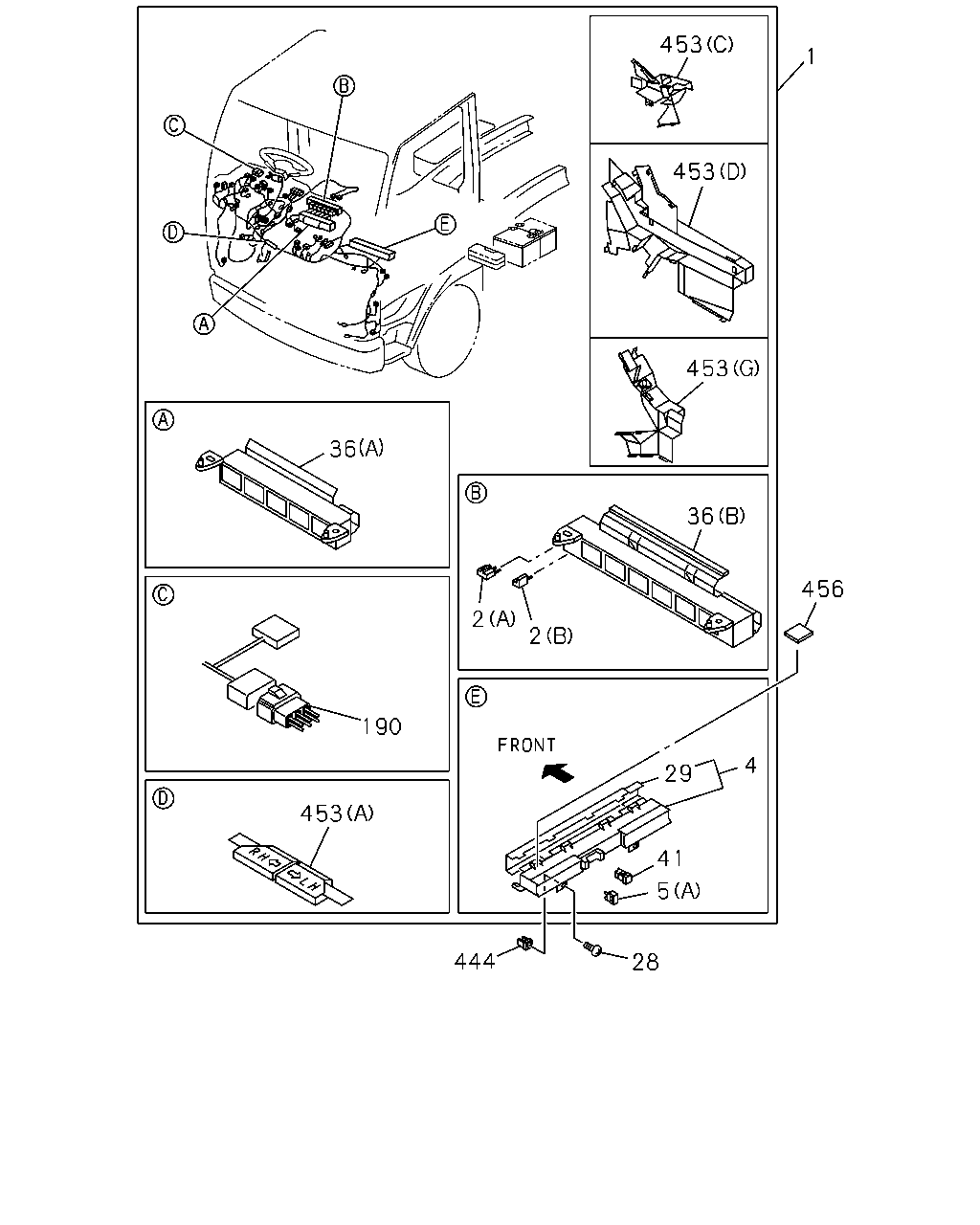

çizim 135972
453 1 453 453 36 36 456 2 2 190 4 29 453 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-98196-402-0 01 1 1112- ●
1 HARNESS; CAB
4JB1 ENG(RLF) FACE LIFT MODEL<TX7> 		8-98158-643-0 01 1 1006- ●
1 HARNESS; CAB 8-97132-917-0 01 1 9704-0209 ●
1 HARNESS; CAB 8-97132-917-0 01 1 0210-0307 ● ●
1 HARNESS; CAB 8-97309-082-2 01 1 0308-1005 ● ●
1 HARNESS; CAB
4JB1 ENG(RLF) 		8-97309-082-2 01 1 1006- ●
1 HARNESS; CAB
4JB1 ENG(RLF) EXC. FACE LIFT MODEL<TX7> 		8-97309-082-2 01 1 1006- ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9704-0209 ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0210- ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9704-0209 ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0210- ● ●
4 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 9704-0209 ●
4 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 0210-0307 ● ●
4 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0308-1111 ● ●
4 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) 		8-97214-415-0 01 1 1112- ● ●
4 BOX ASM; FUSE,HARNESS
4JB1-TC ENG(RDT) 		8-97187-921-1 01 1 1112- ●
5 FUSE; FACIA HARNESS
(A) 10A RED 		5-82516-002-0 AR 1 9704-0209 ●
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) (A) 10A RED 		5-82516-002-0 AR 1 0210- ● ●
5 FUSE; FACIA HARNESS
(A) 15A BLUE 		5-82516-003-0 AR 1 9704-0210 ●
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) (A) 15A BLUE 		5-82516-003-0 AR 1 0210- ● ●
5 FUSE; FACIA HARNESS
(A) 25A CLEAR 		5-82516-005-0 AR 1 9704-0210 ●
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) (A) 25A CLEAR 		5-82516-005-0 AR 1 0210- ● ●
5 FUSE; FACIA HARNESS
4JB1-TC ENG(RDT) (A) 10A MINI RED 		8-97062-022-0 AR 1 1112- ●
5 FUSE; FACIA HARNESS
4JB1-TC ENG(RDT) (A) 15A MINI BLUE 		8-97062-023-0 AR 1 1112- ●
5 FUSE; FACIA HARNESS
4JB1-TC ENG(RDT) (B) 30A PINK 		8-97183-643-0 AR 1 1112- ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9704-0209 ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0210-0604 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701- ● ●
29 COVER; FUSE BOX 8-97074-955-0 01 1 9704-0209 ●
29 COVER; FUSE BOX 8-97074-955-0 01 1 0210-0307 ● ●
29 COVER; FUSE BOX
4JB1-TC ENG(RDT) 		8-97074-955-0 01 1 1112- ●
36 BOX; RELAY
(A) 		8-97087-638-1 01 1 9704-0209 ●
36 BOX; RELAY
(A) 		8-97087-638-1 01 1 0210-0307 ● ●
36 BOX; RELAY
(A) 		8-97087-640-1 01 1 0308-1111 ● ●
36 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97087-640-1 01 1 1112- ● ●
36 BOX; RELAY
(B) 		8-97087-639-1 01 1 9704-0209 ●
36 BOX; RELAY
(B) 		8-97087-639-1 01 1 0210-1111 ● ●
36 BOX; RELAY
4JB1 ENG(RLF) (B) 		8-97087-639-1 01 1 1112- ● ●
36 BOX; RELAY
4JB1-TC ENG(RDT) (C) 		8-97187-918-1 01 1 1112- ●
41 PULLER; FUSE
4JB1-TC ENG(RDT) 		8-97103-388-0 01 1 1112- ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9704-0209 ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0210-1111 ● ●
41 PULLER; FUSE
4JB1 ENG(RLF) L=25.3 B=11.5 		8-94121-482-0 01 1 1112- ● ●
190 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9704-0209 ●
190 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 0210-0307 ● ●
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9704-0209 ●
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0210- ● ●
453 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 9704-0209 ●
453 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 0210-0307 ● ●
453 PROTECTOR; HARNESS
(D) 		8-97259-730-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
TURBOCHARGER<K51> (B) 		8-97120-589-0 01 1 0210- ●
453 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0210- ●
453 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0308- ● ●
453 PROTECTOR; HARNESS
TURBOCHARGER<K51> (E) 		8-94452-553-0 01 1 0308- ●
453 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0308- ●
453 PROTECTOR; HARNESS
TURBOCHARGER<K51> (F) 		8-97093-668-1 01 1 0308- ●
453 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0308- ●
453 PROTECTOR; HARNESS
(C) 		8-97259-731-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(G) 		8-97262-956-3 01 1 0308- ● ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 9704-0209 ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 0210- ● ●

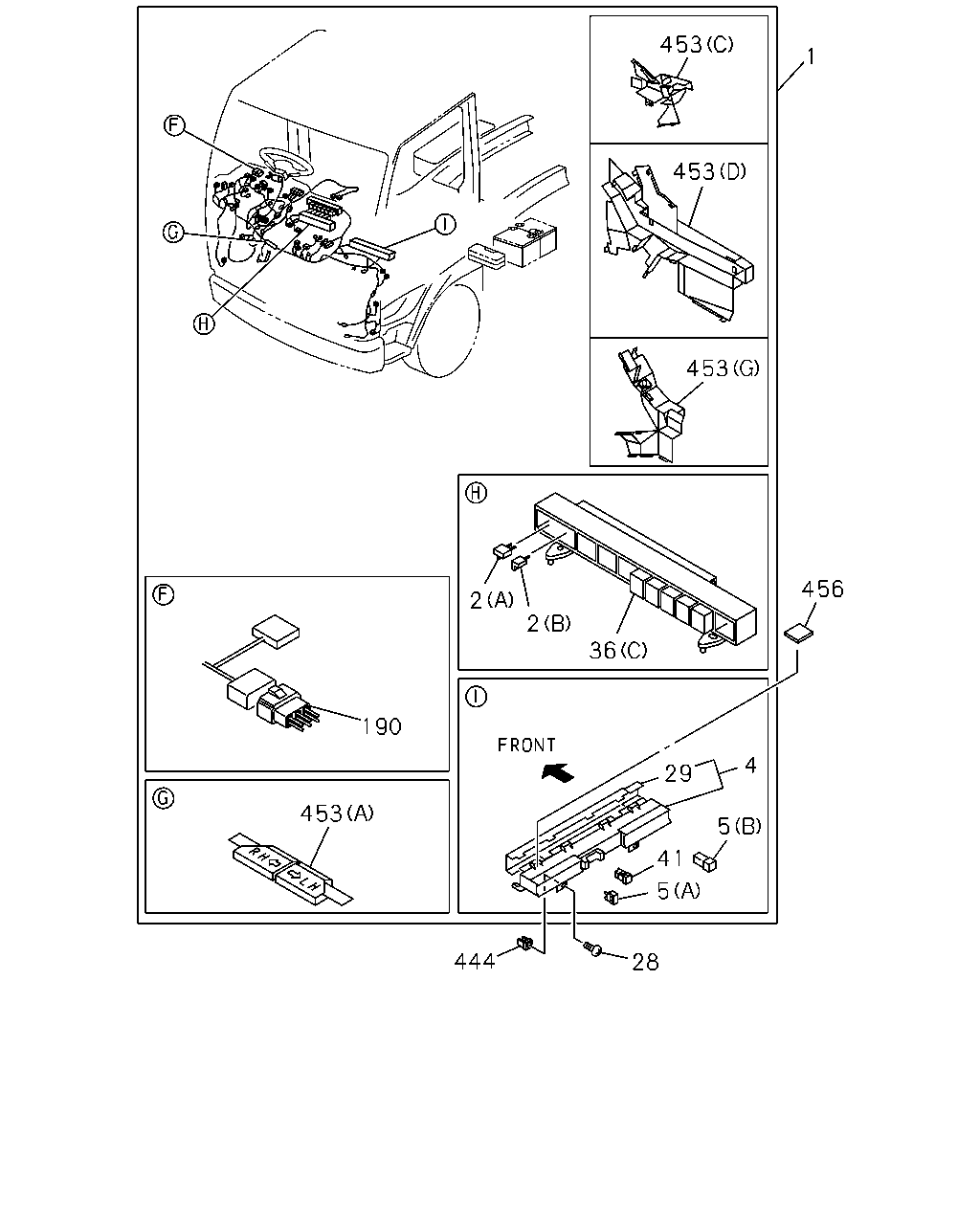

çizim 136424
453 1 453 453 456 2 2 36 190 4 29 453 5 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-98196-402-0 01 1 1112- ●
1 HARNESS; CAB
4JB1 ENG(RLF) FACE LIFT MODEL<TX7> 		8-98158-643-0 01 1 1006- ●
1 HARNESS; CAB 8-97132-917-0 01 1 9704-0209 ●
1 HARNESS; CAB 8-97132-917-0 01 1 0210-0307 ● ●
1 HARNESS; CAB 8-97309-082-2 01 1 0308-1005 ● ●
1 HARNESS; CAB
4JB1 ENG(RLF) 		8-97309-082-2 01 1 1006- ●
1 HARNESS; CAB
4JB1 ENG(RLF) EXC. FACE LIFT MODEL<TX7> 		8-97309-082-2 01 1 1006- ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9704-0209 ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0210- ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9704-0209 ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0210- ● ●
4 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 9704-0209 ●
4 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 0210-0307 ● ●
4 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0308-1111 ● ●
4 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) 		8-97214-415-0 01 1 1112- ● ●
4 BOX ASM; FUSE,HARNESS
4JB1-TC ENG(RDT) 		8-97187-921-1 01 1 1112- ●
5 FUSE; FACIA HARNESS
(A) 10A RED 		5-82516-002-0 AR 1 9704-0209 ●
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) (A) 10A RED 		5-82516-002-0 AR 1 0210- ● ●
5 FUSE; FACIA HARNESS
(A) 15A BLUE 		5-82516-003-0 AR 1 9704-0210 ●
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) (A) 15A BLUE 		5-82516-003-0 AR 1 0210- ● ●
5 FUSE; FACIA HARNESS
(A) 25A CLEAR 		5-82516-005-0 AR 1 9704-0210 ●
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) (A) 25A CLEAR 		5-82516-005-0 AR 1 0210- ● ●
5 FUSE; FACIA HARNESS
4JB1-TC ENG(RDT) (A) 10A MINI RED 		8-97062-022-0 AR 1 1112- ●
5 FUSE; FACIA HARNESS
4JB1-TC ENG(RDT) (A) 15A MINI BLUE 		8-97062-023-0 AR 1 1112- ●
5 FUSE; FACIA HARNESS
4JB1-TC ENG(RDT) (B) 30A PINK 		8-97183-643-0 AR 1 1112- ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9704-0209 ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0210-0604 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701- ● ●
29 COVER; FUSE BOX 8-97074-955-0 01 1 9704-0209 ●
29 COVER; FUSE BOX 8-97074-955-0 01 1 0210-0307 ● ●
29 COVER; FUSE BOX
4JB1-TC ENG(RDT) 		8-97074-955-0 01 1 1112- ●
36 BOX; RELAY
(A) 		8-97087-638-1 01 1 9704-0209 ●
36 BOX; RELAY
(A) 		8-97087-638-1 01 1 0210-0307 ● ●
36 BOX; RELAY
(A) 		8-97087-640-1 01 1 0308-1111 ● ●
36 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97087-640-1 01 1 1112- ● ●
36 BOX; RELAY
(B) 		8-97087-639-1 01 1 9704-0209 ●
36 BOX; RELAY
(B) 		8-97087-639-1 01 1 0210-1111 ● ●
36 BOX; RELAY
4JB1 ENG(RLF) (B) 		8-97087-639-1 01 1 1112- ● ●
36 BOX; RELAY
4JB1-TC ENG(RDT) (C) 		8-97187-918-1 01 1 1112- ●
41 PULLER; FUSE
4JB1-TC ENG(RDT) 		8-97103-388-0 01 1 1112- ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9704-0209 ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0210-1111 ● ●
41 PULLER; FUSE
4JB1 ENG(RLF) L=25.3 B=11.5 		8-94121-482-0 01 1 1112- ● ●
190 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9704-0209 ●
190 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 0210-0307 ● ●
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9704-0209 ●
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0210- ● ●
453 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 9704-0209 ●
453 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 0210-0307 ● ●
453 PROTECTOR; HARNESS
(D) 		8-97259-730-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
TURBOCHARGER<K51> (B) 		8-97120-589-0 01 1 0210- ●
453 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0210- ●
453 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0308- ● ●
453 PROTECTOR; HARNESS
TURBOCHARGER<K51> (E) 		8-94452-553-0 01 1 0308- ●
453 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0308- ●
453 PROTECTOR; HARNESS
TURBOCHARGER<K51> (F) 		8-97093-668-1 01 1 0308- ●
453 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0308- ●
453 PROTECTOR; HARNESS
(C) 		8-97259-731-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(G) 		8-97262-956-3 01 1 0308- ● ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 9704-0209 ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 0210- ● ●

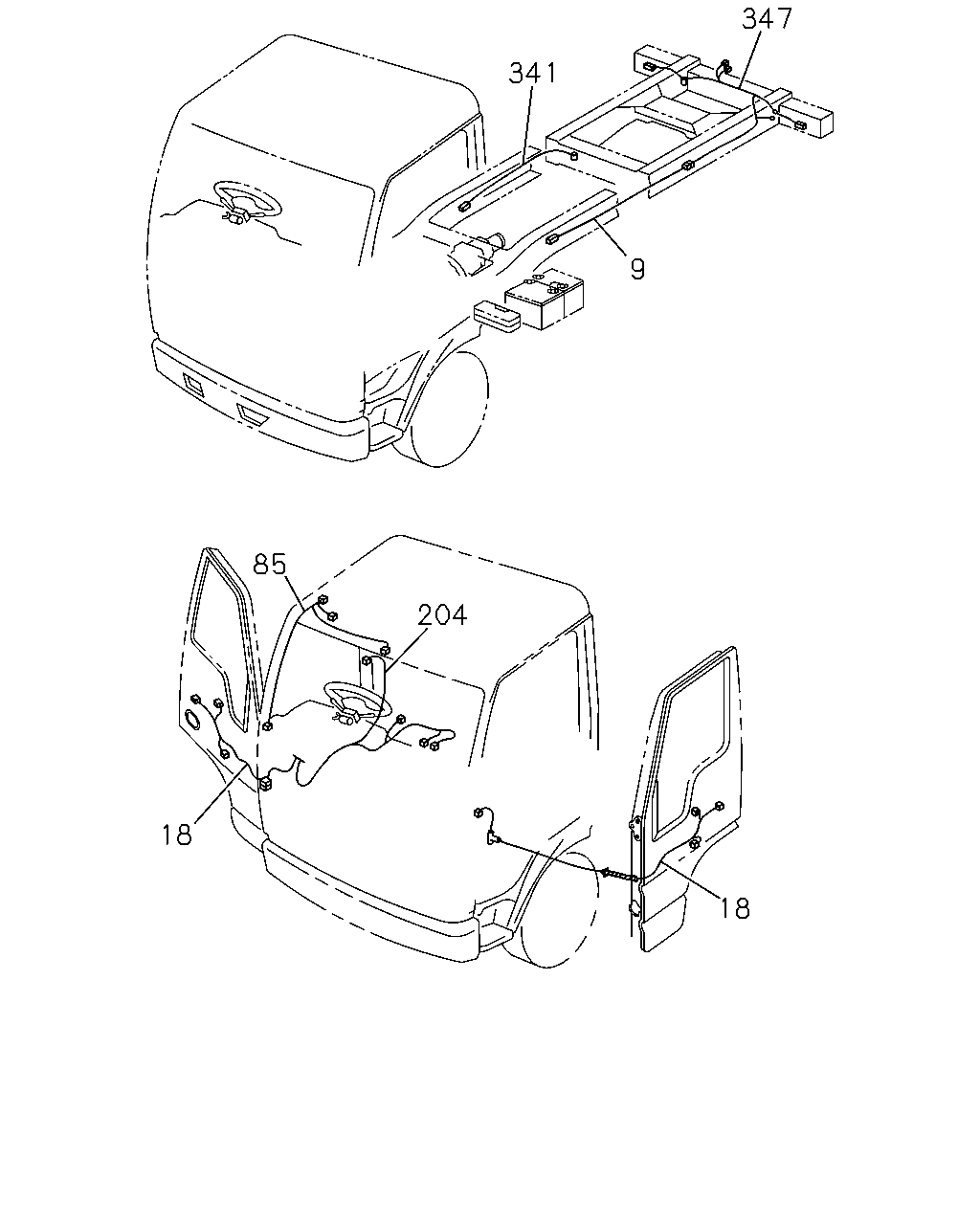

çizim 136679
347 341 9 85 204 18 18
BalonParca AdiParca NoAdetTipApplied Date A B
9 HARNESS; FRAME,RR
4JB1-TC ENG(RDT) 		8-97381-164-1 01 1 1112- ●
9 HARNESS; FRAME,RR 8-97126-401-2 01 1 9704-0307 ●
9 HARNESS; FRAME,RR 8-97126-399-1 01 1 0210-0307 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> 		8-97226-669-0 01 1 1011-1405 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 1406- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97226-671-1 01 1 1011-1405 ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 1011-1405 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 1406- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97226-671-1 01 1 1406- ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 1406- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97105-572-1 01 1 9704-9904 ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97105-572-1 01 1 9704-9904 ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97105-572-1 01 1 9704-9904 ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-0 01 1 9905-0209 ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97226-671-0 01 1 9905-0209 ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97226-671-0 01 1 9905-0209 ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 0210-1009 ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97226-671-1 01 1 0210-1009 ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 0210-1009 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-98166-819-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1011-1405 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97105-571-0 01 1 9704-0209 ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97105-571-0 01 1 9704-0209 ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97105-571-0 01 1 9704-0209 ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97105-571-1 01 1 0210- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97105-571-1 01 1 0210- ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97105-571-1 01 1 0210- ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97100-295-1 01 1 9704-9708 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-144-1 01 1 9709-9904 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 9905-0209 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 0210-1009 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1011-1405 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97100-293-0 01 1 9704-9708 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-142-1 01 1 9709-0209 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-142-1 01 1 0210- ● ●
85 HARNESS; ROOM LAMP 8-97145-825-0 01 1 9704-0209 ●
85 HARNESS; ROOM LAMP 8-97145-825-0 01 1 0210-0307 ● ●
85 HARNESS; ROOM LAMP 8-97164-610-2 01 1 0308-1110 ● ●
85 HARNESS; ROOM LAMP
4JB1 ENG(RLF) 		8-97164-610-2 01 1 1111- ● ●
85 HARNESS; ROOM LAMP
4JB1-TC ENG(RDT) 		8-97364-158-0 01 1 1112- ●
204 HARNESS; CABLE,FLOOR 8-97095-382-2 01 1 9704-0209 ●
204 HARNESS; CABLE,FLOOR 8-97095-382-2 01 1 0210-0307 ● ●
204 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0308-1110 ● ●
204 HARNESS; CABLE,FLOOR
4JB1 ENG(RLF) 		8-97162-629-2 01 1 1111- ● ●
204 HARNESS; CABLE,FLOOR
4JB1-TC ENG(RDT) 		8-97364-140-0 01 1 1112- ●
341 HARNESS; CABLE,MAG VLV
EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0301-1111 ●
341 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 1112- ●
347 HARNESS; CABLE,RR BODY 8-97147-856-2 01 1 9704-0209 ●
347 HARNESS; CABLE,RR BODY 8-97147-856-2 01 1 0210-0307 ● ●
347 HARNESS; CABLE,RR BODY 8-97213-566-0 01 1 0308- ● ●

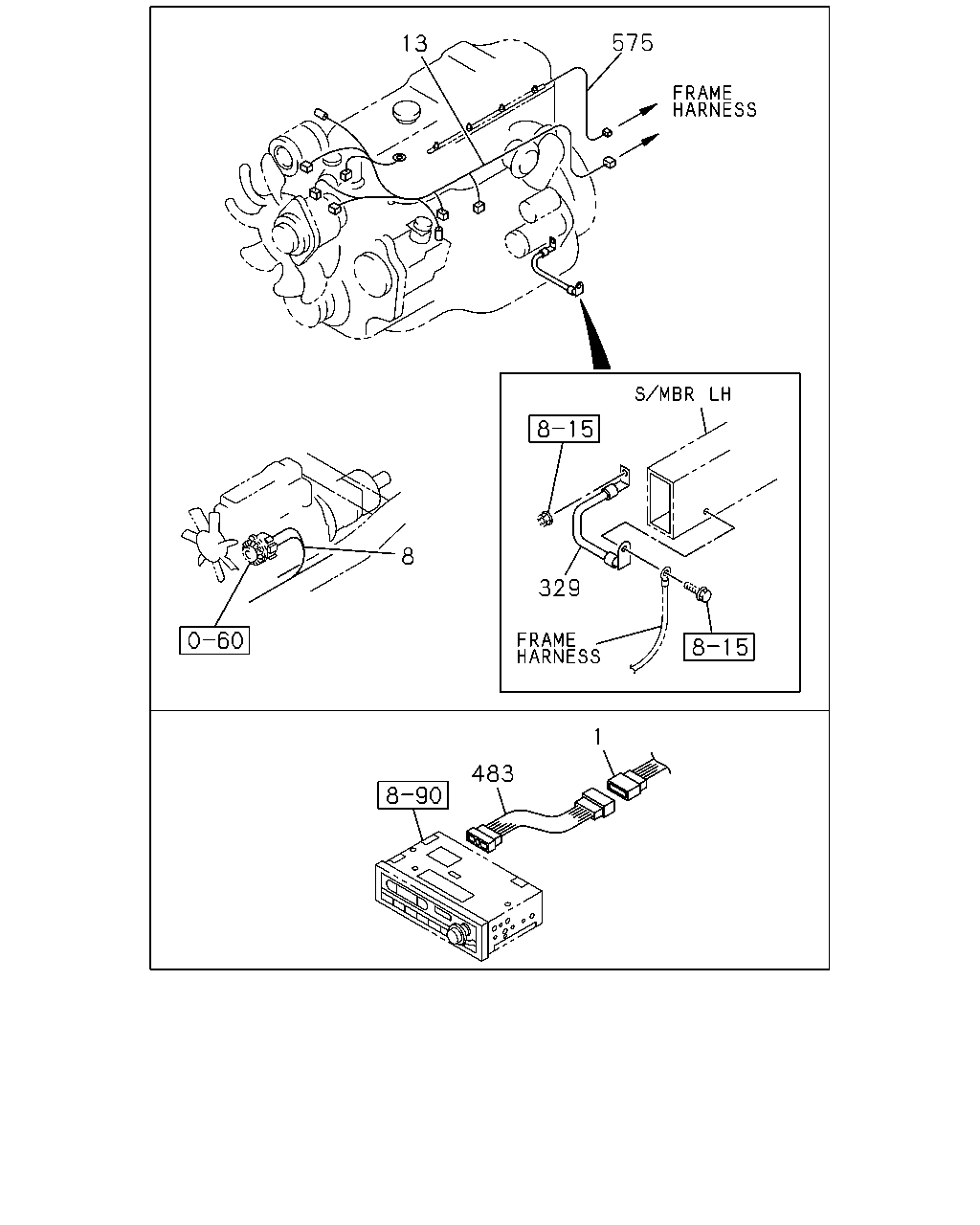

çizim 136725
575 13 8 329 1 483
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-98196-402-0 01 1 1112- ●
1 HARNESS; CAB
4JB1 ENG(RLF) FACE LIFT MODEL<TX7> 		8-98158-643-0 01 1 1006- ●
1 HARNESS; CAB 8-97132-917-0 01 1 9704-0209 ●
1 HARNESS; CAB 8-97132-917-0 01 1 0210-0307 ● ●
1 HARNESS; CAB 8-97309-082-2 01 1 0308-1005 ● ●
1 HARNESS; CAB
4JB1 ENG(RLF) 		8-97309-082-2 01 1 1006- ●
1 HARNESS; CAB
4JB1 ENG(RLF) EXC. FACE LIFT MODEL<TX7> 		8-97309-082-2 01 1 1006- ●
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98005-344-0 01 1 1112- ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) ISUZU BRAND<7WL> 		8-97350-730-1 01 1 1006-1111 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) ISUZU BRAND<7WL> EXC. TURBOCHARGER<K51> 		8-97350-730-1 01 1 1112- ●
8 HARNESS; FRAME,FRT
TURBOCHARGER<K51> 		8-97162-268-0 01 1 9704-0307 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97368-799-0 01 1 0308-1005 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97368-799-0 01 1 1006-1111 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97368-799-0 01 1 1112- ● ●
8 HARNESS; FRAME,FRT 8-97131-762-0 01 1 0210-0307 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97368-798-0 01 1 0308-1005 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. ISUZU BRAND<7WL> 		8-97368-798-0 01 1 1006-1111 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,ISUZU BRAND<7WL> 		8-97368-798-0 01 1 1112- ●
13 HARNESS; ENG
4JB1-TC ENG(RDT) 		8-97218-750-1 01 1 1112- ●
13 HARNESS; ENG
EXC. GENERATOR DENSO(7KH) 		8-97173-694-2 01 1 1006-1111 ●
13 HARNESS; ENG
4JB1 ENG(RLF) ISUZU BRAND<7WL> EXC. TURBOCHARGER<K51>,GENERATOR DENSO(7KH) 		8-97173-694-2 01 1 1112- ●
13 HARNESS; ENG
TURBOCHARGER<K51> 		8-97121-895-0 01 1 9704-9707 ●
13 HARNESS; ENG
TURBOCHARGER<K51> 		8-97184-155-0 01 1 9708-0209 ●
13 HARNESS; ENG
TURBOCHARGER<K51> 		8-97184-155-0 01 1 0210-0307 ●
13 HARNESS; ENG 8-97184-155-0 01 1 0210-0307 ●
13 HARNESS; ENG 8-97184-155-1 01 1 0308- ● ●
329 CABLE; ENG TO FRAME 8-94375-342-2 01 1 9704-0209 ●
329 CABLE; ENG TO FRAME 8-94375-342-2 01 1 0210-0307 ● ●
329 CABLE; ENG TO FRAME 8-97260-486-1 01 1 0308- ● ●
483 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97372-297-0 01 1 0308-0310 ● ●
483 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97373-419-0 01 1 0311- ● ●
575 HARNESS; GLOW PLUG
4JB1-TC ENG(RDT) 		8-97212-328-0 01 1 1112- ●

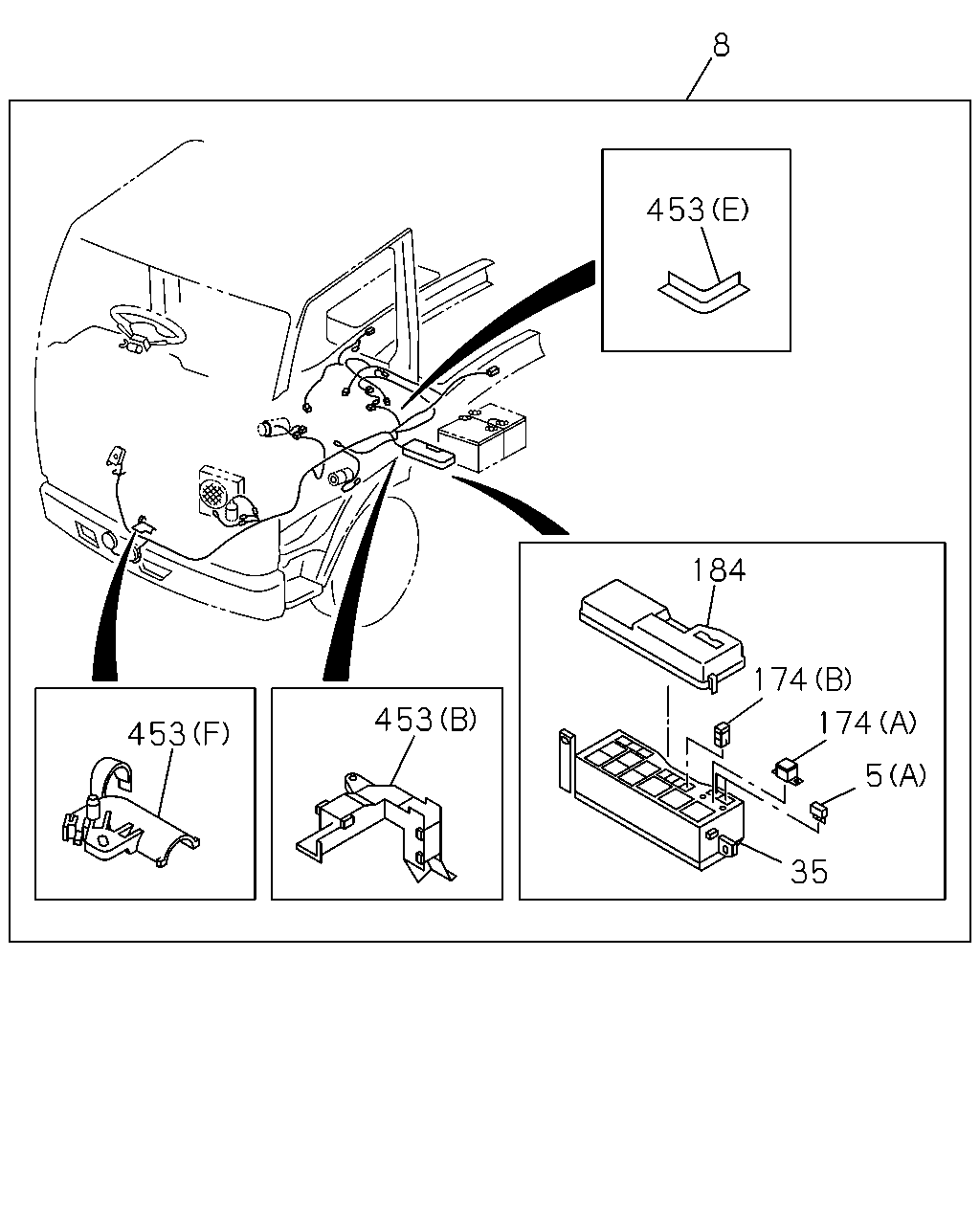

çizim 137247
8 453 184 174 453 174 453 5 35
BalonParca AdiParca NoAdetTipApplied Date A B
5 FUSE; FACIA HARNESS
(A) 10A RED 		5-82516-002-0 AR 1 9704-0209 ●
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) (A) 10A RED 		5-82516-002-0 AR 1 0210- ● ●
5 FUSE; FACIA HARNESS
(A) 15A BLUE 		5-82516-003-0 AR 1 9704-0210 ●
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) (A) 15A BLUE 		5-82516-003-0 AR 1 0210- ● ●
5 FUSE; FACIA HARNESS
(A) 25A CLEAR 		5-82516-005-0 AR 1 9704-0210 ●
5 FUSE; FACIA HARNESS
4JB1 ENG(RLF) (A) 25A CLEAR 		5-82516-005-0 AR 1 0210- ● ●
5 FUSE; FACIA HARNESS
4JB1-TC ENG(RDT) (A) 10A MINI RED 		8-97062-022-0 AR 1 1112- ●
5 FUSE; FACIA HARNESS
4JB1-TC ENG(RDT) (A) 15A MINI BLUE 		8-97062-023-0 AR 1 1112- ●
5 FUSE; FACIA HARNESS
4JB1-TC ENG(RDT) (B) 30A PINK 		8-97183-643-0 AR 1 1112- ●
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98005-344-0 01 1 1112- ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) ISUZU BRAND<7WL> 		8-97350-730-1 01 1 1006-1111 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) ISUZU BRAND<7WL> EXC. TURBOCHARGER<K51> 		8-97350-730-1 01 1 1112- ●
8 HARNESS; FRAME,FRT
TURBOCHARGER<K51> 		8-97162-268-0 01 1 9704-0307 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97368-799-0 01 1 0308-1005 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97368-799-0 01 1 1006-1111 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97368-799-0 01 1 1112- ● ●
8 HARNESS; FRAME,FRT 8-97131-762-0 01 1 0210-0307 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97368-798-0 01 1 0308-1005 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. ISUZU BRAND<7WL> 		8-97368-798-0 01 1 1006-1111 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,ISUZU BRAND<7WL> 		8-97368-798-0 01 1 1112- ●
35 BOX; RELAY & FUSE
TURBOCHARGER<K51> 		8-97063-150-1 01 1 9704-0209 ●
35 BOX; RELAY & FUSE
TURBOCHARGER<K51> 		8-97063-150-1 01 1 0210-1111 ●
35 BOX; RELAY & FUSE 8-97063-150-1 01 1 0210-1111 ●
35 BOX; RELAY & FUSE
TURBOCHARGER<K51> 		8-97063-150-1 01 1 1112- ●
35 BOX; RELAY & FUSE
4JB1 ENG(RLF) 		8-97063-150-1 01 1 1112- ●
35 BOX; RELAY & FUSE
4JB1-TC ENG(RDT) 		8-97377-739-0 01 1 1112- ●
174 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-0 AR 1 9704-0209 ●
174 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-1 AR 1 0210-1111 ● ●
174 FUSE; SLOW BLOW
4JB1 ENG(RLF) (A) 80A BLACK 		8-94388-305-1 AR 1 1112- ● ●
174 FUSE; SLOW BLOW
(B) 50A RED 		8-94468-663-0 AR 1 9704-0209 ●
174 FUSE; SLOW BLOW
(B) 50A RED 		8-94468-663-0 AR 1 0210-1111 ● ●
174 FUSE; SLOW BLOW
4JB1 ENG(RLF) (B) 50A RED 		8-94468-663-0 AR 1 1112- ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-94468-664-0 AR 1 9704-0209 ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-94468-664-0 AR 1 0210-1111 ● ●
174 FUSE; SLOW BLOW
4JB1 ENG(RLF) (B) 60A YELLOW 		8-94468-664-0 AR 1 1112- ● ●
174 FUSE; SLOW BLOW
4JB1-TC ENG(RDT) (A) 100A BLUE 		8-94388-306-0 AR 1 1112- ●
174 FUSE; SLOW BLOW
4JB1-TC ENG(RDT) (B) 30A PINK 		8-97183-643-0 AR 1 1112- ●
174 FUSE; SLOW BLOW
4JB1-TC ENG(RDT) (B) 50A RED 		8-97183-645-0 AR 1 1112- ●
174 FUSE; SLOW BLOW
4JB1-TC ENG(RDT) (B) 60A YELLOW 		8-97219-407-0 AR 1 1112- ●
184 COVER; RELAY & FUSE BOX
TURBOCHARGER<K51> 		8-97063-152-1 01 1 9704-0209 ●
184 COVER; RELAY & FUSE BOX
TURBOCHARGER<K51> 		8-97063-152-1 01 1 0210-1111 ●
184 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0210-1111 ●
184 COVER; RELAY & FUSE BOX
TURBOCHARGER<K51> 		8-97063-152-1 01 1 1112- ●
184 COVER; RELAY & FUSE BOX
4JB1 ENG(RLF) 		8-97063-152-1 01 1 1112- ●
184 COVER; RELAY & FUSE BOX
4JB1-TC ENG(RDT) 		8-97377-741-0 01 1 1112- ●
453 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 9704-0209 ●
453 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 0210-0307 ● ●
453 PROTECTOR; HARNESS
(D) 		8-97259-730-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
TURBOCHARGER<K51> (B) 		8-97120-589-0 01 1 0210- ●
453 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0210- ●
453 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0308- ● ●
453 PROTECTOR; HARNESS
TURBOCHARGER<K51> (E) 		8-94452-553-0 01 1 0308- ●
453 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0308- ●
453 PROTECTOR; HARNESS
TURBOCHARGER<K51> (F) 		8-97093-668-1 01 1 0308- ●
453 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0308- ●
453 PROTECTOR; HARNESS
(C) 		8-97259-731-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(G) 		8-97262-956-3 01 1 0308- ● ●
çizim 190647
8 184 174 174 35
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98005-344-0 01 1 1112- ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) ISUZU BRAND<7WL> 		8-97350-730-1 01 1 1006-1111 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) ISUZU BRAND<7WL> EXC. TURBOCHARGER<K51> 		8-97350-730-1 01 1 1112- ●
8 HARNESS; FRAME,FRT
TURBOCHARGER<K51> 		8-97162-268-0 01 1 9704-0307 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97368-799-0 01 1 0308-1005 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97368-799-0 01 1 1006-1111 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97368-799-0 01 1 1112- ● ●
8 HARNESS; FRAME,FRT 8-97131-762-0 01 1 0210-0307 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97368-798-0 01 1 0308-1005 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. ISUZU BRAND<7WL> 		8-97368-798-0 01 1 1006-1111 ●
8 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,ISUZU BRAND<7WL> 		8-97368-798-0 01 1 1112- ●
35 BOX; RELAY & FUSE
TURBOCHARGER<K51> 		8-97063-150-1 01 1 9704-0209 ●
35 BOX; RELAY & FUSE
TURBOCHARGER<K51> 		8-97063-150-1 01 1 0210-1111 ●
35 BOX; RELAY & FUSE 8-97063-150-1 01 1 0210-1111 ●
35 BOX; RELAY & FUSE
TURBOCHARGER<K51> 		8-97063-150-1 01 1 1112- ●
35 BOX; RELAY & FUSE
4JB1 ENG(RLF) 		8-97063-150-1 01 1 1112- ●
35 BOX; RELAY & FUSE
4JB1-TC ENG(RDT) 		8-97377-739-0 01 1 1112- ●
174 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-0 AR 1 9704-0209 ●
174 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-1 AR 1 0210-1111 ● ●
174 FUSE; SLOW BLOW
4JB1 ENG(RLF) (A) 80A BLACK 		8-94388-305-1 AR 1 1112- ● ●
174 FUSE; SLOW BLOW
(B) 50A RED 		8-94468-663-0 AR 1 9704-0209 ●
174 FUSE; SLOW BLOW
(B) 50A RED 		8-94468-663-0 AR 1 0210-1111 ● ●
174 FUSE; SLOW BLOW
4JB1 ENG(RLF) (B) 50A RED 		8-94468-663-0 AR 1 1112- ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-94468-664-0 AR 1 9704-0209 ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-94468-664-0 AR 1 0210-1111 ● ●
174 FUSE; SLOW BLOW
4JB1 ENG(RLF) (B) 60A YELLOW 		8-94468-664-0 AR 1 1112- ● ●
174 FUSE; SLOW BLOW
4JB1-TC ENG(RDT) (A) 100A BLUE 		8-94388-306-0 AR 1 1112- ●
174 FUSE; SLOW BLOW
4JB1-TC ENG(RDT) (B) 30A PINK 		8-97183-643-0 AR 1 1112- ●
174 FUSE; SLOW BLOW
4JB1-TC ENG(RDT) (B) 50A RED 		8-97183-645-0 AR 1 1112- ●
174 FUSE; SLOW BLOW
4JB1-TC ENG(RDT) (B) 60A YELLOW 		8-97219-407-0 AR 1 1112- ●
184 COVER; RELAY & FUSE BOX
TURBOCHARGER<K51> 		8-97063-152-1 01 1 9704-0209 ●
184 COVER; RELAY & FUSE BOX
TURBOCHARGER<K51> 		8-97063-152-1 01 1 0210-1111 ●
184 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0210-1111 ●
184 COVER; RELAY & FUSE BOX
TURBOCHARGER<K51> 		8-97063-152-1 01 1 1112- ●
184 COVER; RELAY & FUSE BOX
4JB1 ENG(RLF) 		8-97063-152-1 01 1 1112- ●
184 COVER; RELAY & FUSE BOX
4JB1-TC ENG(RDT) 		8-97377-741-0 01 1 1112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
