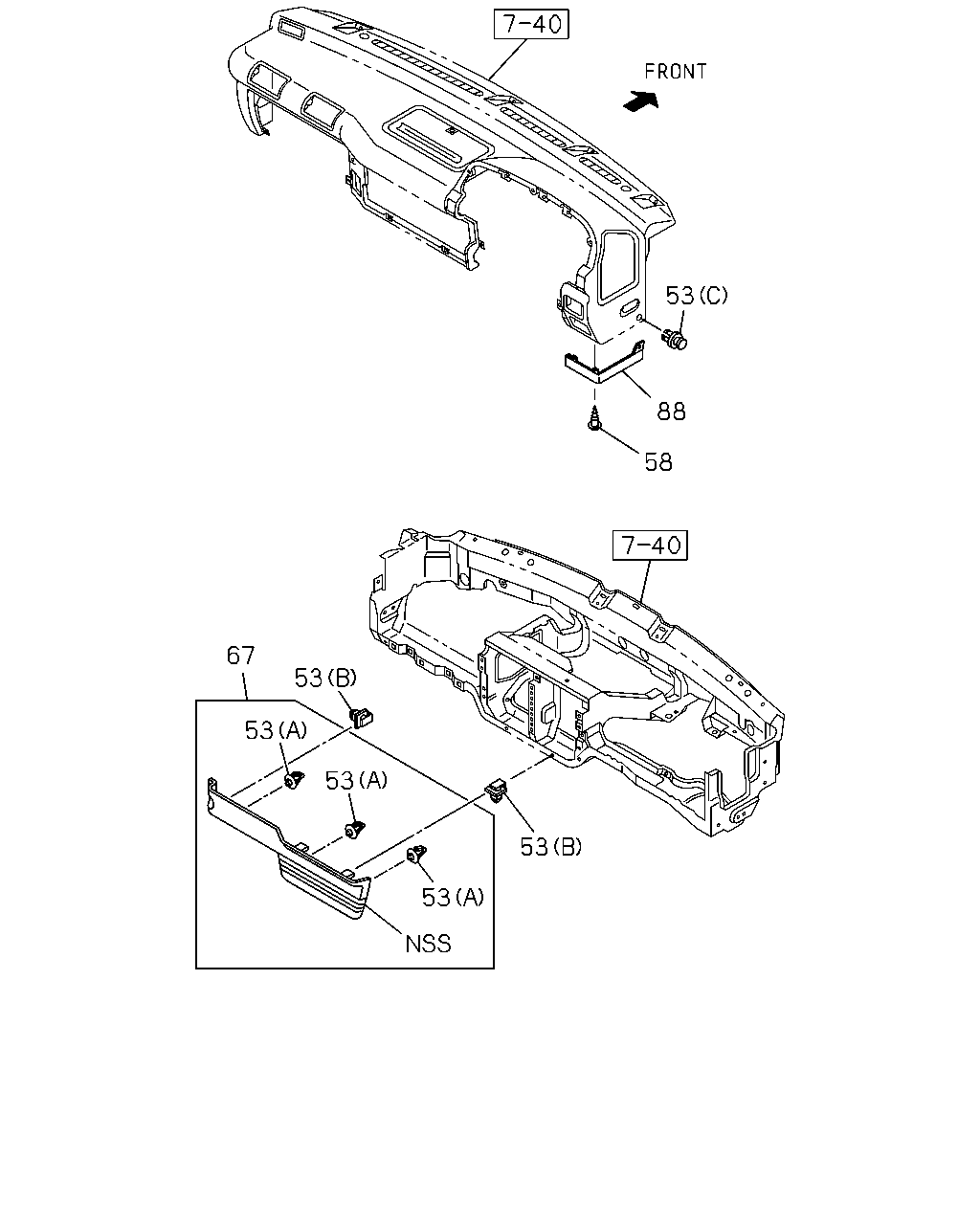

7-41 — UNDER COVER; INSTRUMENT (#72619) — 15 parça

53 88 58 67 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	CLIP; UNDER COVER (A)	8-97853-169-0	03	1	9704-0209	●
53	CLIP; UNDER COVER (A)	8-97853-169-0	03	1	0210-	●	●
53	CLIP; UNDER COVER (B)	8-97853-249-5	03	1	9704-0209	●
53	CLIP; UNDER COVER (B)	8-97853-249-5	03	1	0210-	●	●
53	CLIP; UNDER COVER (C) DARK BEIGE	8-97856-011-0	01	1	9704-0209	●
53	CLIP; UNDER COVER (C) DARK BEIGE	8-97856-011-0	01	1	0210-0307	●	●
53	CLIP; UNDER COVER (C) DARK GRAY	8-97857-542-0	01	1	0308-0603	●	●
53	CLIP; UNDER COVER (C) DARK GRAY	8-97582-246-0	01	1	0604-	●	●
58	SCREW; UNDER COVER M5X14	8-94279-325-0	02	1	9704-0209	●
58	SCREW; UNDER COVER M5X14	8-94279-325-0	02	1	0210-	●	●
67	COVER; UNDER,INST PNL	8-97856-660-3	01	1	9704-0209	●
67	COVER; UNDER,INST PNL	8-97856-660-4	01	1	0210-	●	●
88	COVER; UNDER,INST PNL SIDE DARK BEIGE	8-97853-888-2	01	1	9704-0209	●
88	COVER; UNDER,INST PNL SIDE DARK BEIGE	8-97853-888-2	01	1	0210-0307	●	●
88	COVER; UNDER,INST PNL SIDE DARK GRAY	8-97859-801-2	01	1	0308-	●	●
