6-75 — MAT AND CARPET (#72607) — 22 parça

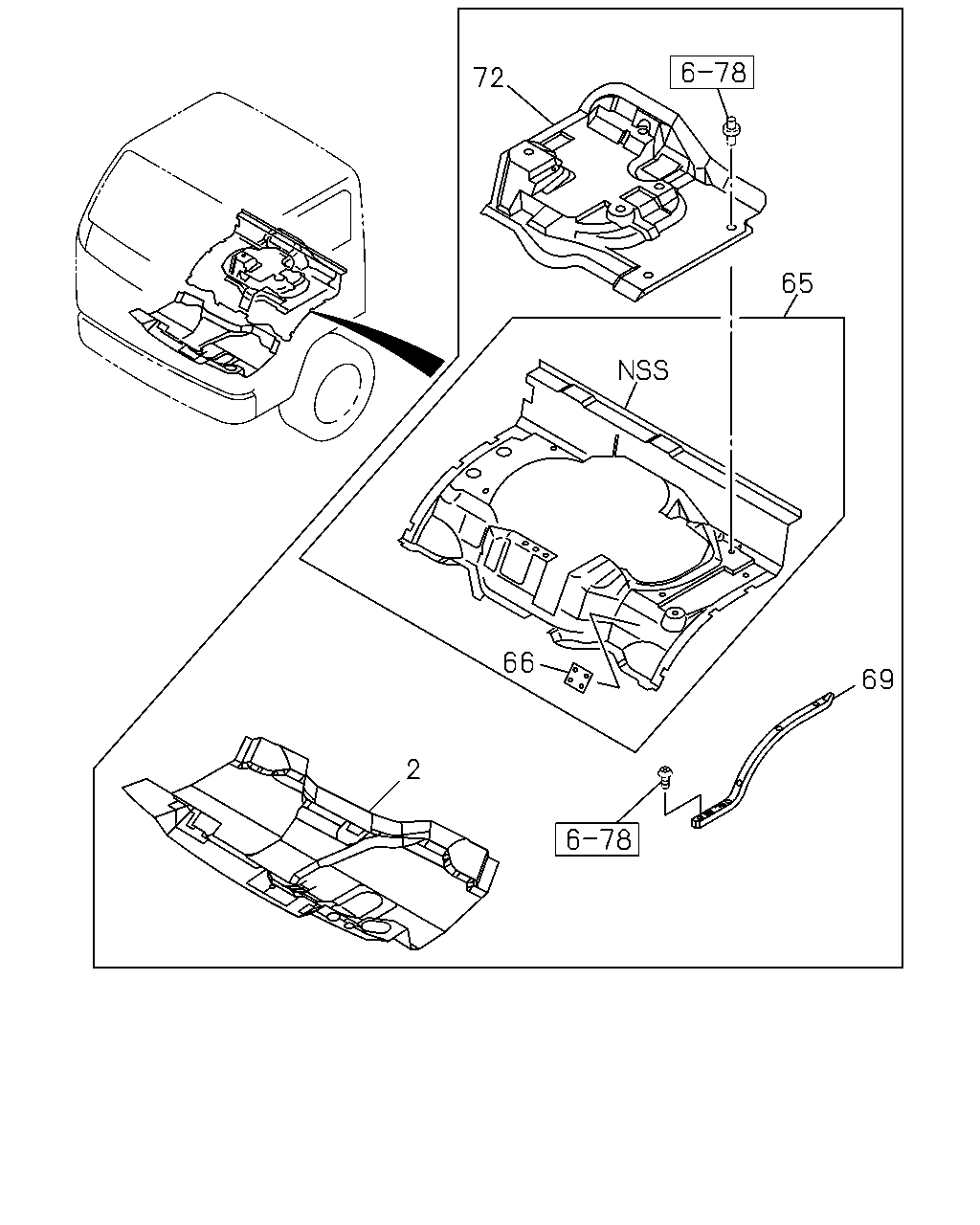

72 65 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR DARK BEIGE	8-97097-154-4	01	1	9704-0203	●
2	MAT; FLOOR DARK BEIGE	8-97996-641-1	01	1	0204-0209	●
2	MAT; FLOOR DARK BEIGE	8-97996-641-1	01	1	0210-0307	●	●
2	MAT; FLOOR DARK GRAY	8-97996-642-4	01	1	0308-	●	●
65	MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97855-270-1	01	1	9704-0203	●
65	MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97996-693-0	01	1	0204-0209	●
65	MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97996-693-0	01	1	0210-0307	●	●
65	MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-694-1	01	1	0308-	●	●
66	HOOK; COVER DARK BEIGE	8-97857-192-0	02	1	9704-0203	●
66	HOOK; COVER DARK BEIGE	8-97997-581-0	02	1	0204-0209	●
66	HOOK; COVER DARK BEIGE	8-97997-581-0	02	1	0210-0307	●	●
66	HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0308-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-958-0	01	1	9704-0209	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-958-0	01	1	0210-0307	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-1	01	1	0308-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-957-0	01	1	9704-0209	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-957-0	01	1	0210-0307	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-1	01	1	0308-	●	●
72	MAT; SILENCER,ENG COVER DARK BEIGE	8-97859-933-0	01	1	9704-0203	●
72	MAT; SILENCER,ENG COVER DARK BEIGE	8-97996-714-0	01	1	0204-0209	●
72	MAT; SILENCER,ENG COVER DARK BEIGE	8-97996-714-0	01	1	0210-0307	●	●
72	MAT; SILENCER,ENG COVER DARK GRAY	8-97996-720-1	01	1	0308-	●	●
