◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50784 - NKR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#72603) — 12 parça

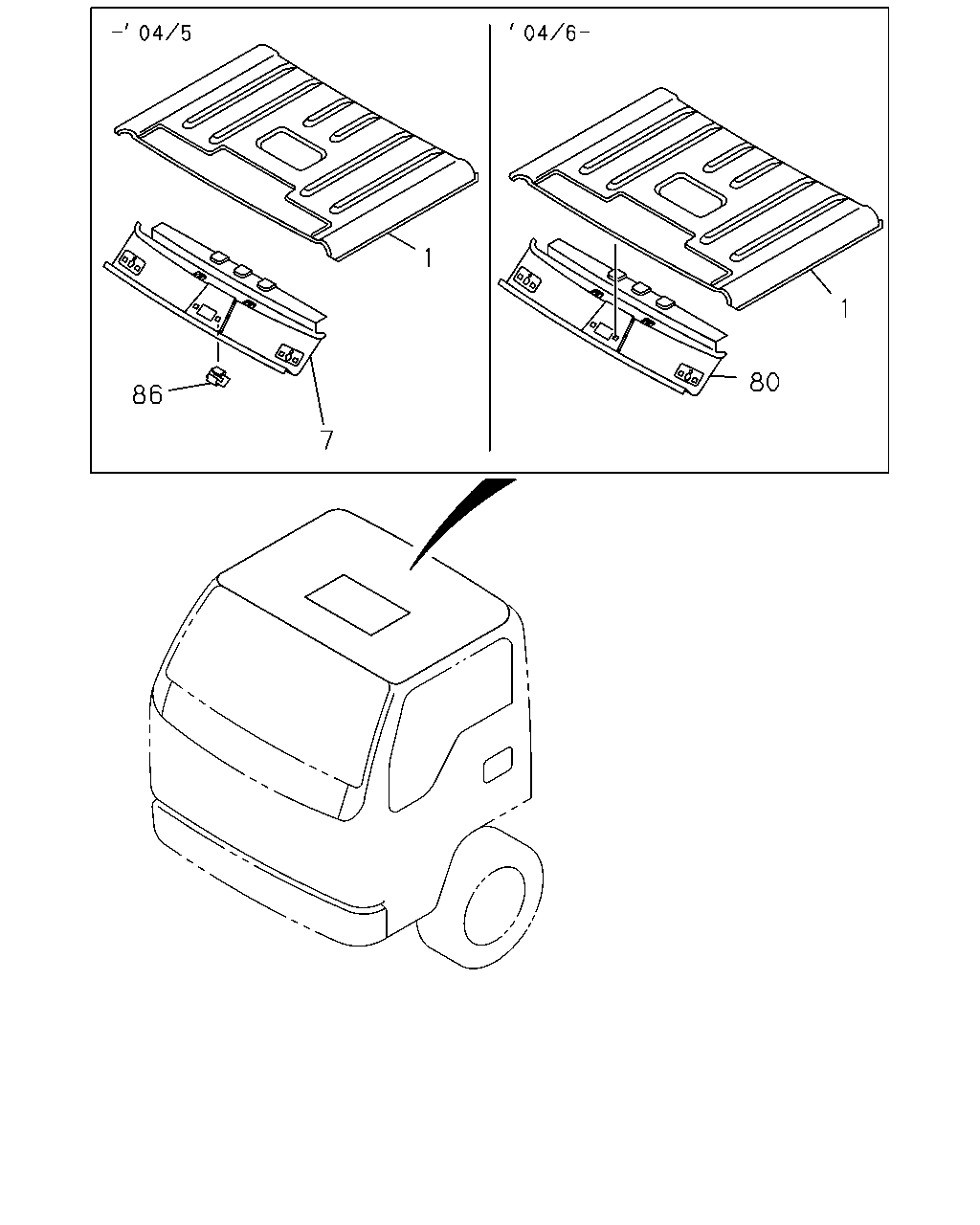

çizim 190638
1 1 80 86 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-109-1 01 1 9704-0209 ●
1 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-109-2 01 1 0210- ● ●
1 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-369-0 01 1 9704-0209 ●
1 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-369-1 01 1 0210- ● ●
1 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-450-0 01 1 9704-0209 ●
1 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-450-1 01 1 0210- ● ●
7 PANEL; FRT WINDSHIELD UPR 8-97859-530-0 01 1 9704-9810 ●
7 PANEL; FRT WINDSHIELD UPR 8-97892-141-1 01 1 9811-0209 ●
7 PANEL; FRT WINDSHIELD UPR 8-97892-141-1 01 1 0210-0405 ● ●
80 PANEL; HEADER,ROOF 8-97583-505-0 01 1 0406- ● ●
86 NUT; ROOF
M5 		8-94279-075-1 01 1 9704-0209 ●
86 NUT; ROOF
M5 		8-94279-075-1 01 1 0210-0405 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
