Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10806 - EXZ RHD FUEL TANK 400L
▶
3 - Brakes, Brake System
▶
3-83 - FIXING PARTS; TRAILER PIPING
▶

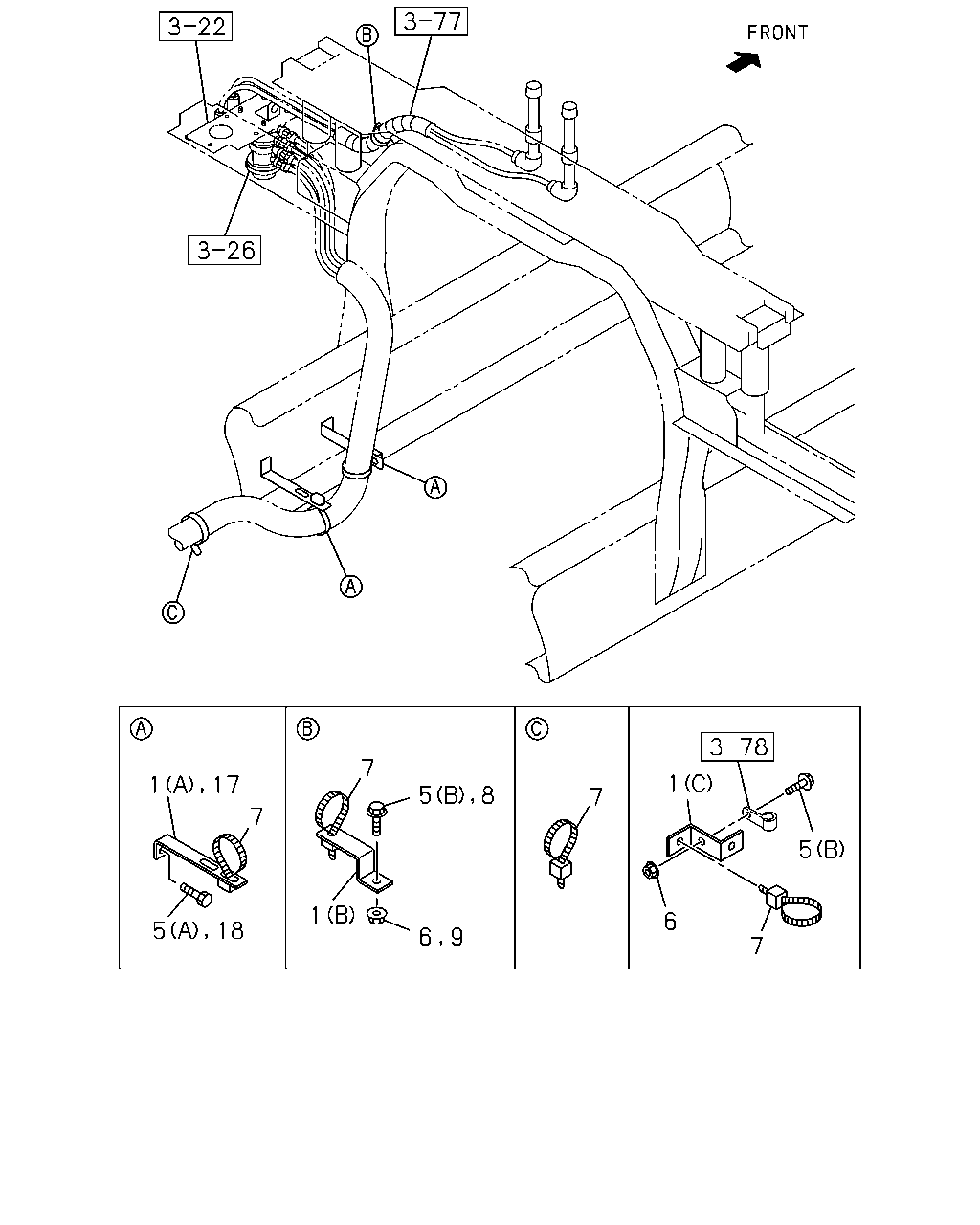

3-83 — FIXING PARTS; TRAILER PIPING
(#7260) — 22 parça
7
1
17
1
7
7
5
1
6
5
18
7
5
8
6
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CLIP
(A) L=100 H=30
1-47477-645-2
02
1
9906-0001
1
BRACKET; CLIP
(B)
1-47477-908-1
01
1
9906-
1
BRACKET; CLIP
BRAKE REGULATION ECE<TDV> (A) L=150 H=30
1-47477-629-2
01
1
0001-0007
1
BRACKET; CLIP
WHEEL BASE 4700MM(47W) SILENCER SINGLE VERTICAL<N28> (A) L=150 H=30
1-47477-629-2
01
1
0008-
1
BRACKET; CLIP
WHEEL BASE 4700MM(47W) (C)
1-47478-462-0
02
1
0008-
5
BOLT; BRKT
(B) M8X25 FLANGE
0-28680-825-0
01
1
9906-
5
BOLT; BRKT
(A) M8X30 FLANGE
0-28680-830-0
02
1
9906-0001
5
BOLT; BRKT
BRAKE REGULATION ECE<TDV> (A) M8X30 FLANGE
0-28680-830-0
03
1
0001-0007
5
BOLT; BRKT
WHEEL BASE 4700MM(47W) SILENCER SINGLE VERTICAL<N28> (A) M8X30 FLANGE
0-28680-830-0
01
1
0008-
5
BOLT; BRKT
WHEEL BASE 4700MM(47W) (B) M8X25 FLANGE
0-28680-825-0
02
1
0008-
6
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
9906-0007
6
NUT; BRKT
WHEEL BASE 4700MM(47W) SILENCER SINGLE VERTICAL<N28> M8 FLANGE
0-91150-108-0
01
1
0008-
6
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0008-
6
NUT; BRKT
BRAKE REGULATION ECE<TDV> M8 FLANGE
0-91150-108-0
03
1
0001-0007
6
NUT; BRKT
WHEEL BASE 4700MM(47W) M8 FLANGE
0-91150-108-0
02
1
0008-
7
CLIP; NYLON TUBE
L=250
1-09707-126-0
05
1
9906-
8
BOLT; TUBE CLIP
BRAKE REGULATION ECE<TDV> M8X30 FLANGE
0-28680-830-0
01
1
0001-
9
NUT; TUBE CLIP
BRAKE REGULATION ECE<TDV> M8 FLANGE
0-91150-108-0
01
1
0001-
17
BRACKET; CLIP
L=100 H=30
1-47477-645-2
02
1
0002-0007
17
BRACKET; CLIP
WHEEL BASE 4500MM(45W) L=100 H=30
1-47477-645-2
02
1
0008-
18
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
02
1
0002-0007
18
BOLT; BRKT
WHEEL BASE 4500MM(45W) M8X30 FLANGE
0-28680-830-0
02
1
0008-
