◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-80 - BRAKE PIPING; TRAILER ▶
3-80 — BRAKE PIPING; TRAILER (#7259) — 62 parça

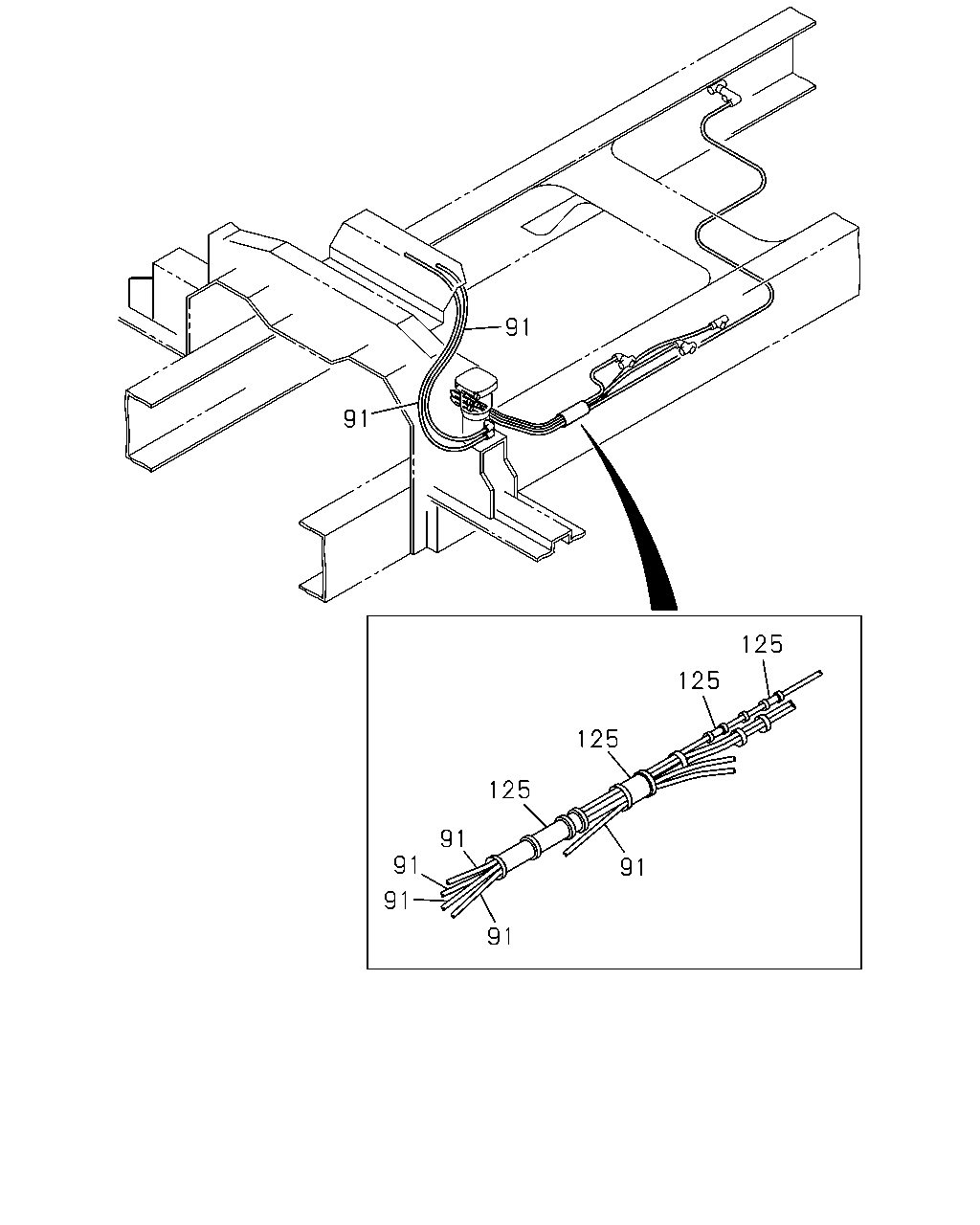

çizim 8188
91 91 125 125 125 125 91 91 91 91 91
BalonParca AdiParca NoAdetTipApplied Date
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9906-0007
91 TUBE; NYLON
WHEEL BASE 4500MM(45W) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0008-
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9906-
91 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9906-
91 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9906-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9906-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9906-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 9906-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9906-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9906-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9906-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0004-

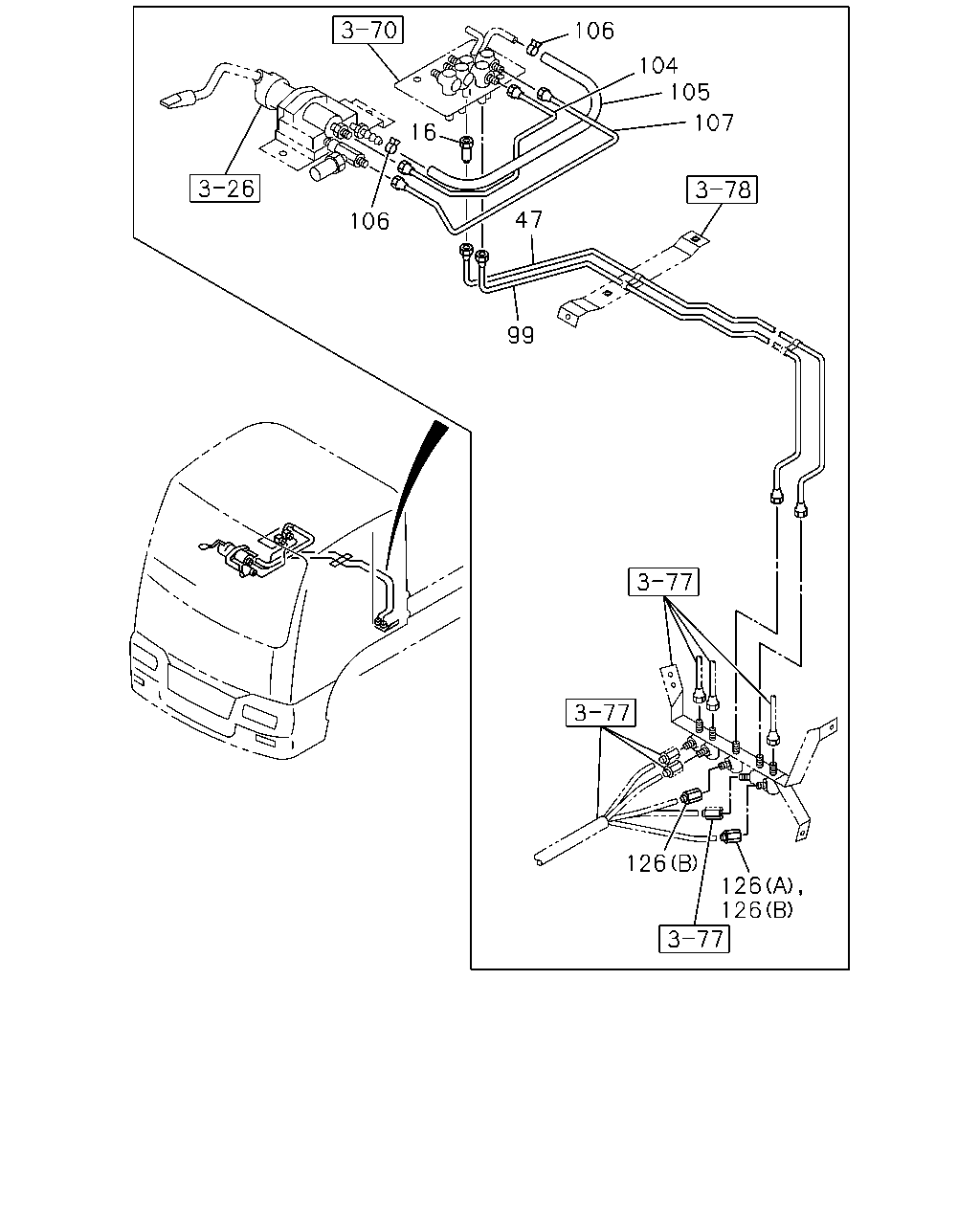

çizim 43047
106 104 105 107 16 47 106 99 126 126 126
BalonParca AdiParca NoAdetTipApplied Date
16 UNION; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-09654-258-1 01 1 9906-
47 PIPE; AIR,UNION TO UNION
L=1936 		1-49121-473-0 01 1 9906-0003
47 PIPE; AIR,UNION TO UNION
PARKING BRAKE VALVE LEVER TYPE<W48> L=1936 		1-49121-473-0 01 1 0004-
99 PIPE; AIR,JOINT TO JOINT
PARKING BRAKE VALVE LEVER TYPE<W48> L=1551 		1-49121-054-0 01 1 9906-0003
99 PIPE; AIR,JOINT TO JOINT
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> L=1551 		1-49121-054-0 01 1 0004-
104 PIPE; AIR,JOINT TO PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-295-0 01 1 9906-0003
104 PIPE; AIR,JOINT TO PARKING BRK VLV
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-295-0 01 1 0004-
104 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-47495-159-0 01 1 9906-
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 9906-0003
105 PIPE; VINYL,EXH,PARKING BRK VLV
TRAILER BRAKE CONTROL<J91> L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0004-
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 9906-0003
106 CLIP; PIPE
TRAILER BRAKE CONTROL<J91> ID=14 		8-94238-572-0 02 1 0004-
107 PIPE; AIR,JOINT TO PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-296-0 01 1 9906-0003
107 PIPE; AIR,JOINT TO PARKING BRK VLV
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-296-0 01 1 0004-
107 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-47495-160-0 01 1 9906-
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9906-9911
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 9912-9912
126 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9906-9911
126 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9912-9912
126 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09661-096-0 02 1 0001-0003
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 0004-0007
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008-
126 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9906-
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> (B) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 0004-0007
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> (B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0008-

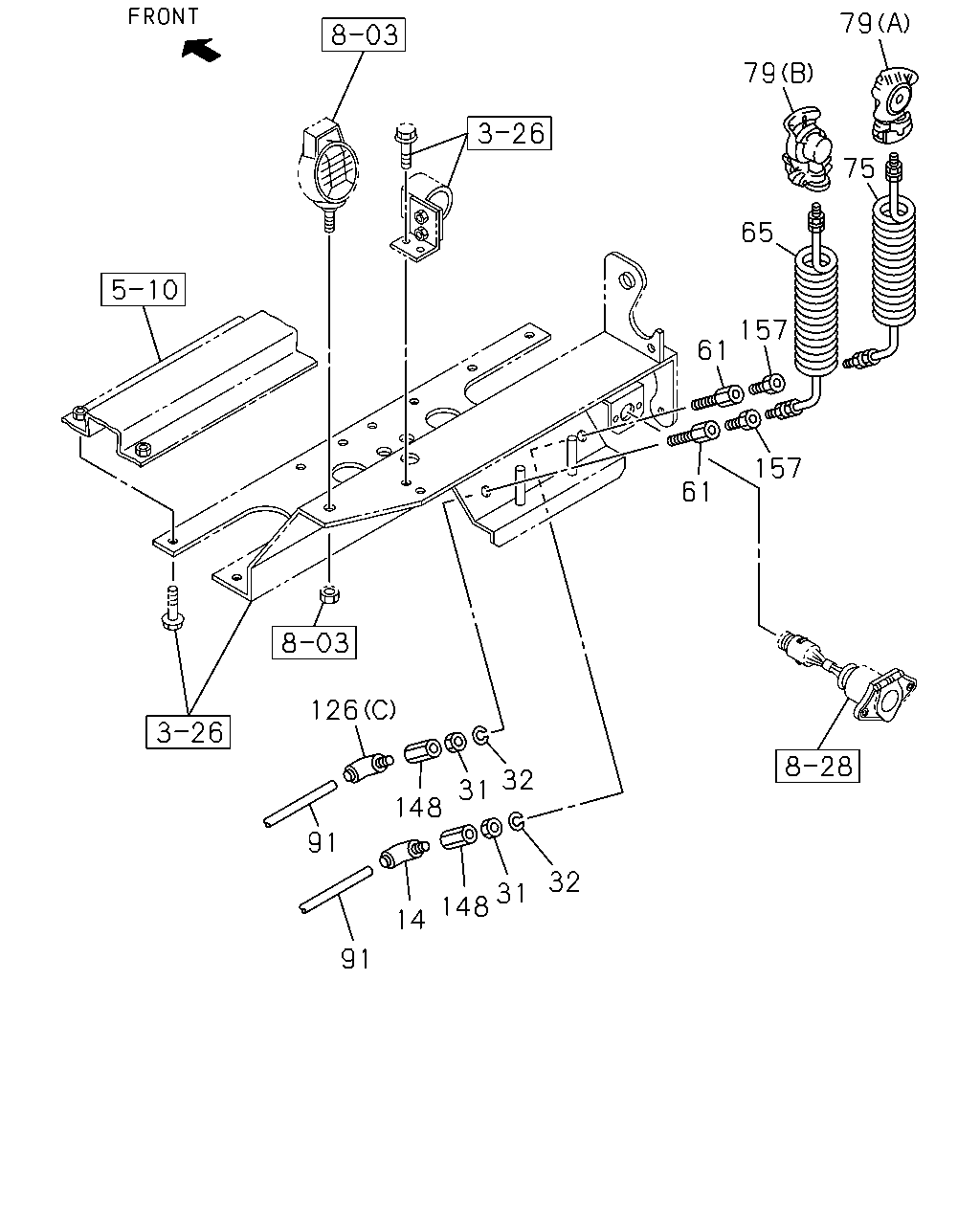

çizim 44993
79 79 75 65 157 61 157 61 126 32 31 148 91 32 31 148 14 91
BalonParca AdiParca NoAdetTipApplied Date
14 CONNECTOR; AIR PIPE
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9906-
31 NUT; UNION
M16 		9-99111-416-0 02 1 9906-
32 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 02 1 9906-
61 UNION; NYLON TUBE 1-09650-222-1 02 1 9906-
65 HOSE; AIR 1-49212-518-0 01 1 9906-
75 HOSE; FLEX,TRAILER EMERGENCY 1-49212-518-0 01 1 9906-
79 COUPLING; AIR,TRAILER
(A) 		1-47478-210-0 01 1 9906-
79 COUPLING; AIR,TRAILER
(B) 		1-47478-211-0 01 1 9906-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9906-0007
91 TUBE; NYLON
WHEEL BASE 4500MM(45W) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0008-
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9906-
91 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9906-
91 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9906-
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9906-9911
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 9912-9912
126 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9906-9911
126 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9912-9912
126 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09661-096-0 02 1 0001-0003
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 0004-0007
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008-
126 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9906-
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> (B) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 0004-0007
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> (B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0008-
148 ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT 		1-09660-882-0 03 1 9906-
157 ADAPTER 1-09660-078-0 02 1 9906-
