◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50784 - NKR(MALAYSIA) ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#72588) — 70 parça

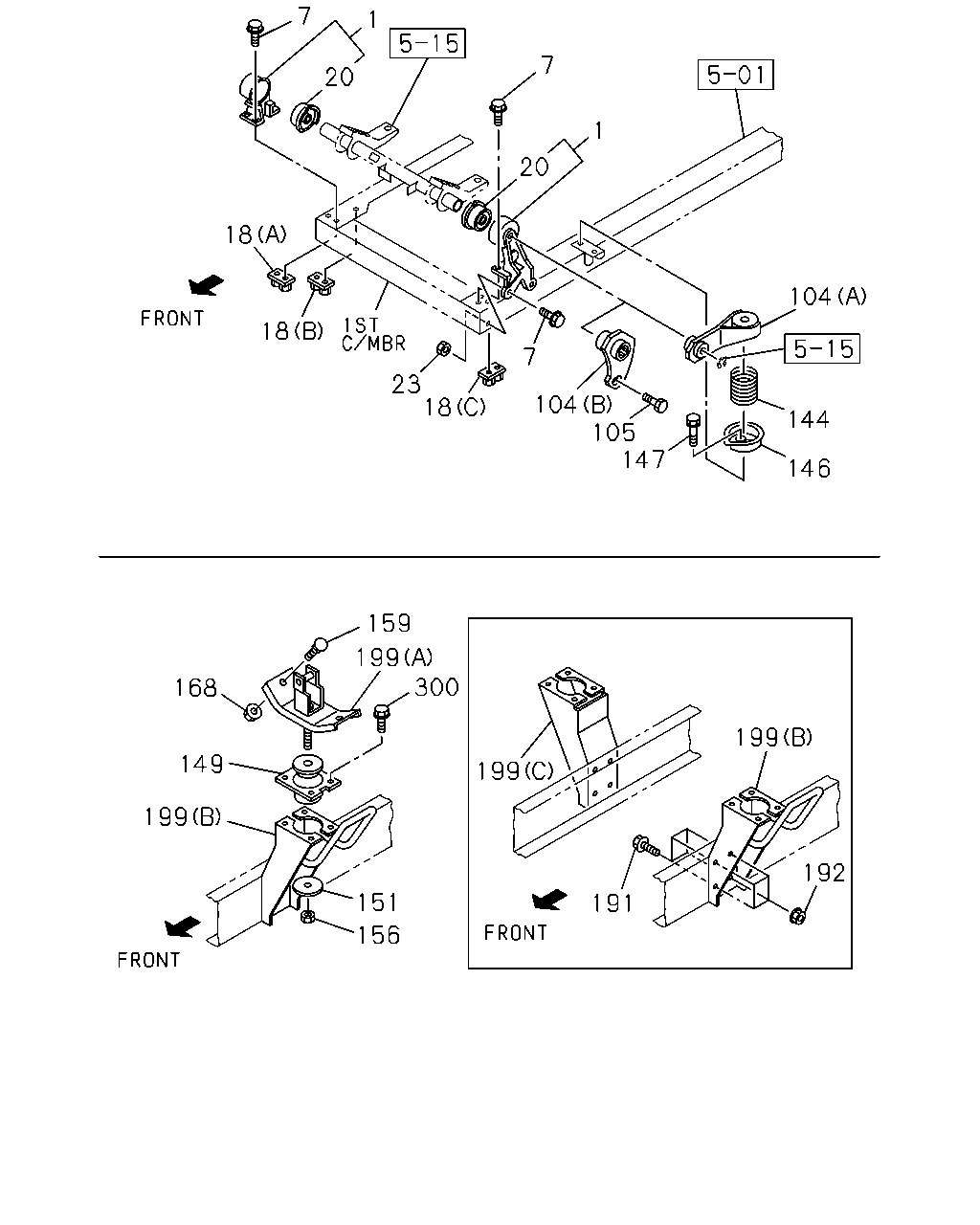

çizim 125727
7 1 7 20 1 20 18 104 18 7 23 18 104 105 147 144 146 159 199 300 168 199 149 199 199 192 151 191 156
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG 8-97096-895-0 01 1 9704-9801 ●
1 BRACKET; CAB MTG 8-97170-220-0 01 1 9802-0209 ●
1 BRACKET; CAB MTG 8-97170-220-0 01 1 0210- ● ●
1 BRACKET; CAB MTG 8-97096-894-1 01 1 9704-0209 ●
1 BRACKET; CAB MTG 8-97096-894-1 01 1 0210- ● ●
7 BOLT; BRKT,CAB TILT
M12X40 FLANGE 		8-97036-581-1 08 1 9704-9704 ●
7 BOLT; BRKT,CAB TILT
M12X40 FLANGE 		0-28681-240-0 08 1 9705-0209 ●
7 BOLT; BRKT,CAB TILT
M12X40 FLANGE 		0-28681-240-0 08 1 0210-0512 ● ●
7 BOLT; BRKT,CAB TILT
M12X40 FLANGE 		0-28651-240-0 08 1 0601- ● ●
18 PLATE; MTG BRKT FIX
(C) 		8-97076-469-2 01 1 9704-0209 ●
18 PLATE; MTG BRKT FIX
(C) 		8-97076-469-2 01 1 0210- ● ●
18 PLATE; MTG BRKT FIX
(A) 		8-97034-140-2 01 1 9704-0209 ●
18 PLATE; MTG BRKT FIX
(A) 		8-97034-140-2 01 1 0210- ● ●
18 PLATE; MTG BRKT FIX
(B) 		8-97034-139-2 01 1 9704-0209 ●
18 PLATE; MTG BRKT FIX
(B) 		8-97034-139-2 01 1 0210- ● ●
20 RUBBER; MTG,CAB BRKT 8-97096-893-0 02 1 9704-0209 ●
20 RUBBER; MTG,CAB BRKT 8-97096-893-1 02 1 0210- ● ●
23 NUT; MTG BRKT
M12 FLANGE 		0-91150-112-0 02 1 9704-0209 ●
23 NUT; MTG BRKT
M12 FLANGE 		0-91150-112-0 02 1 0210-0602 ● ●
23 NUT; MTG BRKT
M12 FLANGE 		0-91180-112-0 02 1 0603- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG
(A) 		8-97048-290-3 01 1 9704-9801 ●
104 BRACKET; CAB FRAME,CAB FRT MTG
(B) 		8-97033-624-3 01 1 9802-0209 ●
104 BRACKET; CAB FRAME,CAB FRT MTG
(B) 		8-97033-624-3 01 1 0210- ● ●
105 BOLT; BRKT TO CAB FRAME
M16X35 FLANGE 		0-28881-635-0 01 1 9802-0209 ●
105 BOLT; BRKT TO CAB FRAME
M16X35 FLANGE 		0-28881-635-0 01 1 0210-0512 ● ●
105 BOLT; BRKT TO CAB FRAME
M16X35 FLANGE 		0-28851-635-0 01 1 0601- ● ●
144 SPRING; COIL,CAB FRT SUSPENSION 8-97106-347-0 01 1 9704-9801 ●
146 SEAT; SPRING,CAB FRT SUSPENSION 8-97033-189-0 01 1 9704-9801 ●
147 BOLT; SEAT
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9704-9801 ●
149 RUBBER; MTG,CAB,UPR RR 8-97095-149-1 02 1 9704-0209 ●
149 RUBBER; MTG,CAB,UPR RR 8-97095-149-3 02 1 0210-0804 ● ●
149 RUBBER; MTG,CAB,UPR RR
H=62 		8-98021-561-1 02 1 0805- ● ●
151 WASHER; CAB MTG,RR UPR
ID=16.4 OD=62 		8-97034-382-0 02 1 9704-0209 ●
151 WASHER; CAB MTG,RR UPR
ID=16.4 OD=62 		8-97034-382-0 02 1 0210-0611 ● ●
151 WASHER; CAB MTG,RR UPR
ID=17 OD=62 		8-97359-042-1 02 1 0612- ● ●
156 NUT; CAB MTG RR
M16 		9-99111-416-0 02 1 9704-0209 ●
156 NUT; CAB MTG RR
M16 		9-99111-416-0 02 1 0210-0512 ● ●
156 NUT; CAB MTG RR
M16 		0-91111-516-0 02 1 0601- ● ●
159 RUBBER; CUSHION,CAB MTG 8-97113-340-0 04 1 9704-0209 ●
159 RUBBER; CUSHION,CAB MTG 8-97113-340-0 04 1 0210- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M8 FLANGE 		0-91150-108-0 04 1 9704-0209 ●
168 NUT; CUSHION RUBBER,BODY MTG
M8 FLANGE 		0-91150-108-0 04 1 0210-0602 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
191 BOLT; BRKT FIX
M12X30 FLANGE 		0-28081-230-0 08 1 9704-9704 ●
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28681-235-0 08 1 9705-0209 ●
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28681-235-0 08 1 0210-0512 ● ●
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28651-235-0 08 1 0601- ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-112-0 08 1 9704-0209 ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-112-0 08 1 0210-0602 ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-112-0 08 1 0603- ● ●
199 BRACKET; CAB RR MTG
VIN MODEL YEAR 2014<VZE> (C) 		8-97187-525-0 01 1 1310- ●
199 BRACKET; CAB RR MTG
VIN MODEL YEAR 2014<VZE> (B) 		8-97187-526-0 01 1 1310- ●
199 BRACKET; CAB RR MTG
(A) 		8-97035-310-4 02 1 9704-0209 ●
199 BRACKET; CAB RR MTG
(A) 		8-97035-310-4 02 1 0210- ● ●
199 BRACKET; CAB RR MTG
(B) 		8-97086-443-3 01 1 9704-0209 ●
199 BRACKET; CAB RR MTG
(B) 		8-97086-443-3 01 1 0210-1309 ● ●
199 BRACKET; CAB RR MTG
(B) 		8-97086-443-3 01 1 1310- ●
199 BRACKET; CAB RR MTG
EXC. VIN MODEL YEAR 2014<VZE> (B) 		8-97086-443-3 01 1 1310- ●
199 BRACKET; CAB RR MTG
(C) 		8-97086-447-1 01 1 9704-0209 ●
199 BRACKET; CAB RR MTG
(C) 		8-97086-447-1 01 1 0210-1309 ● ●
199 BRACKET; CAB RR MTG
(C) 		8-97086-447-1 01 1 1310- ●
199 BRACKET; CAB RR MTG
EXC. VIN MODEL YEAR 2014<VZE> (C) 		8-97086-447-1 01 1 1310- ●
300 BOLT; MTG RUBBER
M10X20 FLANGE 		0-28081-020-0 08 1 9704-9704 ●
300 BOLT; MTG RUBBER
M10X20 FLANGE 		0-28681-020-0 08 1 9705-0209 ●
300 BOLT; MTG RUBBER
M10X20 FLANGE 		0-28681-020-0 08 1 0210-0512 ● ●
300 BOLT; MTG RUBBER
M10X20 FLANGE 		0-28651-020-0 08 1 0601- ● ●
çizim 402199
141 140 419
BalonParca AdiParca NoAdetTipApplied Date A B
140 NUT; BRKT
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> M8 FLANGE 		8-94279-517-0 04 1 1310- ●
141 BOLT; BRKT
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1310- ●
419 BRACKET; HOOK,SEAT BELT ANCHOR
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> 		8-97857-422-4 01 1 1310- ●
419 BRACKET; HOOK,SEAT BELT ANCHOR
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> 		8-97857-423-4 01 1 1310- ●
