◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50784 - NKR(MALAYSIA) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#72587) — 97 parça
çizim 125173
376 376 376 376 376 376 376 376 376 376 376 376 176 118
BalonParca AdiParca NoAdetTipApplied Date A B
118 NUT; STOPPER
M8 FLANGE 		0-91150-108-0 04 1 9704-0109 ●
118 NUT; STOPPER
M8 LOCK NUT 		9-09131-508-0 04 1 0110-0603 ●
118 NUT; STOPPER
M8 LOCK NUT 		0-91370-008-0 04 1 0604- ●
176 BOLT; C/MBR,ENG MTG
M10X25 FLANGE 		0-28081-025-0 08 1 9704-0209 ●
176 BOLT; C/MBR,ENG MTG
M10X25 FLANGE 		0-28081-025-0 08 1 0210-0512 ● ●
176 BOLT; C/MBR,ENG MTG
M10X25 FLANGE 		0-28051-025-0 08 1 0601- ● ●
376 RIVET; FRAME
(A) D8X20 TAPER END 		9-06750-820-0 AR 1 9704- ● ●
376 RIVET; FRAME
(B) D8X22 TAPER END 		9-06750-822-0 AR 1 9704- ● ●
376 RIVET; FRAME
(C) D8X28 TAPER END 		9-06750-828-0 AR 1 9704- ● ●
376 RIVET; FRAME
(D) D10X24 TAPER END 		9-06751-024-0 AR 1 9704- ● ●
376 RIVET; FRAME
(E) D10X26 TAPER END 		9-06751-026-0 AR 1 9704- ● ●
376 RIVET; FRAME
(F) D10X28 TAPER END 		9-06751-028-0 AR 1 9704- ● ●
376 RIVET; FRAME
(G) D10X30 TAPER END 		9-06751-030-0 AR 1 9704- ● ●
376 RIVET; FRAME
(H) D10X32 TAPER END 		9-06751-032-0 AR 1 9704- ● ●
376 RIVET; FRAME
(I) D10X36 TAPER END 		9-06751-036-0 AR 1 9704- ● ●
376 RIVET; FRAME
(J) D12X30 TAPER END 		9-06751-230-0 AR 1 9704- ● ●
376 RIVET; FRAME
(K) D12X32 TAPER END 		9-06751-232-0 AR 1 9704- ● ●
376 RIVET; FRAME
(L) D12X34 TAPER END 		9-06751-234-0 AR 1 9704- ● ●
çizim 125254
358 137 130 51 24 63 39 101 101 103 103 188 147 147
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; FRT SPR,FRT 8-97065-788-1 01 1 9704- ●
24 BRACKET; FRT SPR,FRT 8-94366-816-1 01 1 9704- ●
24 BRACKET; FRT SPR,FRT 8-97065-789-1 01 1 0210- ●
24 BRACKET; FRT SPR,FRT 8-94366-818-1 01 1 0210- ●
39 BRACKET; FRT SPR,RR 8-94258-091-0 02 1 9704-0209 ●
39 BRACKET; FRT SPR,RR 8-94258-091-0 02 1 0210- ● ●
51 BRACKET; ENG SUPPORT,OUTER 8-94258-086-1 02 1 9704-0209 ●
51 BRACKET; ENG SUPPORT,OUTER 8-94258-086-1 02 1 0210- ● ●
63 BRACKET; RAD MTG 8-94257-950-1 01 1 9704-0209 ●
63 BRACKET; RAD MTG 8-94257-950-1 01 1 0210- ● ●
101 BRACKET; RR SPR,FRT
(A) 		8-97034-156-1 02 1 9704- ●
101 BRACKET; RR SPR,FRT
(B) 		8-94258-093-1 02 1 0210- ●
103 STOPPER; SUB SPR
(A) 		8-97040-628-0 02 1 9704-9904 ●
103 STOPPER; SUB SPR
(A) 		8-97223-748-0 02 1 9905- ●
103 STOPPER; SUB SPR
(B) 		8-97040-629-0 02 1 9704-9904 ●
103 STOPPER; SUB SPR
(B) 		8-97223-750-0 02 1 9905- ●
130 MEMBER; CROSS,END 8-94257-620-2 01 1 9704- ●
137 BRACKET; SPARE TIRE 8-97076-885-1 01 1 9704- ●
147 RUBBER; SUB SPRING 8-94119-958-1 04 1 9704-0003 ●
147 RUBBER; SUB SPRING 8-97254-387-0 04 1 0004- ●
188 BRACKET; SUPPORT,CTR BRG 8-97078-869-1 01 1 9704- ●
358 BRACKET; CAB EARTH 8-97210-488-0 01 1 0311-1308 ●
358 BRACKET; CAB EARTH
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97210-488-0 02 1 1309- ●
358 BRACKET; CAB EARTH 8-97065-790-3 01 1 9704-0209 ●
358 BRACKET; CAB EARTH 8-97065-790-3 01 1 0210-0310 ● ●
358 BRACKET; CAB EARTH 8-97210-488-0 02 1 0311-1308 ●
358 BRACKET; CAB EARTH 8-97210-488-0 01 1 1309- ●
358 BRACKET; CAB EARTH
BRK WHL LK CONT LSPV<6PH> 		8-97210-488-0 01 1 1309- ●

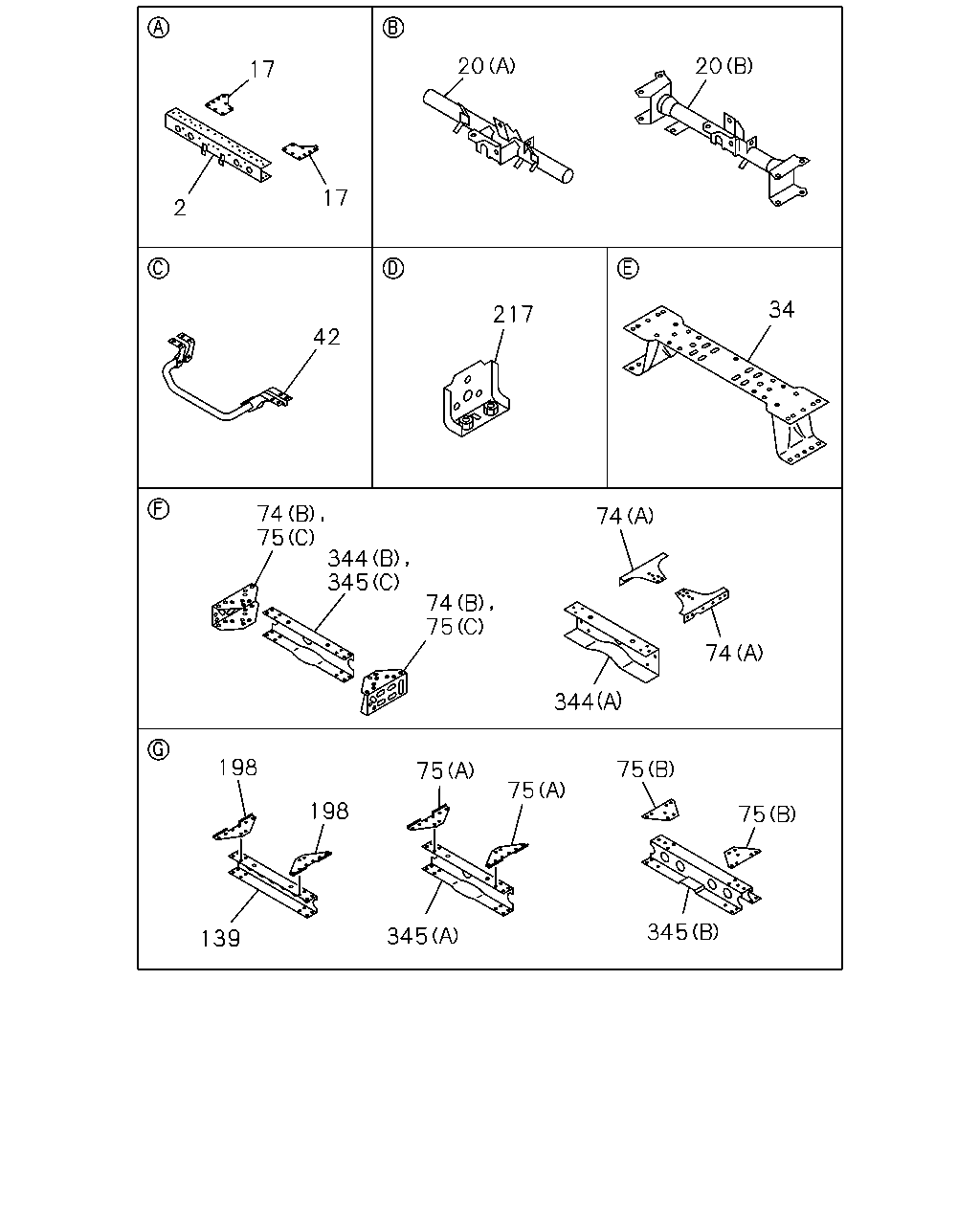

çizim 125682
17 17 2 42 74 75 344 345 74 75 344 74 75 75 345 75 75 345 198 198 139 74 34 217 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 8-97034-332-2 01 1 9704-0209 ●
2 MEMBER; CROSS,1ST 8-97034-332-2 01 1 0210- ● ●
17 GUSSET; 1ST C/MBR 8-97088-205-1 02 1 9704-0209 ●
17 GUSSET; 1ST C/MBR 8-97088-205-1 02 1 0210- ● ●
20 MEMBER; CROSS,2ND
BRK WHL LK CONT LSPV<6PH> (B) 		8-97078-581-1 01 1 1309- ●
20 MEMBER; CROSS,2ND
(A) 		8-97145-718-0 01 1 9704-0209 ●
20 MEMBER; CROSS,2ND
(A) 		8-97145-718-0 01 1 0210-1308 ● ●
20 MEMBER; CROSS,2ND
(A) 		8-97145-718-0 01 1 1309- ●
20 MEMBER; CROSS,2ND
EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97145-718-0 01 1 1309- ●
34 MEMBER; CROSS,3RD 8-97115-578-0 01 1 9704- ●
34 MEMBER; CROSS,3RD 8-97039-670-1 01 1 0210- ●
42 MEMBER; CROSS,ENG MTG 8-94246-127-7 01 1 9704-0209 ●
42 MEMBER; CROSS,ENG MTG 8-94246-127-7 01 1 0210- ● ●
74 GUSSET; 4TH C/MBR
(A) RH-UPPER, LH-LOWER 		8-97101-837-1 02 1 9704- ●
74 GUSSET; 4TH C/MBR
(A) RH-LOWER, LH-UPPER 		8-97101-838-1 02 1 9704- ●
74 GUSSET; 4TH C/MBR
(B) 		8-94258-075-3 02 1 0210-0307 ●
75 GUSSET; 5TH C/MBR
(A) 		8-97062-499-0 02 1 9704- ●
75 GUSSET; 5TH C/MBR
(A) 		8-97062-500-0 02 1 9704- ●
75 GUSSET; 5TH C/MBR
(B) 		8-94258-081-1 02 1 0210-0307 ●
75 GUSSET; 5TH C/MBR
(C) 		8-94258-075-3 02 1 0308- ●
139 MEMBER; CROSS,6TH 8-97062-498-1 01 1 9704- ●
139 MEMBER; CROSS,6TH 8-97045-542-2 01 1 0308- ●
198 GUSSET; 6TH C/MBR
RH-LOWER, LH-UPPER 		8-97062-499-0 02 1 9704- ●
198 GUSSET; 6TH C/MBR
RH-UPPER, LH-LOWER 		8-97062-500-0 02 1 9704- ●
198 GUSSET; 6TH C/MBR 8-94258-081-1 02 1 0308- ●
217 BRACKET; HELPER RUBBER,RR SPRING 8-94258-963-0 02 1 9704- ●
344 MEMBER; CROSS,4TH
(A) 		8-97078-707-3 01 1 9704- ●
344 MEMBER; CROSS,4TH
(B) 		8-97081-061-2 01 1 0210-0307 ●
345 MEMBER; CROSS,5TH
(A) 		8-97062-497-3 01 1 9704- ●
345 MEMBER; CROSS,5TH
(B) 		8-97045-542-2 01 1 0210-0307 ●
345 MEMBER; CROSS,5TH
(C) 		8-97081-061-2 01 1 0308- ●
çizim 190624
140 140 239 105 105 215 215 142 142
BalonParca AdiParca NoAdetTipApplied Date A B
105 BRACKET; RR SPR,RR
(A) 		8-94459-512-1 01 1 9704- ●
105 BRACKET; RR SPR,RR
(A) 		8-94459-511-1 01 1 9704- ●
105 BRACKET; RR SPR,RR
(B) 		8-94126-621-1 01 1 0210- ●
105 BRACKET; RR SPR,RR
(B) 		8-94126-620-1 01 1 0210- ●
140 BRACKET; S/ABS,RR
(A) 		8-97012-285-0 01 1 9704- ●
140 BRACKET; S/ABS,RR
(B) 		8-94101-303-0 01 1 9704- ●
140 BRACKET; S/ABS,RR
(B) 		8-94258-104-1 01 1 0210- ●
140 BRACKET; S/ABS,RR
(B) 		8-94258-103-1 01 1 0210- ●
142 BRACKET; FLEX HOSE,BRAKE
(A) 		8-97035-308-0 01 1 9704- ●
142 BRACKET; FLEX HOSE,BRAKE
(B) 		8-97047-775-1 01 1 0210- ●
215 BUSHING; BRKT,RR SPRING
OD=40 L=43.7 		8-94118-588-1 04 1 9704-9712 ●
215 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 9801- ●
239 BRACKET; COIL SPR 8-97033-190-0 01 1 9704-0209 ●
239 BRACKET; COIL SPR 8-97033-190-0 01 1 0210-0307 ● ●

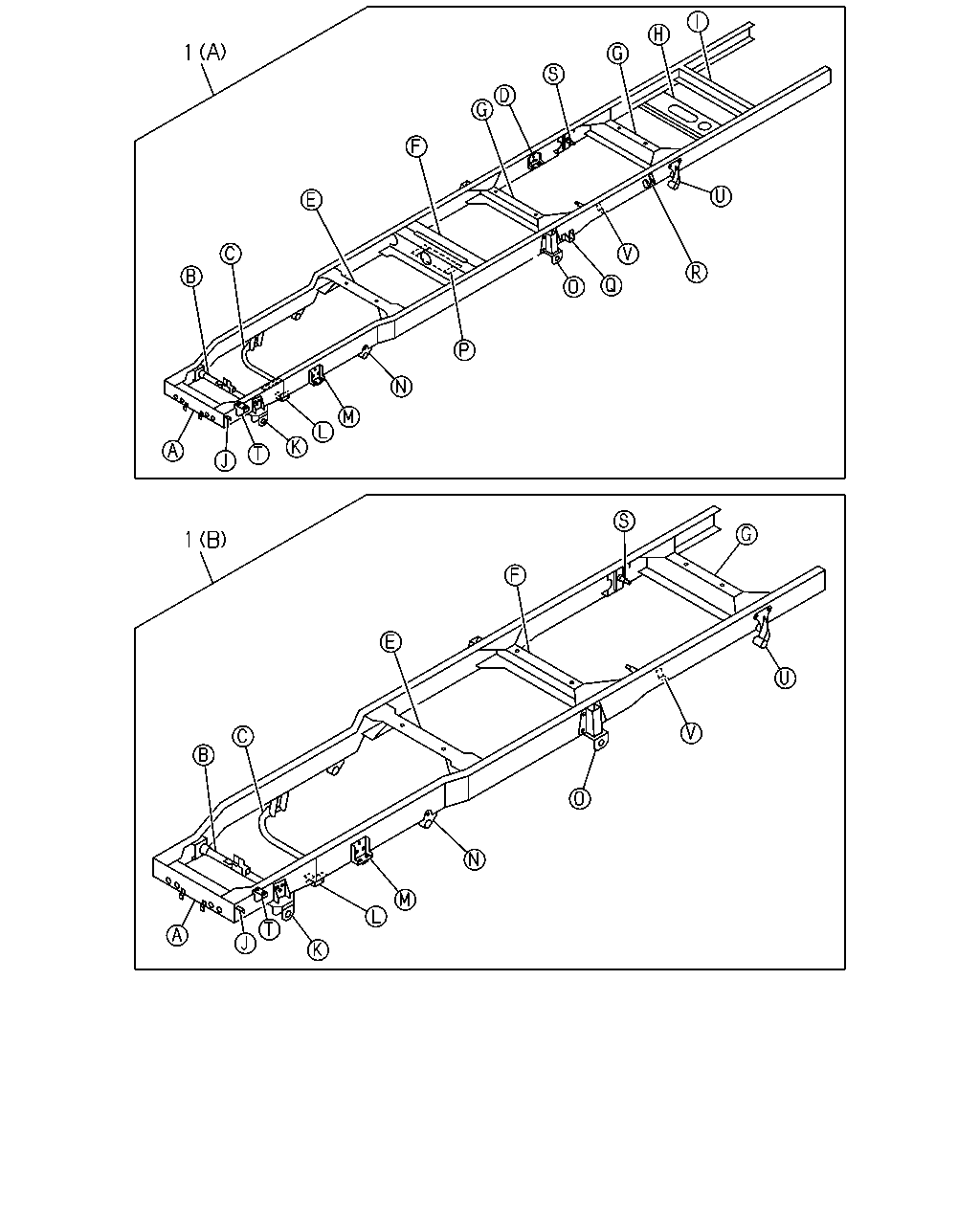

çizim 190631
1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 FRAME ASM
BRK WHL LK CONT LSPV<6PH> (B) 		8-98251-978-0 01 1 1309- ●
1 FRAME ASM
(A) 		8-97091-368-0 01 1 9704-0307 ●
1 FRAME ASM
(A) 		8-97205-862-2 01 1 0308- ●
1 FRAME ASM
(B) 		8-97089-874-0 01 1 0210-0307 ●
1 FRAME ASM
(B) 		8-97205-852-2 01 1 0308-1308 ●
1 FRAME ASM
EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97205-852-2 01 1 1309- ●
