4-80 — ROAD WHEEL (#72586) — 52 parça

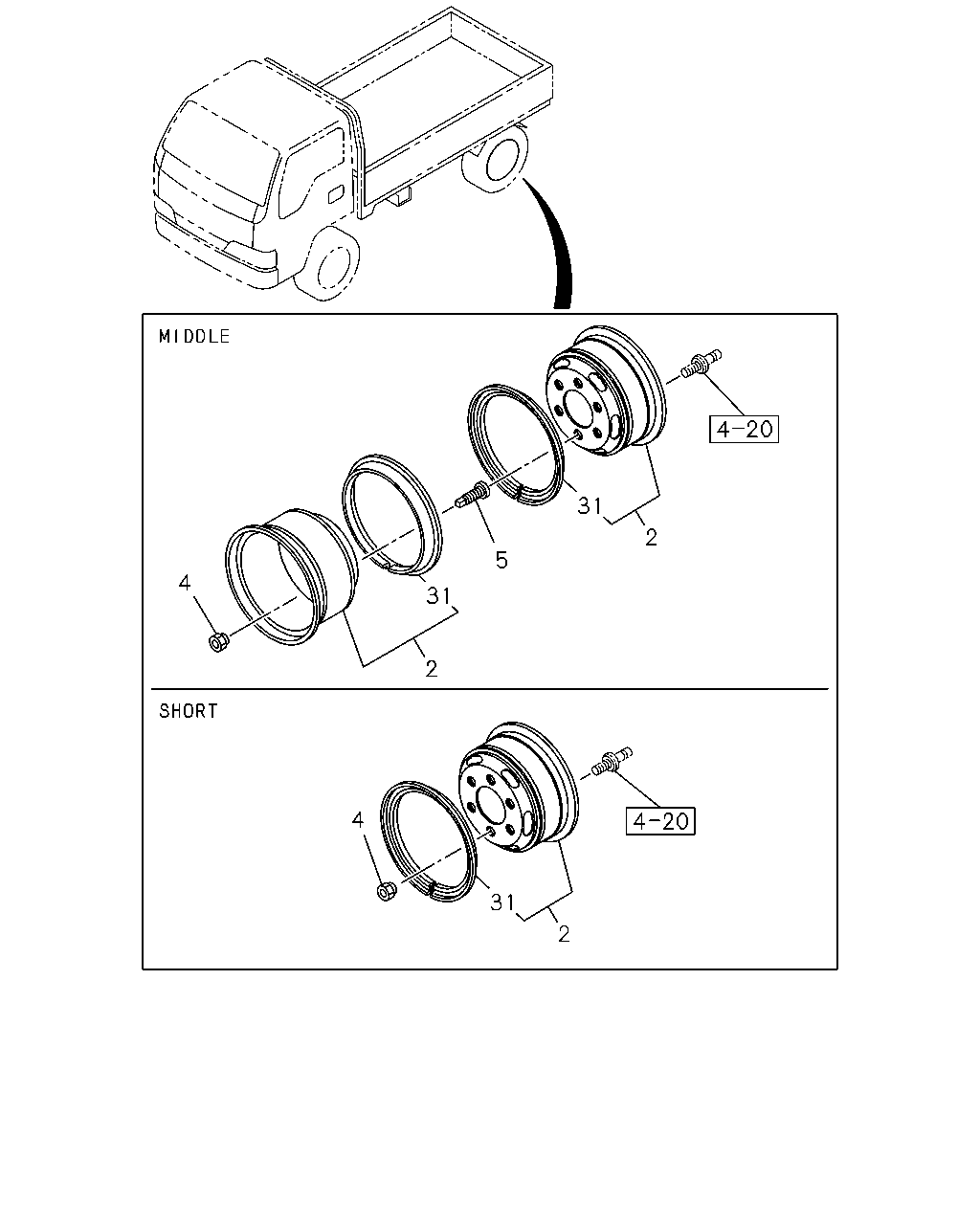

31 2 5 4 31 2 4 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRT&RR 7-16-10 5.5FX16-25(89C) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1006-	●
2	WHEEL; DISC FRT&RR 7-16-10 5.5FX16-25(89C) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1006-	●
2	WHEEL; DISC SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	9704-		●
2	WHEEL; DISC FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	9704-		●
2	WHEEL; DISC SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	0210-1005	●
2	WHEEL; DISC FRT&RR 7.5-15-12 6GSX15-25(10V) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1006-	●
2	WHEEL; DISC FRONT,REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	04	1	0210-1005	●
2	WHEEL; DISC FRT&RR 7.5-15-12 6GSX15-25(10V) FRONT,REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	04	1	1006-	●
4	NUT; WHEEL,RR AXLE M27 LH THREAD	8-94365-146-0	05	1	9704-0610		●
4	NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0611-		●
4	NUT; WHEEL,RR AXLE M27 RH THREAD	8-94365-145-0	05	1	9704-0610		●
4	NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0611-		●
4	NUT; WHEEL,RR AXLE M14 LH THREAD	5-42334-002-0	06	1	0210-0610	●
4	NUT; WHEEL,RR AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-	●
4	NUT; WHEEL,RR AXLE M14 RH THREAD	5-42333-008-0	06	1	0210-0610	●
4	NUT; WHEEL,RR AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-94365-144-1	05	1	9704-0610		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0611-		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-94365-143-1	05	1	9704-0610		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0611-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-10 5.5FX16-25(89C) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1006-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-10 5.5FX16-25(89C) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1006-	●
31	RING; SIDE,DISC WHEEL SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9704-		●
31	RING; SIDE,DISC WHEEL FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	9704-		●
31	RING; SIDE,DISC WHEEL SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	0210-1005	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-12 6GSX15-25(10V) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1006-	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	04	1	0210-1005	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-12 6GSX15-25(10V) FRONT,REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	04	1	1006-	●

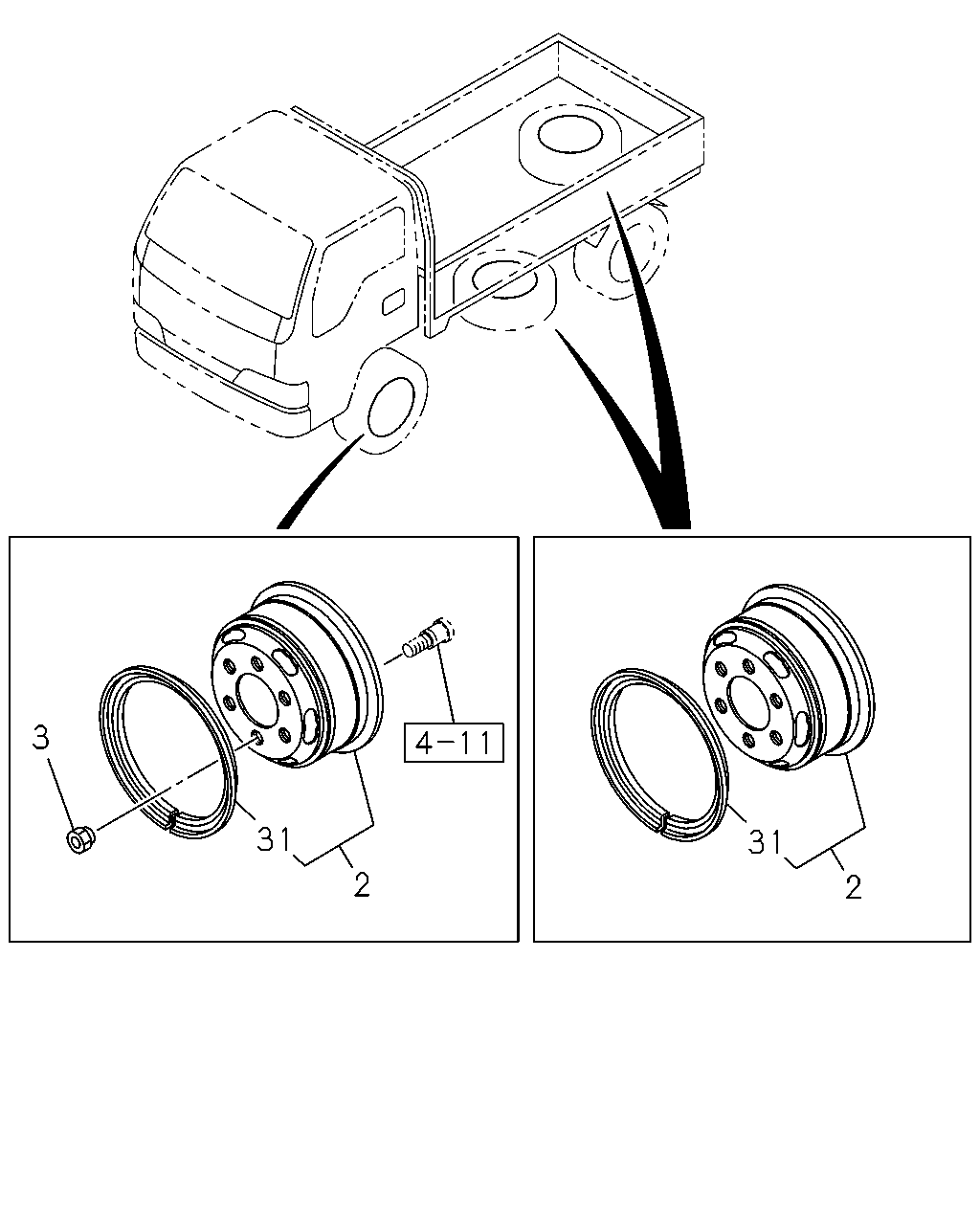

3 31 31 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRT&RR 7-16-10 5.5FX16-25(89C) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1006-	●
2	WHEEL; DISC FRT&RR 7-16-10 5.5FX16-25(89C) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1006-	●
2	WHEEL; DISC SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	9704-		●
2	WHEEL; DISC FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	9704-		●
2	WHEEL; DISC SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	0210-1005	●
2	WHEEL; DISC FRT&RR 7.5-15-12 6GSX15-25(10V) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1006-	●
2	WHEEL; DISC FRONT,REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	04	1	0210-1005	●
2	WHEEL; DISC FRT&RR 7.5-15-12 6GSX15-25(10V) FRONT,REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	04	1	1006-	●
3	NUT; WHEEL,FRT AXLE M18 LH THREAD	8-94365-148-0	05	1	9704-0610		●
3	NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0611-		●
3	NUT; WHEEL,FRT AXLE M18 RH THREAD	8-94365-147-0	05	1	9704-0610		●
3	NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0611-		●
3	NUT; WHEEL,FRT AXLE M14 LH THREAD	5-42334-002-0	06	1	0210-0610	●
3	NUT; WHEEL,FRT AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-	●
3	NUT; WHEEL,FRT AXLE M14 RH THREAD	5-42333-008-0	06	1	0210-0610	●
3	NUT; WHEEL,FRT AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-10 5.5FX16-25(89C) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1006-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-10 5.5FX16-25(89C) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1006-	●
31	RING; SIDE,DISC WHEEL SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9704-		●
31	RING; SIDE,DISC WHEEL FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	9704-		●
31	RING; SIDE,DISC WHEEL SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	0210-1005	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-12 6GSX15-25(10V) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1006-	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	04	1	0210-1005	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-12 6GSX15-25(10V) FRONT,REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	04	1	1006-	●
