Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#7258) — 218 parça

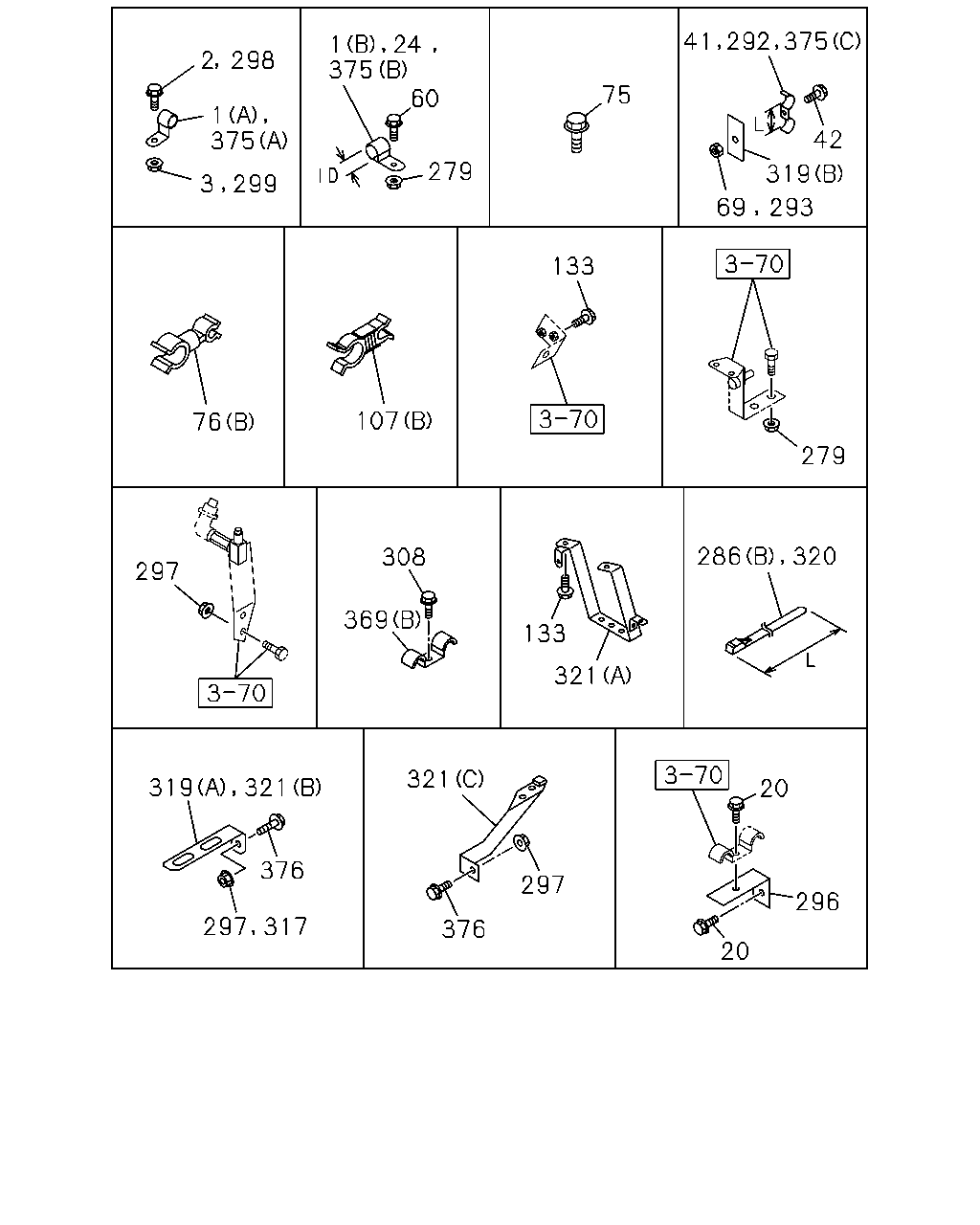

375 60 2 298 75 1 375 42 279 319 133 107 76 279 308 297 369 133 321 321 319 20 376 297 296 376 20 1 24 41 292 375 69 293 3 299 286 320 321 297 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9906-9910
1	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9911-
1	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	9911-
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	9906-
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9906-
20	BOLT; CLIP WHEEL BASE 4500MM(45W) M8X20 FLANGE	0-28680-820-0	01	1	9906-
20	BOLT; CLIP WHEEL BASE 4500MM(45W) M8X25 FLANGE	0-28680-825-0	01	1	9906-
24	CLIP; PIPE MJA7 M/T<X9Q> ID=16 L=20	9-09525-535-0	02	1	9906-
24	CLIP; PIPE TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) ID=16 L=20	9-09525-535-0	01	1	9906-
24	CLIP; PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=18 L=28	1-09701-067-0	01	1	9906-
41	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9906-
42	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	01	1	9906-
60	BOLT; CLIP FIX MJA7 M/T<X9Q> M8X25 FLANGE	0-28680-825-0	02	1	9906-
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X20 FLANGE	0-28680-820-0	01	1	9906-
60	BOLT; CLIP FIX TRANSMISSION-ZF 16S221 OD(Y1U) M8X25 FLANGE	0-28680-825-0	01	1	9906-
69	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9906-
75	BOLT; CLIP WHEEL BASE 4500MM(45W) M8X25 FLANGE	0-28680-825-0	01	1	9906-
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (B) ID=6 & 8.3	8-94167-742-0	02	1	9906-
76	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=250	1-09707-126-0	06	1	9906-0003
76	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=250	1-09707-126-0	03	1	0004-
76	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=350	1-09707-183-0	03	1	0004-
76	CLIP; NYLON TUBE WHEEL BASE 4700MM(47W) (A) L=250	1-09707-126-0	07	1	9906-
107	CLIP; NYLON TUBE (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9906-9912
107	CLIP; NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	0001-
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9906-0005
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0006-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (B) ID=11.8 & 7.5	1-09709-182-0	01	1	9906-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	9906-0005
107	CLIP; NYLON TUBE ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DUAL AIR GAUGE<UG2> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	9906-0005
107	CLIP; NYLON TUBE ZF M/T<X9E> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	9906-0005
107	CLIP; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	0006-
107	CLIP; NYLON TUBE ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DUAL AIR GAUGE<UG2> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	0006-
107	CLIP; NYLON TUBE ZF M/T<X9E> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	0006-
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE CONTROL<J91> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0001-
133	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	0104-
133	BOLT; BRKT FULLER M/T<X9B>,ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	9906-9906
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9906-9906
133	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X25 FLANGE	0-28680-825-0	02	1	9906-9912
133	BOLT; BRKT FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	02	1	9906-9912
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9906-9912
133	BOLT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X25 FLANGE	0-28680-825-0	02	1	0001-
133	BOLT; BRKT FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	02	1	0001-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0001-
133	BOLT; BRKT WHEEL BASE 4500MM(45W) M8X30 FLANGE	0-28680-830-0	01	1	9906-0103
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9906-0103
133	BOLT; BRKT WHEEL BASE 4500MM(45W) M8X30 FLANGE	0-28680-830-0	01	1	0104-
279	NUT; BRKT MJA7 M/T<X9Q> M10 FLANGE	0-91150-210-0	02	1	9906-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) L=250	1-09707-126-0	02	1	9906-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	5-09707-030-1	01	1	9906-
286	CLIP; NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	05	1	9906-
292	CLIP; AIR PIPE WHEEL BASE 4500MM(45W) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9906-
293	NUT; CLIP WHEEL BASE 4500MM(45W) M8 FLANGE	0-91150-108-0	01	1	9906-
296	BRACKET; CLIP WHEEL BASE 4500MM(45W) L=55	1-47475-304-0	01	1	9906-
297	NUT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9906-
297	NUT; BRKT WHEEL BASE 4500MM(45W) M8 FLANGE	0-91150-108-0	01	1	9906-
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9906-
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) M8X20 FLANGE	0-28680-820-0	01	1	9906-9909
298	BOLT; CLIP WHEEL BASE 4700MM(47W) M8X20 FLANGE	0-28680-820-0	01	1	9906-9909
298	BOLT; CLIP WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	01	1	9910-
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) M8X20 FLANGE	0-28680-820-0	01	1	9910-
298	BOLT; CLIP WHEEL BASE 4700MM(47W) M8X20 FLANGE	0-28680-820-0	01	1	9910-
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) M8 FLANGE	0-91150-108-0	01	1	9906-9909
299	NUT; CLIP WHEEL BASE 4700MM(47W) M8 FLANGE	0-91150-108-0	01	1	9906-9909
299	NUT; CLIP WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9910-
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) M8 FLANGE	0-91150-108-0	01	1	9910-
299	NUT; CLIP WHEEL BASE 4700MM(47W) M8 FLANGE	0-91150-108-0	01	1	9910-
308	BOLT; CLIP,AIR PIPE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> M8X35 FLANGE	0-28680-835-0	01	1	9906-
317	NUT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	01	1	9906-
319	BRACKET; CLIP WHEEL BASE 4500MM(45W) (A) L=100 H=30	1-47477-645-2	01	1	9906-
319	BRACKET; CLIP WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> (B) L=50	1-47475-299-2	01	1	9910-
319	BRACKET; CLIP WHEEL BASE 4700MM(47W) EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-47478-462-0	01	1	0008-
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-1	01	1	9906-0103
320	CLIP; BAND,FLEX FIX L=140	5-09707-031-1	01	1	0104-0104
321	BRACKET; CLIP (C)	1-47477-810-0	01	1	9906-
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (B) L=100 H=30	1-47477-645-2	01	1	9906-
321	BRACKET; CLIP CAB UP +110MM<TGG> (A)	1-47477-472-1	01	1	9906-
321	BRACKET; CLIP EXC. CAB UP +110MM<TGG> (A)	1-47477-899-0	01	1	9906-
321	BRACKET; CLIP WHEEL BASE 4700MM(47W) (B) L=100 H=30	1-47477-645-2	02	1	9906-
369	CLIP; AIR PIPE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9906-
369	CLIP; AIR PIPE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (A) L=50	1-47475-299-2	01	1	9906-
375	CLIP; AIR PIPE (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9906-
375	CLIP; AIR PIPE WHEEL BASE 4700MM(47W) (B) ID=7 L=16	9-09524-625-0	01	1	9906-
375	CLIP; AIR PIPE WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9910-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-
376	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	9906-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9906-
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9906-

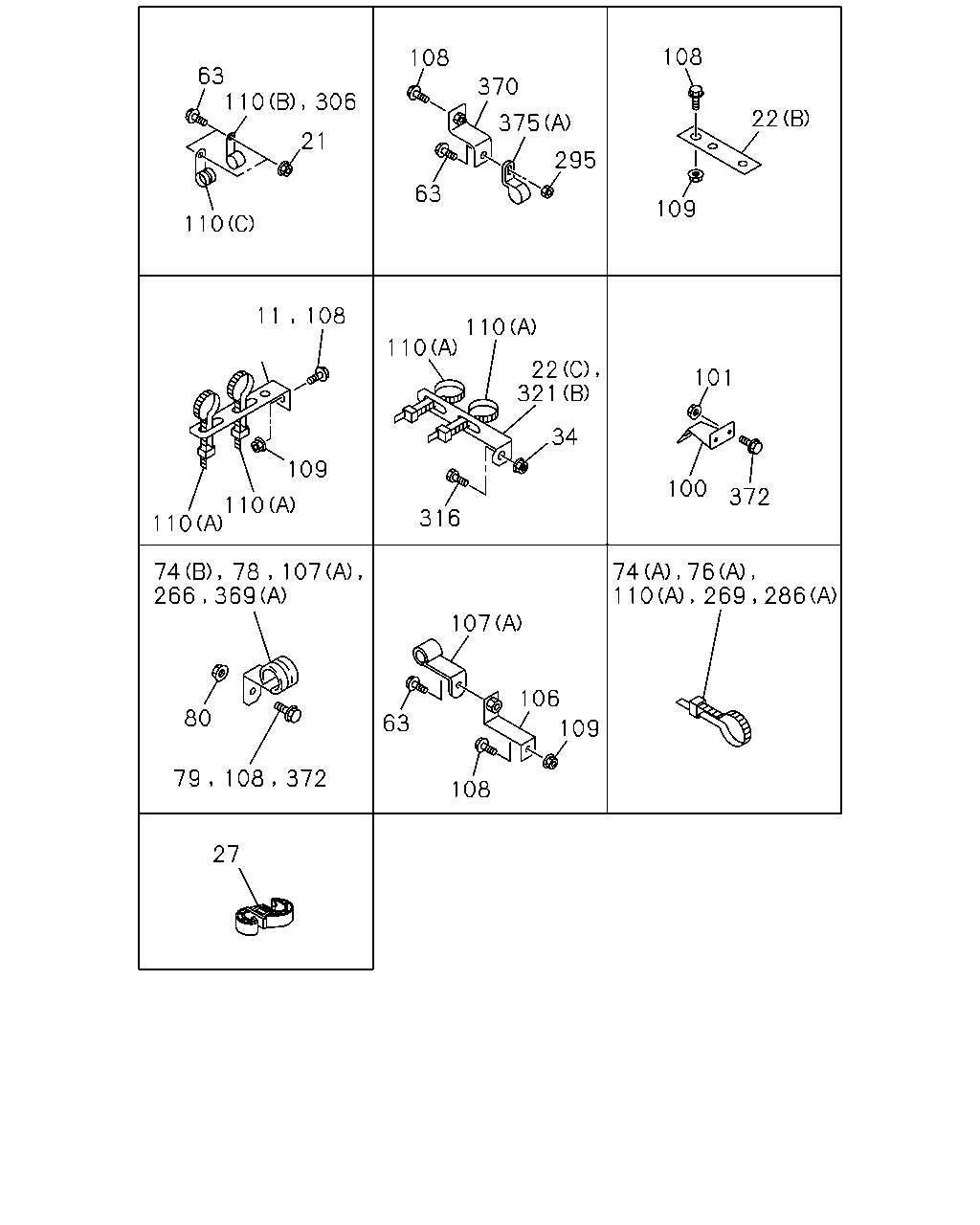

108 108 63 370 22 375 21 295 63 109 110 108 11 110 110 22 321 101 34 109 100 372 110 316 110 107 106 80 63 109 79 108 27 110 306 74 76 286 269 110 107 78 74 266 369 108 372

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; CLIP BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X35 FLANGE	0-28680-835-0	02	1	9906-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9906-
21	NUT; CLIP WHEEL BASE 4500MM(45W) M8 FLANGE	0-91150-108-0	01	1	9906-
22	BRACKET; CLIP (B) L=125	1-47477-975-0	02	1	9906-
22	BRACKET; CLIP ANTILOCK BRAKE SYSTEM(BFA) (A) L=150 H=30	1-47477-629-2	02	1	9906-
22	BRACKET; CLIP WHEEL BASE 4700MM(47W) (A) L=150 H=30	1-47477-629-2	01	1	9912-
22	BRACKET; CLIP WHEEL BASE 4700MM(47W) (C) L=225	1-47477-646-3	01	1	9912-
27	CLIP; FLEX HOSE ID=10 & 10	1-09709-277-1	01	1	0105-
34	NUT; BRKT WHEEL BASE 4700MM(47W) M8 FLANGE	0-91150-108-0	02	1	9906-
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9906-
74	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=250	1-09707-126-0	01	1	9906-
74	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	9906-
74	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> (B) ID=14.5 H=23 L=30	1-09700-859-0	01	1	9906-
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (B) ID=6 & 8.3	8-94167-742-0	02	1	9906-
76	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=250	1-09707-126-0	06	1	9906-0003
76	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=250	1-09707-126-0	03	1	0004-
76	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=350	1-09707-183-0	03	1	0004-
76	CLIP; NYLON TUBE WHEEL BASE 4700MM(47W) (A) L=250	1-09707-126-0	07	1	9906-
78	CLIP; AIR PIPE WHEEL BASE 4500MM(45W) ID=15 H=24 L=20	1-09700-606-0	01	1	9906-
78	CLIP; AIR PIPE WHEEL BASE 4700MM(47W) EXC. AIR DRYER<PS7> ID=15 H=24 L=20	1-09700-606-0	01	1	9906-
79	BOLT; PIPE CLIP WHEEL BASE 4500MM(45W) M8X25 FLANGE	0-28680-825-0	02	1	9906-
79	BOLT; PIPE CLIP WHEEL BASE 4700MM(47W) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	02	1	9906-
80	NUT; CLIP,AIR PIPE WHEEL BASE 4500MM(45W) M8 FLANGE	0-91150-108-0	02	1	9906-
80	NUT; CLIP,AIR PIPE WHEEL BASE 4700MM(47W) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	02	1	9906-
100	BRACKET; PIPE CLIP	1-47477-770-0	01	1	9906-
100	BRACKET; PIPE CLIP	1-47477-365-0	01	1	9906-
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	9906-
106	BRACKET; TUBE CLIP	1-47476-200-0	01	1	9906-
107	CLIP; NYLON TUBE (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9906-9912
107	CLIP; NYLON TUBE TRAILER BRAKE CONTROL<J91> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	0001-
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9906-0005
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0006-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (B) ID=11.8 & 7.5	1-09709-182-0	01	1	9906-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	9906-0005
107	CLIP; NYLON TUBE ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DUAL AIR GAUGE<UG2> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	9906-0005
107	CLIP; NYLON TUBE ZF M/T<X9E> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	9906-0005
107	CLIP; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A>,FULLER M/T<X9B> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	0006-
107	CLIP; NYLON TUBE ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DUAL AIR GAUGE<UG2> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	0006-
107	CLIP; NYLON TUBE ZF M/T<X9E> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	0006-
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE CONTROL<J91> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0001-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9906-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	05	1	9906-0103
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	0104-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	9906-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	9906-
110	CLIP; BAND,NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	9906-9912
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE CONTROL<J91> (B) ID=35 L=33	1-09700-945-0	01	1	0001-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	15	1	9906-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	17	1	9906-
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=140	5-09707-031-1	02	1	0104-
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE CONTROL<J91> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=140	5-09707-031-1	01	1	0104-
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> (A) L=140	5-09707-031-1	01	1	0104-
110	CLIP; BAND,NYLON TUBE EXC. TRAILER BRAKE CONTROL<J91> (C) ID=28 L=40	1-09701-261-0	01	1	0001-
266	CLIP; NYLON TUBE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> ID=18 H=23 L=28	1-09700-860-0	01	1	9906-
269	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) L=250	1-09707-126-0	25	1	9906-
269	CLIP; BAND,NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) L=250	1-09707-126-0	14	1	9906-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4500MM(45W) L=250	1-09707-126-0	03	1	9906-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) L=250	1-09707-126-0	02	1	9906-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	5-09707-030-1	01	1	9906-
286	CLIP; NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	05	1	9906-
295	NUT; CLIP,AIR PIPE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9906-
306	CLIP; NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) ID=24 L=32	1-09700-766-1	01	1	9906-
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	9906-
316	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE	0-28680-830-0	01	1	9906-
316	BOLT; CLIP WHEEL BASE 4700MM(47W) M8X30 FLANGE	0-28680-830-0	02	1	9906-
321	BRACKET; CLIP (C)	1-47477-810-0	01	1	9906-
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (B) L=100 H=30	1-47477-645-2	01	1	9906-
321	BRACKET; CLIP CAB UP +110MM<TGG> (A)	1-47477-472-1	01	1	9906-
321	BRACKET; CLIP EXC. CAB UP +110MM<TGG> (A)	1-47477-899-0	01	1	9906-
321	BRACKET; CLIP WHEEL BASE 4700MM(47W) (B) L=100 H=30	1-47477-645-2	02	1	9906-
369	CLIP; AIR PIPE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9906-
369	CLIP; AIR PIPE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (A) L=50	1-47475-299-2	01	1	9906-
370	BRACKET; PIPE CLIP WHEEL BASE 4700MM(47W) AIR DRYER<PS7>	1-46147-101-0	01	1	9906-
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	9906-
372	BOLT; CLIP BRKT WHEEL BASE 4700MM(47W) AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9906-
375	CLIP; AIR PIPE (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9906-
375	CLIP; AIR PIPE WHEEL BASE 4700MM(47W) (B) ID=7 L=16	9-09524-625-0	01	1	9906-
375	CLIP; AIR PIPE WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9910-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-

376 367 322 375 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
322	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9906-
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	9906-
357	BOLT; CLIP FIX M8X16 FLANGE	0-28080-816-0	01	1	9906-
367	BRACKET ASM	1-42119-080-0	01	1	9906-
375	CLIP; AIR PIPE (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9906-
375	CLIP; AIR PIPE WHEEL BASE 4700MM(47W) (B) ID=7 L=16	9-09524-625-0	01	1	9906-
375	CLIP; AIR PIPE WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9910-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-
376	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	9906-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9906-
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9906-

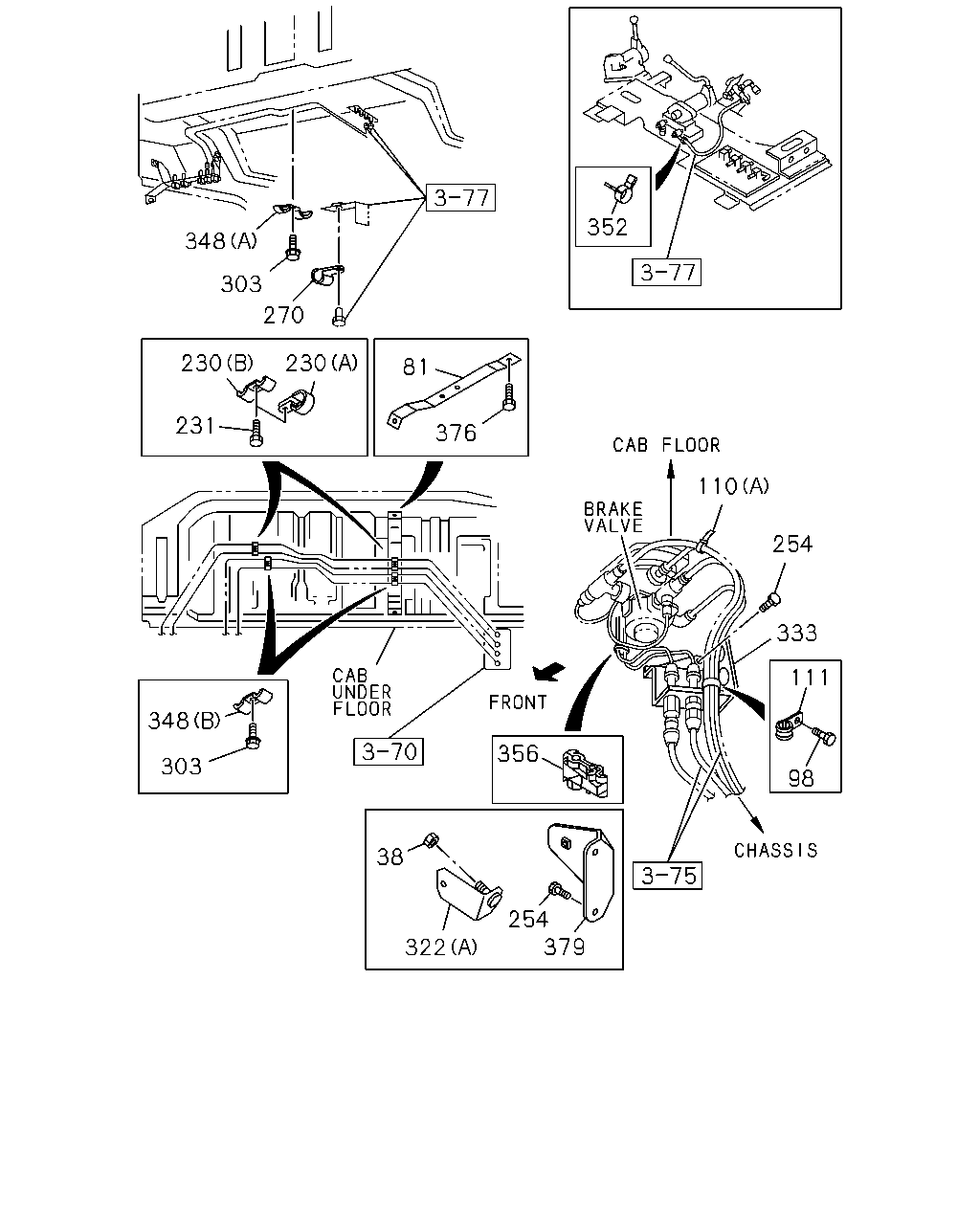

352 348 303 270 230 230 81 231 376 110 254 333 111 348 356 303 98 38 254 379 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9906-
81	BRACKET; CLIP	1-47477-483-0	01	1	9906-
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9906-
110	CLIP; BAND,NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	9906-9912
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE CONTROL<J91> (B) ID=35 L=33	1-09700-945-0	01	1	0001-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	15	1	9906-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	17	1	9906-
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=140	5-09707-031-1	02	1	0104-
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE CONTROL<J91> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=140	5-09707-031-1	01	1	0104-
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> (A) L=140	5-09707-031-1	01	1	0104-
110	CLIP; BAND,NYLON TUBE EXC. TRAILER BRAKE CONTROL<J91> (C) ID=28 L=40	1-09701-261-0	01	1	0001-
111	CLIP; AIR PIPE ID=32 L=35	1-09701-244-0	01	1	9906-9911
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	9912-
230	CLIP; PIPE,AIR (B) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	9906-0003
230	CLIP; PIPE,AIR TRAILER BRAKE CONTROL<J91> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0004-
230	CLIP; PIPE,AIR EXC. TRAILER BRAKE CONTROL<J91> (B) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0004-
230	CLIP; PIPE,AIR PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=9 L=16	9-09524-822-0	02	1	9906-0003
230	CLIP; PIPE,AIR TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=9 L=16	9-09524-822-0	02	1	0004-
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9906-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	05	1	9906-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9906-
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=35 L=33	1-09700-945-0	02	1	9906-
270	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=28 L=32	1-09701-107-1	02	1	9906-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9906-
322	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	9906-
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	9906-
333	BRACKET; BRK AIR PIPE	1-79997-360-6	01	1	9906-
348	CLIP; AIR PIPE (B) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9906-
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13X2 L=16	9-09535-225-0	02	1	9906-0003
348	CLIP; AIR PIPE TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13X2 L=16	9-09535-225-0	02	1	0004-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	9906-
356	CLIP; AIR PIPE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	9906-9912
356	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	9906-9912
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	9906-9912
356	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0001-
356	CLIP; AIR PIPE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	0001-
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	0001-
376	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	9906-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9906-
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9906-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
