◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50784 - NKR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#72579) — 80 parça

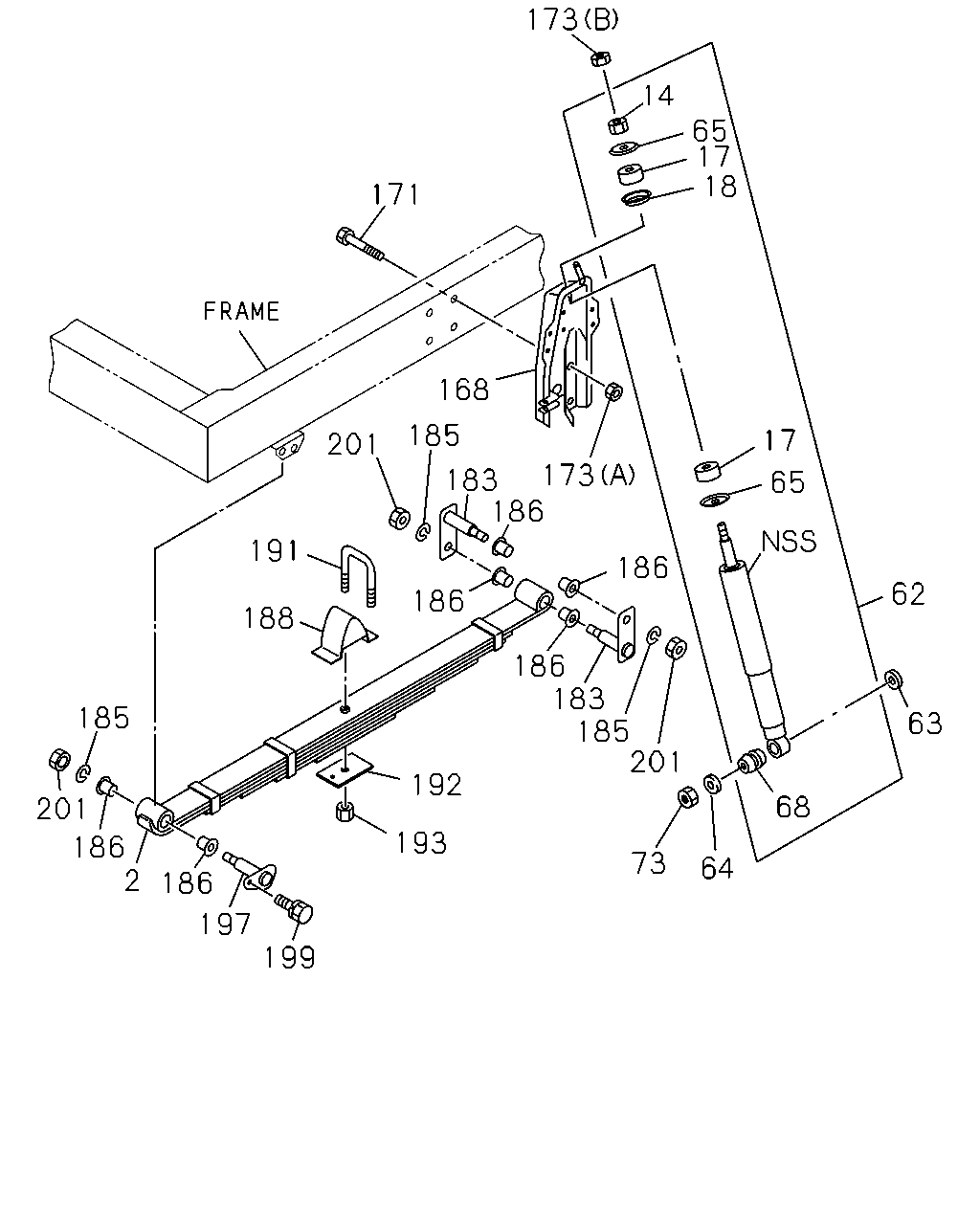

çizim 190633
173 14 65 17 18 171 168 185 17 201 183 173 186 65 191 186 62 186 188 186 183 185 201 185 63 192 68 201 193 186 2 73 64 186 197 199
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-94343-094-3 01 1 9704- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-94343-095-3 01 1 9704- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97071-625-2 01 1 0210- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-97071-626-2 01 1 0210- ●
14 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 9704-0209 ●
14 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 0210- ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 9704-0209 ●
17 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0210- ● ●
18 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 9704-0307 ●
18 WASHER; CENTERING,S/ABS
ID=13 OD=38 		9-51631-063-0 02 1 0210-0307 ●
62 ABSORBER ASM; SHOCK,FRT 8-97160-082-0 02 1 9704-0003 ●
62 ABSORBER ASM; SHOCK,FRT 8-97253-615-0 02 1 0004-0307 ●
62 ABSORBER ASM; SHOCK,FRT 8-97253-605-1 02 1 0308- ●
62 ABSORBER ASM; SHOCK,FRT 8-97253-613-0 02 1 0210-0307 ●
62 ABSORBER ASM; SHOCK,FRT 8-97260-214-1 02 1 0308- ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-127-1 02 1 0308- ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-152-0 02 1 0308- ●
63 WASHER; PL,S/ABS,LWR
ID=17 OD=32 		9-09164-616-0 02 1 9704-0209 ●
63 WASHER; PL,S/ABS,LWR
ID=17 OD=32 		9-09164-616-0 02 1 0210-1011 ● ●
63 WASHER; PL,S/ABS,LWR
ID=17 OD=32 		0-91614-616-0 02 1 1012- ● ●
64 WASHER; S/ABS,LWR
ID=12.5 		9-51679-022-0 02 1 9704-0209 ●
64 WASHER; S/ABS,LWR
ID=12.5 		9-51679-022-0 02 1 0210- ● ●
65 WASHER; S/ABS
ID=10.5 OD=38 		9-51631-062-0 04 1 9704-0209 ●
65 WASHER; S/ABS
ID=10.5 OD=38 		9-51631-062-0 04 1 0210- ● ●
68 BUSHING; S/ABS
TOKICO 		8-94224-694-0 02 1 9704-0209 ●
68 BUSHING; S/ABS
TOKICO 		8-94224-694-0 02 1 0210- ● ●
73 NUT; BRKT,SHOCK
M12 		9-99111-512-0 02 1 9704-0209 ●
73 NUT; BRKT,SHOCK
M12 		9-99111-512-0 02 1 0210-0512 ● ●
73 NUT; BRKT,SHOCK
M12 		0-91111-512-0 02 1 0601- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97316-007-1 01 1 1006- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97316-015-1 01 1 1006- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97045-613-1 01 1 9704-0209 ●
168 BRACKET; S/ABS,FRT SUSP 8-97045-613-1 01 1 0210-0307 ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97316-007-1 01 1 0308-1005 ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97045-616-1 01 1 9704-0209 ●
168 BRACKET; S/ABS,FRT SUSP 8-97045-616-1 01 1 0210-0307 ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97316-015-1 01 1 0308-1005 ● ●
171 BOLT; S/ABS BRKT
M10X30 		0-20801-030-0 08 1 9704-9704 ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 9704-0209 ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 0210-0512 ● ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE 		0-28651-030-0 08 1 0601- ● ●
173 NUT; S/ABS
(A) BRKT TO FRAME M10 FLANGE 		0-91150-210-0 08 1 9704-0209 ●
173 NUT; S/ABS
(A) BRKT TO FRAME M10 FLANGE 		0-91150-210-0 08 1 0210-0602 ● ●
173 NUT; S/ABS
(A) BRKT TO FRAME M10 FLANGE 		0-91180-210-0 08 1 0603-1403 ● ●
173 NUT; S/ABS
(A) BRKT TO FRAME M10 FLANGE 		0-91180-110-0 08 1 1404- ● ●
173 NUT; S/ABS
(B) S/ABS TO FRAME M10 		9-09111-410-0 02 1 9704-0209 ●
173 NUT; S/ABS
(B) S/ABS TO FRAME M10 		9-09111-410-0 02 1 0210-0306 ● ●
183 SHACKLE; FRT SUSP 8-94468-235-2 04 1 9704-0209 ●
183 SHACKLE; FRT SUSP 8-94468-235-2 04 1 0210- ● ●
185 WASHER; LK,PIN
ID=16.5 		8-97070-925-1 06 1 9704-9705 ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-97070-925-1 06 1 9706-0209 ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-97070-925-1 06 1 0210-0611 ● ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 0612- ● ●
186 BUSHING; SHACKLE 8-97081-531-0 12 1 9704-0209 ●
186 BUSHING; SHACKLE 8-97081-531-0 12 1 0210- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-94150-265-2 02 1 9704-0209 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-94150-265-3 02 1 0210- ● ●
191 U-BOLT; FRT SPR
L=105 		8-94252-452-4 04 1 9704-0104 ●
191 U-BOLT; FRT SPR
L=105 		8-97304-074-1 04 1 0105- ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> REAR L=95 		8-97304-073-1 02 1 0210- ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> FRONT L=105 		8-97304-074-1 02 1 0210- ●
191 U-BOLT; FRT SPR
EXC. FRONT STABILIZER SHAFT<F59> L=95 		8-97304-073-1 04 1 0210- ●
192 PIECE; DIST 8-94249-413-1 02 1 0210- ●
193 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 9704-0209 ●
193 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 0210-0610 ● ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 0611- ● ●
197 PIN; FRT SPR,FRT 8-94117-900-1 02 1 9704-0209 ●
197 PIN; FRT SPR,FRT 8-94117-900-1 02 1 0210- ● ●
199 BOLT
M10X22 W/LK WASHER 		0-50041-022-0 02 1 9704-9704 ●
199 BOLT
M10X25 FLANGE 		0-28681-025-0 02 1 9704-0209 ●
199 BOLT
M10X25 FLANGE 		0-28681-025-0 02 1 0210-0512 ● ●
199 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
201 NUT; PIN LK
M16 		9-99110-416-0 06 1 9704-9705 ●
201 NUT; PIN LK
M16 FLANGE 		8-97147-389-0 06 1 9706-9706 ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 06 1 9706-0209 ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 06 1 0210-0610 ● ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 0611- ● ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 		9-99110-416-0 06 1 9706-0209 ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 		9-99110-416-0 06 1 0210-0512 ● ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 		0-91110-516-0 06 1 0601- ● ●
