4-25 — REAR FINAL DRIVE (#72571) — 355 parça

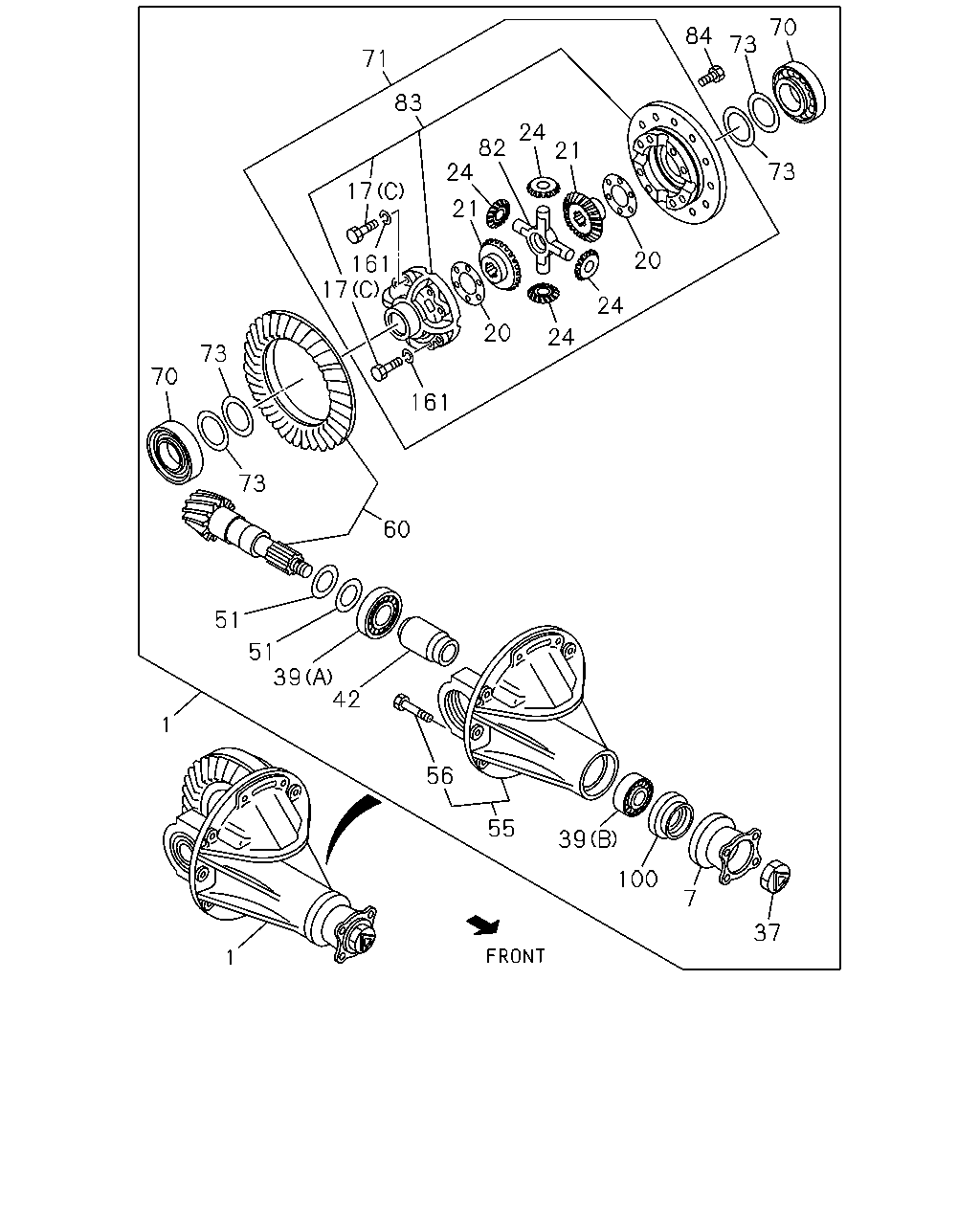

70 84 73 71 83 24 21 82 24 73 17 21 20 161 17 24 20 24 73 70 161 73 60 51 51 39 42 56 55 39 100 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	FLANGE; FINAL	8-94426-787-4	01	1	9704-1007	●
7	FLANGE; FINAL	8-94426-787-4	01	1	1008-	●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94426-787-4	01	1	1008-		●
7	FLANGE; FINAL	8-97075-216-3	01	1	0210-1007		●
7	FLANGE; FINAL REAR AXLE STANDARD 244MM(R39)	8-97075-216-3	01	1	1008-		●
17	BOLT; DIFF CAGE SETTING (A) M10X75	5-09000-213-0	12	1	9704-0205	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) (B) M10X75 FLANGE	8-97232-161-0	12	1	0204-0205	●
17	BOLT; DIFF CAGE SETTING (B) M10X75 FLANGE	8-97232-161-0	12	1	0206-1007	●
17	BOLT; DIFF CAGE SETTING (B) M10X75 FLANGE	8-97232-161-0	12	1	1008-	●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (B) M10X75 FLANGE	8-97232-161-0	12	1	1008-		●
17	BOLT; DIFF CAGE SETTING (C) M12X58	8-97314-497-0	08	1	0210-1007		●
17	BOLT; DIFF CAGE SETTING REAR AXLE STANDARD 244MM(R39) (C) M12X58	8-97314-497-0	08	1	1008-		●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	9704-1007	●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1008-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1008-		●
20	WASHER; THRUST,SIDE GEAR T=1.00	9-41562-602-0	02	1	0210-1007		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE STANDARD 244MM(R39) T=1.00	9-41562-602-0	02	1	1008-		●
21	GEAR; SIDE,DIFF Z=23	8-97035-388-0	02	1	9704-0009	●
21	GEAR; SIDE,DIFF Z=20	8-97300-269-0	02	1	0010-0303	●
21	GEAR; SIDE,DIFF Z=20	8-97362-599-0	02	1	0304-1007	●
21	GEAR; SIDE,DIFF Z=20	8-97362-599-1	02	1	1008-	●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=20	8-97362-599-1	02	1	1008-		●
21	GEAR; SIDE,DIFF Z=18	8-97226-764-0	02	1	0210-1007		●
21	GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-97226-764-0	02	1	1008-1105		●
21	GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-98190-383-1	02	1	1106-		●
24	GEAR; PINION,DIFF Z=10	8-97041-972-0	04	1	9704-0009	●
24	GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0010-0303	●
24	GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0510	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0511-1007	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1008-	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1008-		●
24	GEAR; PINION,DIFF Z=10	8-97226-762-0	04	1	0210-1007		●
24	GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-97226-762-0	04	1	1008-1105		●
24	GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-98186-829-0	04	1	1106-		●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	9704-1007	●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1008-	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1008-		●
37	NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	0210-1007		●
37	NUT; DRIVING PINION REAR AXLE STANDARD 244MM(R39) M24 FLANGE	8-94376-261-1	01	1	1008-		●
39	BEARING; FINAL PINION (B) NSK	9-00093-078-0	01	1	0210-1007		●
39	BEARING; FINAL PINION REAR AXLE STANDARD 244MM(R39) (B) NSK	9-00093-078-0	01	1	1008-		●
39	BEARING; FINAL PINION (A) JTEKT	9-00093-079-1	01	1	0210-1007		●
39	BEARING; FINAL PINION REAR AXLE STANDARD 244MM(R39) (A) JTEKT	9-00093-079-1	01	1	1008-		●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	9704-1007	●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1008-	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1008-		●
42	COLLAR; DIST,COLLAPSIBLE L=53.35	9-41219-634-1	01	1	0210-1007		●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE STANDARD 244MM(R39) L=53.35	9-41219-634-1	01	1	1008-		●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.12	9-41219-608-0	01	1	0210-1007		●
51	SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.12	9-41219-608-0	01	1	1008-		●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.16	9-41219-610-0	01	1	0210-1007		●
51	SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.16	9-41219-610-0	01	1	1008-		●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.20	9-41219-612-0	01	1	0210-1007		●
51	SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.20	9-41219-612-0	01	1	1008-		●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.24	9-41219-614-0	01	1	0210-1007		●
51	SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.24	9-41219-614-0	01	1	1008-		●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.28	9-41219-616-0	01	1	0210-1007		●
51	SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.28	9-41219-616-0	01	1	1008-		●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.32	9-41219-618-0	01	1	0210-1007		●
51	SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.32	9-41219-618-0	01	1	1008-		●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.36	9-41219-620-0	01	1	0210-1007		●
51	SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.36	9-41219-620-0	01	1	1008-		●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.40	9-41219-622-0	01	1	0210-1007		●
51	SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.40	9-41219-622-0	01	1	1008-		●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.44	9-41219-624-0	01	1	0210-1007		●
51	SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.44	9-41219-624-0	01	1	1008-		●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.48	9-41219-626-0	01	1	0210-1007		●
51	SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.48	9-41219-626-0	01	1	1008-		●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.52	9-41219-628-0	01	1	0210-1007		●
51	SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.52	9-41219-628-0	01	1	1008-		●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.56	9-41219-630-0	01	1	0210-1007		●
51	SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.56	9-41219-630-0	01	1	1008-		●
55	CARRIER; DIFF	8-94365-264-0	01	1	9704-0202	●
55	CARRIER; DIFF	8-97307-760-0	01	1	0203-1007	●
55	CARRIER; DIFF	8-97307-760-0	01	1	1008-	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1008-		●
55	CARRIER; DIFF	8-94376-227-3	01	1	0210-1007		●
55	CARRIER; DIFF REAR AXLE STANDARD 244MM(R39)	8-94376-227-3	01	1	1008-		●
56	BOLT; BRG CAP M14X80	8-94365-377-2	04	1	9704-0209	●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0210-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1312-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/6(R43) 39/6	8-97048-178-0	01	1	9704-0205	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/6(R43) 39/6	8-97319-162-0	01	1	0206-1007	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/6(R43) 39/6	8-97319-162-0	01	1	1008-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97035-454-0	01	1	9704-0203	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	0204-1201	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1202-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97035-455-0	01	1	9704-0203	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0204-1007	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	1008-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97035-433-0	01	1	0210-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97076-938-0	01	1	0210-		●
70	BEARING; DIFF CAGE JTEKT	8-98003-043-0	02	1	0504-1007		●
70	BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) JTEKT	8-98003-043-0	02	1	1008-		●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	9704-1007	●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1008-	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1008-		●
70	BEARING; DIFF CAGE NSK	9-00032-211-0	02	1	0210-1007		●
70	BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) NSK	9-00032-211-0	02	1	1008-		●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97035-389-0	01	1	9704-0205	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	8-97319-040-0	01	1	0204-0205	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97319-040-0	01	1	0206-0303	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97356-486-0	01	1	0304-0304	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97363-159-0	01	1	0304-0510	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-0	01	1	0511-1007	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	1008-	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-98015-182-1	01	1	1008-		●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97228-309-0	01	1	0210-1007		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39)	8-97228-309-0	01	1	1008-1105		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39)	8-98191-996-1	01	1	1106-		●
73	SHIM; DIFF SIDE BRG T=0.50	9-41519-009-0	AR	1	0210-1007		●
73	SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.50	9-41519-009-0	AR	1	1008-		●
73	SHIM; DIFF SIDE BRG T=0.25	9-41519-010-0	AR	1	0210-1007		●
73	SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.25	9-41519-010-0	AR	1	1008-		●
73	SHIM; DIFF SIDE BRG T=0.30	9-41519-601-0	AR	1	0210-1007		●
73	SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.30	9-41519-601-0	AR	1	1008-		●
73	SHIM; DIFF SIDE BRG T=0.35	9-41519-602-0	AR	1	0210-1007		●
73	SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.35	9-41519-602-0	AR	1	1008-		●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	9704-1007	●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	1008-	●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73)	5-41521-008-0	01	1	1008-		●
82	SPIDER; DIFF PINION	9-41521-611-0	01	1	0210-1007		●
82	SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39)	9-41521-611-0	01	1	1008-		●
83	CAGE ASM; DIFF	8-94159-027-0	01	1	9704-0205	●
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	8-97319-396-0	01	1	0204-0205	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0206-1007	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	1008-	●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-396-1	01	1	1008-		●
83	CAGE ASM; DIFF	9-41510-610-0	01	1	0210-1007		●
83	CAGE ASM; DIFF REAR AXLE STANDARD 244MM(R39)	9-41510-610-0	01	1	1008-		●
84	BOLT; FINAL DRIVE GEAR M12X25	9-09606-505-2	12	1	9704-0205	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) M14X25	8-97318-938-1	12	1	0204-0205	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0206-1007	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1008-	●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	1008-		●
84	BOLT; FINAL DRIVE GEAR M12X25	9-09606-505-2	12	1	0210-1007		●
84	BOLT; FINAL DRIVE GEAR REAR AXLE STANDARD 244MM(R39) M12X25	9-09606-505-2	12	1	1008-		●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	9704-1007	●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1008-	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1008-		●
100	SEAL; OIL,FINAL PINION NOK	8-94408-084-1	01	1	0210-0412		●
100	SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	0501-1007		●
100	SEAL; OIL,FINAL PINION REAR AXLE STANDARD 244MM(R39) NOK	8-97328-648-0	01	1	1008-		●
100	SEAL; OIL,FINAL PINION TKK	8-94408-085-1	01	1	0210-0412		●
161	WASHER; LK ID=12.2	9-09150-612-0	08	1	0210-0603		●
161	WASHER; LK ID=12.2	0-91510-612-0	08	1	0604-1007		●
161	WASHER; LK REAR AXLE STANDARD 244MM(R39) ID=12.2	0-91510-612-0	08	1	1008-		●

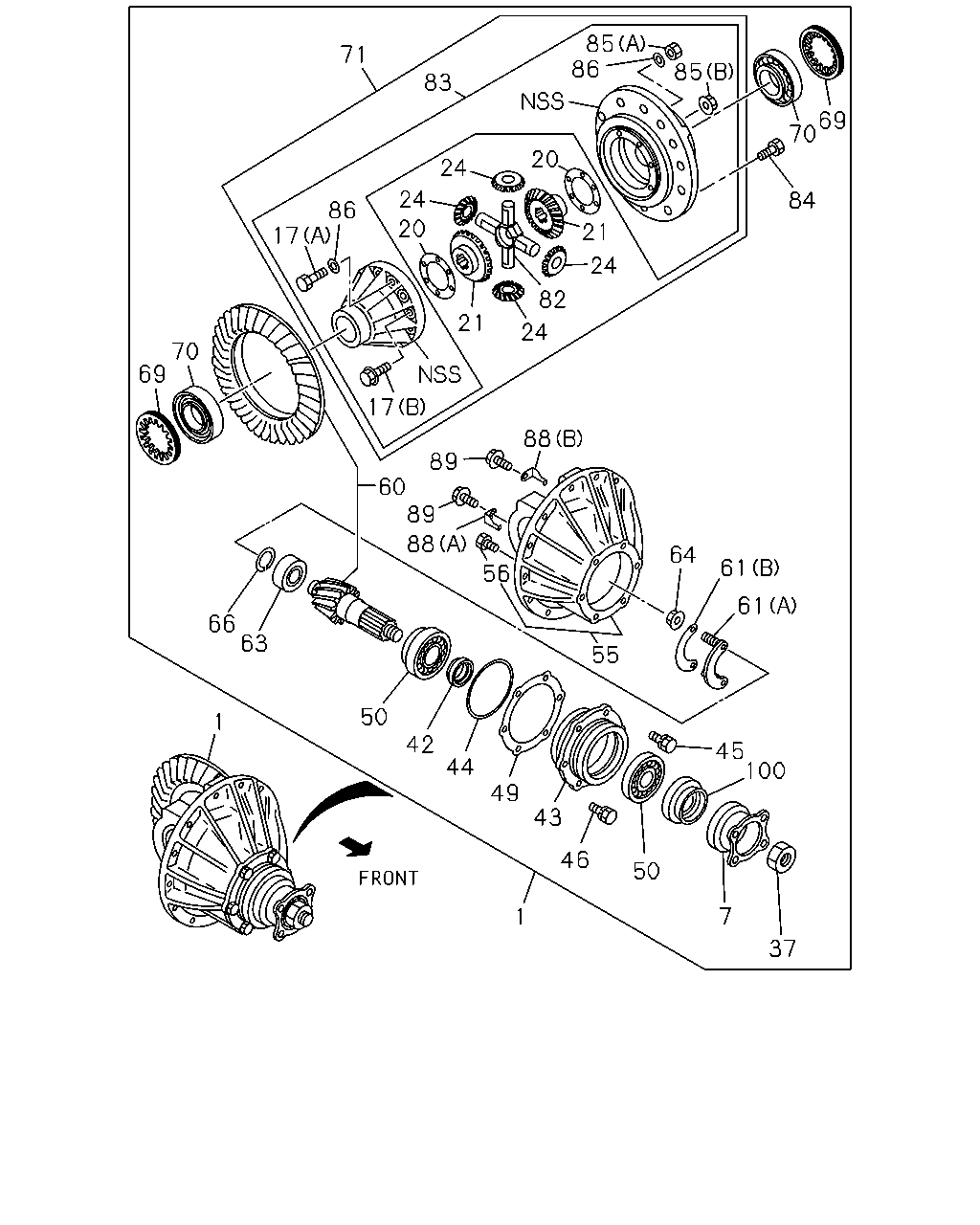

85 86 85 71 83 69 70 20 24 24 84 86 20 21 17 24 82 21 24 70 69 17 88 89 60 89 88 64 61 56 61 66 63 55 50 1 42 45 100 44 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/6(R43) 39/6	8-94338-903-2	01	1	9704-0205	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/6(R43) 39/6	8-97354-151-0	01	1	0206-0303	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/6(R43) 39/6	8-97356-478-0	01	1	0304-0304	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/6(R43) 39/6	8-97363-121-0	01	1	0304-0510	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/6(R43) 39/6	8-98015-170-0	01	1	0511-1007	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/6(R43) 39/6	8-98015-170-0	01	1	1008-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-94338-901-1	01	1	9704-0203	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-262-0	01	1	0204-0303	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97356-444-0	01	1	0304-0304	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97363-117-0	01	1	0304-0510	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98015-146-0	01	1	0511-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-94338-902-2	01	1	9704-0203	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97319-263-0	01	1	0204-0303	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97356-445-0	01	1	0304-0304	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97363-118-0	01	1	0304-0510	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-98015-147-0	01	1	0511-1007	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-98015-147-0	01	1	1008-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97076-936-0	01	1	0210-0304		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97367-501-0	01	1	0305-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97076-937-0	01	1	0210-0304		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97367-502-0	01	1	0305-		●
7	FLANGE; FINAL	8-94426-787-4	01	1	9704-1007	●
7	FLANGE; FINAL	8-94426-787-4	01	1	1008-	●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94426-787-4	01	1	1008-		●
7	FLANGE; FINAL	8-97075-216-3	01	1	0210-1007		●
7	FLANGE; FINAL REAR AXLE STANDARD 244MM(R39)	8-97075-216-3	01	1	1008-		●
17	BOLT; DIFF CAGE SETTING (A) M10X75	5-09000-213-0	12	1	9704-0205	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) (B) M10X75 FLANGE	8-97232-161-0	12	1	0204-0205	●
17	BOLT; DIFF CAGE SETTING (B) M10X75 FLANGE	8-97232-161-0	12	1	0206-1007	●
17	BOLT; DIFF CAGE SETTING (B) M10X75 FLANGE	8-97232-161-0	12	1	1008-	●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (B) M10X75 FLANGE	8-97232-161-0	12	1	1008-		●
17	BOLT; DIFF CAGE SETTING (C) M12X58	8-97314-497-0	08	1	0210-1007		●
17	BOLT; DIFF CAGE SETTING REAR AXLE STANDARD 244MM(R39) (C) M12X58	8-97314-497-0	08	1	1008-		●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	9704-1007	●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1008-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1008-		●
20	WASHER; THRUST,SIDE GEAR T=1.00	9-41562-602-0	02	1	0210-1007		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE STANDARD 244MM(R39) T=1.00	9-41562-602-0	02	1	1008-		●
21	GEAR; SIDE,DIFF Z=23	8-97035-388-0	02	1	9704-0009	●
21	GEAR; SIDE,DIFF Z=20	8-97300-269-0	02	1	0010-0303	●
21	GEAR; SIDE,DIFF Z=20	8-97362-599-0	02	1	0304-1007	●
21	GEAR; SIDE,DIFF Z=20	8-97362-599-1	02	1	1008-	●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=20	8-97362-599-1	02	1	1008-		●
21	GEAR; SIDE,DIFF Z=18	8-97226-764-0	02	1	0210-1007		●
21	GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-97226-764-0	02	1	1008-1105		●
21	GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-98190-383-1	02	1	1106-		●
24	GEAR; PINION,DIFF Z=10	8-97041-972-0	04	1	9704-0009	●
24	GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0010-0303	●
24	GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0510	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0511-1007	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1008-	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1008-		●
24	GEAR; PINION,DIFF Z=10	8-97226-762-0	04	1	0210-1007		●
24	GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-97226-762-0	04	1	1008-1105		●
24	GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-98186-829-0	04	1	1106-		●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	9704-1007	●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1008-	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1008-		●
37	NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	0210-1007		●
37	NUT; DRIVING PINION REAR AXLE STANDARD 244MM(R39) M24 FLANGE	8-94376-261-1	01	1	1008-		●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	9704-1007	●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1008-	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1008-		●
42	COLLAR; DIST,COLLAPSIBLE L=53.35	9-41219-634-1	01	1	0210-1007		●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE STANDARD 244MM(R39) L=53.35	9-41219-634-1	01	1	1008-		●
43	CAGE; FINAL PINION	8-94400-890-0	01	1	9704-1007	●
43	CAGE; FINAL PINION	8-94400-890-0	01	1	1008-	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	1008-		●
44	GASKET; PINION CAGE	9-09720-505-0	01	1	9704-1007	●
44	GASKET; PINION CAGE	9-09720-505-0	01	1	1008-	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73)	9-09720-505-0	01	1	1008-		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	9704-0909	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1007	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	1008-1311	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	1008-1311		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●
46	BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	9704-0909	●
46	BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-1007	●
46	BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	1008-	●
46	BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50551-435-0	01	1	1008-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	9704-1007	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1008-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	1008-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	9704-1007	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1008-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	1008-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	9704-1007	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1008-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	1008-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	9704-1007	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1008-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	1008-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	9704-1007	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1008-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	1008-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	9704-1007	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1008-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	1008-		●
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	9704-1007	●
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	1008-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	5-09812-062-1	02	1	1008-		●
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	9704-1007	●
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	1008-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09812-063-0	02	1	1008-		●
55	CARRIER; DIFF	8-94365-264-0	01	1	9704-0202	●
55	CARRIER; DIFF	8-97307-760-0	01	1	0203-1007	●
55	CARRIER; DIFF	8-97307-760-0	01	1	1008-	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1008-		●
55	CARRIER; DIFF	8-94376-227-3	01	1	0210-1007		●
55	CARRIER; DIFF REAR AXLE STANDARD 244MM(R39)	8-94376-227-3	01	1	1008-		●
56	BOLT; BRG CAP M14X80	8-94365-377-2	04	1	9704-0209	●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0210-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1312-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/6(R43) 39/6	8-97048-178-0	01	1	9704-0205	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/6(R43) 39/6	8-97319-162-0	01	1	0206-1007	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/6(R43) 39/6	8-97319-162-0	01	1	1008-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97035-454-0	01	1	9704-0203	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	0204-1201	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1202-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97035-455-0	01	1	9704-0203	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0204-1007	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	1008-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97035-433-0	01	1	0210-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97076-938-0	01	1	0210-		●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	9704-1007	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1008-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	1008-		●
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	9704-1007	●
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1008-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	1008-		●
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	9704-1007	●
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	1008-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	1008-		●
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	9704-1007	●
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1008-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	1008-		●
64	NUT; RET M6 FLANGE	0-91150-106-0	02	1	9704-0602	●
64	NUT; RET M6 FLANGE	0-91180-106-0	02	1	0603-1007	●
64	NUT; RET M6 FLANGE	0-91180-106-0	02	1	1008-	●
64	NUT; RET REAR AXLE HEAVY DUTY 292MM(G73) M6 FLANGE	0-91180-106-0	02	1	1008-		●
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	9704-1007	●
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1008-	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	1008-		●
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	9704-1007	●
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1008-	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	1008-		●
70	BEARING; DIFF CAGE JTEKT	8-98003-043-0	02	1	0504-1007		●
70	BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) JTEKT	8-98003-043-0	02	1	1008-		●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	9704-1007	●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1008-	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1008-		●
70	BEARING; DIFF CAGE NSK	9-00032-211-0	02	1	0210-1007		●
70	BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) NSK	9-00032-211-0	02	1	1008-		●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97035-389-0	01	1	9704-0205	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	8-97319-040-0	01	1	0204-0205	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97319-040-0	01	1	0206-0303	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97356-486-0	01	1	0304-0304	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97363-159-0	01	1	0304-0510	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-0	01	1	0511-1007	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	1008-	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-98015-182-1	01	1	1008-		●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97228-309-0	01	1	0210-1007		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39)	8-97228-309-0	01	1	1008-1105		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39)	8-98191-996-1	01	1	1106-		●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	9704-1007	●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	1008-	●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73)	5-41521-008-0	01	1	1008-		●
82	SPIDER; DIFF PINION	9-41521-611-0	01	1	0210-1007		●
82	SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39)	9-41521-611-0	01	1	1008-		●
83	CAGE ASM; DIFF	8-94159-027-0	01	1	9704-0205	●
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	8-97319-396-0	01	1	0204-0205	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0206-1007	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	1008-	●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-396-1	01	1	1008-		●
83	CAGE ASM; DIFF	9-41510-610-0	01	1	0210-1007		●
83	CAGE ASM; DIFF REAR AXLE STANDARD 244MM(R39)	9-41510-610-0	01	1	1008-		●
84	BOLT; FINAL DRIVE GEAR M12X25	9-09606-505-2	12	1	9704-0205	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) M14X25	8-97318-938-1	12	1	0204-0205	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0206-1007	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1008-	●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	1008-		●
84	BOLT; FINAL DRIVE GEAR M12X25	9-09606-505-2	12	1	0210-1007		●
84	BOLT; FINAL DRIVE GEAR REAR AXLE STANDARD 244MM(R39) M12X25	9-09606-505-2	12	1	1008-		●
85	NUT; DIFF CAGE SETTING (A) M10	8-94159-009-1	12	1	9704-0205	●
85	NUT; DIFF CAGE SETTING FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) (B) M10 FLANGE	0-91150-210-0	12	1	0204-0205	●
85	NUT; DIFF CAGE SETTING (B) M10 FLANGE	0-91150-210-0	12	1	0206-0602	●
85	NUT; DIFF CAGE SETTING (B) M10 FLANGE	0-91180-210-0	12	1	0603-1007	●
85	NUT; DIFF CAGE SETTING (B) M10 FLANGE	0-91180-210-0	12	1	1008-	●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (B) M10 FLANGE	0-91180-210-0	12	1	1008-		●
86	WASHER; PL,DIFF CAGE SETTING ID=10 OD=18 T=2	9-09651-116-0	24	1	9704-0205	●
88	PLATE; LK,ADJ NUT (A) CLAW POSITION LH	8-97027-281-0	AR	1	9704-1007	●
88	PLATE; LK,ADJ NUT (A) CLAW POSITION LH	8-97027-281-0	AR	1	1008-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A) CLAW POSITION LH	8-97027-281-0	AR	1	1008-		●
88	PLATE; LK,ADJ NUT (B) CLAW POSITION RH	8-97027-282-0	AR	1	9704-1007	●
88	PLATE; LK,ADJ NUT (B) CLAW POSITION RH	8-97027-282-0	AR	1	1008-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B) CLAW POSITION RH	8-97027-282-0	AR	1	1008-		●
89	BOLT; LK PLATE M8X16 FLANGE	0-28080-816-0	02	1	9704-0512	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	02	1	0601-1007	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	02	1	1008-	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) M8X16 FLANGE	0-28050-816-0	02	1	1008-		●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	9704-1007	●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1008-	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1008-		●
100	SEAL; OIL,FINAL PINION NOK	8-94408-084-1	01	1	0210-0412		●
100	SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	0501-1007		●
100	SEAL; OIL,FINAL PINION REAR AXLE STANDARD 244MM(R39) NOK	8-97328-648-0	01	1	1008-		●
100	SEAL; OIL,FINAL PINION TKK	8-94408-085-1	01	1	0210-0412		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
