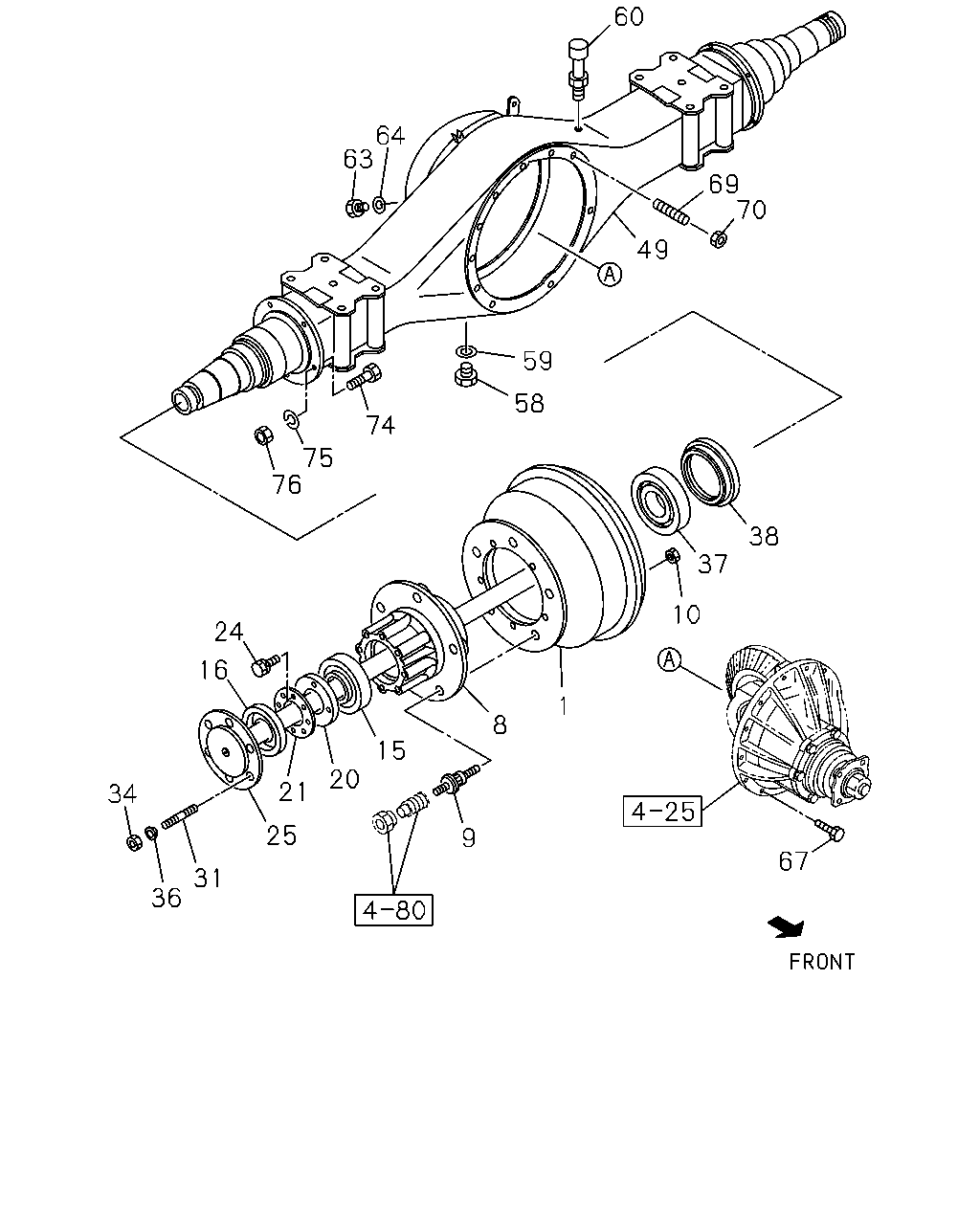

4-20 — REAR AXLE CASE AND SHAFT (#72570) — 193 parça

60 64 63 69 70 49 59 58 74 75 76 38 37 10 24 16 1 8 15 20 21 34 25 9 67 31 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	8-94382-884-4	02	1	9704-	●
1	DRUM; BRK,RR	8-94455-285-2	02	1	0210-		●
8	HUB; RR AXLE	8-97026-139-3	02	1	9704-	●
8	HUB; RR AXLE	5-42311-009-3	02	1	0210-		●
9	PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	9704-	●
9	PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	9704-	●
9	PIN; WHEEL,RR AXLE M14X50 LH THREAD	9-42332-605-5	06	1	0210-		●
9	PIN; WHEEL,RR AXLE M14X50 RH THREAD	9-42331-605-5	06	1	0210-		●
10	NUT; WHEEL PIN,RR AXLE M20	9-99110-520-0	10	1	9704-0512	●
10	NUT; WHEEL PIN,RR AXLE M20	0-91110-520-0	10	1	0601-	●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	9704-0209	●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0210-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	9704-0209	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	0210-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	9704-0209	●
16	SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0210-1207	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	9704-0209	●
16	SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0210-1106	●	●
20	NUT; BRG,RR HUB M52	8-97137-092-0	02	1	9704-0209	●
20	NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0210-1303	●	●
20	NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●	●
21	WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	9704-0209	●
21	WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	0210-	●	●
24	BOLT; LK WASHER M6X12 W/LK WASHER	0-50040-612-0	04	1	9704-0209	●
24	BOLT; LK WASHER M6X12 W/LK WASHER	0-50040-612-0	04	1	0210-0512	●	●
24	BOLT; LK WASHER M6X12 W/LK WASHER	0-50540-612-0	04	1	0601-0611	●	●
24	BOLT; LK WASHER M6X10 FLANGE	0-28050-610-0	04	1	0612-1509	●	●
24	BOLT; LK WASHER M6X12 FLANGE	0-28050-612-0	04	1	1510-	●	●
25	SHAFT; AXLE,RR	8-97032-496-0	02	1	9704-	●
25	SHAFT; AXLE,RR	8-94366-192-0	02	1	0210-		●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	5-09300-066-1	16	1	9704-0709	●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0710-	●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	5-09300-066-1	12	1	0210-0709		●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	0710-		●
34	NUT; AXLE SHAFT M10 FLANGE	0-91150-210-0	16	1	9704-0602	●
34	NUT; AXLE SHAFT M10 FLANGE	0-91180-210-0	16	1	0603-	●
34	NUT; AXLE SHAFT M10 FLANGE	0-91150-210-0	12	1	0210-0602		●
34	NUT; AXLE SHAFT M10 FLANGE	0-91180-210-0	12	1	0603-		●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	9-09855-207-0	16	1	9704-0709	●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0710-	●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	9-09855-207-0	12	1	0210-0709		●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	0710-		●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	9704-0209	●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0210-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	9704-0209	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	0210-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	9704-0209	●
38	SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0210-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	9704-0209	●
38	SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0210-	●	●
49	CASE; RR AXLE	8-97032-861-5	01	1	9704-	●
49	CASE; RR AXLE	8-97032-768-3	01	1	0210-1005		●
49	CASE; RR AXLE REAR AXLE STANDARD 244MM(R39)	8-97032-768-3	01	1	1006-		●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-97304-377-2	01	1	1008-		●
58	PLUG; DRAIN,AXLE CASE M16X12.5	8-97109-869-0	01	1	9704-0209	●
58	PLUG; DRAIN,AXLE CASE M16X12.5	8-97109-869-0	01	1	0210-0611	●	●
58	PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0612-	●	●
59	GASKET; DRAIN PLUG ID=16.2 OD=24	9-09571-416-0	01	1	9704-0209	●
59	GASKET; DRAIN PLUG ID=16.2 OD=24	9-09571-416-0	01	1	0210-	●	●
60	BREATHER; RR AXLE CASE L=30	8-94416-611-1	01	1	9704-0209	●
60	BREATHER; RR AXLE CASE L=30	8-94416-611-1	01	1	0210-0409	●	●
60	BREATHER; RR AXLE CASE L=29	8-97383-656-0	01	1	0410-0606	●	●
60	BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0607-	●	●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	9-09662-005-0	01	1	9704-0209	●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	9-09662-005-0	01	1	0210-0611	●	●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0612-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	9704-0209	●
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0210-	●	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	9704-0909	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-1007	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50561-040-0	11	1	1008-	●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X40 W/LK WASHER	0-50561-040-0	11	1	1008-		●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	08	1	0210-0909		●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50561-040-0	08	1	0910-1005		●
67	BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER	0-50561-040-0	08	1	1006-		●
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97026-282-0	02	1	9704-0209	●
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97026-282-0	02	1	0210-0610	●	●
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0611-	●	●
70	NUT; CARRIER M10 FLANGE	0-91150-210-0	02	1	9704-0209	●
70	NUT; CARRIER M10 FLANGE	0-91150-210-0	02	1	0210-0602	●	●
70	NUT; CARRIER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
74	BOLT; RR BRK ASM SETTING M12X32	5-09000-078-0	12	1	9704-0611	●
74	BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	0612-	●
74	BOLT; RR BRK ASM SETTING	8-97259-178-0	12	1	0210-0610		●
74	BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	0611-		●
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	9-09150-612-0	12	1	9704-0603	●
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-612-0	12	1	0604-0611	●
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-812-0	12	1	0612-	●
75	WASHER; LK,RR BRK ASM SETTING ID=10.2	9-09150-610-0	12	1	0210-0603		●
75	WASHER; LK,RR BRK ASM SETTING ID=10.2	0-91510-610-0	12	1	0604-0611		●
75	WASHER; LK,RR BRK ASM SETTING ID=10.2	0-91510-810-0	12	1	0612-		●
76	NUT; RR BRK ASM SETTING M12	9-99110-512-0	12	1	9704-0512	●
76	NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	0601-	●
76	NUT; RR BRK ASM SETTING M10	9-09110-510-0	12	1	0210-0512		●
76	NUT; RR BRK ASM SETTING M10	0-91110-510-0	12	1	0601-		●

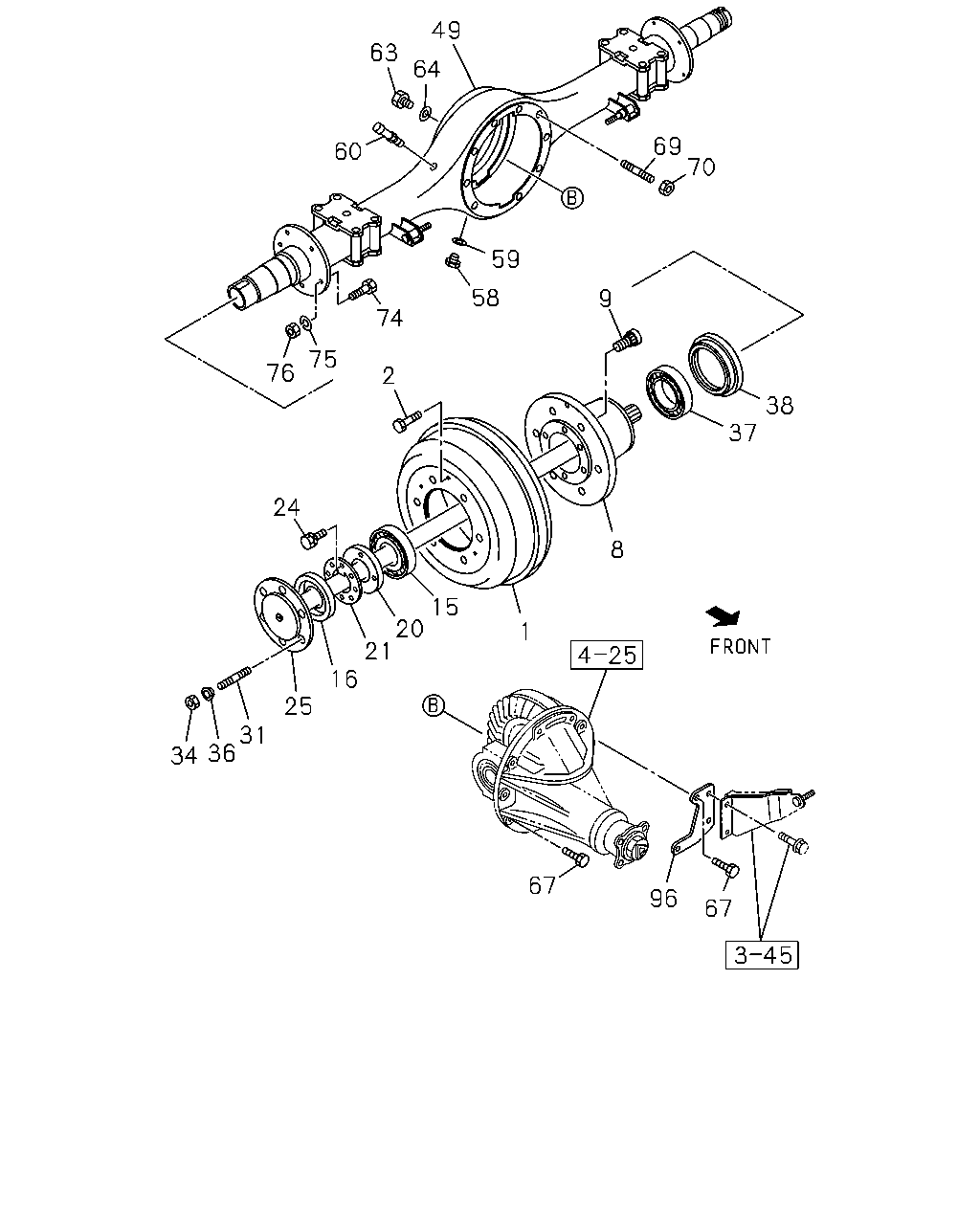

49 69 70 64 63 60 59 58 74 9 75 76 2 24 38 37 8 1 15 20 21 16 25 31 36 34 67 96 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	8-94382-884-4	02	1	9704-	●
1	DRUM; BRK,RR	8-94455-285-2	02	1	0210-		●
2	BOLT; BRK DRUM M6X18	0-20800-618-0	02	1	0210-		●
8	HUB; RR AXLE	8-97026-139-3	02	1	9704-	●
8	HUB; RR AXLE	5-42311-009-3	02	1	0210-		●
9	PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	9704-	●
9	PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	9704-	●
9	PIN; WHEEL,RR AXLE M14X50 LH THREAD	9-42332-605-5	06	1	0210-		●
9	PIN; WHEEL,RR AXLE M14X50 RH THREAD	9-42331-605-5	06	1	0210-		●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	9704-0209	●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0210-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	9704-0209	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	0210-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	9704-0209	●
16	SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0210-1207	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	9704-0209	●
16	SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0210-1106	●	●
20	NUT; BRG,RR HUB M52	8-97137-092-0	02	1	9704-0209	●
20	NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0210-1303	●	●
20	NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●	●
21	WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	9704-0209	●
21	WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	0210-	●	●
24	BOLT; LK WASHER M6X12 W/LK WASHER	0-50040-612-0	04	1	9704-0209	●
24	BOLT; LK WASHER M6X12 W/LK WASHER	0-50040-612-0	04	1	0210-0512	●	●
24	BOLT; LK WASHER M6X12 W/LK WASHER	0-50540-612-0	04	1	0601-0611	●	●
24	BOLT; LK WASHER M6X10 FLANGE	0-28050-610-0	04	1	0612-1509	●	●
24	BOLT; LK WASHER M6X12 FLANGE	0-28050-612-0	04	1	1510-	●	●
25	SHAFT; AXLE,RR	8-97032-496-0	02	1	9704-	●
25	SHAFT; AXLE,RR	8-94366-192-0	02	1	0210-		●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	5-09300-066-1	16	1	9704-0709	●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0710-	●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	5-09300-066-1	12	1	0210-0709		●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	0710-		●
34	NUT; AXLE SHAFT M10 FLANGE	0-91150-210-0	16	1	9704-0602	●
34	NUT; AXLE SHAFT M10 FLANGE	0-91180-210-0	16	1	0603-	●
34	NUT; AXLE SHAFT M10 FLANGE	0-91150-210-0	12	1	0210-0602		●
34	NUT; AXLE SHAFT M10 FLANGE	0-91180-210-0	12	1	0603-		●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	9-09855-207-0	16	1	9704-0709	●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0710-	●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	9-09855-207-0	12	1	0210-0709		●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	0710-		●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	9704-0209	●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0210-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	9704-0209	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	0210-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	9704-0209	●
38	SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0210-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	9704-0209	●
38	SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0210-	●	●
49	CASE; RR AXLE	8-97032-861-5	01	1	9704-	●
49	CASE; RR AXLE	8-97032-768-3	01	1	0210-1005		●
49	CASE; RR AXLE REAR AXLE STANDARD 244MM(R39)	8-97032-768-3	01	1	1006-		●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-97304-377-2	01	1	1008-		●
58	PLUG; DRAIN,AXLE CASE M16X12.5	8-97109-869-0	01	1	9704-0209	●
58	PLUG; DRAIN,AXLE CASE M16X12.5	8-97109-869-0	01	1	0210-0611	●	●
58	PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0612-	●	●
59	GASKET; DRAIN PLUG ID=16.2 OD=24	9-09571-416-0	01	1	9704-0209	●
59	GASKET; DRAIN PLUG ID=16.2 OD=24	9-09571-416-0	01	1	0210-	●	●
60	BREATHER; RR AXLE CASE L=30	8-94416-611-1	01	1	9704-0209	●
60	BREATHER; RR AXLE CASE L=30	8-94416-611-1	01	1	0210-0409	●	●
60	BREATHER; RR AXLE CASE L=29	8-97383-656-0	01	1	0410-0606	●	●
60	BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0607-	●	●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	9-09662-005-0	01	1	9704-0209	●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	9-09662-005-0	01	1	0210-0611	●	●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0612-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	9704-0209	●
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0210-	●	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	9704-0909	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-1007	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50561-040-0	11	1	1008-	●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X40 W/LK WASHER	0-50561-040-0	11	1	1008-		●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	08	1	0210-0909		●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50561-040-0	08	1	0910-1005		●
67	BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) M10X40 W/LK WASHER	0-50561-040-0	08	1	1006-		●
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97026-282-0	02	1	9704-0209	●
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97026-282-0	02	1	0210-0610	●	●
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0611-	●	●
70	NUT; CARRIER M10 FLANGE	0-91150-210-0	02	1	9704-0209	●
70	NUT; CARRIER M10 FLANGE	0-91150-210-0	02	1	0210-0602	●	●
70	NUT; CARRIER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
74	BOLT; RR BRK ASM SETTING M12X32	5-09000-078-0	12	1	9704-0611	●
74	BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	0612-	●
74	BOLT; RR BRK ASM SETTING	8-97259-178-0	12	1	0210-0610		●
74	BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	0611-		●
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	9-09150-612-0	12	1	9704-0603	●
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-612-0	12	1	0604-0611	●
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-812-0	12	1	0612-	●
75	WASHER; LK,RR BRK ASM SETTING ID=10.2	9-09150-610-0	12	1	0210-0603		●
75	WASHER; LK,RR BRK ASM SETTING ID=10.2	0-91510-610-0	12	1	0604-0611		●
75	WASHER; LK,RR BRK ASM SETTING ID=10.2	0-91510-810-0	12	1	0612-		●
76	NUT; RR BRK ASM SETTING M12	9-99110-512-0	12	1	9704-0512	●
76	NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	0601-	●
76	NUT; RR BRK ASM SETTING M10	9-09110-510-0	12	1	0210-0512		●
76	NUT; RR BRK ASM SETTING M10	0-91110-510-0	12	1	0601-		●
96	BRACKET; LSPV,AXLE CASE REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH>	8-98030-956-0	01	1	1311-		●
96	BRACKET; LSPV,AXLE CASE REAR AXLE STANDARD 244MM(R39) BRK WHL LK CONT LSPV<6PH>	8-94368-449-2	01	1	1311-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
