Sayfa 3-77 - Isuzu EPC

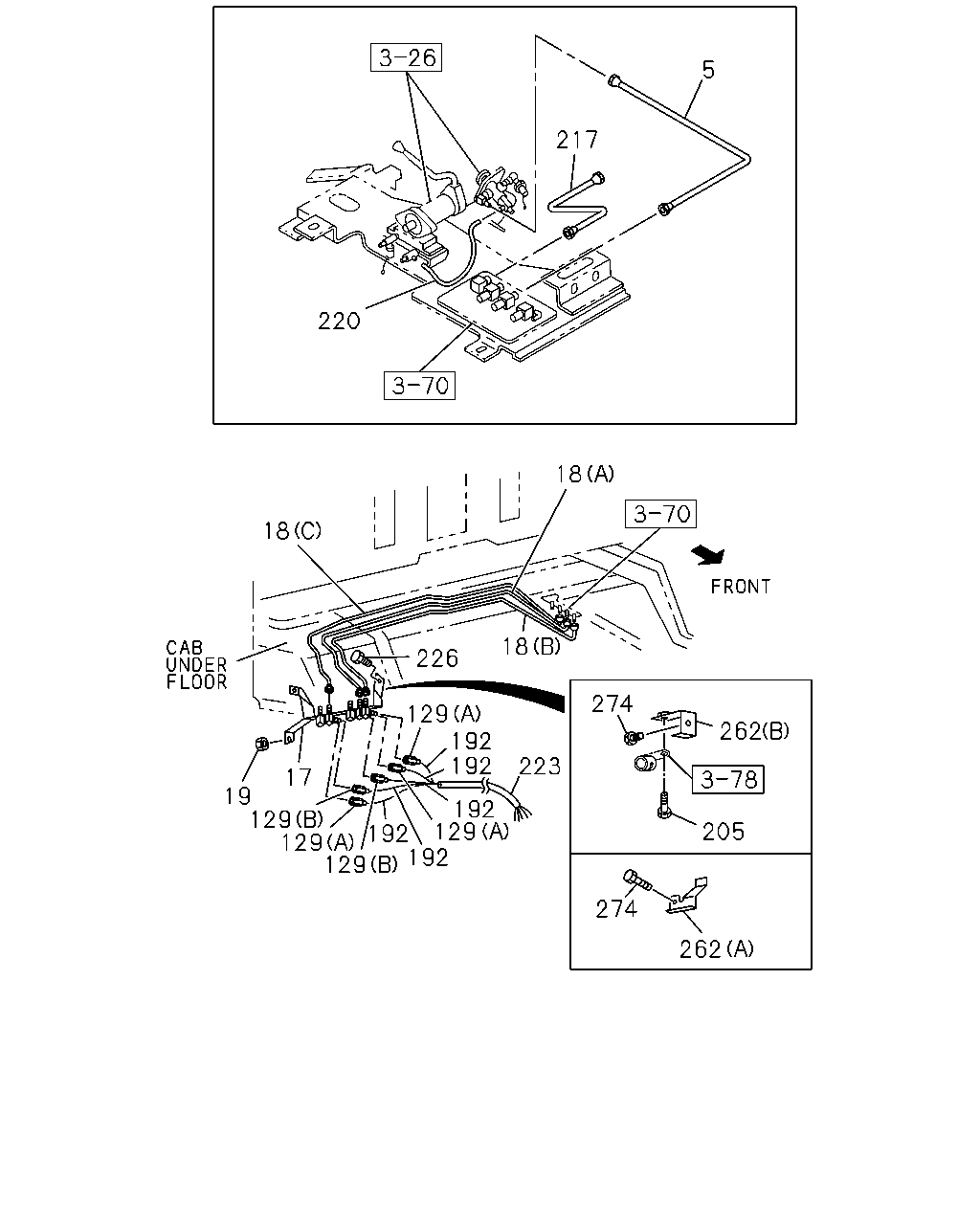

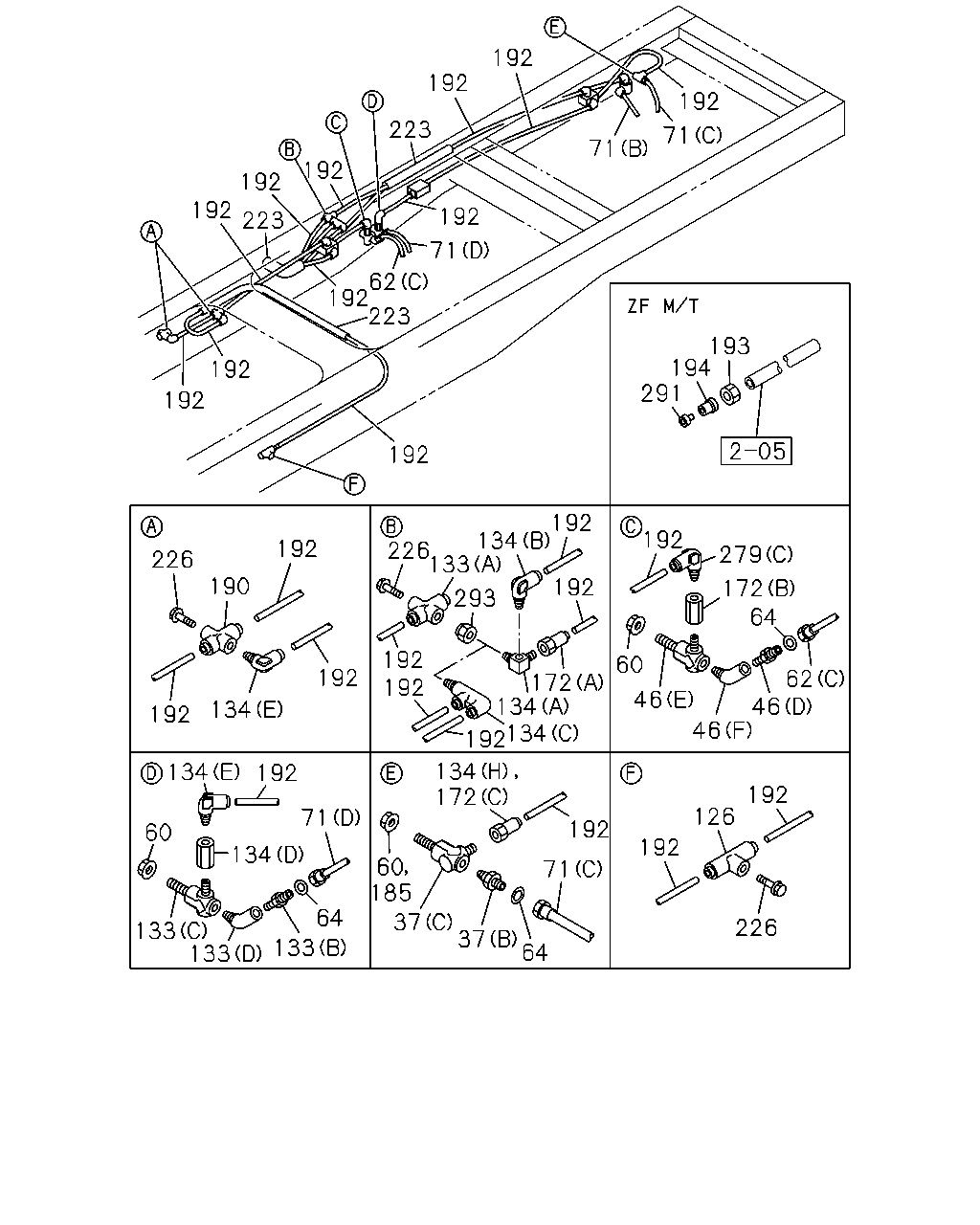

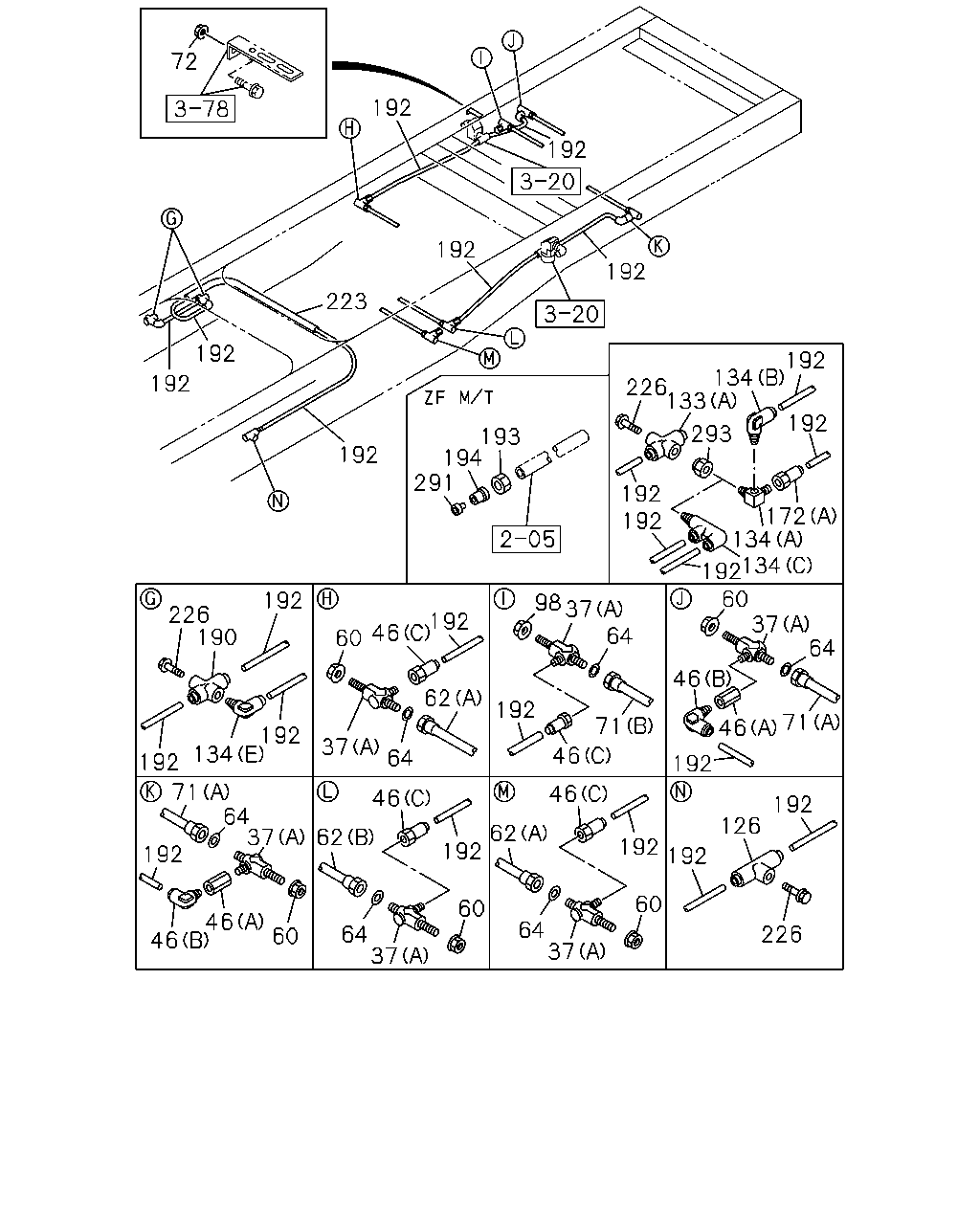

3-77 — BRAKE PIPING; AIR,REAR (#7257) — 249 parça

72 192 192 192 192 223 192 192 134 226 133 192 192 293 193 194 291 192 192 192 172 134 134 192 60 37 192 98 37 64 226 190 192 46 60 64 46 62 192 71 71 46 192 134 37 64 46 192 192 71 64 37 46 46 192 126 62 192 62 192 192 192 60 60 46 46 60 64 37 226 64 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-09650-360-1	06	1	9906-
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9906-
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	1-09650-251-1	01	1	9906-
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	9906-
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9906-
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M16 STRAIGHT	1-09661-096-0	04	1	9906-0007
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	0008-
46	NIPPLE; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9906-9912
46	NIPPLE; AIR PIPE WHEEL BASE 4700MM(47W) (D) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0001-
46	NIPPLE; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0001-
46	NIPPLE; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (E)	1-09650-251-1	01	1	9906-
46	NIPPLE; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (F)	1-09664-209-0	01	1	9906-
46	NIPPLE; AIR PIPE WHEEL BASE 4700MM(47W) (B) M14X35	1-09650-272-2	01	1	0001-
60	NUT; NIPPLE,AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) M14 FLANGE	0-91150-114-0	04	1	9906-
60	NUT; NIPPLE,AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) M20	9-99111-420-0	04	1	9906-
62	HOSE; FLEX,FWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=370	0-07847-370-1	02	1	9906-
62	HOSE; FLEX,FWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=530	0-07847-530-1	01	1	9906-
62	HOSE; FLEX,FWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=630	0-07909-630-0	01	1	9906-
64	GASKET; FLEX HOSE ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18	9-09572-510-0	12	1	9906-
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	06	1	9906-
64	GASKET; FLEX HOSE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18	9-09572-510-0	02	1	9906-
64	GASKET; FLEX HOSE WHEEL BASE 4700MM(47W) ID=17.5	9-09572-515-0	02	1	0001-
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=450 W/SPRING	0-07847-450-1	02	1	9906-
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=580	0-07847-580-1	01	1	9906-
71	HOSE; FLEX,RWD RR WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) L=580	0-07847-580-1	01	1	9906-
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=550	0-07909-550-0	01	1	9906-9912
71	HOSE; FLEX,RWD RR WHEEL BASE 4700MM(47W) (C) L=550	0-07909-550-0	01	1	0001-
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=550	0-07909-550-0	01	1	0001-
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) L=630	0-07909-630-0	01	1	9906-
72	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	9906-
98	NUT; PIPE UNION ANTILOCK BRAKE SYSTEM(BFA) M14 FLANGE	0-91150-114-0	02	1	9906-
126	UNION; NYLON TUBE	1-09661-133-0	01	1	9906-
133	UNION; NIPPLE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9906-
133	UNION; NIPPLE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	1-09650-251-1	01	1	9906-
133	UNION; NIPPLE EXC. ANTILOCK BRAKE SYSTEM(BFA) (D)	1-09664-209-0	01	1	9906-
133	UNION; NIPPLE BRAKE REGULATION HONG KONG<TCZ> (A) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9906-9912
133	UNION; NIPPLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0001-
134	CONNECTOR (F) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9906-9907
134	CONNECTOR (G) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9906-9907
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9906-
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9907
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9907
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9907
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9906-
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (A)	1-09656-420-2	01	1	9906-
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-9907
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9908-9912
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9908-9912
134	CONNECTOR BRAKE REGULATION ECE<TDV> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
134	CONNECTOR WHEEL BASE 4700MM(47W) (H) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	0001-0007
134	CONNECTOR WHEEL BASE 4700MM(47W) (H) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9906-
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-0007
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
172	ADAPTER; UNION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-0007
172	ADAPTER; UNION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9906-
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9906-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0001-
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	9906-
194	SLEEVE; TUBE ZF M/T<X9E> ID=12.15 OD=15 L=10	1-09666-043-0	01	1	9906-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9906-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9906-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9906-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9906-
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9906-
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	02	1	9906-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9906-
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	9906-
293	VALVE; CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48320-013-1	01	1	9906-9912
293	VALVE; CHECK BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48320-013-2	01	1	0001-

192 192 192 223 71 71 192 192 192 223 192 71 62 192 223 193 194 291 192 192 192 192 134 226 133 192 192 279 226 190 192 172 64 293 192 192 60 192 62 46 46 172 134 134 192 46 134 192 134 172 134 192 192 126 71 192 60 192 134 60 185 71 133 133 64 37 37 64 226 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-09650-360-1	06	1	9906-
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9906-
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	1-09650-251-1	01	1	9906-
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	9906-
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9906-
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M16 STRAIGHT	1-09661-096-0	04	1	9906-0007
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	0008-
46	NIPPLE; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9906-9912
46	NIPPLE; AIR PIPE WHEEL BASE 4700MM(47W) (D) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0001-
46	NIPPLE; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0001-
46	NIPPLE; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (E)	1-09650-251-1	01	1	9906-
46	NIPPLE; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (F)	1-09664-209-0	01	1	9906-
46	NIPPLE; AIR PIPE WHEEL BASE 4700MM(47W) (B) M14X35	1-09650-272-2	01	1	0001-
60	NUT; NIPPLE,AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) M14 FLANGE	0-91150-114-0	04	1	9906-
60	NUT; NIPPLE,AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) M20	9-99111-420-0	04	1	9906-
62	HOSE; FLEX,FWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=370	0-07847-370-1	02	1	9906-
62	HOSE; FLEX,FWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=530	0-07847-530-1	01	1	9906-
62	HOSE; FLEX,FWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=630	0-07909-630-0	01	1	9906-
64	GASKET; FLEX HOSE ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18	9-09572-510-0	12	1	9906-
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	06	1	9906-
64	GASKET; FLEX HOSE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18	9-09572-510-0	02	1	9906-
64	GASKET; FLEX HOSE WHEEL BASE 4700MM(47W) ID=17.5	9-09572-515-0	02	1	0001-
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=450 W/SPRING	0-07847-450-1	02	1	9906-
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=580	0-07847-580-1	01	1	9906-
71	HOSE; FLEX,RWD RR WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) L=580	0-07847-580-1	01	1	9906-
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=550	0-07909-550-0	01	1	9906-9912
71	HOSE; FLEX,RWD RR WHEEL BASE 4700MM(47W) (C) L=550	0-07909-550-0	01	1	0001-
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=550	0-07909-550-0	01	1	0001-
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) L=630	0-07909-630-0	01	1	9906-
126	UNION; NYLON TUBE	1-09661-133-0	01	1	9906-
133	UNION; NIPPLE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9906-
133	UNION; NIPPLE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	1-09650-251-1	01	1	9906-
133	UNION; NIPPLE EXC. ANTILOCK BRAKE SYSTEM(BFA) (D)	1-09664-209-0	01	1	9906-
133	UNION; NIPPLE BRAKE REGULATION HONG KONG<TCZ> (A) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9906-9912
133	UNION; NIPPLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0001-
134	CONNECTOR (F) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9906-9907
134	CONNECTOR (G) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9906-9907
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9906-
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9907
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9907
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9907
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9906-
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (A)	1-09656-420-2	01	1	9906-
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-9907
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9908-9912
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9908-9912
134	CONNECTOR BRAKE REGULATION ECE<TDV> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
134	CONNECTOR WHEEL BASE 4700MM(47W) (H) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	0001-0007
134	CONNECTOR WHEEL BASE 4700MM(47W) (H) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9906-
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-0007
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
172	ADAPTER; UNION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-0007
172	ADAPTER; UNION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
185	NUT; NIPPLE WHEEL BASE 4700MM(47W) M20	9-99111-420-0	01	1	0001-
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9906-
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9906-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0001-
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	9906-
194	SLEEVE; TUBE ZF M/T<X9E> ID=12.15 OD=15 L=10	1-09666-043-0	01	1	9906-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9906-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9906-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9906-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9906-
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9906-
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	02	1	9906-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9906-
279	UNION; AIR PIPE (A) M14X35	1-09650-272-2	01	1	9906-
279	UNION; AIR PIPE (B) M16 & PT3/8 2WAY	1-09654-239-1	01	1	9906-
279	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	9906-
293	VALVE; CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48320-013-1	01	1	9906-9912
293	VALVE; CHECK BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48320-013-2	01	1	0001-

192 192 192 192 192 281 192 192 289 278 280 192 279 134 281 279 134 278 280 192 192 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
134	CONNECTOR (F) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9906-9907
134	CONNECTOR (G) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9906-9907
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9906-
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9907
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9907
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9907
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9906-
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (A)	1-09656-420-2	01	1	9906-
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-9907
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9908-9912
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9908-9912
134	CONNECTOR BRAKE REGULATION ECE<TDV> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
134	CONNECTOR WHEEL BASE 4700MM(47W) (H) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	0001-0007
134	CONNECTOR WHEEL BASE 4700MM(47W) (H) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0001-
278	NUT; UNION (A) M16	9-99111-416-0	01	1	9906-
278	NUT; UNION (B) M20	9-99111-420-0	01	1	9906-
279	UNION; AIR PIPE (A) M14X35	1-09650-272-2	01	1	9906-
279	UNION; AIR PIPE (B) M16 & PT3/8 2WAY	1-09654-239-1	01	1	9906-
279	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-
280	WASHER; LK (A) ID=16.2	9-09150-516-0	01	1	9906-
280	WASHER; LK (B) ID=20.2	9-09150-520-0	01	1	9906-
281	PIPE; AIR,EMERGENCY	1-49117-109-0	01	1	9906-
289	PIPE; AIR,MODULATOR TO RELAY VLV	1-49117-108-0	01	1	9906-

5 217 220 18 18 18 226 274 129 192 192 262 223 17 19 129 129 129 192 192 129 192 205 274 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PIPE; AIR,UNION TO PARKING VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-47495-161-0	01	1	9906-
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48>	1-47470-453-2	01	1	9906-0003
17	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48>	1-47470-453-2	01	1	0004-
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91>	1-47470-624-0	01	1	0004-
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-47470-455-2	01	1	9906-
18	PIPE; AIR,UNION TO UNION (A) L=1800	1-49121-052-0	01	1	9906-
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=1854	1-49121-053-0	01	1	9906-
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1982	1-49121-055-1	01	1	9906-0003
18	PIPE; AIR,UNION TO UNION TRAILER BRAKE CONTROL<J91> (C) L=1982	1-49121-055-1	01	1	0004-
18	PIPE; AIR,UNION TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1942	1-49121-057-0	01	1	9906-
19	NUT; PIPE UNION M8	9-09110-408-0	01	1	9906-
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9906-0007
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9906-0007
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-0009
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-0009
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0010-
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0010-
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09661-094-0	04	1	9912-0007
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9906-0007
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	08	1	0008-0009
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0010-
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9906-0007
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-0009
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0010-
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-0007
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9906-
192	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0001-
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9906-
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-456-0	01	1	9906-
220	HOSE; VINYL,EXH,PARKING BRK VLV L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9906-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9906-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9906-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9906-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9906-
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9906-
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	02	1	9906-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9906-
262	BRACKET (B)	1-79996-143-0	01	1	9906-
262	BRACKET (A)	1-79996-144-0	01	1	9906-
274	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9906-
274	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	01	1	9906-0102
274	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0103-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
