4-10 — FRONT AXLE (#72568) — 135 parça

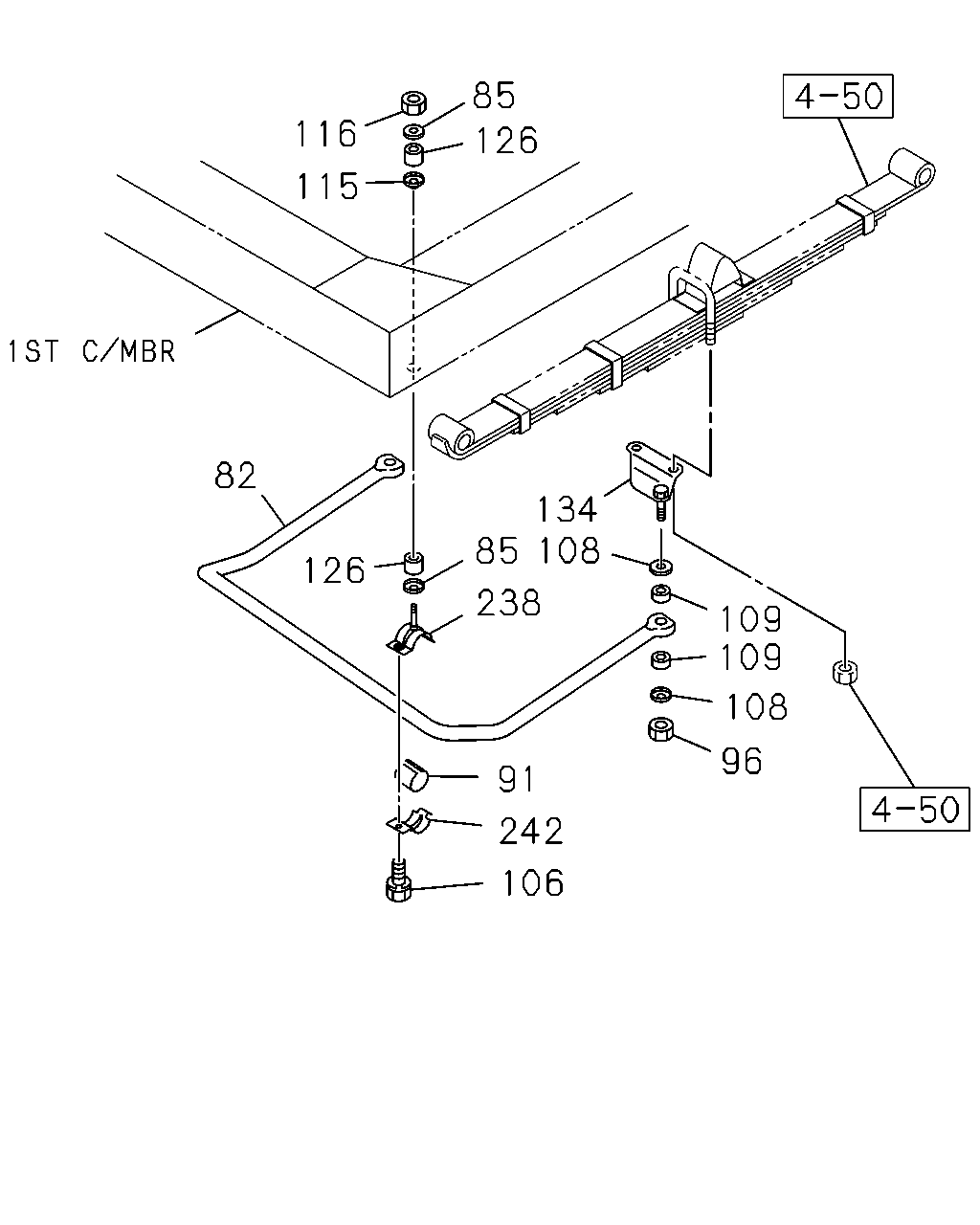

85 126 116 115 82 134 108 85 126 238 109 109 108 96 91 242 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-97170-624-1	01	1	0210-	●
85	WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59>	9-51779-027-0	04	1	0210-	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-97170-752-0	02	1	0210-	●
96	NUT; STAB BAR TO CONT ARM FRONT STABILIZER SHAFT<F59> M10 LOCK NUT	9-09131-510-0	02	1	0210-0603	●
96	NUT; STAB BAR TO CONT ARM FRONT STABILIZER SHAFT<F59> M10 LOCK NUT	0-91370-010-0	02	1	0604-	●
106	BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> M10X30 W/LK WASHER	0-50041-030-0	02	1	0210-0512	●
106	BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> M10X30 W/LK WASHER	0-50541-030-0	02	1	0601-	●
108	CAP FRONT STABILIZER SHAFT<F59>	8-97170-631-0	04	1	0210-	●
109	BUFFER; STAB BAR FRONT STABILIZER SHAFT<F59>	8-97170-622-0	04	1	0210-	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> ID=15.0 OD=32	9-51631-049-0	02	1	0210-0406	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> ID=15.0 OD=32	8-97387-669-0	02	1	0407-	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M10 LOCK NUT	9-09131-510-0	02	1	0210-0603	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M10 LOCK NUT	0-91370-010-0	02	1	0604-	●
126	RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59>	5-51631-017-0	04	1	0210-	●
134	BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-97304-056-0	01	1	0210-	●
134	BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-97304-055-0	01	1	0210-	●
238	ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-97170-751-0	02	1	0210-	●
242	CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-97170-746-0	02	1	0210-	●

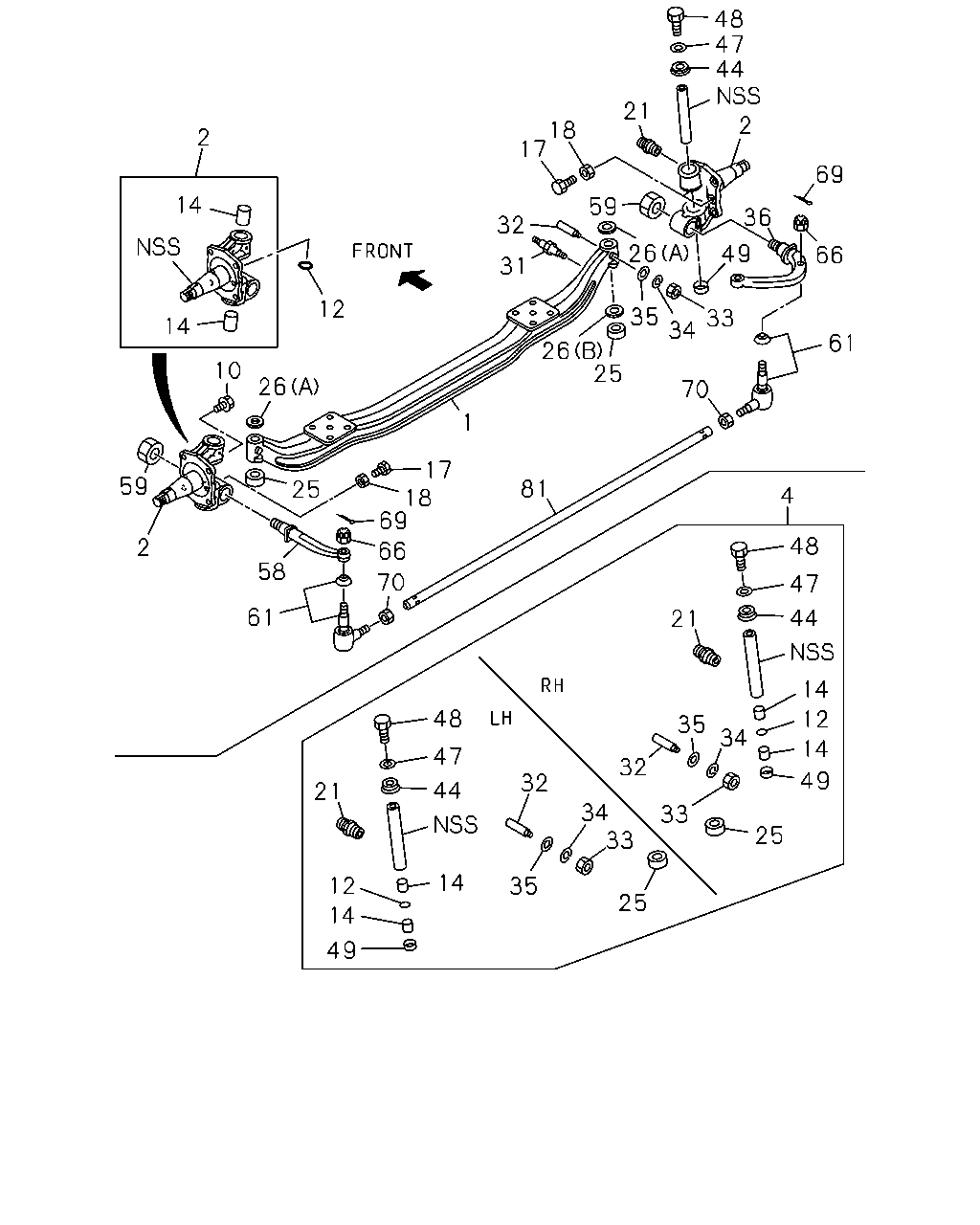

48 47 44 2 21 18 17 2 69 14 59 26 35 33 34 26 25 36 32 49 66 31 12 14 61 10 26 70 1 59 17 18 69 81 25 4 48 2 66 58 70 47 61 21 44 14 48 12 35 34 14 47 32 49 32 44 21 34 33 33 25 14 12 35 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	8-94246-310-5	01	1	9704-0209		●
1	AXLE; FRT	8-94246-310-6	01	1	0210-0307	●	●
1	AXLE; FRT	8-97137-585-4	01	1	0308-	●	●
2	KNUCKLE; FRT AXLE	8-94169-412-0	01	1	9704-9905		●
2	KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF>	8-94169-412-0	01	1	9906-9909		●
2	KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF>	8-97230-680-0	01	1	9906-9909		●
2	KNUCKLE; FRT AXLE	8-97230-680-0	01	1	9910-0008		●
2	KNUCKLE; FRT AXLE	8-97261-542-1	01	1	0009-0209		●
2	KNUCKLE; FRT AXLE	8-97261-542-1	01	1	0210-0307	●	●
2	KNUCKLE; FRT AXLE	8-97261-546-2	01	1	0308-	●	●
2	KNUCKLE; FRT AXLE	8-94169-411-0	01	1	9704-9905		●
2	KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF>	8-94169-411-0	01	1	9906-9909		●
2	KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF>	8-97230-679-0	01	1	9906-9909		●
2	KNUCKLE; FRT AXLE	8-97230-679-0	01	1	9910-0008		●
2	KNUCKLE; FRT AXLE	8-97261-541-1	01	1	0009-0209		●
2	KNUCKLE; FRT AXLE	8-97261-541-1	01	1	0210-0307	●	●
2	KNUCKLE; FRT AXLE	8-97261-545-2	01	1	0308-	●	●
4	KING PIN KIT	5-87830-978-2	01	1	9704-0209		●
4	KING PIN KIT	5-87830-978-2	01	1	0210-0307	●	●
4	KING PIN KIT	5-87831-608-1	01	1	0308-0402	●	●
4	KING PIN KIT	5-87832-220-2	01	1	0403-	●	●
10	PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	9704-0209		●
10	PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	0210-0610	●	●
10	PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0611-	●	●
12	GASKET; KNUCKLE	9-09561-230-0	02	1	9704-0209		●
12	GASKET; KNUCKLE	9-09561-230-0	02	1	0210-0707	●	●
12	GASKET; KNUCKLE	8-98084-500-0	02	1	0708-	●	●
14	BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-2	04	1	9704-0209		●
14	BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	0210-	●	●
14	BUSHING; KING PIN JBK	8-94127-925-2	04	1	9704-0209		●
14	BUSHING; KING PIN JBK	8-94127-925-2	04	1	0210-0809	●	●
17	BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	9704-0209		●
17	BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	0210-0611	●	●
17	BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0612-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M12	9-99111-512-0	03	1	9704-0209		●
18	NUT; STOPPER BOLT,KNUCKLE M12	9-99111-512-0	03	1	0210-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE M12	0-91111-512-0	03	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT	9-09031-006-0	04	1	9704-0209		●
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT	9-09031-006-0	04	1	0210-0607	●	●
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT	0-90301-406-0	04	1	0608-	●	●
25	BEARING; THRUST,KING PIN OD=54 ID=30.2 T=13.8	8-94248-883-2	02	1	9704-0209		●
25	BEARING; THRUST,KING PIN OD=54 ID=30.2 T=13.8	8-94248-883-2	02	1	0210-0307	●	●
25	BEARING; THRUST,KING PIN OD=54 ID=30.2 T=13.8	8-94248-883-3	01	1	0308-	●	●
25	BEARING; THRUST,KING PIN OD=51.6 ID=30.5 T=15.6	8-97141-943-1	01	1	0308-	●	●
26	SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	9704-0209		●
26	SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	0210-	●	●
26	SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	9704-0209		●
26	SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	0210-	●	●
26	SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	9704-0209		●
26	SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	0210-	●	●
26	SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	9704-0209		●
26	SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	0210-	●	●
26	SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	9704-0209		●
26	SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	0210-	●	●
26	SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	9704-0209		●
26	SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	0210-	●	●
26	SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	9704-0209		●
26	SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	0210-	●	●
26	SHIM; KING PIN,BRG (B) T=1.95	8-94168-490-0	01	1	0308-	●	●
31	PIN; S/ABS,LWR	8-94249-010-1	02	1	9704-0209		●
31	PIN; S/ABS,LWR	8-94249-010-1	02	1	0210-0307	●	●
31	PIN; S/ABS,LWR	8-97141-944-0	02	1	0308-	●	●
32	BOLT; KEY,KING PIN	8-94247-726-0	02	1	9704-9706		●
32	BOLT; KEY,KING PIN	8-97141-945-1	02	1	9707-0209		●
32	BOLT; KEY,KING PIN	8-97141-945-2	02	1	0210-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9704-0209		●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0210-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9704-0209		●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0210-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
35	WASHER; PL,KEY BOLT TO KING PIN ID=10.5 OD=26	9-09160-710-0	02	1	9704-9706		●
36	ARM; KNUCKLE	8-97070-138-0	01	1	9704-0209		●
36	ARM; KNUCKLE	8-97070-138-0	01	1	0210-0307	●	●
36	ARM; KNUCKLE	8-97204-075-5	01	1	0308-	●	●
44	COVER; KING PIN OD=36	8-94248-675-1	02	1	9704-0209		●
44	COVER; KING PIN OD=36	8-94248-675-1	02	1	0210-0611	●	●
44	COVER; KING PIN OD=36	8-97360-023-0	02	1	0612-	●	●
47	WASHER; PL,COVER,KING PIN ID=10.5	9-09164-510-0	02	1	9704-0209		●
47	WASHER; PL,COVER,KING PIN ID=10.5	9-09164-510-0	02	1	0210-0402	●	●
48	BOLT; COVER M10X16	0-20801-016-0	02	1	9704-0209		●
48	BOLT; COVER M10X16	0-20801-016-0	02	1	0210-0402	●	●
48	BOLT; COVER M10X12 FLANGE	0-28081-012-0	02	1	0403-0512	●	●
48	BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0601-	●	●
49	CAP; KNUCKLE	8-94248-566-0	02	1	9704-0008		●
49	CAP; KNUCKLE	8-97261-587-0	02	1	0009-0209		●
49	CAP; KNUCKLE	8-97261-587-0	02	1	0210-0611	●	●
49	CAP; KNUCKLE	8-97360-024-0	02	1	0612-	●	●
58	ARM; TIE ROD	8-97032-912-0	01	1	9704-0209		●
58	ARM; TIE ROD	8-97032-912-0	01	1	0210-0307	●	●
58	ARM; TIE ROD	8-97138-303-1	01	1	0308-	●	●
59	NUT; TIE ROD ARM	8-94247-724-0	02	1	9704-0209		●
59	NUT; TIE ROD ARM	8-94247-724-0	02	1	0210-0611	●	●
59	NUT; TIE ROD ARM	8-97360-123-0	02	1	0612-	●	●
61	ROD END; TIE ROD	8-97107-348-2	01	1	9704-0209		●
61	ROD END; TIE ROD	8-97107-348-2	01	1	0210-0307	●	●
61	ROD END; TIE ROD	8-97142-100-1	01	1	0308-	●	●
61	ROD END; TIE ROD	8-97107-349-2	01	1	9704-0209		●
61	ROD END; TIE ROD	8-97107-349-2	01	1	0210-0307	●	●
61	ROD END; TIE ROD	8-97142-101-1	01	1	0308-	●	●
66	NUT; TIE ROD END M16 SLOTTED	9-99116-516-0	02	1	9704-0209		●
66	NUT; TIE ROD END M16 SLOTTED	9-99116-516-0	02	1	0210-0605	●	●
66	NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0606-1204	●	●
66	NUT; TIE ROD END M16 SLOTTED	8-98049-689-0	02	1	1205-	●	●
69	PIN; SPLIT,TIE ROD END OD=3.7 L=25	9-08114-025-0	02	1	9704-9704		●
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	9-08114-020-0	02	1	9704-0209		●
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	9-08114-020-0	02	1	0210-0606	●	●
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0607-	●	●
70	NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	9704-0209		●
70	NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0210-	●	●
70	NUT; TIE ROD END M20	9-99111-420-0	01	1	9704-0209		●
70	NUT; TIE ROD END M20	9-99111-420-0	01	1	0210-0512	●	●
70	NUT; TIE ROD END M20	0-91111-520-0	01	1	0601-0610	●	●
70	NUT; TIE ROD END M20 RH THREAD	8-98043-530-0	01	1	0611-	●	●
81	ROD; TIE	8-97061-866-0	01	1	9704-0209		●
81	ROD; TIE	8-97061-866-0	01	1	0210-0307	●	●
81	ROD; TIE	8-97142-023-0	01	1	0308-	●	●
