4-01 — PROPELLER SHAFT (#72567) — 134 parça

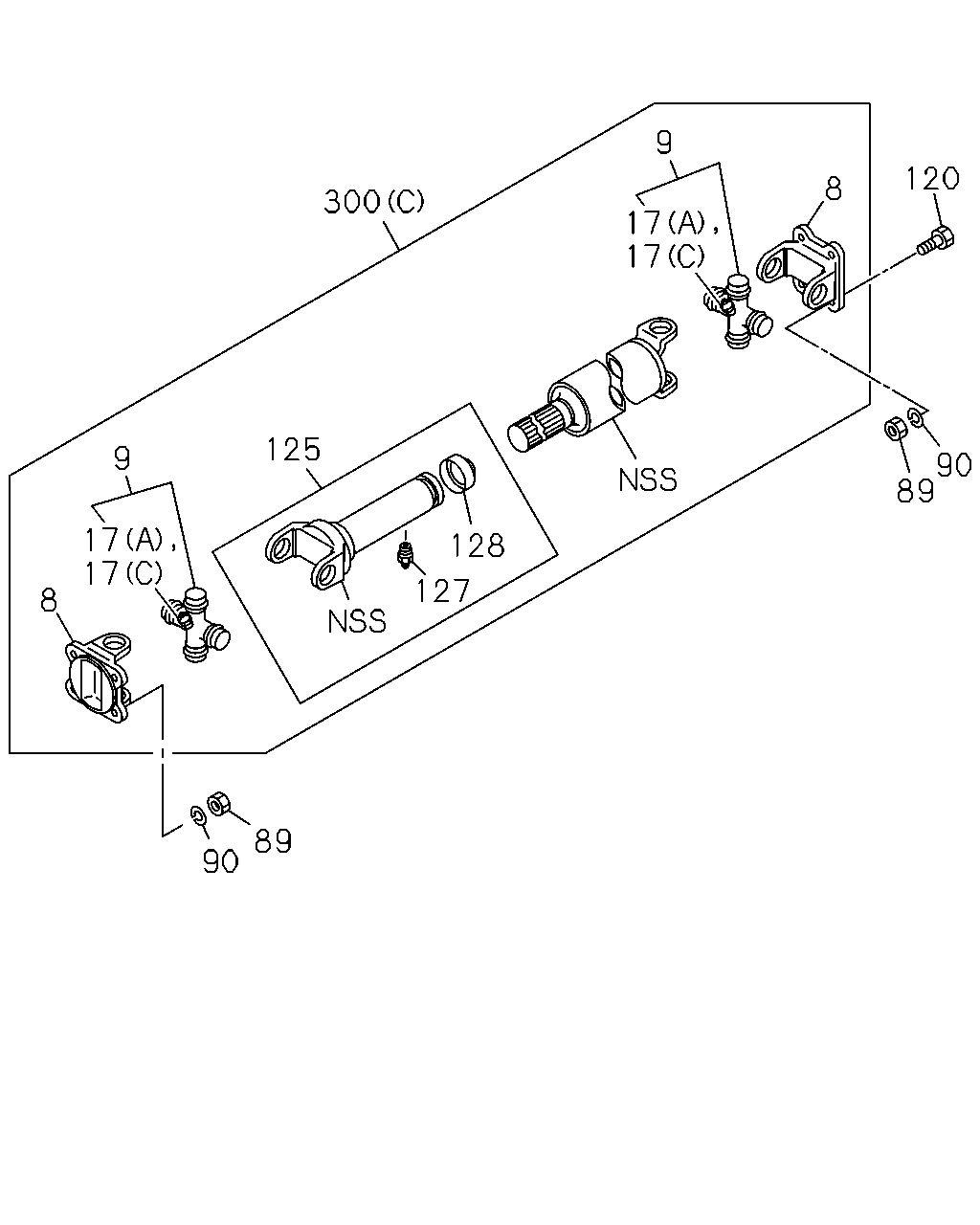

9 120 8 300 17 17 125 9 90 89 17 17 128 127 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT	8-97087-078-0	02	1	9704-9807	●
8	YOKE; FLANGE,PROP SHAFT	8-97211-116-0	02	1	9808-0209	●
8	YOKE; FLANGE,PROP SHAFT	8-97211-116-0	02	1	0210-	●
8	YOKE; FLANGE,PROP SHAFT M/T MSB5S(R45)	8-97211-116-0	02	1	0210-		●
8	YOKE; FLANGE,PROP SHAFT M/T MSB5M(RM5)	8-97087-078-0	01	1	9704-9807	●
8	YOKE; FLANGE,PROP SHAFT M/T MSB5M(RM5)	8-97211-116-0	01	1	9808-	●
9	JOURNAL ASM; PROP SHAFT	8-97071-812-1	02	1	9704-9705	●
9	JOURNAL ASM; PROP SHAFT	8-97180-697-0	02	1	9706-9807	●
9	JOURNAL ASM; PROP SHAFT	8-97211-135-0	02	1	9808-0209	●
9	JOURNAL ASM; PROP SHAFT	8-97211-135-0	02	1	0210-	●
9	JOURNAL ASM; PROP SHAFT M/T MSB5S(R45)	8-97211-135-0	02	1	0210-		●
9	JOURNAL ASM; PROP SHAFT M/T MSB5M(RM5)	8-97071-812-1	01	1	9704-9705	●
9	JOURNAL ASM; PROP SHAFT M/T MSB5M(RM5)	8-97180-697-0	01	1	9706-9807	●
9	JOURNAL ASM; PROP SHAFT M/T MSB5M(RM5)	8-97211-135-0	01	1	9808-	●
17	NIPPLE; GREASE,PROP SHAFT (A) 2ND	8-94310-818-0	02	1	9704-9705	●
17	NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (A) 1ST	8-94310-818-0	01	1	9704-9705	●
17	NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (B) M6 STRAIGHT	9-09031-006-0	01	1	9704-9705	●
17	NIPPLE; GREASE,PROP SHAFT (C) M6 STRAIGHT	9-09031-006-0	02	1	9706-0209	●
17	NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (C) M6 STRAIGHT	9-09031-006-0	02	1	9706-0209	●
17	NIPPLE; GREASE,PROP SHAFT (C) M6 STRAIGHT	9-09031-006-0	02	1	0210-0607	●
17	NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (C) M6 STRAIGHT	9-09031-006-0	02	1	0210-0607	●
17	NIPPLE; GREASE,PROP SHAFT M/T MSB5S(R45) (C) M6 STRAIGHT	9-09031-006-0	02	1	0210-0607		●
17	NIPPLE; GREASE,PROP SHAFT (C) M6 STRAIGHT	0-90301-406-0	02	1	0608-	●
17	NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (C) M6 STRAIGHT	0-90301-406-0	02	1	0608-	●
17	NIPPLE; GREASE,PROP SHAFT M/T MSB5S(R45) (C) M6 STRAIGHT	0-90301-406-0	02	1	0608-		●
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	12	1	9704-0610	●
89	NUT; YOKE TO RR AXLE M10	8-98056-949-0	12	1	0611-	●
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	08	1	0210-0610		●
89	NUT; YOKE TO RR AXLE M10	8-98056-949-0	08	1	0611-		●
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	12	1	9704-0603	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	0-91510-610-0	12	1	0604-	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	08	1	0210-0603		●
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	0-91510-610-0	08	1	0604-		●
120	BOLT; YOKE TO RR AXLE M10X27	8-94146-552-2	08	1	9704-9710	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	08	1	9711-0610	●
120	BOLT; YOKE TO RR AXLE M10X29	8-98056-948-0	08	1	0611-	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	0210-0610		●
120	BOLT; YOKE TO RR AXLE M10X29	8-98056-948-0	04	1	0611-		●
125	YOKE ASM; SPLINED,PROP SHAFT L=177	8-97049-301-1	01	1	9704-9807	●
125	YOKE ASM; SPLINED,PROP SHAFT L=177	8-97211-131-0	01	1	9808-0209	●
125	YOKE ASM; SPLINED,PROP SHAFT L=177	8-97211-131-0	01	1	0210-	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MSB5S(R45) L=177	8-97211-131-0	01	1	0210-		●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	9-09031-006-0	01	1	9704-0209	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	9-09031-006-0	01	1	0210-0607	●
127	NIPPLE; GREASE,SPLINED YOKE M/T MSB5S(R45) M6 STRAIGHT	9-09031-006-0	01	1	0210-0607		●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	0-90301-406-0	01	1	0608-	●
127	NIPPLE; GREASE,SPLINED YOKE M/T MSB5S(R45) M6 STRAIGHT	0-90301-406-0	01	1	0608-		●
128	SEAL; SLEEVE	8-97020-597-1	01	1	9704-0209	●
128	SEAL; SLEEVE	8-97020-597-1	01	1	0210-	●
128	SEAL; SLEEVE M/T MSB5S(R45)	8-97020-597-1	01	1	0210-		●
300	SHAFT ASM; PROP,RR M/T MSB5S(R45) REAR AXLE HEAVY DUTY 292MM(G73) (C) L=1134	8-98002-497-0	01	1	1008-		●
300	SHAFT ASM; PROP,RR (B) 2ND SHAFT L=1075	8-97073-450-3	01	1	9704-9705	●
300	SHAFT ASM; PROP,RR (B) 2ND SHAFT L=1075	8-97180-965-0	01	1	9706-9807	●
300	SHAFT ASM; PROP,RR (B) 2ND SHAFT L=1044	8-97211-672-0	01	1	9808-0411	●
300	SHAFT ASM; PROP,RR (B) 2ND SHAFT L=1044	8-98002-488-0	01	1	0412-	●
300	SHAFT ASM; PROP,RR M/T MSB5M(RM5) (A) 1ST SHAFT L=914	8-97090-869-3	01	1	9704-9705	●
300	SHAFT ASM; PROP,RR M/T MSB5M(RM5) (A) 1ST SHAFT L=914	8-97180-960-0	01	1	9706-9807	●
300	SHAFT ASM; PROP,RR M/T MSB5M(RM5) (A) 1ST SHAFT L=914	8-97211-669-0	01	1	9808-	●
300	SHAFT ASM; PROP,RR M/T MSB5S(R45) (C) L=1122	8-97211-661-0	01	1	0210-0411		●
300	SHAFT ASM; PROP,RR M/T MSB5S(R45) (C) L=1122	8-98002-492-0	01	1	0412-1007		●
300	SHAFT ASM; PROP,RR M/T MSB5S(R45) REAR AXLE STANDARD 244MM(R39) (C) L=1122	8-98002-492-0	01	1	1008-		●

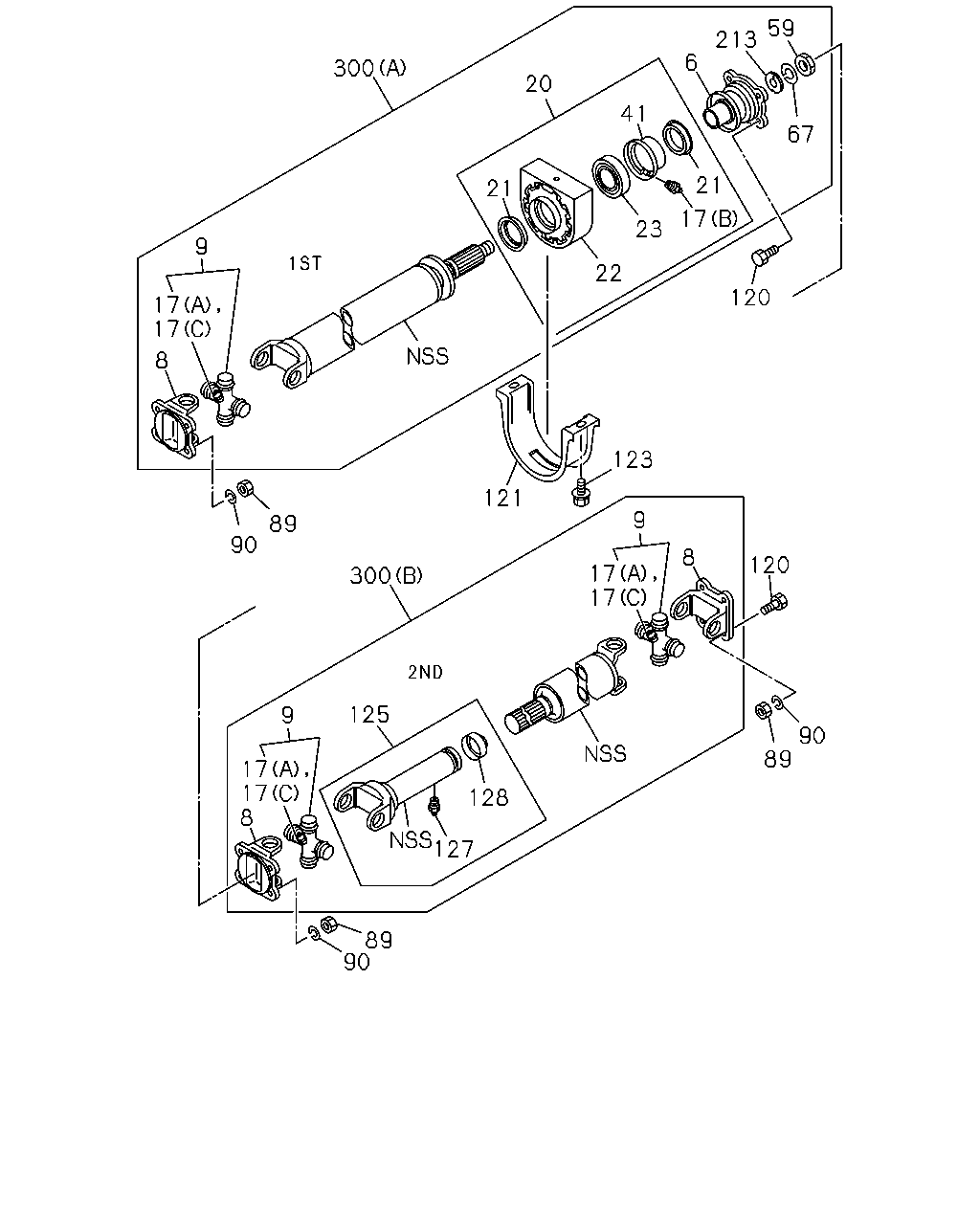

59 213 6 300 20 41 67 21 21 17 23 9 22 120 17 17 8 123 121 9 89 90 8 120 17 17 300 125 9 90 89 17 17 8 128 127 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	COUPLING ASM; DRIVER,PROP SHAFT M/T MSB5M(RM5)	8-94258-907-1	01	1	9704-	●
8	YOKE; FLANGE,PROP SHAFT	8-97087-078-0	02	1	9704-9807	●
8	YOKE; FLANGE,PROP SHAFT	8-97211-116-0	02	1	9808-0209	●
8	YOKE; FLANGE,PROP SHAFT	8-97211-116-0	02	1	0210-	●
8	YOKE; FLANGE,PROP SHAFT M/T MSB5S(R45)	8-97211-116-0	02	1	0210-		●
8	YOKE; FLANGE,PROP SHAFT M/T MSB5M(RM5)	8-97087-078-0	01	1	9704-9807	●
8	YOKE; FLANGE,PROP SHAFT M/T MSB5M(RM5)	8-97211-116-0	01	1	9808-	●
9	JOURNAL ASM; PROP SHAFT	8-97071-812-1	02	1	9704-9705	●
9	JOURNAL ASM; PROP SHAFT	8-97180-697-0	02	1	9706-9807	●
9	JOURNAL ASM; PROP SHAFT	8-97211-135-0	02	1	9808-0209	●
9	JOURNAL ASM; PROP SHAFT	8-97211-135-0	02	1	0210-	●
9	JOURNAL ASM; PROP SHAFT M/T MSB5S(R45)	8-97211-135-0	02	1	0210-		●
9	JOURNAL ASM; PROP SHAFT M/T MSB5M(RM5)	8-97071-812-1	01	1	9704-9705	●
9	JOURNAL ASM; PROP SHAFT M/T MSB5M(RM5)	8-97180-697-0	01	1	9706-9807	●
9	JOURNAL ASM; PROP SHAFT M/T MSB5M(RM5)	8-97211-135-0	01	1	9808-	●
17	NIPPLE; GREASE,PROP SHAFT (A) 2ND	8-94310-818-0	02	1	9704-9705	●
17	NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (A) 1ST	8-94310-818-0	01	1	9704-9705	●
17	NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (B) M6 STRAIGHT	9-09031-006-0	01	1	9704-9705	●
17	NIPPLE; GREASE,PROP SHAFT (C) M6 STRAIGHT	9-09031-006-0	02	1	9706-0209	●
17	NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (C) M6 STRAIGHT	9-09031-006-0	02	1	9706-0209	●
17	NIPPLE; GREASE,PROP SHAFT (C) M6 STRAIGHT	9-09031-006-0	02	1	0210-0607	●
17	NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (C) M6 STRAIGHT	9-09031-006-0	02	1	0210-0607	●
17	NIPPLE; GREASE,PROP SHAFT M/T MSB5S(R45) (C) M6 STRAIGHT	9-09031-006-0	02	1	0210-0607		●
17	NIPPLE; GREASE,PROP SHAFT (C) M6 STRAIGHT	0-90301-406-0	02	1	0608-	●
17	NIPPLE; GREASE,PROP SHAFT M/T MSB5M(RM5) (C) M6 STRAIGHT	0-90301-406-0	02	1	0608-	●
17	NIPPLE; GREASE,PROP SHAFT M/T MSB5S(R45) (C) M6 STRAIGHT	0-90301-406-0	02	1	0608-		●
20	BEARING ASM; CTR,PROP SHAFT M/T MSB5M(RM5) W/NIPPLE;GREASE DOWN SIDE	5-37510-008-0	01	1	9704-	●
21	SEAL; OIL,CENTER BRG M/T MSB5M(RM5) ID=39	5-09625-063-0	02	1	9704-	●
22	RUBBER; CUSHION,CENTER BRG,1ST M/T MSB5M(RM5)	5-37516-006-1	01	1	9704-	●
23	BEARING; CENTER,PROP SHAFT M/T MSB5M(RM5) D=75	5-09800-067-0	01	1	9704-	●
41	COVER; CENTER BRG,PROP SHAFT M/T MSB5M(RM5)	5-37512-005-0	01	1	9704-	●
59	NUT; RET TO SUPPORT M/T MSB5M(RM5) ID=20	9-09841-038-0	01	1	9704-	●
67	WASHER; PROP SHAFT TO COUPLING DRIVER M/T MSB5M(RM5) ID=20.5 OD=47 T=1.2	9-09855-214-0	01	1	9704-	●
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	12	1	9704-0610	●
89	NUT; YOKE TO RR AXLE M10	8-98056-949-0	12	1	0611-	●
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	08	1	0210-0610		●
89	NUT; YOKE TO RR AXLE M10	8-98056-949-0	08	1	0611-		●
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	12	1	9704-0603	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	0-91510-610-0	12	1	0604-	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	08	1	0210-0603		●
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	0-91510-610-0	08	1	0604-		●
120	BOLT; YOKE TO RR AXLE M10X27	8-94146-552-2	08	1	9704-9710	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	08	1	9711-0610	●
120	BOLT; YOKE TO RR AXLE M10X29	8-98056-948-0	08	1	0611-	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	0210-0610		●
120	BOLT; YOKE TO RR AXLE M10X29	8-98056-948-0	04	1	0611-		●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	9704-	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9704-0512	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0601-	●
125	YOKE ASM; SPLINED,PROP SHAFT L=177	8-97049-301-1	01	1	9704-9807	●
125	YOKE ASM; SPLINED,PROP SHAFT L=177	8-97211-131-0	01	1	9808-0209	●
125	YOKE ASM; SPLINED,PROP SHAFT L=177	8-97211-131-0	01	1	0210-	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MSB5S(R45) L=177	8-97211-131-0	01	1	0210-		●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	9-09031-006-0	01	1	9704-0209	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	9-09031-006-0	01	1	0210-0607	●
127	NIPPLE; GREASE,SPLINED YOKE M/T MSB5S(R45) M6 STRAIGHT	9-09031-006-0	01	1	0210-0607		●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	0-90301-406-0	01	1	0608-	●
127	NIPPLE; GREASE,SPLINED YOKE M/T MSB5S(R45) M6 STRAIGHT	0-90301-406-0	01	1	0608-		●
128	SEAL; SLEEVE	8-97020-597-1	01	1	9704-0209	●
128	SEAL; SLEEVE	8-97020-597-1	01	1	0210-	●
128	SEAL; SLEEVE M/T MSB5S(R45)	8-97020-597-1	01	1	0210-		●
213	WASHER ASM; PROP SHAFT TO COUPLING M/T MSB5M(RM5)	9-09855-212-0	01	1	9704-	●
300	SHAFT ASM; PROP,RR M/T MSB5S(R45) REAR AXLE HEAVY DUTY 292MM(G73) (C) L=1134	8-98002-497-0	01	1	1008-		●
300	SHAFT ASM; PROP,RR (B) 2ND SHAFT L=1075	8-97073-450-3	01	1	9704-9705	●
300	SHAFT ASM; PROP,RR (B) 2ND SHAFT L=1075	8-97180-965-0	01	1	9706-9807	●
300	SHAFT ASM; PROP,RR (B) 2ND SHAFT L=1044	8-97211-672-0	01	1	9808-0411	●
300	SHAFT ASM; PROP,RR (B) 2ND SHAFT L=1044	8-98002-488-0	01	1	0412-	●
300	SHAFT ASM; PROP,RR M/T MSB5M(RM5) (A) 1ST SHAFT L=914	8-97090-869-3	01	1	9704-9705	●
300	SHAFT ASM; PROP,RR M/T MSB5M(RM5) (A) 1ST SHAFT L=914	8-97180-960-0	01	1	9706-9807	●
300	SHAFT ASM; PROP,RR M/T MSB5M(RM5) (A) 1ST SHAFT L=914	8-97211-669-0	01	1	9808-	●
300	SHAFT ASM; PROP,RR M/T MSB5S(R45) (C) L=1122	8-97211-661-0	01	1	0210-0411		●
300	SHAFT ASM; PROP,RR M/T MSB5S(R45) (C) L=1122	8-98002-492-0	01	1	0412-1007		●
300	SHAFT ASM; PROP,RR M/T MSB5S(R45) REAR AXLE STANDARD 244MM(R39) (C) L=1122	8-98002-492-0	01	1	1008-		●
