Sayfa 3-60 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50784 - NKR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶

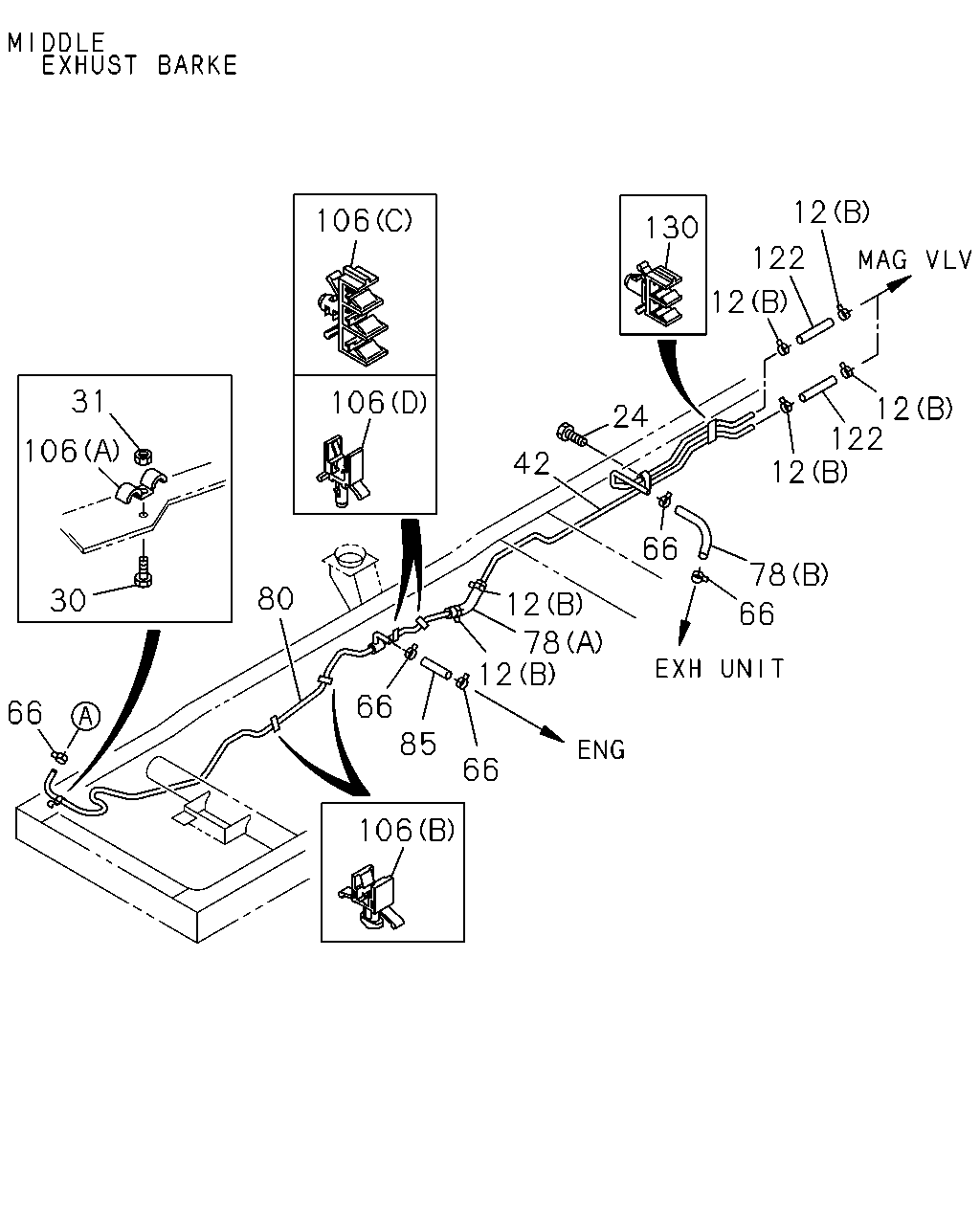

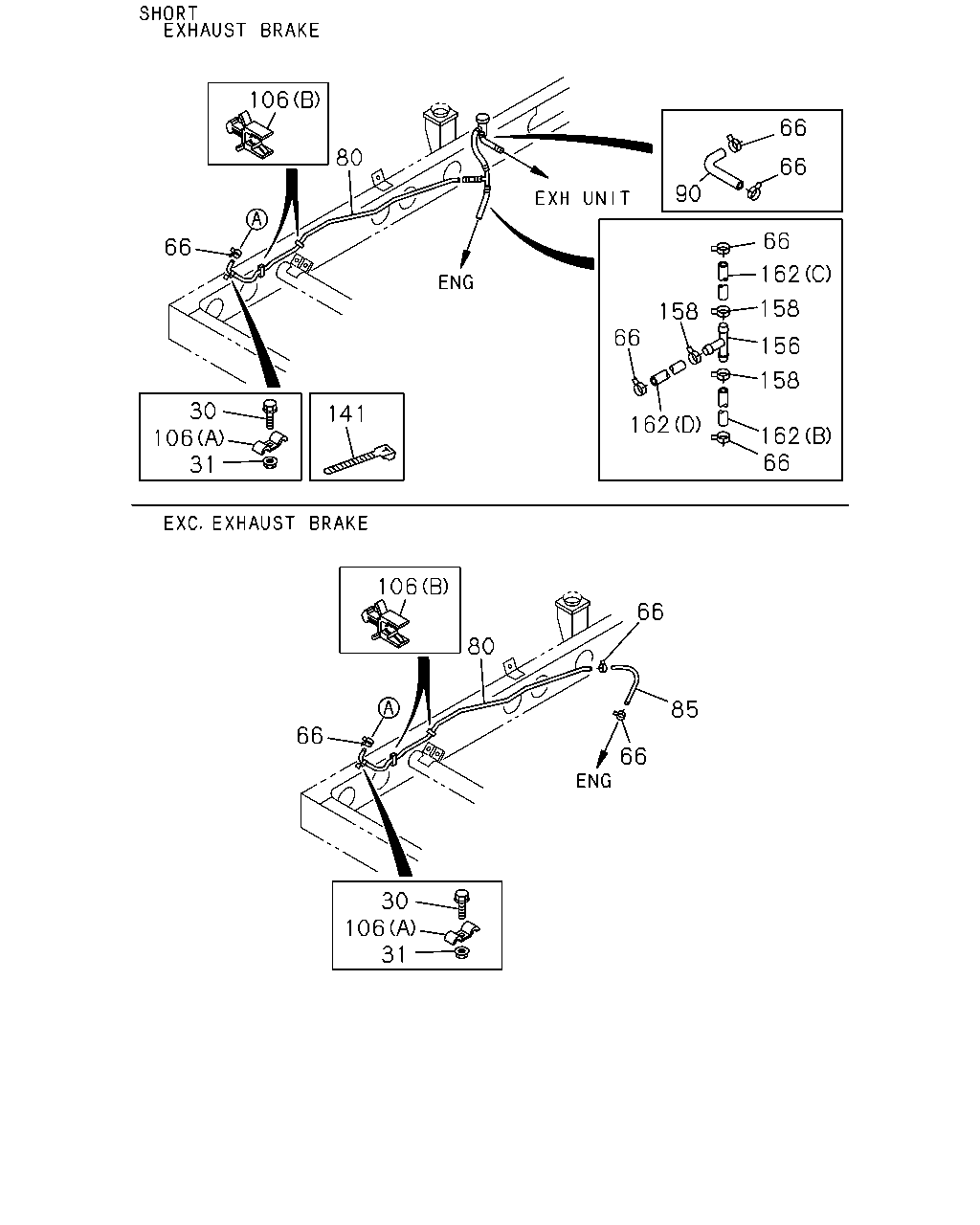

3-60 — BRAKE PIPING; VACUUM (#72566) — 158 parça

106 66 80 66 90 66 66 162 158 158 66 156 158 30 106 31 141 162 162 66 106 66 80 85 66 66 30 106 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28080-620-0	01	1	9704-0209	●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28080-620-0	01	1	0210-0512	●	●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28050-620-0	01	1	0601-	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	9704-0209	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	0210-0602	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	9704-0209	●
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0210-0911	●	●
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-98008-098-0	03	1	0912-	●	●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	9704-0911	●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=16	8-98008-098-0	05	1	0912-1111	●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=16	8-98008-098-0	05	1	1112-	●
66	CLIP; VAC HOSE,M/VAC TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=16	8-98008-098-0	05	1	1112-		●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	06	1	0210-0911		●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> ID=16	8-98008-098-0	06	1	0912-1111		●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> ID=16	8-98008-098-0	06	1	1112-		●
80	PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97301-513-0	01	1	1112-		●
80	PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97161-685-0	01	1	9704-0204	●
80	PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97161-685-0	01	1	0205-	●
80	PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	9704-0209	●
80	PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0210-1111	●
80	PIPE; VAC,ENG SIDE 4JB1 ENG(RLF)	8-97070-034-1	01	1	0210-1111		●
80	PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	1112-	●
80	PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	1112-		●
80	PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97070-034-1	01	1	1112-		●
85	HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	9704-0204	●
85	HOSE; VAC,ENG SIDE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0205-0209	●
85	HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0205-0209	●
85	HOSE; VAC,ENG SIDE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0210-1111	●	●
85	HOSE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0210-1111	●
85	HOSE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1112-	●
85	HOSE; VAC,ENG SIDE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1112-	●
85	HOSE; VAC,ENG SIDE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1112-		●
85	HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1112-		●
90	HOSE; VAC,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0210-1111		●
90	HOSE; VAC,MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1112-		●
106	CLIP; PIPE (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9704-0209	●
106	CLIP; PIPE (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0210-	●	●
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	9704-0209	●
106	CLIP; PIPE 4JB1 ENG(RLF) (B) ID=10 H=36	8-94249-686-1	02	1	0210-1111	●	●
106	CLIP; PIPE 4JB1 ENG(RLF) (B) ID=10 H=36	8-94249-686-1	02	1	1112-	●
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	1112-		●
106	CLIP; PIPE EXHAUST BRAKE<NF8> (C) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9707-0307	●
106	CLIP; PIPE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (D) ID=10 H=40	8-94462-219-0	02	1	0308-	●
106	CLIP; PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (C) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9704-0307	●
141	CLIP; 3 WAY JOINT 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> L=250	5-09707-030-1	01	1	0210-1111		●
141	CLIP; 3 WAY JOINT 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> L=250	5-09707-030-1	01	1	1112-		●
156	JOINT; 3 WAY 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0210-1111		●
156	JOINT; 3 WAY 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> L=430	8-94467-387-0	01	1	1112-		●
158	CLIP; HOSE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> ID=14.5	8-94167-480-0	03	1	0210-1111		●
158	CLIP; HOSE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> ID=14.5	8-94167-480-0	03	1	1112-		●
162	HOSE; VAC (A)	8-97102-369-2	01	1	9704-0209	●
162	HOSE; VAC (A)	8-97102-369-2	01	1	0210-	●	●
162	HOSE; VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (C) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0210-1111		●
162	HOSE; VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	1112-		●
162	HOSE; VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-393-0	01	1	0210-1111		●
162	HOSE; VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B)	8-97100-393-0	01	1	1112-		●
162	HOSE; VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-402-0	01	1	0210-1111		●
162	HOSE; VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (D)	8-97100-402-0	01	1	1112-		●

12 116 203 12 13 12 39 39 39 184 39 165 39 173 39 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	9704-0209	●
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0210-	●	●
12	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	9704-0911	●
12	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) ID=16	8-98008-098-0	06	1	0912-1111	●
12	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) ID=16	8-98008-098-0	06	1	1112-	●
12	CLIP; HOSE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) ID=16	8-98008-098-0	06	1	1112-		●
13	JOINT; HOSE,VAC 3WAY	8-94441-184-0	01	1	9704-0209	●
13	JOINT; HOSE,VAC 3WAY	8-94441-184-0	01	1	0210-	●	●
39	CLIP; HOSE,VAC (C) ID=16	5-09707-023-2	02	1	9704-0209	●
39	CLIP; HOSE,VAC (C) ID=16	5-09707-023-2	02	1	0210-	●	●
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	03	1	9704-0209	●
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	03	1	0210-	●	●
39	CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	9704-0209	●
39	CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0210-	●	●
116	HOSE; VAC,M/VAC	8-97048-909-0	01	1	9704-0109	●
116	HOSE; VAC,M/VAC	8-97314-597-0	01	1	0110-0209	●
116	HOSE; VAC,M/VAC	8-97314-597-1	01	1	0210-	●	●
162	HOSE; VAC (A)	8-97102-369-2	01	1	9704-0209	●
162	HOSE; VAC (A)	8-97102-369-2	01	1	0210-	●	●
162	HOSE; VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (C) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0210-1111		●
162	HOSE; VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	1112-		●
162	HOSE; VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97100-393-0	01	1	0210-1111		●
162	HOSE; VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B)	8-97100-393-0	01	1	1112-		●
162	HOSE; VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-97100-402-0	01	1	0210-1111		●
162	HOSE; VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (D)	8-97100-402-0	01	1	1112-		●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	9704-0209	●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0210-0512	●	●
165	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●
173	HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	9704-0209	●
173	HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0210-	●	●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	9704-0209	●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	0210-	●	●
203	VALVE; CHECK	8-94386-540-0	01	1	0501-	●	●

12 106 130 122 12 31 106 12 122 12 24 106 42 66 78 80 30 12 78 12 66 66 85 66 66 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	9704-0209	●
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0210-	●	●
12	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	9704-0911	●
12	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) ID=16	8-98008-098-0	06	1	0912-1111	●
12	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) ID=16	8-98008-098-0	06	1	1112-	●
12	CLIP; HOSE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) ID=16	8-98008-098-0	06	1	1112-		●
24	BOLT; BRKT 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28680-825-0	01	1	9704-0512	●
24	BOLT; BRKT 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28650-825-0	01	1	0601-1111	●
24	BOLT; BRKT 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28650-825-0	01	1	1112-	●
24	BOLT; BRKT TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28650-825-0	01	1	1112-		●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28080-620-0	01	1	9704-0209	●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28080-620-0	01	1	0210-0512	●	●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28050-620-0	01	1	0601-	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	9704-0209	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	0210-0602	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
42	PIPE; VAC,UNION TO MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97258-369-0	01	1	1112-		●
42	PIPE; VAC,UNION TO MAG VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97091-075-2	01	1	9704-9705	●
42	PIPE; VAC,UNION TO MAG VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97180-744-0	01	1	9706-9901	●
42	PIPE; VAC,UNION TO MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97225-306-1	01	1	9902-	●
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	9704-0209	●
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0210-0911	●	●
66	CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-98008-098-0	03	1	0912-	●	●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	9704-0911	●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=16	8-98008-098-0	05	1	0912-1111	●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=16	8-98008-098-0	05	1	1112-	●
66	CLIP; VAC HOSE,M/VAC TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=16	8-98008-098-0	05	1	1112-		●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	06	1	0210-0911		●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> ID=16	8-98008-098-0	06	1	0912-1111		●
66	CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> ID=16	8-98008-098-0	06	1	1112-		●
78	HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	1112-		●
78	HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	1112-		●
78	HOSE; VAC,PIPE TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	9704-	●
78	HOSE; VAC,PIPE TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B)	8-97028-386-2	01	1	9704-	●
80	PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97301-513-0	01	1	1112-		●
80	PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97161-685-0	01	1	9704-0204	●
80	PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97161-685-0	01	1	0205-	●
80	PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	9704-0209	●
80	PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	0210-1111	●
80	PIPE; VAC,ENG SIDE 4JB1 ENG(RLF)	8-97070-034-1	01	1	0210-1111		●
80	PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	1112-	●
80	PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	1112-		●
80	PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97070-034-1	01	1	1112-		●
85	HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	9704-0204	●
85	HOSE; VAC,ENG SIDE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0205-0209	●
85	HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0205-0209	●
85	HOSE; VAC,ENG SIDE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0210-1111	●	●
85	HOSE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0210-1111	●
85	HOSE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1112-	●
85	HOSE; VAC,ENG SIDE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1112-	●
85	HOSE; VAC,ENG SIDE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1112-		●
85	HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1112-		●
106	CLIP; PIPE (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9704-0209	●
106	CLIP; PIPE (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0210-	●	●
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	9704-0209	●
106	CLIP; PIPE 4JB1 ENG(RLF) (B) ID=10 H=36	8-94249-686-1	02	1	0210-1111	●	●
106	CLIP; PIPE 4JB1 ENG(RLF) (B) ID=10 H=36	8-94249-686-1	02	1	1112-	●
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	1112-		●
106	CLIP; PIPE EXHAUST BRAKE<NF8> (C) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9707-0307	●
106	CLIP; PIPE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (D) ID=10 H=40	8-94462-219-0	02	1	0308-	●
106	CLIP; PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (C) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9704-0307	●
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> L=300 SERVICED BY L=3000	0-08258-300-0	02	1	1112-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=330 SERVICED BY L=3000	0-08258-300-0	02	1	9704-	●
130	CLIP; VAC PIPE TO FRAME 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=10 H=40	8-94462-219-0	01	1	1112-		●
130	CLIP; VAC PIPE TO FRAME 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=10X2 H=47.5	8-97018-605-0	01	1	1112-		●
130	CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=10X2 H=37.5	8-97018-546-0	01	1	9704-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
