3-58 — FIXING PARTS; OIL PIPING (#72565) — 77 parça

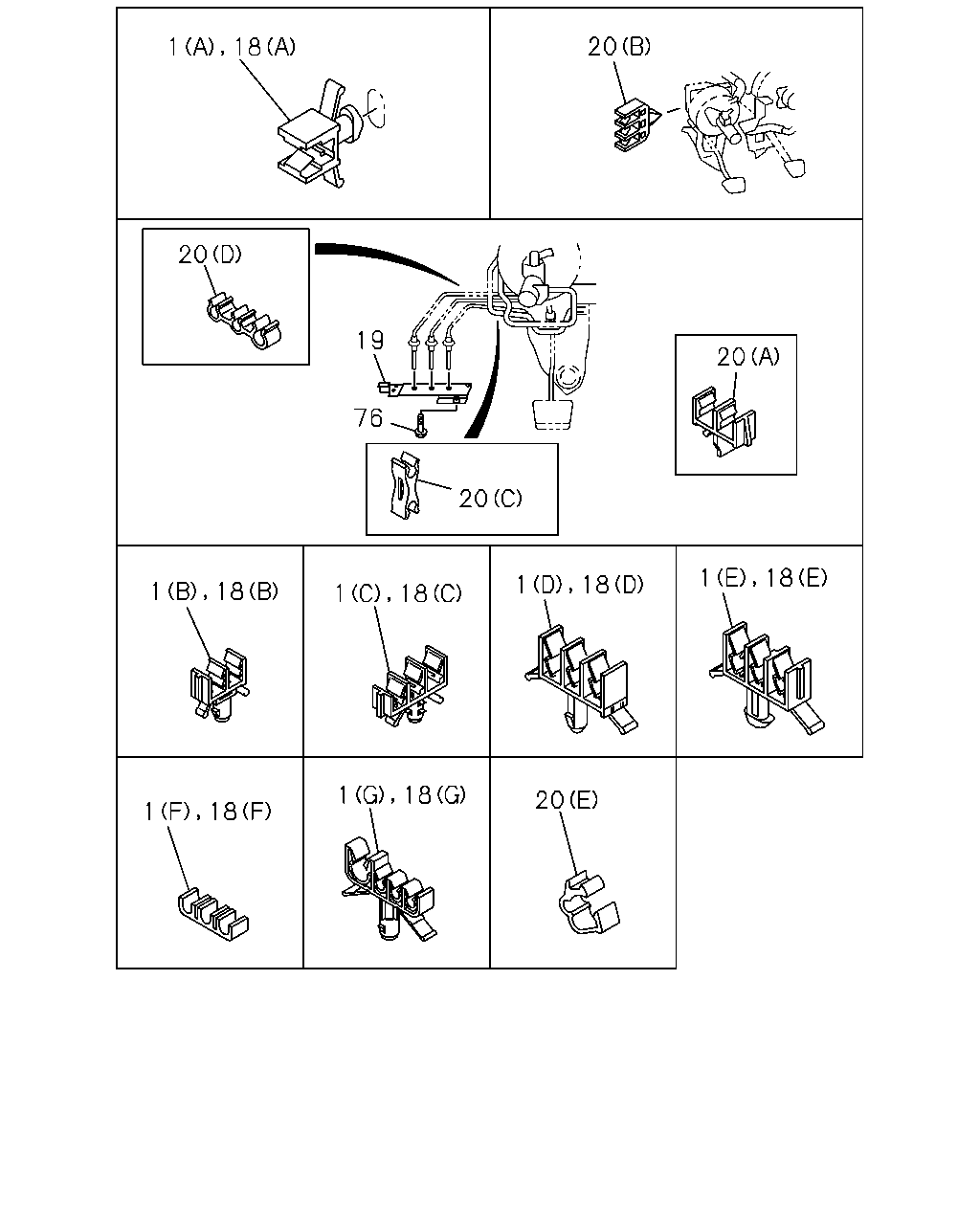

çizim 121365
20 18 1 20 19 20 76 20 1 18 1 18 1 18 1 18 18 1 20 1 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLIP; OIL PIPE TO BODY
(A) ID=4.8 H=26 		8-94249-685-0 02 1 9704-0209 ●
1 CLIP; OIL PIPE TO BODY
(A) ID=4.8 H=26 		8-94249-685-0 02 1 9704-0209 ●
1 CLIP; OIL PIPE TO BODY
(A) ID=4.8 H=26 		8-94249-685-0 02 1 9704-0209 ●
1 CLIP; OIL PIPE TO BODY
(A) ID=4.8 H=26 		8-94249-685-0 02 1 0210-0307 ● ●
1 CLIP; OIL PIPE TO BODY
(A) ID=4.8 H=26 		8-94249-685-0 02 1 0210-0307 ●
1 CLIP; OIL PIPE TO BODY
(A) ID=4.8 H=26 		8-94249-685-0 02 1 0210-0307 ●
1 CLIP; OIL PIPE TO BODY
BRK WHL LK CONT DSPV<JL8> (A) ID=4.8 H=26 		8-94249-685-0 02 1 0210-0307 ●
1 CLIP; OIL PIPE TO BODY
BRK WHL LK CONT DSPV<JL8> (A) ID=4.8 H=26 		8-94249-685-0 02 1 0210-0307 ●
1 CLIP; OIL PIPE TO BODY
(A) ID=4.8 H=26 		8-94249-685-0 01 1 9704-0307 ●
1 CLIP; OIL PIPE TO BODY
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9704-0209 ●
1 CLIP; OIL PIPE TO BODY
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9704-0209 ●
1 CLIP; OIL PIPE TO BODY
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0210-0307 ● ●
1 CLIP; OIL PIPE TO BODY
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0210-0307 ●
1 CLIP; OIL PIPE TO BODY
(E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9704-0209 ●
1 CLIP; OIL PIPE TO BODY
(E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 9704-0209 ●
1 CLIP; OIL PIPE TO BODY
(E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0210-0307 ● ●
1 CLIP; OIL PIPE TO BODY
(E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0210-0307 ● ●
1 CLIP; OIL PIPE TO BODY
(B) ID=4.8X2 		8-94316-410-0 01 1 9704-0209 ●
1 CLIP; OIL PIPE TO BODY
(B) ID=4.8X2 		8-94316-410-0 01 1 0210-0307 ●
1 CLIP; OIL PIPE TO BODY
BRK WHL LK CONT DSPV<JL8> (B) ID=4.8X2 		8-94316-410-0 01 1 0210-0307 ●
1 CLIP; OIL PIPE TO BODY
(C) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9704-0307 ●
1 CLIP; OIL PIPE TO BODY
(F) ID=4.76X3 		8-94122-333-0 01 1 0210-0307 ●
1 CLIP; OIL PIPE TO BODY
(C) ID=10 & 6.4 & 4.8 		8-97064-484-1 06 1 0210-0307 ●
1 CLIP; OIL PIPE TO BODY
BRK WHL LK CONT DSPV<JL8> (A) ID=4.8 H=32.5 		8-94405-141-0 01 1 0210-0307 ●
1 CLIP; OIL PIPE TO BODY
EXC. BRK WHL LK CONT DSPV<JL8> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0210-0307 ●
1 CLIP; OIL PIPE TO BODY
EXC. BRK WHL LK CONT DSPV<JL8> (B) ID=4.8X2 		8-94316-410-0 02 1 0210-0307 ●
1 CLIP; OIL PIPE TO BODY
EXC. BRK WHL LK CONT DSPV<JL8> (G) ID=10 & 4.76X3 		8-97168-820-0 02 1 0210-0307 ●
18 CLIP; BRK PIPE
(E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 1309- ● ●
18 CLIP; BRK PIPE
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 1309- ●
18 CLIP; BRK PIPE
(B) ID=4.8X2 		8-94316-410-0 01 1 0308-1308 ●
18 CLIP; BRK PIPE
BRK WHL LK CONT DSPV<JL8> (B) ID=4.8X2 		8-94316-410-0 01 1 0308-1308 ●
18 CLIP; BRK PIPE
4JB1 ENG(RLF) (B) ID=4.8X2 		8-94316-410-0 01 1 1309- ●
18 CLIP; BRK PIPE
4JB1 ENG(RLF) BRK WHL LK CONT DSPV<JL8> (B) ID=4.8X2 		8-94316-410-0 01 1 1309- ●
18 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (B) ID=4.8X2 		8-94316-410-0 01 1 1309- ●
18 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (B) ID=4.8X2 		8-94316-410-0 01 1 1309- ●
18 CLIP; BRK PIPE
(A) ID=4.8 H=26 		8-94249-685-0 01 1 0308- ●
18 CLIP; BRK PIPE
(C) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0308-1308 ●
18 CLIP; BRK PIPE
4JB1 ENG(RLF) (C) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1309- ●
18 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (C) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1309- ●
18 CLIP; BRK PIPE
4JB1 ENG(RLF) (F) ID=4.76X3 		8-94122-333-0 01 1 0308-1111 ● ●
18 CLIP; BRK PIPE
4JB1 ENG(RLF) (F) ID=4.76X3 		8-94122-333-0 01 1 1112- ●
18 CLIP; BRK PIPE
(F) ID=4.76X3 		8-94122-333-0 01 1 1112- ●
18 CLIP; BRK PIPE
(A) ID=4.8 H=26 		8-94249-685-0 02 1 0308- ● ●
18 CLIP; BRK PIPE
(A) ID=4.8 H=26 		8-94249-685-0 02 1 0308- ●
18 CLIP; BRK PIPE
(A) ID=4.8 H=26 		8-94249-685-0 02 1 0308- ●
18 CLIP; BRK PIPE
BRK WHL LK CONT DSPV<JL8> (A) ID=4.8 H=26 		8-94249-685-0 02 1 0308- ●
18 CLIP; BRK PIPE
BRK WHL LK CONT DSPV<JL8> (A) ID=4.8 H=26 		8-94249-685-0 02 1 0308- ●
18 CLIP; BRK PIPE
(E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0308-1308 ● ●
18 CLIP; BRK PIPE
EXC. BRK WHL LK CONT DSPV<JL8> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0308-1308 ●
18 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (E) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 03 1 1309- ●
18 CLIP; BRK PIPE
(C) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0308- ● ●
18 CLIP; BRK PIPE
(C) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0308- ●
18 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0308- ● ●
18 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0308- ●
18 CLIP; BRK PIPE
BRK WHL LK CONT DSPV<JL8> (A) ID=4.8 H=32.5 		8-94405-141-0 01 1 0308- ●
18 CLIP; BRK PIPE
EXC. BRK WHL LK CONT DSPV<JL8> (B) ID=4.8X2 		8-94316-410-0 02 1 0308-1308 ●
18 CLIP; BRK PIPE
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> (B) ID=4.8X2 		8-94316-410-0 02 1 1309- ●
18 CLIP; BRK PIPE
EXC. BRK WHL LK CONT DSPV<JL8> (G) ID=10 & 4.76X3 		8-97168-820-0 02 1 0308-1201 ●
18 CLIP; BRK PIPE
EXC. BRK WHL LK CONT DSPV<JL8> (G) ID=10 & 4.76X3 		8-97168-820-0 02 1 1202-1308 ●
18 CLIP; BRK PIPE
4JB1-TC ENG(RDT) BRK WHL LK CONT DSPV<JL8> (G) ID=10 & 4.76X3 		8-97168-820-0 02 1 1202-1308 ●
18 CLIP; BRK PIPE
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> (G) ID=10 & 4.76X3 		8-97168-820-0 02 1 1309- ●
18 CLIP; BRK PIPE
4JB1-TC ENG(RDT) BRK WHL LK CONT DSPV<JL8> (G) ID=10 & 4.76X3 		8-97168-820-0 02 1 1309- ●
19 BRACKET; OIL PIPE 8-97042-258-4 01 1 9704-0209 ●
19 BRACKET; OIL PIPE 8-97042-258-4 01 1 0210- ● ●
20 CLIP; BRK PIPE
(E) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 9704-0209 ●
20 CLIP; BRK PIPE
(E) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 0210- ● ●
20 CLIP; BRK PIPE
(A) ID=4.8X2 		8-94113-470-0 01 1 9704-0209 ●
20 CLIP; BRK PIPE
(A) ID=4.8X2 		8-94113-470-0 01 1 0210- ● ●
20 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9704-0209 ●
20 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0210- ● ●
20 CLIP; BRK PIPE
(C) ID=4.6X2 		8-94241-454-0 01 1 9704-0209 ●
20 CLIP; BRK PIPE
(C) ID=4.6X2 		8-94241-454-0 01 1 0210- ● ●
20 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 9704-0209 ●
20 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0210- ● ●
76 BOLT; BRKT,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9704-0209 ●
76 BOLT; BRKT,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0210-0512 ● ●
76 BOLT; BRKT,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
