◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50784 - NKR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#72563) — 113 parça

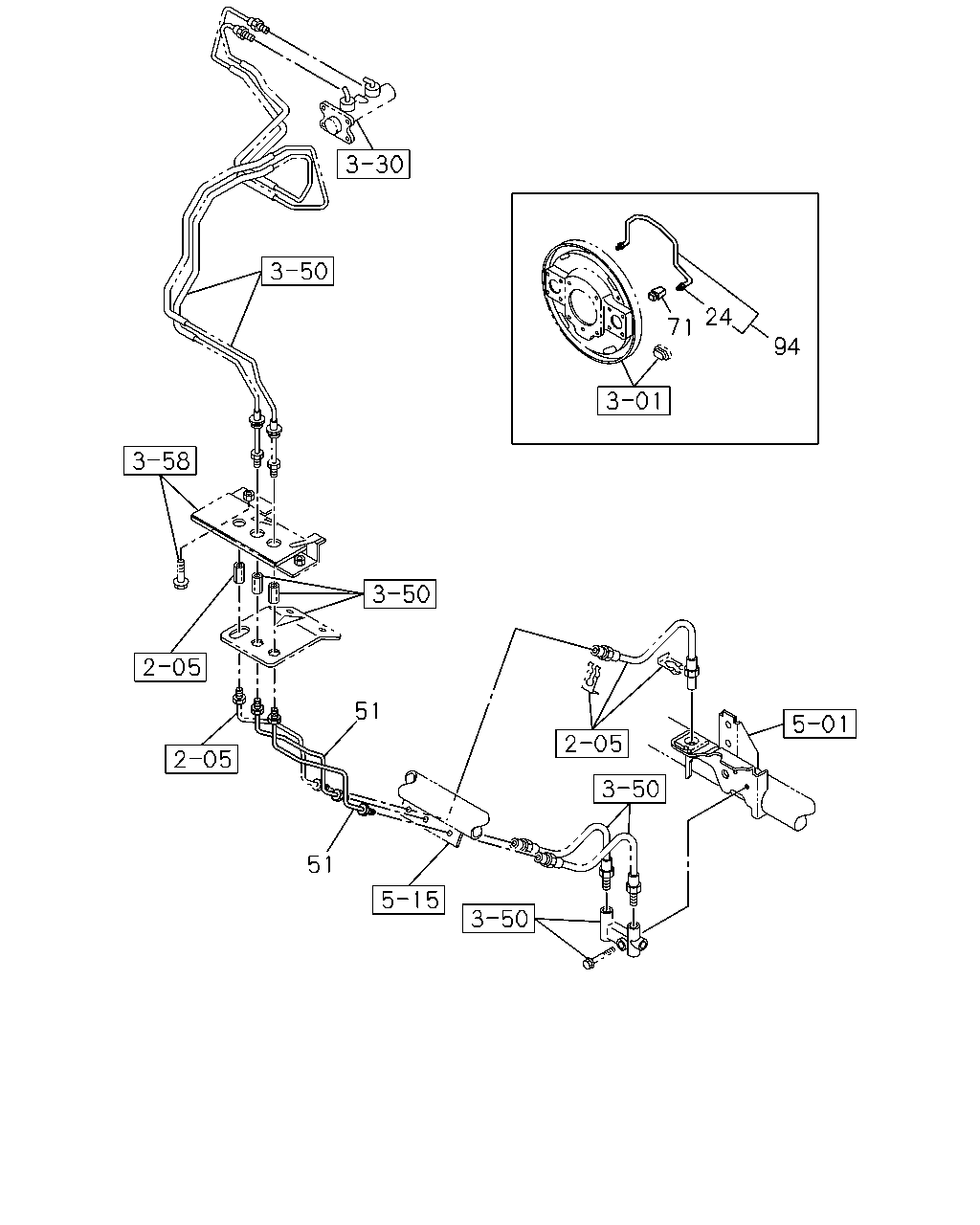

çizim 119712
24 71 94 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
24 NUT; UNION,OIL PIPE 9-09217-625-0 04 1 9704-9902 ●
24 NUT; UNION,OIL PIPE
AXLE ISUZU PRODUCTION<8BF> 		9-09217-625-0 02 1 9903-9909 ●
24 NUT; UNION,OIL PIPE 9-09217-625-0 02 1 9910-0209 ●
24 NUT; UNION,OIL PIPE 9-09217-625-0 02 1 0210-0607 ● ●
24 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0608- ● ●
24 NUT; UNION,OIL PIPE
EXC. AXLE ISUZU PRODUCTION<8BF> 		9-09217-625-0 04 1 9903-9909 ●
51 PIPE; BRK 8-97035-978-0 01 1 9704-1308 ● ●
51 PIPE; BRK 8-97035-978-0 01 1 9704-1308 ● ●
51 PIPE; BRK 8-97035-978-0 01 1 1309- ● ●
51 PIPE; BRK 8-97035-978-0 01 1 1309- ● ●
71 GROMMET; OIL PIPE
AXLE ISUZU PRODUCTION<8BF> 		9-09756-034-0 02 1 9903-9909 ●
71 GROMMET; OIL PIPE 9-09756-034-0 02 1 9910-0209 ●
71 GROMMET; OIL PIPE 9-09756-034-0 02 1 0210- ● ●
94 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 9704-0209 ●
94 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0210- ● ●
94 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 9704-0209 ●
94 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0210- ● ●

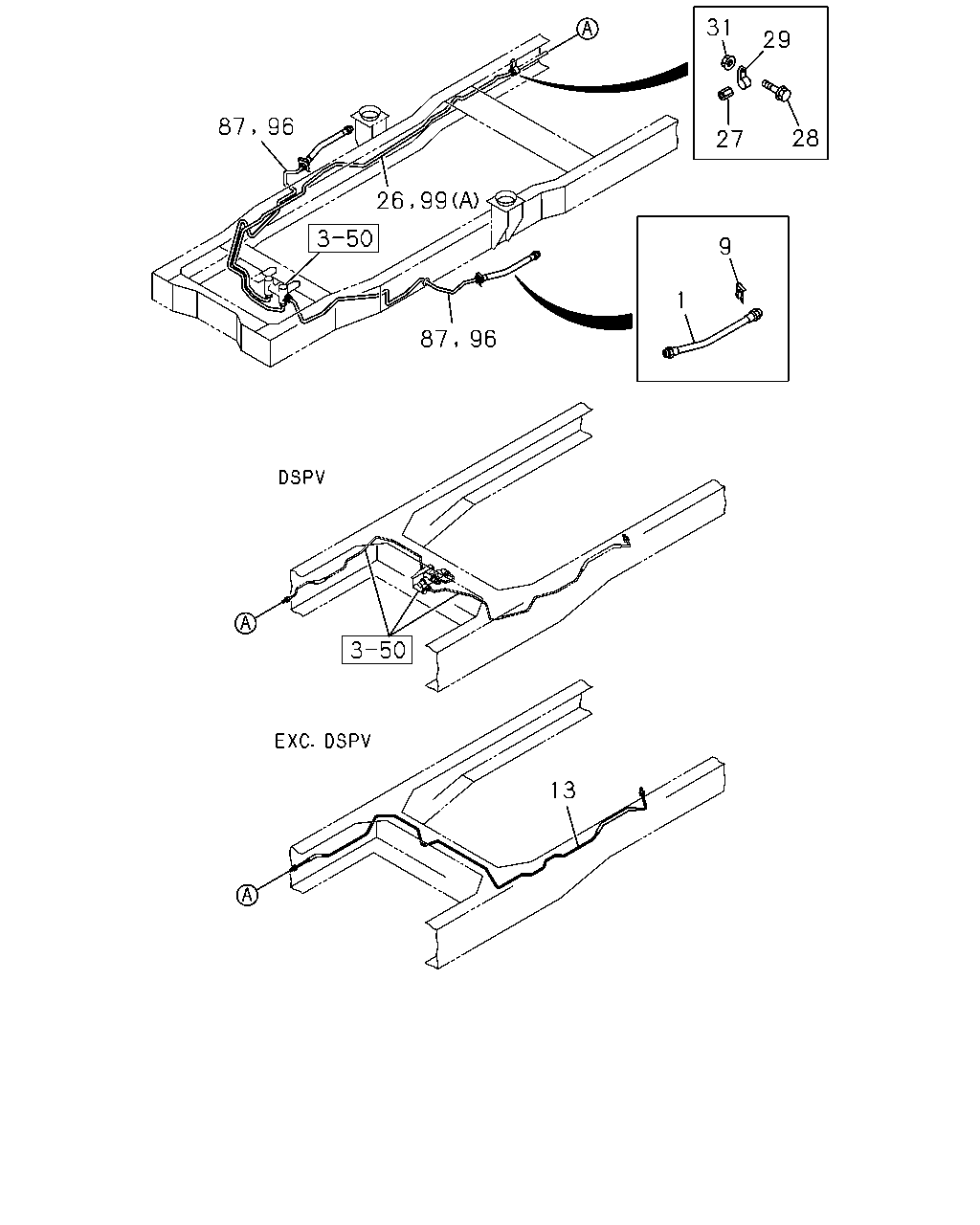

çizim 119917
13 87 96 99 26 87 96 31 27 28 29 1 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-0 02 1 9704-0209 ●
1 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-1 02 1 0210- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 9704-0209 ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 9704-0209 ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0210-0610 ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0210-0610 ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ●
13 PIPE; OIL,UNION TO UNION 8-97091-590-3 01 1 9704-9704 ●
13 PIPE; OIL,UNION TO UNION 8-97178-897-0 01 1 9705- ●
13 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97300-213-0 01 1 0210-1308 ●
13 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97300-213-0 01 1 1309- ●
26 PIPE; BRK,JOINT TO 2 WAY 8-97173-706-0 01 1 9704-0307 ●
26 PIPE; BRK,JOINT TO 2 WAY 8-97301-505-0 01 1 0210-0307 ●
27 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 01 1 9704-0209 ●
27 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 01 1 0210-0607 ● ●
27 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 01 1 0608-1308 ● ●
27 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 01 1 1309- ● ●
27 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1309- ●
28 BOLT; UNION CLIP
M6X25 FLANGE 		0-28680-625-0 01 1 9704-0209 ●
28 BOLT; UNION CLIP
M6X25 FLANGE 		0-28680-625-0 01 1 0210-0512 ● ●
28 BOLT; UNION CLIP
M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ●
29 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> ID=16X2 L=20 		0-95325-533-0 01 1 1309- ●
29 CLIP; UNION
ID=16 L=20 		9-09525-532-0 01 1 9704-0209 ●
29 CLIP; UNION
ID=16 L=20 		9-09525-532-0 01 1 0210-0606 ● ●
29 CLIP; UNION
ID=16 L=20 		0-95235-532-0 01 1 0607-1308 ● ●
29 CLIP; UNION
ID=16 L=20 		0-95235-532-0 01 1 1309- ●
29 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> ID=16 L=20 		0-95235-532-0 01 1 1309- ●
31 NUT; UNION CLIP
M6 FLANGE 		0-91150-106-0 01 1 9704-0209 ●
31 NUT; UNION CLIP
M6 FLANGE 		0-91150-106-0 01 1 0210-0602 ● ●
31 NUT; UNION CLIP
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
87 PIPE; BRK,5 WAY TO UNION
L=918 		8-94249-679-4 01 1 9704-0209 ●
87 PIPE; BRK,5 WAY TO UNION
L=918 		8-94249-679-4 01 1 0210-0307 ● ●
87 PIPE; BRK,5 WAY TO UNION 8-97100-833-3 01 1 9704-0209 ●
87 PIPE; BRK,5 WAY TO UNION 8-97100-833-3 01 1 0210-0307 ● ●
96 PIPE ASM; 6 WAY
BRK WHL LK CONT LSPV<6PH> 		8-97200-660-0 01 1 1309- ●
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) L=918 		8-94249-679-4 01 1 0308-1111 ● ●
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) L=918 		8-94249-679-4 01 1 1112- ●
96 PIPE ASM; 6 WAY
L=918 		8-94249-679-4 01 1 1112- ●
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) 		8-97100-833-3 01 1 0308-1111 ● ●
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) 		8-97100-833-3 01 1 1112-1308 ● ●
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) 		8-97100-833-3 01 1 1309- ●
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97100-833-3 01 1 1309- ●
96 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) 		8-97205-104-0 01 1 1112-1308 ●
96 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97205-104-0 01 1 1309- ●
99 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (C) REAR 		8-97288-635-0 01 1 1309- ●
99 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97326-379-0 01 1 1309- ●
99 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) (A) 		8-97173-706-0 01 1 0308- ●
99 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) (A) 		8-97301-505-0 01 1 0308-1308 ●
99 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97301-505-0 01 1 1309- ●
99 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) 		8-98187-608-0 01 1 1112-1308 ●
99 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-98187-608-0 01 1 1309- ●
çizim 380016
46 48
BalonParca AdiParca NoAdetTipApplied Date A B
46 PIPE; BRK,JOINT TO VLV
BRK WHL LK CONT LSPV<6PH> 		8-97208-981-1 01 1 1309- ●
48 PIPE; BRK,BYPASS VLV TO CONN
BRK WHL LK CONT LSPV<6PH> 		8-97208-980-1 01 1 1309- ●

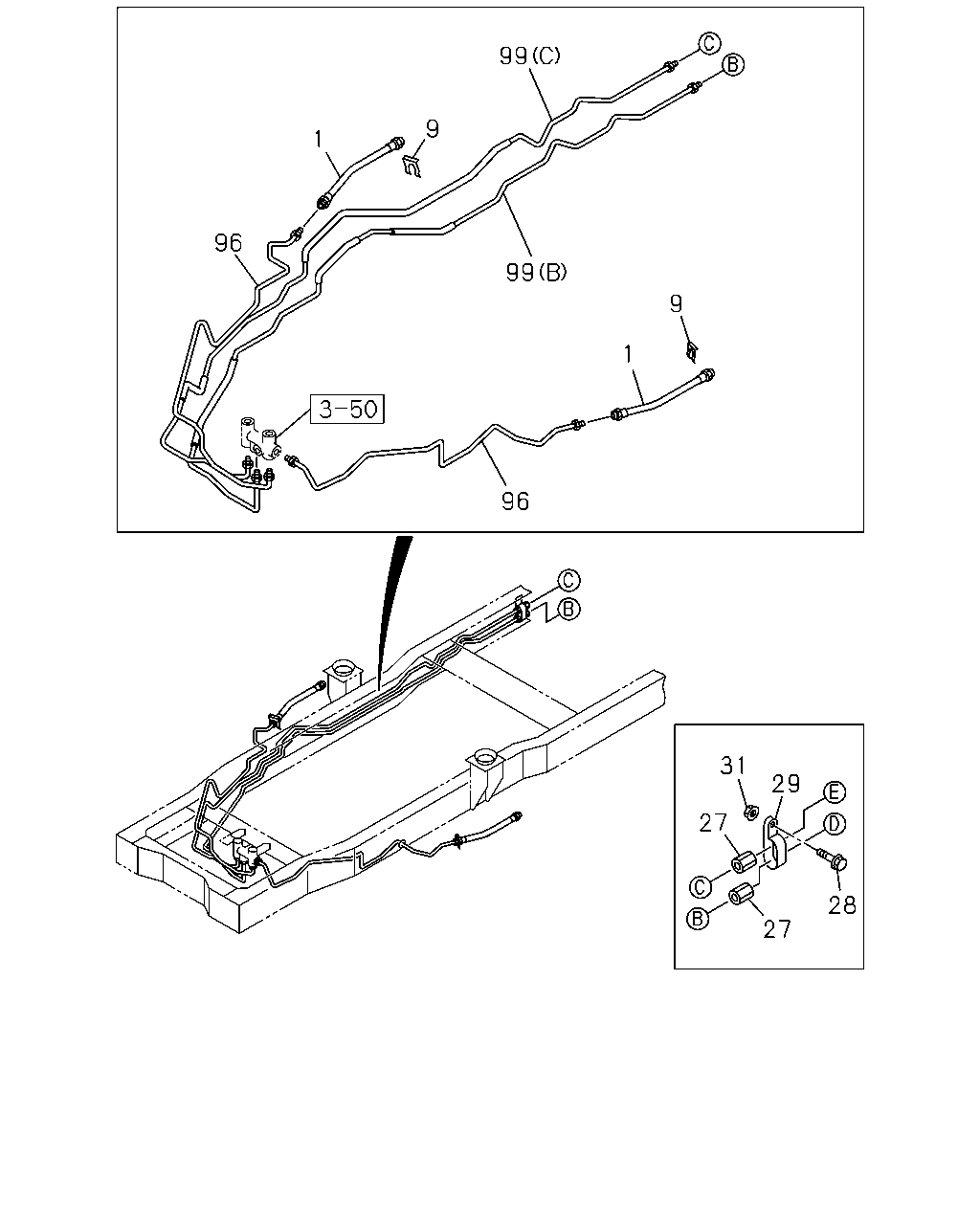

çizim 381622
9 1 99 99 9 1 96 96 29 31 27 27 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-0 02 1 9704-0209 ●
1 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-1 02 1 0210- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 9704-0209 ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 9704-0209 ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0210-0610 ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0210-0610 ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ●
27 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 01 1 9704-0209 ●
27 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 01 1 0210-0607 ● ●
27 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 01 1 0608-1308 ● ●
27 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 01 1 1309- ● ●
27 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1309- ●
28 BOLT; UNION CLIP
M6X25 FLANGE 		0-28680-625-0 01 1 9704-0209 ●
28 BOLT; UNION CLIP
M6X25 FLANGE 		0-28680-625-0 01 1 0210-0512 ● ●
28 BOLT; UNION CLIP
M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ●
29 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> ID=16X2 L=20 		0-95325-533-0 01 1 1309- ●
29 CLIP; UNION
ID=16 L=20 		9-09525-532-0 01 1 9704-0209 ●
29 CLIP; UNION
ID=16 L=20 		9-09525-532-0 01 1 0210-0606 ● ●
29 CLIP; UNION
ID=16 L=20 		0-95235-532-0 01 1 0607-1308 ● ●
29 CLIP; UNION
ID=16 L=20 		0-95235-532-0 01 1 1309- ●
29 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> ID=16 L=20 		0-95235-532-0 01 1 1309- ●
31 NUT; UNION CLIP
M6 FLANGE 		0-91150-106-0 01 1 9704-0209 ●
31 NUT; UNION CLIP
M6 FLANGE 		0-91150-106-0 01 1 0210-0602 ● ●
31 NUT; UNION CLIP
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
96 PIPE ASM; 6 WAY
BRK WHL LK CONT LSPV<6PH> 		8-97200-660-0 01 1 1309- ●
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) L=918 		8-94249-679-4 01 1 0308-1111 ● ●
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) L=918 		8-94249-679-4 01 1 1112- ●
96 PIPE ASM; 6 WAY
L=918 		8-94249-679-4 01 1 1112- ●
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) 		8-97100-833-3 01 1 0308-1111 ● ●
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) 		8-97100-833-3 01 1 1112-1308 ● ●
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) 		8-97100-833-3 01 1 1309- ●
96 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97100-833-3 01 1 1309- ●
96 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) 		8-97205-104-0 01 1 1112-1308 ●
96 PIPE ASM; 6 WAY
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97205-104-0 01 1 1309- ●
99 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (C) REAR 		8-97288-635-0 01 1 1309- ●
99 PIPE ASM; 4/5/6 WAY
BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97326-379-0 01 1 1309- ●
99 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) (A) 		8-97173-706-0 01 1 0308- ●
99 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) (A) 		8-97301-505-0 01 1 0308-1308 ●
99 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97301-505-0 01 1 1309- ●
99 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) (A) 		8-98187-608-0 01 1 1112-1308 ●
99 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG(RDT) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-98187-608-0 01 1 1309- ●
