Isuzu WW
▶
TRUCKS
▶
NKR
▶
50784 - NKR(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#72562) — 44 parça
Tümü
A - NKC5SF
B - NKB5SC
◀

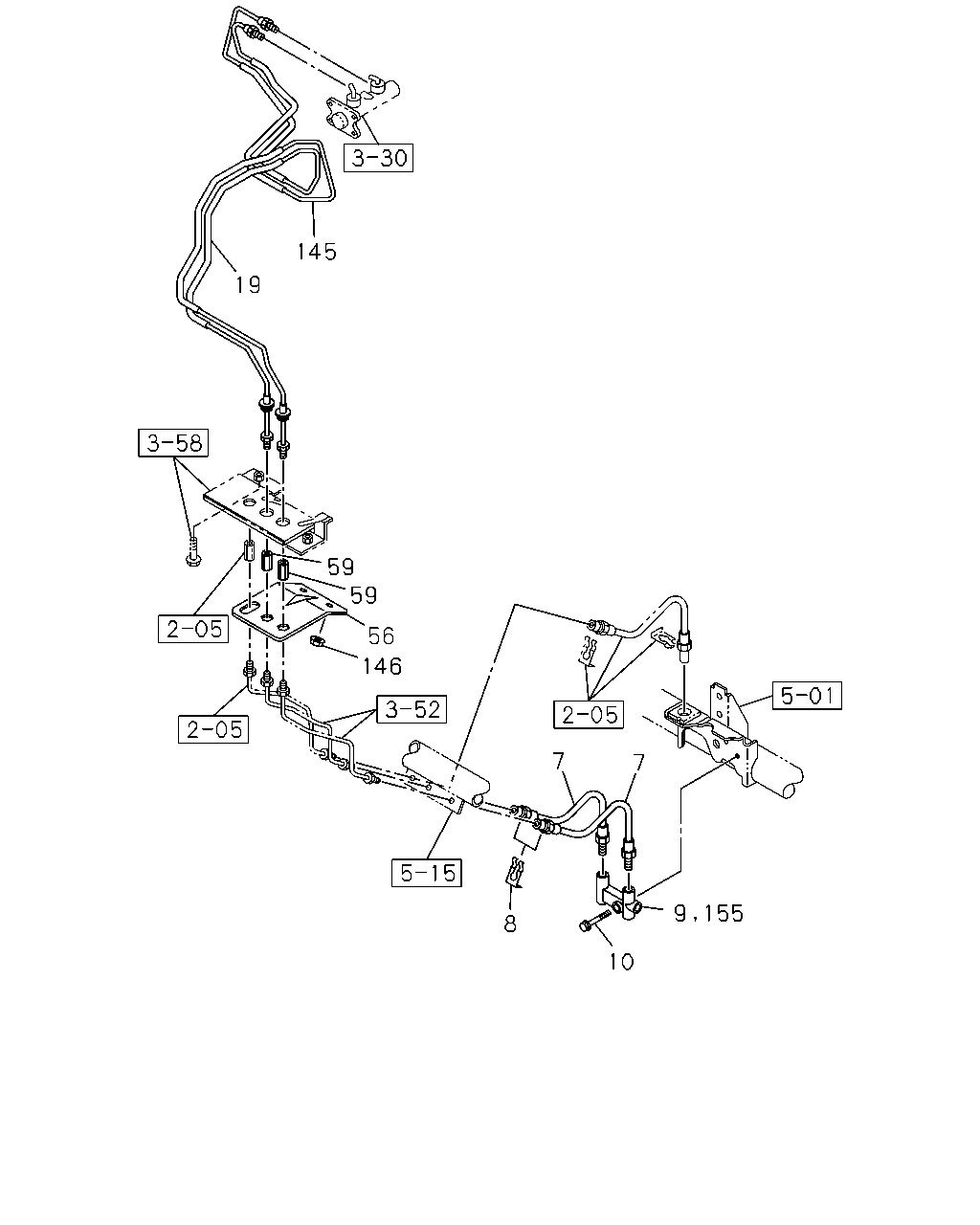

[350A] CAB SIDE (29 parça)

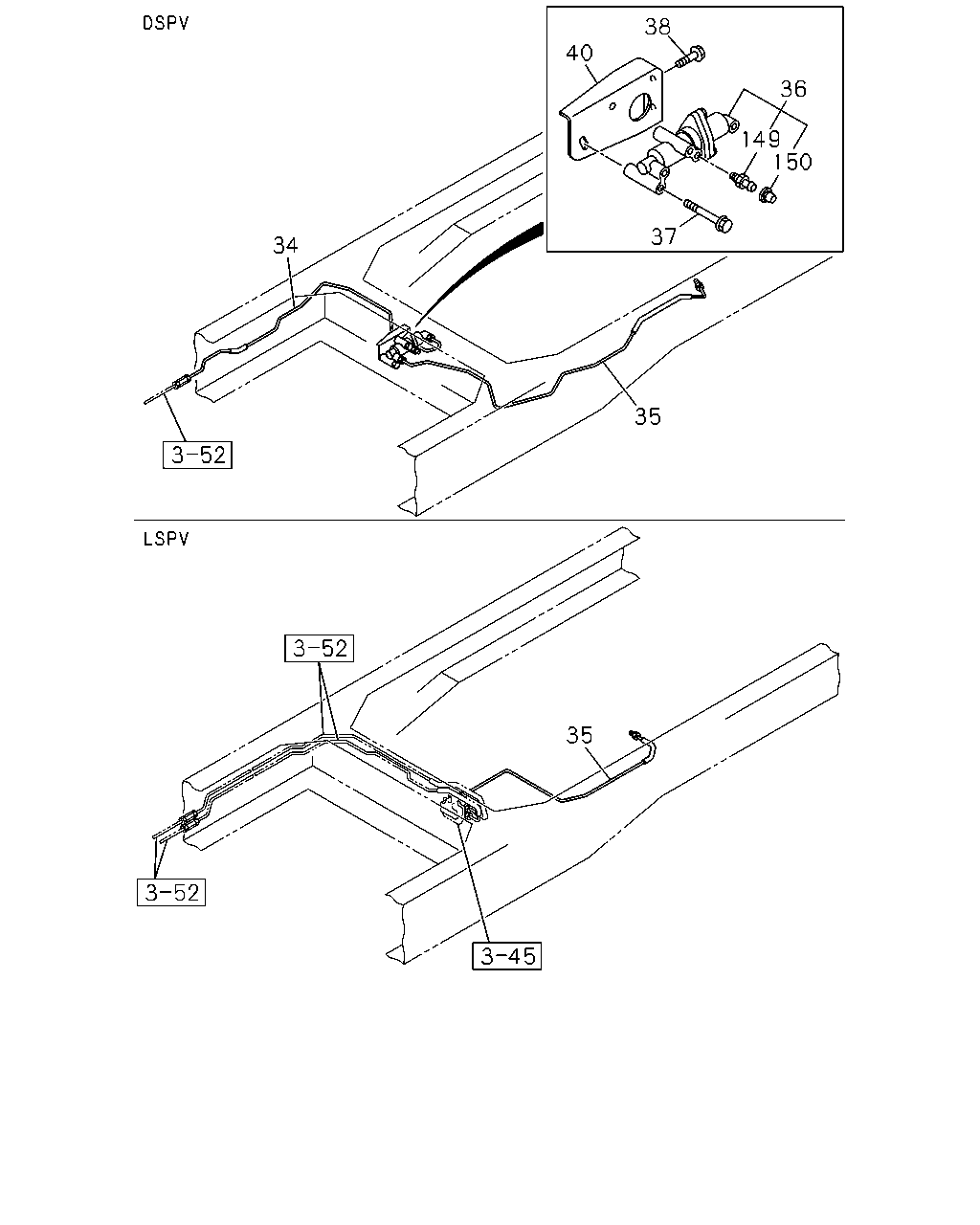

[350A] FRAME SIDE (15 parça)
▶
145
19
59
59
56
146
8
7
10
9
155
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
HOSE; FLEX,PIPE TO 5 WAY JOINT
8-97035-573-0
02
1
9704-0209
●
7
HOSE; FLEX,PIPE TO 5 WAY JOINT
8-97035-573-0
02
1
0210-0307
●
●
7
HOSE; FLEX,PIPE TO 5 WAY JOINT
8-97171-031-0
02
1
0308-
●
●
8
CLIP; FLEX HOSE,CABLE SIDE
8-94167-006-0
02
1
9704-0209
●
8
CLIP; FLEX HOSE,CABLE SIDE
8-94167-006-0
02
1
0210-0610
●
●
8
CLIP; FLEX HOSE,CABLE SIDE
8-97365-304-0
02
1
0611-
●
●
9
JOINT; BRK & CLU PIPE,CAB SIDE
5-47456-009-1
01
1
9704-0209
●
9
JOINT; BRK & CLU PIPE,CAB SIDE
5-47456-009-1
01
1
0210-1308
●
●
9
JOINT; BRK & CLU PIPE,CAB SIDE
5-47456-009-1
01
1
1309-
●
9
JOINT; BRK & CLU PIPE,CAB SIDE
EXC. BRK WHL LK CONT LSPV<6PH>
5-47456-009-1
01
1
1309-
●
10
BOLT; JOINT
M6X40 W/LK&PL WASHER
0-51240-640-0
01
1
9704-9704
●
10
BOLT; JOINT
M6X40 FLANGE
0-28680-640-0
01
1
9704-0209
●
10
BOLT; JOINT
M6X40 FLANGE
0-28680-640-0
01
1
0210-0512
●
●
10
BOLT; JOINT
M6X40 FLANGE
0-28650-640-0
01
1
0601-
●
●
19
PIPE; BRK,M/CYL TO UNION
REAR
8-97035-989-1
01
1
9704-0109
●
19
PIPE; BRK,M/CYL TO UNION
REAR
8-97314-590-0
01
1
0110-0209
●
19
PIPE; BRK,M/CYL TO UNION
REAR
8-97314-590-0
01
1
0210-
●
●
56
BRACKET; UNION,BRK
8-97078-564-1
01
1
9704-0209
●
56
BRACKET; UNION,BRK
8-97078-564-1
01
1
0210-
●
●
59
UNION; BRK PIPE
M10 STRAIGHT
9-09227-005-0
02
1
9704-0209
●
59
UNION; BRK PIPE
M10 STRAIGHT
9-09227-005-0
02
1
0210-0607
●
●
59
UNION; BRK PIPE
M10 STRAIGHT
0-92107-005-0
02
1
0608-
●
●
145
PIPE; BRK,METERING VLV TO UNION
FRONT
8-97145-913-0
01
1
9704-0109
●
145
PIPE; BRK,METERING VLV TO UNION
FRONT
8-97314-583-0
01
1
0110-0209
●
145
PIPE; BRK,METERING VLV TO UNION
FRONT
8-97314-583-0
01
1
0210-
●
●
146
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
9704-0209
●
146
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0210-0602
●
●
146
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
155
JOINT; 6WAY
BRK WHL LK CONT LSPV<6PH>
8-97120-033-2
01
1
1309-
●
34
35
40
38
36
149
150
37
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
34
PIPE; BRK,UNION TO DSPV
4JB1-TC ENG(RDT) BRK WHL LK CONT DSPV<JL8>
8-98210-697-0
01
1
1202-
●
34
PIPE; BRK,UNION TO DSPV
BRK WHL LK CONT DSPV<JL8>
8-97072-951-3
01
1
0210-0307
●
34
PIPE; BRK,UNION TO DSPV
BRK WHL LK CONT DSPV<JL8>
8-97072-951-3
01
1
0308-1201
●
34
PIPE; BRK,UNION TO DSPV
4JB1 ENG(RLF) BRK WHL LK CONT DSPV<JL8>
8-97072-951-3
01
1
1202-
●
35
PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH>
8-97259-533-1
01
1
1309-
●
35
PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT DSPV<JL8>
8-97091-258-1
01
1
0210-0307
●
35
PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT DSPV<JL8>
8-97091-258-1
01
1
0308-
●
36
VALVE ASM; DSPV
BRK WHL LK CONT DSPV<JL8>
8-97082-058-0
01
1
0210-
●
37
BOLT; BRKT TO DSPV
BRK WHL LK CONT DSPV<JL8> M8X70 W/LK WASHER
0-50040-870-0
02
1
0210-0512
●
37
BOLT; BRKT TO DSPV
BRK WHL LK CONT DSPV<JL8> M8X70 W/LK WASHER
0-50540-870-0
02
1
0601-
●
38
BOLT; BRKT TO FRAME
BRK WHL LK CONT DSPV<JL8> M8X20 W/LK WASHER
0-50040-820-0
02
1
0210-0909
●
38
BOLT; BRKT TO FRAME
BRK WHL LK CONT DSPV<JL8> M8X20 W/LK WASHER
0-50540-820-0
02
1
0910-
●
40
BRACKET
BRK WHL LK CONT DSPV<JL8>
8-94156-783-4
01
1
0210-
●
149
PLUG; BLEEDER,DSV
BRK WHL LK CONT DSPV<JL8>
8-97093-663-0
01
1
0210-
●
150
CAP; BLEEDER PLUG,DSV
BRK WHL LK CONT DSPV<JL8>
8-97093-662-0
01
1
0210-
●
