Isuzu WW
▶
TRUCKS
▶
NKR
▶
50784 - NKR(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-30 - BRAKE MASTER CYLINDER
▶
3-30 — BRAKE MASTER CYLINDER
(#72560) — 36 parça
Tümü
A - NKC5SF
B - NKB5SC
◀

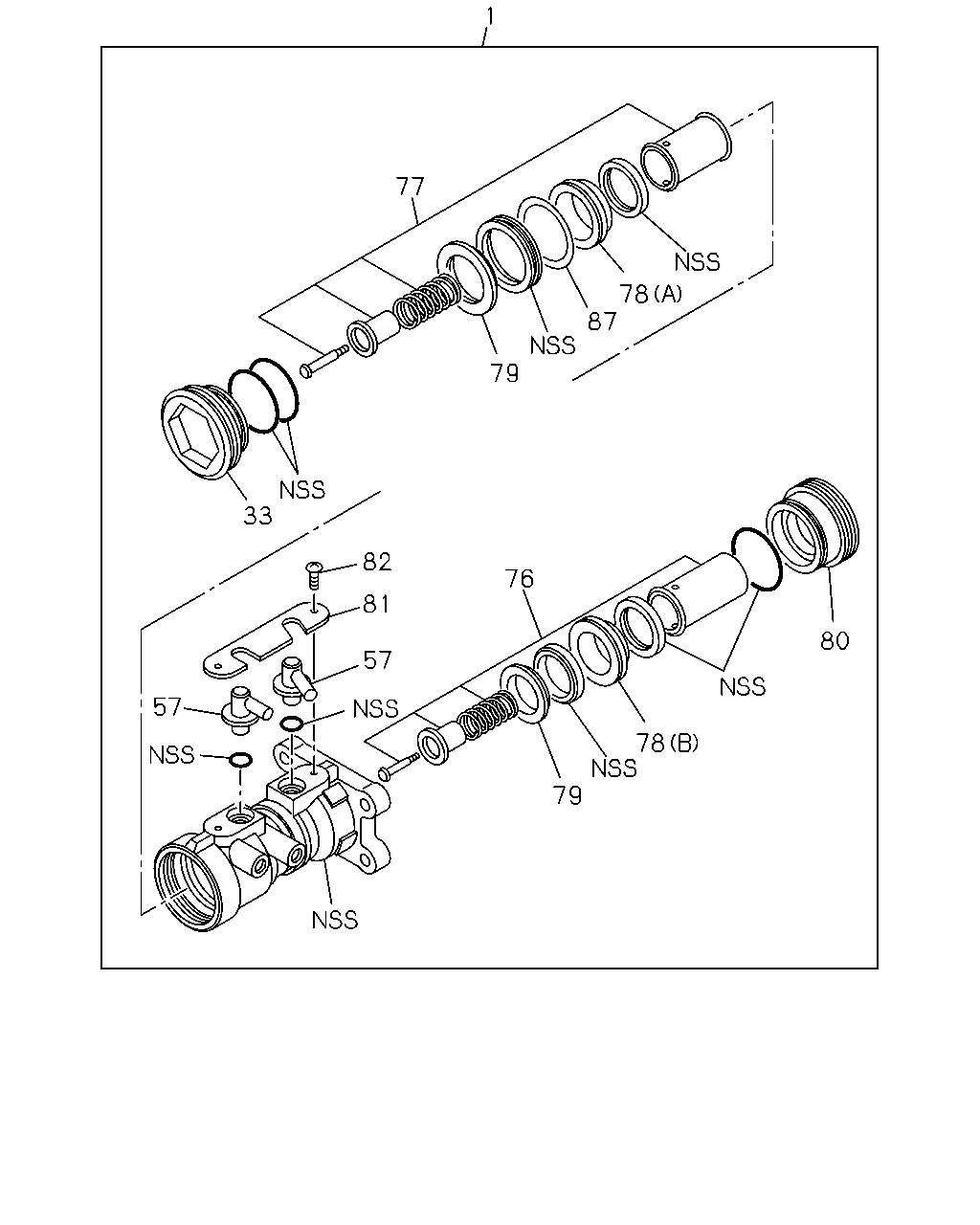

[330A] COMPONENT (34 parça)
[330A] REPAIR KIT (2 parça)
▶
1
77
78
87
79
33
82
76
81
80
57
57
78
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CYLINDER ASM; BRK MASTER
8-97129-690-0
01
1
9704-9710
●
1
CYLINDER ASM; BRK MASTER
8-97186-685-0
01
1
9711-9811
●
1
CYLINDER ASM; BRK MASTER
8-97219-308-0
01
1
9812-9901
●
1
CYLINDER ASM; BRK MASTER
8-97224-375-0
01
1
9902-0109
●
1
CYLINDER ASM; BRK MASTER
8-97224-373-0
01
1
0110-0209
●
1
CYLINDER ASM; BRK MASTER
8-97224-373-0
01
1
0210-
●
●
33
PLUG; END,M/CYL
8-97130-450-0
01
1
9704-9710
●
33
PLUG; END,M/CYL
8-97186-696-0
01
1
9711-0209
●
33
PLUG; END,M/CYL
8-97186-696-0
01
1
0210-
●
●
57
NIPPLE; BRK M/CYL
8-97130-441-0
02
1
9704-0109
●
57
NIPPLE; BRK M/CYL
8-97130-442-0
02
1
0110-0209
●
57
NIPPLE; BRK M/CYL
8-97130-442-0
02
1
0210-
●
●
76
PISTON ASM; PRIMARY
8-97130-464-0
01
1
9704-9901
●
76
PISTON ASM; PRIMARY
8-97224-636-0
01
1
9902-0209
●
76
PISTON ASM; PRIMARY
8-97224-636-0
01
1
0210-
●
●
77
PISTON ASM; SECONDARY
8-97130-466-0
01
1
9704-9901
●
77
PISTON ASM; SECONDARY
8-97224-635-0
01
1
9902-0209
●
77
PISTON ASM; SECONDARY
8-97224-635-0
01
1
0210-
●
●
78
BUSHING; MASTER CYL
(A)
8-97130-454-0
01
1
9704-0209
●
78
BUSHING; MASTER CYL
(A)
8-97130-454-0
01
1
0210-
●
●
78
BUSHING; MASTER CYL
(B)
8-97130-456-0
01
1
9704-9811
●
78
BUSHING; MASTER CYL
(B)
8-97217-310-0
01
1
9812-0209
●
78
BUSHING; MASTER CYL
(B)
8-97217-310-0
01
1
0210-
●
●
79
SUPPORTER; CUP
8-97130-462-0
02
1
9704-0209
●
79
SUPPORTER; CUP
8-97130-462-0
02
1
0210-
●
●
80
COVER; MASTER CYL
8-97130-448-0
01
1
9704-0209
●
80
COVER; MASTER CYL
8-97130-448-0
01
1
0210-
●
●
81
HOLDER; NIPPLE
8-97130-444-0
01
1
9704-0109
●
81
HOLDER; NIPPLE
8-97130-445-0
01
1
0110-0209
●
81
HOLDER; NIPPLE
8-97130-445-0
01
1
0210-
●
●
82
SCREW; HOLDER
8-97130-446-0
02
1
9704-0209
●
82
SCREW; HOLDER
8-97130-446-0
02
1
0210-
●
●
87
SPACER; CUP
8-97130-458-0
01
1
9704-0209
●
87
SPACER; CUP
8-97130-458-0
01
1
0210-
●
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; BRK,M/CYL
8-97130-470-0
01
1
9704-0209
●
2
REPAIR KIT; BRK,M/CYL
8-97130-470-0
01
1
0210-
●
●
