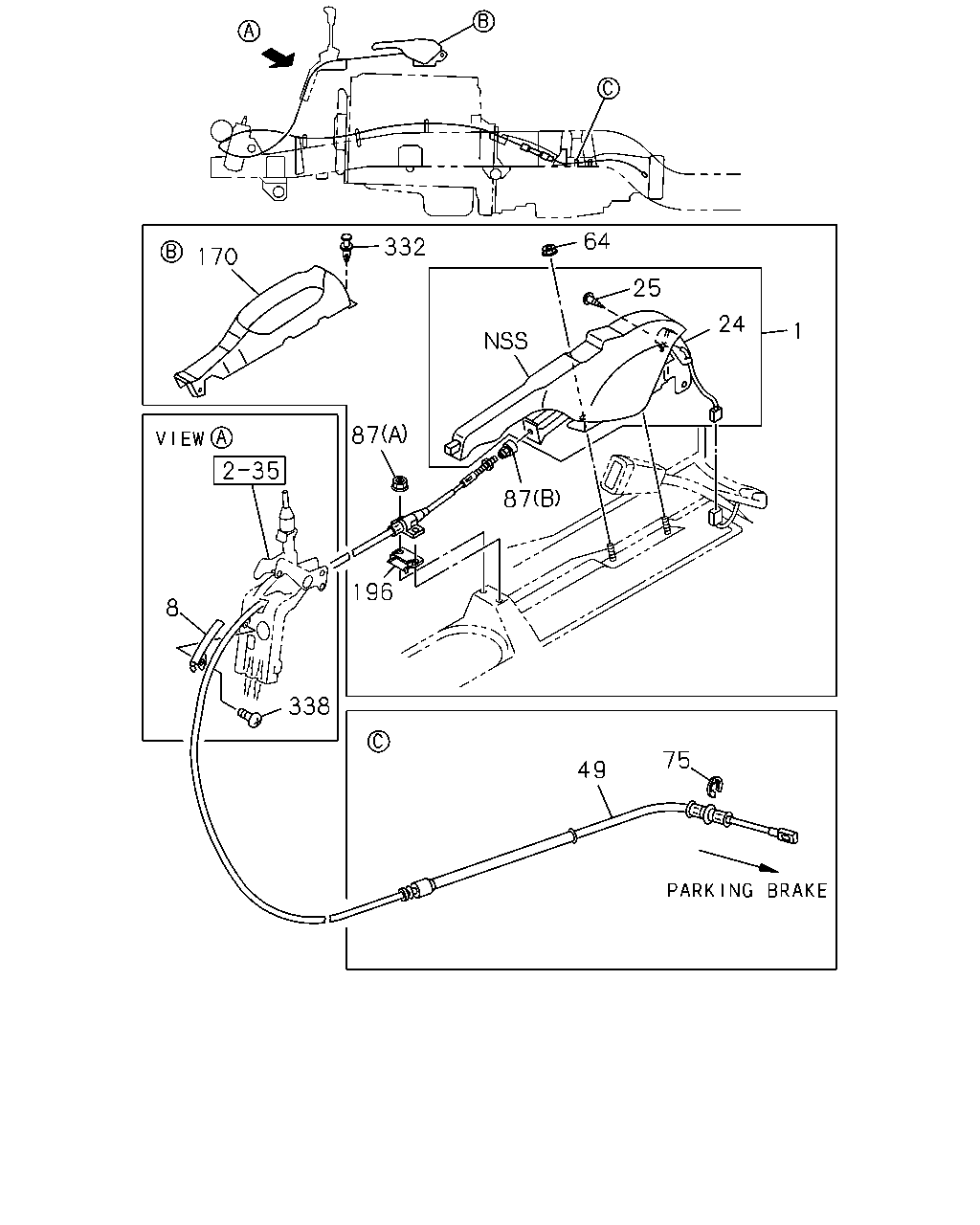

3-11 — PARKING BRAKE CONTROL (#72558) — 58 parça

49 49 225 225 224 91 91 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	CABLE; PARKING BRK	8-97129-870-0	01	1	9704-9709	●
49	CABLE; PARKING BRK	8-97184-270-0	01	1	9710-0209	●
49	CABLE; PARKING BRK	8-97184-270-0	01	1	0210-	●	●
91	CLIP; PARKING BRK CABLE (A) ID=16 L=50 H=25	1-09700-838-0	01	1	9704-0209	●
91	CLIP; PARKING BRK CABLE (A) ID=16 L=50 H=25	1-09700-838-0	01	1	0210-	●	●
91	CLIP; PARKING BRK CABLE (B) ID=13 L=50	9-09525-286-0	01	1	9704-0209	●
91	CLIP; PARKING BRK CABLE (B) ID=13 L=50	9-09525-286-0	01	1	0210-0606	●	●
91	CLIP; PARKING BRK CABLE (B) ID=13 L=50	0-95235-286-0	01	1	0607-	●	●
224	BOLT; CABLE CLIP M8X25 FLANGE	0-28680-825-0	02	1	9704-0209	●
224	BOLT; CABLE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0210-0512	●	●
224	BOLT; CABLE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
225	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	02	1	9704-0209	●
225	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	02	1	0210-0602	●	●
225	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

64 332 170 25 24 1 87 196 8 338 75 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEM ASM; PARKING BRK DARK BEIGE	8-97856-804-5	01	1	9704-9710	●
1	STEM ASM; PARKING BRK DARK BEIGE	8-97890-436-1	01	1	9711-0108	●
1	STEM ASM; PARKING BRK DARK BEIGE	8-97995-847-0	01	1	0109-0110	●
1	STEM ASM; PARKING BRK DARK BEIGE	8-97996-540-1	01	1	0111-0209	●
1	STEM ASM; PARKING BRK DARK BEIGE	8-97996-540-1	01	1	0210-0307	●	●
1	STEM ASM; PARKING BRK DARK GRAY	8-97996-542-2	01	1	0308-1305	●	●
1	STEM ASM; PARKING BRK DARK GRAY	8-97427-541-0	01	1	1306-	●	●
8	GUIDE; PARKING BRK	8-97071-939-0	01	1	9704-9904	●
8	GUIDE; PARKING BRK	8-97190-672-0	01	1	9905-0209	●
8	GUIDE; PARKING BRK	8-97190-672-0	01	1	0210-	●	●
24	SWITCH ASM; PARK BRK	8-97857-198-1	01	1	9704-9710	●
24	SWITCH ASM; PARK BRK	8-97890-859-0	01	1	9711-0108	●
24	SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0109-0209	●
24	SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0210-1305	●	●
24	SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1306-	●	●
25	SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0111-	●	●
49	CABLE; PARKING BRK	8-97129-870-0	01	1	9704-9709	●
49	CABLE; PARKING BRK	8-97184-270-0	01	1	9710-0209	●
49	CABLE; PARKING BRK	8-97184-270-0	01	1	0210-	●	●
64	NUT; PARKING BRK M8 W/LK WASHER	8-94327-073-0	02	1	9704-0209	●
64	NUT; PARKING BRK M8 W/LK WASHER	8-94327-073-0	02	1	0210-0610	●	●
64	NUT; PARKING BRK M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0611-	●	●
75	RING; SNAP,HAND BRK CABLE ID=12	9-09185-412-0	01	1	9704-0209	●
75	RING; SNAP,HAND BRK CABLE ID=12	9-09185-412-0	01	1	0210-0604	●	●
75	RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	0605-	●	●
87	NUT (A) M8 FLANGE	0-91150-108-0	02	1	9704-0209	●
87	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0210-0602	●	●
87	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
87	NUT (B) M6	8-97088-730-1	01	1	9704-0209	●
87	NUT (B) M6	8-97088-730-1	01	1	0210-0310	●	●
87	NUT (B) M6	1-71996-312-0	01	1	0311-0611	●	●
87	NUT (B) M6	8-98034-313-1	01	1	0612-	●	●
170	COVER; PARKING BRK LEVER DARK BEIGE	8-97097-008-0	01	1	9704-0209	●
170	COVER; PARKING BRK LEVER DARK BEIGE	8-97097-008-0	01	1	0210-0307	●	●
170	COVER; PARKING BRK LEVER DARK GRAY	8-97155-172-1	01	1	0308-1001	●	●
170	COVER; PARKING BRK LEVER DARK GRAY	8-97412-945-0	01	1	1002-	●	●
196	SPACER; CABLE TO LEVER	8-97066-277-2	01	1	9704-0209	●
196	SPACER; CABLE TO LEVER	8-97066-277-2	01	1	0210-0611	●	●
196	SPACER; CABLE TO LEVER	8-98034-201-0	01	1	0612-	●	●
332	CLIP; COVER D6X12.5	8-94146-425-0	01	1	9704-0209	●
332	CLIP; COVER D6X12.5	8-94146-425-0	01	1	0210-	●	●
338	SCREW; GUIDE M6X10	9-03497-610-0	01	1	9704-0209	●
338	SCREW; GUIDE M6X10	9-03497-610-0	01	1	0210-0604	●	●
338	SCREW; GUIDE M6X10	0-34218-610-0	01	1	0605-	●	●
