Isuzu WW
▶
TRUCKS
▶
NKR
▶
50784 - NKR(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

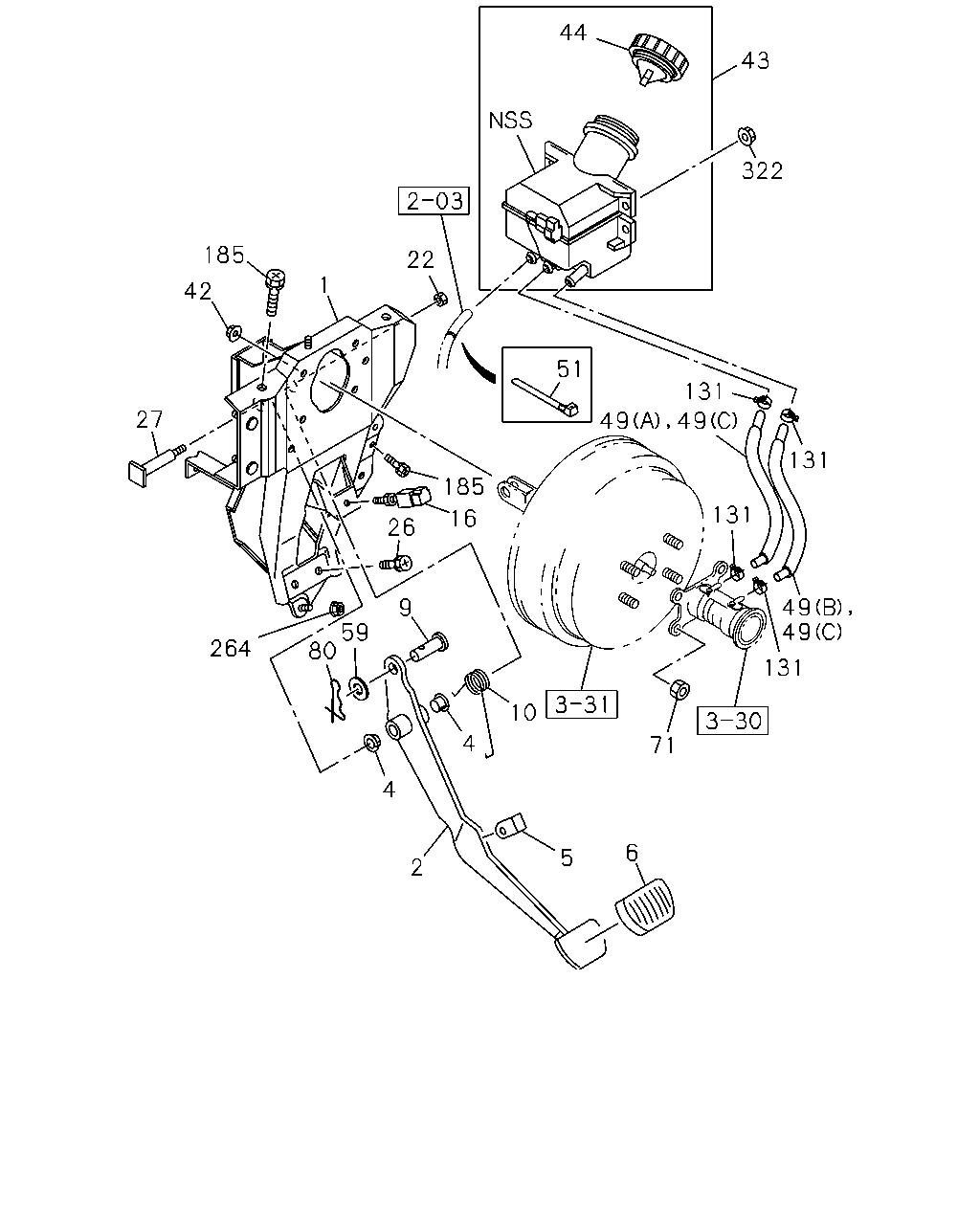

3-10 — BRAKE PEDAL AND CONTROL
(#72557) — 58 parça
Tümü
A - NKC5SF
B - NKB5SC
44
43
322
185
22
1
42
51
131
27
49
49
131
185
131
16
26
49
49
9
59
80
264
131
10
4
71
4
6
5
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET ASM; PEDAL
8-97853-209-8
01
1
9704-9905
●
1
BRACKET ASM; PEDAL
8-97896-968-1
01
1
9906-0209
●
1
BRACKET ASM; PEDAL
8-97896-968-5
01
1
0210-
●
●
2
PEDAL; BRK
8-97853-210-3
01
1
9704-0209
●
2
PEDAL; BRK
8-97853-210-3
01
1
0210-
●
●
4
BUSHING; BRK PEDAL
8-94238-596-0
02
1
9704-0209
●
4
BUSHING; BRK PEDAL
8-94238-596-0
02
1
0210-
●
●
5
STOPPER; BRK PEDAL
8-97853-602-1
01
1
9704-0209
●
5
STOPPER; BRK PEDAL
8-97853-602-1
01
1
0210-
●
●
6
COVER; BRK PEDAL
8-97853-413-2
01
1
9704-0209
●
6
COVER; BRK PEDAL
8-97853-413-2
01
1
0210-
●
●
9
PIN; JAW JOINT
8-94410-276-0
01
1
9704-0209
●
9
PIN; JAW JOINT
8-94410-276-0
01
1
0210-1406
●
●
9
PIN; JAW JOINT
8-97359-812-0
01
1
1407-
●
●
10
SPRING; RETURN,BRK PEDAL
8-97853-212-1
01
1
9704-0209
●
10
SPRING; RETURN,BRK PEDAL
8-97853-212-1
01
1
0210-
●
●
16
SWITCH; STOP LAMP
8-97855-187-0
01
1
9704-0209
●
16
SWITCH; STOP LAMP
8-97855-187-0
01
1
0210-
●
●
22
NUT; SHAFT
M10 FLANGE
1-09440-022-0
01
1
9704-0209
●
22
NUT; SHAFT
M10 FLANGE
1-09440-022-0
01
1
0210-
●
●
26
BOLT; PEDAL
M10X22 W/WASHER
8-94279-099-0
02
1
9704-0110
●
26
BOLT; PEDAL
M10X22 W/PL WASHER
8-97313-188-0
02
1
0111-0209
●
26
BOLT; PEDAL
M10X22 W/PL WASHER
8-97313-188-0
02
1
0210-
●
●
27
SHAFT; BRK PEDAL
8-97866-667-0
01
1
9704-0209
●
27
SHAFT; BRK PEDAL
8-97866-667-0
01
1
0210-
●
●
42
NUT; BRK PEDAL
M8 W/LK WASHER
8-94279-050-0
04
1
9704-0209
●
42
NUT; BRK PEDAL
M8 W/LK WASHER
8-94279-050-0
04
1
0210-
●
●
43
TANK ASM; OIL
8-97049-568-4
01
1
9704-9811
●
43
TANK ASM; OIL
8-97179-813-1
01
1
9812-0209
●
43
TANK ASM; OIL
8-97179-813-1
01
1
0210-
●
●
44
CAP; OIL TANK
8-97095-698-0
01
1
9704-9811
●
44
CAP; OIL TANK
8-97178-291-1
01
1
9812-0209
●
44
CAP; OIL TANK
8-97178-291-1
01
1
0210-
●
●
49
HOSE; OIL TANK TO BRK M/CYL
(C)
8-97129-582-0
02
1
9704-9710
●
49
HOSE; OIL TANK TO BRK M/CYL
(B)
8-97129-582-0
01
1
9711-0109
●
49
HOSE; OIL TANK TO BRK M/CYL
(C)
8-97129-582-0
02
1
0110-0209
●
49
HOSE; OIL TANK TO BRK M/CYL
(C)
8-97129-582-0
02
1
0210-
●
●
49
HOSE; OIL TANK TO BRK M/CYL
(A)
8-97173-291-0
01
1
9711-0109
●
51
CLIP; HOSE,OIL TANK
L=140
5-09707-031-1
01
1
9704-0209
●
51
CLIP; HOSE,OIL TANK
L=140
5-09707-031-1
01
1
0210-
●
●
59
WASHER; PL,JAW JOINT
ID=15
9-09160-514-0
01
1
9704-0209
●
59
WASHER; PL,JAW JOINT
ID=15
9-09160-514-0
01
1
0210-0605
●
●
59
WASHER; PL,JAW JOINT
ID=15
0-91610-514-0
01
1
0606-
●
●
71
NUT; BRK M/CYL
M8 W/LK WASHER
8-94279-050-0
04
1
9704-0209
●
71
NUT; BRK M/CYL
M8 W/LK WASHER
8-94279-050-0
04
1
0210-
●
●
80
PIN; SNAP,BRK PEDAL
8-94279-912-0
01
1
9704-0209
●
80
PIN; SNAP,BRK PEDAL
8-94279-912-0
01
1
0210-
●
●
131
CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY
8-97130-480-0
04
1
9704-0209
●
131
CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY
8-97130-480-0
04
1
0210-
●
●
185
BOLT; BRKT
M10X25 FLANGE
0-28691-025-0
02
1
9704-0209
●
185
BOLT; BRKT
M10X25 FLANGE
0-28691-025-0
02
1
0210-0512
●
●
185
BOLT; BRKT
M10X25 FLANGE
0-28661-025-0
02
1
0601-
●
●
264
NUT; BRKT,COLUMN SUPT TO B.PDL
M8 FLANGE
8-97046-127-0
01
1
9704-0209
●
264
NUT; BRKT,COLUMN SUPT TO B.PDL
M8 FLANGE
8-97046-127-0
01
1
0210-0610
●
●
264
NUT; BRKT,COLUMN SUPT TO B.PDL
M8 W/DISHED WASHER
8-97329-625-0
01
1
0611-
●
●
322
NUT; OIL TANK
M6 FLANGE
0-91150-106-0
02
1
9704-0209
●
322
NUT; OIL TANK
M6 FLANGE
0-91150-106-0
02
1
0210-0602
●
●
322
NUT; OIL TANK
M6 FLANGE
0-91180-106-0
02
1
0603-
●
●
