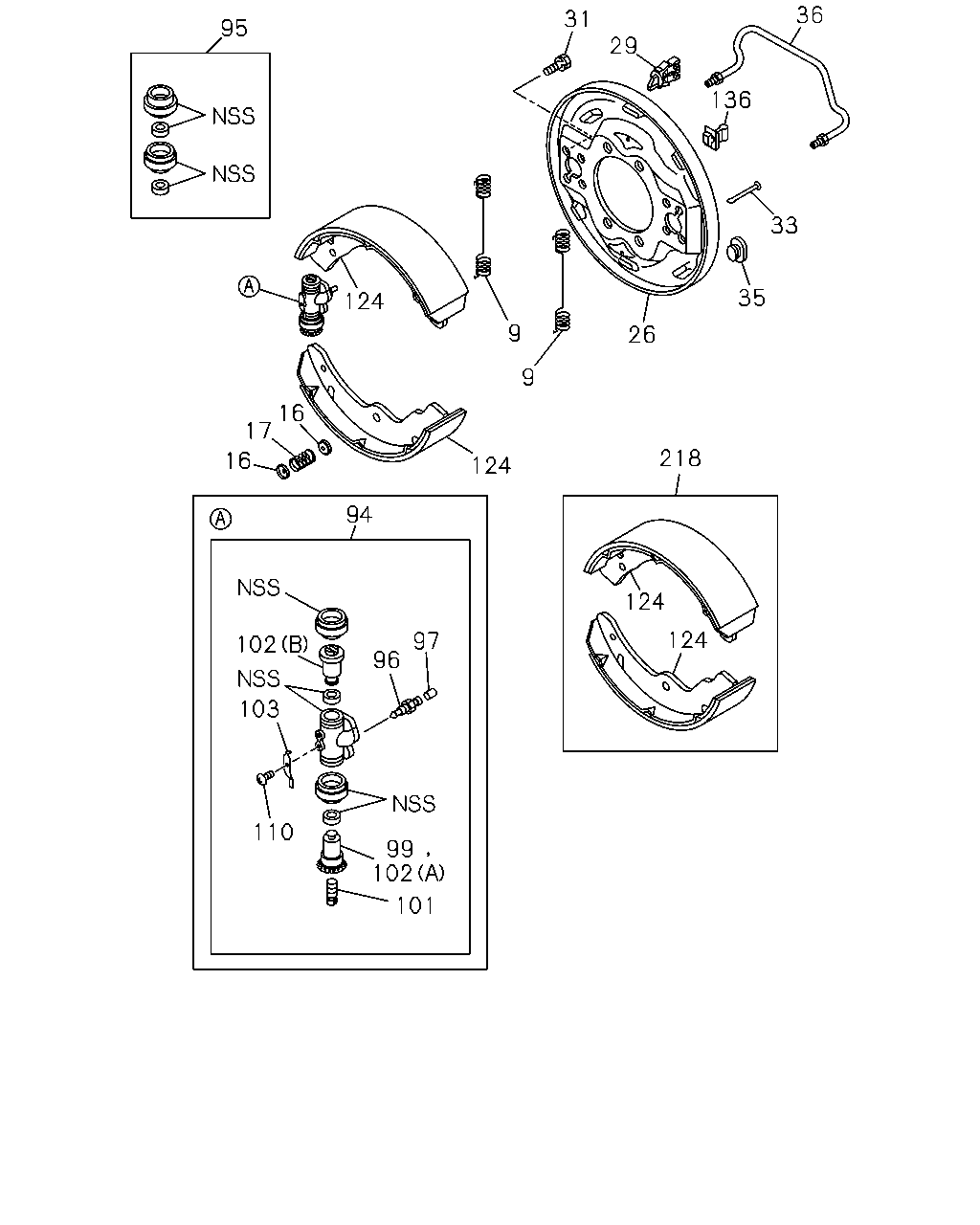

3-05 — REAR WHEEL BRAKE (#72555) — 93 parça

36 31 95 29 136 33 35 124 9 26 9 16 17 218 16 124 94 124 124 97 102 96 103 110 99 102 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	SPRING; RETURN,BRK SHOE	8-97078-739-0	04	1	9704-0209	●
9	SPRING; RETURN,BRK SHOE	8-97078-739-0	04	1	0210-	●	●
16	CUP; SHOE HOLDING	9-47162-033-0	08	1	9704-0209	●
16	CUP; SHOE HOLDING	9-47162-033-0	08	1	0210-	●	●
17	SPRING; SHOE HOLD DOWN	9-09940-989-1	04	1	9704-0209	●
17	SPRING; SHOE HOLD DOWN	9-09940-989-1	04	1	0210-	●	●
26	PLATE; BACK,RR BRK	8-97078-680-0	01	1	9704-	●
26	PLATE; BACK,RR BRK	8-97078-679-0	01	1	9704-	●
26	PLATE; BACK,RR BRK	8-97093-935-0	01	1	0210-		●
26	PLATE; BACK,RR BRK	8-97093-934-0	01	1	0210-		●
29	CLIP; PIPE,BRK	8-94128-307-0	02	1	9704-0209	●
29	CLIP; PIPE,BRK	8-94128-307-0	02	1	0210-	●	●
31	BOLT; RR WHEEL CYL	5-09030-036-1	16	1	9704-0209	●
31	BOLT; RR WHEEL CYL	5-09030-036-1	16	1	0210-	●	●
33	PIN; SHOE HOLD DOWN	9-47162-607-0	04	1	9704-0209	●
33	PIN; SHOE HOLD DOWN	9-47162-607-0	04	1	0210-	●	●
35	GROMMET; CHECK HOLE	8-94344-919-0	02	1	9704-0209	●
35	GROMMET; CHECK HOLE	8-94344-919-0	02	1	0210-	●	●
36	PIPE; OIL,RR BRK	8-94128-192-0	02	1	9704-0209	●
36	PIPE; OIL,RR BRK	8-94128-192-0	02	1	0210-	●	●
94	CYLINDER; WHEEL,RR BRK ID=25.40(1")	8-97078-682-0	02	1	9704-9704	●
94	CYLINDER; WHEEL,RR BRK	8-97139-842-0	02	1	9704-0209	●
94	CYLINDER; WHEEL,RR BRK	8-97139-842-0	02	1	0210-1310	●
94	CYLINDER; WHEEL,RR BRK BRK WHL LK CONT DSPV<JL8>	8-97139-842-0	02	1	0210-1310		●
94	CYLINDER; WHEEL,RR BRK	8-97139-842-0	02	1	1311-	●
94	CYLINDER; WHEEL,RR BRK BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97139-842-0	02	1	1311-		●
94	CYLINDER; WHEEL,RR BRK REAR ID=25.40(1")	8-97078-683-0	01	1	9704-9704	●
94	CYLINDER; WHEEL,RR BRK REAR	8-97139-841-0	01	1	9704-0209	●
94	CYLINDER; WHEEL,RR BRK REAR	8-97139-841-0	01	1	0210-1310	●
94	CYLINDER; WHEEL,RR BRK BRK WHL LK CONT DSPV<JL8> REAR	8-97139-841-0	01	1	0210-1310		●
94	CYLINDER; WHEEL,RR BRK	8-97139-841-0	01	1	1311-	●
94	CYLINDER; WHEEL,RR BRK BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97139-841-0	01	1	1311-		●
94	CYLINDER; WHEEL,RR BRK FRONT ID=25.40(1")	8-97078-684-0	01	1	9704-9704	●
94	CYLINDER; WHEEL,RR BRK FRONT	8-97139-840-0	01	1	9704-0209	●
94	CYLINDER; WHEEL,RR BRK FRONT	8-97139-840-0	01	1	0210-1310	●
94	CYLINDER; WHEEL,RR BRK BRK WHL LK CONT DSPV<JL8> FRONT	8-97139-840-0	01	1	0210-1310		●
94	CYLINDER; WHEEL,RR BRK	8-97139-840-0	01	1	1311-	●
94	CYLINDER; WHEEL,RR BRK BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97139-840-0	01	1	1311-		●
94	CYLINDER; WHEEL,RR BRK EXC. BRK WHL LK CONT DSPV<JL8>	8-97179-337-0	02	1	0210-1310		●
94	CYLINDER; WHEEL,RR BRK EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97179-337-0	02	1	1311-		●
94	CYLINDER; WHEEL,RR BRK EXC. BRK WHL LK CONT DSPV<JL8> FRONT	8-97179-335-0	01	1	0210-1310		●
94	CYLINDER; WHEEL,RR BRK EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97179-335-0	01	1	1311-		●
94	CYLINDER; WHEEL,RR BRK EXC. BRK WHL LK CONT DSPV<JL8> REAR	8-97179-336-0	01	1	0210-1310		●
94	CYLINDER; WHEEL,RR BRK EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97179-336-0	01	1	1311-		●
95	CUP SET; RR WHEEL CYL	5-87830-539-0	01	1	9704-9704	●
95	CUP SET; RR WHEEL CYL	5-87831-621-0	01	1	9704-0209	●
95	CUP SET; RR WHEEL CYL	5-87831-621-0	01	1	0210-1310	●
95	CUP SET; RR WHEEL CYL BRK WHL LK CONT DSPV<JL8>	5-87831-621-0	01	1	0210-1310		●
95	CUP SET; RR WHEEL CYL	5-87831-621-0	01	1	1311-	●
95	CUP SET; RR WHEEL CYL BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	5-87831-621-0	01	1	1311-		●
95	CUP SET; RR WHEEL CYL EXC. BRK WHL LK CONT DSPV<JL8>	5-87831-625-0	01	1	0210-1310		●
95	CUP SET; RR WHEEL CYL EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	5-87831-625-0	01	1	1311-		●
96	SCREW; BLEEDER,RR BRK FRONT	9-47615-027-0	01	1	9704-0209	●
96	SCREW; BLEEDER,RR BRK FRONT	9-47615-027-0	01	1	0210-0711	●	●
96	SCREW; BLEEDER,RR BRK FRONT	8-98050-476-0	01	1	0712-	●	●
97	CAP; BLEEDER,RR WHEEL CYL FRONT	1-47619-009-0	01	1	9704-0209	●
97	CAP; BLEEDER,RR WHEEL CYL FRONT	1-47619-009-0	01	1	0210-0711	●	●
97	CAP; BLEEDER,RR WHEEL CYL FRONT	8-98050-479-0	01	1	0712-	●	●
99	PISTON; RR WHEEL CYL	8-97078-698-0	03	1	9704-0209	●
99	PISTON; RR WHEEL CYL	8-97078-698-0	03	1	0210-1310	●
99	PISTON; RR WHEEL CYL BRK WHL LK CONT DSPV<JL8>	8-97078-698-0	03	1	0210-1310		●
99	PISTON; RR WHEEL CYL	8-97078-698-0	03	1	1311-	●
99	PISTON; RR WHEEL CYL BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97078-698-0	03	1	1311-		●
99	PISTON; RR WHEEL CYL EXC. BRK WHL LK CONT DSPV<JL8>	8-97081-149-0	03	1	0210-1310		●
99	PISTON; RR WHEEL CYL EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97081-149-0	03	1	1311-		●
101	SCREW; ADJ,RR WHEEL CYL	8-97078-623-0	04	1	9704-0209	●
101	SCREW; ADJ,RR WHEEL CYL	8-97078-623-0	04	1	0210-	●	●
102	PISTON; REAR WHEEL CYL (B) D=25.4	8-94128-531-1	04	1	9704-0209	●
102	PISTON; REAR WHEEL CYL (B) D=25.4	8-94128-531-1	04	1	0210-1310	●
102	PISTON; REAR WHEEL CYL BRK WHL LK CONT DSPV<JL8> (B) D=25.4	8-94128-531-1	04	1	0210-1310		●
102	PISTON; REAR WHEEL CYL (B) D=25.4	8-94128-531-1	04	1	1311-	●
102	PISTON; REAR WHEEL CYL BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> (B) D=25.4	8-94128-531-1	04	1	1311-		●
102	PISTON; REAR WHEEL CYL (A)	8-97078-698-0	01	1	9704-0209	●
102	PISTON; REAR WHEEL CYL (A)	8-97078-698-0	01	1	0210-1310	●
102	PISTON; REAR WHEEL CYL BRK WHL LK CONT DSPV<JL8> (A)	8-97078-698-0	01	1	0210-1310		●
102	PISTON; REAR WHEEL CYL (A)	8-97078-698-0	01	1	1311-	●
102	PISTON; REAR WHEEL CYL BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> (A)	8-97078-698-0	01	1	1311-		●
102	PISTON; REAR WHEEL CYL EXC. BRK WHL LK CONT DSPV<JL8> (B) D=22.22	8-94128-533-1	04	1	0210-1310		●
102	PISTON; REAR WHEEL CYL EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> (B) D=22.22	8-94128-533-1	04	1	1311-		●
102	PISTON; REAR WHEEL CYL EXC. BRK WHL LK CONT DSPV<JL8> (A)	8-97081-149-0	01	1	0210-1310		●
102	PISTON; REAR WHEEL CYL EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> (A)	8-97081-149-0	01	1	1311-		●
103	SPRING; LK,RR WHEEL CYL,ADJ	8-94128-486-0	04	1	9704-0209	●
103	SPRING; LK,RR WHEEL CYL,ADJ	8-94128-486-0	04	1	0210-	●	●
110	SCREW; LOCK SPRING,RR WHEEL CYL	8-94128-727-0	04	1	9704-0209	●
110	SCREW; LOCK SPRING,RR WHEEL CYL	8-94128-727-0	04	1	0210-	●	●
124	SHOE ASM; BRK,RR	8-97035-085-1	04	1	9704-0209	●
124	SHOE ASM; BRK,RR	8-97035-085-1	04	1	0210-	●	●
124	SHOE ASM; BRK,RR BEST VALUE PARTS	5-87610-123-0	04	1	9704-0209	●
124	SHOE ASM; BRK,RR BEST VALUE PARTS	5-87610-123-0	04	1	0210-	●	●
136	GROMMET	9-09956-640-0	04	1	9704-0209	●
136	GROMMET	9-09956-640-0	04	1	0210-	●	●
218	SHOE KIT; BRK,RR	5-87832-045-0	01	1	0204-0209	●
218	SHOE KIT; BRK,RR	5-87832-045-0	01	1	0210-	●	●
