2-85 — POWER TAKE OFF CONTROL (#72553) — 146 parça

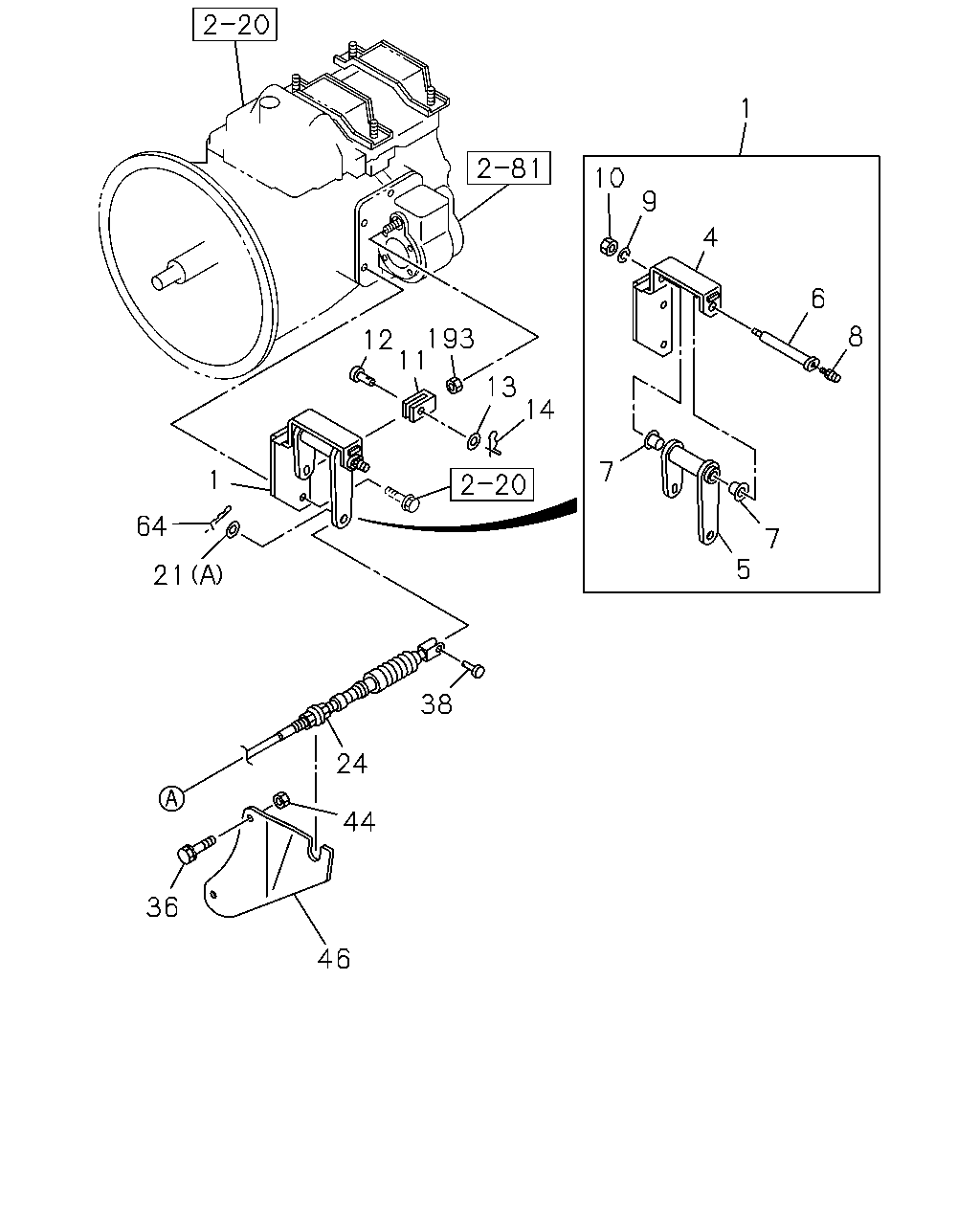

çizim 114418
1 10 9 4 6 12 193 11 8 13 14 1 7 64 7 5 21 38 24 44 36 46
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER ASM; PTO & DUMP CONT
PTO TRANSMISSION SIDE(V66) 		8-94169-638-3 01 1 9704-0209 ●
1 LEVER ASM; PTO & DUMP CONT
PTO TRANSMISSION SIDE(V66) 		8-94169-638-3 01 1 0210- ● ●
4 BRACKET; PTO CONT
PTO TRANSMISSION SIDE(V66) 		8-94169-639-0 01 1 9704-0209 ●
4 BRACKET; PTO CONT
PTO TRANSMISSION SIDE(V66) 		8-94169-639-0 01 1 0210- ● ●
5 LEVER; PTO SHIFT CONT
PTO TRANSMISSION SIDE(V66) 		8-94147-828-0 01 1 9704-0209 ●
5 LEVER; PTO SHIFT CONT
PTO TRANSMISSION SIDE(V66) 		8-94147-828-0 01 1 0210- ● ●
6 SHAFT; PTO CONT
PTO TRANSMISSION SIDE(V66) 		8-94147-829-1 01 1 9704-0209 ●
6 SHAFT; PTO CONT
PTO TRANSMISSION SIDE(V66) 		8-94147-829-1 01 1 0210- ● ●
7 BUSHING; LEVER,PTO
PTO TRANSMISSION SIDE(V66) 		5-33659-053-0 02 1 9704-0209 ●
7 BUSHING; LEVER,PTO
PTO TRANSMISSION SIDE(V66) 		5-33659-053-0 02 1 0210- ● ●
8 NIPPLE; GREASE
PTO TRANSMISSION SIDE(V66) M6 STRAIGHT 		9-09031-006-0 01 1 9704-0209 ●
8 NIPPLE; GREASE
PTO TRANSMISSION SIDE(V66) M6 STRAIGHT 		9-09031-006-0 01 1 0210-0607 ● ●
8 NIPPLE; GREASE
PTO TRANSMISSION SIDE(V66) M6 STRAIGHT 		0-90301-406-0 01 1 0608- ● ●
9 WASHER; LK,SHAFT,PTO
PTO TRANSMISSION SIDE(V66) ID=8.2 		9-09150-508-0 01 1 9704-0209 ●
9 WASHER; LK,SHAFT,PTO
PTO TRANSMISSION SIDE(V66) ID=8.2 		9-09150-508-0 01 1 0210-0603 ● ●
9 WASHER; LK,SHAFT,PTO
PTO TRANSMISSION SIDE(V66) ID=8.2 		0-91510-508-0 01 1 0604- ● ●
10 NUT; SHAFT,PTO
PTO TRANSMISSION SIDE(V66) M8 		9-09110-408-0 01 1 9704-0209 ●
10 NUT; SHAFT,PTO
PTO TRANSMISSION SIDE(V66) M8 		9-09110-408-0 01 1 0210-0512 ● ●
10 NUT; SHAFT,PTO
PTO TRANSMISSION SIDE(V66) M8 		0-91110-508-0 01 1 0601- ● ●
11 JOINT; JAW,YOKE
PTO TRANSMISSION SIDE(V66) 		8-94342-085-0 01 1 9704-0209 ●
11 JOINT; JAW,YOKE
PTO TRANSMISSION SIDE(V66) 		8-94342-085-0 01 1 0210- ● ●
12 JOINT; PIN,YOKE
PTO TRANSMISSION SIDE(V66) 		8-94174-099-0 01 1 9704-0209 ●
12 JOINT; PIN,YOKE
PTO TRANSMISSION SIDE(V66) 		8-94174-099-0 01 1 0210-0610 ● ●
12 JOINT; PIN,YOKE
PTO TRANSMISSION SIDE(V66) 		8-98031-692-0 01 1 0611- ● ●
13 WASHER; PL,YOKE
PTO TRANSMISSION SIDE(V66) ID=12.5 		9-09160-512-0 01 1 9704-0209 ●
13 WASHER; PL,YOKE
PTO TRANSMISSION SIDE(V66) ID=12.5 		9-09160-512-0 01 1 0210-0605 ● ●
13 WASHER; PL,YOKE
PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22 		0-91610-512-0 01 1 0606- ● ●
14 PIN; SPLIT,YOKE
PTO TRANSMISSION SIDE(V66) 		1-09987-158-1 01 1 9704-0209 ●
14 PIN; SPLIT,YOKE
PTO TRANSMISSION SIDE(V66) 		1-09987-158-1 01 1 0210-0805 ● ●
14 PIN; SPLIT,YOKE
PTO TRANSMISSION SIDE(V66) 		8-97581-216-0 01 1 0806- ● ●
21 WASHER; PL,CONT LEVER
PTO TRANSMISSION SIDE(V66) (A) ID=8.4 		9-09160-508-0 01 1 9704-0209 ●
21 WASHER; PL,CONT LEVER
PTO TRANSMISSION SIDE(V66) (A) ID=8.4 		9-09160-508-0 01 1 0210-0605 ● ●
21 WASHER; PL,CONT LEVER
PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ● ●
21 WASHER; PL,CONT LEVER
PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22 		9-09160-708-0 01 1 9704-0209 ●
21 WASHER; PL,CONT LEVER
PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22 		9-09160-708-0 01 1 0210-0605 ● ●
21 WASHER; PL,CONT LEVER
PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ● ●
24 CABLE; PTO CONT
PTO TRANSMISSION SIDE(V66) L=2690 		8-97142-482-0 01 1 9704-0209 ●
24 CABLE; PTO CONT
PTO TRANSMISSION SIDE(V66) L=2690 		8-97142-482-0 01 1 0210-0307 ● ●
24 CABLE; PTO CONT
4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690 		8-97142-482-0 01 1 0308-1005 ● ●
24 CABLE; PTO CONT
PTO TRANSMISSION SIDE(V66) L=2690 		8-97142-482-0 01 1 1006- ● ●
36 BOLT; PTO BRKT
PTO TRANSMISSION SIDE(V66) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9704-0209 ●
36 BOLT; PTO BRKT
PTO TRANSMISSION SIDE(V66) M8X35 W/LK WASHER 		0-50040-835-0 01 1 0210-0512 ● ●
36 BOLT; PTO BRKT
4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) M8X35 W/LK WASHER 		0-50540-835-0 01 1 0601-1005 ● ●
36 BOLT; PTO BRKT
PTO TRANSMISSION SIDE(V66) M8X35 W/LK WASHER 		0-50540-835-0 01 1 1006- ● ●
38 PIN; JOINT,CABLE TO LEVER
PTO TRANSMISSION SIDE(V66) 		8-94153-035-0 01 1 9704-0209 ●
38 PIN; JOINT,CABLE TO LEVER
PTO TRANSMISSION SIDE(V66) 		8-94153-035-0 01 1 0210-0307 ● ●
38 PIN; JOINT,CABLE TO LEVER
4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 		8-94153-035-0 01 1 0308-1005 ● ●
38 PIN; JOINT,CABLE TO LEVER
PTO TRANSMISSION SIDE(V66) 		8-94153-035-0 01 1 1006- ● ●
44 NUT; BRKT
PTO TRANSMISSION SIDE(V66) M8 		9-09110-408-0 01 1 9704-0209 ●
44 NUT; BRKT
PTO TRANSMISSION SIDE(V66) M8 		9-09110-408-0 01 1 0210-0512 ● ●
44 NUT; BRKT
4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) M8 		0-91110-508-0 01 1 0601-1005 ● ●
44 NUT; BRKT
PTO TRANSMISSION SIDE(V66) M8 		0-91110-508-0 01 1 1006- ● ●
46 BRACKET; PTO,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		8-94157-541-0 01 1 9704-0209 ●
46 BRACKET; PTO,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		8-94157-541-0 01 1 0210-0307 ● ●
46 BRACKET; PTO,TRANS SIDE
4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 		8-94157-541-0 01 1 0308-1005 ● ●
46 BRACKET; PTO,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		8-94157-541-0 01 1 1006- ● ●
64 PIN; SNAP,CONT CABLE JOINT
PTO TRANSMISSION SIDE(V66) L=27.7 		8-94111-137-0 01 1 9704-0209 ●
64 PIN; SNAP,CONT CABLE JOINT
PTO TRANSMISSION SIDE(V66) L=27.7 		8-94111-137-0 01 1 0210- ● ●
193 NUT
PTO TRANSMISSION SIDE(V66) M12 		9-99111-412-0 01 1 9704-0209 ●
193 NUT
PTO TRANSMISSION SIDE(V66) M12 		9-99111-412-0 01 1 0210-0512 ● ●
193 NUT
PTO TRANSMISSION SIDE(V66) M12 		0-91111-512-0 01 1 0601- ● ●

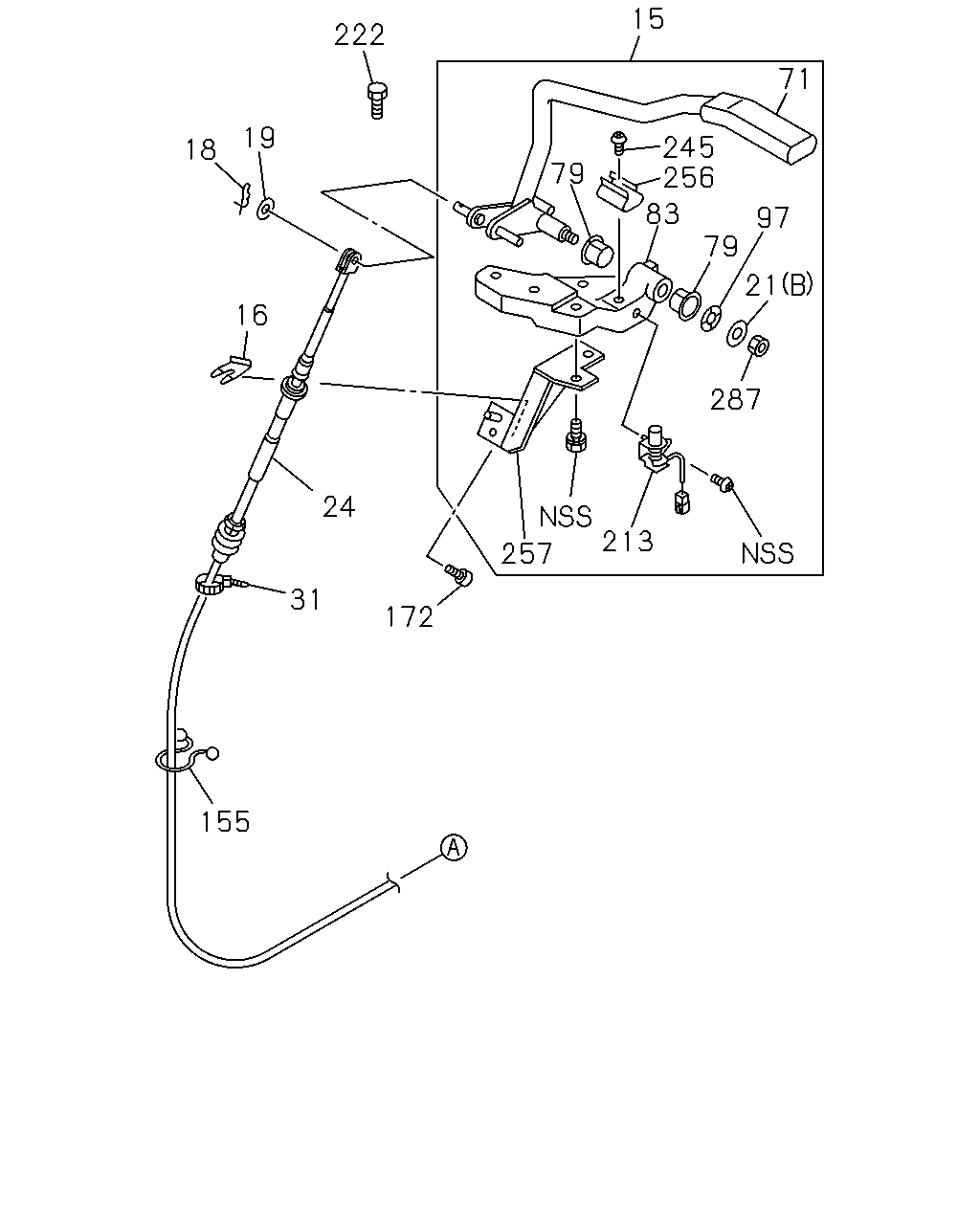

çizim 114612
15 222 71 19 245 256 18 79 83 97 79 21 16 287 24 213 257 31 172 155
BalonParca AdiParca NoAdetTipApplied Date A B
15 LEVER ASM; PTO CONT
PTO TRANSMISSION SIDE(V66) 		8-97105-244-1 01 1 9704-0209 ●
15 LEVER ASM; PTO CONT
PTO TRANSMISSION SIDE(V66) 		8-97105-244-1 01 1 0210-0307 ● ●
15 LEVER ASM; PTO CONT
PTO TRANSMISSION SIDE(V66) 		8-97177-805-3 01 1 0308- ● ●
16 CLIP; CABLE,PTO
PTO TRANSMISSION SIDE(V66) 		8-94152-900-0 01 1 9704-0209 ●
16 CLIP; CABLE,PTO
PTO TRANSMISSION SIDE(V66) 		8-94152-900-0 01 1 0210- ● ●
18 PIN; SNAP,PTO CABLE
PTO TRANSMISSION SIDE(V66) L=27.7 		8-94111-137-0 01 1 9704-0209 ●
18 PIN; SNAP,PTO CABLE
PTO TRANSMISSION SIDE(V66) L=27.7 		8-94111-137-0 01 1 0210- ● ●
19 WASHER; PL,PTO CABLE
PTO TRANSMISSION SIDE(V66) ID=8.4 		9-09160-508-0 01 1 9704-0209 ●
19 WASHER; PL,PTO CABLE
PTO TRANSMISSION SIDE(V66) ID=8.4 		9-09160-508-0 01 1 0210-0605 ● ●
19 WASHER; PL,PTO CABLE
PTO TRANSMISSION SIDE(V66) ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ● ●
21 WASHER; PL,CONT LEVER
PTO TRANSMISSION SIDE(V66) (A) ID=8.4 		9-09160-508-0 01 1 9704-0209 ●
21 WASHER; PL,CONT LEVER
PTO TRANSMISSION SIDE(V66) (A) ID=8.4 		9-09160-508-0 01 1 0210-0605 ● ●
21 WASHER; PL,CONT LEVER
PTO TRANSMISSION SIDE(V66) (A) ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ● ●
21 WASHER; PL,CONT LEVER
PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22 		9-09160-708-0 01 1 9704-0209 ●
21 WASHER; PL,CONT LEVER
PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22 		9-09160-708-0 01 1 0210-0605 ● ●
21 WASHER; PL,CONT LEVER
PTO TRANSMISSION SIDE(V66) (B) ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ● ●
24 CABLE; PTO CONT
PTO TRANSMISSION SIDE(V66) L=2690 		8-97142-482-0 01 1 9704-0209 ●
24 CABLE; PTO CONT
PTO TRANSMISSION SIDE(V66) L=2690 		8-97142-482-0 01 1 0210-0307 ● ●
24 CABLE; PTO CONT
4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690 		8-97142-482-0 01 1 0308-1005 ● ●
24 CABLE; PTO CONT
PTO TRANSMISSION SIDE(V66) L=2690 		8-97142-482-0 01 1 1006- ● ●
31 CLIP; BAND,CABLE
PTO TRANSMISSION SIDE(V66) L=140 		5-09707-031-1 01 1 9704-0209 ●
31 CLIP; BAND,CABLE
PTO TRANSMISSION SIDE(V66) L=140 		5-09707-031-1 01 1 0210- ● ●
71 LEVER; PTO CONT
PTO TRANSMISSION SIDE(V66) 		8-97105-245-0 01 1 9704-0209 ●
71 LEVER; PTO CONT
PTO TRANSMISSION SIDE(V66) 		8-97105-245-0 01 1 0210-0307 ● ●
71 LEVER; PTO CONT
PTO TRANSMISSION SIDE(V66) 		8-97177-806-1 01 1 0308- ● ●
79 BUSHING; CONT LEVER
PTO TRANSMISSION SIDE(V66) ID=14 OD=16 		8-94252-671-0 02 1 9704-0209 ●
79 BUSHING; CONT LEVER
PTO TRANSMISSION SIDE(V66) ID=14 OD=16 		8-94252-671-0 02 1 0210-0307 ● ●
79 BUSHING; CONT LEVER
PTO TRANSMISSION SIDE(V66) 		8-94238-596-0 02 1 0308- ● ●
83 BRACKET; CONT LEVER
PTO TRANSMISSION SIDE(V66) 		8-97117-352-0 01 1 9704-0209 ●
83 BRACKET; CONT LEVER
PTO TRANSMISSION SIDE(V66) 		8-97117-352-0 01 1 0210- ● ●
97 WASHER; LK
PTO TRANSMISSION SIDE(V66) WAVE WASHER ID=15 OD=25 		8-11053-111-0 01 1 9704-0209 ●
97 WASHER; LK
PTO TRANSMISSION SIDE(V66) WAVE WASHER ID=15 OD=25 		8-11053-111-0 01 1 0210- ● ●
155 CLIP; CABLE
PTO TRANSMISSION SIDE(V66) ID=15 		1-09709-003-0 01 1 9704-0209 ●
155 CLIP; CABLE
PTO TRANSMISSION SIDE(V66) ID=15 		1-09709-003-0 01 1 0210- ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X16 FLANGE 		0-28080-816-0 01 1 9704-0209 ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X16 FLANGE 		0-28080-816-0 01 1 0210-0512 ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X25 FLANGE 		0-28680-825-0 02 1 9704-0209 ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X25 FLANGE 		0-28680-825-0 02 1 0210-0512 ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9704-0209 ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X16 W/LK WASHER 		0-50040-816-0 02 1 0210-0512 ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X16 W/LK WASHER 		0-50540-816-0 02 1 0601- ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M6X12 W/LK&PL WASHER 		9-03920-612-0 01 1 9704-0209 ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M6X12 W/LK&PL WASHER 		9-03920-612-0 01 1 0210-0604 ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M6X12 W/LK&PL WASHER 		0-36230-612-0 01 1 0605- ● ●
213 SWITCH; PTO CONT
PTO TRANSMISSION SIDE(V66) 		8-97041-412-1 01 1 9704-0209 ●
213 SWITCH; PTO CONT
PTO TRANSMISSION SIDE(V66) 		8-97041-412-1 01 1 0210-0308 ● ●
213 SWITCH; PTO CONT
PTO TRANSMISSION SIDE(V66) 		8-97370-568-0 01 1 0309- ● ●
222 BOLT; LEVER
PTO TRANSMISSION SIDE(V66) M8X14 FLANGE 		0-28080-814-0 04 1 9704-0209 ●
222 BOLT; LEVER
PTO TRANSMISSION SIDE(V66) M8X14 FLANGE 		0-28080-814-0 04 1 0210- ● ●
245 SCREW; COVER,CONT LEVER BRKT
PTO TRANSMISSION SIDE(V66) M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 9704-0209 ●
245 SCREW; COVER,CONT LEVER BRKT
PTO TRANSMISSION SIDE(V66) M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 0210-0604 ● ●
245 SCREW; COVER,CONT LEVER BRKT
PTO TRANSMISSION SIDE(V66) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0605- ● ●
256 PLATE; LOCK
PTO TRANSMISSION SIDE(V66) 		8-97117-351-0 01 1 9704-0209 ●
256 PLATE; LOCK
PTO TRANSMISSION SIDE(V66) 		8-97117-351-0 01 1 0210- ● ●
257 REINFORCEMENT; PTO
PTO TRANSMISSION SIDE(V66) 		8-97088-406-3 01 1 9704-0209 ●
257 REINFORCEMENT; PTO
PTO TRANSMISSION SIDE(V66) 		8-97088-406-3 01 1 0210- ● ●
287 NUT; SWITCH,CONT LEVER
PTO TRANSMISSION SIDE(V66) M8 W/LK WASHER 		8-94279-050-0 01 1 9704-0209 ●
287 NUT; SWITCH,CONT LEVER
PTO TRANSMISSION SIDE(V66) M8 W/LK WASHER 		8-94279-050-0 01 1 0210- ● ●
çizim 190612
172 195 195 173 172 195 172 195 195
BalonParca AdiParca NoAdetTipApplied Date A B
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X16 FLANGE 		0-28080-816-0 01 1 9704-0209 ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X16 FLANGE 		0-28080-816-0 01 1 0210-0512 ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X25 FLANGE 		0-28680-825-0 02 1 9704-0209 ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X25 FLANGE 		0-28680-825-0 02 1 0210-0512 ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9704-0209 ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X16 W/LK WASHER 		0-50040-816-0 02 1 0210-0512 ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M8X16 W/LK WASHER 		0-50540-816-0 02 1 0601- ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M6X12 W/LK&PL WASHER 		9-03920-612-0 01 1 9704-0209 ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M6X12 W/LK&PL WASHER 		9-03920-612-0 01 1 0210-0604 ● ●
172 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) M6X12 W/LK&PL WASHER 		0-36230-612-0 01 1 0605- ● ●
173 NUT; BRKT
PTO TRANSMISSION SIDE(V66) M8 FLANGE 		0-91150-108-0 01 1 9704-0209 ●
173 NUT; BRKT
PTO TRANSMISSION SIDE(V66) M8 FLANGE 		0-91150-108-0 01 1 0210-0602 ● ●
173 NUT; BRKT
PTO TRANSMISSION SIDE(V66) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
195 BRACKET; CONT CABLE
PTO TRANSMISSION SIDE(V66) (A) 		8-97076-429-6 01 1 9704-0209 ●
195 BRACKET; CONT CABLE
PTO TRANSMISSION SIDE(V66) (A) 		8-97076-429-6 01 1 0210- ● ●
195 BRACKET; CONT CABLE
PTO TRANSMISSION SIDE(V66) (D) 		8-97079-557-3 01 1 9704-0209 ●
195 BRACKET; CONT CABLE
PTO TRANSMISSION SIDE(V66) (D) 		8-97079-557-3 01 1 0210- ● ●
195 BRACKET; CONT CABLE
PTO TRANSMISSION SIDE(V66) (E) 		8-97079-558-3 01 1 9704-0209 ●
195 BRACKET; CONT CABLE
PTO TRANSMISSION SIDE(V66) (E) 		8-97079-558-3 01 1 0210- ● ●
195 BRACKET; CONT CABLE
PTO TRANSMISSION SIDE(V66) (B) 		8-97085-695-3 01 1 9704-0209 ●
195 BRACKET; CONT CABLE
PTO TRANSMISSION SIDE(V66) (B) 		8-97085-695-3 01 1 0210- ● ●
195 BRACKET; CONT CABLE
PTO TRANSMISSION SIDE(V66) (C) 		8-97088-407-1 01 1 9704-0209 ●
195 BRACKET; CONT CABLE
PTO TRANSMISSION SIDE(V66) (C) 		8-97088-407-1 01 1 0210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
