Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#72552) — 213 parça

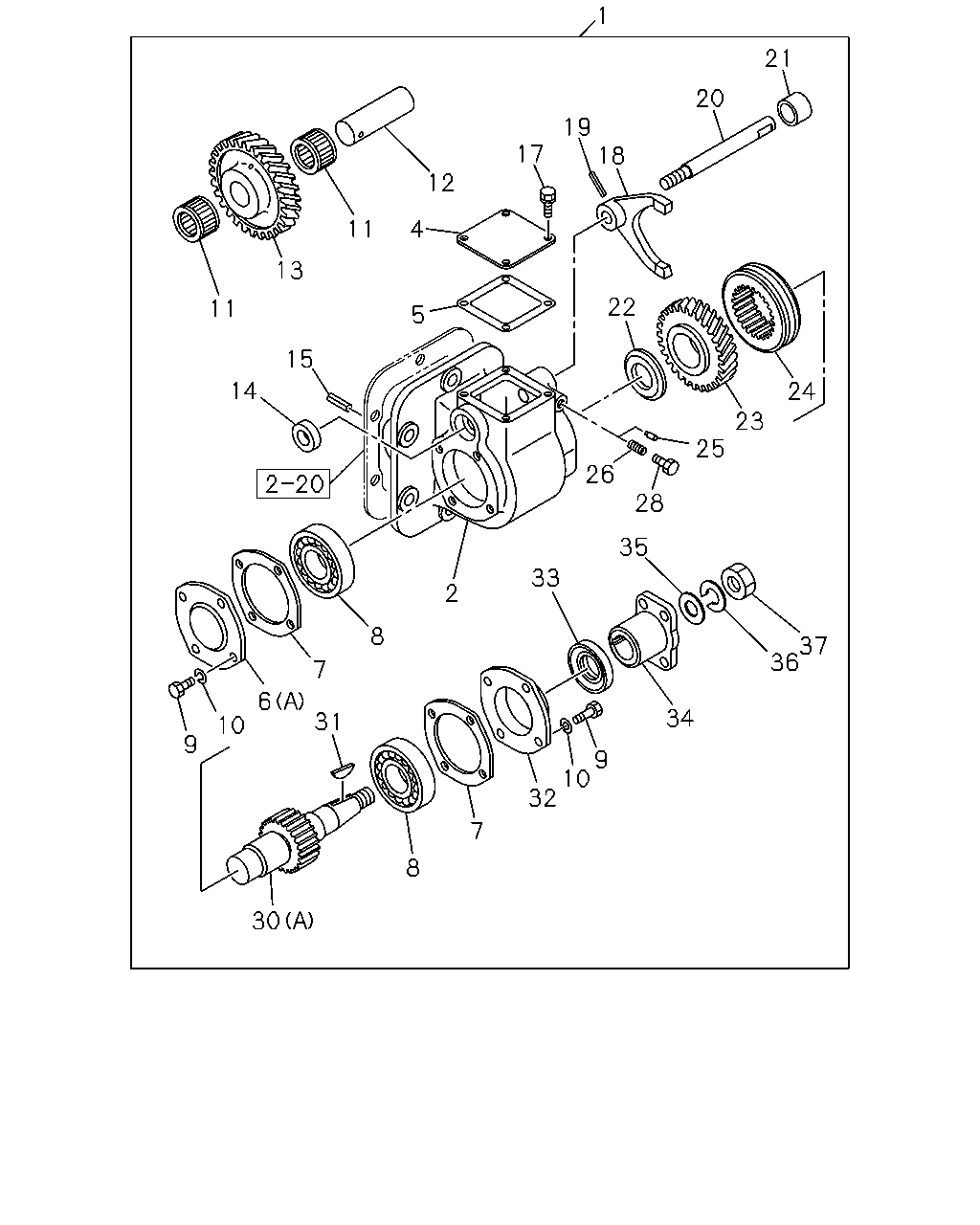

30 8 32 7 31 6 10 9 7 2 8 33 10 34 9 36 35 7 28 26 25 23 24 22 17 19 1 20 18 21 12 4 11 13 5 15 14 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H	8-94343-025-3	01	1	9704-0209	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H	8-94343-025-3	01	1	0210-0506	●	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=B	8-97313-682-4	01	1	0507-1210	●	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=B	8-98223-525-0	01	1	1211-1305	●	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=B	8-98233-782-1	01	1	1306-	●	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	01	1	9704-0209	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	01	1	0210-0506	●	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97319-357-1	01	1	0507-1409	●	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98282-380-0	01	1	1410-	●	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38131-603-1	01	1	9704-0003	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-718-0	01	1	0004-0209	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-718-1	01	1	0210-0611	●	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-613-0	01	1	0612-	●	●
5	GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38132-602-1	01	1	9704-0003	●
5	GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97077-326-0	01	1	0004-0109	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	9-38151-604-0	01	1	9704-0209	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	9-38151-604-0	01	1	0210-0311	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97333-347-0	01	1	0312-0611	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-98046-612-0	01	1	0612-1305	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98233-778-0	01	1	1306-	●	●
7	GASKET; OUTPUT SHAFT COVER,SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38152-604-1	02	1	9704-0003	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	9704-0209	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0210-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28050-816-0	08	1	1211-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	08	1	9704-0209	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	08	1	0210-0307	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	08	1	0308-0506	●	●
10	WASHER; OUTPUT SHAFT COVER,SIDE PTO PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	04	1	9704-0003	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) NSK	9-00096-646-0	02	1	9704-0209	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) NSK	9-00096-646-0	02	1	0210-	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	9704-0209	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0210-	●	●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=34	9-38241-614-1	01	1	9704-0209	●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=34	9-38241-614-1	01	1	0210-	●	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	9704-0209	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	0210-0510	●	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0511-	●	●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	9704-0209	●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0210-	●	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28050-816-0	04	1	1211-	●	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X16 W/LK WASHER	0-50040-816-0	04	1	9704-0003	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	04	1	0004-0209	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	04	1	0210-0506	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	9704-0209	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	0210-0506	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0507-0510	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	0511-0611	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0612-	●	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25 OD=4	9-09678-515-0	01	1	9704-0003	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25 OD=5	8-94135-771-0	01	1	0004-0209	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25 OD=5	8-94135-771-0	01	1	0210-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94156-954-1	01	1	9704-0003	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-714-0	01	1	0004-0209	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-714-0	01	1	0210-0611	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-622-0	01	1	0612-	●	●
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-33545-602-0	01	1	9704-0209	●
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-33545-602-0	01	1	0210-0611	●	●
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-617-0	01	1	0612-	●	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	9704-0209	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0210-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-1	01	1	9704-0209	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-1	01	1	0210-0307	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	8-98120-612-0	01	1	0308-0506	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-1	01	1	0507-0805	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	8-98120-612-0	01	1	0806-	●	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38244-602-2	01	1	9704-0109	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-0	01	1	0110-0209	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-0	01	1	0210-0506	●	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0507-	●	●
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	9704-0209	●
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0210-	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	9704-0209	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0210-	●	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97318-428-0	01	1	0212-0611	●	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8	8-98038-424-0	01	1	0612-	●	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8X12	0-20800-812-0	01	1	9704-0003	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8X10 FLANGE	0-28080-810-0	01	1	0004-0209	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8X10 FLANGE	0-28080-810-0	01	1	0210-0211	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	9-38211-607-1	01	1	9704-0003	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-97118-183-0	01	1	0004-0209	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-97118-183-1	01	1	0210-1210	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98223-518-0	01	1	1211-1305	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98233-777-0	01	1	1306-	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-08055-628-0	01	1	9704-0003	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38161-608-0	01	1	9704-0003	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38152-024-0	01	1	0004-0209	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38152-024-0	01	1	0210-0611	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-610-0	01	1	0612-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09924-533-1	01	1	9704-0003	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0004-0209	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0210-	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-33239-659-0	01	1	9704-0003	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-184-0	01	1	0004-0209	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-184-0	01	1	0210-0710	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0711-1210	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	9-09160-514-0	01	1	9704-0209	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	9-09160-514-0	01	1	0210-0611	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	0-91610-514-0	01	1	0612-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2	9-09150-514-0	01	1	9704-0209	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2	9-09150-514-0	01	1	0210-0611	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2	0-91510-814-0	01	1	0612-	●	●

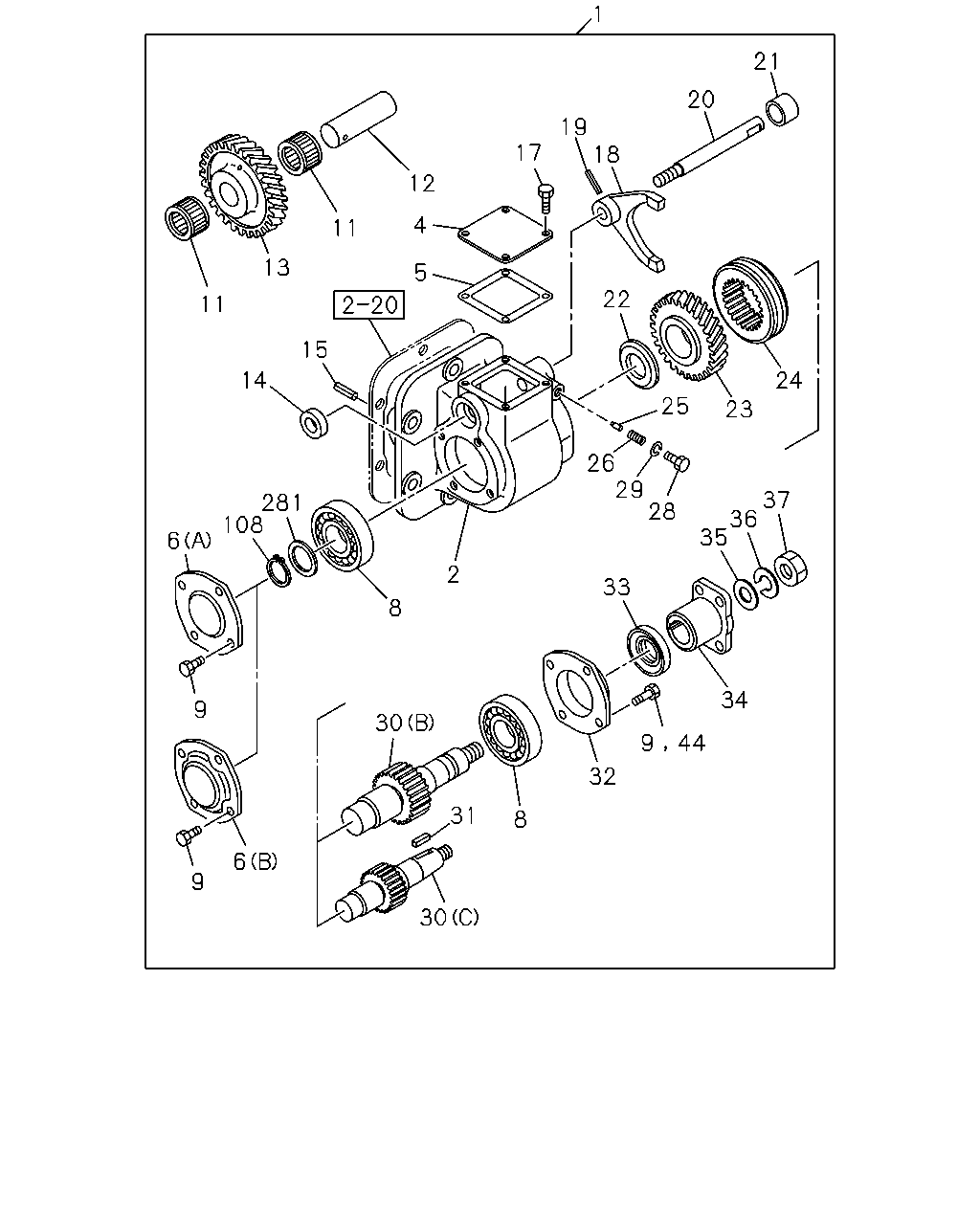

1 21 20 19 17 12 18 4 11 13 11 5 15 14 22 24 23 25 26 28 29 37 36 35 33 34 44 9 32 2 8 281 108 6 30 9 9 31 6 8 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H	8-94343-025-3	01	1	9704-0209	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H	8-94343-025-3	01	1	0210-0506	●	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=B	8-97313-682-4	01	1	0507-1210	●	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=B	8-98223-525-0	01	1	1211-1305	●	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=B	8-98233-782-1	01	1	1306-	●	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	01	1	9704-0209	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	01	1	0210-0506	●	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97319-357-1	01	1	0507-1409	●	●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98282-380-0	01	1	1410-	●	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38131-603-1	01	1	9704-0003	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-718-0	01	1	0004-0209	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-718-1	01	1	0210-0611	●	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-613-0	01	1	0612-	●	●
5	GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38132-602-1	01	1	9704-0003	●
5	GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97077-326-0	01	1	0004-0109	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	9-38151-604-0	01	1	9704-0209	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	9-38151-604-0	01	1	0210-0311	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97333-347-0	01	1	0312-0611	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-98046-612-0	01	1	0612-1305	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98233-778-0	01	1	1306-	●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	9704-0209	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0210-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28050-816-0	08	1	1211-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	08	1	9704-0209	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	08	1	0210-0307	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	08	1	0308-0506	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) NSK	9-00096-646-0	02	1	9704-0209	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) NSK	9-00096-646-0	02	1	0210-	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	9704-0209	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0210-	●	●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=34	9-38241-614-1	01	1	9704-0209	●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=34	9-38241-614-1	01	1	0210-	●	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	9704-0209	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	0210-0510	●	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0511-	●	●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	9704-0209	●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0210-	●	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28050-816-0	04	1	1211-	●	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X16 W/LK WASHER	0-50040-816-0	04	1	9704-0003	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	04	1	0004-0209	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	04	1	0210-0506	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	9704-0209	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	0210-0506	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0507-0510	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	0511-0611	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0612-	●	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25 OD=4	9-09678-515-0	01	1	9704-0003	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25 OD=5	8-94135-771-0	01	1	0004-0209	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25 OD=5	8-94135-771-0	01	1	0210-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94156-954-1	01	1	9704-0003	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-714-0	01	1	0004-0209	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-714-0	01	1	0210-0611	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-622-0	01	1	0612-	●	●
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-33545-602-0	01	1	9704-0209	●
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-33545-602-0	01	1	0210-0611	●	●
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-617-0	01	1	0612-	●	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	9704-0209	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0210-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-1	01	1	9704-0209	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-1	01	1	0210-0307	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	8-98120-612-0	01	1	0308-0506	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-1	01	1	0507-0805	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	8-98120-612-0	01	1	0806-	●	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38244-602-2	01	1	9704-0109	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-0	01	1	0110-0209	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-0	01	1	0210-0506	●	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0507-	●	●
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	9704-0209	●
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0210-	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	9704-0209	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0210-	●	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97318-428-0	01	1	0212-0611	●	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8	8-98038-424-0	01	1	0612-	●	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8X12	0-20800-812-0	01	1	9704-0003	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8X10 FLANGE	0-28080-810-0	01	1	0004-0209	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8X10 FLANGE	0-28080-810-0	01	1	0210-0211	●	●
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) ID=8.2	9-09150-508-0	01	1	0212-0611	●	●
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-808-0	01	1	0612-	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	9-38211-607-1	01	1	9704-0003	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-97118-183-0	01	1	0004-0209	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-97118-183-1	01	1	0210-1210	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98223-518-0	01	1	1211-1305	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98233-777-0	01	1	1306-	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-08055-628-0	01	1	9704-0003	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38161-608-0	01	1	9704-0003	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38152-024-0	01	1	0004-0209	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38152-024-0	01	1	0210-0611	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-610-0	01	1	0612-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09924-533-1	01	1	9704-0003	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0004-0209	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0210-	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-33239-659-0	01	1	9704-0003	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-184-0	01	1	0004-0209	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-184-0	01	1	0210-0710	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0711-1210	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	9-09160-514-0	01	1	9704-0209	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	9-09160-514-0	01	1	0210-0611	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	0-91610-514-0	01	1	0612-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2	9-09150-514-0	01	1	9704-0209	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2	9-09150-514-0	01	1	0210-0611	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2	0-91510-814-0	01	1	0612-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14	9-99111-414-0	01	1	9704-0209	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14	9-99111-414-0	01	1	0210-0611	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14	0-91111-514-0	01	1	0612-	●	●
44	BOLT; COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28080-816-0	12	1	0507-0611	●	●
44	BOLT; COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X16 FLANGE	0-28050-816-0	12	1	0612-1210	●	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=23.2	9-09180-025-0	01	1	1306-	●	●
281	SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	01	1	1306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
