◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50784 - NKR(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#72550) — 208 parça

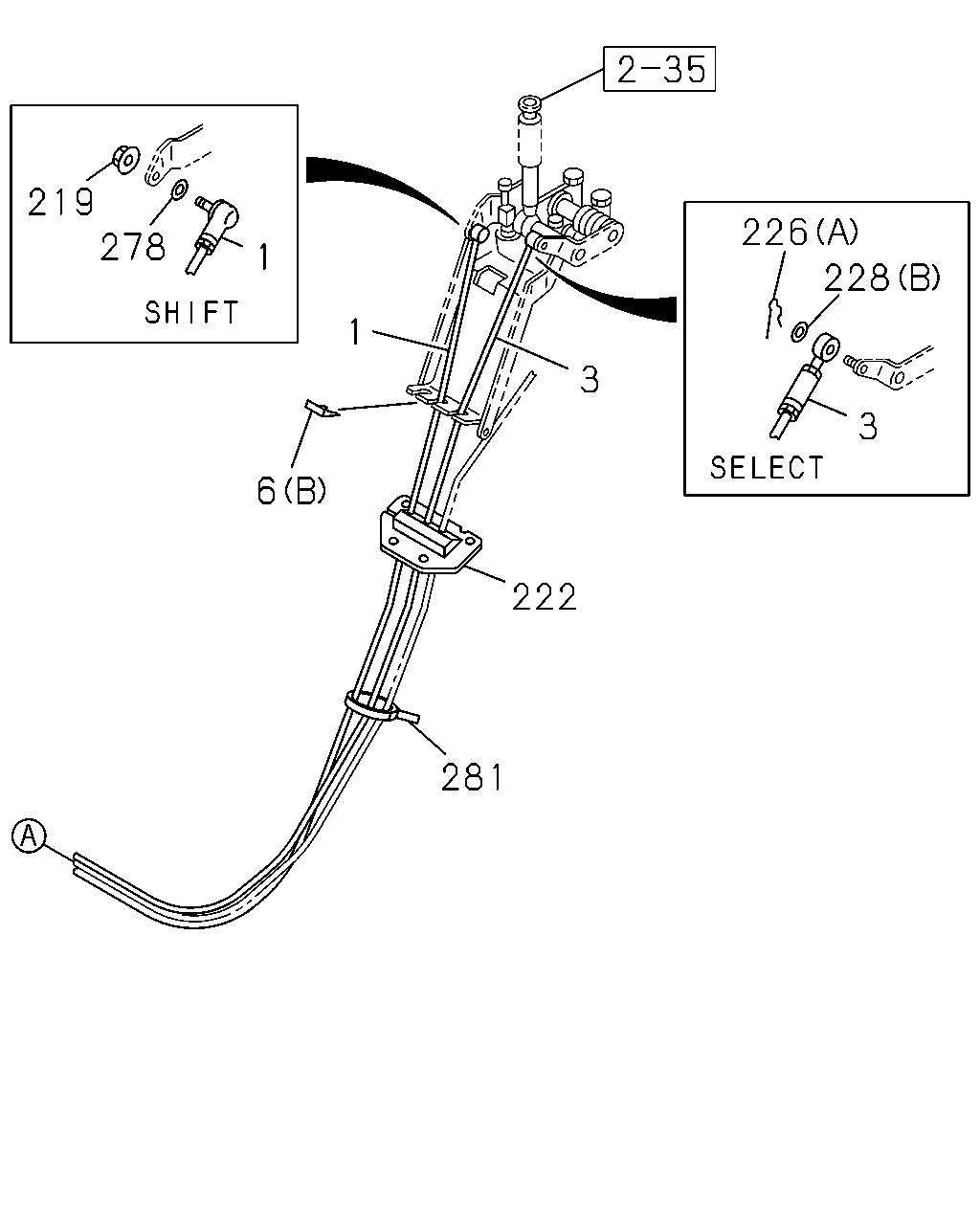

çizim 113949
219 278 226 228 1 1 3 3 6 222 281
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
L=2643 		8-97176-466-0 01 1 9704-0209 ●
1 CABLE; SHIFT,TRANS CONT
L=2643 		8-97176-466-1 01 1 0210-0911 ● ●
1 CABLE; SHIFT,TRANS CONT
L=2643 		8-98146-810-0 01 1 0912- ● ●
3 CABLE; SELECT,TRANS CONT
L=2810 		8-97176-474-0 01 1 9704-0209 ●
3 CABLE; SELECT,TRANS CONT
L=2810 		8-97176-474-0 01 1 0210- ● ●
6 CLIP; CABLE
POWER STEERING<N40> (H) 		8-98023-697-0 01 1 1212- ● ●
6 CLIP; CABLE
(A) ID=19.2 		8-94365-914-2 02 1 9704-9808 ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 9809-0209 ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 0210- ● ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9704-0209 ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0210- ● ●
6 CLIP; CABLE
(D) 		8-97036-329-2 01 1 9704-0209 ●
6 CLIP; CABLE
(D) 		8-97036-329-2 01 1 0210- ● ●
6 CLIP; CABLE
(E) 		8-97036-332-1 01 1 9704-0209 ●
6 CLIP; CABLE
(E) 		8-97036-332-1 01 1 0210-1211 ● ●
6 CLIP; CABLE
EXC. POWER STEERING<N40> (E) 		8-97036-332-1 01 1 1212- ● ●
6 CLIP; CABLE
(F) 		8-97147-985-0 01 1 9704-0209 ●
6 CLIP; CABLE
(F) 		8-97147-985-0 01 1 0210- ● ●
6 CLIP; CABLE
POWER STEERING<N40> (G) 		8-97036-334-2 01 1 9704-0209 ●
6 CLIP; CABLE
POWER STEERING<N40> (G) 		8-97036-334-2 01 1 0210- ● ●
6 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 9704-0209 ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9704-0209 ●
6 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 0210- ● ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 0210- ● ●
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 		8-94363-045-0 01 1 9704-0209 ●
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 		8-94363-045-0 01 1 0210- ● ●
222 GROMMET; CABLE 8-97061-403-2 01 1 9704-0209 ●
222 GROMMET; CABLE 8-97061-403-2 01 1 0210- ● ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 9704-0209 ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 0210- ● ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9704-0209 ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0210- ● ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9704-9707 ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708-0209 ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0210- ● ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 9704-0209 ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 0210-0605 ● ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606- ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9704-0209 ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0210-0604 ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0605- ● ●
281 CLIP; BAND
SHORT(NK***C) 4JB1-TC ENG(RDT) L=140 		5-09707-031-1 01 1 1112- ● ●

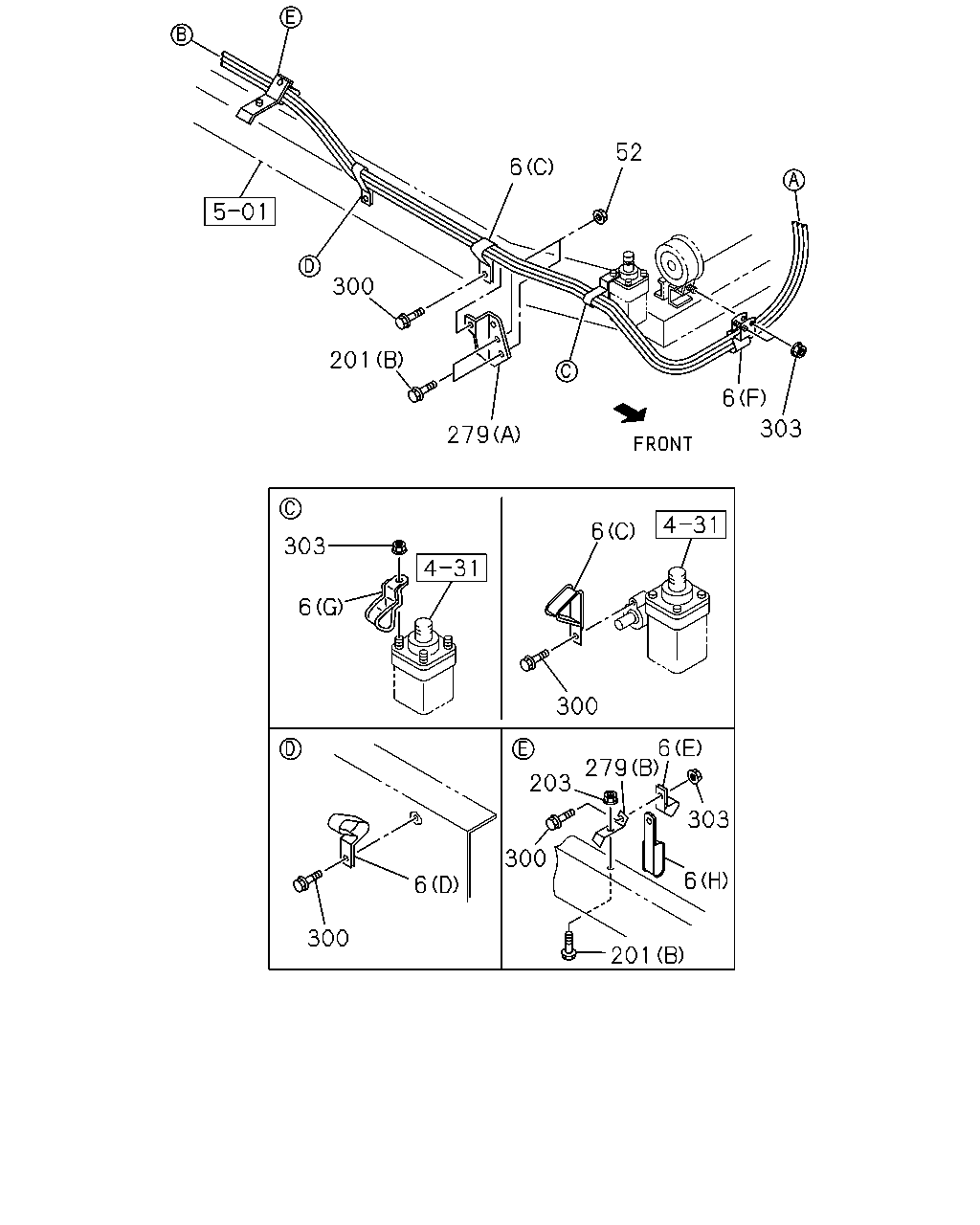

çizim 114141
303 52 6 300 201 279 303 6 300 6 300 203 279 6 300 303 6 201 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 CLIP; CABLE
POWER STEERING<N40> (H) 		8-98023-697-0 01 1 1212- ● ●
6 CLIP; CABLE
(A) ID=19.2 		8-94365-914-2 02 1 9704-9808 ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 9809-0209 ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 0210- ● ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9704-0209 ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0210- ● ●
6 CLIP; CABLE
(D) 		8-97036-329-2 01 1 9704-0209 ●
6 CLIP; CABLE
(D) 		8-97036-329-2 01 1 0210- ● ●
6 CLIP; CABLE
(E) 		8-97036-332-1 01 1 9704-0209 ●
6 CLIP; CABLE
(E) 		8-97036-332-1 01 1 0210-1211 ● ●
6 CLIP; CABLE
EXC. POWER STEERING<N40> (E) 		8-97036-332-1 01 1 1212- ● ●
6 CLIP; CABLE
(F) 		8-97147-985-0 01 1 9704-0209 ●
6 CLIP; CABLE
(F) 		8-97147-985-0 01 1 0210- ● ●
6 CLIP; CABLE
POWER STEERING<N40> (G) 		8-97036-334-2 01 1 9704-0209 ●
6 CLIP; CABLE
POWER STEERING<N40> (G) 		8-97036-334-2 01 1 0210- ● ●
6 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 9704-0209 ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9704-0209 ●
6 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 0210- ● ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 0210- ● ●
52 NUT; BRKT
EXC. POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 02 1 9704-0209 ●
52 NUT; BRKT
EXC. POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 02 1 0210-0602 ● ●
52 NUT; BRKT
EXC. POWER STEERING<N40> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9704- ●
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9704-0209 ●
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28680-825-0 01 1 0210-0512 ● ●
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9704-0209 ●
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0210-0512 ● ●
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
203 NUT; BRKT FIX
EXC. POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 9704-0209 ●
203 NUT; BRKT FIX
EXC. POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 0210-0602 ● ●
203 NUT; BRKT FIX
EXC. POWER STEERING<N40> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
279 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (A) 		8-97047-898-0 01 1 9704-0209 ●
279 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (A) 		8-97047-898-0 01 1 0210- ● ●
279 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (B) 		8-97103-234-0 01 1 9704-0209 ●
279 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (B) 		8-97103-234-0 01 1 0210- ● ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9704-0209 ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0210-0512 ● ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 9704-0209 ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 0210-0512 ● ●
300 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
300 BOLT; CLIP
EXC. POWER STEERING<N40> M8X16 FLANGE 		0-28080-816-0 01 1 9704-0209 ●
300 BOLT; CLIP
EXC. POWER STEERING<N40> M8X16 FLANGE 		0-28080-816-0 01 1 0210-0512 ● ●
300 BOLT; CLIP
EXC. POWER STEERING<N40> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9704-0209 ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0210-0602 ● ●
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9704-0209 ●
303 NUT; CLIP
POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 9704-0209 ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0210-0602 ● ●
303 NUT; CLIP
POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 0210-0602 ● ●
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
303 NUT; CLIP
POWER STEERING<N40> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●

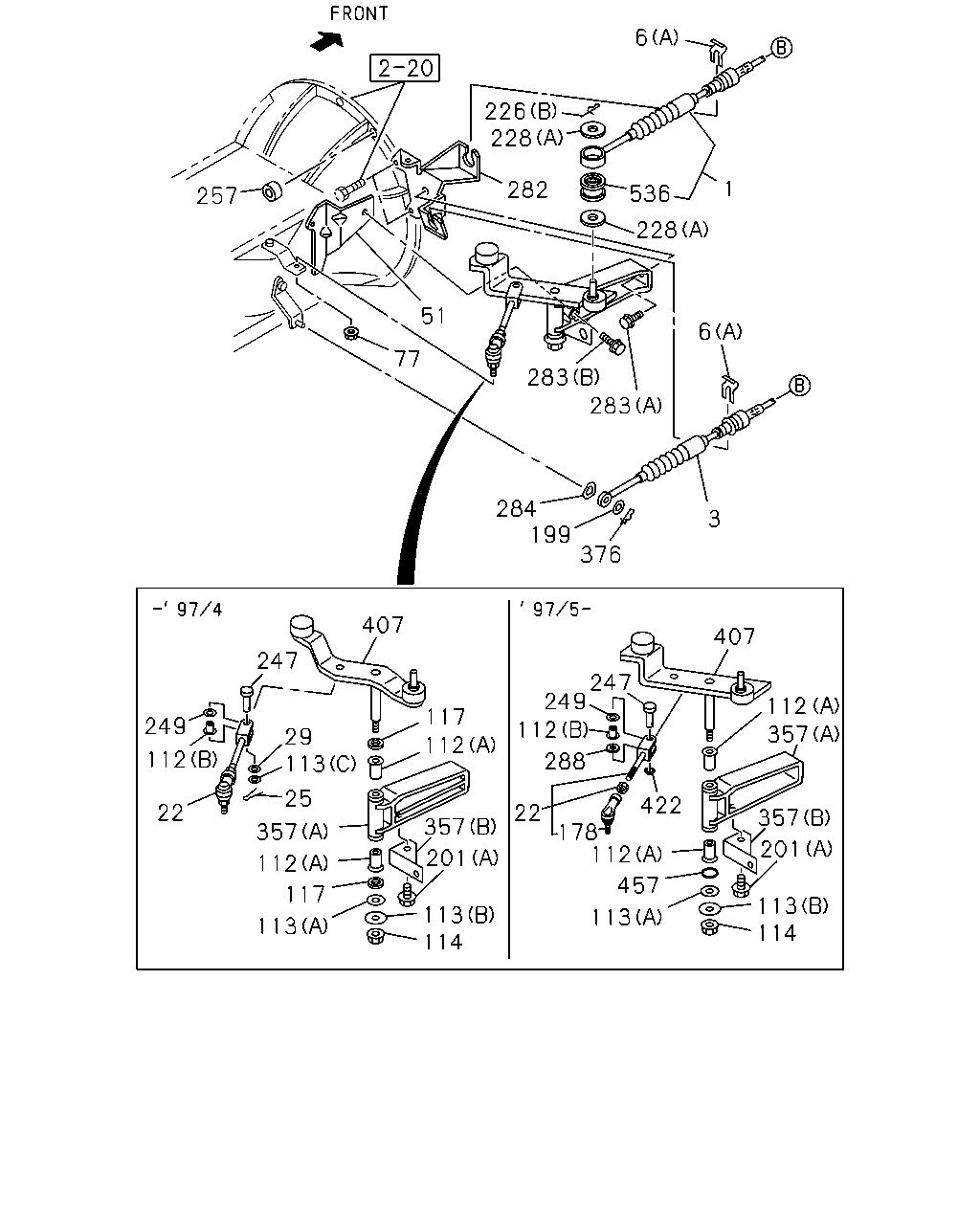

çizim 190611
114 113 112 25 29 113 407 117 112 357 201 113 117 357 22 112 247 249 113 112 457 178 22 112 288 247 249 407 112 357 357 201 113 114 422 3 376 199 284 283 6 283 51 77 228 536 6 1 282 228 226 257
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
L=2643 		8-97176-466-0 01 1 9704-0209 ●
1 CABLE; SHIFT,TRANS CONT
L=2643 		8-97176-466-1 01 1 0210-0911 ● ●
1 CABLE; SHIFT,TRANS CONT
L=2643 		8-98146-810-0 01 1 0912- ● ●
3 CABLE; SELECT,TRANS CONT
L=2810 		8-97176-474-0 01 1 9704-0209 ●
3 CABLE; SELECT,TRANS CONT
L=2810 		8-97176-474-0 01 1 0210- ● ●
6 CLIP; CABLE
POWER STEERING<N40> (H) 		8-98023-697-0 01 1 1212- ● ●
6 CLIP; CABLE
(A) ID=19.2 		8-94365-914-2 02 1 9704-9808 ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 9809-0209 ●
6 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 02 1 0210- ● ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 9704-0209 ●
6 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0210- ● ●
6 CLIP; CABLE
(D) 		8-97036-329-2 01 1 9704-0209 ●
6 CLIP; CABLE
(D) 		8-97036-329-2 01 1 0210- ● ●
6 CLIP; CABLE
(E) 		8-97036-332-1 01 1 9704-0209 ●
6 CLIP; CABLE
(E) 		8-97036-332-1 01 1 0210-1211 ● ●
6 CLIP; CABLE
EXC. POWER STEERING<N40> (E) 		8-97036-332-1 01 1 1212- ● ●
6 CLIP; CABLE
(F) 		8-97147-985-0 01 1 9704-0209 ●
6 CLIP; CABLE
(F) 		8-97147-985-0 01 1 0210- ● ●
6 CLIP; CABLE
POWER STEERING<N40> (G) 		8-97036-334-2 01 1 9704-0209 ●
6 CLIP; CABLE
POWER STEERING<N40> (G) 		8-97036-334-2 01 1 0210- ● ●
6 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 9704-0209 ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9704-0209 ●
6 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 0210- ● ●
6 CLIP; CABLE
(C) 		8-97036-333-1 01 1 0210- ● ●
22 ROD; CONT,SHIFT 8-97085-158-0 01 1 9704-9704 ●
22 ROD; CONT,SHIFT 8-97174-058-0 01 1 9705-0209 ●
22 ROD; CONT,SHIFT 8-97174-058-0 01 1 0210-0307 ● ●
22 ROD; CONT,SHIFT 8-97134-286-1 01 1 0308- ● ●
25 PIN; SNAP,CONT ROD,RELAY LEVER
L=27.7 		8-94210-407-0 01 1 9704-9704 ●
29 WASHER; LK,RELAY LEVER
ID=8.5 T=0.3 		5-09509-001-0 01 1 9704-9704 ●
51 BRACKET; GEAR CONT
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-335-1 01 1 1211- ● ●
51 BRACKET; GEAR CONT 8-97029-286-0 01 1 9704-0209 ●
51 BRACKET; GEAR CONT 8-97029-286-0 01 1 0210-1210 ● ●
51 BRACKET; GEAR CONT
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97029-286-0 01 1 1211- ● ●
77 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 9704-0209 ●
77 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 0210- ● ●
112 BUSHING; RELAY LEVER
(A) ID=14 OD=16 		8-94252-671-0 02 1 9704-9704 ●
112 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 9705-0209 ●
112 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 0210- ● ●
112 BUSHING; RELAY LEVER
(B) 		8-97085-157-0 01 1 9704-9704 ●
112 BUSHING; RELAY LEVER
(B) 		8-97174-060-0 01 1 9705-0209 ●
112 BUSHING; RELAY LEVER
(B) 		8-97174-060-0 01 1 0210-0307 ● ●
112 BUSHING; RELAY LEVER
(B) 		8-97085-157-0 01 1 0308- ● ●
113 WASHER; RELAY LEVER
(A) 		8-97061-437-0 02 1 9704-9704 ●
113 WASHER; RELAY LEVER
(A) ID=10.5 OD=22 		9-09160-610-0 02 1 9705-0209 ●
113 WASHER; RELAY LEVER
(A) ID=10.5 OD=22 		9-09160-610-0 02 1 0210-0307 ● ●
113 WASHER; RELAY LEVER
(A) ID=10.5 OD=22 		9-09160-610-0 01 1 0308-0605 ● ●
113 WASHER; RELAY LEVER
(A) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0606- ● ●
113 WASHER; RELAY LEVER
(B) 		8-97089-693-0 01 1 9704-9704 ●
113 WASHER; RELAY LEVER
(B) ID=15 OD=36 		9-09164-714-0 01 1 9705-0209 ●
113 WASHER; RELAY LEVER
(B) ID=15 OD=36 		9-09164-714-0 01 1 0210-0307 ● ●
113 WASHER; RELAY LEVER
(C) ID=8.4 OD=22 		9-09160-708-0 01 1 9704-9704 ●
114 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 01 1 9704-0209 ●
114 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 01 1 0210-0602 ● ●
114 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
117 SEAL; DUST,RELAY LEVER 8-97061-438-0 02 1 9704-9704 ●
178 JOINT; BALL,LINK ROD
L=45.5 		1-09760-118-1 01 1 0404- ● ●
199 WASHER; PL,SELECT
ID=8.4 		9-09160-508-0 01 1 9704-0209 ●
199 WASHER; PL,SELECT
ID=8.4 		9-09160-508-0 01 1 0210-0605 ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ● ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9704- ●
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9704-0209 ●
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28680-825-0 01 1 0210-0512 ● ●
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9704-0209 ●
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0210-0512 ● ●
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 9704-0209 ●
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 0210- ● ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9704-0209 ●
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0210- ● ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9704-9707 ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708-0209 ●
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0210- ● ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 9704-0209 ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 0210-0605 ● ●
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606- ● ●
247 PIN; CONT ROD TO LEVER 9-09876-059-1 01 1 9704-0209 ●
247 PIN; CONT ROD TO LEVER 9-09876-059-1 01 1 0210-0403 ● ●
247 PIN; CONT ROD TO LEVER 8-97373-728-0 01 1 0404- ● ●
249 WASHER; RUBBER,CONT ROD TO LEVER
ID=8.5 T=1.5 		9-09851-889-0 01 1 9704-0209 ●
249 WASHER; RUBBER,CONT ROD TO LEVER
ID=8.5 T=1.5 		9-09851-889-0 01 1 0210- ● ●
257 PIECE; DIST,RELAY LEVER 8-94369-173-0 01 1 9704-0209 ●
257 PIECE; DIST,RELAY LEVER 8-94369-173-0 01 1 0210-1111 ● ●
257 PIECE; DIST,RELAY LEVER
4JB1 ENG(RLF) 		8-94369-173-0 01 1 1112- ● ●
282 BRACKET; TRANS SIDE 8-97034-142-1 01 1 9704-0209 ●
282 BRACKET; TRANS SIDE 8-97034-142-1 01 1 0210- ● ●
283 BOLT; RELAY LEVER
(A) M10X25 W/LK&PL WASHER 		0-50141-025-0 01 1 9704-9704 ●
283 BOLT; RELAY LEVER
(A) M10X25 FLANGE 		0-28681-025-0 01 1 9704-0209 ●
283 BOLT; RELAY LEVER
(A) M10X25 FLANGE 		0-28681-025-0 01 1 0210-0512 ● ●
283 BOLT; RELAY LEVER
(A) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ● ●
283 BOLT; RELAY LEVER
(B) M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9704-9704 ●
283 BOLT; RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 01 1 9704-0209 ●
283 BOLT; RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 01 1 0210-0512 ● ●
283 BOLT; RELAY LEVER
(B) M10X35 FLANGE 		0-28651-035-0 01 1 0601- ● ●
284 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9704-0209 ●
284 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0210- ● ●
288 WASHER; CABLE TO RELAY LEVER 8-97373-819-0 01 1 0404- ● ●
357 BRACKET; RELAY LEVER
(A) 		8-97089-691-0 01 1 9704-9704 ●
357 BRACKET; RELAY LEVER
(A) 		8-97174-056-0 01 1 9705-9706 ●
357 BRACKET; RELAY LEVER
(A) 		8-97182-166-0 01 1 9707-0209 ●
357 BRACKET; RELAY LEVER
(A) 		8-97182-166-0 01 1 0210- ● ●
357 BRACKET; RELAY LEVER
(B) 		8-97089-692-0 01 1 9704- ●
376 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9704-0209 ●
376 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0210- ● ●
407 LEVER; RELAY,SHIFT 8-97089-690-1 01 1 9704-9704 ●
407 LEVER; RELAY,SHIFT 8-97174-055-2 01 1 9705-0209 ●
407 LEVER; RELAY,SHIFT 8-97174-055-2 01 1 0210- ● ●
422 NUT; CONT ROD TO LEVER 8-97373-729-0 01 1 0404- ● ●
457 GASKET
ID=13.8 		9-09561-114-0 02 1 9705-0209 ●
457 GASKET
ID=13.8 		9-09561-114-0 02 1 0210- ● ●
536 DAMPER; CABLE 8-98097-681-0 01 1 0711- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
