Sayfa 2-26 - Isuzu EPC

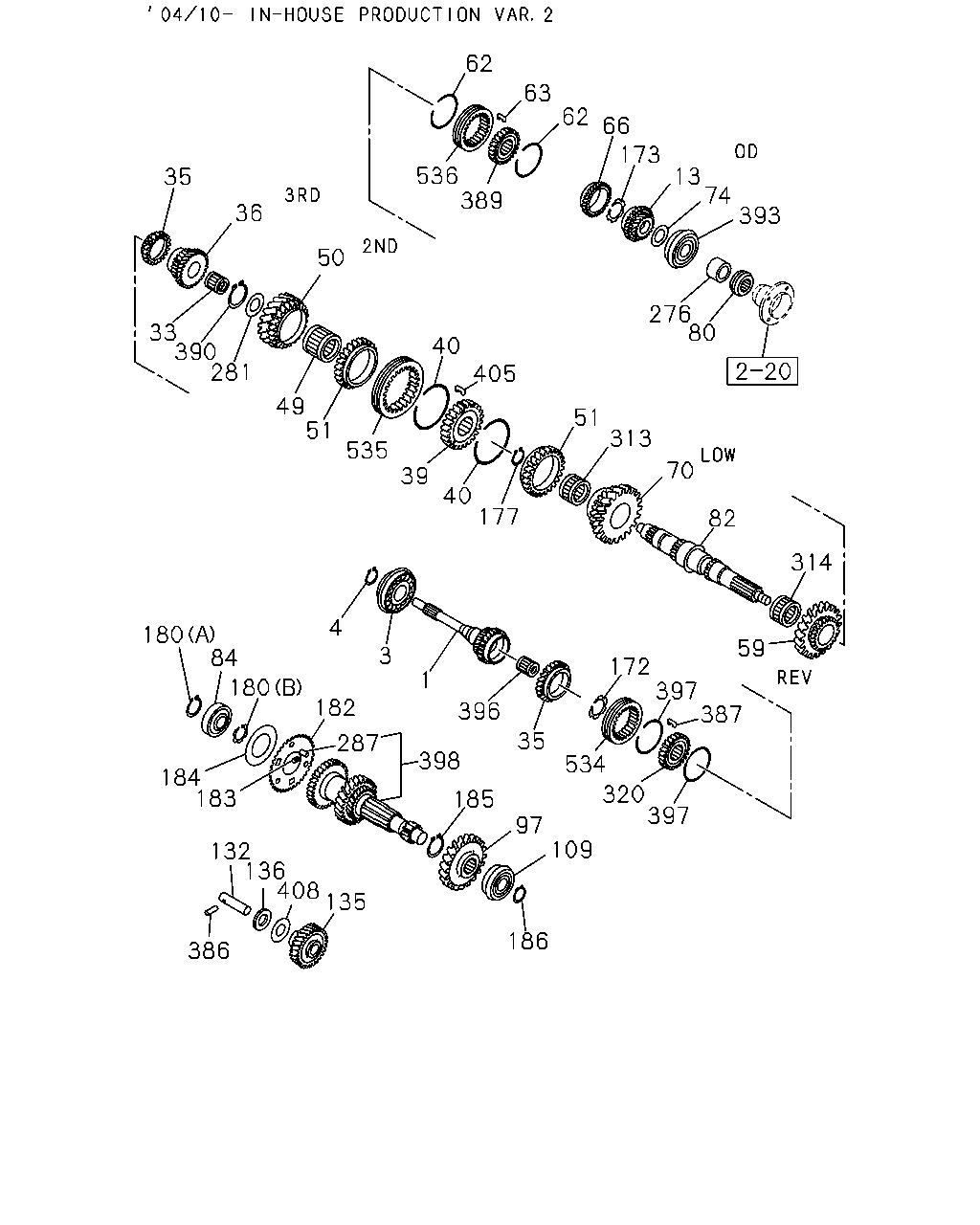

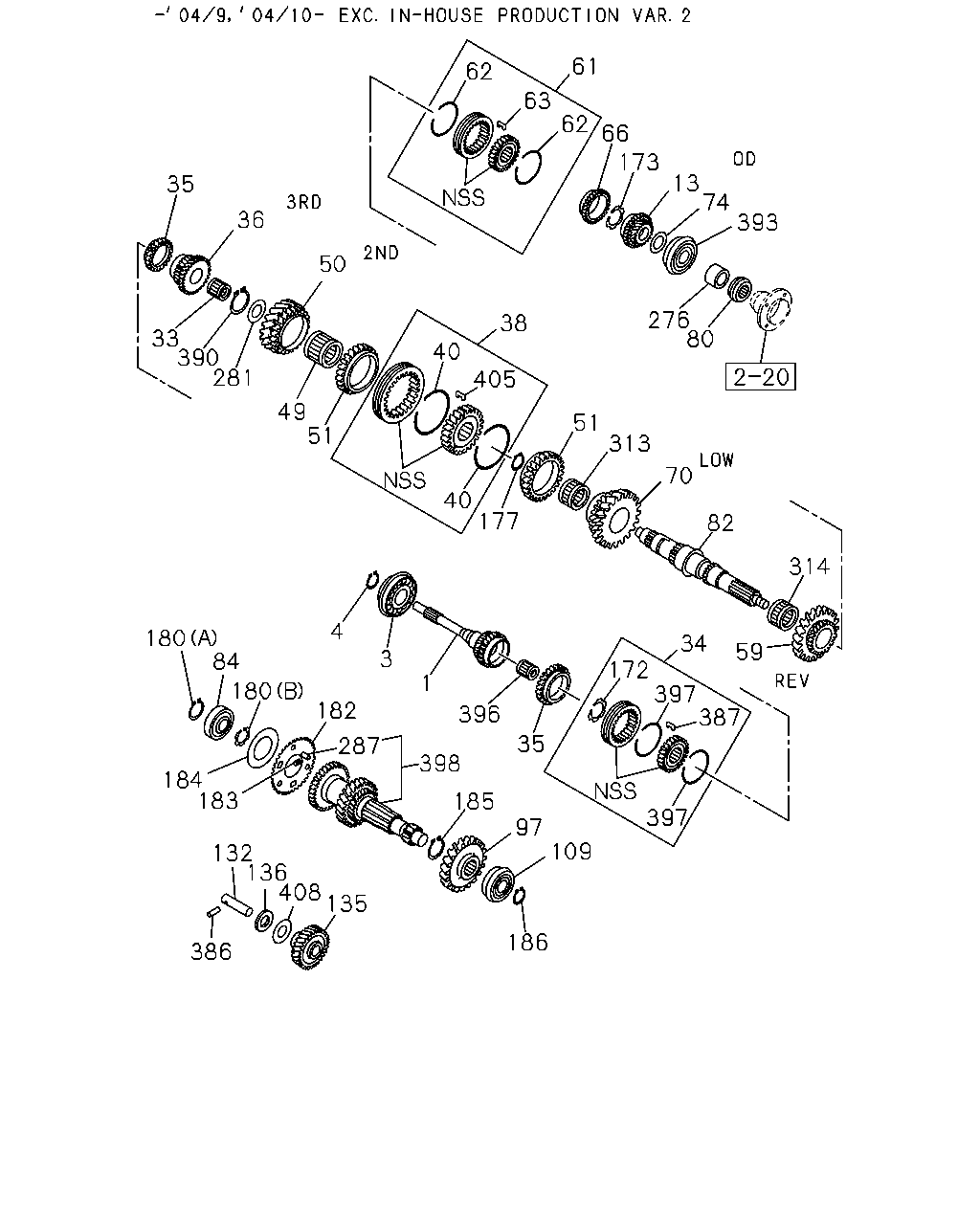

2-26 — MANUAL TRANSMISSION GEAR (#72547) — 522 parça

61 62 63 62 66 173 13 74 393 35 36 50 276 80 38 33 390 281 40 405 49 51 51 313 70 40 177 82 314 4 180 84 34 59 3 172 397 387 1 180 182 396 35 287 398 184 183 397 185 97 109 132 136 408 135 186 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97177-684-0	01	1	0410-1010	●
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-98179-969-1	01	1	1011-1111	●
1	SHAFT; TOP GEAR,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-98179-969-1	01	1	1112-	●
1	SHAFT; TOP GEAR,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-97177-683-0	01	1	0410-1010		●
1	SHAFT; TOP GEAR,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-98179-968-1	01	1	1011-		●
1	SHAFT; TOP GEAR,TRANS Z=28	8-97091-558-1	01	1	9704-0409		●
1	SHAFT; TOP GEAR,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-97091-558-1	01	1	0410-		●
1	SHAFT; TOP GEAR,TRANS Z=30	8-97103-632-0	01	1	0210-0409	●
1	SHAFT; TOP GEAR,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97103-632-0	01	1	0410-1005	●
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97103-632-0	01	1	1006-	●
3	BEARING; TOP GEAR SHAFT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-742-0	01	1	1211-	●	●
3	BEARING; TOP GEAR SHAFT NSK	8-94178-732-1	01	1	9704-0209		●
3	BEARING; TOP GEAR SHAFT NSK	8-94178-732-2	01	1	0210-1210	●	●
3	BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94178-732-2	01	1	1211-	●	●
3	BEARING; TOP GEAR SHAFT JTEKT	8-94462-615-0	01	1	9704-0209		●
3	BEARING; TOP GEAR SHAFT JTEKT	8-94462-615-0	01	1	0210-1210	●	●
3	BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> JTEKT	8-94462-615-0	01	1	1211-	●	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	9704-0209		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	0210-	●	●
13	GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97373-011-0	01	1	0410-1111	●
13	GEAR; 5TH,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97373-011-0	01	1	1112-	●
13	GEAR; 5TH,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=24	8-97373-008-0	01	1	0410-		●
13	GEAR; 5TH,MAINSHAFT Z=24	8-97147-816-0	01	1	9704-9905		●
13	GEAR; 5TH,MAINSHAFT Z=24	8-97206-007-0	01	1	9906-0409		●
13	GEAR; 5TH,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=24	8-97206-007-0	01	1	0410-		●
13	GEAR; 5TH,MAINSHAFT Z=25	8-97206-012-0	01	1	0210-0409	●
13	GEAR; 5TH,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97206-012-0	01	1	0410-1005	●
13	GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97206-012-0	01	1	1006-	●
33	BEARING; NEEDLE,3RD GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-746-0	01	1	1211-	●	●
33	BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	9704-0209		●
33	BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	0210-1210	●	●
33	BEARING; NEEDLE,3RD GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94317-158-0	01	1	1211-	●	●
34	SYNCHRONIZER; 4TH & 3RD	8-97048-745-2	01	1	9704-0209		●
34	SYNCHRONIZER; 4TH & 3RD	8-97048-745-2	01	1	0210-0409	●	●
34	SYNCHRONIZER; 4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97048-745-2	01	1	0410-	●	●
35	RING; BLOCK,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	02	1	1211-	●	●
35	RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	9704-0209		●
35	RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	0210-1210	●	●
35	RING; BLOCK,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	02	1	1211-	●	●
36	GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97372-905-0	01	1	0410-1010	●
36	GEAR; 3RD,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-97174-923-0	01	1	0410-1010		●
36	GEAR; 3RD,MAINSHAFT Z=31	8-94316-760-2	01	1	9704-0409		●
36	GEAR; 3RD,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-94316-760-2	01	1	0410-		●
36	GEAR; 3RD,MAINSHAFT Z=33	8-97324-853-0	01	1	0210-0409	●
36	GEAR; 3RD,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97324-853-0	01	1	0410-1005	●
36	GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97324-853-0	01	1	1006-	●
38	SYNCHRONIZER; LOW & 2ND	8-97048-748-0	01	1	9704-0209		●
38	SYNCHRONIZER; LOW & 2ND	8-97048-748-0	01	1	0210-0409	●	●
38	SYNCHRONIZER; LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97048-748-0	01	1	0410-	●	●
40	SPRING; INSERT,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-960-0	02	1	1211-	●	●
40	SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	9704-0209		●
40	SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	0210-1210	●	●
40	SPRING; INSERT,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-708-0	02	1	1211-	●	●
49	BEARING; NEEDLE,2ND GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-747-0	01	1	1211-	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	5-09811-014-0	01	1	9704-0209		●
49	BEARING; NEEDLE,2ND GEAR NSK	5-09811-014-0	01	1	0210-1210	●	●
49	BEARING; NEEDLE,2ND GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	5-09811-014-0	01	1	1211-	●	●
50	GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97373-143-1	01	1	0410-1111	●
50	GEAR; 2ND,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97373-143-1	01	1	1112-	●
50	GEAR; 2ND,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-97174-955-0	01	1	0410-		●
50	GEAR; 2ND,MAINSHAFT Z=34	8-94316-764-3	01	1	9704-0409		●
50	GEAR; 2ND,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-94316-764-3	01	1	0410-		●
50	GEAR; 2ND,MAINSHAFT Z=36	8-97014-034-2	01	1	0210-0409	●
50	GEAR; 2ND,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97014-034-2	01	1	0410-1005	●
50	GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97014-034-2	01	1	1006-	●
51	RING; BLOCK,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-98190-428-0	02	1	1211-	●	●
51	RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	9704-0209		●
51	RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	0210-1210	●	●
51	RING; BLOCK,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97074-619-3	02	1	1211-	●	●
59	GEAR; REV MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-98190-291-1	01	1	1211-	●	●
59	GEAR; REV MAINSHAFT Z=41	8-97115-777-0	01	1	9704-9905		●
59	GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	9906-0209		●
59	GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	0210-1210	●	●
59	GEAR; REV MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-97206-006-0	01	1	1211-	●	●
61	SYNCHRONIZER; REV & 5TH	8-97048-750-0	01	1	9704-9905		●
61	SYNCHRONIZER; REV & 5TH	8-97206-010-0	01	1	9906-0209		●
61	SYNCHRONIZER; REV & 5TH	8-97206-010-0	01	1	0210-0409	●	●
61	SYNCHRONIZER; REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97206-010-0	01	1	0410-	●	●
62	SPRING; INSERT,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1211-	●	●
62	SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	9704-0209		●
62	SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	0210-1210	●	●
62	SPRING; INSERT,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1211-	●	●
63	INSERT; SYN,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-418-0	03	1	1211-	●	●
63	INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	9704-0209		●
63	INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	0210-1210	●	●
63	INSERT; SYN,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33263-613-0	03	1	1211-	●	●
66	RING; BLOCK,SYN IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	01	1	1211-	●	●
66	RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	9704-0209		●
66	RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	0210-1210	●	●
66	RING; BLOCK,SYN EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	01	1	1211-	●	●
70	GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97174-953-0	01	1	0410-0410	●
70	GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97204-109-0	01	1	0410-0410		●
70	GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97204-109-0	01	1	0411-1010	●	●
70	GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-98180-095-1	01	1	1011-	●	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-94316-768-4	01	1	9704-0409		●
70	GEAR; 1ST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-94316-768-4	01	1	0410-		●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97014-033-3	01	1	0210-0409	●
70	GEAR; 1ST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97014-033-3	01	1	0410-1005	●
70	GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97014-033-3	01	1	1006-	●
74	WASHER; THRUST,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-569-0	01	1	1211-	●	●
74	WASHER; THRUST,REV GEAR	9-33271-607-1	01	1	9704-9905		●
74	WASHER; THRUST,REV GEAR	8-97207-176-0	01	1	9906-0209		●
74	WASHER; THRUST,REV GEAR	8-97207-176-0	01	1	0210-1210	●	●
74	WASHER; THRUST,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-176-0	01	1	1211-	●	●
80	GEAR; SPD DRIVE IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-98190-429-0	01	1	1211-	●	●
80	GEAR; SPD DRIVE Z=4	8-97011-350-0	01	1	9704-9905		●
80	GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	9906-0209		●
80	GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	0210-1210	●	●
80	GEAR; SPD DRIVE EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-97207-146-0	01	1	1211-	●	●
82	SHAFT; MAIN,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97368-837-0	01	1	0410-	●	●
82	SHAFT; MAIN,TRANS Z=27-40-31-24	8-97045-932-1	01	1	9704-9911		●
82	SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	9912-0209		●
82	SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	0210-0409	●	●
82	SHAFT; MAIN,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97207-119-0	01	1	0410-	●	●
84	BEARING; COUNTER SHAFT,FRT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-745-0	01	1	1211-	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-1	01	1	9704-0209		●
84	BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-2	01	1	0210-1210	●	●
84	BEARING; COUNTER SHAFT,FRT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	5-09800-062-2	01	1	1211-	●	●
97	GEAR; 5TH,COUNTER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97169-511-0	01	1	0410-1111	●
97	GEAR; 5TH,COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97169-511-0	01	1	1112-	●
97	GEAR; 5TH,COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=55	8-97372-900-0	01	1	0410-		●
97	GEAR; 5TH,COUNTER Z=55	8-94316-786-1	01	1	9704-0409		●
97	GEAR; 5TH,COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=55	8-94316-786-1	01	1	0410-		●
97	GEAR; 5TH,COUNTER Z=53	8-97077-341-1	01	1	0210-0409	●
97	GEAR; 5TH,COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97077-341-1	01	1	0410-1005	●
97	GEAR; 5TH,COUNTER 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97077-341-1	01	1	1006-	●
109	BEARING; COUNTER SHAFT,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-744-0	01	1	1211-	●	●
109	BEARING; COUNTER SHAFT,RR	8-97095-913-0	01	1	9704-0209		●
109	BEARING; COUNTER SHAFT,RR	8-97095-913-1	01	1	0210-1210	●	●
109	BEARING; COUNTER SHAFT,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-913-1	01	1	1211-	●	●
132	SHAFT; REV IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-378-0	01	1	1211-	●	●
132	SHAFT; REV	9-33351-604-1	01	1	9704-0209		●
132	SHAFT; REV	9-33351-604-1	01	1	0210-1210	●	●
132	SHAFT; REV EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33351-604-1	01	1	1211-	●	●
135	GEAR; REV IDLER IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97169-508-0	01	1	0410-	●	●
135	GEAR; REV IDLER Z=29	8-97081-539-3	01	1	9704-0209		●
135	GEAR; REV IDLER Z=29	8-97081-539-3	01	1	0210-0409	●	●
135	GEAR; REV IDLER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97081-539-3	01	1	0410-	●	●
136	WASHER; THRUST,REV IDLE,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-533-0	01	1	1211-	●	●
136	WASHER; THRUST,REV IDLE,RR	8-97081-579-2	01	1	9704-0209		●
136	WASHER; THRUST,REV IDLE,RR	8-97081-579-2	01	1	0210-1210	●	●
136	WASHER; THRUST,REV IDLE,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97081-579-2	01	1	1211-	●	●
172	RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	9704-0209		●
172	RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	0210-	●	●
172	RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	9704-0209		●
172	RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	0210-	●	●
172	RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	9704-0209		●
172	RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	0210-	●	●
173	RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	9704-0209		●
173	RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	0210-	●	●
173	RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	9704-0209		●
173	RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	0210-	●	●
173	RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	9704-0209		●
173	RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	0210-	●	●
173	RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	9704-0209		●
173	RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	0210-	●	●
177	RING; SNAP,CLU HUB IN-HOUSE PRODUCTION VAR.2<TMW> ID=44.5	8-98189-990-0	01	1	1211-	●	●
177	RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	9704-9905		●
177	RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	9704-9905		●
177	RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	9704-9905		●
177	RING; SNAP,CLU HUB ID=44.5	5-09589-010-0	01	1	9906-0209		●
177	RING; SNAP,CLU HUB ID=44.5	5-09589-010-0	01	1	0210-1210	●	●
177	RING; SNAP,CLU HUB EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=44.5	5-09589-010-0	01	1	1211-	●	●
180	RING; SNAP,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-98189-991-0	01	1	1211-	●	●
180	RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	9704-0209		●
180	RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	0210-1210	●	●
180	RING; SNAP,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-94146-483-0	01	1	1211-	●	●
180	RING; SNAP,CLUSTER GEAR (A) ID=32.2	9-09180-035-0	01	1	9704-0209		●
180	RING; SNAP,CLUSTER GEAR (A) ID=32.2	9-09180-035-0	01	1	0210-	●	●
182	PLATE; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-585-0	01	1	1211-	●
182	PLATE; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-586-0	01	1	1211-		●
182	PLATE; CLUSTER GEAR	8-94129-632-1	01	1	9704-1210		●
182	PLATE; CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94129-632-1	01	1	1211-		●
182	PLATE; CLUSTER GEAR	8-97095-984-0	01	1	0210-1210	●
182	PLATE; CLUSTER GEAR 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-984-0	01	1	1211-	●
183	SPRING; PLATE,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-380-0	03	1	1211-	●	●
183	SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	9704-0209		●
183	SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	0210-1210	●	●
183	SPRING; PLATE,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94132-168-0	03	1	1211-	●	●
184	SPRING; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-350-0	01	1	1211-	●	●
184	SPRING; CLUSTER GEAR	8-94128-790-1	01	1	9704-0209		●
184	SPRING; CLUSTER GEAR	8-94128-790-1	01	1	0210-1210	●	●
184	SPRING; CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-790-1	01	1	1211-	●	●
185	RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	9704-0209		●
185	RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	0210-	●	●
186	RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	9704-0209		●
186	RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	0210-	●	●
276	SPACER; BRG TO DRIVE GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-906-0	01	1	1211-	●	●
276	SPACER; BRG TO DRIVE GEAR	9-33235-606-1	01	1	9704-9905		●
276	SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	9906-0209		●
276	SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	0210-1210	●	●
276	SPACER; BRG TO DRIVE GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-175-0	01	1	1211-	●	●
281	WASHER; THRUST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-466-0	01	1	1211-	●	●
281	WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	9704-0209		●
281	WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	0210-1210	●	●
281	WASHER; THRUST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33271-007-0	01	1	1211-	●	●
287	PIN; COUNTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-445-0	03	1	1406-	●	●
287	PIN; COUNTER GEAR	8-94402-462-0	01	1	9704-0209		●
287	PIN; COUNTER GEAR	8-94402-462-0	01	1	0210-1405	●	●
287	PIN; COUNTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94402-462-0	01	1	1406-	●	●
313	BEARING; NEEDLE,LOW GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-748-0	01	1	1211-	●	●
313	BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	9704-0209		●
313	BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	0210-1210	●	●
313	BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94317-161-0	01	1	1211-	●	●
313	BEARING; NEEDLE,LOW GEAR JTEKT	8-97010-547-0	01	1	9704-0209		●
313	BEARING; NEEDLE,LOW GEAR JTEKT	8-97010-547-0	01	1	0210-1210	●	●
313	BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> JTEKT	8-97010-547-0	01	1	1211-	●	●
314	BEARING; NEEDLE,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-749-0	01	1	1211-	●	●
314	BEARING; NEEDLE,REV GEAR NSK	5-09811-014-0	01	1	9704-9905		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	9906-0209		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	0210-1210	●	●
314	BEARING; NEEDLE,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-97207-174-0	01	1	1211-	●	●
386	PIN; REV SHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-093-0	01	1	1211-	●	●
386	PIN; REV SHAFT	8-94128-794-0	01	1	9704-0209		●
386	PIN; REV SHAFT	8-94128-794-0	01	1	0210-1210	●	●
386	PIN; REV SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-794-0	01	1	1211-	●	●
387	INSERT; SYN,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1211-	●	●
387	INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	9704-0209		●
387	INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	0210-1210	●	●
387	INSERT; SYN,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1211-	●	●
390	RING; SNAP,CLU HUB T=1.75	8-94151-520-0	01	1	9704-0209		●
390	RING; SNAP,CLU HUB T=1.75	8-94151-520-0	01	1	0210-	●	●
390	RING; SNAP,CLU HUB T=1.80	8-94151-521-0	01	1	9704-0209		●
390	RING; SNAP,CLU HUB T=1.80	8-94151-521-0	01	1	0210-	●	●
390	RING; SNAP,CLU HUB T=1.85	8-94151-522-0	01	1	9704-0209		●
390	RING; SNAP,CLU HUB T=1.85	8-94151-522-0	01	1	0210-	●	●
390	RING; SNAP,CLU HUB T=1.90	8-94151-523-0	01	1	0210-0409	●
390	RING; SNAP,CLU HUB IN-HOUSE PRODUCTION VAR.2<TMW> T=1.90	8-94151-523-0	01	1	0410-1111		●
390	RING; SNAP,CLU HUB T=1.90	8-94151-523-0	01	1	0410-1111	●
390	RING; SNAP,CLU HUB T=1.90	8-94151-523-0	01	1	1112-	●	●
393	BEARING; MAINSHAFT END IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-743-0	01	1	1211-	●	●
393	BEARING; MAINSHAFT END	8-97095-913-0	01	1	9704-9905		●
393	BEARING; MAINSHAFT END	8-97207-512-0	01	1	9906-0209		●
393	BEARING; MAINSHAFT END	8-97207-512-1	01	1	0210-1210	●	●
393	BEARING; MAINSHAFT END EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-512-1	01	1	1211-	●	●
396	BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-970-0	01	1	1211-	●	●
396	BEARING; NEEDLE,MAINSHAFT	8-97161-658-0	01	1	9704-0409		●
396	BEARING; NEEDLE,MAINSHAFT	8-97161-658-0	01	1	0410-1210		●
396	BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	0410-1210	●
396	BEARING; NEEDLE,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	1211-		●
396	BEARING; NEEDLE,MAINSHAFT	9-00096-606-0	01	1	0210-0409	●
396	BEARING; NEEDLE,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-00096-606-0	01	1	0410-1005	●
396	BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-00096-606-0	01	1	1006-	●
397	SPRING; INSERT,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1211-	●	●
397	SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	9704-0209		●
397	SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	0210-1210	●	●
397	SPRING; INSERT,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1211-	●	●
398	GEAR; COUNTER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97381-658-0	01	1	0410-1111	●
398	GEAR; COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97381-658-0	01	1	1112-	●
398	GEAR; COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=51-34-22-14	8-97204-104-0	01	1	0410-		●
398	GEAR; COUNTER Z=51-34-22-14	8-97029-335-0	01	1	9704-0409		●
398	GEAR; COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=51-34-22-14	8-97029-335-0	01	1	0410-		●
398	GEAR; COUNTER Z=49-34-22-14	8-97324-857-0	01	1	0210-0409	●
398	GEAR; COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97324-857-0	01	1	0410-1005	●
398	GEAR; COUNTER 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97324-857-0	01	1	1006-	●
405	INSERT; SYN,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1211-	●	●
405	INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	9704-0209		●
405	INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	0210-1210	●	●
405	INSERT; SYN,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1211-	●	●
408	SPRING IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-347-0	01	1	1211-	●	●
408	SPRING	8-97081-577-0	01	1	9704-0209		●
408	SPRING	8-97081-577-0	01	1	0210-1210	●	●
408	SPRING EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97081-577-0	01	1	1211-	●	●

62 63 62 66 173 536 389 13 74 393 35 36 50 276 80 33 390 281 40 405 49 51 51 313 535 70 39 40 177 82 314 4 180 84 59 3 172 397 387 1 180 182 396 35 287 398 534 184 183 320 397 185 97 109 132 136 408 135 186 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97177-684-0	01	1	0410-1010	●
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-98179-969-1	01	1	1011-1111	●
1	SHAFT; TOP GEAR,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-98179-969-1	01	1	1112-	●
1	SHAFT; TOP GEAR,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-97177-683-0	01	1	0410-1010		●
1	SHAFT; TOP GEAR,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-98179-968-1	01	1	1011-		●
1	SHAFT; TOP GEAR,TRANS Z=28	8-97091-558-1	01	1	9704-0409		●
1	SHAFT; TOP GEAR,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-97091-558-1	01	1	0410-		●
1	SHAFT; TOP GEAR,TRANS Z=30	8-97103-632-0	01	1	0210-0409	●
1	SHAFT; TOP GEAR,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97103-632-0	01	1	0410-1005	●
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97103-632-0	01	1	1006-	●
3	BEARING; TOP GEAR SHAFT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-742-0	01	1	1211-	●	●
3	BEARING; TOP GEAR SHAFT NSK	8-94178-732-1	01	1	9704-0209		●
3	BEARING; TOP GEAR SHAFT NSK	8-94178-732-2	01	1	0210-1210	●	●
3	BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94178-732-2	01	1	1211-	●	●
3	BEARING; TOP GEAR SHAFT JTEKT	8-94462-615-0	01	1	9704-0209		●
3	BEARING; TOP GEAR SHAFT JTEKT	8-94462-615-0	01	1	0210-1210	●	●
3	BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> JTEKT	8-94462-615-0	01	1	1211-	●	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	9704-0209		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	0210-	●	●
13	GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97373-011-0	01	1	0410-1111	●
13	GEAR; 5TH,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97373-011-0	01	1	1112-	●
13	GEAR; 5TH,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=24	8-97373-008-0	01	1	0410-		●
13	GEAR; 5TH,MAINSHAFT Z=24	8-97147-816-0	01	1	9704-9905		●
13	GEAR; 5TH,MAINSHAFT Z=24	8-97206-007-0	01	1	9906-0409		●
13	GEAR; 5TH,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=24	8-97206-007-0	01	1	0410-		●
13	GEAR; 5TH,MAINSHAFT Z=25	8-97206-012-0	01	1	0210-0409	●
13	GEAR; 5TH,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97206-012-0	01	1	0410-1005	●
13	GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97206-012-0	01	1	1006-	●
33	BEARING; NEEDLE,3RD GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-746-0	01	1	1211-	●	●
33	BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	9704-0209		●
33	BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	0210-1210	●	●
33	BEARING; NEEDLE,3RD GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94317-158-0	01	1	1211-	●	●
35	RING; BLOCK,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	02	1	1211-	●	●
35	RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	9704-0209		●
35	RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	0210-1210	●	●
35	RING; BLOCK,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	02	1	1211-	●	●
36	GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97372-905-0	01	1	0410-1010	●
36	GEAR; 3RD,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-97174-923-0	01	1	0410-1010		●
36	GEAR; 3RD,MAINSHAFT Z=31	8-94316-760-2	01	1	9704-0409		●
36	GEAR; 3RD,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-94316-760-2	01	1	0410-		●
36	GEAR; 3RD,MAINSHAFT Z=33	8-97324-853-0	01	1	0210-0409	●
36	GEAR; 3RD,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97324-853-0	01	1	0410-1005	●
36	GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97324-853-0	01	1	1006-	●
39	HUB; CLU,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97177-689-0	01	1	0410-	●	●
40	SPRING; INSERT,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-960-0	02	1	1211-	●	●
40	SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	9704-0209		●
40	SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	0210-1210	●	●
40	SPRING; INSERT,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-708-0	02	1	1211-	●	●
49	BEARING; NEEDLE,2ND GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-747-0	01	1	1211-	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	5-09811-014-0	01	1	9704-0209		●
49	BEARING; NEEDLE,2ND GEAR NSK	5-09811-014-0	01	1	0210-1210	●	●
49	BEARING; NEEDLE,2ND GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	5-09811-014-0	01	1	1211-	●	●
50	GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97373-143-1	01	1	0410-1111	●
50	GEAR; 2ND,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97373-143-1	01	1	1112-	●
50	GEAR; 2ND,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-97174-955-0	01	1	0410-		●
50	GEAR; 2ND,MAINSHAFT Z=34	8-94316-764-3	01	1	9704-0409		●
50	GEAR; 2ND,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-94316-764-3	01	1	0410-		●
50	GEAR; 2ND,MAINSHAFT Z=36	8-97014-034-2	01	1	0210-0409	●
50	GEAR; 2ND,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97014-034-2	01	1	0410-1005	●
50	GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97014-034-2	01	1	1006-	●
51	RING; BLOCK,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-98190-428-0	02	1	1211-	●	●
51	RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	9704-0209		●
51	RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	0210-1210	●	●
51	RING; BLOCK,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97074-619-3	02	1	1211-	●	●
59	GEAR; REV MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-98190-291-1	01	1	1211-	●	●
59	GEAR; REV MAINSHAFT Z=41	8-97115-777-0	01	1	9704-9905		●
59	GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	9906-0209		●
59	GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	0210-1210	●	●
59	GEAR; REV MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-97206-006-0	01	1	1211-	●	●
62	SPRING; INSERT,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1211-	●	●
62	SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	9704-0209		●
62	SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	0210-1210	●	●
62	SPRING; INSERT,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1211-	●	●
63	INSERT; SYN,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-418-0	03	1	1211-	●	●
63	INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	9704-0209		●
63	INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	0210-1210	●	●
63	INSERT; SYN,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33263-613-0	03	1	1211-	●	●
66	RING; BLOCK,SYN IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	01	1	1211-	●	●
66	RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	9704-0209		●
66	RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	0210-1210	●	●
66	RING; BLOCK,SYN EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	01	1	1211-	●	●
70	GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97174-953-0	01	1	0410-0410	●
70	GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97204-109-0	01	1	0410-0410		●
70	GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97204-109-0	01	1	0411-1010	●	●
70	GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-98180-095-1	01	1	1011-	●	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-94316-768-4	01	1	9704-0409		●
70	GEAR; 1ST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-94316-768-4	01	1	0410-		●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97014-033-3	01	1	0210-0409	●
70	GEAR; 1ST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97014-033-3	01	1	0410-1005	●
70	GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97014-033-3	01	1	1006-	●
74	WASHER; THRUST,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-569-0	01	1	1211-	●	●
74	WASHER; THRUST,REV GEAR	9-33271-607-1	01	1	9704-9905		●
74	WASHER; THRUST,REV GEAR	8-97207-176-0	01	1	9906-0209		●
74	WASHER; THRUST,REV GEAR	8-97207-176-0	01	1	0210-1210	●	●
74	WASHER; THRUST,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-176-0	01	1	1211-	●	●
80	GEAR; SPD DRIVE IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-98190-429-0	01	1	1211-	●	●
80	GEAR; SPD DRIVE Z=4	8-97011-350-0	01	1	9704-9905		●
80	GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	9906-0209		●
80	GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	0210-1210	●	●
80	GEAR; SPD DRIVE EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-97207-146-0	01	1	1211-	●	●
82	SHAFT; MAIN,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97368-837-0	01	1	0410-	●	●
82	SHAFT; MAIN,TRANS Z=27-40-31-24	8-97045-932-1	01	1	9704-9911		●
82	SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	9912-0209		●
82	SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	0210-0409	●	●
82	SHAFT; MAIN,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97207-119-0	01	1	0410-	●	●
84	BEARING; COUNTER SHAFT,FRT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-745-0	01	1	1211-	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-1	01	1	9704-0209		●
84	BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-2	01	1	0210-1210	●	●
84	BEARING; COUNTER SHAFT,FRT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	5-09800-062-2	01	1	1211-	●	●
97	GEAR; 5TH,COUNTER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97169-511-0	01	1	0410-1111	●
97	GEAR; 5TH,COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97169-511-0	01	1	1112-	●
97	GEAR; 5TH,COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=55	8-97372-900-0	01	1	0410-		●
97	GEAR; 5TH,COUNTER Z=55	8-94316-786-1	01	1	9704-0409		●
97	GEAR; 5TH,COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=55	8-94316-786-1	01	1	0410-		●
97	GEAR; 5TH,COUNTER Z=53	8-97077-341-1	01	1	0210-0409	●
97	GEAR; 5TH,COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97077-341-1	01	1	0410-1005	●
97	GEAR; 5TH,COUNTER 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97077-341-1	01	1	1006-	●
109	BEARING; COUNTER SHAFT,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-744-0	01	1	1211-	●	●
109	BEARING; COUNTER SHAFT,RR	8-97095-913-0	01	1	9704-0209		●
109	BEARING; COUNTER SHAFT,RR	8-97095-913-1	01	1	0210-1210	●	●
109	BEARING; COUNTER SHAFT,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-913-1	01	1	1211-	●	●
132	SHAFT; REV IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-378-0	01	1	1211-	●	●
132	SHAFT; REV	9-33351-604-1	01	1	9704-0209		●
132	SHAFT; REV	9-33351-604-1	01	1	0210-1210	●	●
132	SHAFT; REV EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33351-604-1	01	1	1211-	●	●
135	GEAR; REV IDLER IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97169-508-0	01	1	0410-	●	●
135	GEAR; REV IDLER Z=29	8-97081-539-3	01	1	9704-0209		●
135	GEAR; REV IDLER Z=29	8-97081-539-3	01	1	0210-0409	●	●
135	GEAR; REV IDLER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97081-539-3	01	1	0410-	●	●
136	WASHER; THRUST,REV IDLE,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-533-0	01	1	1211-	●	●
136	WASHER; THRUST,REV IDLE,RR	8-97081-579-2	01	1	9704-0209		●
136	WASHER; THRUST,REV IDLE,RR	8-97081-579-2	01	1	0210-1210	●	●
136	WASHER; THRUST,REV IDLE,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97081-579-2	01	1	1211-	●	●
172	RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	9704-0209		●
172	RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	0210-	●	●
172	RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	9704-0209		●
172	RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	0210-	●	●
172	RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	9704-0209		●
172	RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	0210-	●	●
173	RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	9704-0209		●
173	RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	0210-	●	●
173	RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	9704-0209		●
173	RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	0210-	●	●
173	RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	9704-0209		●
173	RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	0210-	●	●
173	RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	9704-0209		●
173	RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	0210-	●	●
177	RING; SNAP,CLU HUB IN-HOUSE PRODUCTION VAR.2<TMW> ID=44.5	8-98189-990-0	01	1	1211-	●	●
177	RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	9704-9905		●
177	RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	9704-9905		●
177	RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	9704-9905		●
177	RING; SNAP,CLU HUB ID=44.5	5-09589-010-0	01	1	9906-0209		●
177	RING; SNAP,CLU HUB ID=44.5	5-09589-010-0	01	1	0210-1210	●	●
177	RING; SNAP,CLU HUB EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=44.5	5-09589-010-0	01	1	1211-	●	●
180	RING; SNAP,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-98189-991-0	01	1	1211-	●	●
180	RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	9704-0209		●
180	RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	0210-1210	●	●
180	RING; SNAP,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-94146-483-0	01	1	1211-	●	●
180	RING; SNAP,CLUSTER GEAR (A) ID=32.2	9-09180-035-0	01	1	9704-0209		●
180	RING; SNAP,CLUSTER GEAR (A) ID=32.2	9-09180-035-0	01	1	0210-	●	●
182	PLATE; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-585-0	01	1	1211-	●
182	PLATE; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-586-0	01	1	1211-		●
182	PLATE; CLUSTER GEAR	8-94129-632-1	01	1	9704-1210		●
182	PLATE; CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94129-632-1	01	1	1211-		●
182	PLATE; CLUSTER GEAR	8-97095-984-0	01	1	0210-1210	●
182	PLATE; CLUSTER GEAR 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-984-0	01	1	1211-	●
183	SPRING; PLATE,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-380-0	03	1	1211-	●	●
183	SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	9704-0209		●
183	SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	0210-1210	●	●
183	SPRING; PLATE,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94132-168-0	03	1	1211-	●	●
184	SPRING; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-350-0	01	1	1211-	●	●
184	SPRING; CLUSTER GEAR	8-94128-790-1	01	1	9704-0209		●
184	SPRING; CLUSTER GEAR	8-94128-790-1	01	1	0210-1210	●	●
184	SPRING; CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-790-1	01	1	1211-	●	●
185	RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	9704-0209		●
185	RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	0210-	●	●
186	RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	9704-0209		●
186	RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	0210-	●	●
276	SPACER; BRG TO DRIVE GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-906-0	01	1	1211-	●	●
276	SPACER; BRG TO DRIVE GEAR	9-33235-606-1	01	1	9704-9905		●
276	SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	9906-0209		●
276	SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	0210-1210	●	●
276	SPACER; BRG TO DRIVE GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-175-0	01	1	1211-	●	●
281	WASHER; THRUST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-466-0	01	1	1211-	●	●
281	WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	9704-0209		●
281	WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	0210-1210	●	●
281	WASHER; THRUST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33271-007-0	01	1	1211-	●	●
287	PIN; COUNTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-445-0	03	1	1406-	●	●
287	PIN; COUNTER GEAR	8-94402-462-0	01	1	9704-0209		●
287	PIN; COUNTER GEAR	8-94402-462-0	01	1	0210-1405	●	●
287	PIN; COUNTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94402-462-0	01	1	1406-	●	●
313	BEARING; NEEDLE,LOW GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-748-0	01	1	1211-	●	●
313	BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	9704-0209		●
313	BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	0210-1210	●	●
313	BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94317-161-0	01	1	1211-	●	●
313	BEARING; NEEDLE,LOW GEAR JTEKT	8-97010-547-0	01	1	9704-0209		●
313	BEARING; NEEDLE,LOW GEAR JTEKT	8-97010-547-0	01	1	0210-1210	●	●
313	BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> JTEKT	8-97010-547-0	01	1	1211-	●	●
314	BEARING; NEEDLE,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-749-0	01	1	1211-	●	●
314	BEARING; NEEDLE,REV GEAR NSK	5-09811-014-0	01	1	9704-9905		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	9906-0209		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	0210-1210	●	●
314	BEARING; NEEDLE,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-97207-174-0	01	1	1211-	●	●
320	HUB; CLU,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-690-0	01	1	0410-	●	●
386	PIN; REV SHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-093-0	01	1	1211-	●	●
386	PIN; REV SHAFT	8-94128-794-0	01	1	9704-0209		●
386	PIN; REV SHAFT	8-94128-794-0	01	1	0210-1210	●	●
386	PIN; REV SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-794-0	01	1	1211-	●	●
387	INSERT; SYN,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1211-	●	●
387	INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	9704-0209		●
387	INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	0210-1210	●	●
387	INSERT; SYN,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1211-	●	●
389	HUB; CLU,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97373-144-0	01	1	0410-	●	●
390	RING; SNAP,CLU HUB T=1.75	8-94151-520-0	01	1	9704-0209		●
390	RING; SNAP,CLU HUB T=1.75	8-94151-520-0	01	1	0210-	●	●
390	RING; SNAP,CLU HUB T=1.80	8-94151-521-0	01	1	9704-0209		●
390	RING; SNAP,CLU HUB T=1.80	8-94151-521-0	01	1	0210-	●	●
390	RING; SNAP,CLU HUB T=1.85	8-94151-522-0	01	1	9704-0209		●
390	RING; SNAP,CLU HUB T=1.85	8-94151-522-0	01	1	0210-	●	●
390	RING; SNAP,CLU HUB T=1.90	8-94151-523-0	01	1	0210-0409	●
390	RING; SNAP,CLU HUB IN-HOUSE PRODUCTION VAR.2<TMW> T=1.90	8-94151-523-0	01	1	0410-1111		●
390	RING; SNAP,CLU HUB T=1.90	8-94151-523-0	01	1	0410-1111	●
390	RING; SNAP,CLU HUB T=1.90	8-94151-523-0	01	1	1112-	●	●
393	BEARING; MAINSHAFT END IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-743-0	01	1	1211-	●	●
393	BEARING; MAINSHAFT END	8-97095-913-0	01	1	9704-9905		●
393	BEARING; MAINSHAFT END	8-97207-512-0	01	1	9906-0209		●
393	BEARING; MAINSHAFT END	8-97207-512-1	01	1	0210-1210	●	●
393	BEARING; MAINSHAFT END EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-512-1	01	1	1211-	●	●
396	BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-970-0	01	1	1211-	●	●
396	BEARING; NEEDLE,MAINSHAFT	8-97161-658-0	01	1	9704-0409		●
396	BEARING; NEEDLE,MAINSHAFT	8-97161-658-0	01	1	0410-1210		●
396	BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	0410-1210	●
396	BEARING; NEEDLE,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	1211-		●
396	BEARING; NEEDLE,MAINSHAFT	9-00096-606-0	01	1	0210-0409	●
396	BEARING; NEEDLE,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-00096-606-0	01	1	0410-1005	●
396	BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-00096-606-0	01	1	1006-	●
397	SPRING; INSERT,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1211-	●	●
397	SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	9704-0209		●
397	SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	0210-1210	●	●
397	SPRING; INSERT,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1211-	●	●
398	GEAR; COUNTER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97381-658-0	01	1	0410-1111	●
398	GEAR; COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97381-658-0	01	1	1112-	●
398	GEAR; COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=51-34-22-14	8-97204-104-0	01	1	0410-		●
398	GEAR; COUNTER Z=51-34-22-14	8-97029-335-0	01	1	9704-0409		●
398	GEAR; COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=51-34-22-14	8-97029-335-0	01	1	0410-		●
398	GEAR; COUNTER Z=49-34-22-14	8-97324-857-0	01	1	0210-0409	●
398	GEAR; COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97324-857-0	01	1	0410-1005	●
398	GEAR; COUNTER 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97324-857-0	01	1	1006-	●
405	INSERT; SYN,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1211-	●	●
405	INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	9704-0209		●
405	INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	0210-1210	●	●
405	INSERT; SYN,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1211-	●	●
408	SPRING IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-347-0	01	1	1211-	●	●
408	SPRING	8-97081-577-0	01	1	9704-0209		●
408	SPRING	8-97081-577-0	01	1	0210-1210	●	●
408	SPRING EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97081-577-0	01	1	1211-	●	●
534	SLEEVE; HUB,4TH-3RD IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-134-0	01	1	0410-	●	●
535	SLEEVE; HUB,LOW-2ND IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97177-133-0	01	1	0410-	●	●
536	SLEEVE; HUB,REV-5TH IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-135-0	01	1	0410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
