2-25 — SPEEDOMETER DRIVEN GEAR (#72546) — 54 parça

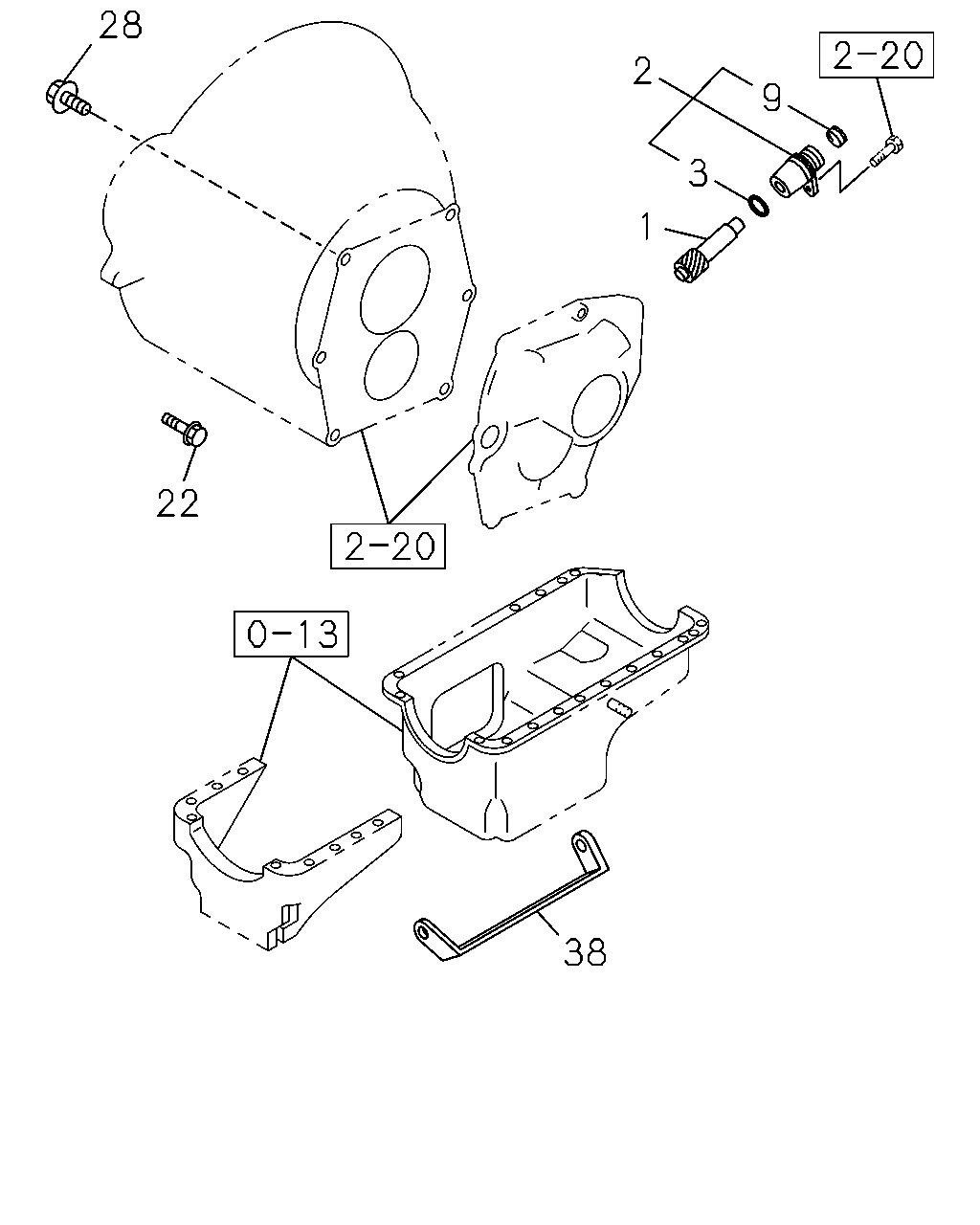

çizim 109815
28 2 9 3 1 22 38
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/6(R43) Z=17 		8-94249-065-0 01 1 9704-1007 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/6(R43) Z=17 		8-94249-065-0 01 1 1008-1110 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/6(R43) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=17 		8-94249-065-0 01 1 1008-1110 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) Z=17 		8-94249-065-0 01 1 1111-1209 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/6(R43) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=17 		8-94249-065-0 01 1 1111-1209 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) Z=16 		8-94249-064-0 01 1 9704-1007 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) Z=16 		8-94249-064-0 01 1 1008-1110 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=16 		8-94249-064-0 01 1 1008-1110 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) Z=16 		8-94249-064-0 01 1 1111-1209 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=16 		8-94249-064-0 01 1 1111-1209 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) Z=16 		8-98190-002-0 01 1 1210- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=16 		8-98190-002-0 01 1 1210- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) Z=14 		8-94249-062-0 01 1 0210-1110 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) Z=15 		8-94249-063-0 01 1 0210-1110 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=15 		8-94249-063-0 01 1 1111-1209 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=15 		8-98190-001-0 01 1 1210- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) Z=17 		8-98190-003-0 01 1 1210- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/6(R43) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=17 		8-98190-003-0 01 1 1210- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/6(R43) Z=17 MARK "7" 		8-97080-363-1 01 1 9704-1007 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/6(R43) Z=17 MARK "7" 		8-97080-363-1 01 1 1008-1110 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/6(R43) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=17 MARK "7" 		8-97080-363-1 01 1 1008-1110 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) Z=17 MARK "7" 		8-97080-363-1 01 1 1111-1209 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/6(R43) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=17 MARK "7" 		8-97080-363-1 01 1 1111-1209 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) Z=16 MARK "6" 		8-97080-362-1 01 1 9704-1007 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) Z=16 MARK "6" 		8-97080-362-1 01 1 1008-1110 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=16 MARK "6" 		8-97080-362-1 01 1 1008-1110 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41) Z=16 MARK "6" 		8-97080-362-1 01 1 1111-1209 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=16 MARK "6" 		8-97080-362-1 01 1 1111-1209 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41) Z=16 MARK "6" 		8-98190-372-0 01 1 1210- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=16 MARK "6" 		8-98190-372-0 01 1 1210- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1) Z=14 MARK "4" 		8-97080-360-1 01 1 0210-1110 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41) Z=15 MARK "5" 		8-97080-361-1 01 1 0210-1110 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=15 MARK "5" 		8-97080-361-1 01 1 1111-1209 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=15 MARK "5" 		8-98190-431-0 01 1 1210- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) Z=17 MARK "7" 		8-98190-373-0 01 1 1210- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/6(R43) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) Z=17 MARK "7" 		8-98190-373-0 01 1 1210- ●
3 GASKET; BUSHING 9-09920-852-0 01 1 9704-0209 ●
3 GASKET; BUSHING 9-09920-852-0 01 1 0210-1209 ● ●
3 GASKET; BUSHING
FINAL GEAR RATIO 41/7(R41) 		9-09567-220-0 01 1 1210- ●
3 GASKET; BUSHING
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) 		9-09567-220-0 01 1 1210- ●
9 SEAL; OIL,DRIVEN GEAR
NOK 		8-97080-507-0 01 1 9704-0209 ●
9 SEAL; OIL,DRIVEN GEAR
NOK 		8-97080-507-0 01 1 0210-1209 ● ●
9 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 41/7(R41) NOK 		8-98189-455-0 01 1 1210- ●
9 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5-15-12 6GSX15-25(10V),FRT&RR 7-16-10 5.5FX16-25(89C) NOK 		8-98189-455-0 01 1 1210- ●
22 BOLT; TRANS CASE TO ENG
M10X40 W/LK&PL WASHER 		0-50141-040-0 04 1 9704-0209 ●
22 BOLT; TRANS CASE TO ENG
4JB1 ENG(RLF) M10X40 W/LK&PL WASHER 		0-50141-040-0 04 1 0210-0512 ● ●
22 BOLT; TRANS CASE TO ENG
4JB1 ENG(RLF) M10X40 W/LK&PL WASHER 		0-50641-040-0 04 1 0601-1111 ● ●
22 BOLT; TRANS CASE TO ENG
4JB1 ENG(RLF) M10X40 W/LK&PL WASHER 		0-50641-040-0 04 1 1112- ●
22 BOLT; TRANS CASE TO ENG
M10X40 W/LK&PL WASHER 		0-50641-040-0 04 1 1112- ●
28 BOLT; TRANS CASE TO HSG
IN-HOUSE PRODUCTION VAR.2<TMW> M12X35 FLANGE 		0-28161-235-0 06 1 1211- ● ●
28 BOLT; TRANS CASE TO HSG
M12X35 FLANGE 		8-94249-246-0 06 1 9704-0209 ●
28 BOLT; TRANS CASE TO HSG
M12X35 FLANGE 		8-94249-246-0 06 1 0210-1210 ● ●
28 BOLT; TRANS CASE TO HSG
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M12X35 FLANGE 		8-94249-246-0 06 1 1211- ● ●
38 BRACKET; SPACE RUBBER
4JB1-TC ENG(RDT) 		8-97095-937-1 01 1 1112- ●
