2-05 — CLUTCH PIPING (#72541) — 97 parça

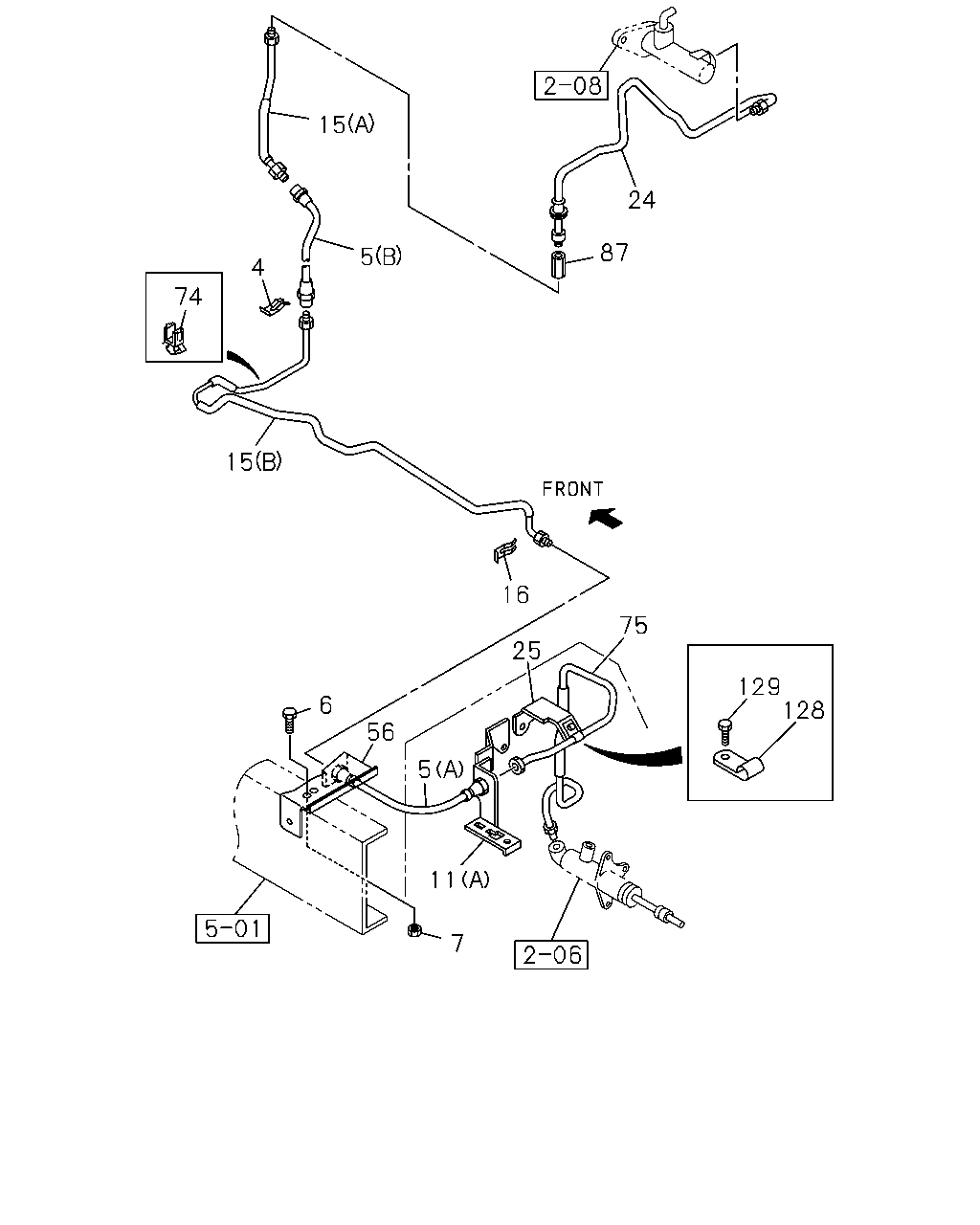

çizim 102409
15 24 87 5 4 74 15 16 75 25 129 128 6 56 5 11 7
BalonParca AdiParca NoAdetTipApplied Date A B
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9704-0610 ●
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 02 1 0611-1111 ●
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 02 1 1112- ● ●
5 HOSE; FLEX,CLU PIPE
EXC. TURBOCHARGER<K51> (C) 		8-97064-108-1 01 1 0210- ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9704-0609 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707-1111 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 1112- ● ●
5 HOSE; FLEX,CLU PIPE
TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 9704-1111 ●
5 HOSE; FLEX,CLU PIPE
TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 1112- ● ●
6 BOLT; BRKT,FLEX HOSE
EXC. TURBOCHARGER<K51> M8X25 FLANGE 		0-28680-825-0 01 1 0210-0512 ●
6 BOLT; BRKT,FLEX HOSE
EXC. TURBOCHARGER<K51> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
6 BOLT; BRKT,FLEX HOSE
TURBOCHARGER<K51> M8X20 FLANGE 		0-28680-820-0 01 1 9704-0512 ●
6 BOLT; BRKT,FLEX HOSE
TURBOCHARGER<K51> M8X20 FLANGE 		0-28650-820-0 01 1 0601-1111 ●
6 BOLT; BRKT,FLEX HOSE
TURBOCHARGER<K51> M8X20 FLANGE 		0-28650-820-0 01 1 1112- ● ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91150-108-0 01 1 9704-0602 ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91180-108-0 01 1 0603-1111 ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
11 BRACKET; FLEX HOSE,CLU
EXC. TURBOCHARGER<K51> (B) 		8-94411-135-0 01 1 0210- ●
11 BRACKET; FLEX HOSE,CLU
TURBOCHARGER<K51> (A) 		8-97091-929-0 01 1 9704-1111 ●
11 BRACKET; FLEX HOSE,CLU
TURBOCHARGER<K51> (A) 		8-97091-929-0 01 1 1112- ● ●
15 PIPE; CLU,FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. TURBOCHARGER<K51> (C) 		8-97070-380-4 01 1 1309- ●
15 PIPE; CLU,FLEX HOSE
EXC. TURBOCHARGER<K51> (C) 		8-97100-830-3 01 1 0210-1308 ●
15 PIPE; CLU,FLEX HOSE
EXC. TURBOCHARGER<K51>,BRK WHL LK CONT LSPV<6PH> (C) 		8-97100-830-3 01 1 1309- ●
15 PIPE; CLU,FLEX HOSE
(A) 		8-97035-987-0 01 1 9704-1111 ●
15 PIPE; CLU,FLEX HOSE
(A) 		8-97035-987-0 01 1 1112- ● ●
15 PIPE; CLU,FLEX HOSE
TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 9704-1111 ●
15 PIPE; CLU,FLEX HOSE
TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 1112-1308 ● ●
15 PIPE; CLU,FLEX HOSE
TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 1309-1309 ● ●
15 PIPE; CLU,FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 1309-1309 ●
15 PIPE; CLU,FLEX HOSE
TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 1309- ● ●
16 CLIP; FLEX HOSE
EXC. TURBOCHARGER<K51> 		8-94167-006-0 01 1 0210-0610 ●
16 CLIP; FLEX HOSE
EXC. TURBOCHARGER<K51> 		8-97365-304-0 01 1 0611- ●
16 CLIP; FLEX HOSE
TURBOCHARGER<K51> 		8-94167-006-0 02 1 9704-0610 ●
16 CLIP; FLEX HOSE
TURBOCHARGER<K51> 		8-97365-304-0 02 1 0611-1111 ●
16 CLIP; FLEX HOSE
TURBOCHARGER<K51> 		8-97365-304-0 02 1 1112- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION 8-97035-986-0 01 1 9704-1111 ●
24 PIPE ASM; CLU,M/CYL TO UNION 8-97035-986-0 01 1 1112- ● ●
25 BRACKET; OIL PIPE
TURBOCHARGER<K51> 		8-97013-211-1 01 1 9704-1111 ●
25 BRACKET; OIL PIPE
TURBOCHARGER<K51> 		8-97013-211-1 01 1 1112- ● ●
56 BRACKET; FLEX HOSE
TURBOCHARGER<K51> 		8-97090-299-0 01 1 9704-1111 ●
56 BRACKET; FLEX HOSE
TURBOCHARGER<K51> 		8-97090-299-0 01 1 1112- ● ●
74 CLIP; CLU OIL PIPE
TURBOCHARGER<K51> H=28.5 		8-94486-808-0 02 1 9704-1111 ●
74 CLIP; CLU OIL PIPE
TURBOCHARGER<K51> H=28.5 		8-94486-808-0 02 1 1112- ● ●
75 PIPE ASM; CLU,HSG
TURBOCHARGER<K51> 		8-97063-756-2 01 1 9704-1111 ●
75 PIPE ASM; CLU,HSG
TURBOCHARGER<K51> 		8-97063-756-2 01 1 1112- ● ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9704-0607 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608-1111 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 1112- ● ●
128 CLIP; AIR PIPE
TURBOCHARGER<K51> ID=7 L=16 		9-09524-622-0 02 1 9704-0606 ●
128 CLIP; AIR PIPE
TURBOCHARGER<K51> ID=7 L=16 		0-95234-622-0 02 1 0607-1111 ●
128 CLIP; AIR PIPE
TURBOCHARGER<K51> ID=7 L=16 		0-95234-622-0 02 1 1112- ● ●
129 BOLT; PIPE CLIP
TURBOCHARGER<K51> M6X12 FLANGE 		0-28080-612-0 02 1 9704-0512 ●
129 BOLT; PIPE CLIP
TURBOCHARGER<K51> M6X12 FLANGE 		0-28050-612-0 02 1 0601-1111 ●
129 BOLT; PIPE CLIP
TURBOCHARGER<K51> M6X12 FLANGE 		0-28050-612-0 02 1 1112- ● ●
çizim 190604
15 24 87 4 5 15 16 11 6 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 GASKET; FLEX HOSE,CLU
EXC. TURBOCHARGER<K51> 		9-09920-873-1 01 1 0210- ●
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9704-0610 ●
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 02 1 0611-1111 ●
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 02 1 1112- ● ●
5 HOSE; FLEX,CLU PIPE
EXC. TURBOCHARGER<K51> (C) 		8-97064-108-1 01 1 0210- ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9704-0609 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707-1111 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 1112- ● ●
5 HOSE; FLEX,CLU PIPE
TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 9704-1111 ●
5 HOSE; FLEX,CLU PIPE
TURBOCHARGER<K51> (A) 		8-94374-552-1 01 1 1112- ● ●
6 BOLT; BRKT,FLEX HOSE
EXC. TURBOCHARGER<K51> M8X25 FLANGE 		0-28680-825-0 01 1 0210-0512 ●
6 BOLT; BRKT,FLEX HOSE
EXC. TURBOCHARGER<K51> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
6 BOLT; BRKT,FLEX HOSE
TURBOCHARGER<K51> M8X20 FLANGE 		0-28680-820-0 01 1 9704-0512 ●
6 BOLT; BRKT,FLEX HOSE
TURBOCHARGER<K51> M8X20 FLANGE 		0-28650-820-0 01 1 0601-1111 ●
6 BOLT; BRKT,FLEX HOSE
TURBOCHARGER<K51> M8X20 FLANGE 		0-28650-820-0 01 1 1112- ● ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91150-108-0 01 1 9704-0602 ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91180-108-0 01 1 0603-1111 ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
11 BRACKET; FLEX HOSE,CLU
EXC. TURBOCHARGER<K51> (B) 		8-94411-135-0 01 1 0210- ●
11 BRACKET; FLEX HOSE,CLU
TURBOCHARGER<K51> (A) 		8-97091-929-0 01 1 9704-1111 ●
11 BRACKET; FLEX HOSE,CLU
TURBOCHARGER<K51> (A) 		8-97091-929-0 01 1 1112- ● ●
15 PIPE; CLU,FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. TURBOCHARGER<K51> (C) 		8-97070-380-4 01 1 1309- ●
15 PIPE; CLU,FLEX HOSE
EXC. TURBOCHARGER<K51> (C) 		8-97100-830-3 01 1 0210-1308 ●
15 PIPE; CLU,FLEX HOSE
EXC. TURBOCHARGER<K51>,BRK WHL LK CONT LSPV<6PH> (C) 		8-97100-830-3 01 1 1309- ●
15 PIPE; CLU,FLEX HOSE
(A) 		8-97035-987-0 01 1 9704-1111 ●
15 PIPE; CLU,FLEX HOSE
(A) 		8-97035-987-0 01 1 1112- ● ●
15 PIPE; CLU,FLEX HOSE
TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 9704-1111 ●
15 PIPE; CLU,FLEX HOSE
TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 1112-1308 ● ●
15 PIPE; CLU,FLEX HOSE
TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 1309-1309 ● ●
15 PIPE; CLU,FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 1309-1309 ●
15 PIPE; CLU,FLEX HOSE
TURBOCHARGER<K51> (B) 		8-97122-637-0 01 1 1309- ● ●
16 CLIP; FLEX HOSE
EXC. TURBOCHARGER<K51> 		8-94167-006-0 01 1 0210-0610 ●
16 CLIP; FLEX HOSE
EXC. TURBOCHARGER<K51> 		8-97365-304-0 01 1 0611- ●
16 CLIP; FLEX HOSE
TURBOCHARGER<K51> 		8-94167-006-0 02 1 9704-0610 ●
16 CLIP; FLEX HOSE
TURBOCHARGER<K51> 		8-97365-304-0 02 1 0611-1111 ●
16 CLIP; FLEX HOSE
TURBOCHARGER<K51> 		8-97365-304-0 02 1 1112- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION 8-97035-986-0 01 1 9704-1111 ●
24 PIPE ASM; CLU,M/CYL TO UNION 8-97035-986-0 01 1 1112- ● ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9704-0607 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608-1111 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 1112- ● ●
