◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50784 - NKR(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#72540) — 59 parça

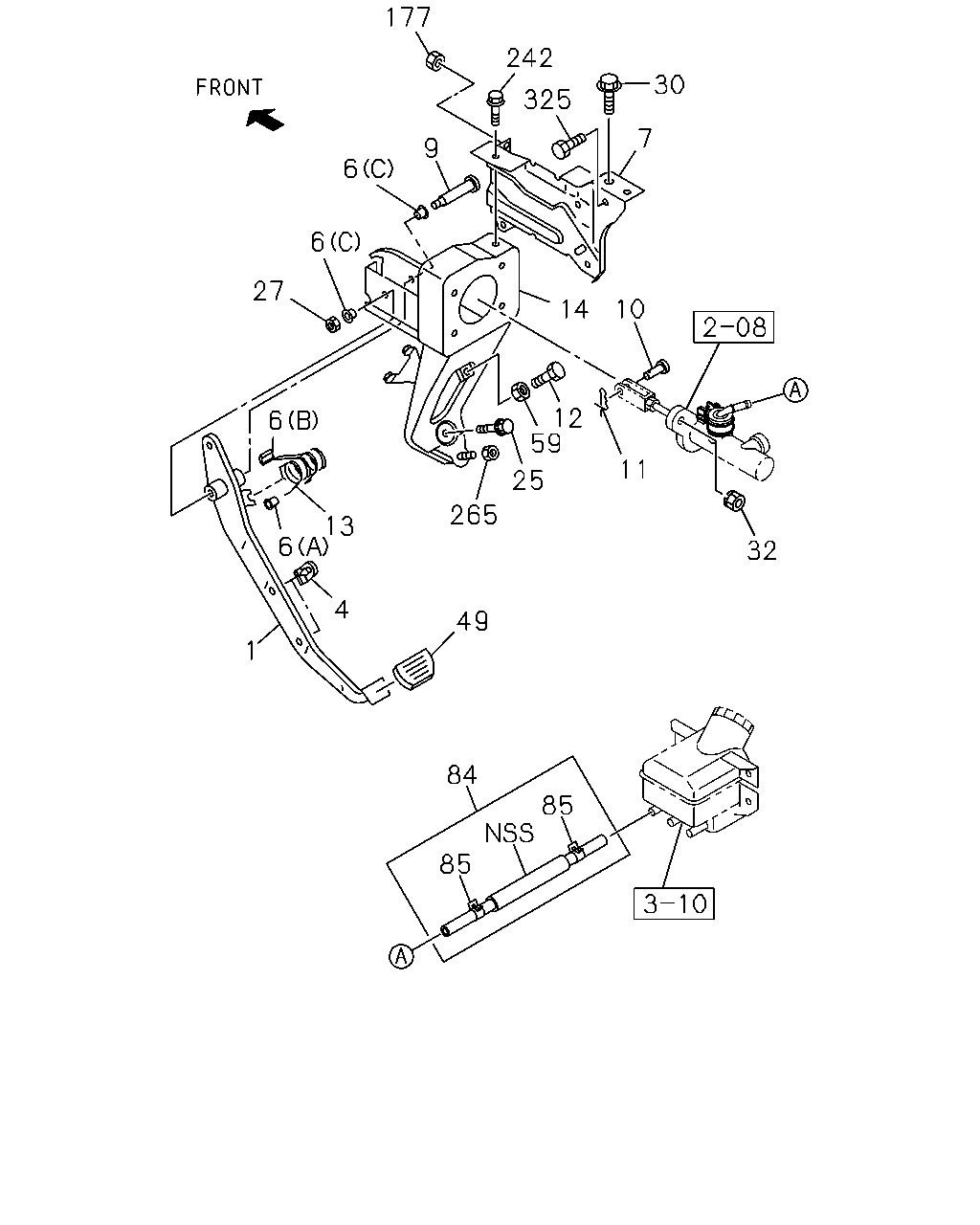

çizim 99071
177 242 30 325 7 9 6 6 27 10 14 12 59 6 11 25 265 13 6 32 4 49 1 84 85 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 8-97853-219-2 01 1 9704-0209 ●
1 PEDAL; CLU 8-97853-219-2 01 1 0210- ● ●
4 STOPPER; CLU PEDAL 8-97853-534-1 02 1 9704-0209 ●
4 STOPPER; CLU PEDAL 8-97853-534-1 02 1 0210- ● ●
6 BUSHING; CLU PEDAL
(C) 		8-94238-596-0 02 1 9704-0209 ●
6 BUSHING; CLU PEDAL
(C) 		8-94238-596-0 02 1 0210- ● ●
6 BUSHING; CLU PEDAL
(A) 		8-97853-619-0 02 1 9704-0209 ●
6 BUSHING; CLU PEDAL
(A) 		8-97853-619-0 02 1 0210- ● ●
6 BUSHING; CLU PEDAL
(B) 		8-97853-620-0 01 1 9704-0209 ●
6 BUSHING; CLU PEDAL
(B) 		8-97853-620-0 01 1 0210- ● ●
7 BRACKET; CLU PEDAL 8-97853-522-4 01 1 9704-0209 ●
7 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0210- ● ●
9 PIN; CLU PEDAL 8-97866-667-0 01 1 9704-0209 ●
9 PIN; CLU PEDAL 8-97866-667-0 01 1 0210- ● ●
10 PIN; CLU PEDAL 8-94410-276-0 01 1 9704-0209 ●
10 PIN; CLU PEDAL 8-94410-276-0 01 1 0210-1406 ● ●
10 PIN; CLU PEDAL 8-97359-812-0 01 1 1407- ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL 8-94279-912-0 01 1 9704-0209 ●
11 PIN; SNAP,PUSH ROD TO PEDAL 8-94279-912-0 01 1 0210- ● ●
12 BOLT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> M10X35 		0-20801-035-0 01 1 9704-0209 ●
12 BOLT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> M10X35 		0-20801-035-0 01 1 0210-0512 ● ●
12 BOLT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> M10X35 		0-20851-035-0 01 1 0601- ● ●
13 SPRING; ASSIST,CLU PEDAL 8-97853-221-1 01 1 9704-0209 ●
13 SPRING; ASSIST,CLU PEDAL 8-97853-221-1 01 1 0210- ● ●
14 BRACKET ASM; CLU PEDAL MTG 8-97867-998-1 01 1 9704-9903 ●
14 BRACKET ASM; CLU PEDAL MTG 8-97892-848-2 01 1 9904-0209 ●
14 BRACKET ASM; CLU PEDAL MTG 8-97892-848-3 01 1 0210- ● ●
25 BOLT; PEDAL
M10X22 W/WASHER 		8-94279-099-0 01 1 9704-0110 ●
25 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0111-0209 ●
25 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0210- ● ●
27 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 9704-0209 ●
27 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 0210- ● ●
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28691-025-0 01 1 9704-0209 ●
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28691-025-0 01 1 0210-0512 ● ●
30 BOLT; CLU MTG BRKT
M10X25 FLANGE 		0-28661-025-0 01 1 0601- ● ●
32 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 9704-0209 ●
32 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0210- ● ●
49 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 9704-0209 ●
49 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0210- ● ●
59 NUT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> M10 		9-09110-410-0 01 1 9704-0209 ●
59 NUT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> M10 		9-09110-410-0 01 1 0210-0512 ● ●
59 NUT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> M10 		0-91110-510-0 01 1 0601- ● ●
84 HOSE; RUBBER,CLU LINE 8-97135-024-0 01 1 9704-0209 ●
84 HOSE; RUBBER,CLU LINE 8-97135-024-0 01 1 0210-1405 ● ●
84 HOSE; RUBBER,CLU LINE 8-98193-434-0 01 1 1406- ● ●
85 CLIP; HOSE TO M/CYL 8-97130-480-0 02 1 9704-0209 ●
85 CLIP; HOSE TO M/CYL 8-97130-480-0 02 1 0210-1405 ● ●
85 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1406- ● ●
177 NUT; BRKT
M8 W/LK WASHER 		8-94279-050-0 02 1 9704-0209 ●
177 NUT; BRKT
M8 W/LK WASHER 		8-94279-050-0 02 1 0210- ● ●
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28480-816-0 02 1 9704-0209 ●
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28480-816-0 02 1 0210-0512 ● ●
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28450-816-0 02 1 0601- ● ●
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 FLANGE 		8-97046-127-0 01 1 9704-0209 ●
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 FLANGE 		8-97046-127-0 01 1 0210-0610 ● ●
265 NUT; BRKT,COLUMN SUPT TO C.PDL
M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611- ● ●
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28680-820-0 01 1 9704-0209 ●
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28680-820-0 01 1 0210-0512 ● ●
325 BOLT; BRKT,STRG SUPPORT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
