1-56 — EXHAUST BRAKE SYSTEM (#72538) — 81 parça

8 7 1 5 6 5 86 14 15 92 19 86 93 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRAKE UNIT; EXH TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97102-372-4	01	1	9704-1111	●
1	BRAKE UNIT; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97102-372-4	01	1	1112-	●	●
1	BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97102-372-4	01	1	1112-		●
1	BRAKE UNIT; EXH EXHAUST BRAKE<NF8>	8-97034-024-4	01	1	0210-1111		●
1	BRAKE UNIT; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97034-024-4	01	1	1112-		●
5	GASKET; EXH BRAKE UNIT TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	9704-1111	●
5	GASKET; EXH BRAKE UNIT 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	1112-	●	●
5	GASKET; EXH BRAKE UNIT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	1112-		●
6	BOLT; EXH BRAKE UNIT FIX TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8X70	0-10805-870-0	04	1	9704-0512	●
6	BOLT; EXH BRAKE UNIT FIX TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8X70	0-10855-870-0	04	1	0601-1111	●
6	BOLT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8X70	0-10855-870-0	04	1	1112-	●	●
6	BOLT; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> M8X70	0-10855-870-0	04	1	1112-		●
7	WASHER; EXH BRAKE UNIT FIX TURBOCHARGER<K51> EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9704-1111	●
7	WASHER; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	1112-	●	●
7	WASHER; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	1112-		●
7	WASHER; EXH BRAKE UNIT FIX EXHAUST BRAKE<NF8> ID=10.5	5-09500-013-0	04	1	0210-1111		●
7	WASHER; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> ID=10.5	5-09500-013-0	04	1	1112-		●
8	NUT; EXH BRAKE UNIT FIX TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8	9-09110-408-0	04	1	9704-0512	●
8	NUT; EXH BRAKE UNIT FIX TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8	0-91110-508-0	04	1	0601-1111	●
8	NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8	0-91110-508-0	04	1	1112-	●	●
8	NUT; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> M8	0-91110-508-0	04	1	1112-		●
8	NUT; EXH BRAKE UNIT FIX EXHAUST BRAKE<NF8> M10 H=18	9-09640-014-0	04	1	0210-1111		●
8	NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> M10 H=18	9-09640-014-0	04	1	1112-		●
14	FILTER; AIR,EXH BRAKE TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9704-1111	●
14	FILTER; AIR,EXH BRAKE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	1112-	●	●
14	FILTER; AIR,EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	1112-		●
15	NUT; AIR FILTER TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	9704-0602	●
15	NUT; AIR FILTER TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	02	1	0603-1111	●
15	NUT; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	02	1	1112-	●	●
15	NUT; AIR FILTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	02	1	1112-		●
19	HOSE; AIR FILTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	1201-		●
19	HOSE; AIR FILTER TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9704-1110	●
19	HOSE; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=160 SERVICED BY L=3000	0-08258-300-0	01	1	1111-1111	●
19	HOSE; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=160 SERVICED BY L=3000	0-08258-300-0	01	1	1112-1112	●	●
19	HOSE; AIR FILTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> L=160 SERVICED BY L=3000	0-08258-300-0	01	1	1112-1112		●
19	HOSE; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> L=160 SERVICED BY L=3000	0-08258-300-0	01	1	1201-	●	●
86	VALVE; MAG,EXH BRK 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C)	8-97374-166-0	01	1	1201-		●
86	VALVE; MAG,EXH BRK TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-801-3	01	1	9704-1111	●
86	VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-801-3	01	1	1112-1112	●	●
86	VALVE; MAG,EXH BRK 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-97161-801-3	01	1	1112-1112		●
86	VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-801-3	01	1	1201-	●	●
86	VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8> (B)	8-97069-300-2	01	1	0210-1111		●
86	VALVE; MAG,EXH BRK 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B)	8-97069-300-2	01	1	1112-		●
92	BOLT; MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28650-820-0	02	1	1201-		●
93	NUT; MAG VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	9704-0602	●
93	NUT; MAG VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	02	1	0603-1111	●
93	NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	02	1	1112-	●	●
93	NUT; MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	02	1	1112-		●
93	NUT; MAG VLV EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	01	1	0210-0602		●
93	NUT; MAG VLV EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	01	1	0603-1111		●
93	NUT; MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> M8 FLANGE	0-91180-108-0	01	1	1112-		●

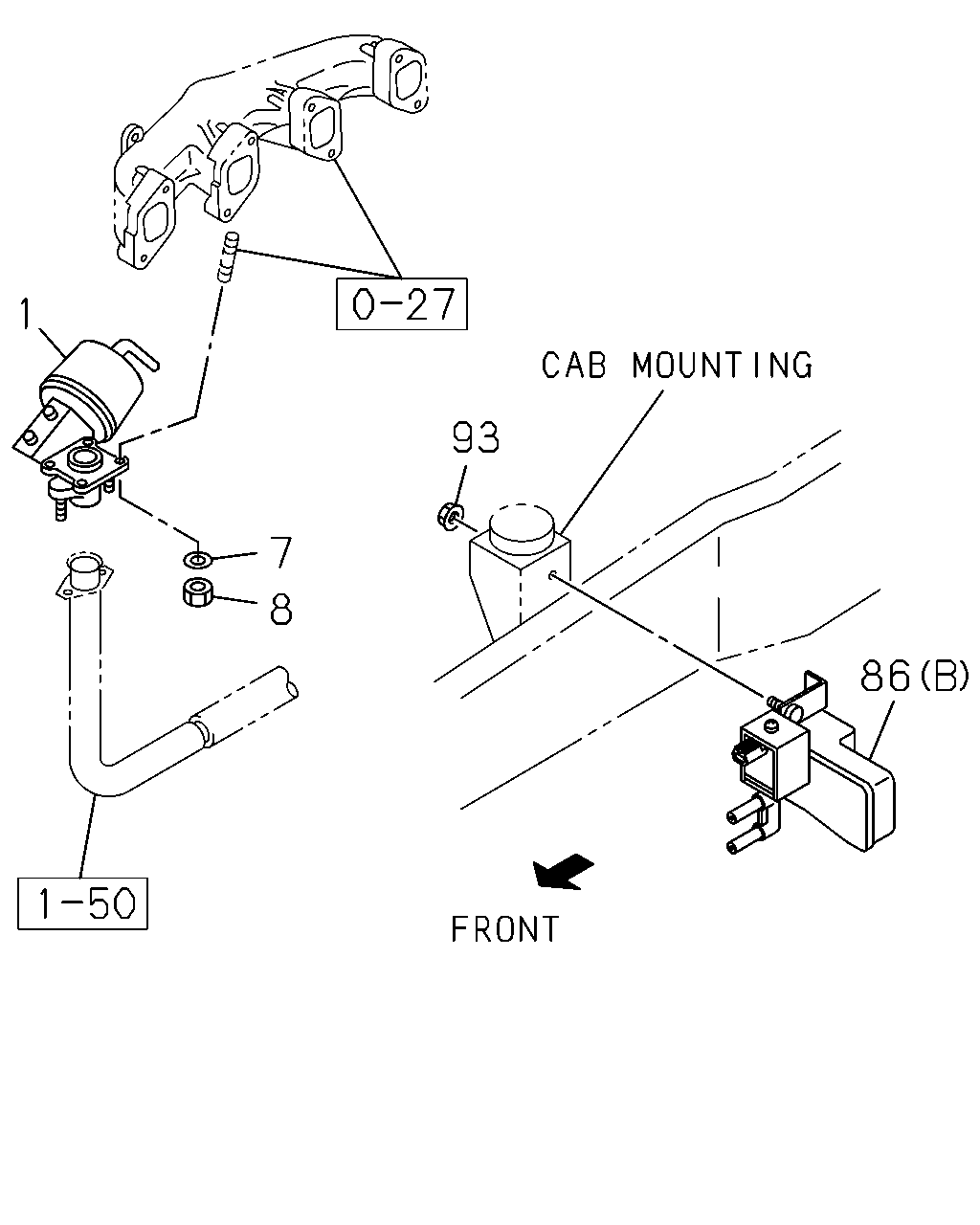

1 93 7 8 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRAKE UNIT; EXH TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97102-372-4	01	1	9704-1111	●
1	BRAKE UNIT; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97102-372-4	01	1	1112-	●	●
1	BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97102-372-4	01	1	1112-		●
1	BRAKE UNIT; EXH EXHAUST BRAKE<NF8>	8-97034-024-4	01	1	0210-1111		●
1	BRAKE UNIT; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>	8-97034-024-4	01	1	1112-		●
7	WASHER; EXH BRAKE UNIT FIX TURBOCHARGER<K51> EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9704-1111	●
7	WASHER; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	1112-	●	●
7	WASHER; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	1112-		●
7	WASHER; EXH BRAKE UNIT FIX EXHAUST BRAKE<NF8> ID=10.5	5-09500-013-0	04	1	0210-1111		●
7	WASHER; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> ID=10.5	5-09500-013-0	04	1	1112-		●
8	NUT; EXH BRAKE UNIT FIX TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8	9-09110-408-0	04	1	9704-0512	●
8	NUT; EXH BRAKE UNIT FIX TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8	0-91110-508-0	04	1	0601-1111	●
8	NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8	0-91110-508-0	04	1	1112-	●	●
8	NUT; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> M8	0-91110-508-0	04	1	1112-		●
8	NUT; EXH BRAKE UNIT FIX EXHAUST BRAKE<NF8> M10 H=18	9-09640-014-0	04	1	0210-1111		●
8	NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> M10 H=18	9-09640-014-0	04	1	1112-		●
86	VALVE; MAG,EXH BRK 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C)	8-97374-166-0	01	1	1201-		●
86	VALVE; MAG,EXH BRK TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-801-3	01	1	9704-1111	●
86	VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-801-3	01	1	1112-1112	●	●
86	VALVE; MAG,EXH BRK 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-97161-801-3	01	1	1112-1112		●
86	VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-801-3	01	1	1201-	●	●
86	VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8> (B)	8-97069-300-2	01	1	0210-1111		●
86	VALVE; MAG,EXH BRK 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B)	8-97069-300-2	01	1	1112-		●
93	NUT; MAG VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	9704-0602	●
93	NUT; MAG VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	02	1	0603-1111	●
93	NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	02	1	1112-	●	●
93	NUT; MAG VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	02	1	1112-		●
93	NUT; MAG VLV EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	01	1	0210-0602		●
93	NUT; MAG VLV EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	01	1	0603-1111		●
93	NUT; MAG VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> M8 FLANGE	0-91180-108-0	01	1	1112-		●
