Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#72536) — 654 parça

114 118 117 115 119 113 115 112 103 12 14 122 2 38 34 36 1 44 168 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (E)	8-97212-561-2	01	1	1112-	●
1	PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (D)	8-97212-759-3	01	1	1112-	●
1	PIPE; EXH TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-694-0	01	1	9704-1111		●
1	PIPE; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-694-0	01	1	1112-	●	●
1	PIPE; EXH TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> (B)	8-97161-782-0	01	1	9704-1111		●
1	PIPE; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> (B)	8-97161-782-0	01	1	1112-	●	●
1	PIPE; EXH EXHAUST BRAKE<NF8> (C)	8-97102-669-0	01	1	0210-1111	●
1	PIPE; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C)	8-97102-669-0	01	1	1112-	●
1	PIPE; EXH EXC. EXHAUST BRAKE<NF8> (C)	8-97102-668-0	01	1	0210-1111	●
1	PIPE; EXH 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> (C)	8-97102-668-0	01	1	1112-	●
2	GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (B) ID=71	8-94324-194-1	02	1	1112-	●
2	GASKET; PIPE TO MANIF TURBOCHARGER<K51> (A)	8-97069-287-0	01	1	9704-9709		●
2	GASKET; PIPE TO MANIF TURBOCHARGER<K51> (A)	8-97180-750-2	01	1	9710-0209		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97180-750-2	01	1	0210-0408		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97180-750-2	01	1	0210-0408	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97381-456-0	01	1	0409-1005		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	0409-1005	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97381-456-0	01	1	1006-1111		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	1006-1111	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97381-456-0	01	1	1112-	●	●
2	GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (A)	8-97381-456-0	01	1	1112-	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	1112-	●
12	SILENCER ASM; EXH 4JB1-TC ENG(RDT) (B)	8-97221-923-0	01	1	1112-	●
12	SILENCER ASM; EXH TURBOCHARGER<K51> (A)	8-97065-551-0	01	1	9704-0209		●
12	SILENCER ASM; EXH TURBOCHARGER<K51> (A)	8-97065-551-0	01	1	0210-1111		●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97065-551-0	01	1	1112-	●	●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) (A)	8-97049-721-0	01	1	0210-1005	●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) (A)	8-97049-721-0	01	1	1006-1111	●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A)	8-97049-721-0	01	1	1112-	●
14	GASKET; SILENCER TO EXH PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (C) ID=54	8-94328-354-0	01	1	1112-	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9704-0209		●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	0210-1110	●	●
14	GASKET; SILENCER TO EXH PIPE 4JB1 ENG(RLF) (B) ID=64.7	8-94328-352-0	01	1	1111-	●	●
14	GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9704-0209		●
14	GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0210-1111	●	●
14	GASKET; SILENCER TO EXH PIPE 4JB1 ENG(RLF) (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1112-	●	●
34	WASHER; EXH PIPE EXHAUST BRAKE<NF8> ID=10.5	5-09500-013-0	02	1	0210-1111	●
34	WASHER; EXH PIPE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> ID=10.5	5-09500-013-0	02	1	1112-	●
36	NUT; EXH PIPE TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	9704-0209		●
36	NUT; EXH PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	0210-1005		●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	0210-1005	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	1006-1111		●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	1006-1111	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	1112-	●	●
36	NUT; EXH PIPE 4JB1-TC ENG(RDT) M10 FLANGE	8-97096-192-1	02	1	1112-	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	1112-	●
36	NUT; EXH PIPE EXHAUST BRAKE<NF8> M10 H=18	9-09640-014-0	02	1	0210-1111	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> M10 H=18	9-09640-014-0	02	1	1112-	●
38	NUT; SILENCER 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	04	1	1112-	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	9704-0209		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0210-0602	●	●
38	NUT; SILENCER M10 FLANGE	0-91180-110-0	02	1	0603-1110	●	●
38	NUT; SILENCER 4JB1 ENG(RLF) M10 FLANGE	0-91180-110-0	02	1	1111-	●	●
44	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9704-0204		●
44	BOLT; BRKT TURBOCHARGER<K51> (A) M8X16 FLANGE	0-28080-816-0	02	1	0205-0512		●
44	BOLT; BRKT TURBOCHARGER<K51> (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-1111		●
44	BOLT; BRKT 4JB1 ENG(RLF) TURBOCHARGER<K51> (A) M8X16 FLANGE	0-28050-816-0	02	1	1112-	●	●
44	BOLT; BRKT 4JB1-TC ENG(RDT) (A) M8X16 FLANGE	0-28050-816-0	02	1	1112-	●
44	BOLT; BRKT (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	9704-0209		●
44	BOLT; BRKT (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	0210-0512	●	●
44	BOLT; BRKT (B) M8X40 W/LK WASHER	0-50540-840-0	01	1	0601-	●	●
52	NUT; BRKT 4JB1 ENG(RLF) M8	9-09110-408-0	01	1	0210-0512	●
52	NUT; BRKT 4JB1 ENG(RLF) M8	0-91110-508-0	01	1	0601-1005	●
52	NUT; BRKT 4JB1 ENG(RLF) M8	0-91110-508-0	01	1	1006-1111	●
52	NUT; BRKT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> M8	0-91110-508-0	01	1	1112-	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	9704-0209		●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0210-0909	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●
112	BRACKET; HANGER 4JB1-TC ENG(RDT)	8-97076-018-0	01	1	1112-	●
112	BRACKET; HANGER	8-97081-457-0	01	1	9704-0209		●
112	BRACKET; HANGER	8-97081-457-0	01	1	0210-1111	●	●
112	BRACKET; HANGER 4JB1 ENG(RLF)	8-97081-457-0	01	1	1112-	●	●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	9704-0209		●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	0210-	●	●
114	BRACKET; EXH SILENCER 4JB1-TC ENG(RDT)	8-97073-758-0	01	1	1112-	●
114	BRACKET; EXH SILENCER	8-94329-856-0	01	1	9704-0209		●
114	BRACKET; EXH SILENCER	8-94329-856-0	01	1	0210-1110	●	●
114	BRACKET; EXH SILENCER 4JB1 ENG(RLF)	8-94329-856-0	01	1	1111-	●	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	9704-0209		●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0210-	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	9704-0209		●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0210-	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	9704-0209		●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0210-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	9704-0209		●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0210-	●	●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9704-0209		●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0210-0602	●	●
119	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
122	NUT; HANGER BRKT 4JB1-TC ENG(RDT) (B) M8 FLANGE	0-91180-108-0	02	1	1112-	●
122	NUT; HANGER BRKT (A) M8	9-09110-408-0	01	1	9704-0209		●
122	NUT; HANGER BRKT (A) M8	9-09110-408-0	01	1	0210-0512	●	●
122	NUT; HANGER BRKT (B) M8	0-91110-508-0	01	1	0601-	●	●
168	BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (D)	8-97210-476-0	01	1	1112-	●
168	BRACKET; EXH PIPE,FRT (B)	8-94468-174-1	01	1	9704-		●
168	BRACKET; EXH PIPE,FRT (C)	8-97084-346-2	01	1	9704-0204		●
168	BRACKET; EXH PIPE,FRT TURBOCHARGER<K51> (C)	8-97084-346-2	01	1	0205-1111		●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) TURBOCHARGER<K51> (C)	8-97084-346-2	01	1	1112-	●	●
168	BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (C)	8-97084-346-2	01	1	1112-	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (A)	8-94445-704-0	01	1	0210-1005	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (A)	8-94445-704-0	01	1	1006-1111	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A)	8-94445-704-0	01	1	1112-	●

114 118 117 115 119 113 115 112 103 12 14 122 25 2 38 44 1 2 36 44 168 1 38 36 44 44 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (E)	8-97212-561-2	01	1	1112-	●
1	PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (D)	8-97212-759-3	01	1	1112-	●
1	PIPE; EXH TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-694-0	01	1	9704-1111		●
1	PIPE; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-694-0	01	1	1112-	●	●
1	PIPE; EXH TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> (B)	8-97161-782-0	01	1	9704-1111		●
1	PIPE; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> (B)	8-97161-782-0	01	1	1112-	●	●
1	PIPE; EXH EXHAUST BRAKE<NF8> (C)	8-97102-669-0	01	1	0210-1111	●
1	PIPE; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C)	8-97102-669-0	01	1	1112-	●
1	PIPE; EXH EXC. EXHAUST BRAKE<NF8> (C)	8-97102-668-0	01	1	0210-1111	●
1	PIPE; EXH 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> (C)	8-97102-668-0	01	1	1112-	●
2	GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (B) ID=71	8-94324-194-1	02	1	1112-	●
2	GASKET; PIPE TO MANIF TURBOCHARGER<K51> (A)	8-97069-287-0	01	1	9704-9709		●
2	GASKET; PIPE TO MANIF TURBOCHARGER<K51> (A)	8-97180-750-2	01	1	9710-0209		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97180-750-2	01	1	0210-0408		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97180-750-2	01	1	0210-0408	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97381-456-0	01	1	0409-1005		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	0409-1005	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97381-456-0	01	1	1006-1111		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	1006-1111	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97381-456-0	01	1	1112-	●	●
2	GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (A)	8-97381-456-0	01	1	1112-	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	1112-	●
12	SILENCER ASM; EXH 4JB1-TC ENG(RDT) (B)	8-97221-923-0	01	1	1112-	●
12	SILENCER ASM; EXH TURBOCHARGER<K51> (A)	8-97065-551-0	01	1	9704-0209		●
12	SILENCER ASM; EXH TURBOCHARGER<K51> (A)	8-97065-551-0	01	1	0210-1111		●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97065-551-0	01	1	1112-	●	●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) (A)	8-97049-721-0	01	1	0210-1005	●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) (A)	8-97049-721-0	01	1	1006-1111	●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A)	8-97049-721-0	01	1	1112-	●
14	GASKET; SILENCER TO EXH PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (C) ID=54	8-94328-354-0	01	1	1112-	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9704-0209		●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	0210-1110	●	●
14	GASKET; SILENCER TO EXH PIPE 4JB1 ENG(RLF) (B) ID=64.7	8-94328-352-0	01	1	1111-	●	●
14	GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9704-0209		●
14	GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0210-1111	●	●
14	GASKET; SILENCER TO EXH PIPE 4JB1 ENG(RLF) (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1112-	●	●
25	PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-97206-030-1	01	1	1112-	●
25	PIPE; EXH,BRK VLV TO SILENCER TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-843-0	01	1	9704-1111		●
25	PIPE; EXH,BRK VLV TO SILENCER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-843-0	01	1	1112-	●	●
36	NUT; EXH PIPE TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	9704-0209		●
36	NUT; EXH PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	0210-1005		●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	0210-1005	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	1006-1111		●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	1006-1111	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	1112-	●	●
36	NUT; EXH PIPE 4JB1-TC ENG(RDT) M10 FLANGE	8-97096-192-1	02	1	1112-	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	1112-	●
36	NUT; EXH PIPE EXHAUST BRAKE<NF8> M10 H=18	9-09640-014-0	02	1	0210-1111	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> M10 H=18	9-09640-014-0	02	1	1112-	●
38	NUT; SILENCER 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	04	1	1112-	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	9704-0209		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0210-0602	●	●
38	NUT; SILENCER M10 FLANGE	0-91180-110-0	02	1	0603-1110	●	●
38	NUT; SILENCER 4JB1 ENG(RLF) M10 FLANGE	0-91180-110-0	02	1	1111-	●	●
44	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9704-0204		●
44	BOLT; BRKT TURBOCHARGER<K51> (A) M8X16 FLANGE	0-28080-816-0	02	1	0205-0512		●
44	BOLT; BRKT TURBOCHARGER<K51> (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-1111		●
44	BOLT; BRKT 4JB1 ENG(RLF) TURBOCHARGER<K51> (A) M8X16 FLANGE	0-28050-816-0	02	1	1112-	●	●
44	BOLT; BRKT 4JB1-TC ENG(RDT) (A) M8X16 FLANGE	0-28050-816-0	02	1	1112-	●
44	BOLT; BRKT (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	9704-0209		●
44	BOLT; BRKT (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	0210-0512	●	●
44	BOLT; BRKT (B) M8X40 W/LK WASHER	0-50540-840-0	01	1	0601-	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	9704-0209		●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0210-0909	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●
112	BRACKET; HANGER 4JB1-TC ENG(RDT)	8-97076-018-0	01	1	1112-	●
112	BRACKET; HANGER	8-97081-457-0	01	1	9704-0209		●
112	BRACKET; HANGER	8-97081-457-0	01	1	0210-1111	●	●
112	BRACKET; HANGER 4JB1 ENG(RLF)	8-97081-457-0	01	1	1112-	●	●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	9704-0209		●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	0210-	●	●
114	BRACKET; EXH SILENCER 4JB1-TC ENG(RDT)	8-97073-758-0	01	1	1112-	●
114	BRACKET; EXH SILENCER	8-94329-856-0	01	1	9704-0209		●
114	BRACKET; EXH SILENCER	8-94329-856-0	01	1	0210-1110	●	●
114	BRACKET; EXH SILENCER 4JB1 ENG(RLF)	8-94329-856-0	01	1	1111-	●	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	9704-0209		●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0210-	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	9704-0209		●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0210-	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	9704-0209		●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0210-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	9704-0209		●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0210-	●	●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9704-0209		●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0210-0602	●	●
119	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
122	NUT; HANGER BRKT 4JB1-TC ENG(RDT) (B) M8 FLANGE	0-91180-108-0	02	1	1112-	●
122	NUT; HANGER BRKT (A) M8	9-09110-408-0	01	1	9704-0209		●
122	NUT; HANGER BRKT (A) M8	9-09110-408-0	01	1	0210-0512	●	●
122	NUT; HANGER BRKT (B) M8	0-91110-508-0	01	1	0601-	●	●
168	BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (D)	8-97210-476-0	01	1	1112-	●
168	BRACKET; EXH PIPE,FRT (B)	8-94468-174-1	01	1	9704-		●
168	BRACKET; EXH PIPE,FRT (C)	8-97084-346-2	01	1	9704-0204		●
168	BRACKET; EXH PIPE,FRT TURBOCHARGER<K51> (C)	8-97084-346-2	01	1	0205-1111		●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) TURBOCHARGER<K51> (C)	8-97084-346-2	01	1	1112-	●	●
168	BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (C)	8-97084-346-2	01	1	1112-	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (A)	8-94445-704-0	01	1	0210-1005	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (A)	8-94445-704-0	01	1	1006-1111	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A)	8-94445-704-0	01	1	1112-	●

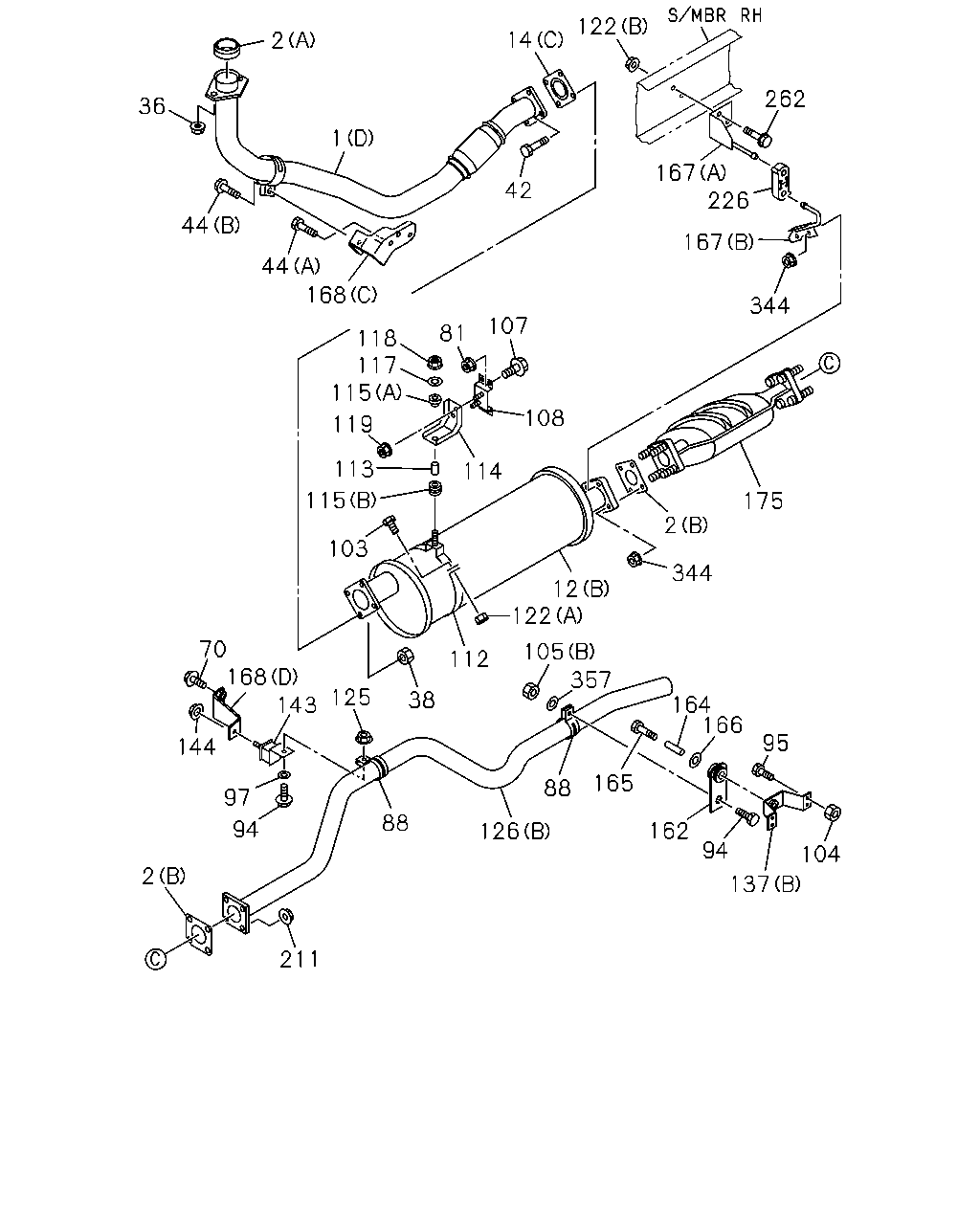

122 14 2 262 36 1 167 226 42 44 167 44 168 344 107 81 118 117 115 108 119 113 114 115 175 2 103 344 12 122 70 168 105 112 357 125 38 164 166 143 95 144 165 88 97 88 94 162 126 94 104 2 137 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (E)	8-97212-561-2	01	1	1112-	●
1	PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (D)	8-97212-759-3	01	1	1112-	●
1	PIPE; EXH TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-694-0	01	1	9704-1111		●
1	PIPE; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-694-0	01	1	1112-	●	●
1	PIPE; EXH TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> (B)	8-97161-782-0	01	1	9704-1111		●
1	PIPE; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> (B)	8-97161-782-0	01	1	1112-	●	●
1	PIPE; EXH EXHAUST BRAKE<NF8> (C)	8-97102-669-0	01	1	0210-1111	●
1	PIPE; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C)	8-97102-669-0	01	1	1112-	●
1	PIPE; EXH EXC. EXHAUST BRAKE<NF8> (C)	8-97102-668-0	01	1	0210-1111	●
1	PIPE; EXH 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> (C)	8-97102-668-0	01	1	1112-	●
2	GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (B) ID=71	8-94324-194-1	02	1	1112-	●
2	GASKET; PIPE TO MANIF TURBOCHARGER<K51> (A)	8-97069-287-0	01	1	9704-9709		●
2	GASKET; PIPE TO MANIF TURBOCHARGER<K51> (A)	8-97180-750-2	01	1	9710-0209		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97180-750-2	01	1	0210-0408		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97180-750-2	01	1	0210-0408	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97381-456-0	01	1	0409-1005		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	0409-1005	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97381-456-0	01	1	1006-1111		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	1006-1111	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97381-456-0	01	1	1112-	●	●
2	GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (A)	8-97381-456-0	01	1	1112-	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	1112-	●
12	SILENCER ASM; EXH 4JB1-TC ENG(RDT) (B)	8-97221-923-0	01	1	1112-	●
12	SILENCER ASM; EXH TURBOCHARGER<K51> (A)	8-97065-551-0	01	1	9704-0209		●
12	SILENCER ASM; EXH TURBOCHARGER<K51> (A)	8-97065-551-0	01	1	0210-1111		●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97065-551-0	01	1	1112-	●	●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) (A)	8-97049-721-0	01	1	0210-1005	●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) (A)	8-97049-721-0	01	1	1006-1111	●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A)	8-97049-721-0	01	1	1112-	●
14	GASKET; SILENCER TO EXH PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (C) ID=54	8-94328-354-0	01	1	1112-	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9704-0209		●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	0210-1110	●	●
14	GASKET; SILENCER TO EXH PIPE 4JB1 ENG(RLF) (B) ID=64.7	8-94328-352-0	01	1	1111-	●	●
14	GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9704-0209		●
14	GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0210-1111	●	●
14	GASKET; SILENCER TO EXH PIPE 4JB1 ENG(RLF) (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1112-	●	●
36	NUT; EXH PIPE TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	9704-0209		●
36	NUT; EXH PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	0210-1005		●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	0210-1005	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	1006-1111		●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	1006-1111	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	1112-	●	●
36	NUT; EXH PIPE 4JB1-TC ENG(RDT) M10 FLANGE	8-97096-192-1	02	1	1112-	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	1112-	●
36	NUT; EXH PIPE EXHAUST BRAKE<NF8> M10 H=18	9-09640-014-0	02	1	0210-1111	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> M10 H=18	9-09640-014-0	02	1	1112-	●
38	NUT; SILENCER 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	04	1	1112-	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	9704-0209		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0210-0602	●	●
38	NUT; SILENCER M10 FLANGE	0-91180-110-0	02	1	0603-1110	●	●
38	NUT; SILENCER 4JB1 ENG(RLF) M10 FLANGE	0-91180-110-0	02	1	1111-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> M8X35 FLANGE	0-28650-835-0	04	1	1112-	●
44	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9704-0204		●
44	BOLT; BRKT TURBOCHARGER<K51> (A) M8X16 FLANGE	0-28080-816-0	02	1	0205-0512		●
44	BOLT; BRKT TURBOCHARGER<K51> (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-1111		●
44	BOLT; BRKT 4JB1 ENG(RLF) TURBOCHARGER<K51> (A) M8X16 FLANGE	0-28050-816-0	02	1	1112-	●	●
44	BOLT; BRKT 4JB1-TC ENG(RDT) (A) M8X16 FLANGE	0-28050-816-0	02	1	1112-	●
44	BOLT; BRKT (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	9704-0209		●
44	BOLT; BRKT (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	0210-0512	●	●
44	BOLT; BRKT (B) M8X40 W/LK WASHER	0-50540-840-0	01	1	0601-	●	●
70	BOLT; BRKT 4JB1-TC ENG(RDT) M10X30 FLANGE	0-28651-030-0	02	1	1112-	●
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9704-0512		●
70	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
81	NUT; BRKT 4JB1-TC ENG(RDT) M10 FLANGE	0-91180-110-0	02	1	1112-	●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9704-0602		●
81	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●
88	CLAMP; EXH PIPE ID=51.5	8-97016-034-0	01	1	9704-9903		●
88	CLAMP; EXH PIPE ID=51.5	8-97016-034-0	01	1	9704-9903		●
88	CLAMP; EXH PIPE ID=51.5	8-97222-648-0	01	1	9904-0112		●
88	CLAMP; EXH PIPE ID=51.5	8-97222-648-0	01	1	9904-0112		●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	0201-0209		●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	0201-0209		●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	0210-1111	●	●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	0210-1111		●
88	CLAMP; EXH PIPE 4JB1 ENG(RLF) ID=51.5	8-97325-352-0	01	1	1112-		●
88	CLAMP; EXH PIPE 4JB1 ENG(RLF) ID=51.5	8-97325-352-0	01	1	1112-		●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1112-	●
88	CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	01	1	1112-	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	9704-0209		●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	9704-0209		●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0210-1111	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0210-1111		●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	1112-	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	1112-		●
94	BOLT; CLAMP 4JB1-TC ENG(RDT) M8X45	0-20800-845-0	01	1	1112-	●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9704-0209		●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0210-0512	●	●
95	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
97	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	9704-0605		●
97	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-1111		●
97	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	1112-		●
97	WASHER; PL,CLAMP 4JB1-TC ENG(RDT) ID=8.4 OD=18	0-91614-608-0	01	1	1112-	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	9704-0209		●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0210-0909	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9704-0209		●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0210-0602	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	9704-0209		●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	0210-0602	●	●
105	NUT; CLAMP (A) M10 FLANGE	0-91180-110-0	02	1	0603-1110	●	●
105	NUT; CLAMP 4JB1 ENG(RLF) (A) M10 FLANGE	0-91180-110-0	02	1	1111-	●	●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	9704-0209		●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0210-0512	●	●
105	NUT; CLAMP (B) M8	0-91110-508-0	01	1	0601-	●	●
107	BOLT; BRKT 4JB1-TC ENG(RDT) M10X30 FLANGE	0-28651-030-0	02	1	1112-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR 4JB1-TC ENG(RDT)	8-94378-511-1	01	1	1112-	●
112	BRACKET; HANGER 4JB1-TC ENG(RDT)	8-97076-018-0	01	1	1112-	●
112	BRACKET; HANGER	8-97081-457-0	01	1	9704-0209		●
112	BRACKET; HANGER	8-97081-457-0	01	1	0210-1111	●	●
112	BRACKET; HANGER 4JB1 ENG(RLF)	8-97081-457-0	01	1	1112-	●	●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	9704-0209		●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	0210-	●	●
114	BRACKET; EXH SILENCER 4JB1-TC ENG(RDT)	8-97073-758-0	01	1	1112-	●
114	BRACKET; EXH SILENCER	8-94329-856-0	01	1	9704-0209		●
114	BRACKET; EXH SILENCER	8-94329-856-0	01	1	0210-1110	●	●
114	BRACKET; EXH SILENCER 4JB1 ENG(RLF)	8-94329-856-0	01	1	1111-	●	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	9704-0209		●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0210-	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	9704-0209		●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0210-	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	9704-0209		●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0210-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	9704-0209		●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0210-	●	●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9704-0209		●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0210-0602	●	●
119	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
122	NUT; HANGER BRKT 4JB1-TC ENG(RDT) (B) M8 FLANGE	0-91180-108-0	02	1	1112-	●
122	NUT; HANGER BRKT (A) M8	9-09110-408-0	01	1	9704-0209		●
122	NUT; HANGER BRKT (A) M8	9-09110-408-0	01	1	0210-0512	●	●
122	NUT; HANGER BRKT (B) M8	0-91110-508-0	01	1	0601-	●	●
125	NUT; CLAMP M8	9-09110-408-0	01	1	9704-0512		●
125	NUT; CLAMP M8	0-91110-508-0	01	1	0601-1111		●
125	NUT; CLAMP M8	0-91110-508-0	01	1	1112-		●
125	NUT; CLAMP 4JB1-TC ENG(RDT) M8	0-91110-508-0	01	1	1112-	●

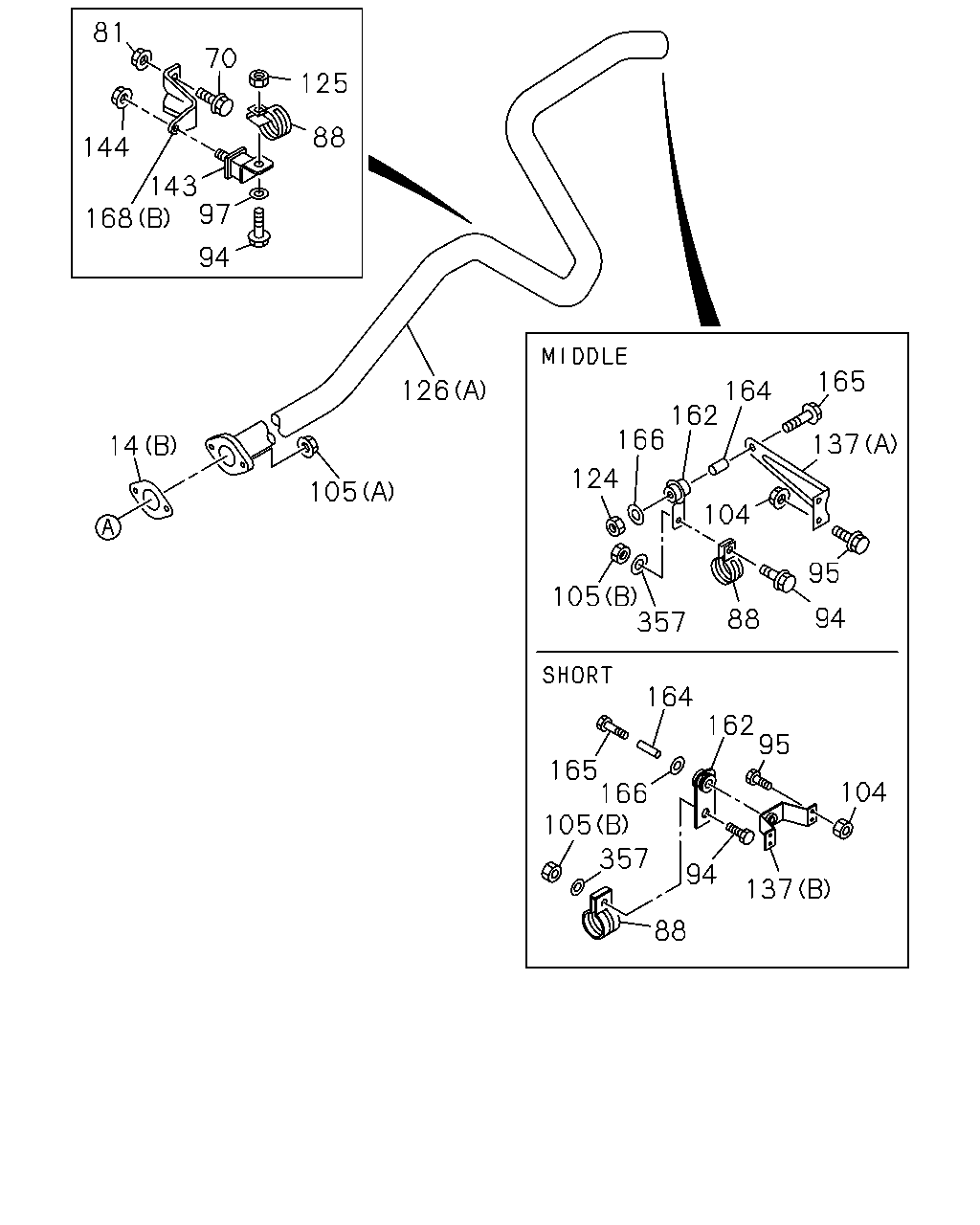

126	PIPE; EXH,RR 4JB1-TC ENG(RDT) (B)	8-97258-860-0	01	1	1112-	●
126	PIPE; EXH,RR 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97161-696-0	01	1	9704-1005		●
126	PIPE; EXH,RR 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97161-696-0	01	1	1006-		●
126	PIPE; EXH,RR 4JB1 ENG(RLF) (A)	8-97081-460-0	01	1	0210-1005	●
126	PIPE; EXH,RR 4JB1 ENG(RLF) (A)	8-97081-460-0	01	1	1006-1111	●
126	PIPE; EXH,RR 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A)	8-97081-460-0	01	1	1112-	●
137	BRACKET; TAIL PIPE (A)	8-94468-175-0	01	1	9704-		●
137	BRACKET; TAIL PIPE (B)	9-22121-146-1	01	1	0210-	●
143	RUBBER; SUPPORT	8-97046-148-1	01	1	9704-9908		●
143	RUBBER; SUPPORT	8-97229-586-0	01	1	9909-0308		●
143	RUBBER; SUPPORT	8-97371-655-1	01	1	0309-1111		●
143	RUBBER; SUPPORT	8-97371-655-1	01	1	1112-		●
143	RUBBER; SUPPORT 4JB1-TC ENG(RDT)	8-97371-655-1	01	1	1112-	●
144	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	9704-0602		●
144	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0603-1111		●
144	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	1112-		●
144	NUT; MTG RUBBER 4JB1-TC ENG(RDT) M8 FLANGE	0-91180-108-0	01	1	1112-	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	9704-		●
162	RUBBER; SUPPORT,TAIL PIPE L=180	8-97222-646-0	01	1	0210-	●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	9704-		●
164	COLLAR; DIST,TAIL PIPE L=23	9-22151-175-0	01	1	0210-	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	9704-0512		●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0601-		●
165	BOLT; SUPPORT RUBBER M8X45 FLANGE	0-28080-845-0	01	1	0210-0512	●
165	BOLT; SUPPORT RUBBER M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	9704-0605		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=8.4 OD=26	9-09164-808-0	01	1	0210-0605	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=8.4 OD=26	0-91614-808-0	01	1	0606-	●
167	HANGER; EXH PIPE 4JB1-TC ENG(RDT) (A)	8-97144-952-0	01	1	1112-	●
167	HANGER; EXH PIPE 4JB1-TC ENG(RDT) (B)	8-97206-510-1	01	1	1112-	●
168	BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (D)	8-97210-476-0	01	1	1112-	●
168	BRACKET; EXH PIPE,FRT (B)	8-94468-174-1	01	1	9704-		●
168	BRACKET; EXH PIPE,FRT (C)	8-97084-346-2	01	1	9704-0204		●
168	BRACKET; EXH PIPE,FRT TURBOCHARGER<K51> (C)	8-97084-346-2	01	1	0205-1111		●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) TURBOCHARGER<K51> (C)	8-97084-346-2	01	1	1112-	●	●
168	BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (C)	8-97084-346-2	01	1	1112-	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (A)	8-94445-704-0	01	1	0210-1005	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (A)	8-94445-704-0	01	1	1006-1111	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A)	8-94445-704-0	01	1	1112-	●
175	CONVERTER; CATALYST 4JB1-TC ENG(RDT)	8-97140-417-2	01	1	1112-	●
211	NUT; CONV 4JB1-TC ENG(RDT) M10 FLANGE	0-91180-110-0	04	1	1112-	●
226	RUBBER; CUSHION 4JB1-TC ENG(RDT)	8-97166-498-1	01	1	1112-	●
262	BOLT; HANGER TO BODY 4JB1-TC ENG(RDT) M8X25 FLANGE	0-28650-825-0	02	1	1112-	●
344	NUT; SILENCER 4JB1-TC ENG(RDT) M10 FLANGE	0-91180-110-0	04	1	1112-	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	9704-0209		●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0210-0605	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●

122 2 25 262 167 18 226 1 167 319 344 36 107 319 118 117 115 44 168 108 119 44 113 114 115 175 2 103 344 12 122 105 70 112 168 143 357 125 164 166 95 144 165 88 97 88 94 162 126 94 104 2 137 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

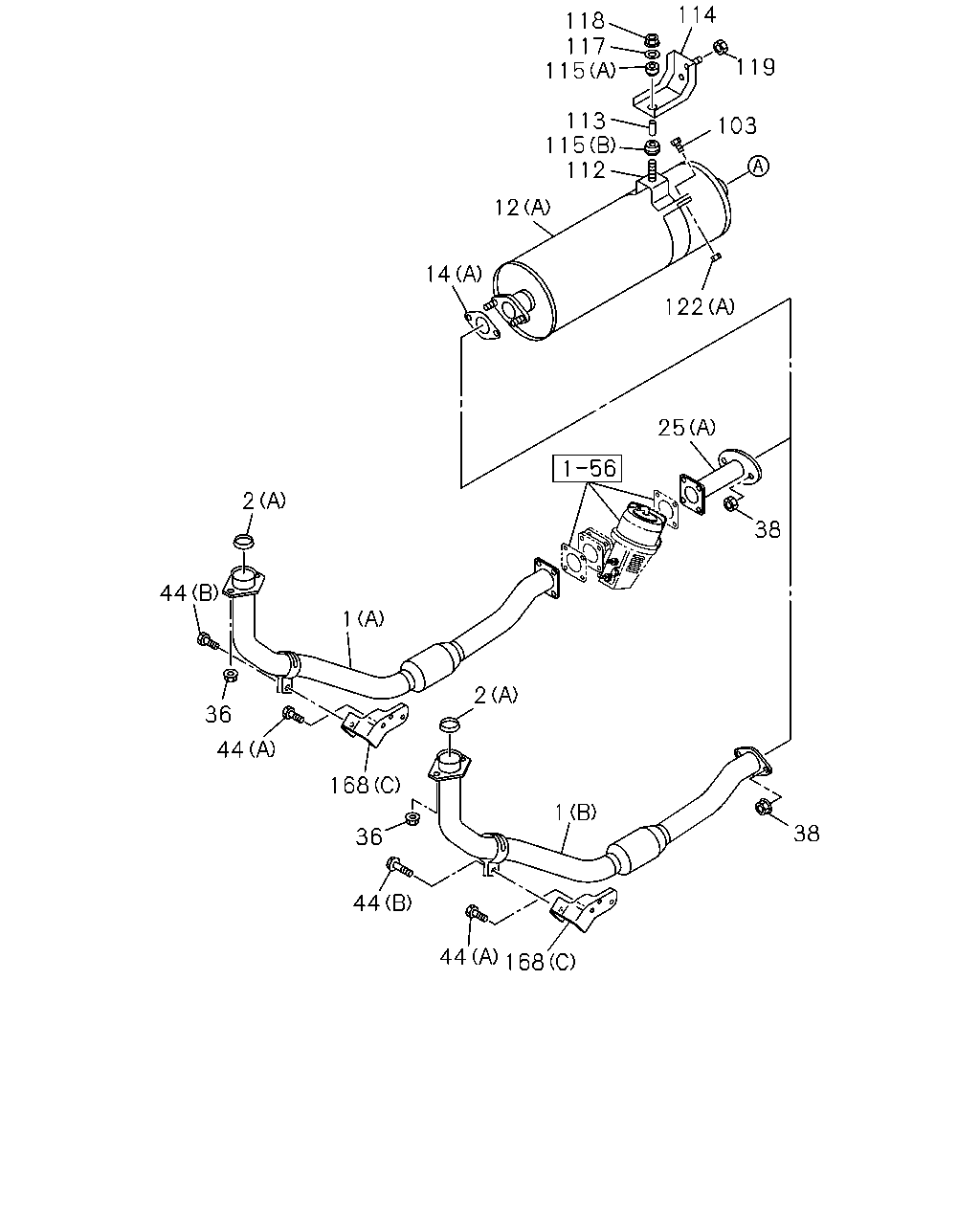

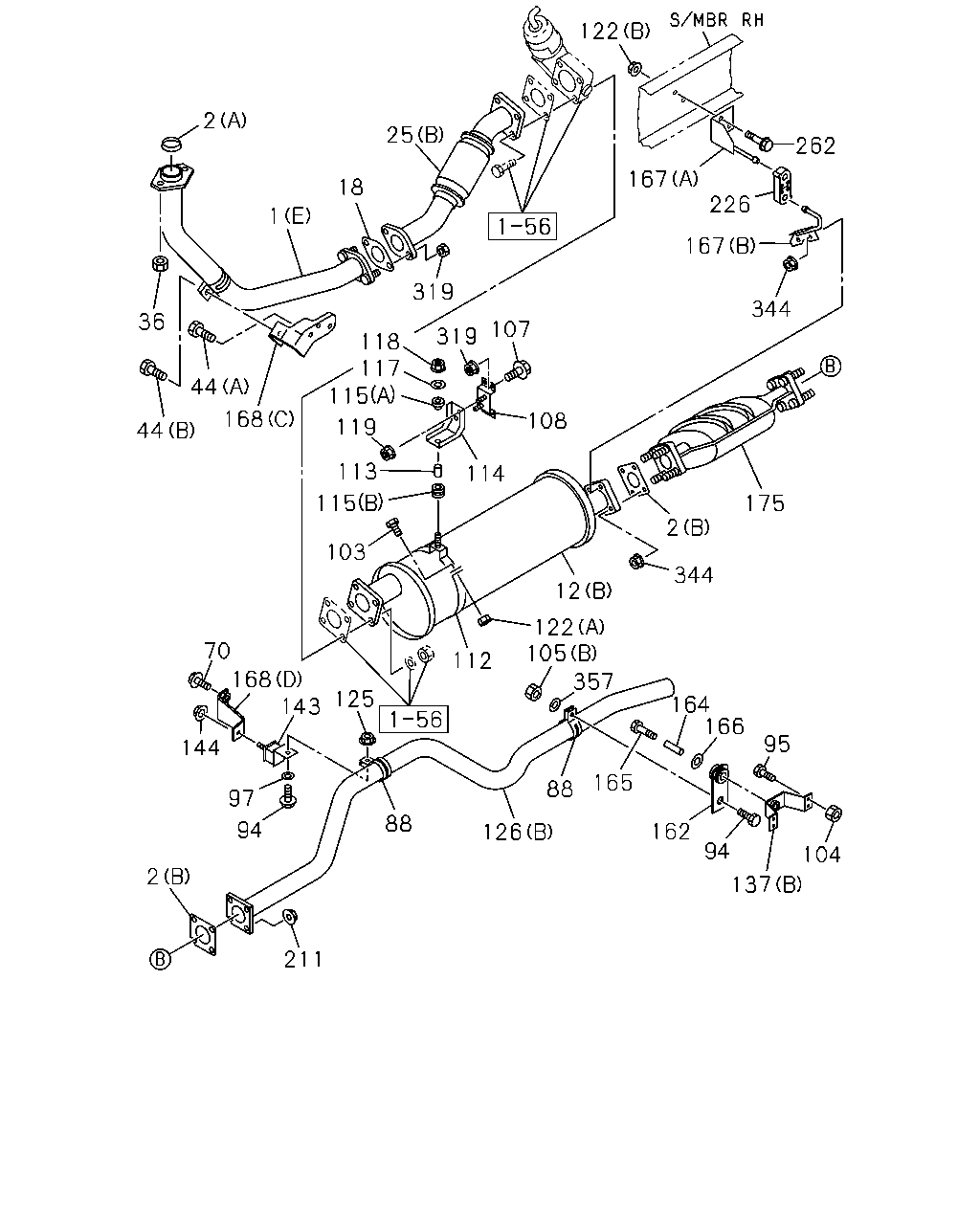

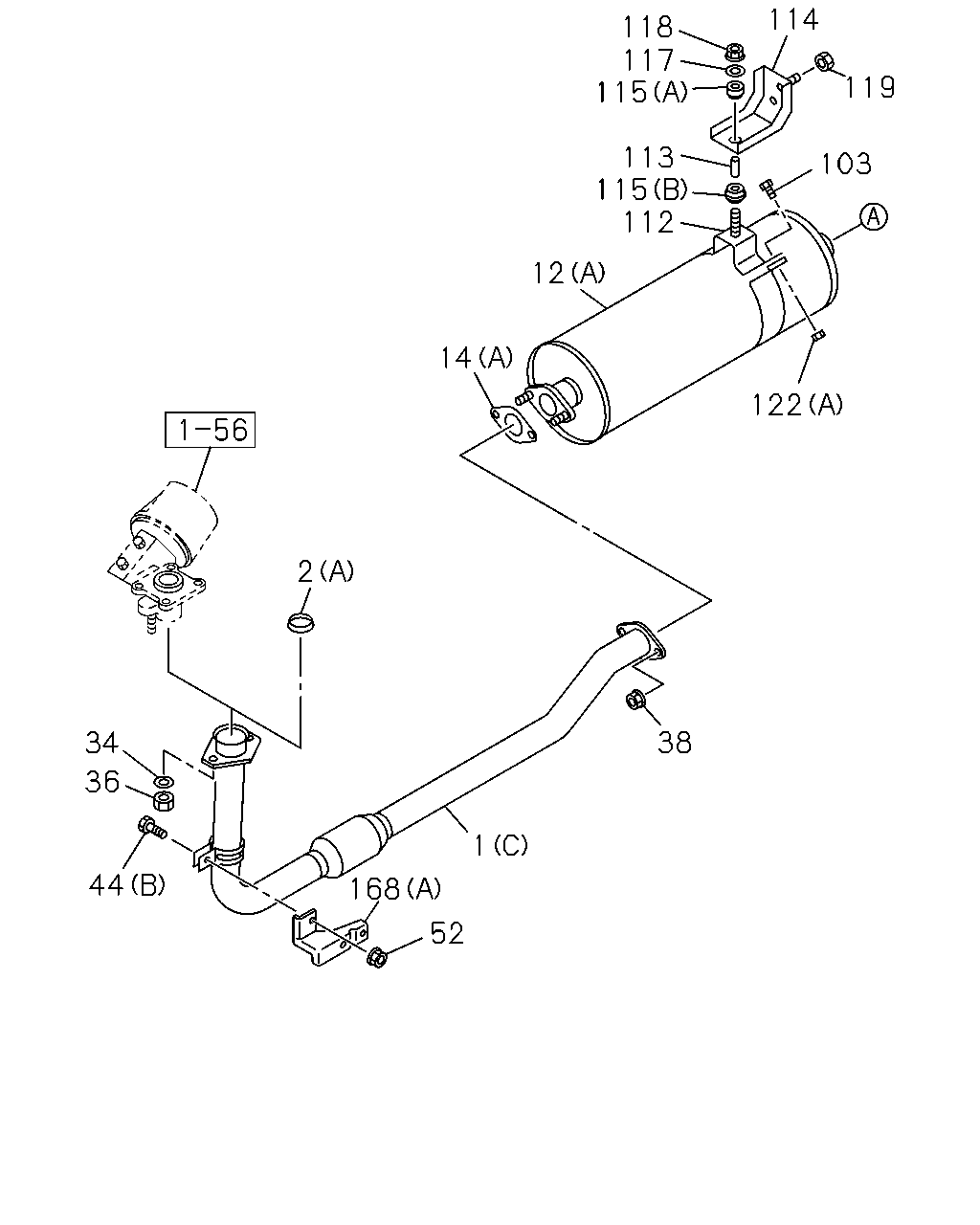

1	PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (E)	8-97212-561-2	01	1	1112-	●
1	PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (D)	8-97212-759-3	01	1	1112-	●
1	PIPE; EXH TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-694-0	01	1	9704-1111		●
1	PIPE; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-694-0	01	1	1112-	●	●
1	PIPE; EXH TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> (B)	8-97161-782-0	01	1	9704-1111		●
1	PIPE; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> (B)	8-97161-782-0	01	1	1112-	●	●
1	PIPE; EXH EXHAUST BRAKE<NF8> (C)	8-97102-669-0	01	1	0210-1111	●
1	PIPE; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C)	8-97102-669-0	01	1	1112-	●
1	PIPE; EXH EXC. EXHAUST BRAKE<NF8> (C)	8-97102-668-0	01	1	0210-1111	●
1	PIPE; EXH 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> (C)	8-97102-668-0	01	1	1112-	●
2	GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (B) ID=71	8-94324-194-1	02	1	1112-	●
2	GASKET; PIPE TO MANIF TURBOCHARGER<K51> (A)	8-97069-287-0	01	1	9704-9709		●
2	GASKET; PIPE TO MANIF TURBOCHARGER<K51> (A)	8-97180-750-2	01	1	9710-0209		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97180-750-2	01	1	0210-0408		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97180-750-2	01	1	0210-0408	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97381-456-0	01	1	0409-1005		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	0409-1005	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97381-456-0	01	1	1006-1111		●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	1006-1111	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97381-456-0	01	1	1112-	●	●
2	GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (A)	8-97381-456-0	01	1	1112-	●
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> (A)	8-97381-456-0	01	1	1112-	●
12	SILENCER ASM; EXH 4JB1-TC ENG(RDT) (B)	8-97221-923-0	01	1	1112-	●
12	SILENCER ASM; EXH TURBOCHARGER<K51> (A)	8-97065-551-0	01	1	9704-0209		●
12	SILENCER ASM; EXH TURBOCHARGER<K51> (A)	8-97065-551-0	01	1	0210-1111		●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97065-551-0	01	1	1112-	●	●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) (A)	8-97049-721-0	01	1	0210-1005	●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) (A)	8-97049-721-0	01	1	1006-1111	●
12	SILENCER ASM; EXH 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A)	8-97049-721-0	01	1	1112-	●
18	GASKET; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1112-	●
25	PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-97206-030-1	01	1	1112-	●
25	PIPE; EXH,BRK VLV TO SILENCER TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-843-0	01	1	9704-1111		●
25	PIPE; EXH,BRK VLV TO SILENCER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A)	8-97161-843-0	01	1	1112-	●	●
36	NUT; EXH PIPE TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	9704-0209		●
36	NUT; EXH PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	0210-1005		●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	0210-1005	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	1006-1111		●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	1006-1111	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> M10 FLANGE	8-97096-192-1	02	1	1112-	●	●
36	NUT; EXH PIPE 4JB1-TC ENG(RDT) M10 FLANGE	8-97096-192-1	02	1	1112-	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	1112-	●
36	NUT; EXH PIPE EXHAUST BRAKE<NF8> M10 H=18	9-09640-014-0	02	1	0210-1111	●
36	NUT; EXH PIPE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> M10 H=18	9-09640-014-0	02	1	1112-	●
44	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9704-0204		●
44	BOLT; BRKT TURBOCHARGER<K51> (A) M8X16 FLANGE	0-28080-816-0	02	1	0205-0512		●
44	BOLT; BRKT TURBOCHARGER<K51> (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-1111		●
44	BOLT; BRKT 4JB1 ENG(RLF) TURBOCHARGER<K51> (A) M8X16 FLANGE	0-28050-816-0	02	1	1112-	●	●
44	BOLT; BRKT 4JB1-TC ENG(RDT) (A) M8X16 FLANGE	0-28050-816-0	02	1	1112-	●
44	BOLT; BRKT (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	9704-0209		●
44	BOLT; BRKT (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	0210-0512	●	●
44	BOLT; BRKT (B) M8X40 W/LK WASHER	0-50540-840-0	01	1	0601-	●	●
70	BOLT; BRKT 4JB1-TC ENG(RDT) M10X30 FLANGE	0-28651-030-0	02	1	1112-	●
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9704-0512		●
70	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
88	CLAMP; EXH PIPE ID=51.5	8-97016-034-0	01	1	9704-9903		●
88	CLAMP; EXH PIPE ID=51.5	8-97016-034-0	01	1	9704-9903		●
88	CLAMP; EXH PIPE ID=51.5	8-97222-648-0	01	1	9904-0112		●
88	CLAMP; EXH PIPE ID=51.5	8-97222-648-0	01	1	9904-0112		●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	0201-0209		●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	0201-0209		●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	0210-1111	●	●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	0210-1111		●
88	CLAMP; EXH PIPE 4JB1 ENG(RLF) ID=51.5	8-97325-352-0	01	1	1112-		●
88	CLAMP; EXH PIPE 4JB1 ENG(RLF) ID=51.5	8-97325-352-0	01	1	1112-		●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1112-	●
88	CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	01	1	1112-	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	9704-0209		●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	9704-0209		●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0210-1111	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0210-1111		●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	1112-	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	1112-		●
94	BOLT; CLAMP 4JB1-TC ENG(RDT) M8X45	0-20800-845-0	01	1	1112-	●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9704-0209		●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0210-0512	●	●
95	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
97	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	9704-0605		●
97	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-1111		●
97	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	1112-		●
97	WASHER; PL,CLAMP 4JB1-TC ENG(RDT) ID=8.4 OD=18	0-91614-608-0	01	1	1112-	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	9704-0209		●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0210-0909	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9704-0209		●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0210-0602	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	9704-0209		●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	0210-0602	●	●
105	NUT; CLAMP (A) M10 FLANGE	0-91180-110-0	02	1	0603-1110	●	●
105	NUT; CLAMP 4JB1 ENG(RLF) (A) M10 FLANGE	0-91180-110-0	02	1	1111-	●	●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	9704-0209		●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0210-0512	●	●
105	NUT; CLAMP (B) M8	0-91110-508-0	01	1	0601-	●	●
107	BOLT; BRKT 4JB1-TC ENG(RDT) M10X30 FLANGE	0-28651-030-0	02	1	1112-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR 4JB1-TC ENG(RDT)	8-94378-511-1	01	1	1112-	●
112	BRACKET; HANGER 4JB1-TC ENG(RDT)	8-97076-018-0	01	1	1112-	●
112	BRACKET; HANGER	8-97081-457-0	01	1	9704-0209		●
112	BRACKET; HANGER	8-97081-457-0	01	1	0210-1111	●	●
112	BRACKET; HANGER 4JB1 ENG(RLF)	8-97081-457-0	01	1	1112-	●	●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	9704-0209		●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	0210-	●	●
114	BRACKET; EXH SILENCER 4JB1-TC ENG(RDT)	8-97073-758-0	01	1	1112-	●
114	BRACKET; EXH SILENCER	8-94329-856-0	01	1	9704-0209		●
114	BRACKET; EXH SILENCER	8-94329-856-0	01	1	0210-1110	●	●
114	BRACKET; EXH SILENCER 4JB1 ENG(RLF)	8-94329-856-0	01	1	1111-	●	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	9704-0209		●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0210-	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	9704-0209		●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0210-	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	9704-0209		●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0210-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	9704-0209		●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0210-	●	●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9704-0209		●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0210-0602	●	●
119	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
122	NUT; HANGER BRKT 4JB1-TC ENG(RDT) (B) M8 FLANGE	0-91180-108-0	02	1	1112-	●
122	NUT; HANGER BRKT (A) M8	9-09110-408-0	01	1	9704-0209		●
122	NUT; HANGER BRKT (A) M8	9-09110-408-0	01	1	0210-0512	●	●
122	NUT; HANGER BRKT (B) M8	0-91110-508-0	01	1	0601-	●	●
125	NUT; CLAMP M8	9-09110-408-0	01	1	9704-0512		●
125	NUT; CLAMP M8	0-91110-508-0	01	1	0601-1111		●
125	NUT; CLAMP M8	0-91110-508-0	01	1	1112-		●
125	NUT; CLAMP 4JB1-TC ENG(RDT) M8	0-91110-508-0	01	1	1112-	●
126	PIPE; EXH,RR 4JB1-TC ENG(RDT) (B)	8-97258-860-0	01	1	1112-	●
126	PIPE; EXH,RR 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97161-696-0	01	1	9704-1005		●
126	PIPE; EXH,RR 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97161-696-0	01	1	1006-		●
126	PIPE; EXH,RR 4JB1 ENG(RLF) (A)	8-97081-460-0	01	1	0210-1005	●
126	PIPE; EXH,RR 4JB1 ENG(RLF) (A)	8-97081-460-0	01	1	1006-1111	●
126	PIPE; EXH,RR 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A)	8-97081-460-0	01	1	1112-	●
137	BRACKET; TAIL PIPE (A)	8-94468-175-0	01	1	9704-		●
137	BRACKET; TAIL PIPE (B)	9-22121-146-1	01	1	0210-	●
143	RUBBER; SUPPORT	8-97046-148-1	01	1	9704-9908		●
143	RUBBER; SUPPORT	8-97229-586-0	01	1	9909-0308		●
143	RUBBER; SUPPORT	8-97371-655-1	01	1	0309-1111		●
143	RUBBER; SUPPORT	8-97371-655-1	01	1	1112-		●
143	RUBBER; SUPPORT 4JB1-TC ENG(RDT)	8-97371-655-1	01	1	1112-	●
144	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	9704-0602		●
144	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0603-1111		●
144	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	1112-		●
144	NUT; MTG RUBBER 4JB1-TC ENG(RDT) M8 FLANGE	0-91180-108-0	01	1	1112-	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	9704-		●
162	RUBBER; SUPPORT,TAIL PIPE L=180	8-97222-646-0	01	1	0210-	●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	9704-		●
164	COLLAR; DIST,TAIL PIPE L=23	9-22151-175-0	01	1	0210-	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	9704-0512		●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0601-		●
165	BOLT; SUPPORT RUBBER M8X45 FLANGE	0-28080-845-0	01	1	0210-0512	●
165	BOLT; SUPPORT RUBBER M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	9704-0605		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=8.4 OD=26	9-09164-808-0	01	1	0210-0605	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=8.4 OD=26	0-91614-808-0	01	1	0606-	●
167	HANGER; EXH PIPE 4JB1-TC ENG(RDT) (A)	8-97144-952-0	01	1	1112-	●
167	HANGER; EXH PIPE 4JB1-TC ENG(RDT) (B)	8-97206-510-1	01	1	1112-	●
168	BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (D)	8-97210-476-0	01	1	1112-	●
168	BRACKET; EXH PIPE,FRT (B)	8-94468-174-1	01	1	9704-		●
168	BRACKET; EXH PIPE,FRT (C)	8-97084-346-2	01	1	9704-0204		●
168	BRACKET; EXH PIPE,FRT TURBOCHARGER<K51> (C)	8-97084-346-2	01	1	0205-1111		●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) TURBOCHARGER<K51> (C)	8-97084-346-2	01	1	1112-	●	●
168	BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (C)	8-97084-346-2	01	1	1112-	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (A)	8-94445-704-0	01	1	0210-1005	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (A)	8-94445-704-0	01	1	1006-1111	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A)	8-94445-704-0	01	1	1112-	●
175	CONVERTER; CATALYST 4JB1-TC ENG(RDT)	8-97140-417-2	01	1	1112-	●
211	NUT; CONV 4JB1-TC ENG(RDT) M10 FLANGE	0-91180-110-0	04	1	1112-	●
226	RUBBER; CUSHION 4JB1-TC ENG(RDT)	8-97166-498-1	01	1	1112-	●
262	BOLT; HANGER TO BODY 4JB1-TC ENG(RDT) M8X25 FLANGE	0-28650-825-0	02	1	1112-	●
319	NUT; PROTECTOR 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> M10 FLANGE	0-91180-110-0	02	1	1112-	●
344	NUT; SILENCER 4JB1-TC ENG(RDT) M10 FLANGE	0-91180-110-0	04	1	1112-	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	9704-0209		●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0210-0605	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●

81 70 125 88 144 143 168 97 94 165 126 164 162 166 137 14 124 105 104 95 105 357 94 88 164 162 95 165 166 105 104 357 94 137 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	GASKET; SILENCER TO EXH PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (C) ID=54	8-94328-354-0	01	1	1112-	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9704-0209		●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	0210-1110	●	●
14	GASKET; SILENCER TO EXH PIPE 4JB1 ENG(RLF) (B) ID=64.7	8-94328-352-0	01	1	1111-	●	●
14	GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9704-0209		●
14	GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0210-1111	●	●
14	GASKET; SILENCER TO EXH PIPE 4JB1 ENG(RLF) (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1112-	●	●
70	BOLT; BRKT 4JB1-TC ENG(RDT) M10X30 FLANGE	0-28651-030-0	02	1	1112-	●
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9704-0512		●
70	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
81	NUT; BRKT 4JB1-TC ENG(RDT) M10 FLANGE	0-91180-110-0	02	1	1112-	●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9704-0602		●
81	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●
88	CLAMP; EXH PIPE ID=51.5	8-97016-034-0	01	1	9704-9903		●
88	CLAMP; EXH PIPE ID=51.5	8-97016-034-0	01	1	9704-9903		●
88	CLAMP; EXH PIPE ID=51.5	8-97222-648-0	01	1	9904-0112		●
88	CLAMP; EXH PIPE ID=51.5	8-97222-648-0	01	1	9904-0112		●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	0201-0209		●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	0201-0209		●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	0210-1111	●	●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	0210-1111		●
88	CLAMP; EXH PIPE 4JB1 ENG(RLF) ID=51.5	8-97325-352-0	01	1	1112-		●
88	CLAMP; EXH PIPE 4JB1 ENG(RLF) ID=51.5	8-97325-352-0	01	1	1112-		●
88	CLAMP; EXH PIPE ID=51.5	8-97325-352-0	01	1	1112-	●
88	CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	01	1	1112-	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	9704-0209		●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	9704-0209		●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0210-1111	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0210-1111		●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	1112-	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	1112-		●
94	BOLT; CLAMP 4JB1-TC ENG(RDT) M8X45	0-20800-845-0	01	1	1112-	●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9704-0209		●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0210-0512	●	●
95	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
97	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	9704-0605		●
97	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-1111		●
97	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	1112-		●
97	WASHER; PL,CLAMP 4JB1-TC ENG(RDT) ID=8.4 OD=18	0-91614-608-0	01	1	1112-	●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9704-0209		●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0210-0602	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	9704-0209		●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	0210-0602	●	●
105	NUT; CLAMP (A) M10 FLANGE	0-91180-110-0	02	1	0603-1110	●	●
105	NUT; CLAMP 4JB1 ENG(RLF) (A) M10 FLANGE	0-91180-110-0	02	1	1111-	●	●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	9704-0209		●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0210-0512	●	●
105	NUT; CLAMP (B) M8	0-91110-508-0	01	1	0601-	●	●
124	NUT; SUPPORT RUBBER M10	9-09110-410-0	01	1	9704-0512		●
124	NUT; SUPPORT RUBBER M10	0-91110-510-0	01	1	0601-		●
125	NUT; CLAMP M8	9-09110-408-0	01	1	9704-0512		●
125	NUT; CLAMP M8	0-91110-508-0	01	1	0601-1111		●
125	NUT; CLAMP M8	0-91110-508-0	01	1	1112-		●
125	NUT; CLAMP 4JB1-TC ENG(RDT) M8	0-91110-508-0	01	1	1112-	●
126	PIPE; EXH,RR 4JB1-TC ENG(RDT) (B)	8-97258-860-0	01	1	1112-	●
126	PIPE; EXH,RR 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97161-696-0	01	1	9704-1005		●
126	PIPE; EXH,RR 4JB1 ENG(RLF) TURBOCHARGER<K51> (A)	8-97161-696-0	01	1	1006-		●
126	PIPE; EXH,RR 4JB1 ENG(RLF) (A)	8-97081-460-0	01	1	0210-1005	●
126	PIPE; EXH,RR 4JB1 ENG(RLF) (A)	8-97081-460-0	01	1	1006-1111	●
126	PIPE; EXH,RR 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A)	8-97081-460-0	01	1	1112-	●
137	BRACKET; TAIL PIPE (A)	8-94468-175-0	01	1	9704-		●
137	BRACKET; TAIL PIPE (B)	9-22121-146-1	01	1	0210-	●
143	RUBBER; SUPPORT	8-97046-148-1	01	1	9704-9908		●
143	RUBBER; SUPPORT	8-97229-586-0	01	1	9909-0308		●
143	RUBBER; SUPPORT	8-97371-655-1	01	1	0309-1111		●
143	RUBBER; SUPPORT	8-97371-655-1	01	1	1112-		●
143	RUBBER; SUPPORT 4JB1-TC ENG(RDT)	8-97371-655-1	01	1	1112-	●
144	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	9704-0602		●
144	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0603-1111		●
144	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	1112-		●
144	NUT; MTG RUBBER 4JB1-TC ENG(RDT) M8 FLANGE	0-91180-108-0	01	1	1112-	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	9704-		●
162	RUBBER; SUPPORT,TAIL PIPE L=180	8-97222-646-0	01	1	0210-	●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	9704-		●
164	COLLAR; DIST,TAIL PIPE L=23	9-22151-175-0	01	1	0210-	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	9704-0512		●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0601-		●
165	BOLT; SUPPORT RUBBER M8X45 FLANGE	0-28080-845-0	01	1	0210-0512	●
165	BOLT; SUPPORT RUBBER M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	9704-0605		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=8.4 OD=26	9-09164-808-0	01	1	0210-0605	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=8.4 OD=26	0-91614-808-0	01	1	0606-	●
168	BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (D)	8-97210-476-0	01	1	1112-	●
168	BRACKET; EXH PIPE,FRT (B)	8-94468-174-1	01	1	9704-		●
168	BRACKET; EXH PIPE,FRT (C)	8-97084-346-2	01	1	9704-0204		●
168	BRACKET; EXH PIPE,FRT TURBOCHARGER<K51> (C)	8-97084-346-2	01	1	0205-1111		●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) TURBOCHARGER<K51> (C)	8-97084-346-2	01	1	1112-	●	●
168	BRACKET; EXH PIPE,FRT 4JB1-TC ENG(RDT) (C)	8-97084-346-2	01	1	1112-	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (A)	8-94445-704-0	01	1	0210-1005	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (A)	8-94445-704-0	01	1	1006-1111	●
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A)	8-94445-704-0	01	1	1112-	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	9704-0209		●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0210-0605	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
