◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50784 - NKR(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶

1-41 — FUEL PIPING; CHASSIS (#72534) — 147 parça

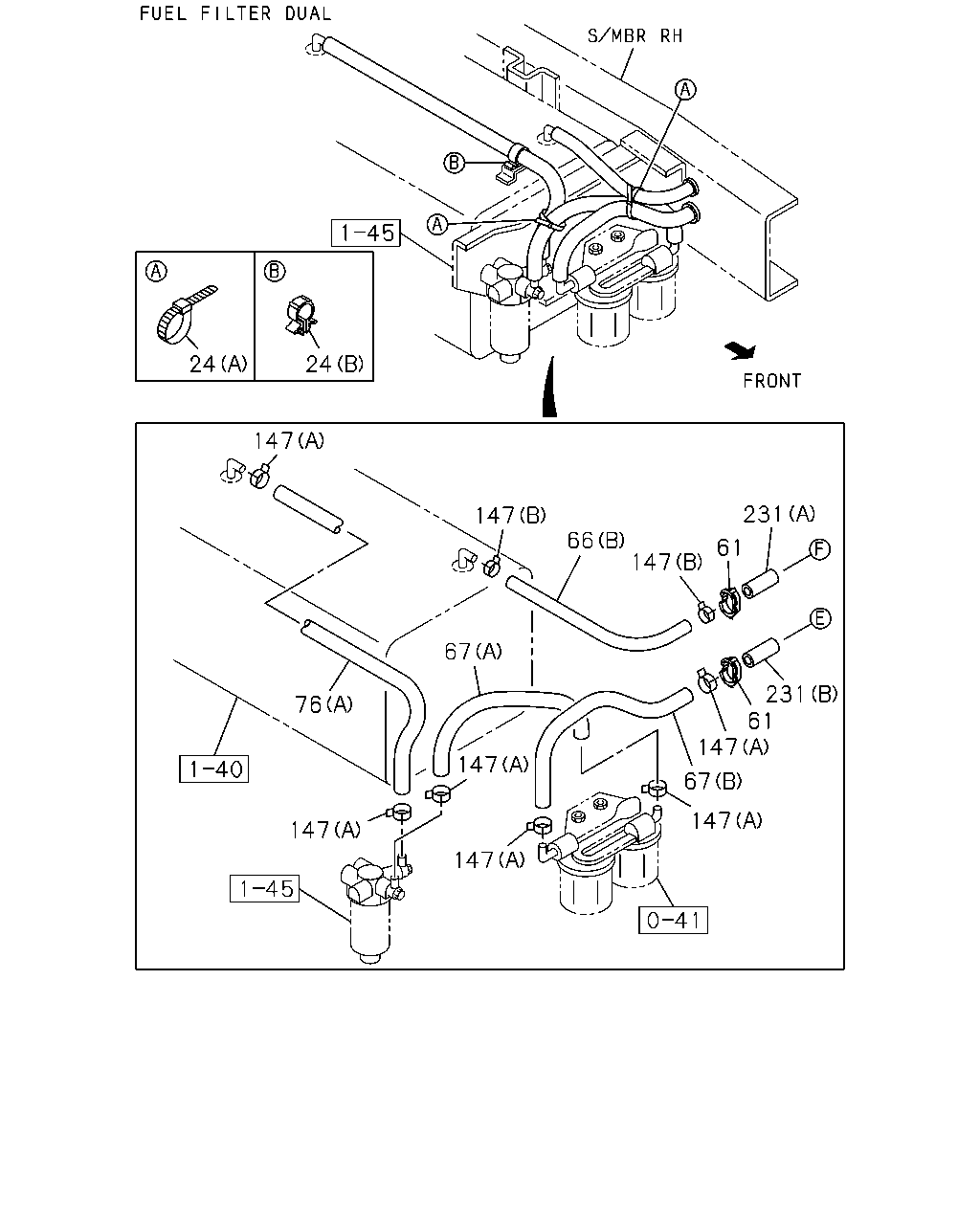

24 24 147 231 147 66 147 61 67 231 61 147 76 147 67 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9704-0209	●
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0210-	●	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=250	5-09707-030-1	01	1	9704-0209	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=250	5-09707-030-1	01	1	0210-	●	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9704-0209	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0210-	●	●
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	9704-0209	●
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0210-1005	●	●
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	1006-1111	●	●
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	1112-	●
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	1112-		●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	9704-0209	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0210-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9704-0209	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0210-	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9704-0209	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0210-	●	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0209	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0210-	●	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0209	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0210-	●	●
76	HOSE; FUEL,TANK (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9704-	●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FUEL FILTER DUAL<S6B> (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9704-1005	●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FUEL FILTER DUAL<S6B> (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	1006-1110	●
76	HOSE; FUEL,TANK EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>,FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0209	●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>,FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0210-1005	●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0210-1005		●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>,FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1006-1110	●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1006-1110		●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1111-1111	●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1111-1111		●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1112-	●
76	HOSE; FUEL,TANK 4JB1-TC ENG(RDT) EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1112-		●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1112-		●
76	HOSE; FUEL,TANK (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0210-		●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0210-1410	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	0210-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	10	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0210-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9704-0307	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9704-0307	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9704-0209	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0210-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9704-0209	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0210-	●	●

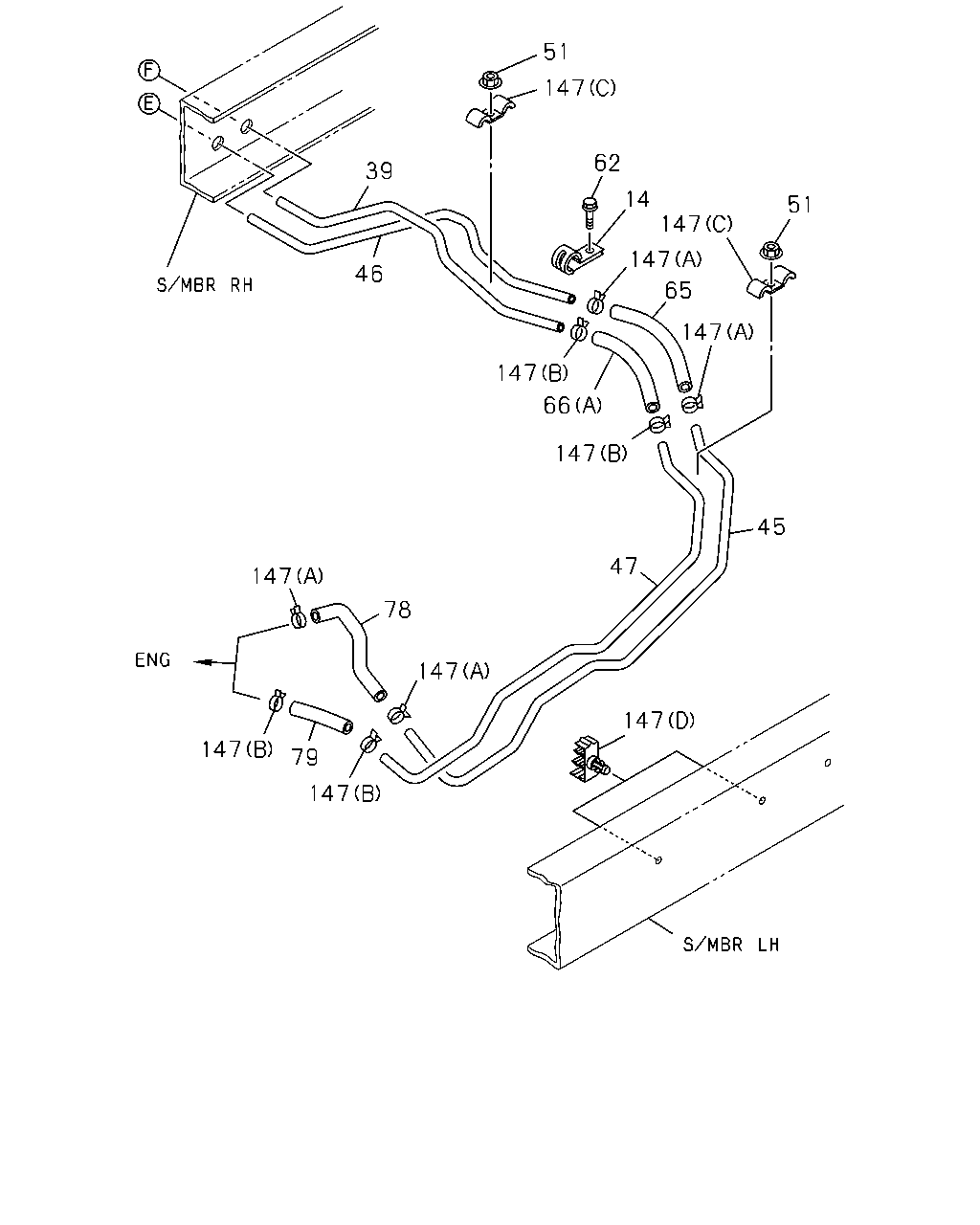

51 147 62 39 14 51 147 147 46 65 147 147 66 147 45 47 147 78 147 147 147 79 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; HOSE 4JB1-TC ENG(RDT) ID=22 L=22	5-83574-045-0	01	1	1112-		●
39	PIPE; FUEL	8-97088-710-2	01	1	9704-1402	●
39	PIPE; FUEL	8-98270-102-0	01	1	1403-	●
39	PIPE; FUEL	8-97090-339-3	01	1	0210-		●
45	PIPE; FUEL,DELIVERY 4JB1-TC ENG(RDT)	8-97260-217-0	01	1	1112-		●
45	PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	9704-1005	●
45	PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	1006-	●
45	PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	0210-1111		●
45	PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97090-340-3	01	1	1112-		●
46	PIPE; FUEL,TANK SIDE	8-97070-373-2	01	1	9704-1402	●
46	PIPE; FUEL,TANK SIDE	8-98270-101-0	01	1	1403-	●
46	PIPE; FUEL,TANK SIDE	8-97075-972-3	01	1	0210-		●
47	PIPE; FUEL,RETURN	8-97088-709-6	01	1	9704-0207	●
47	PIPE; FUEL,RETURN 4JB1 ENG(RLF)	8-97354-091-0	01	1	0208-1005	●
47	PIPE; FUEL,RETURN 4JB1 ENG(RLF)	8-97354-091-0	01	1	1006-	●
47	PIPE; FUEL,RETURN	8-97080-712-5	01	1	0210-		●
51	NUT; CLIP,PIPE M6 FLANGE	0-91150-106-0	03	1	9704-0209	●
51	NUT; CLIP,PIPE M6 FLANGE	0-91150-106-0	03	1	0210-0602	●	●
51	NUT; CLIP,PIPE M6 FLANGE	0-91180-106-0	03	1	0603-	●	●
62	BOLT; CLIP FIX 4JB1-TC ENG(RDT) M6X12 FLANGE	0-28050-612-0	01	1	1112-		●
65	HOSE; FUEL,DELIVERY PIPE L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0209	●
65	HOSE; FUEL,DELIVERY PIPE L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0210-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9704-0209	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0210-	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9704-0209	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0210-	●	●
78	HOSE; FUEL,PUMP TO PIPE 4JB1-TC ENG(RDT)	8-97222-766-0	01	1	1112-		●
78	HOSE; FUEL,PUMP TO PIPE L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0209	●
78	HOSE; FUEL,PUMP TO PIPE L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0210-1111	●	●
78	HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1112-	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9704-0209	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0210-	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0210-1410	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	0210-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	10	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0210-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9704-0307	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9704-0307	●

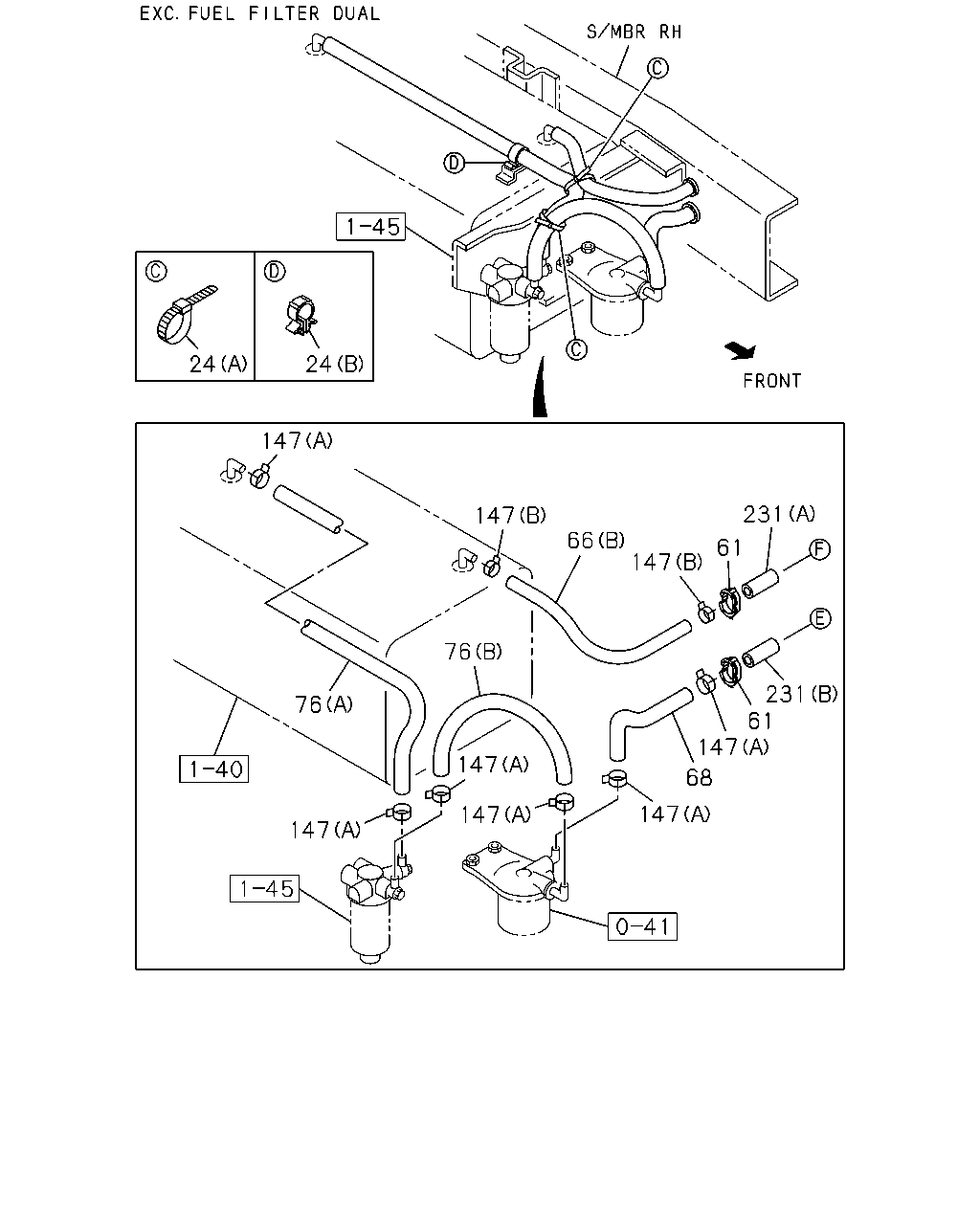

24 24 147 231 147 66 147 61 76 231 61 147 76 147 68 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9704-0209	●
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0210-	●	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=250	5-09707-030-1	01	1	9704-0209	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=250	5-09707-030-1	01	1	0210-	●	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9704-0209	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0210-	●	●
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	9704-0209	●
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0210-1005	●	●
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	1006-1111	●	●
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	1112-	●
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	1112-		●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	9704-0209	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0210-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9704-0209	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0210-	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9704-0209	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0210-	●	●
68	HOSE; FUEL,FILTER TO PIPE 4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FUEL FILTER DUAL<S6B> L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9704-1005	●
68	HOSE; FUEL,FILTER TO PIPE 4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FUEL FILTER DUAL<S6B> L=340 SERVICED BY L=3000	0-01259-300-0	01	1	1006-1110	●
68	HOSE; FUEL,FILTER TO PIPE 4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>,FUEL FILTER DUAL<S6B> L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9704-1005	●
68	HOSE; FUEL,FILTER TO PIPE 4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>,FUEL FILTER DUAL<S6B> L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1006-1110	●
68	HOSE; FUEL,FILTER TO PIPE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B> L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1111-	●
68	HOSE; FUEL,FILTER TO PIPE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	0210-1005		●
68	HOSE; FUEL,FILTER TO PIPE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	1006-1111		●
68	HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	1112-		●
76	HOSE; FUEL,TANK (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9704-	●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FUEL FILTER DUAL<S6B> (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9704-1005	●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FUEL FILTER DUAL<S6B> (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	1006-1110	●
76	HOSE; FUEL,TANK EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>,FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0209	●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>,FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0210-1005	●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0210-1005		●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>,FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1006-1110	●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1006-1110		●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1111-1111	●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1111-1111		●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1112-	●
76	HOSE; FUEL,TANK 4JB1-TC ENG(RDT) EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1112-		●
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1112-		●
76	HOSE; FUEL,TANK (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0210-		●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0210-1410	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	0210-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	10	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0210-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9704-0307	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9704-0307	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9704-0209	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0210-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9704-0209	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0210-	●	●
