Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#72531) — 423 parça

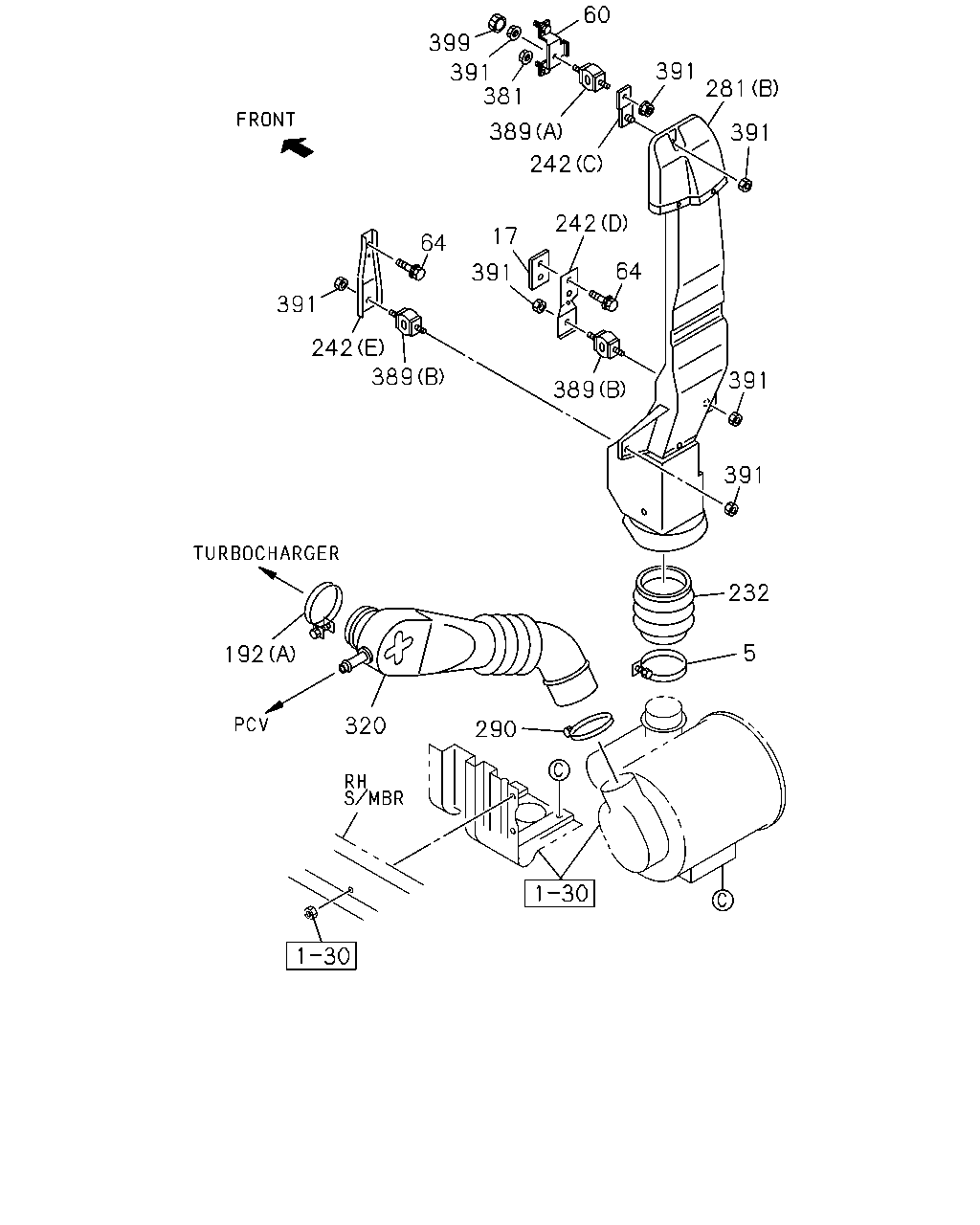

60 399 391 391 381 281 389 391 242 242 17 64 64 391 391 242 389 391 389 391 232 5 192 320 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT ID=87	8-97087-432-0	01	1	9704-0209	●
5	CLIP; AIR DUCT 4JB1 ENG(RLF) ID=87	8-97087-432-0	01	1	0210-1111	●	●
5	CLIP; AIR DUCT ID=87	8-97087-432-0	01	1	1112-	●	●
17	GASKET; AIR DUCT	8-97853-699-2	01	1	9704-0209	●
17	GASKET; AIR DUCT 4JB1 ENG(RLF)	8-97853-699-2	01	1	0210-1111	●	●
17	GASKET; AIR DUCT	8-97853-699-2	01	1	1112-	●	●
60	BRACKET; AIR DUCT,UPR	8-97856-956-0	01	1	9704-0209	●
60	BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF)	8-97856-956-1	01	1	0210-1111	●	●
60	BRACKET; AIR DUCT,UPR	8-97856-956-1	01	1	1112-	●	●
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9704-0209	●
64	BOLT; BRKT,AIR DUCT 4JB1 ENG(RLF) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0210-1111	●	●
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1112-	●	●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (A) ID=40-50	8-98133-347-0	06	1	1112-		●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (B) ID=55-75	8-98133-349-0	02	1	1112-		●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=68-85	8-94320-428-0	01	1	9704-9705	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=92	9-09915-072-1	01	1	9706-9708	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=87	8-97087-432-0	01	1	9709-9902	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=44-60	8-94175-940-0	01	1	9903-0504	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=44-57	1-09707-207-0	01	1	0505-0810	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=40-50	8-98133-347-0	01	1	0811-1110	●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> (A) ID=40-50	8-98133-347-0	01	1	1111-1111	●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> (A) ID=40-50	8-98133-347-0	01	1	1112-	●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (A) ID=40-50	8-98133-347-0	01	1	1112-		●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=40-50	8-98133-347-0	01	1	1112-		●
192	CLIP; HOSE (B) ID=79	9-09915-734-1	02	1	0210-1106		●
232	HOSE; CONN	5-14231-115-1	01	1	9704-0209	●
232	HOSE; CONN 4JB1 ENG(RLF)	5-14231-115-1	01	1	0210-	●	●
232	HOSE; CONN 4JB1-TC ENG(RDT)	8-97224-994-0	01	1	1112-		●
242	BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-97856-932-0	01	1	1112-		●
242	BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97856-933-0	01	1	1112-		●
242	BRACKET; AIR DUCT (B)	8-97856-935-0	01	1	9704-0209	●
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (B)	8-97856-935-0	01	1	0210-	●	●
242	BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	9704-0209	●
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (C)	8-97856-958-0	01	1	0210-1111	●	●
242	BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	1112-	●	●
242	BRACKET; AIR DUCT (A)	8-97856-967-1	01	1	9704-0209	●
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (A)	8-97856-967-1	01	1	0210-	●	●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	9704-0209	●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	0210-1111	●	●
281	DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	1112-	●	●
281	DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97076-959-2	01	1	9704-0209	●
281	DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97076-959-2	01	1	0210-1111	●	●
281	DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97076-959-2	01	1	1112-	●	●
281	DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) (B)	8-94313-520-3	01	1	1112-		●
290	CLIP; ACL TO AIR DUCT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=79	9-09915-734-1	01	1	9704-0209	●
290	CLIP; ACL TO AIR DUCT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=79	9-09915-734-1	01	1	0210-1106	●	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=44-60	8-94126-770-0	01	1	9704-9705	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=60	9-09915-265-1	01	1	9706-9708	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=57	5-09704-051-0	01	1	9709-9902	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=87	8-97087-432-0	01	1	9903-1110	●
290	CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> ID=87	8-97087-432-0	01	1	1111-1111	●
290	CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> ID=87	8-97087-432-0	01	1	1112-	●
290	CLIP; ACL TO AIR DUCT 4JB1-TC ENG(RDT) ID=87	8-97087-432-0	01	1	1112-		●
290	CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=87	8-97087-432-0	01	1	1112-		●
290	CLIP; ACL TO AIR DUCT EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=92	9-09915-072-1	01	1	0210-1106		●
320	HOSE; CONN,ACL TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-97168-373-0	01	1	9704-1110	●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97168-373-0	01	1	1111-1111	●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97168-373-0	01	1	1112-	●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-97168-373-0	01	1	1112-		●
320	HOSE; CONN,ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94412-772-1	01	1	0210-1111		●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. TURBOCHARGER<K51>	8-94412-772-1	01	1	1112-		●
320	HOSE; CONN,ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94110-075-3	01	1	0210-1111		●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94110-075-3	01	1	1112-		●
320	HOSE; CONN,ACL 4JB1-TC ENG(RDT)	8-97205-771-0	01	1	1112-		●
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	9704-0209	●
381	NUT; BRKT,AIR DUCT 4JB1 ENG(RLF) M6 FLANGE	1-09984-018-0	02	1	0210-1111	●	●
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	1112-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-97080-149-0	01	1	9704-0209	●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-97080-149-0	01	1	0210-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-97081-886-0	02	1	9704-0209	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-97081-886-0	02	1	0210-	●	●
391	NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	07	1	9704-0209	●
391	NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) M8 FLANGE	8-94279-517-0	07	1	0210-0910	●	●
391	NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) M8 W/LK WASHER	8-97581-234-0	07	1	0911-1111	●	●
391	NUT; SUPPORT RUBBER,UPR M8 W/LK WASHER	8-97581-234-0	07	1	1112-	●	●
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9704-0209	●
399	CAP; BRKT,AIR DUCT 4JB1 ENG(RLF)	8-94273-605-0	02	1	0210-1110	●	●
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	1111-	●	●

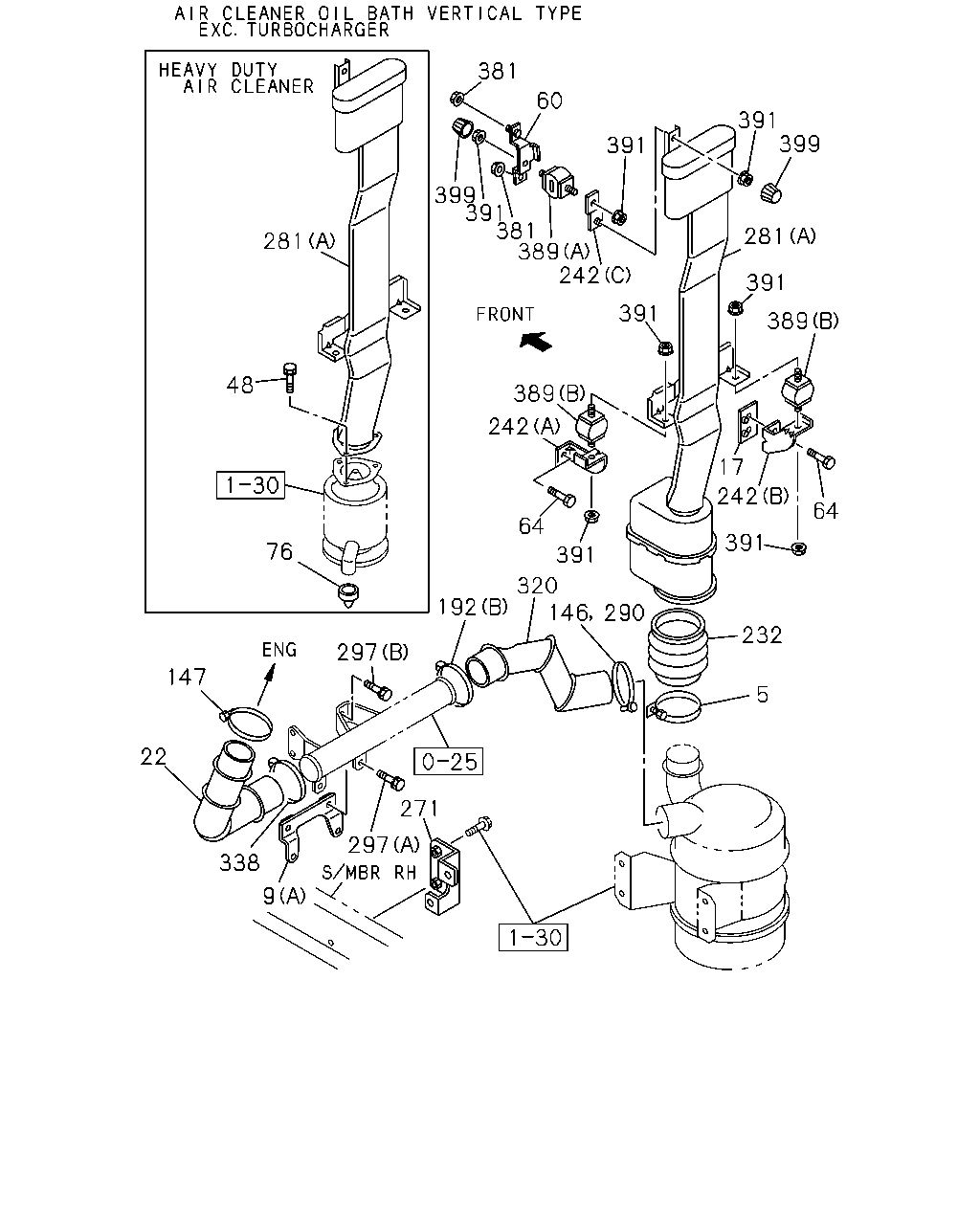

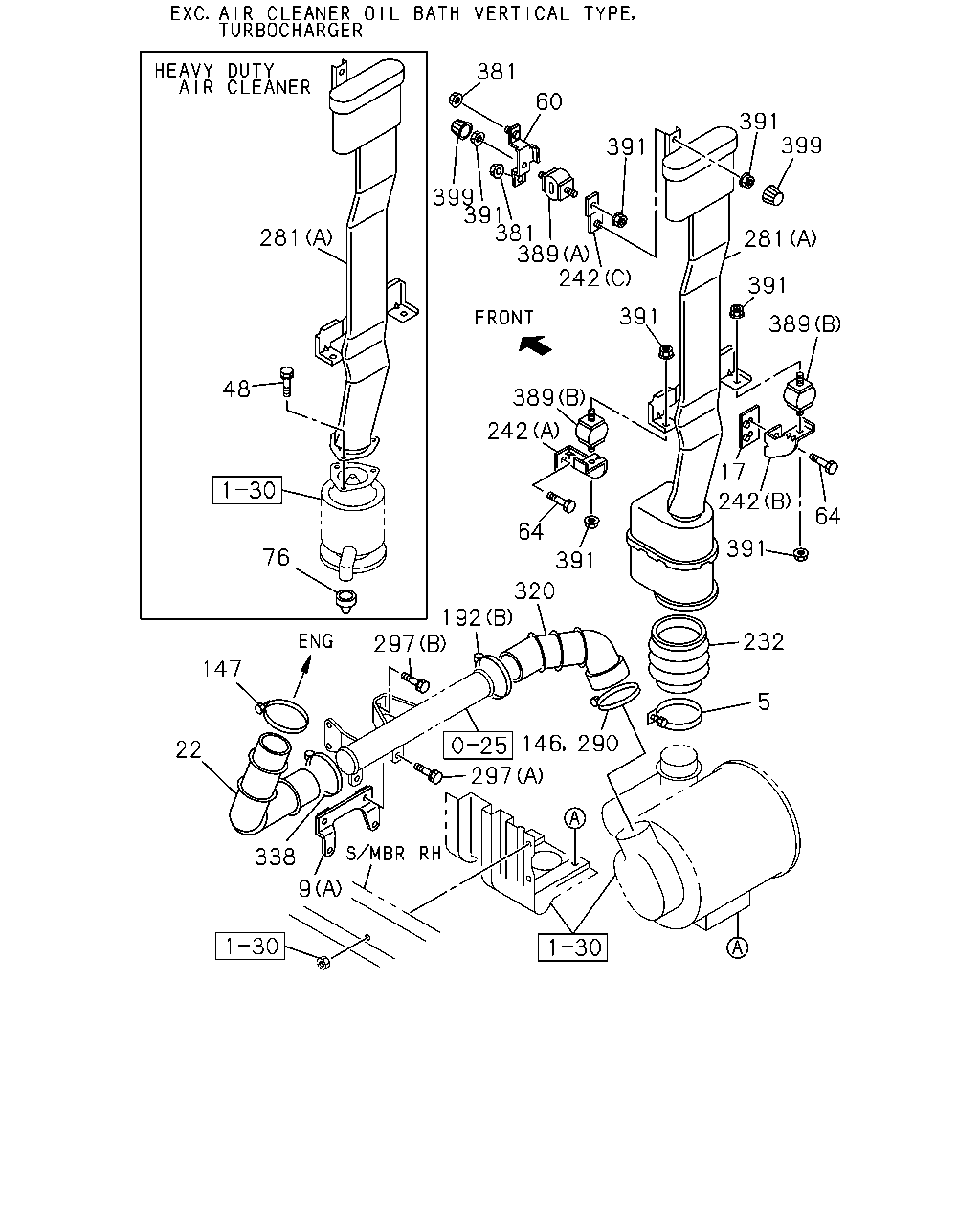

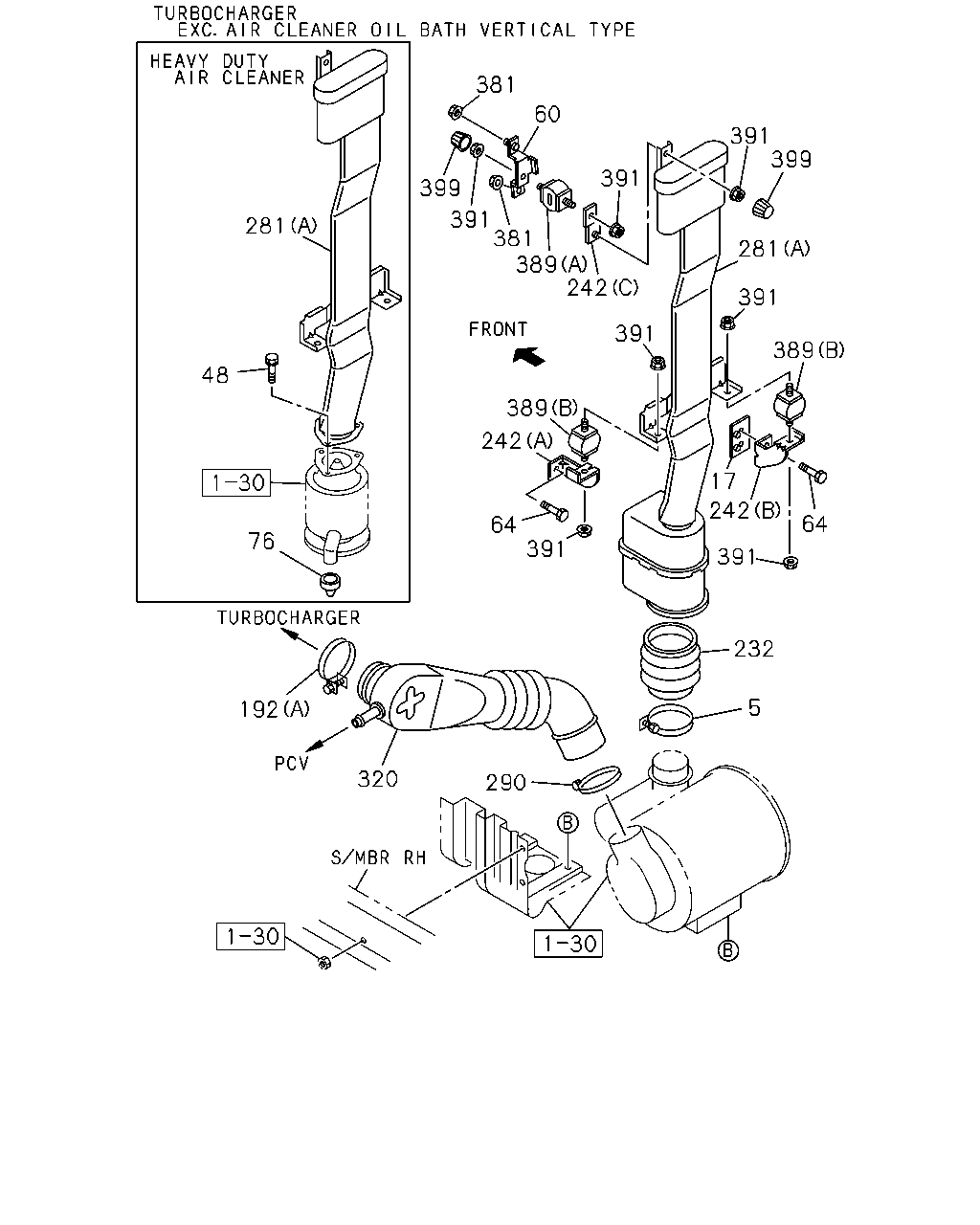

381 60 391 399 391 399 391 381 389 242 281 281 391 391 389 48 389 242 17 242 64 64 391 76 391 232 5 192 320 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT ID=87	8-97087-432-0	01	1	9704-0209	●
5	CLIP; AIR DUCT 4JB1 ENG(RLF) ID=87	8-97087-432-0	01	1	0210-1111	●	●
5	CLIP; AIR DUCT ID=87	8-97087-432-0	01	1	1112-	●	●
17	GASKET; AIR DUCT	8-97853-699-2	01	1	9704-0209	●
17	GASKET; AIR DUCT 4JB1 ENG(RLF)	8-97853-699-2	01	1	0210-1111	●	●
17	GASKET; AIR DUCT	8-97853-699-2	01	1	1112-	●	●
48	BOLT; AIR DUCT HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER	0-50040-818-0	03	1	9704-0209	●
48	BOLT; AIR DUCT HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER	0-50040-818-0	03	1	0210-0909	●	●
48	BOLT; AIR DUCT HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER	0-50540-818-0	03	1	0910-1111	●	●
48	BOLT; AIR DUCT 4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER	0-50540-818-0	03	1	1112-	●	●
60	BRACKET; AIR DUCT,UPR	8-97856-956-0	01	1	9704-0209	●
60	BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF)	8-97856-956-1	01	1	0210-1111	●	●
60	BRACKET; AIR DUCT,UPR	8-97856-956-1	01	1	1112-	●	●
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9704-0209	●
64	BOLT; BRKT,AIR DUCT 4JB1 ENG(RLF) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0210-1111	●	●
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1112-	●	●
76	VALVE; PRE ACL HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	01	1	9704-0209	●
76	VALVE; PRE ACL 4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	01	1	0210-1005	●	●
76	VALVE; PRE ACL 4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	01	1	1006-	●	●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (A) ID=40-50	8-98133-347-0	06	1	1112-		●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (B) ID=55-75	8-98133-349-0	02	1	1112-		●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=68-85	8-94320-428-0	01	1	9704-9705	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=92	9-09915-072-1	01	1	9706-9708	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=87	8-97087-432-0	01	1	9709-9902	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=44-60	8-94175-940-0	01	1	9903-0504	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=44-57	1-09707-207-0	01	1	0505-0810	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=40-50	8-98133-347-0	01	1	0811-1110	●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> (A) ID=40-50	8-98133-347-0	01	1	1111-1111	●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> (A) ID=40-50	8-98133-347-0	01	1	1112-	●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (A) ID=40-50	8-98133-347-0	01	1	1112-		●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=40-50	8-98133-347-0	01	1	1112-		●
192	CLIP; HOSE (B) ID=79	9-09915-734-1	02	1	0210-1106		●
232	HOSE; CONN	5-14231-115-1	01	1	9704-0209	●
232	HOSE; CONN 4JB1 ENG(RLF)	5-14231-115-1	01	1	0210-	●	●
232	HOSE; CONN 4JB1-TC ENG(RDT)	8-97224-994-0	01	1	1112-		●
242	BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-97856-932-0	01	1	1112-		●
242	BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97856-933-0	01	1	1112-		●
242	BRACKET; AIR DUCT (B)	8-97856-935-0	01	1	9704-0209	●
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (B)	8-97856-935-0	01	1	0210-	●	●
242	BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	9704-0209	●
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (C)	8-97856-958-0	01	1	0210-1111	●	●
242	BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	1112-	●	●
242	BRACKET; AIR DUCT (A)	8-97856-967-1	01	1	9704-0209	●
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (A)	8-97856-967-1	01	1	0210-	●	●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	9704-0209	●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	0210-1111	●	●
281	DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	1112-	●	●
281	DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97076-959-2	01	1	9704-0209	●
281	DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97076-959-2	01	1	0210-1111	●	●
281	DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97076-959-2	01	1	1112-	●	●
281	DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) (B)	8-94313-520-3	01	1	1112-		●
290	CLIP; ACL TO AIR DUCT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=79	9-09915-734-1	01	1	9704-0209	●
290	CLIP; ACL TO AIR DUCT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=79	9-09915-734-1	01	1	0210-1106	●	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=44-60	8-94126-770-0	01	1	9704-9705	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=60	9-09915-265-1	01	1	9706-9708	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=57	5-09704-051-0	01	1	9709-9902	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=87	8-97087-432-0	01	1	9903-1110	●
290	CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> ID=87	8-97087-432-0	01	1	1111-1111	●
290	CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> ID=87	8-97087-432-0	01	1	1112-	●
290	CLIP; ACL TO AIR DUCT 4JB1-TC ENG(RDT) ID=87	8-97087-432-0	01	1	1112-		●
290	CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=87	8-97087-432-0	01	1	1112-		●
290	CLIP; ACL TO AIR DUCT EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=92	9-09915-072-1	01	1	0210-1106		●
320	HOSE; CONN,ACL TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-97168-373-0	01	1	9704-1110	●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97168-373-0	01	1	1111-1111	●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97168-373-0	01	1	1112-	●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-97168-373-0	01	1	1112-		●
320	HOSE; CONN,ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94412-772-1	01	1	0210-1111		●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. TURBOCHARGER<K51>	8-94412-772-1	01	1	1112-		●
320	HOSE; CONN,ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94110-075-3	01	1	0210-1111		●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94110-075-3	01	1	1112-		●
320	HOSE; CONN,ACL 4JB1-TC ENG(RDT)	8-97205-771-0	01	1	1112-		●
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	9704-0209	●
381	NUT; BRKT,AIR DUCT 4JB1 ENG(RLF) M6 FLANGE	1-09984-018-0	02	1	0210-1111	●	●
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	1112-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-97080-149-0	01	1	9704-0209	●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-97080-149-0	01	1	0210-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-97081-886-0	02	1	9704-0209	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-97081-886-0	02	1	0210-	●	●
391	NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	07	1	9704-0209	●
391	NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) M8 FLANGE	8-94279-517-0	07	1	0210-0910	●	●
391	NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) M8 W/LK WASHER	8-97581-234-0	07	1	0911-1111	●	●
391	NUT; SUPPORT RUBBER,UPR M8 W/LK WASHER	8-97581-234-0	07	1	1112-	●	●
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9704-0209	●
399	CAP; BRKT,AIR DUCT 4JB1 ENG(RLF)	8-94273-605-0	02	1	0210-1110	●	●
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	1111-	●	●

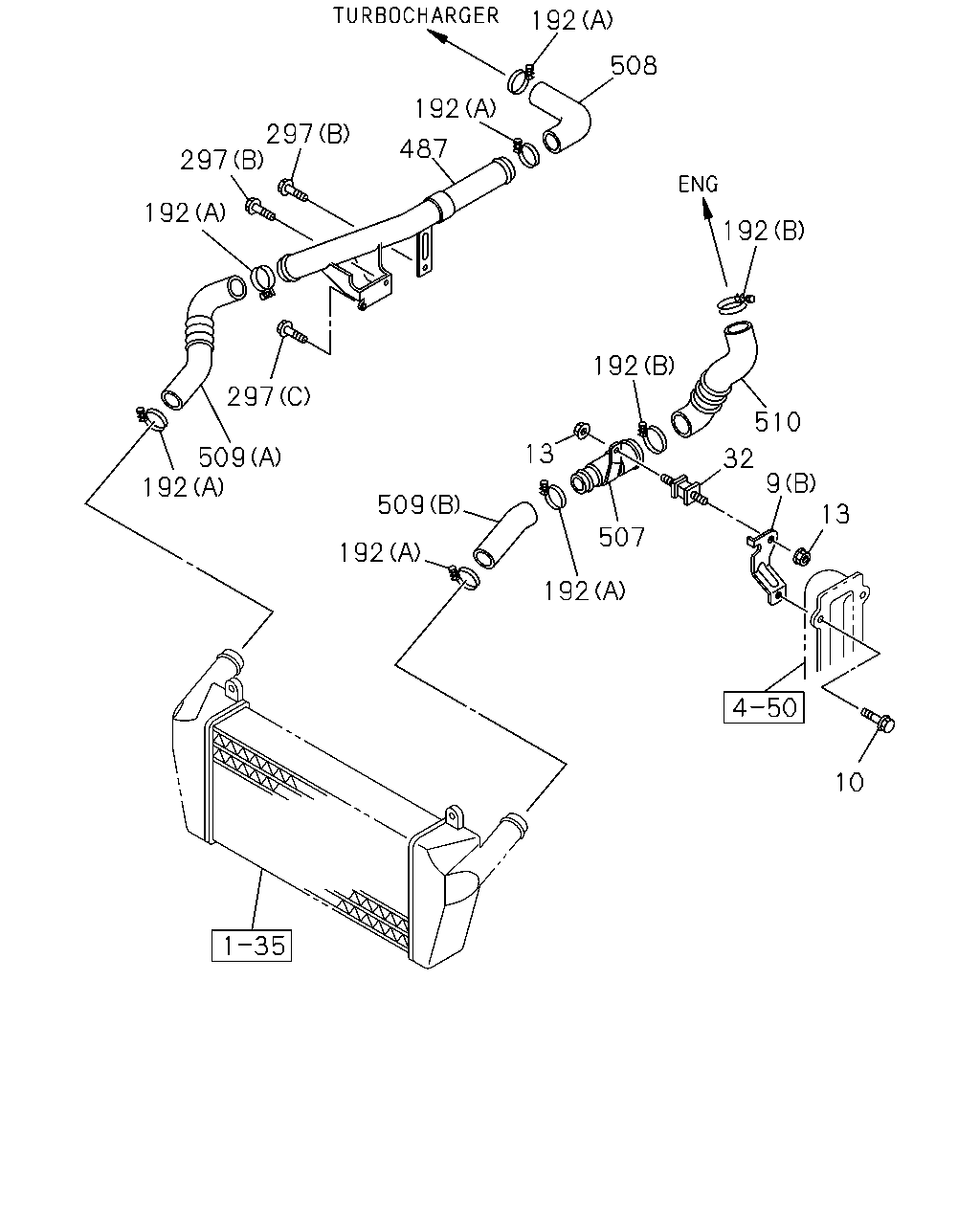

192 508 192 297 297 487 192 192 192 297 510 13 509 192 32 9 13 509 507 192 192 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	BRACKET; INT PIPE (A)	8-94155-425-1	01	1	9704-0209	●
9	BRACKET; INT PIPE 4JB1 ENG(RLF) (A)	8-94155-425-1	01	1	0210-	●	●
9	BRACKET; INT PIPE 4JB1-TC ENG(RDT) (B)	8-97226-059-0	01	1	1112-		●
10	BOLT; BRKT FIX 4JB1-TC ENG(RDT) M8X12 FLANGE	0-28050-812-0	01	1	1112-		●
13	NUT; BRKT FIX 4JB1-TC ENG(RDT) M8 FLANGE	0-91180-108-0	02	1	1112-		●
32	RUBBER; AIR DUCT MTG 4JB1-TC ENG(RDT)	8-94158-155-1	01	1	1112-		●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (A) ID=40-50	8-98133-347-0	06	1	1112-		●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (B) ID=55-75	8-98133-349-0	02	1	1112-		●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=68-85	8-94320-428-0	01	1	9704-9705	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=92	9-09915-072-1	01	1	9706-9708	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=87	8-97087-432-0	01	1	9709-9902	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=44-60	8-94175-940-0	01	1	9903-0504	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=44-57	1-09707-207-0	01	1	0505-0810	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=40-50	8-98133-347-0	01	1	0811-1110	●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> (A) ID=40-50	8-98133-347-0	01	1	1111-1111	●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> (A) ID=40-50	8-98133-347-0	01	1	1112-	●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (A) ID=40-50	8-98133-347-0	01	1	1112-		●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=40-50	8-98133-347-0	01	1	1112-		●
192	CLIP; HOSE (B) ID=79	9-09915-734-1	02	1	0210-1106		●
297	BOLT; DUCT (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	9704-0209	●
297	BOLT; DUCT 4JB1 ENG(RLF) (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	0210-0507	●	●
297	BOLT; DUCT 4JB1 ENG(RLF) (A) M10X16 FLANGE	0-28081-016-0	02	1	0508-0512	●	●
297	BOLT; DUCT 4JB1 ENG(RLF) (A) M10X16 FLANGE	0-28051-016-0	02	1	0601-1106	●	●
297	BOLT; DUCT (A) M10X16 FLANGE	0-28051-016-0	02	1	1107-1111		●
297	BOLT; DUCT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) M10X16 FLANGE	0-28051-016-0	02	1	1112-		●
297	BOLT; DUCT (B) M8X14 W/LK WASHER	0-50040-814-0	01	1	0210-0507		●
297	BOLT; DUCT (B) M8X12 FLANGE	0-28080-812-0	01	1	0508-0512		●
297	BOLT; DUCT (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-1111		●
297	BOLT; DUCT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) M8X12 FLANGE	0-28050-812-0	01	1	1112-		●
297	BOLT; DUCT 4JB1-TC ENG(RDT) (B) M8X12 FLANGE	0-28050-812-0	02	1	1112-		●
297	BOLT; DUCT 4JB1-TC ENG(RDT) (C) M10X12 FLANGE	0-28051-012-0	01	1	1112-		●
487	PIPE; TURBO TO CHARGE AIR COOLER 4JB1-TC ENG(RDT)	8-97216-223-0	01	1	1112-		●
507	PIPE; CHARGE AIR COOLER TO INL MANIF 4JB1-TC ENG(RDT)	8-97228-660-0	01	1	1112-		●
508	HOSE; AIR,TURBO TO PIPE 4JB1-TC ENG(RDT)	8-97217-911-3	01	1	1112-		●
509	HOSE; AIR,PIPE TO CHARGE AIR COOLER 4JB1-TC ENG(RDT) (A)	8-97221-914-3	01	1	1112-		●
509	HOSE; AIR,PIPE TO CHARGE AIR COOLER 4JB1-TC ENG(RDT) (B)	8-97228-657-1	01	1	1112-		●
510	HOSE; AIR,PIPE TO INL MANIF 4JB1-TC ENG(RDT)	8-97228-658-2	01	1	1112-		●

381 60 391 399 391 399 391 381 389 242 281 281 391 391 389 48 389 242 17 242 64 64 391 76 391 320 192 297 232 147 5 146 290 22 297 338 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT ID=87	8-97087-432-0	01	1	9704-0209	●
5	CLIP; AIR DUCT 4JB1 ENG(RLF) ID=87	8-97087-432-0	01	1	0210-1111	●	●
5	CLIP; AIR DUCT ID=87	8-97087-432-0	01	1	1112-	●	●
9	BRACKET; INT PIPE (A)	8-94155-425-1	01	1	9704-0209	●
9	BRACKET; INT PIPE 4JB1 ENG(RLF) (A)	8-94155-425-1	01	1	0210-	●	●
9	BRACKET; INT PIPE 4JB1-TC ENG(RDT) (B)	8-97226-059-0	01	1	1112-		●
17	GASKET; AIR DUCT	8-97853-699-2	01	1	9704-0209	●
17	GASKET; AIR DUCT 4JB1 ENG(RLF)	8-97853-699-2	01	1	0210-1111	●	●
17	GASKET; AIR DUCT	8-97853-699-2	01	1	1112-	●	●
22	HOSE; CONNECTOR,ENG TO PIPE	8-97107-173-1	01	1	0210-1111		●
22	HOSE; CONNECTOR,ENG TO PIPE 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-97107-173-1	01	1	1112-		●
48	BOLT; AIR DUCT HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER	0-50040-818-0	03	1	9704-0209	●
48	BOLT; AIR DUCT HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER	0-50040-818-0	03	1	0210-0909	●	●
48	BOLT; AIR DUCT HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER	0-50540-818-0	03	1	0910-1111	●	●
48	BOLT; AIR DUCT 4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER	0-50540-818-0	03	1	1112-	●	●
60	BRACKET; AIR DUCT,UPR	8-97856-956-0	01	1	9704-0209	●
60	BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF)	8-97856-956-1	01	1	0210-1111	●	●
60	BRACKET; AIR DUCT,UPR	8-97856-956-1	01	1	1112-	●	●
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9704-0209	●
64	BOLT; BRKT,AIR DUCT 4JB1 ENG(RLF) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0210-1111	●	●
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1112-	●	●
76	VALVE; PRE ACL HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	01	1	9704-0209	●
76	VALVE; PRE ACL 4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	01	1	0210-1005	●	●
76	VALVE; PRE ACL 4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	01	1	1006-	●	●
146	CLIP; HOSE,ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=79	9-09915-734-1	01	1	1107-1111		●
146	CLIP; HOSE,ACL 4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. TURBOCHARGER<K51> ID=79	9-09915-734-1	01	1	1112-		●
146	CLIP; HOSE,ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=92	9-09915-072-1	01	1	1107-1111		●
146	CLIP; HOSE,ACL 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=92	9-09915-072-1	01	1	1112-		●
147	CLIP; HOSE TO ENG ID=79	9-09915-734-1	01	1	0210-1111		●
147	CLIP; HOSE TO ENG 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> ID=79	9-09915-734-1	01	1	1112-		●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (A) ID=40-50	8-98133-347-0	06	1	1112-		●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (B) ID=55-75	8-98133-349-0	02	1	1112-		●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=68-85	8-94320-428-0	01	1	9704-9705	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=92	9-09915-072-1	01	1	9706-9708	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=87	8-97087-432-0	01	1	9709-9902	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=44-60	8-94175-940-0	01	1	9903-0504	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=44-57	1-09707-207-0	01	1	0505-0810	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=40-50	8-98133-347-0	01	1	0811-1110	●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> (A) ID=40-50	8-98133-347-0	01	1	1111-1111	●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> (A) ID=40-50	8-98133-347-0	01	1	1112-	●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (A) ID=40-50	8-98133-347-0	01	1	1112-		●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=40-50	8-98133-347-0	01	1	1112-		●
192	CLIP; HOSE (B) ID=79	9-09915-734-1	02	1	0210-1106		●
232	HOSE; CONN	5-14231-115-1	01	1	9704-0209	●
232	HOSE; CONN 4JB1 ENG(RLF)	5-14231-115-1	01	1	0210-	●	●
232	HOSE; CONN 4JB1-TC ENG(RDT)	8-97224-994-0	01	1	1112-		●
242	BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-97856-932-0	01	1	1112-		●
242	BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97856-933-0	01	1	1112-		●
242	BRACKET; AIR DUCT (B)	8-97856-935-0	01	1	9704-0209	●
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (B)	8-97856-935-0	01	1	0210-	●	●
242	BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	9704-0209	●
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (C)	8-97856-958-0	01	1	0210-1111	●	●
242	BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	1112-	●	●
242	BRACKET; AIR DUCT (A)	8-97856-967-1	01	1	9704-0209	●
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (A)	8-97856-967-1	01	1	0210-	●	●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	9704-0209	●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	0210-1111	●	●
281	DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	1112-	●	●
281	DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97076-959-2	01	1	9704-0209	●
281	DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97076-959-2	01	1	0210-1111	●	●
281	DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97076-959-2	01	1	1112-	●	●
281	DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) (B)	8-94313-520-3	01	1	1112-		●
290	CLIP; ACL TO AIR DUCT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=79	9-09915-734-1	01	1	9704-0209	●
290	CLIP; ACL TO AIR DUCT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=79	9-09915-734-1	01	1	0210-1106	●	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=44-60	8-94126-770-0	01	1	9704-9705	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=60	9-09915-265-1	01	1	9706-9708	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=57	5-09704-051-0	01	1	9709-9902	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=87	8-97087-432-0	01	1	9903-1110	●
290	CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> ID=87	8-97087-432-0	01	1	1111-1111	●
290	CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> ID=87	8-97087-432-0	01	1	1112-	●
290	CLIP; ACL TO AIR DUCT 4JB1-TC ENG(RDT) ID=87	8-97087-432-0	01	1	1112-		●
290	CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=87	8-97087-432-0	01	1	1112-		●
290	CLIP; ACL TO AIR DUCT EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=92	9-09915-072-1	01	1	0210-1106		●
297	BOLT; DUCT (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	9704-0209	●
297	BOLT; DUCT 4JB1 ENG(RLF) (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	0210-0507	●	●
297	BOLT; DUCT 4JB1 ENG(RLF) (A) M10X16 FLANGE	0-28081-016-0	02	1	0508-0512	●	●
297	BOLT; DUCT 4JB1 ENG(RLF) (A) M10X16 FLANGE	0-28051-016-0	02	1	0601-1106	●	●
297	BOLT; DUCT (A) M10X16 FLANGE	0-28051-016-0	02	1	1107-1111		●
297	BOLT; DUCT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) M10X16 FLANGE	0-28051-016-0	02	1	1112-		●
297	BOLT; DUCT (B) M8X14 W/LK WASHER	0-50040-814-0	01	1	0210-0507		●
297	BOLT; DUCT (B) M8X12 FLANGE	0-28080-812-0	01	1	0508-0512		●
297	BOLT; DUCT (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-1111		●
297	BOLT; DUCT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) M8X12 FLANGE	0-28050-812-0	01	1	1112-		●
297	BOLT; DUCT 4JB1-TC ENG(RDT) (B) M8X12 FLANGE	0-28050-812-0	02	1	1112-		●
297	BOLT; DUCT 4JB1-TC ENG(RDT) (C) M10X12 FLANGE	0-28051-012-0	01	1	1112-		●
320	HOSE; CONN,ACL TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-97168-373-0	01	1	9704-1110	●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97168-373-0	01	1	1111-1111	●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97168-373-0	01	1	1112-	●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-97168-373-0	01	1	1112-		●
320	HOSE; CONN,ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94412-772-1	01	1	0210-1111		●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. TURBOCHARGER<K51>	8-94412-772-1	01	1	1112-		●
320	HOSE; CONN,ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94110-075-3	01	1	0210-1111		●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94110-075-3	01	1	1112-		●
320	HOSE; CONN,ACL 4JB1-TC ENG(RDT)	8-97205-771-0	01	1	1112-		●
338	CLIP; PIPE ID=79	9-09915-734-1	02	1	1107-1111		●
338	CLIP; PIPE 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> ID=79	9-09915-734-1	02	1	1112-		●
338	CLIP; PIPE ID=79	9-09915-734-1	02	1	0210-1005		●
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	9704-0209	●
381	NUT; BRKT,AIR DUCT 4JB1 ENG(RLF) M6 FLANGE	1-09984-018-0	02	1	0210-1111	●	●
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	1112-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-97080-149-0	01	1	9704-0209	●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-97080-149-0	01	1	0210-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-97081-886-0	02	1	9704-0209	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-97081-886-0	02	1	0210-	●	●
391	NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	07	1	9704-0209	●
391	NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) M8 FLANGE	8-94279-517-0	07	1	0210-0910	●	●
391	NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) M8 W/LK WASHER	8-97581-234-0	07	1	0911-1111	●	●
391	NUT; SUPPORT RUBBER,UPR M8 W/LK WASHER	8-97581-234-0	07	1	1112-	●	●
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9704-0209	●
399	CAP; BRKT,AIR DUCT 4JB1 ENG(RLF)	8-94273-605-0	02	1	0210-1110	●	●
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	1111-	●	●

381 60 391 399 391 399 391 381 389 242 281 281 391 391 389 48 389 242 17 242 64 64 391 76 391 320 192 146 290 232 297 147 5 22 271 297 338 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT ID=87	8-97087-432-0	01	1	9704-0209	●
5	CLIP; AIR DUCT 4JB1 ENG(RLF) ID=87	8-97087-432-0	01	1	0210-1111	●	●
5	CLIP; AIR DUCT ID=87	8-97087-432-0	01	1	1112-	●	●
9	BRACKET; INT PIPE (A)	8-94155-425-1	01	1	9704-0209	●
9	BRACKET; INT PIPE 4JB1 ENG(RLF) (A)	8-94155-425-1	01	1	0210-	●	●
9	BRACKET; INT PIPE 4JB1-TC ENG(RDT) (B)	8-97226-059-0	01	1	1112-		●
17	GASKET; AIR DUCT	8-97853-699-2	01	1	9704-0209	●
17	GASKET; AIR DUCT 4JB1 ENG(RLF)	8-97853-699-2	01	1	0210-1111	●	●
17	GASKET; AIR DUCT	8-97853-699-2	01	1	1112-	●	●
22	HOSE; CONNECTOR,ENG TO PIPE	8-97107-173-1	01	1	0210-1111		●
22	HOSE; CONNECTOR,ENG TO PIPE 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-97107-173-1	01	1	1112-		●
48	BOLT; AIR DUCT HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER	0-50040-818-0	03	1	9704-0209	●
48	BOLT; AIR DUCT HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER	0-50040-818-0	03	1	0210-0909	●	●
48	BOLT; AIR DUCT HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER	0-50540-818-0	03	1	0910-1111	●	●
48	BOLT; AIR DUCT 4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER	0-50540-818-0	03	1	1112-	●	●
60	BRACKET; AIR DUCT,UPR	8-97856-956-0	01	1	9704-0209	●
60	BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF)	8-97856-956-1	01	1	0210-1111	●	●
60	BRACKET; AIR DUCT,UPR	8-97856-956-1	01	1	1112-	●	●
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9704-0209	●
64	BOLT; BRKT,AIR DUCT 4JB1 ENG(RLF) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0210-1111	●	●
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1112-	●	●
76	VALVE; PRE ACL HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	01	1	9704-0209	●
76	VALVE; PRE ACL 4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	01	1	0210-1005	●	●
76	VALVE; PRE ACL 4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	01	1	1006-	●	●
146	CLIP; HOSE,ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=79	9-09915-734-1	01	1	1107-1111		●
146	CLIP; HOSE,ACL 4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. TURBOCHARGER<K51> ID=79	9-09915-734-1	01	1	1112-		●
146	CLIP; HOSE,ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=92	9-09915-072-1	01	1	1107-1111		●
146	CLIP; HOSE,ACL 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=92	9-09915-072-1	01	1	1112-		●
147	CLIP; HOSE TO ENG ID=79	9-09915-734-1	01	1	0210-1111		●
147	CLIP; HOSE TO ENG 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> ID=79	9-09915-734-1	01	1	1112-		●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (A) ID=40-50	8-98133-347-0	06	1	1112-		●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (B) ID=55-75	8-98133-349-0	02	1	1112-		●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=68-85	8-94320-428-0	01	1	9704-9705	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=92	9-09915-072-1	01	1	9706-9708	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=87	8-97087-432-0	01	1	9709-9902	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=44-60	8-94175-940-0	01	1	9903-0504	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=44-57	1-09707-207-0	01	1	0505-0810	●
192	CLIP; HOSE TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=40-50	8-98133-347-0	01	1	0811-1110	●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> (A) ID=40-50	8-98133-347-0	01	1	1111-1111	●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> (A) ID=40-50	8-98133-347-0	01	1	1112-	●
192	CLIP; HOSE 4JB1-TC ENG(RDT) (A) ID=40-50	8-98133-347-0	01	1	1112-		●
192	CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) ID=40-50	8-98133-347-0	01	1	1112-		●
192	CLIP; HOSE (B) ID=79	9-09915-734-1	02	1	0210-1106		●
232	HOSE; CONN	5-14231-115-1	01	1	9704-0209	●
232	HOSE; CONN 4JB1 ENG(RLF)	5-14231-115-1	01	1	0210-	●	●
232	HOSE; CONN 4JB1-TC ENG(RDT)	8-97224-994-0	01	1	1112-		●
242	BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-97856-932-0	01	1	1112-		●
242	BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E)	8-97856-933-0	01	1	1112-		●
242	BRACKET; AIR DUCT (B)	8-97856-935-0	01	1	9704-0209	●
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (B)	8-97856-935-0	01	1	0210-	●	●
242	BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	9704-0209	●
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (C)	8-97856-958-0	01	1	0210-1111	●	●
242	BRACKET; AIR DUCT (C)	8-97856-958-0	01	1	1112-	●	●
242	BRACKET; AIR DUCT (A)	8-97856-967-1	01	1	9704-0209	●
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (A)	8-97856-967-1	01	1	0210-	●	●
271	SPACER; BRKT,ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-97103-375-0	01	1	9704-1106	●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	9704-0209	●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	0210-1111	●	●
281	DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46> (A)	8-97089-948-2	01	1	1112-	●	●
281	DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97076-959-2	01	1	9704-0209	●
281	DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97076-959-2	01	1	0210-1111	●	●
281	DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97076-959-2	01	1	1112-	●	●
281	DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) (B)	8-94313-520-3	01	1	1112-		●
290	CLIP; ACL TO AIR DUCT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=79	9-09915-734-1	01	1	9704-0209	●
290	CLIP; ACL TO AIR DUCT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=79	9-09915-734-1	01	1	0210-1106	●	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=44-60	8-94126-770-0	01	1	9704-9705	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=60	9-09915-265-1	01	1	9706-9708	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=57	5-09704-051-0	01	1	9709-9902	●
290	CLIP; ACL TO AIR DUCT TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=87	8-97087-432-0	01	1	9903-1110	●
290	CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> ID=87	8-97087-432-0	01	1	1111-1111	●
290	CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> ID=87	8-97087-432-0	01	1	1112-	●
290	CLIP; ACL TO AIR DUCT 4JB1-TC ENG(RDT) ID=87	8-97087-432-0	01	1	1112-		●
290	CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=87	8-97087-432-0	01	1	1112-		●
290	CLIP; ACL TO AIR DUCT EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=92	9-09915-072-1	01	1	0210-1106		●
297	BOLT; DUCT (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	9704-0209	●
297	BOLT; DUCT 4JB1 ENG(RLF) (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	0210-0507	●	●
297	BOLT; DUCT 4JB1 ENG(RLF) (A) M10X16 FLANGE	0-28081-016-0	02	1	0508-0512	●	●
297	BOLT; DUCT 4JB1 ENG(RLF) (A) M10X16 FLANGE	0-28051-016-0	02	1	0601-1106	●	●
297	BOLT; DUCT (A) M10X16 FLANGE	0-28051-016-0	02	1	1107-1111		●
297	BOLT; DUCT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (A) M10X16 FLANGE	0-28051-016-0	02	1	1112-		●
297	BOLT; DUCT (B) M8X14 W/LK WASHER	0-50040-814-0	01	1	0210-0507		●
297	BOLT; DUCT (B) M8X12 FLANGE	0-28080-812-0	01	1	0508-0512		●
297	BOLT; DUCT (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-1111		●
297	BOLT; DUCT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> (B) M8X12 FLANGE	0-28050-812-0	01	1	1112-		●
297	BOLT; DUCT 4JB1-TC ENG(RDT) (B) M8X12 FLANGE	0-28050-812-0	02	1	1112-		●
297	BOLT; DUCT 4JB1-TC ENG(RDT) (C) M10X12 FLANGE	0-28051-012-0	01	1	1112-		●
320	HOSE; CONN,ACL TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-97168-373-0	01	1	9704-1110	●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97168-373-0	01	1	1111-1111	●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97168-373-0	01	1	1112-	●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-97168-373-0	01	1	1112-		●
320	HOSE; CONN,ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94412-772-1	01	1	0210-1111		●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. TURBOCHARGER<K51>	8-94412-772-1	01	1	1112-		●
320	HOSE; CONN,ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94110-075-3	01	1	0210-1111		●
320	HOSE; CONN,ACL 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94110-075-3	01	1	1112-		●
320	HOSE; CONN,ACL 4JB1-TC ENG(RDT)	8-97205-771-0	01	1	1112-		●
338	CLIP; PIPE ID=79	9-09915-734-1	02	1	1107-1111		●
338	CLIP; PIPE 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> ID=79	9-09915-734-1	02	1	1112-		●
338	CLIP; PIPE ID=79	9-09915-734-1	02	1	0210-1005		●
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	9704-0209	●
381	NUT; BRKT,AIR DUCT 4JB1 ENG(RLF) M6 FLANGE	1-09984-018-0	02	1	0210-1111	●	●
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	1112-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-97080-149-0	01	1	9704-0209	●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-97080-149-0	01	1	0210-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-97081-886-0	02	1	9704-0209	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-97081-886-0	02	1	0210-	●	●
391	NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	07	1	9704-0209	●
391	NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) M8 FLANGE	8-94279-517-0	07	1	0210-0910	●	●
391	NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) M8 W/LK WASHER	8-97581-234-0	07	1	0911-1111	●	●
391	NUT; SUPPORT RUBBER,UPR M8 W/LK WASHER	8-97581-234-0	07	1	1112-	●	●
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	9704-0209	●
399	CAP; BRKT,AIR DUCT 4JB1 ENG(RLF)	8-94273-605-0	02	1	0210-1110	●	●
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	1111-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
