◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50784 - NKR(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#72530) — 216 parça

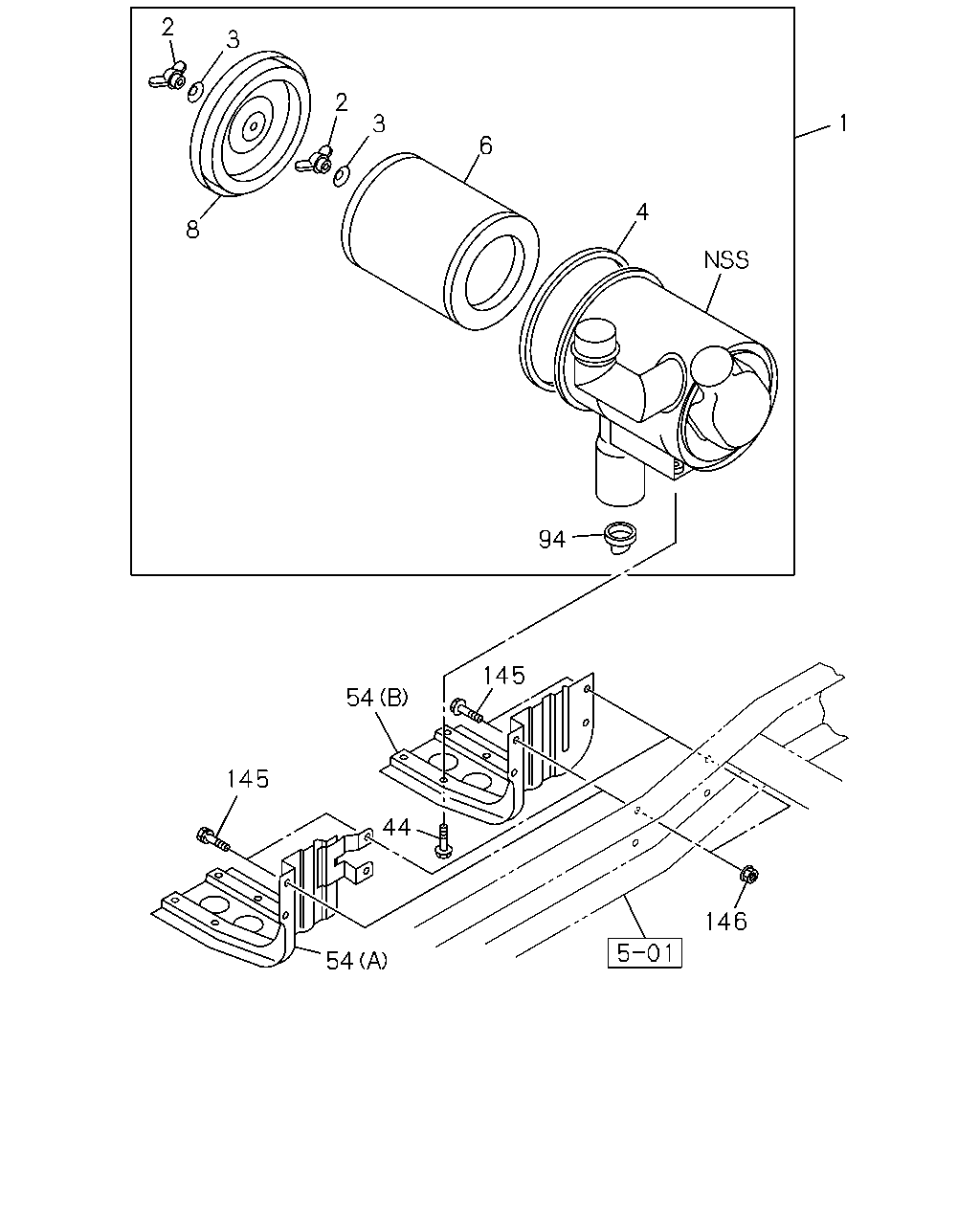

çizim 90805
2 3 2 1 3 6 4 8 94 145 54 145 44 146 5 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94144-298-5 01 1 9704-0209 ●
1 CLEANER ASM; AIR
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94144-298-5 01 1 0210-1110 ● ●
1 CLEANER ASM; AIR
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94144-298-5 01 1 1111- ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94140-289-3 01 1 9704-0209 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94140-289-3 01 1 0210-1110 ● ●
1 CLEANER ASM; AIR
4JB1 ENG(RLF) 		8-94140-289-3 01 1 1111- ●
1 CLEANER ASM; AIR
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94140-289-3 01 1 1111- ●
1 CLEANER ASM; AIR
4JB1-TC ENG(RDT) 		8-97062-053-1 01 1 1112- ●
2 NUT; WING,ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14217-063-0 01 1 9704-0209 ●
2 NUT; WING,ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14217-063-0 01 1 0210-1110 ● ●
2 NUT; WING,ELEMENT
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14217-063-0 01 1 1111- ●
2 NUT; WING,ELEMENT
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14217-068-0 02 1 9704-0209 ●
2 NUT; WING,ELEMENT
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14217-068-0 02 1 0210-1110 ● ●
2 NUT; WING,ELEMENT
4JB1 ENG(RLF) 		1-14217-068-0 02 1 1111-1111 ●
2 NUT; WING,ELEMENT
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14217-068-0 02 1 1111-1111 ●
2 NUT; WING,ELEMENT
4JB1 ENG(RLF) 		1-14217-068-0 02 1 1112- ●
2 NUT; WING,ELEMENT
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14217-068-0 02 1 1112- ●
2 NUT; WING,ELEMENT
4JB1-TC ENG(RDT) 		1-14217-068-0 02 1 1112- ●
3 WASHER; SEAL,WING NUT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14219-005-0 01 1 9704-0209 ●
3 WASHER; SEAL,WING NUT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14219-005-0 01 1 0210-1110 ● ●
3 WASHER; SEAL,WING NUT
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14219-005-0 01 1 1111- ●
3 WASHER; SEAL,WING NUT
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14219-225-0 02 1 9704-0209 ●
3 WASHER; SEAL,WING NUT
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14219-225-0 02 1 0210-1110 ● ●
3 WASHER; SEAL,WING NUT
4JB1 ENG(RLF) 		1-14219-225-0 02 1 1111-1111 ●
3 WASHER; SEAL,WING NUT
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14219-225-0 02 1 1111-1111 ●
3 WASHER; SEAL,WING NUT
4JB1 ENG(RLF) 		1-14219-225-0 02 1 1112- ●
3 WASHER; SEAL,WING NUT
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14219-225-0 02 1 1112- ●
3 WASHER; SEAL,WING NUT
4JB1-TC ENG(RDT) 		1-14219-225-0 02 1 1112- ●
4 GASKET; COVER TO BODY
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14213-012-0 01 1 9704-0209 ●
4 GASKET; COVER TO BODY
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14213-012-0 01 1 0210-1110 ● ●
4 GASKET; COVER TO BODY
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14213-012-0 01 1 1111- ●
4 GASKET; COVER TO BODY
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-051-0 01 1 9704-0209 ●
4 GASKET; COVER TO BODY
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-051-0 01 1 0210-1110 ● ●
4 GASKET; COVER TO BODY
4JB1 ENG(RLF) 		8-94156-051-0 01 1 1111-1111 ●
4 GASKET; COVER TO BODY
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-051-0 01 1 1111-1111 ●
4 GASKET; COVER TO BODY
4JB1 ENG(RLF) 		8-94156-051-0 01 1 1112- ●
4 GASKET; COVER TO BODY
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-051-0 01 1 1112- ●
4 GASKET; COVER TO BODY
4JB1-TC ENG(RDT) 		8-94156-051-0 01 1 1112- ●
5 GASKET; ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) 		9-14213-013-0 01 1 9704-0209 ●
5 GASKET; ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) 		9-14213-013-0 01 1 0210-1110 ● ●
5 GASKET; ELEMENT
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) 		9-14213-013-0 01 1 1111- ●
5 GASKET; ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (B) 		9-14213-014-0 01 1 9704-0209 ●
5 GASKET; ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (B) 		9-14213-014-0 01 1 0210-1110 ● ●
5 GASKET; ELEMENT
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (B) 		9-14213-014-0 01 1 1111- ●
5 GASKET; ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C) 		9-14213-015-0 01 1 9704-0209 ●
5 GASKET; ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C) 		9-14213-015-0 01 1 0210-1110 ● ●
5 GASKET; ELEMENT
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C) 		9-14213-015-0 01 1 1111- ●
6 FILTER; ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-052-0 01 1 9704-0209 ●
6 FILTER; ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-052-0 01 1 0210-1110 ● ●
6 FILTER; ACL
4JB1 ENG(RLF) 		8-94156-052-0 01 1 1111-1111 ●
6 FILTER; ACL
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-052-0 01 1 1111-1111 ●
6 FILTER; ACL
4JB1 ENG(RLF) 		8-94156-052-0 01 1 1112- ●
6 FILTER; ACL
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-052-0 01 1 1112- ●
6 FILTER; ACL
4JB1-TC ENG(RDT) 		8-94156-052-0 01 1 1112- ●
6 FILTER; ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> BEST VALUE PARTS 		5-87610-029-3 01 1 9704-0209 ●
6 FILTER; ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> BEST VALUE PARTS 		5-87610-029-3 01 1 0210-1110 ● ●
6 FILTER; ACL
4JB1 ENG(RLF) BEST VALUE PARTS 		5-87610-029-3 01 1 1111-1111 ●
6 FILTER; ACL
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> BEST VALUE PARTS 		5-87610-029-3 01 1 1111-1111 ●
6 FILTER; ACL
4JB1 ENG(RLF) BEST VALUE PARTS 		5-87610-029-3 01 1 1112- ●
6 FILTER; ACL
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> BEST VALUE PARTS 		5-87610-029-3 01 1 1112- ●
6 FILTER; ACL
4JB1-TC ENG(RDT) BEST VALUE PARTS 		5-87610-029-3 01 1 1112- ●
8 COVER ASM; ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-050-0 01 1 9704-0209 ●
8 COVER ASM; ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-050-0 01 1 0210-1110 ● ●
8 COVER ASM; ACL
4JB1 ENG(RLF) 		8-94156-050-0 01 1 1111-1111 ●
8 COVER ASM; ACL
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-050-0 01 1 1111-1111 ●
8 COVER ASM; ACL
4JB1 ENG(RLF) 		8-94156-050-0 01 1 1112- ●
8 COVER ASM; ACL
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-050-0 01 1 1112- ●
8 COVER ASM; ACL
4JB1-TC ENG(RDT) 		8-94156-050-0 01 1 1112- ●
44 BOLT; ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X28 W/LK WASHER 		0-50041-028-0 04 1 9704-0209 ●
44 BOLT; ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X28 W/LK WASHER 		0-50041-028-0 04 1 0210-0909 ● ●
44 BOLT; ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X28 W/LK WASHER 		0-50541-028-0 04 1 0910-1110 ● ●
44 BOLT; ACL
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X28 W/LK WASHER 		0-50541-028-0 04 1 1111- ●
44 BOLT; ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M8X18 W/LK WASHER 		0-50040-818-0 04 1 9704-0209 ●
44 BOLT; ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M8X18 W/LK WASHER 		0-50040-818-0 04 1 0210-0909 ● ●
44 BOLT; ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M8X18 W/LK WASHER 		0-50540-818-0 04 1 0910-1110 ● ●
44 BOLT; ACL
4JB1 ENG(RLF) M8X18 W/LK WASHER 		0-50540-818-0 04 1 1111-1111 ●
44 BOLT; ACL
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M8X18 W/LK WASHER 		0-50540-818-0 04 1 1111-1111 ●
44 BOLT; ACL
4JB1 ENG(RLF) M8X18 W/LK WASHER 		0-50540-818-0 04 1 1112- ●
44 BOLT; ACL
4JB1-TC ENG(RDT) M8X18 W/LK WASHER 		0-50540-818-0 04 1 1112- ●
44 BOLT; ACL
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M8X18 W/LK WASHER 		0-50540-818-0 04 1 1112- ●
54 BRACKET; ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) 		8-97107-139-0 01 1 9704-0307 ●
54 BRACKET; ACL
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) 		8-97107-139-0 01 1 0308-1005 ●
54 BRACKET; ACL
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) 		8-97107-139-0 01 1 1006-1110 ●
54 BRACKET; ACL
4JB1 ENG(RLF) (A) 		8-97107-139-0 01 1 1111- ●
54 BRACKET; ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (B) 		8-94140-144-3 01 1 0210-1111 ●
54 BRACKET; ACL
4JB1-TC ENG(RDT) (B) 		8-94140-144-3 01 1 1112- ●
54 BRACKET; ACL
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (B) 		8-94140-144-3 01 1 1112- ●
94 VALVE; VACUATOR
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94160-187-0 01 1 9704-0209 ●
94 VALVE; VACUATOR
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94160-187-0 01 1 0210-1110 ● ●
94 VALVE; VACUATOR
4JB1 ENG(RLF) 		8-94160-187-0 01 1 1111-1111 ●
94 VALVE; VACUATOR
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94160-187-0 01 1 1111-1111 ●
94 VALVE; VACUATOR
4JB1 ENG(RLF) 		8-94160-187-0 01 1 1112- ●
94 VALVE; VACUATOR
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94160-187-0 01 1 1112- ●
94 VALVE; VACUATOR
4JB1-TC ENG(RDT) 		8-94160-187-0 01 1 1112- ●
145 BOLT; BRKT TO FRAME
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9704-0512 ●
145 BOLT; BRKT TO FRAME
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X30 W/LK WASHER 		0-50541-030-0 02 1 0601-1106 ●
145 BOLT; BRKT TO FRAME
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X35 FLANGE 		0-28681-035-0 04 1 9704-0209 ●
145 BOLT; BRKT TO FRAME
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X35 FLANGE 		0-28681-035-0 04 1 0210-0512 ● ●
145 BOLT; BRKT TO FRAME
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X35 FLANGE 		0-28651-035-0 04 1 0601-1110 ● ●
145 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) M10X35 FLANGE 		0-28651-035-0 04 1 1111-1111 ●
145 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X35 FLANGE 		0-28651-035-0 04 1 1111-1111 ●
145 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) M10X35 FLANGE 		0-28651-035-0 04 1 1112- ●
145 BOLT; BRKT TO FRAME
4JB1-TC ENG(RDT) M10X35 FLANGE 		0-28651-035-0 04 1 1112- ●
145 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X35 FLANGE 		0-28651-035-0 04 1 1112- ●
145 BOLT; BRKT TO FRAME
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X25 FLANGE 		0-28681-025-0 04 1 0210-0512 ●
145 BOLT; BRKT TO FRAME
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X25 FLANGE 		0-28651-025-0 04 1 0601-1005 ●
146 NUT; BRKT TO FRAME
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE 		0-91150-110-0 04 1 9704-0209 ●
146 NUT; BRKT TO FRAME
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE 		0-91150-110-0 04 1 0210-0602 ● ●
146 NUT; BRKT TO FRAME
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE 		0-91180-110-0 04 1 0603-1110 ● ●
146 NUT; BRKT TO FRAME
4JB1 ENG(RLF) M10 FLANGE 		0-91180-110-0 04 1 1111-1111 ●
146 NUT; BRKT TO FRAME
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE 		0-91180-110-0 04 1 1111-1111 ●
146 NUT; BRKT TO FRAME
4JB1 ENG(RLF) M10 FLANGE 		0-91180-110-0 04 1 1112- ●
146 NUT; BRKT TO FRAME
4JB1-TC ENG(RDT) M10 FLANGE 		0-91180-110-0 04 1 1112- ●
146 NUT; BRKT TO FRAME
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE 		0-91180-110-0 04 1 1112- ●
çizim 91357
49 44 101 26 1 38 5 5 5 27 4 3 2 90 113 102 114 145
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94144-298-5 01 1 9704-0209 ●
1 CLEANER ASM; AIR
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94144-298-5 01 1 0210-1110 ● ●
1 CLEANER ASM; AIR
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94144-298-5 01 1 1111- ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94140-289-3 01 1 9704-0209 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94140-289-3 01 1 0210-1110 ● ●
1 CLEANER ASM; AIR
4JB1 ENG(RLF) 		8-94140-289-3 01 1 1111- ●
1 CLEANER ASM; AIR
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94140-289-3 01 1 1111- ●
1 CLEANER ASM; AIR
4JB1-TC ENG(RDT) 		8-97062-053-1 01 1 1112- ●
2 NUT; WING,ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14217-063-0 01 1 9704-0209 ●
2 NUT; WING,ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14217-063-0 01 1 0210-1110 ● ●
2 NUT; WING,ELEMENT
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14217-063-0 01 1 1111- ●
2 NUT; WING,ELEMENT
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14217-068-0 02 1 9704-0209 ●
2 NUT; WING,ELEMENT
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14217-068-0 02 1 0210-1110 ● ●
2 NUT; WING,ELEMENT
4JB1 ENG(RLF) 		1-14217-068-0 02 1 1111-1111 ●
2 NUT; WING,ELEMENT
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14217-068-0 02 1 1111-1111 ●
2 NUT; WING,ELEMENT
4JB1 ENG(RLF) 		1-14217-068-0 02 1 1112- ●
2 NUT; WING,ELEMENT
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14217-068-0 02 1 1112- ●
2 NUT; WING,ELEMENT
4JB1-TC ENG(RDT) 		1-14217-068-0 02 1 1112- ●
3 WASHER; SEAL,WING NUT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14219-005-0 01 1 9704-0209 ●
3 WASHER; SEAL,WING NUT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14219-005-0 01 1 0210-1110 ● ●
3 WASHER; SEAL,WING NUT
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14219-005-0 01 1 1111- ●
3 WASHER; SEAL,WING NUT
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14219-225-0 02 1 9704-0209 ●
3 WASHER; SEAL,WING NUT
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14219-225-0 02 1 0210-1110 ● ●
3 WASHER; SEAL,WING NUT
4JB1 ENG(RLF) 		1-14219-225-0 02 1 1111-1111 ●
3 WASHER; SEAL,WING NUT
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14219-225-0 02 1 1111-1111 ●
3 WASHER; SEAL,WING NUT
4JB1 ENG(RLF) 		1-14219-225-0 02 1 1112- ●
3 WASHER; SEAL,WING NUT
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		1-14219-225-0 02 1 1112- ●
3 WASHER; SEAL,WING NUT
4JB1-TC ENG(RDT) 		1-14219-225-0 02 1 1112- ●
4 GASKET; COVER TO BODY
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14213-012-0 01 1 9704-0209 ●
4 GASKET; COVER TO BODY
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14213-012-0 01 1 0210-1110 ● ●
4 GASKET; COVER TO BODY
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14213-012-0 01 1 1111- ●
4 GASKET; COVER TO BODY
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-051-0 01 1 9704-0209 ●
4 GASKET; COVER TO BODY
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-051-0 01 1 0210-1110 ● ●
4 GASKET; COVER TO BODY
4JB1 ENG(RLF) 		8-94156-051-0 01 1 1111-1111 ●
4 GASKET; COVER TO BODY
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-051-0 01 1 1111-1111 ●
4 GASKET; COVER TO BODY
4JB1 ENG(RLF) 		8-94156-051-0 01 1 1112- ●
4 GASKET; COVER TO BODY
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94156-051-0 01 1 1112- ●
4 GASKET; COVER TO BODY
4JB1-TC ENG(RDT) 		8-94156-051-0 01 1 1112- ●
5 GASKET; ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) 		9-14213-013-0 01 1 9704-0209 ●
5 GASKET; ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) 		9-14213-013-0 01 1 0210-1110 ● ●
5 GASKET; ELEMENT
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A) 		9-14213-013-0 01 1 1111- ●
5 GASKET; ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (B) 		9-14213-014-0 01 1 9704-0209 ●
5 GASKET; ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (B) 		9-14213-014-0 01 1 0210-1110 ● ●
5 GASKET; ELEMENT
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (B) 		9-14213-014-0 01 1 1111- ●
5 GASKET; ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C) 		9-14213-015-0 01 1 9704-0209 ●
5 GASKET; ELEMENT
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C) 		9-14213-015-0 01 1 0210-1110 ● ●
5 GASKET; ELEMENT
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C) 		9-14213-015-0 01 1 1111- ●
26 FILTER; ACL,INNER
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		5-14215-042-0 01 1 9704-0209 ●
26 FILTER; ACL,INNER
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		5-14215-042-0 01 1 0210-1110 ● ●
26 FILTER; ACL,INNER
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		5-14215-042-0 01 1 1111- ●
27 FILTER; ACL,OUTER
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		5-14215-044-0 01 1 9704-0209 ●
27 FILTER; ACL,OUTER
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		5-14215-044-0 01 1 0210-1110 ● ●
27 FILTER; ACL,OUTER
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		5-14215-044-0 01 1 1111- ●
38 SPACER; ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		5-14219-048-0 01 1 9704-0209 ●
38 SPACER; ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		5-14219-048-0 01 1 0210-1110 ● ●
38 SPACER; ACL
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		5-14219-048-0 01 1 1111- ●
44 BOLT; ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X28 W/LK WASHER 		0-50041-028-0 04 1 9704-0209 ●
44 BOLT; ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X28 W/LK WASHER 		0-50041-028-0 04 1 0210-0909 ● ●
44 BOLT; ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X28 W/LK WASHER 		0-50541-028-0 04 1 0910-1110 ● ●
44 BOLT; ACL
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X28 W/LK WASHER 		0-50541-028-0 04 1 1111- ●
44 BOLT; ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M8X18 W/LK WASHER 		0-50040-818-0 04 1 9704-0209 ●
44 BOLT; ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M8X18 W/LK WASHER 		0-50040-818-0 04 1 0210-0909 ● ●
44 BOLT; ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M8X18 W/LK WASHER 		0-50540-818-0 04 1 0910-1110 ● ●
44 BOLT; ACL
4JB1 ENG(RLF) M8X18 W/LK WASHER 		0-50540-818-0 04 1 1111-1111 ●
44 BOLT; ACL
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M8X18 W/LK WASHER 		0-50540-818-0 04 1 1111-1111 ●
44 BOLT; ACL
4JB1 ENG(RLF) M8X18 W/LK WASHER 		0-50540-818-0 04 1 1112- ●
44 BOLT; ACL
4JB1-TC ENG(RDT) M8X18 W/LK WASHER 		0-50540-818-0 04 1 1112- ●
44 BOLT; ACL
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M8X18 W/LK WASHER 		0-50540-818-0 04 1 1112- ●
49 NUT; ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE 		0-91150-110-0 04 1 9704-0209 ●
49 NUT; ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE 		0-91150-110-0 04 1 0210-0602 ● ●
49 NUT; ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE 		0-91180-110-0 04 1 0603-1110 ● ●
49 NUT; ACL
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE 		0-91180-110-0 04 1 1111- ●
90 CUP; ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94155-235-0 01 1 9704-0209 ●
90 CUP; ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94155-235-0 01 1 0210-1110 ● ●
90 CUP; ACL
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94155-235-0 01 1 1111- ●
101 BOLT; HANGER,ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		5-14219-049-0 03 1 9704-0209 ●
101 BOLT; HANGER,ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		5-14219-049-0 03 1 0210-1110 ● ●
101 BOLT; HANGER,ACL
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		5-14219-049-0 03 1 1111- ●
102 GAUGE; OIL,ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14219-074-0 01 1 9704-0209 ●
102 GAUGE; OIL,ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14219-074-0 01 1 0210-1110 ● ●
102 GAUGE; OIL,ACL
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14219-074-0 01 1 1111- ●
113 WASHER; HANGER BOLT,ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14219-005-0 03 1 9704-0209 ●
113 WASHER; HANGER BOLT,ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14219-005-0 03 1 0210-1110 ● ●
113 WASHER; HANGER BOLT,ACL
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14219-005-0 03 1 1111- ●
114 NUT; HANGER BOLT,ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14217-079-0 03 1 9704-0209 ●
114 NUT; HANGER BOLT,ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14217-079-0 03 1 0210-1110 ● ●
114 NUT; HANGER BOLT,ACL
4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		9-14217-079-0 03 1 1111- ●
145 BOLT; BRKT TO FRAME
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9704-0512 ●
145 BOLT; BRKT TO FRAME
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X30 W/LK WASHER 		0-50541-030-0 02 1 0601-1106 ●
145 BOLT; BRKT TO FRAME
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X35 FLANGE 		0-28681-035-0 04 1 9704-0209 ●
145 BOLT; BRKT TO FRAME
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X35 FLANGE 		0-28681-035-0 04 1 0210-0512 ● ●
145 BOLT; BRKT TO FRAME
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X35 FLANGE 		0-28651-035-0 04 1 0601-1110 ● ●
145 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) M10X35 FLANGE 		0-28651-035-0 04 1 1111-1111 ●
145 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X35 FLANGE 		0-28651-035-0 04 1 1111-1111 ●
145 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) M10X35 FLANGE 		0-28651-035-0 04 1 1112- ●
145 BOLT; BRKT TO FRAME
4JB1-TC ENG(RDT) M10X35 FLANGE 		0-28651-035-0 04 1 1112- ●
145 BOLT; BRKT TO FRAME
4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X35 FLANGE 		0-28651-035-0 04 1 1112- ●
145 BOLT; BRKT TO FRAME
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X25 FLANGE 		0-28681-025-0 04 1 0210-0512 ●
145 BOLT; BRKT TO FRAME
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X25 FLANGE 		0-28651-025-0 04 1 0601-1005 ●
çizim 190598
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 CLEANER ASM; AIR,SUB
HEAVY DUTY AIR CLEANER<K46> 		8-94144-273-2 01 1 9704-0209 ●
164 CLEANER ASM; AIR,SUB
4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46> 		8-94144-273-2 01 1 0210-1005 ● ●
164 CLEANER ASM; AIR,SUB
4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46> 		8-94144-273-2 01 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
