Isuzu WW
▶
TRUCKS
▶
NKR
▶
50784 - NKR(MALAYSIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#72527) — 78 parça
Tümü
A - NKC5SF
B - NKB5SC
◀
[101A] NO.1 (44 parça)
[101A] NO.2 (34 parça)
▶

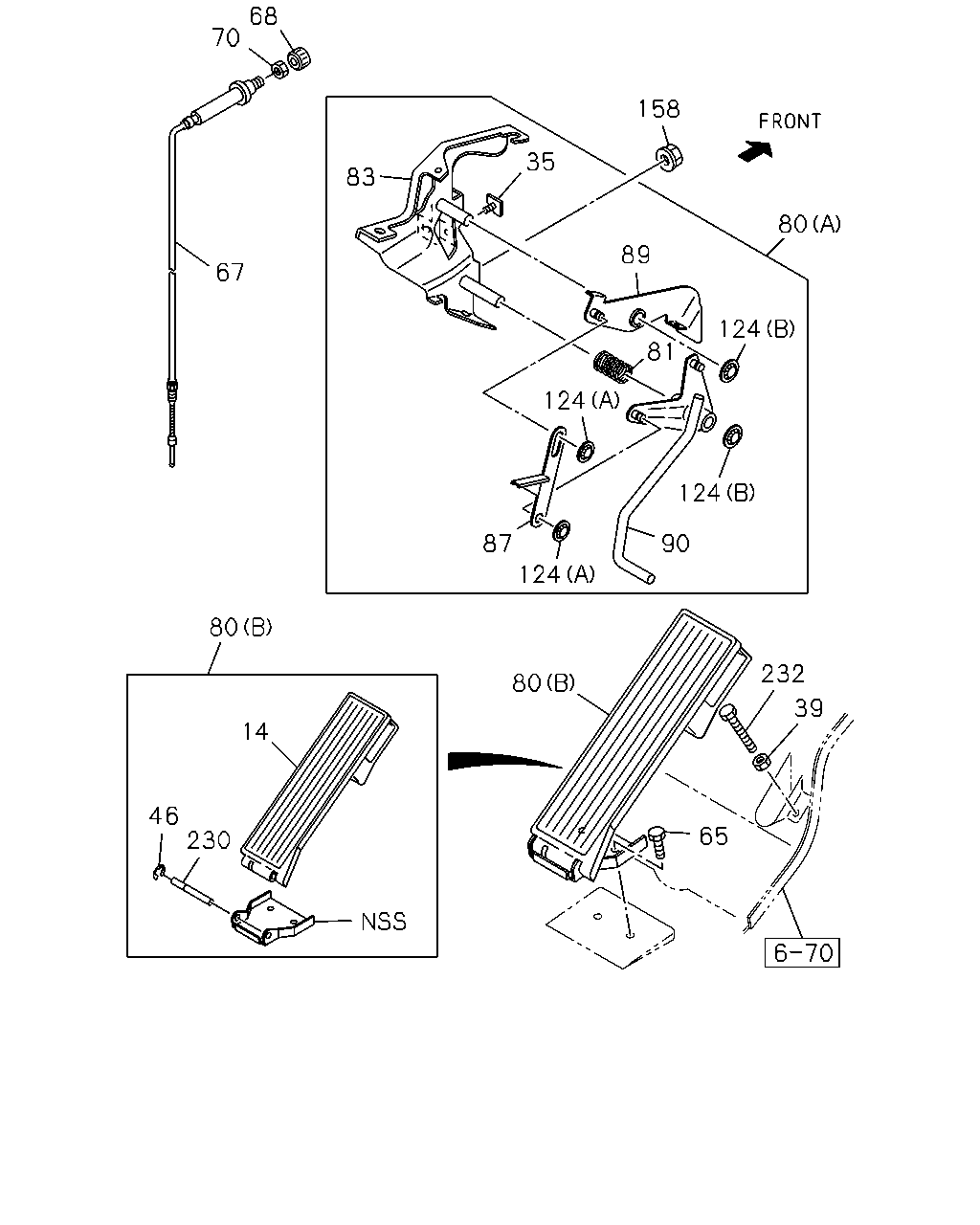

68
70
158
35
83
80
89
67
124
81
124
124
87
90
124
80
232
80
39
14
46
230
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
PAD; PEDAL,ACCEL
8-97853-062-2
01
1
9704-0209
●
14
PAD; PEDAL,ACCEL
8-97853-062-2
01
1
0210-
●
●
35
STOPPER; ACCEL PEDAL
8-97857-401-1
01
1
9704-0012
●
35
STOPPER; ACCEL PEDAL
8-97302-305-0
01
1
0101-0209
●
35
STOPPER; ACCEL PEDAL
8-97302-305-0
01
1
0210-
●
●
39
NUT; ACCEL PEDAL STOPPER
M8
9-09110-408-0
01
1
9704-0209
●
39
NUT; ACCEL PEDAL STOPPER
M8
9-09110-408-0
01
1
0210-0512
●
●
39
NUT; ACCEL PEDAL STOPPER
M8
0-91110-508-0
01
1
0601-
●
●
46
RING; SNAP,ACCEL CONT PEDAL
ID=4
9-09185-404-0
01
1
9704-0209
●
46
RING; SNAP,ACCEL CONT PEDAL
ID=4
9-09185-404-0
01
1
0210-0604
●
●
46
RING; SNAP,ACCEL CONT PEDAL
ID=4
0-91805-504-0
01
1
0605-
●
●
65
BOLT
M8X16 W/LK&PL WASHER
8-94310-730-0
02
1
9704-0209
●
65
BOLT
M8X16 W/LK&PL WASHER
8-94310-730-0
02
1
0210-
●
●
67
CABLE ASM; IDLE CONT
L=439
8-97853-058-1
01
1
9704-0209
●
67
CABLE ASM; IDLE CONT
L=439
8-97853-058-1
01
1
0210-
●
●
68
KNOB; IDLE CONT
8-97853-765-1
01
1
9704-0209
●
68
KNOB; IDLE CONT
8-97853-765-1
01
1
0210-
●
●
70
NUT; CONT CABLE
M18
8-97853-233-0
01
1
9704-0209
●
70
NUT; CONT CABLE
M18
8-97853-233-0
01
1
0210-
●
●
80
LINK ASM; ENG CONT
(A)
8-97853-057-9
01
1
9704-0209
●
80
LINK ASM; ENG CONT
(A)
8-97853-057-9
01
1
0210-
●
●
80
LINK ASM; ENG CONT
(B)
8-97853-061-2
01
1
9704-0209
●
80
LINK ASM; ENG CONT
(B)
8-97853-061-2
01
1
0210-
●
●
81
SPRING; RETURN,ENG CONT LEVER
8-97853-205-1
01
1
9704-0209
●
81
SPRING; RETURN,ENG CONT LEVER
8-97853-205-1
01
1
0210-
●
●
83
BRACKET; CONT LINK
8-97853-201-4
01
1
9704-0209
●
83
BRACKET; CONT LINK
8-97853-201-4
01
1
0210-
●
●
87
LINK; ENG CONT
8-97853-204-1
01
1
9704-0209
●
87
LINK; ENG CONT
8-97853-204-1
01
1
0210-
●
●
89
LEVER; RELAY
8-97868-042-0
01
1
9704-0209
●
89
LEVER; RELAY
8-97868-042-0
01
1
0210-
●
●
90
LEVER; RELAY,ENG CONT
8-97868-039-0
01
1
9704-0209
●
90
LEVER; RELAY,ENG CONT
8-97868-039-0
01
1
0210-
●
●
124
NUT; LEVER
(A) ID=4.9 PUSH NUT
8-94279-042-0
02
1
9704-0209
●
124
NUT; LEVER
(A) ID=4.9 PUSH NUT
8-94279-042-0
02
1
0210-
●
●
124
NUT; LEVER
(B) ID=9.9 PUSH NUT
8-97012-098-0
02
1
9704-0209
●
124
NUT; LEVER
(B) ID=9.9 PUSH NUT
8-97012-098-0
02
1
0210-
●
●
158
NUT; BRKT
M8 FLANGE
8-94279-060-0
02
1
9704-0209
●
158
NUT; BRKT
M8 FLANGE
8-94279-060-0
02
1
0210-
●
●
230
PIN; JOINT,ACCEL PEDAL TO BRKT
8-97853-064-0
01
1
9704-0209
●
230
PIN; JOINT,ACCEL PEDAL TO BRKT
8-97853-064-0
01
1
0210-
●
●
232
BOLT; STOPPER,ACCEL PEDAL
M8X65
0-20800-865-0
01
1
9704-0209
●
232
BOLT; STOPPER,ACCEL PEDAL
M8X65
0-20800-865-0
01
1
0210-0404
●
●
232
BOLT; STOPPER,ACCEL PEDAL
M8X45
8-97378-461-0
01
1
0405-
●
●

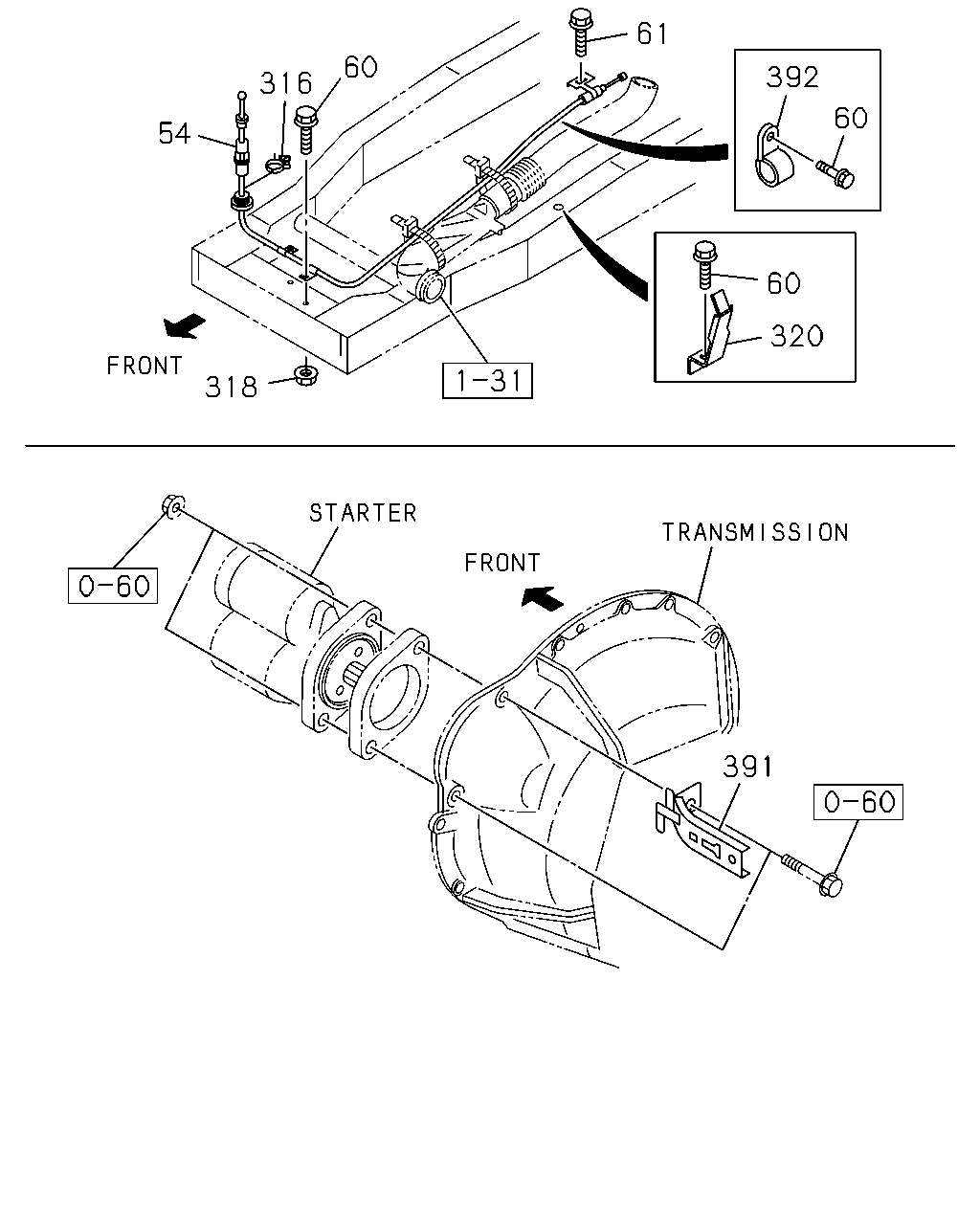

61
60
392
316
60
54
60
320
318
391
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
54
CABLE; ENG CONT
4JB1-TC ENG(RDT) L=2330
8-97387-019-0
01
1
1112-
●
54
CABLE; ENG CONT
L=2300
8-97046-362-4
01
1
9704-0209
●
54
CABLE; ENG CONT
4JB1 ENG(RLF) L=2300
8-97046-362-4
01
1
0210-0407
●
●
54
CABLE; ENG CONT
4JB1 ENG(RLF) L=2300
8-97386-872-0
01
1
0408-1005
●
●
54
CABLE; ENG CONT
4JB1 ENG(RLF) L=2300
8-97386-872-0
01
1
1006-
●
●
60
BOLT; CABLE
M8X20 FLANGE
0-28680-820-0
01
1
9704-0209
●
60
BOLT; CABLE
M8X20 FLANGE
0-28680-820-0
01
1
0210-0512
●
●
60
BOLT; CABLE
M8X20 FLANGE
0-28650-820-0
01
1
0601-1005
●
●
60
BOLT; CABLE
4JB1 ENG(RLF) M8X20 FLANGE
0-28650-820-0
01
1
1006-
●
●
60
BOLT; CABLE
M8X20 FLANGE
0-28680-820-0
02
1
9704-0209
●
60
BOLT; CABLE
4JB1 ENG(RLF) M8X20 FLANGE
0-28680-820-0
02
1
0210-0512
●
●
60
BOLT; CABLE
4JB1 ENG(RLF) M8X20 FLANGE
0-28650-820-0
02
1
0601-1005
●
●
60
BOLT; CABLE
4JB1 ENG(RLF) M8X20 FLANGE
0-28650-820-0
02
1
1006-1111
●
●
60
BOLT; CABLE
4JB1 ENG(RLF) M8X20 FLANGE
0-28650-820-0
02
1
1112-
●
60
BOLT; CABLE
M8X20 FLANGE
0-28650-820-0
02
1
1112-
●
60
BOLT; CABLE
4JB1-TC ENG(RDT) M6X12 FLANGE
0-28050-612-0
01
1
1112-
●
61
BOLT; BRKT TO FRAME ENG CONT CABLE
M6X12 FLANGE
0-28080-612-0
01
1
9704-0209
●
61
BOLT; BRKT TO FRAME ENG CONT CABLE
M6X12 FLANGE
0-28080-612-0
01
1
0210-0512
●
●
61
BOLT; BRKT TO FRAME ENG CONT CABLE
M6X12 FLANGE
0-28050-612-0
01
1
0601-
●
●
316
CLIP; LAMP BRKT
ID=9
5-09707-027-0
01
1
9704-0209
●
316
CLIP; LAMP BRKT
ID=9
5-09707-027-0
01
1
0210-
●
●
318
NUT; LAMP BRKT
M8 FLANGE
8-94279-517-0
02
1
9704-9802
●
318
NUT; LAMP BRKT
M8 W/LK WASHER
8-94327-073-0
02
1
9803-0209
●
318
NUT; LAMP BRKT
4JB1 ENG(RLF) M8 W/LK WASHER
8-94327-073-0
02
1
0210-0805
●
●
318
NUT; LAMP BRKT
4JB1 ENG(RLF) M8 W/LK WASHER
8-97581-234-0
02
1
0806-1005
●
●
318
NUT; LAMP BRKT
4JB1 ENG(RLF) M8 W/LK WASHER
8-97581-234-0
02
1
1006-1111
●
●
318
NUT; LAMP BRKT
M8 W/LK WASHER
8-97581-234-0
02
1
1112-
●
●
320
CLIP; FRAME
8-94167-969-2
01
1
9704-0209
●
320
CLIP; FRAME
8-94167-969-2
01
1
0210-
●
●
391
BRACKET; ENG CONT
8-97068-801-1
01
1
9704-9705
●
391
BRACKET; ENG CONT
4JB1 ENG(RLF)
8-97068-801-1
01
1
0210-1005
●
391
BRACKET; ENG CONT
4JB1 ENG(RLF)
8-97068-801-1
01
1
1006-1111
●
391
BRACKET; ENG CONT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>
8-97068-801-1
01
1
1112-
●
392
CLIP; ACCEL CONT CABLE
4JB1-TC ENG(RDT) ID=16 L=28
0-95235-552-0
01
1
1112-
●
