Sayfa 0-81 - Isuzu EPC

0-81 — GOVERNOR; INJECTION PUMP (#72523) — 338 parça

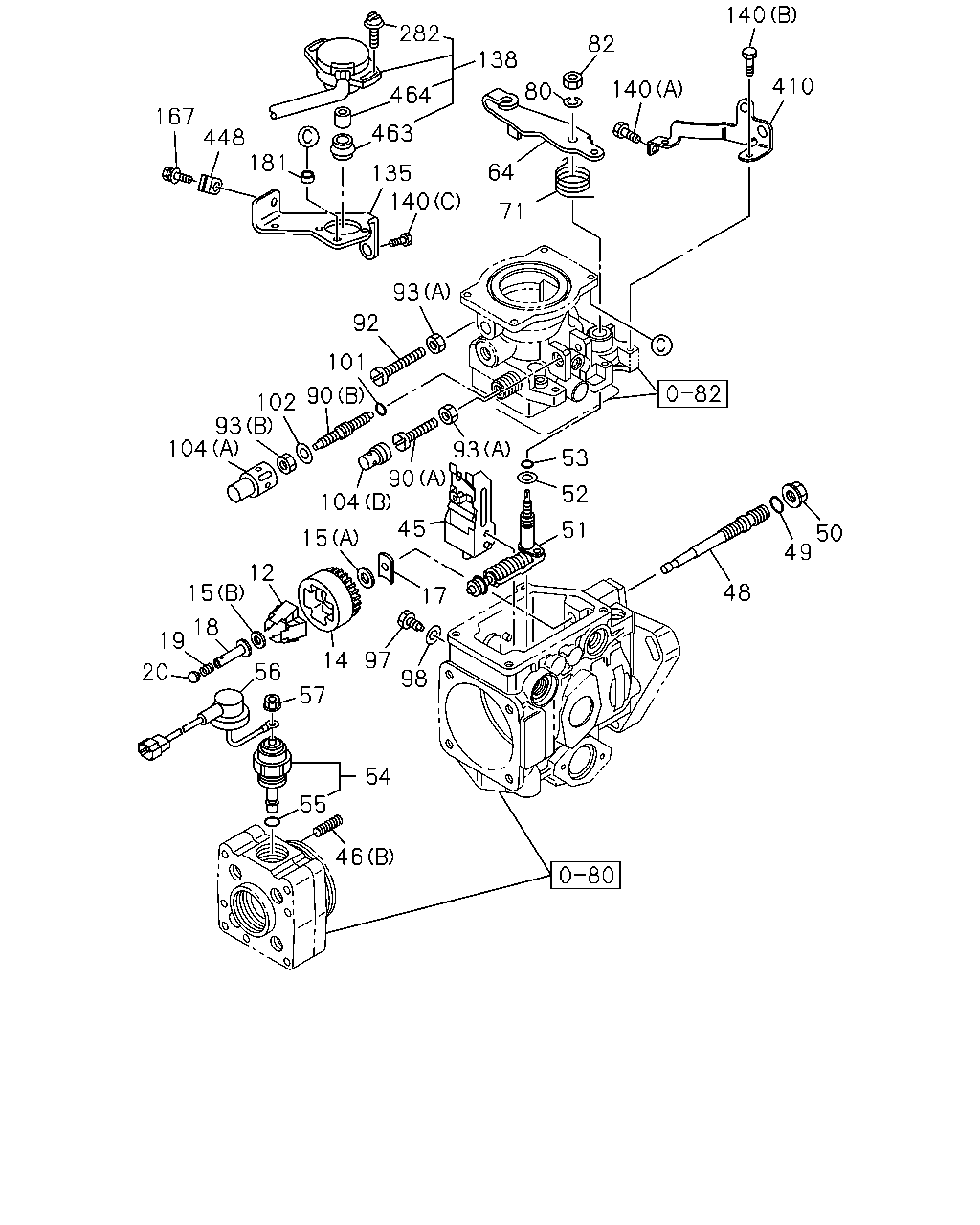

140 282 82 138 410 140 80 464 167 448 181 463 64 135 140 71 93 92 101 90 102 93 104 93 53 90 104 45 52 51 50 49 15 12 15 48 17 18 19 97 14 20 56 98 57 54 55 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94228-403-0	01	1	-
14	HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-613-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-612-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-614-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-607-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-608-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-609-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-610-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-611-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.15 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94231-123-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.35 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94231-124-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94231-125-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94231-126-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1	8-94433-222-0	01	1	-
18	SLEEVE; GOV ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97214-475-0	01	1	-
19	CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-519-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94372-499-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94372-500-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94372-501-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94372-502-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-520-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-521-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-522-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-523-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-524-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-525-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-526-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-527-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-528-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-529-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-530-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-531-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-532-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-533-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-534-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-535-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-868-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-869-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-870-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-871-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-872-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-873-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-874-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-875-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-876-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-877-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-878-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-879-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-880-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-881-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-882-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97163-167-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97163-168-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97163-169-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97163-170-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97125-517-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-97165-708-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: D = 8-97204-201-9	8-97224-539-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-94433-806-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94473-128-0	02	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97077-837-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94248-002-0	01	1	-
49	GASKET; GOV SHAFT,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-606-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94473-129-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94174-807-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-94174-841-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: D = 8-97204-201-9	8-97231-938-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-590-0	01	1	-
53	GASKET; CONT SHAFT,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-585-0	01	1	-
54	VALVE; MAG,ENG STOP,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94242-275-0	01	1	-
55	GASKET; MAG VLV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94239-373-0	01	1	-
56	WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94470-582-0	01	1	-
57	NUT; VLV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94473-135-0	02	1	-
57	NUT; VLV ASM PART: D = 8-97204-201-9	8-97138-042-1	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 519A ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94443-055-1	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 520A ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94443-056-1	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 042 ASM PART: D = 8-97204-201-9	8-97086-120-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 043 ASM PART: D = 8-97204-201-9	8-97086-121-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94132-785-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: D = 8-97204-201-9	8-97214-511-0	01	1	-
80	WASHER; LK,CONT LEVER,GOV ID=6.1 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	9-09150-506-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	1-15729-006-0	01	1	-
82	NUT; CONT LEVER FIX,GOV M6 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	9-09110-406-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94313-253-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=53.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-274-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=55.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-275-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=57.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-276-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94426-049-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94313-253-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94426-049-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94426-047-1	02	1	-
97	BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-601-0	02	1	-
98	GASKET; PIVOT BOLT,GOV LEVER ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-602-0	02	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-598-0	01	1	-
102	WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-593-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-262-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-263-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-264-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-265-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-266-0	01	1	-
135	BRACKET; POTENTIO METER ASM PART: D = 8-97204-201-9	8-97231-937-0	01	1	-
138	POTENTIO METER ASM PART: D = 8-97204-201-9	8-97214-513-0	01	1	-
140	BOLT; BRKT,INJ PUMP (C) ASM PART: D = 8-97204-201-9	8-94313-203-0	01	1	-
140	BOLT; BRKT,INJ PUMP (B), M6X12 ASM PART: D = 8-97204-201-9	8-94313-267-0	01	1	-
140	BOLT; BRKT,INJ PUMP (A) ASM PART: D = 8-97204-201-9	8-97218-971-0	01	1	-
167	BOLT; PLATE ASM PART: D = 8-97204-201-9	8-94174-987-0	01	1	-
181	SPACER; BRKT ASM PART: D = 8-97204-201-9	8-97214-506-0	02	1	-
282	SCREW; POTENTIO METER ASM PART: D = 8-97204-201-9	8-97148-143-0	02	1	-
410	BRACKET; GOV ASM PART: D = 8-97204-201-9	8-97231-936-0	01	1	-
448	PLATE; BRKT ASM PART: D = 8-97204-201-9	8-97182-233-0	01	1	-
463	BOOT; POTENTIO METER ASM PART: D = 8-97204-201-9	8-97148-144-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=15 DEGREES ASM PART: D = 8-97204-201-9	8-97168-229-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=30 DEGREES ASM PART: D = 8-97204-201-9	8-97168-230-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=45 DEGREES ASM PART: D = 8-97204-201-9	8-97168-231-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=60 DEGREES ASM PART: D = 8-97204-201-9	8-97168-232-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=75 DEGREES ASM PART: D = 8-97204-201-9	8-97168-233-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=90 DEGREES ASM PART: D = 8-97204-201-9	8-97214-514-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=105 DEGREES ASM PART: D = 8-97204-201-9	8-97214-515-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=120 DEGREES ASM PART: D = 8-97204-201-9	8-97214-516-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=135 DEGREES ASM PART: D = 8-97204-201-9	8-97214-517-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=150 DEGREES ASM PART: D = 8-97204-201-9	8-97214-518-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=165 DEGREES ASM PART: D = 8-97204-201-9	8-97214-519-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=0 DEGREES ASM PART: D = 8-97204-201-9	8-97214-520-0	01	1	-

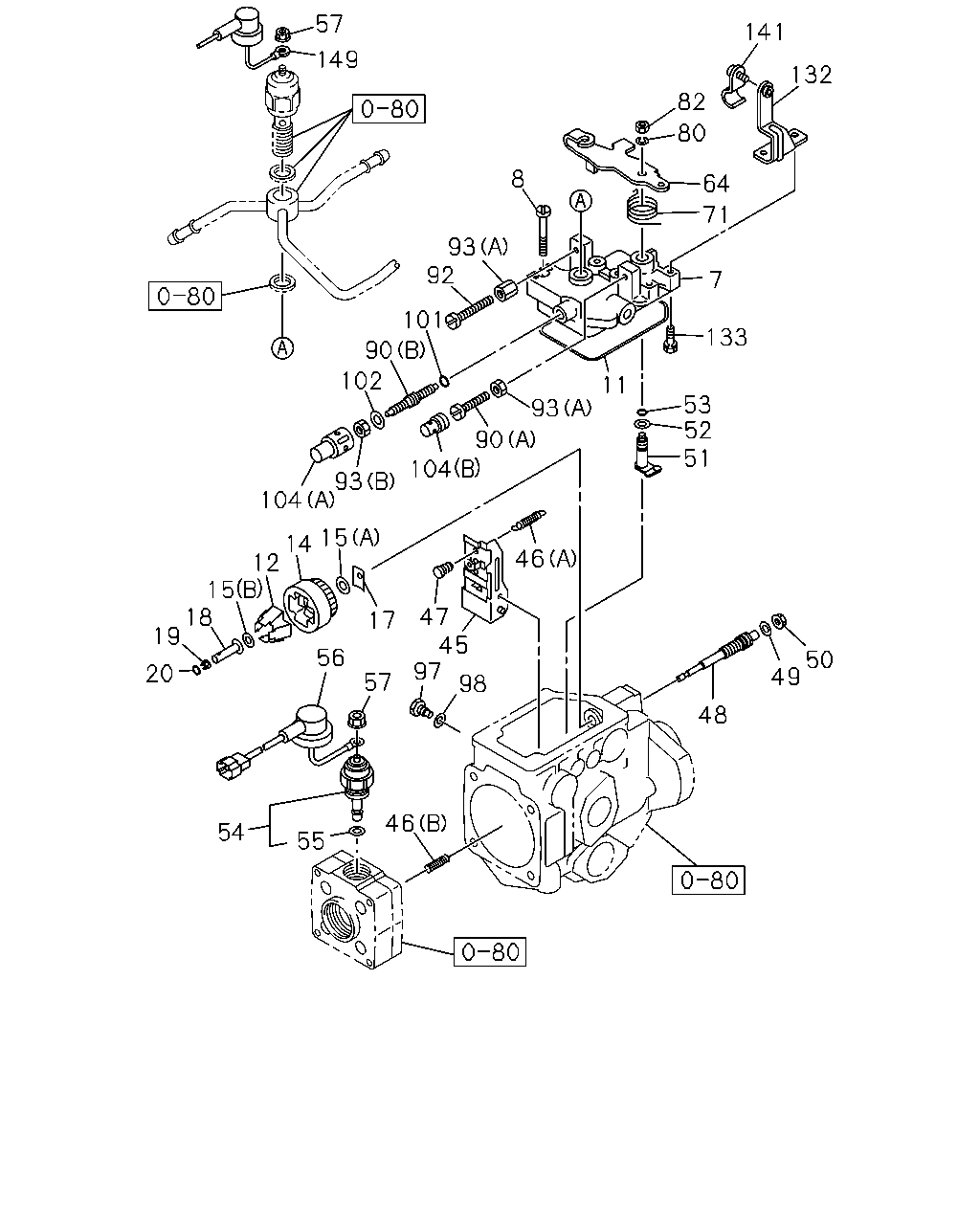

57 141 149 132 82 80 8 64 71 93 92 7 101 133 90 102 11 53 52 51 93 90 104 93 104 15 14 12 15 18 19 46 47 45 97 17 56 50 49 20 57 98 48 46 54 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94320-283-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94227-636-0	04	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94227-599-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94228-403-0	01	1	-
14	HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-613-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-612-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-614-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-607-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-608-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-609-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-610-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-611-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.15 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94231-123-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.35 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94231-124-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94231-125-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94231-126-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1	8-94433-222-0	01	1	-
18	SLEEVE; GOV ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97214-475-0	01	1	-
19	CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-519-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94372-499-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94372-500-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94372-501-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94372-502-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-520-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-521-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-522-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-523-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-524-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-525-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-526-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-527-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-528-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-529-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-530-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-531-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-532-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-533-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-534-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-535-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-868-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-869-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-870-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-871-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-872-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-873-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-874-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-875-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-876-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-877-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-878-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-879-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-880-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-881-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-882-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97163-167-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97163-168-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97163-169-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97163-170-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97125-517-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-97165-708-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: D = 8-97204-201-9	8-97224-539-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-94433-806-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94473-128-0	02	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97077-837-0	01	1	-
47	PIN; RET ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97096-706-0	01	1	-
47	PIN; RET ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-97125-526-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94248-002-0	01	1	-
49	GASKET; GOV SHAFT,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-606-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94473-129-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94174-807-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-94174-841-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: D = 8-97204-201-9	8-97231-938-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-590-0	01	1	-
53	GASKET; CONT SHAFT,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-585-0	01	1	-
54	VALVE; MAG,ENG STOP,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94242-275-0	01	1	-
55	GASKET; MAG VLV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94239-373-0	01	1	-
56	WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94470-582-0	01	1	-
57	NUT; VLV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94473-135-0	02	1	-
57	NUT; VLV ASM PART: D = 8-97204-201-9	8-97138-042-1	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 519A ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94443-055-1	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 520A ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94443-056-1	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 042 ASM PART: D = 8-97204-201-9	8-97086-120-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 043 ASM PART: D = 8-97204-201-9	8-97086-121-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94132-785-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: D = 8-97204-201-9	8-97214-511-0	01	1	-
80	WASHER; LK,CONT LEVER,GOV ID=6.1 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	9-09150-506-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	1-15729-006-0	01	1	-
82	NUT; CONT LEVER FIX,GOV M6 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	9-09110-406-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94313-253-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=53.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-274-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=55.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-275-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=57.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-276-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94426-049-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94313-253-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94426-049-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94426-047-1	02	1	-
97	BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-601-0	02	1	-
98	GASKET; PIVOT BOLT,GOV LEVER ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-602-0	02	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-598-0	01	1	-
102	WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-593-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-262-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-263-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-264-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-265-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-266-0	01	1	-
132	BRACKET; ADJ SCREW,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94174-810-0	01	1	-
133	BOLT; BRKT FIX,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94313-264-0	02	1	-
141	PLATE ASM; PIPE BRKT ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94174-822-0	01	1	-
149	WIRE; VLV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94316-278-0	01	1	-

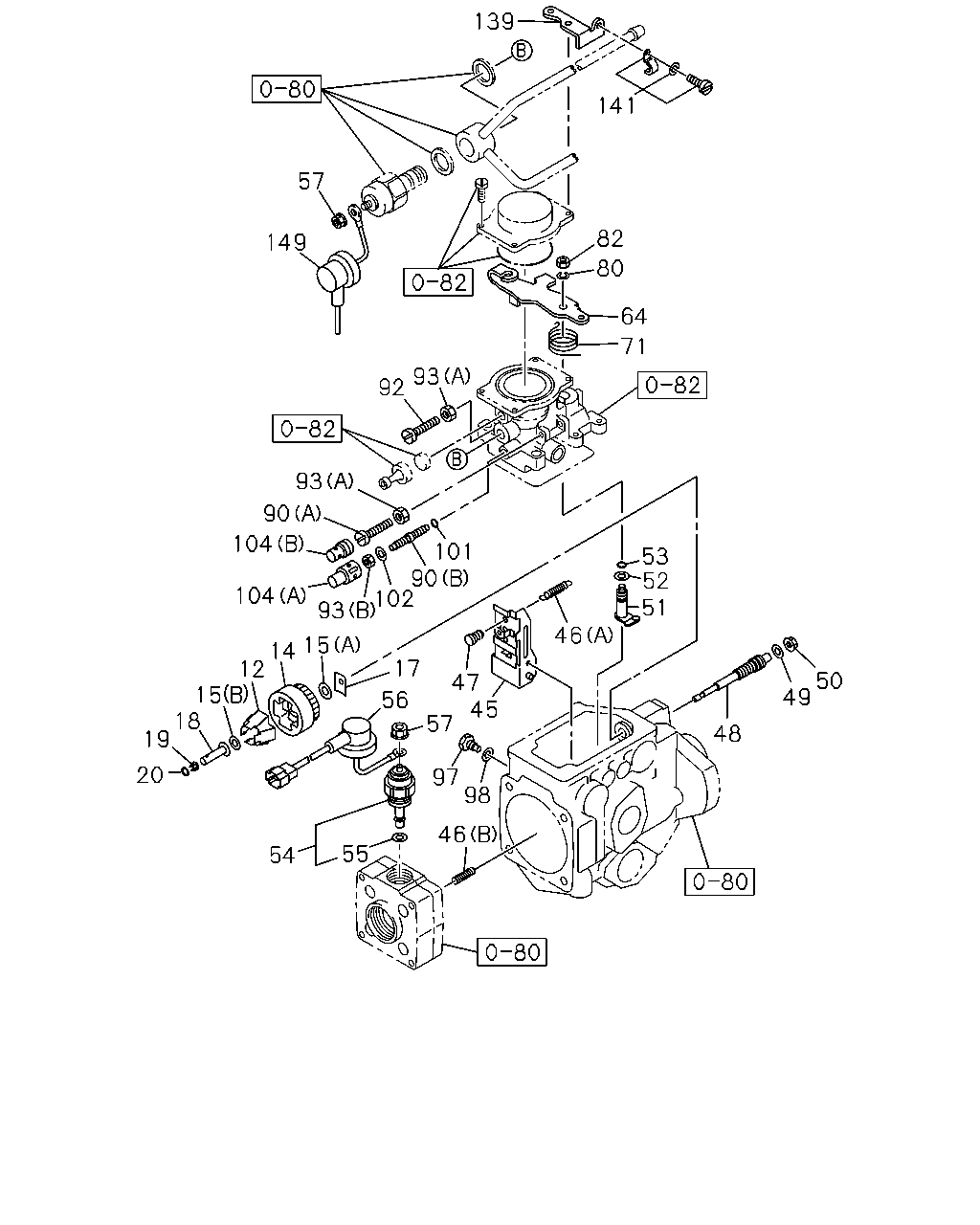

139 141 57 82 149 80 64 71 93 92 93 90 104 101 90 102 93 53 52 51 104 46 15 14 12 15 8 19 17 50 49 47 45 56 57 48 20 97 98 46 55 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; GOV COVER,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94227-636-0	04	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94228-403-0	01	1	-
14	HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-613-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-612-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-614-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-607-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-608-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-609-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-610-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-611-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.15 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94231-123-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.35 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94231-124-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94231-125-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94231-126-0	AR	1	-
19	CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-519-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94372-499-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94372-500-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94372-501-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94372-502-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-520-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-521-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-522-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-523-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-524-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-525-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-526-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-527-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-528-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-529-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-530-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-531-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-532-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-533-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-534-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94408-535-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-868-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-869-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-870-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-871-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-872-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-873-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-874-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-875-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-876-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-877-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-878-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-879-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-880-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-881-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94428-882-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97163-167-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97163-168-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97163-169-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97163-170-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97125-517-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-97165-708-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: D = 8-97204-201-9	8-97224-539-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-94433-806-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94473-128-0	02	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97077-837-0	01	1	-
47	PIN; RET ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97096-706-0	01	1	-
47	PIN; RET ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-97125-526-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94248-002-0	01	1	-
49	GASKET; GOV SHAFT,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-606-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94473-129-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94174-807-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-94174-841-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: D = 8-97204-201-9	8-97231-938-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-590-0	01	1	-
53	GASKET; CONT SHAFT,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-585-0	01	1	-
54	VALVE; MAG,ENG STOP,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94242-275-0	01	1	-
55	GASKET; MAG VLV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94239-373-0	01	1	-
56	WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94470-582-0	01	1	-
57	NUT; VLV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94473-135-0	02	1	-
57	NUT; VLV ASM PART: D = 8-97204-201-9	8-97138-042-1	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 519A ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94443-055-1	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 520A ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94443-056-1	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 042 ASM PART: D = 8-97204-201-9	8-97086-120-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 043 ASM PART: D = 8-97204-201-9	8-97086-121-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94132-785-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: D = 8-97204-201-9	8-97214-511-0	01	1	-
80	WASHER; LK,CONT LEVER,GOV ID=6.1 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	9-09150-506-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	1-15729-006-0	01	1	-
82	NUT; CONT LEVER FIX,GOV M6 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	9-09110-406-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94313-253-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=53.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-274-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=55.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-275-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=57.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-276-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94426-049-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94313-253-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94426-049-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94426-047-1	02	1	-
97	BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-601-0	02	1	-
98	GASKET; PIVOT BOLT,GOV LEVER ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-602-0	02	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-598-0	01	1	-
102	WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-593-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-262-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-263-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-264-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-265-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94316-266-0	01	1	-
141	PLATE ASM; PIPE BRKT ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94174-822-0	01	1	-
149	WIRE; VLV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94316-278-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
