Sayfa 0-80 - Isuzu EPC

0-80 — INJECTION PUMP (#72522) — 373 parça

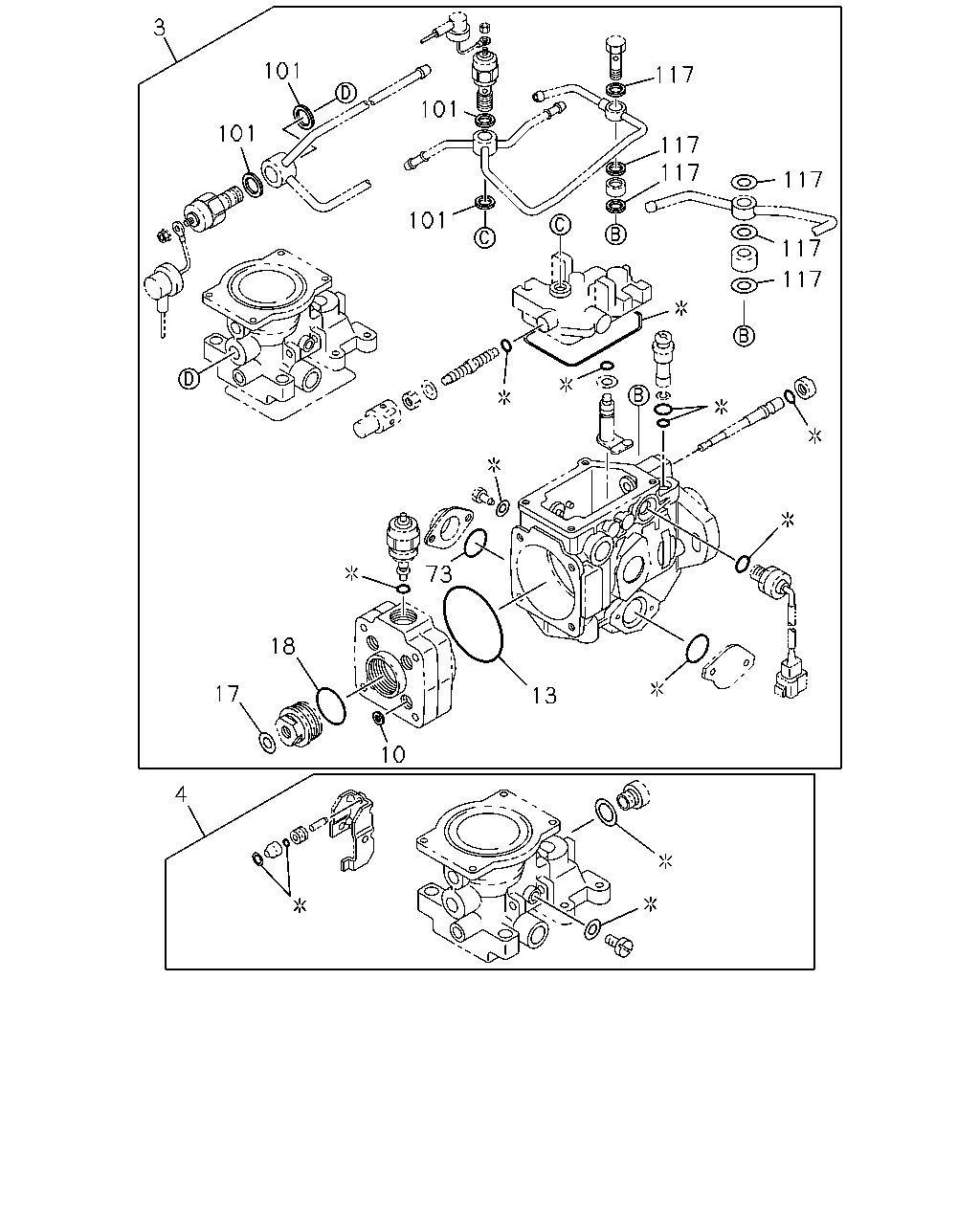

3 101 117 101 101 117 117 117 101 117 117 73 18 17 13 10 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94228-545-0	01	1	-
3	REPAIR KIT; FUEL INJ PUMP ASM PART: D = 8-97204-201-9	8-97383-766-0	01	1	-
4	GASKET KIT; INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-94151-402-0	01	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94247-716-0	04	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-527-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-94227-602-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94433-808-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-637-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: E = 8-97216-365-0	8-94227-491-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1	8-94433-763-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: D = 8-97204-201-9	8-97383-765-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-97119-188-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: D = 8-97204-201-9	8-97249-545-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-97119-187-0	03	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: D = 8-97204-201-9	8-97249-545-0	03	1	-
229	BOLT; BRKT ASM PART: D = 8-97204-201-9	8-97049-904-0	01	1	-

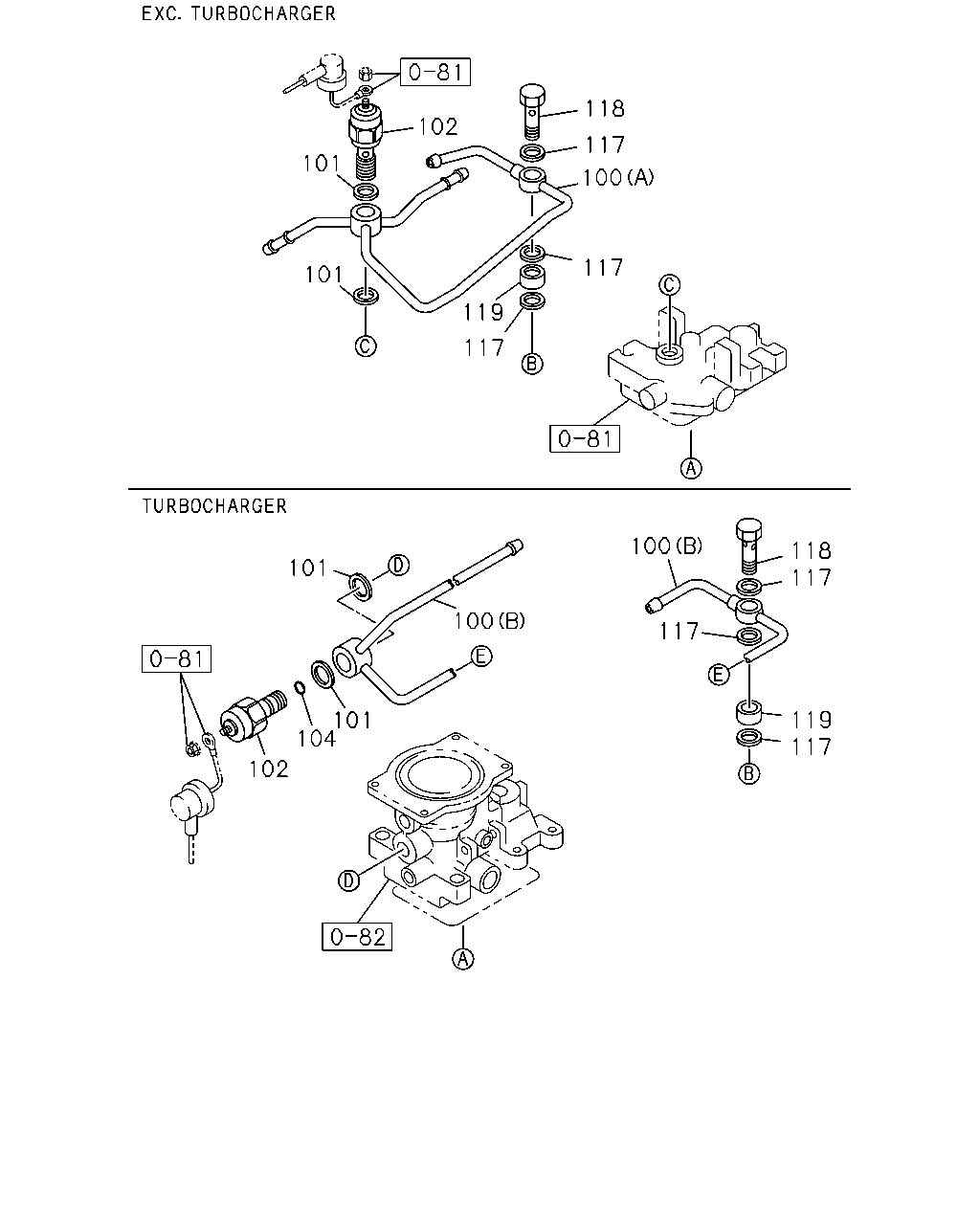

118 102 117 101 100 117 101 119 117 100 118 117 101 117 100 119 117 101 104 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIPE; FUEL INJ PUMP (B) ASM PART: C = 8-97160-462-1	8-97102-544-1	01	1	-
100	PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97102-546-1	01	1	-
100	PIPE; FUEL INJ PUMP (B) ASM PART: E = 8-97216-365-0	8-97185-287-0	01	1	-
100	PIPE; FUEL INJ PUMP (C) ASM PART: D = 8-97204-201-9	8-97214-510-0	01	1	-
100	PIPE; FUEL INJ PUMP (D) ASM PART: D = 8-97204-201-9	8-97385-181-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-97119-188-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: D = 8-97204-201-9	8-97249-545-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-97122-061-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97125-533-0	01	1	-
104	GASKET; OVERFLOW VLV ASM PART: C = 8-97160-462-1	8-94413-737-0	01	1	-
104	GASKET; OVERFLOW VLV ASM PART: E = 8-97216-365-0	8-97180-272-0	01	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-97119-187-0	03	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: D = 8-97204-201-9	8-97249-545-0	03	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: D = 8-97204-201-9	8-94379-688-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-97165-709-0	01	1	-
119	SPACER; FUEL INL,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-97113-359-0	01	1	-
229	BOLT; BRKT ASM PART: D = 8-97204-201-9	8-97049-904-0	01	1	-

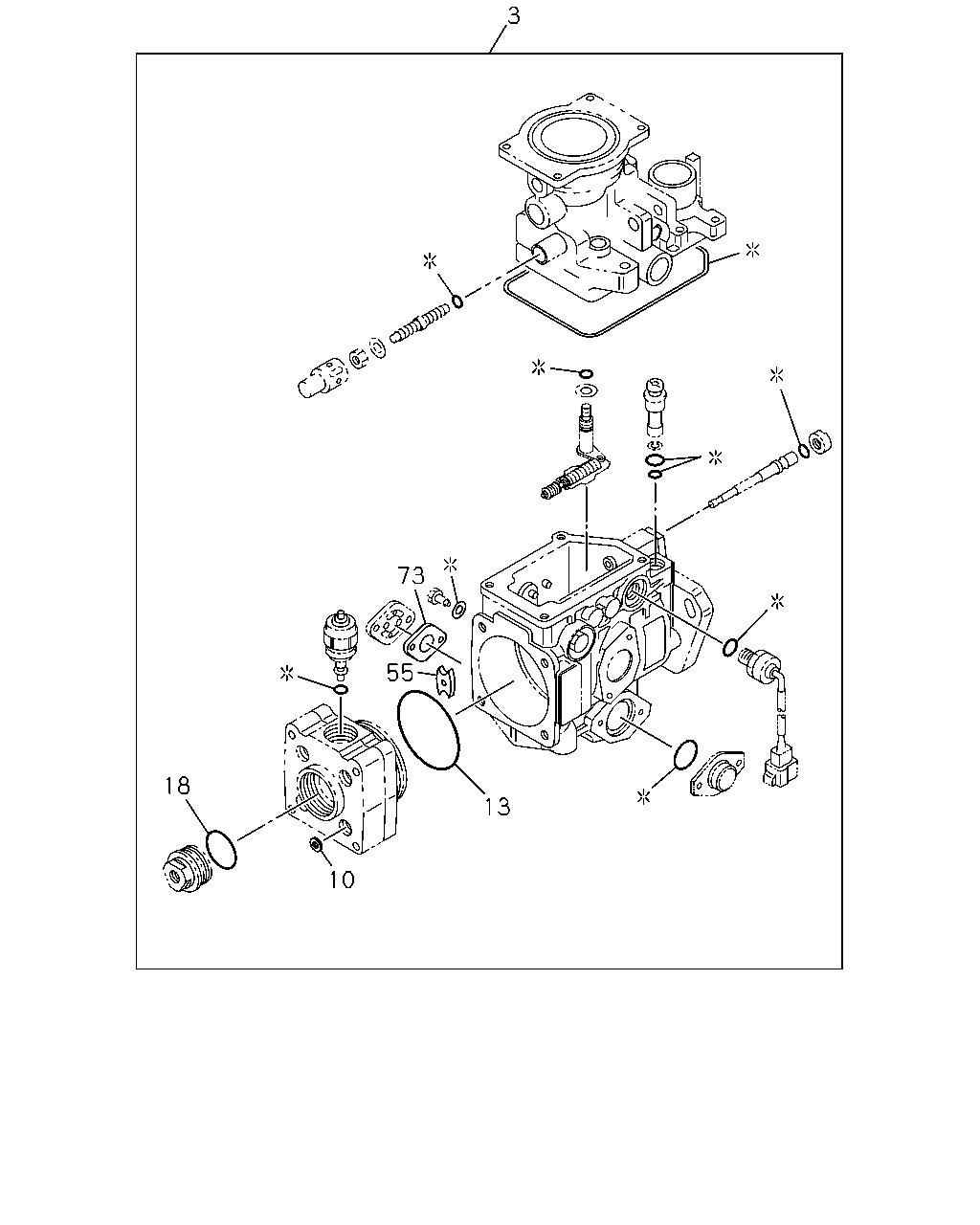

3 73 55 18 13 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94228-545-0	01	1	-
3	REPAIR KIT; FUEL INJ PUMP ASM PART: D = 8-97204-201-9	8-97383-766-0	01	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94247-716-0	04	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-527-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-637-0	01	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94169-528-0	02	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94227-482-1	02	1	-
73	GASKET; COVER TO HSG ASM PART: E = 8-97216-365-0	8-94227-491-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1	8-94433-763-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: D = 8-97204-201-9	8-97383-765-0	01	1	-
229	BOLT; BRKT ASM PART: D = 8-97204-201-9	8-97049-904-0	01	1	-

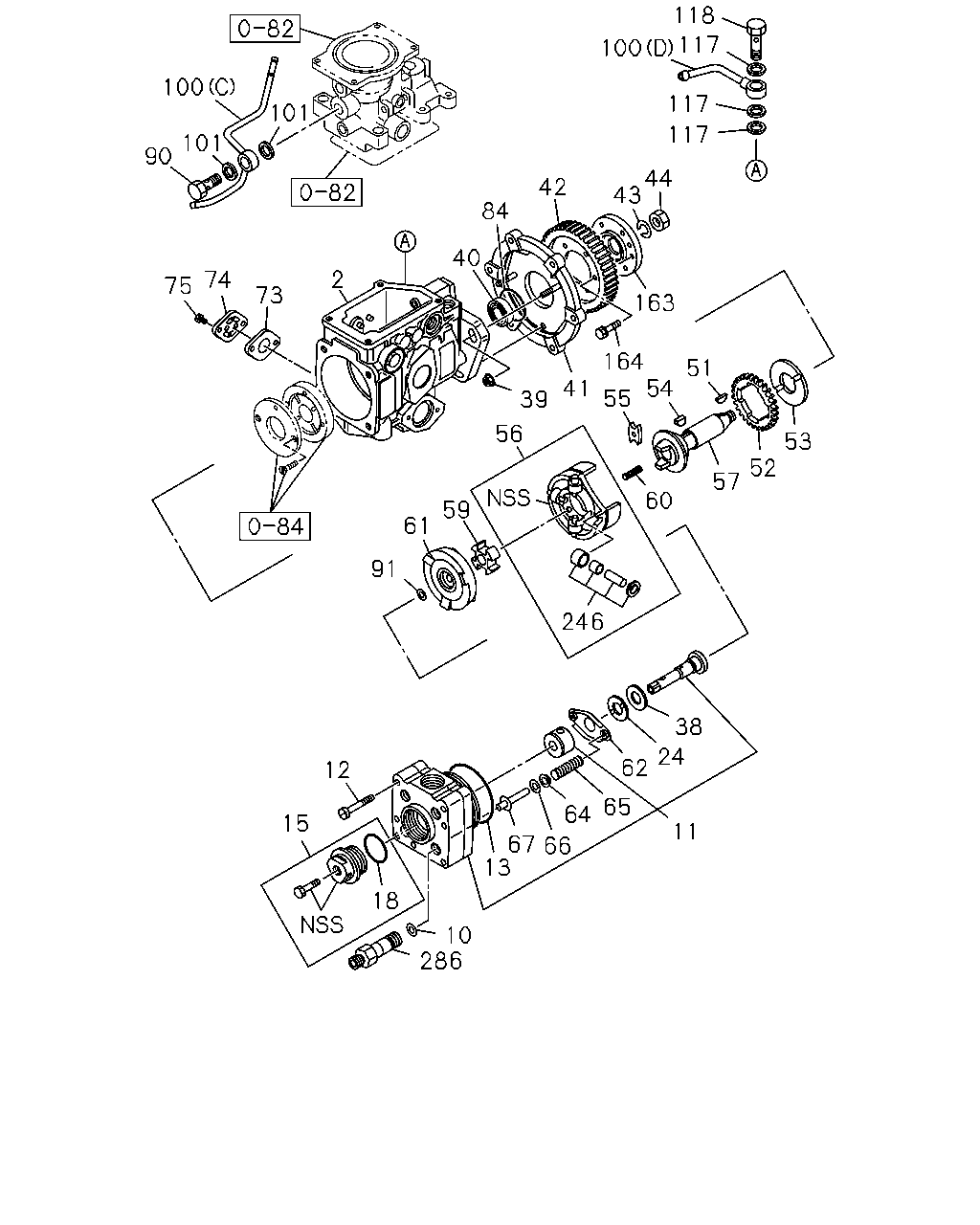

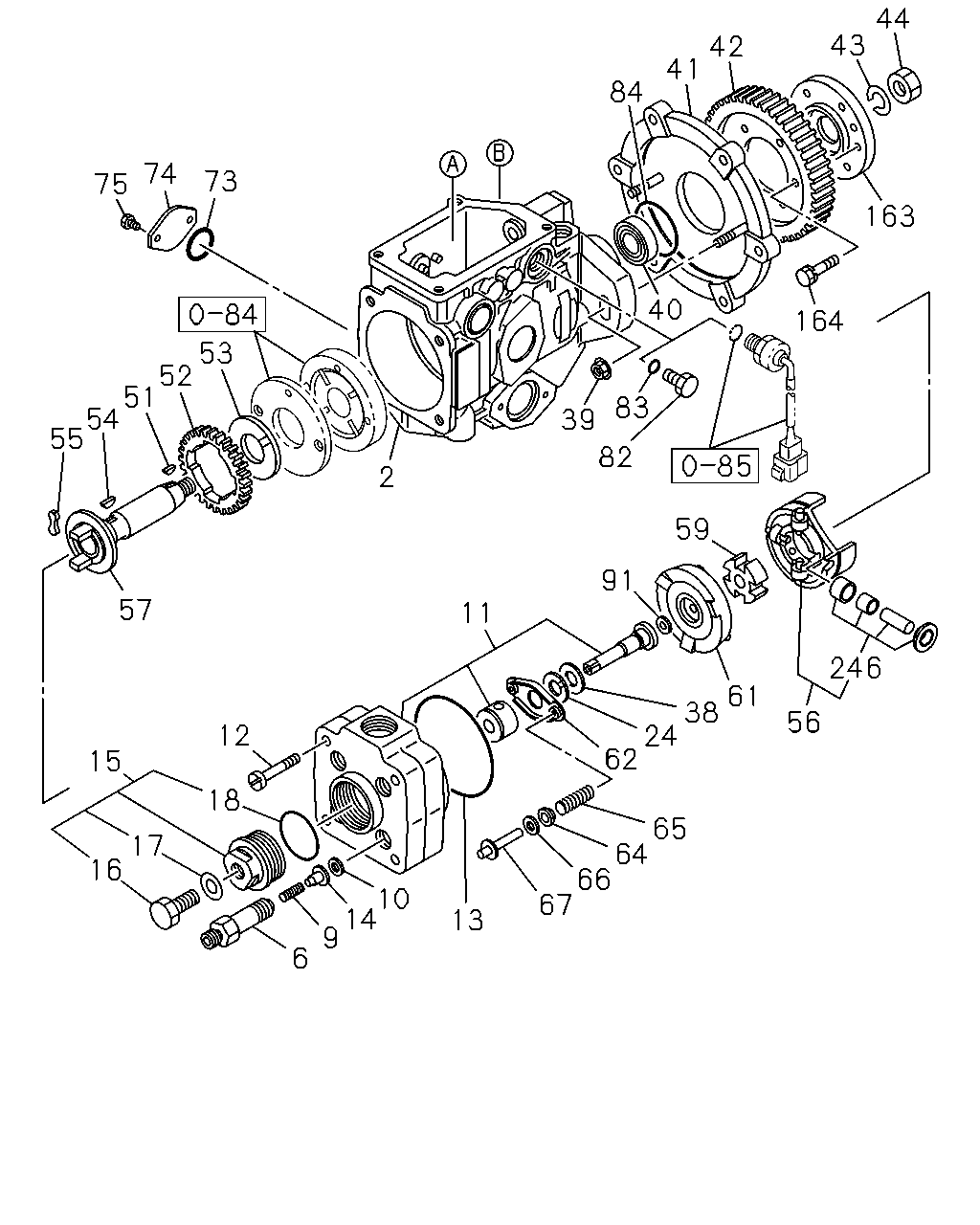

44 43 42 41 84 74 73 75 163 40 164 53 52 51 54 55 39 83 82 2 59 91 57 11 246 61 38 24 62 56 12 15 18 65 64 66 67 17 16 10 14 9 13 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94174-844-0	01	1	-
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-94177-921-0	01	1	-
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: D = 8-97204-201-9	8-97231-940-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94367-330-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94174-803-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94247-716-0	04	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-97032-166-0	01	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97125-529-0	01	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: D = 8-97204-201-9	8-97214-499-0	01	1	-
12	SCREW; DISTR HD,INJ PUMP ASM PART: D = 8-97204-201-9	8-94257-670-0	03	1	-
12	SCREW; DISTR HD,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94257-670-0	04	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-527-0	01	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94174-802-0	04	1	-
15	PLUG ASM; DISTR,INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-94174-817-0	01	1	-
15	PLUG ASM; DISTR,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94433-807-0	01	1	-
15	PLUG ASM; DISTR,INJ PUMP ASM PART: D = 8-97204-201-9	8-97231-942-0	01	1	-
16	BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94174-818-0	01	1	-
16	BOLT; DISTR PLUG,INJ PUMP ASM PART: D = 8-97204-201-9	8-97224-536-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-94227-602-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94433-808-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-637-0	01	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-515-0	01	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-514-0	01	1	-
39	NUT; MTG BRKT FIX ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97119-344-0	02	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94227-475-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97147-034-0	01	1	-
41	BRACKET; INJ PUMP HSG ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94174-843-0	01	1	-
41	BRACKET; INJ PUMP HSG ASM PART: D = 8-97204-201-9	8-97214-512-1	01	1	-
42	GEAR; DRIVE,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, E = 8-97216-365-0	8-94458-257-0	01	1	-
42	GEAR; DRIVE,INJ PUMP ASM PART: C = 8-97160-462-1	8-94471-422-0	01	1	-
42	GEAR; DRIVE,INJ PUMP ASM PART: D = 8-97204-201-9	8-97229-619-0	01	1	-
43	WASHER; LK,DRIVE GEAR,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94226-554-0	01	1	-
44	NUT; DRIVE GEAR FIX,INJ PUMP M14 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94226-565-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	5-83539-024-0	01	1	-
52	GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-483-0	01	1	-
53	WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94227-484-0	01	1	-
53	WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: D = 8-97204-201-9	8-94317-488-0	01	1	-
54	KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-481-0	01	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94169-528-0	02	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94227-482-1	02	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94433-760-0	01	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: D = 8-97204-201-9	8-97218-960-0	01	1	-
57	SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94433-759-0	01	1	-
57	SHAFT; DRIVE,INJ PUMP ASM PART: D = 8-97204-201-9	8-97217-211-0	01	1	-
59	DISC; DRIVE,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94433-761-0	01	1	-
59	DISC; DRIVE,INJ PUMP ASM PART: D = 8-97204-201-9	8-97144-349-1	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-97032-165-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97125-528-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: D = 8-97204-201-9	8-97214-495-0	01	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-516-1	01	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-517-0	02	1	-
65	SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94433-816-0	01	1	-
65	SPRING KIT; PLUNGER,INJ PUMP ASM PART: D = 8-97204-201-9	8-97214-522-0	01	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-518-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-519-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-520-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-521-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-522-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-523-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-524-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94433-204-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94433-205-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94433-206-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94433-207-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94433-208-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94433-209-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97146-139-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97146-140-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97146-141-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97146-142-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-360-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-361-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-362-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-363-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-364-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-365-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-366-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-367-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-368-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-369-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-370-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-371-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-372-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-373-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-374-0	AR	1	-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1	8-94433-776-0	02	1	-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: E = 8-97216-365-0	8-97185-285-0	02	1	-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: D = 8-97204-201-9	8-97328-703-0	02	1	-
73	GASKET; COVER TO HSG ASM PART: E = 8-97216-365-0	8-94227-491-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1	8-94433-763-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: D = 8-97204-201-9	8-97383-765-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-97125-525-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: D = 8-97204-201-9	8-97231-934-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94313-276-0	02	1	-
75	SCREW; COVER TO HSG ASM PART: D = 8-97204-201-9	8-97231-933-0	02	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 8-97120-179-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94242-284-0	01	1	-
83	GASKET; HSG PLUG ASM PART: A = 8-97120-179-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94227-671-0	01	1	-
84	GASKET; BRKT TO HSG ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94247-722-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.74 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-658-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.76 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-659-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.78 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-660-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-661-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.82 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-662-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.84 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-663-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.86 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-664-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.88 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-665-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-528-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.92 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-529-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.94 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-530-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.96 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-531-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.98 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-532-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-533-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.02 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-534-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.04 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-535-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.06 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-536-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.08 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-537-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-538-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.12 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-539-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.14 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-540-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.16 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-541-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.18 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-542-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-543-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.22 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-544-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.24 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-545-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.26 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-546-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.28 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-547-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-548-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.32 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-549-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.34 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-550-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.36 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-551-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.38 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-552-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-553-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.42 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-554-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.44 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-555-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.46 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-556-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.48 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-557-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-558-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.52 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-559-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.54 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-560-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.56 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-561-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.58 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-562-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-563-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.62 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-564-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.64 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-565-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.66 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-566-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.68 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-567-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-568-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.72 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-569-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.74 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-570-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.76 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-571-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.78 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-572-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-573-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.82 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-574-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.84 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-575-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.86 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-576-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.88 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-577-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-578-0	AR	1	-
163	COUPLING; INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-337-1	01	1	-
164	BOLT; GEAR TO COUPLING ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	5-15619-112-0	06	1	-
164	BOLT; GEAR TO COUPLING M6X18 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	9-01910-618-0	06	1	-
229	BOLT; BRKT ASM PART: D = 8-97204-201-9	8-97049-904-0	01	1	-
246	ROLLER KIT; INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-97163-172-0	01	1	-
246	ROLLER KIT; INJ PUMP ASM PART: D = 8-97204-201-9	8-97218-980-0	01	1	-

118 100 117 100 117 101 117 101 90 44 43 42 84 40 2 74 75 73 163 64 54 51 41 55 39 56 53 52 57 60 59 61 91 246 38 24 62 12 65 64 15 11 13 18 10 286 67 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94174-844-0	01	1	-
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-94177-921-0	01	1	-
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: D = 8-97204-201-9	8-97231-940-0	01	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94247-716-0	04	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-97032-166-0	01	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97125-529-0	01	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: D = 8-97204-201-9	8-97214-499-0	01	1	-
12	SCREW; DISTR HD,INJ PUMP ASM PART: D = 8-97204-201-9	8-94257-670-0	03	1	-
12	SCREW; DISTR HD,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94257-670-0	04	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-527-0	01	1	-
15	PLUG ASM; DISTR,INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-94174-817-0	01	1	-
15	PLUG ASM; DISTR,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94433-807-0	01	1	-
15	PLUG ASM; DISTR,INJ PUMP ASM PART: D = 8-97204-201-9	8-97231-942-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-637-0	01	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-515-0	01	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-514-0	01	1	-
39	NUT; MTG BRKT FIX ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97119-344-0	02	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94227-475-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97147-034-0	01	1	-
41	BRACKET; INJ PUMP HSG ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94174-843-0	01	1	-
41	BRACKET; INJ PUMP HSG ASM PART: D = 8-97204-201-9	8-97214-512-1	01	1	-
42	GEAR; DRIVE,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, E = 8-97216-365-0	8-94458-257-0	01	1	-
42	GEAR; DRIVE,INJ PUMP ASM PART: C = 8-97160-462-1	8-94471-422-0	01	1	-
42	GEAR; DRIVE,INJ PUMP ASM PART: D = 8-97204-201-9	8-97229-619-0	01	1	-
43	WASHER; LK,DRIVE GEAR,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94226-554-0	01	1	-
44	NUT; DRIVE GEAR FIX,INJ PUMP M14 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94226-565-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	5-83539-024-0	01	1	-
52	GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-483-0	01	1	-
53	WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94227-484-0	01	1	-
53	WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: D = 8-97204-201-9	8-94317-488-0	01	1	-
54	KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-481-0	01	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94169-528-0	02	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-94227-482-1	02	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94433-760-0	01	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: D = 8-97204-201-9	8-97218-960-0	01	1	-
57	SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94433-759-0	01	1	-
57	SHAFT; DRIVE,INJ PUMP ASM PART: D = 8-97204-201-9	8-97217-211-0	01	1	-
59	DISC; DRIVE,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94433-761-0	01	1	-
59	DISC; DRIVE,INJ PUMP ASM PART: D = 8-97204-201-9	8-97144-349-1	01	1	-
60	SPRING; DRIVE DISC,INJ PUMP ASM PART: D = 8-97204-201-9	8-97214-524-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-97032-165-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97125-528-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: D = 8-97204-201-9	8-97214-495-0	01	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-516-1	01	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-517-0	02	1	-
65	SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94433-816-0	01	1	-
65	SPRING KIT; PLUNGER,INJ PUMP ASM PART: D = 8-97204-201-9	8-97214-522-0	01	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-518-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-519-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-520-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-521-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-522-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-523-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-524-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94433-204-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94433-205-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94433-206-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94433-207-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94433-208-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94433-209-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97146-139-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97146-140-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97146-141-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-97146-142-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-360-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-361-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-362-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-363-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-364-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-365-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-366-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-367-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-368-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-369-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-370-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-371-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-372-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-373-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: D = 8-97204-201-9, E = 8-97216-365-0	8-97189-374-0	AR	1	-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1	8-94433-776-0	02	1	-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: E = 8-97216-365-0	8-97185-285-0	02	1	-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: D = 8-97204-201-9	8-97328-703-0	02	1	-
73	GASKET; COVER TO HSG ASM PART: E = 8-97216-365-0	8-94227-491-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1	8-94433-763-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: D = 8-97204-201-9	8-97383-765-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-97125-525-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: D = 8-97204-201-9	8-97231-934-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-94313-276-0	02	1	-
75	SCREW; COVER TO HSG ASM PART: D = 8-97204-201-9	8-97231-933-0	02	1	-
84	GASKET; BRKT TO HSG ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94247-722-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: D = 8-97204-201-9	8-97214-509-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.74 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-658-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.76 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-659-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.78 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-660-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-661-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.82 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-662-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.84 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-663-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.86 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-664-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.88 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94111-665-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-528-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.92 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-529-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.94 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-530-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.96 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-531-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.98 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-532-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-533-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.02 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-534-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.04 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-535-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.06 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-536-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.08 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-537-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-538-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.12 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-539-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.14 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-540-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.16 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-541-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.18 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-542-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-543-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.22 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-544-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.24 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-545-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.26 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-546-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.28 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-547-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-548-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.32 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-549-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.34 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-550-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.36 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-551-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.38 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-552-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-553-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.42 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-554-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.44 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-555-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.46 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-556-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.48 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-557-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-558-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.52 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-559-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.54 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-560-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.56 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-561-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.58 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-562-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-563-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.62 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-564-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.64 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-565-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.66 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-566-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.68 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-567-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-568-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.72 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-569-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.74 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-570-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.76 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-571-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.78 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-572-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-573-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.82 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-574-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.84 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-575-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.86 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-576-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.88 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-577-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-578-0	AR	1	-
100	PIPE; FUEL INJ PUMP (B) ASM PART: C = 8-97160-462-1	8-97102-544-1	01	1	-
100	PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1	8-97102-546-1	01	1	-
100	PIPE; FUEL INJ PUMP (B) ASM PART: E = 8-97216-365-0	8-97185-287-0	01	1	-
100	PIPE; FUEL INJ PUMP (C) ASM PART: D = 8-97204-201-9	8-97214-510-0	01	1	-
100	PIPE; FUEL INJ PUMP (D) ASM PART: D = 8-97204-201-9	8-97385-181-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-97119-188-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: D = 8-97204-201-9	8-97249-545-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-97119-187-0	03	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: D = 8-97204-201-9	8-97249-545-0	03	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: D = 8-97204-201-9	8-94379-688-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, E = 8-97216-365-0	8-97165-709-0	01	1	-
163	COUPLING; INJ PUMP ASM PART: A = 8-97120-179-1, B = 8-97120-180-1, C = 8-97160-462-1, D = 8-97204-201-9, E = 8-97216-365-0	8-94227-337-1	01	1	-
229	BOLT; BRKT ASM PART: D = 8-97204-201-9	8-97049-904-0	01	1	-
246	ROLLER KIT; INJ PUMP ASM PART: C = 8-97160-462-1, E = 8-97216-365-0	8-97163-172-0	01	1	-
246	ROLLER KIT; INJ PUMP ASM PART: D = 8-97204-201-9	8-97218-980-0	01	1	-
286	VALVE; PRESSURE,CONT ASM PART: D = 8-97204-201-9	8-97227-581-1	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
