Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#72521) — 351 parça

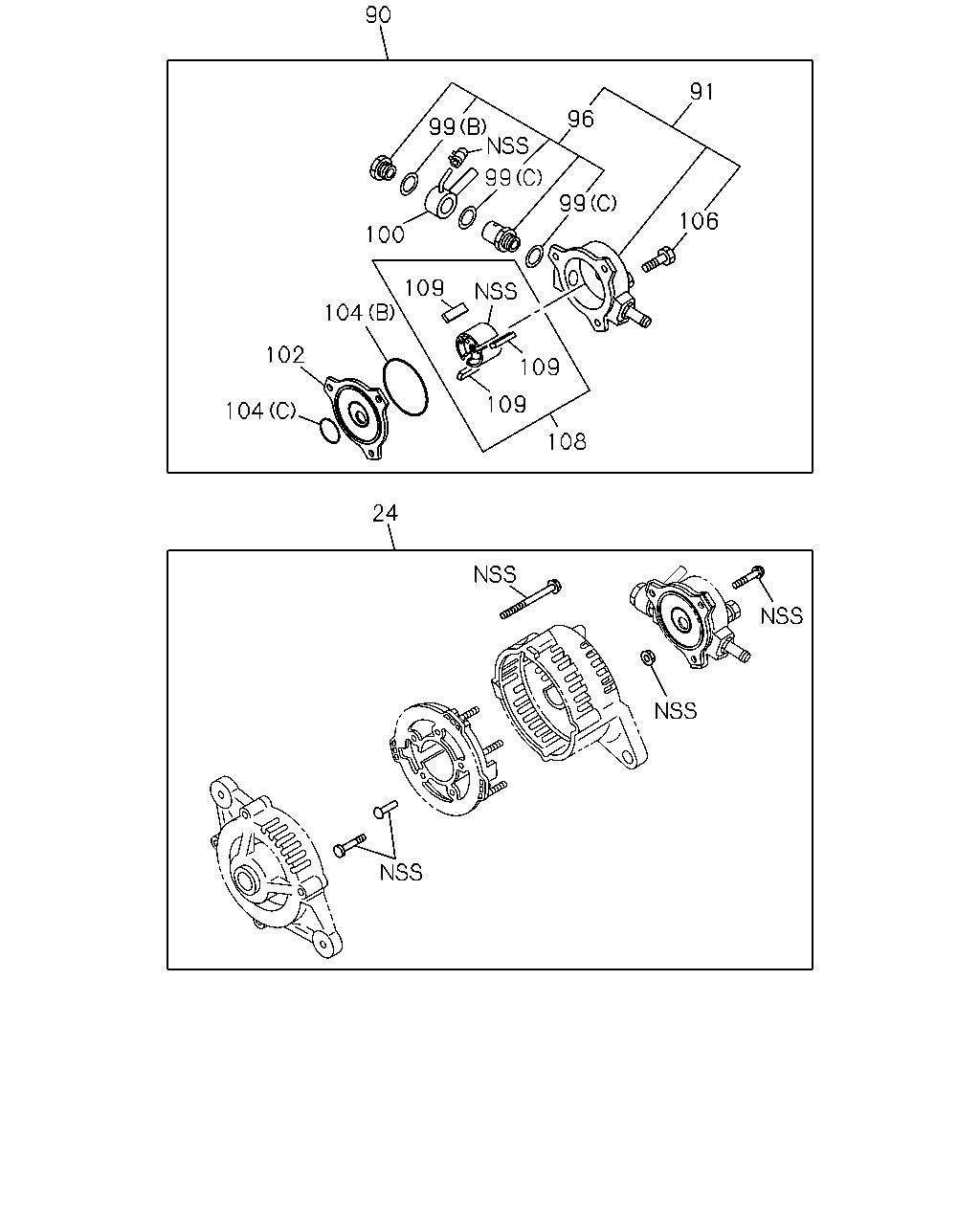

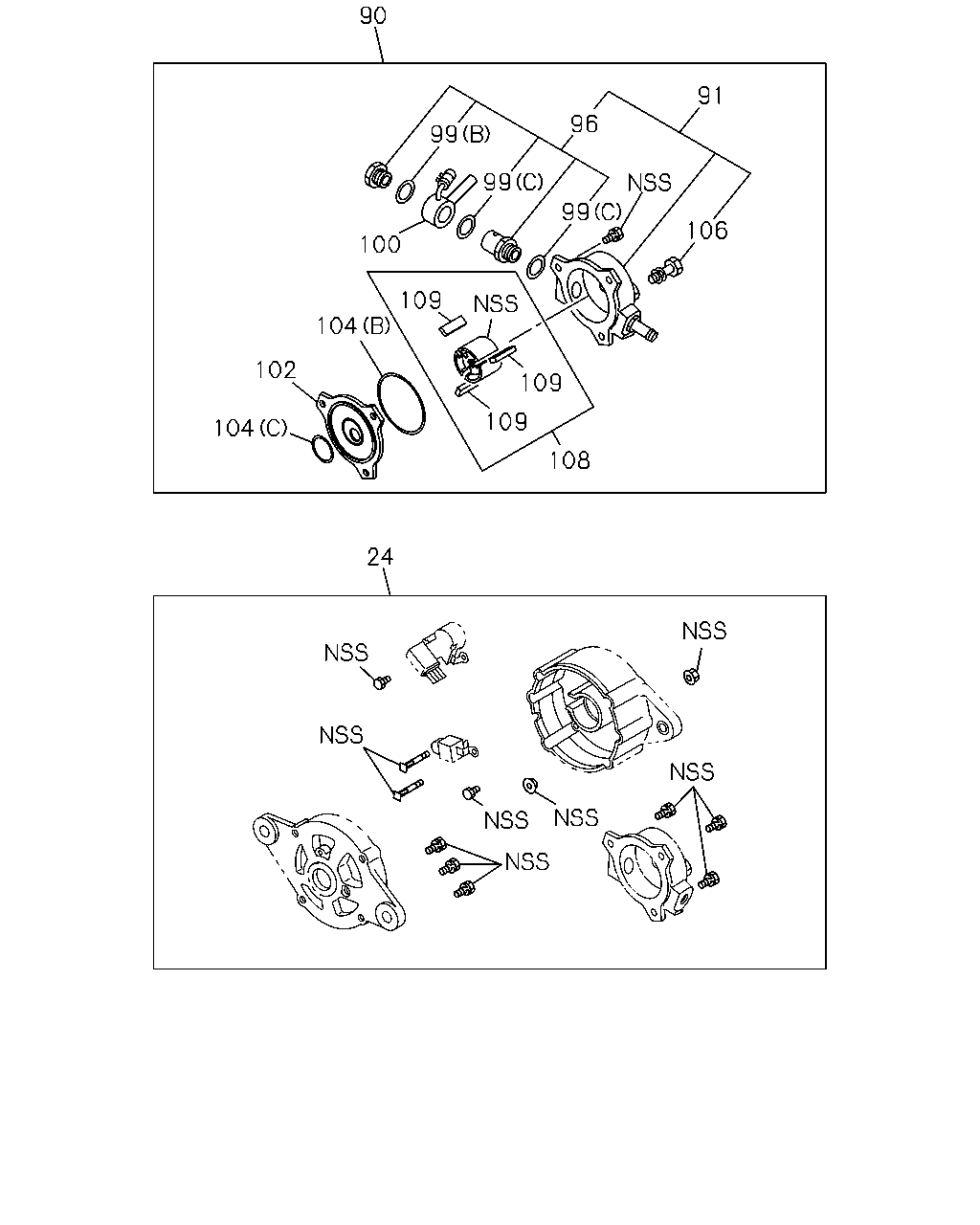

90 91 96 99 99 99 106 100 109 104 102 109 109 104 108 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	1-81229-419-0	04	1	-
24	SCREW; RECTIFIER,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-97161-697-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0	8-94456-609-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: D = 8-97985-001-0	8-97201-009-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97351-341-0	01	1	-
91	BODY; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97236-694-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-991-0	01	1	-
99	GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-993-0	01	1	-
99	GASKET; VAC PUMP (A) ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	9-88130-126-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0	8-94456-597-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: D = 8-97985-001-0	8-97201-010-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97209-180-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97137-334-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-09623-017-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (C) ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-994-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-989-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: D = 8-97985-001-0	8-94456-605-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: D = 8-97985-001-0	8-97063-383-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97236-693-0	01	1	-
109	VANE; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-985-0	03	1	-
109	VANE; VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-610-0	04	1	-

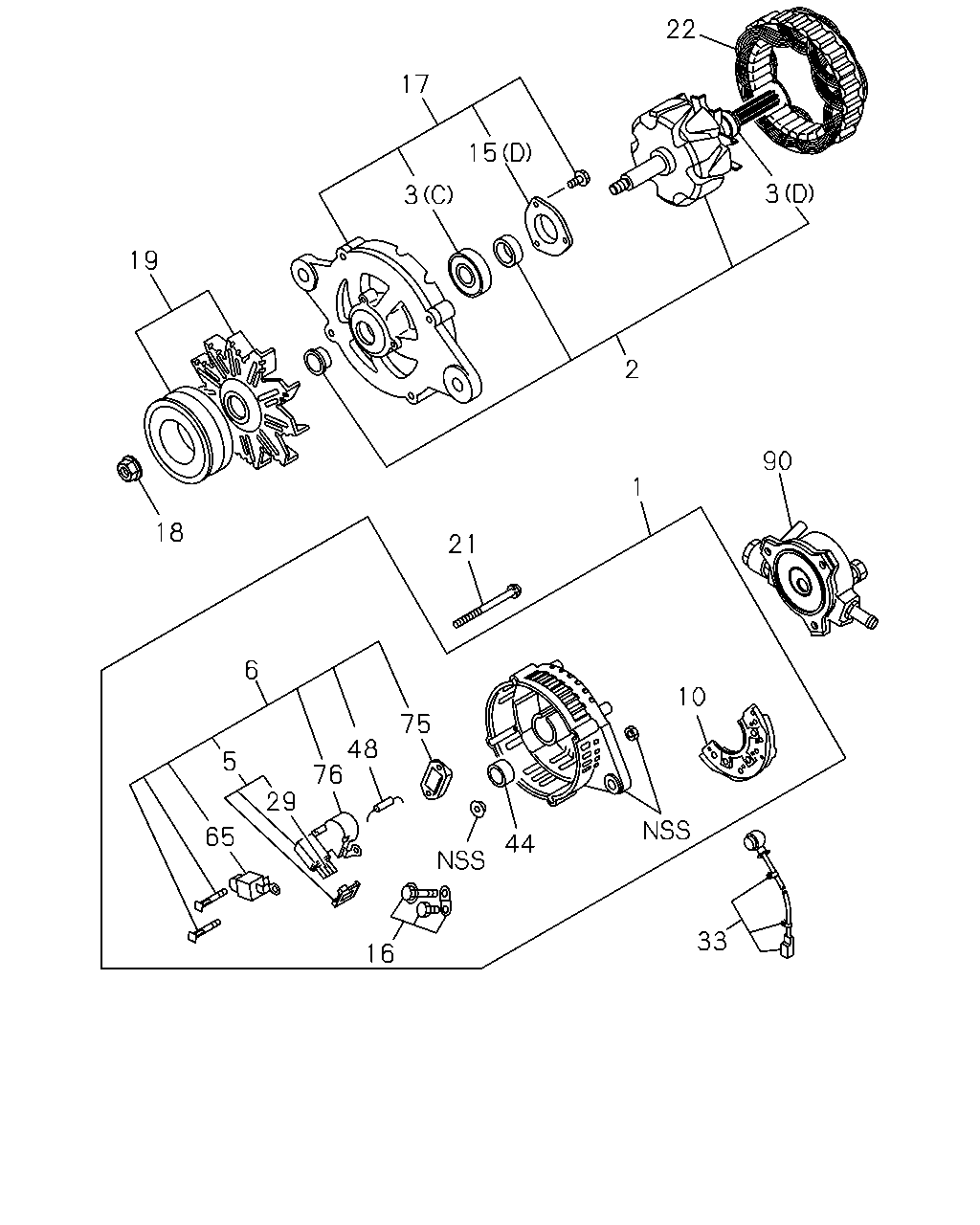

22 17 15 3 3 19 2 90 1 18 21 6 10 75 48 76 5 29 65 44 33 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-598-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97187-657-2	8-97188-852-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-97187-658-2	8-97188-853-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-594-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-94310-379-0	8-94456-595-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-97985-001-0	8-97063-381-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97187-657-2	8-97083-006-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97187-658-2	8-97083-010-0	01	1	-
2	ROTOR; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-593-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2	8-94121-178-0	01	1	-1007
3	BEARING; ROTOR,GEN (B) ASM PART: D = 8-97985-001-0	8-94453-230-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0	8-94456-592-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: B = 8-97187-657-2	8-97062-654-0	01	1	-1007
3	BEARING; ROTOR,GEN (E) ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-658-2	8-97248-128-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2	8-97248-128-0	01	1	1008-
3	BEARING; ROTOR,GEN (C) ASM PART: C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-98159-457-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: B = 8-97187-657-2	8-98159-457-0	01	1	1008-
5	HOLDER; BRUSH,GEN ASM PART: D = 8-97985-001-0	8-94342-673-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-94310-379-0	8-94456-603-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97026-053-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97985-001-0	8-94342-680-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94310-379-0	8-94456-614-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97026-052-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-97985-001-0	8-94342-672-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-97187-658-2	8-94453-149-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97187-657-2	8-97188-870-0	01	1	-
10	RECTIFIER; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-596-0	01	1	-
15	RETAINER; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94223-974-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: D = 8-97985-001-0	8-94453-229-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 8-94310-379-0	8-94456-590-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0	8-94456-593-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97111-390-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-588-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: E = 8-98284-007-0	8-98284-598-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: F = 8-98300-335-0	8-98305-117-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94167-948-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97203-880-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-585-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-599-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	1-81229-031-0	03	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 8-97187-657-2	8-94156-602-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: C = 8-97187-658-2	8-97083-014-0	04	1	-
22	STATOR; GEN ASM PART: D = 8-97985-001-0	8-94342-675-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-97187-658-2	8-94408-494-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-94310-379-0	8-94456-607-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97187-657-2	8-97203-864-0	01	1	-
22	STATOR; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-97313-437-0	01	1	-
29	BRUSH; GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-81215-018-0	02	1	-
29	BRUSH; GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94156-593-0	02	1	-
33	WIRE; LEAD,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97071-213-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: D = 8-97985-001-0	8-97201-008-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-597-0	01	1	-
44	SEAL; RR COVER,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94156-589-0	01	1	-
48	DIODE; GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94237-727-0	01	1	-
65	CONDENSER; GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94156-594-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 8-94310-379-0	8-94456-606-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94250-964-0	01	1	-
76	BLOCK; REG,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94156-591-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0	8-94456-609-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: D = 8-97985-001-0	8-97201-009-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97351-341-0	01	1	-

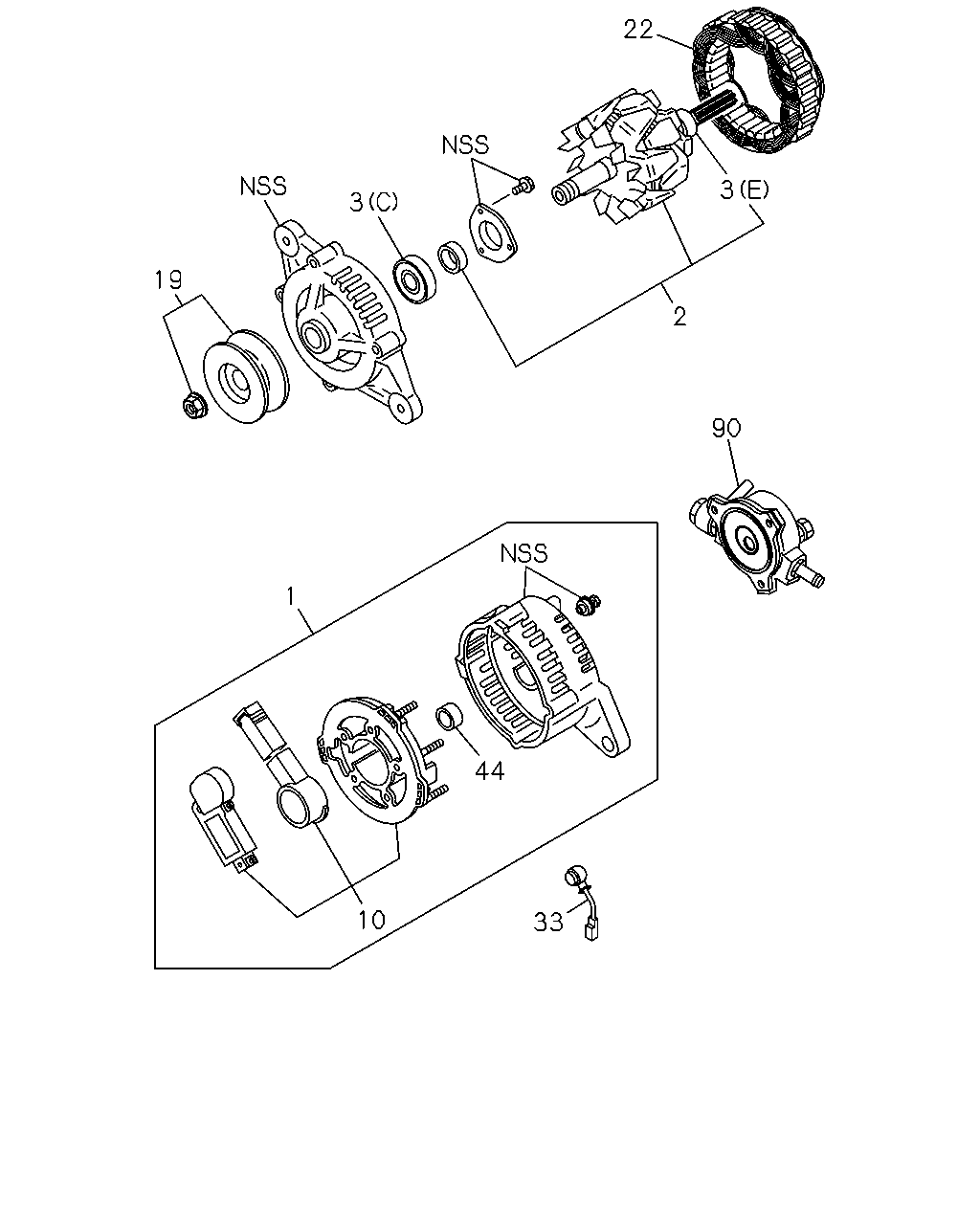

2 27 49 83 14 3 9 57 22 79 6 17 24 20 65 15 15 49 21 32 47 32 30 29 85 37 19 5 18 1 32 46 90 103 100 110 98 93 93 97 99 109 109 109 93 42 94 93 109 92 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-598-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97187-657-2	8-97188-852-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-97187-658-2	8-97188-853-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-594-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-94310-379-0	8-94456-595-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-97985-001-0	8-97063-381-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97187-657-2	8-97083-006-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97187-658-2	8-97083-010-0	01	1	-
2	ROTOR; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-593-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2	8-94121-178-0	01	1	-1007
3	BEARING; ROTOR,GEN (B) ASM PART: D = 8-97985-001-0	8-94453-230-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0	8-94456-592-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: B = 8-97187-657-2	8-97062-654-0	01	1	-1007
3	BEARING; ROTOR,GEN (E) ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-658-2	8-97248-128-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2	8-97248-128-0	01	1	1008-
3	BEARING; ROTOR,GEN (C) ASM PART: C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-98159-457-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: B = 8-97187-657-2	8-98159-457-0	01	1	1008-
5	HOLDER; BRUSH,GEN ASM PART: D = 8-97985-001-0	8-94342-673-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-94310-379-0	8-94456-603-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97026-053-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97985-001-0	8-94342-680-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94310-379-0	8-94456-614-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97026-052-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN ASM PART: D = 8-97985-001-0	8-94453-231-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN ASM PART: A = 8-94310-379-0	8-94456-591-0	01	1	-
14	COLLAR; STEEL ASM PART: D = 8-97985-001-0	8-94453-225-0	01	1	-
14	COLLAR; STEEL ASM PART: A = 8-94310-379-0	8-94456-596-0	01	1	-
15	RETAINER; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94223-974-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: D = 8-97985-001-0	8-94453-229-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 8-94310-379-0	8-94456-590-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0	8-94456-593-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-588-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: E = 8-98284-007-0	8-98284-598-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: F = 8-98300-335-0	8-98305-117-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94167-948-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97203-880-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-585-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-599-0	01	1	-
20	FAN; GEN ASM PART: D = 8-97985-001-0	8-94453-235-0	01	1	-
20	FAN; GEN ASM PART: A = 8-94310-379-0	8-94456-587-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	1-81229-031-0	03	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 8-97187-657-2	8-94156-602-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: C = 8-97187-658-2	8-97083-014-0	04	1	-
22	STATOR; GEN ASM PART: D = 8-97985-001-0	8-94342-675-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-97187-658-2	8-94408-494-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-94310-379-0	8-94456-607-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97187-657-2	8-97203-864-0	01	1	-
22	STATOR; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-97313-437-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	1-81229-419-0	04	1	-
24	SCREW; RECTIFIER,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-97161-697-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-97985-001-0	8-94206-188-0	08	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 8-94310-379-0	8-94206-188-0	06	1	-
29	BRUSH; GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-81215-018-0	02	1	-
29	BRUSH; GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94156-593-0	02	1	-
30	SPRING; BRUSH,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-81216-002-0	02	1	-
32	TERMINAL; RECTIFIER,GEN (B) ASM PART: A = 8-94310-379-0	1-81229-410-0	01	1	-
32	TERMINAL; RECTIFIER,GEN (C) ASM PART: A = 8-94310-379-0	1-81229-411-0	02	1	-
32	TERMINAL; RECTIFIER,GEN (A) ASM PART: A = 8-94310-379-0	8-94456-602-0	01	1	-
37	BUSHING; RR COVER,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-599-0	01	1	-
42	GASKET; RR COVER,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-608-0	01	1	-
46	RECTIFIER; (+),GEN ASM PART: A = 8-94310-379-0	8-94456-600-0	01	1	-
47	RECTIFIER; (-),GEN ASM PART: A = 8-94310-379-0	8-94456-601-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	1-81229-413-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: A = 8-94310-379-0	5-81229-105-0	02	1	-
57	COVER; BRUSH,GEN ASM PART: D = 8-97985-001-0	8-94342-674-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: A = 8-94310-379-0	8-94456-604-0	01	1	-
65	CONDENSER; GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94156-594-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 8-94310-379-0	8-94456-606-0	01	1	-
79	WASHER; FELT,ROTOR,GEN ASM PART: A = 8-94310-379-0	8-94456-589-0	02	1	-
83	RING; SLIP,ROTOR,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-81229-109-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: D = 8-97985-001-0	8-94453-234-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: A = 8-94310-379-0	8-94456-586-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0	8-94456-609-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: D = 8-97985-001-0	8-97201-009-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97351-341-0	01	1	-
92	BOLT; DELIVERY,VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-19679-001-0	01	1	-
93	GASKET; CONN,VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	9-88130-081-0	04	1	-
94	CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-613-0	01	1	-
97	VALVE; VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-612-0	01	1	-
98	BOLT; VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-09000-134-0	01	1	-
99	GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-993-0	01	1	-
99	GASKET; VAC PUMP (A) ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	9-88130-126-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0	8-94456-597-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: D = 8-97985-001-0	8-97201-010-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97209-180-0	01	1	-
103	PIN; VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	9-88130-099-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-09623-017-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (C) ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-994-0	01	1	-
109	VANE; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-985-0	03	1	-
109	VANE; VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-610-0	04	1	-
110	BOLT; THROUGH ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-611-0	03	1	-

2 83 3 14 22 9 17 36 15 20 33 27 27 24 6 49 24 25 27 27 27 25 57 24 85 19 42 106 105 18 5 30 21 25 29 25 27 10 25 37 90 25 1 103 98 93 109 100 108 110 93 109 93 97 94 99 93 109 109 104 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-598-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97187-657-2	8-97188-852-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-97187-658-2	8-97188-853-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-594-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-94310-379-0	8-94456-595-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-97985-001-0	8-97063-381-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97187-657-2	8-97083-006-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97187-658-2	8-97083-010-0	01	1	-
2	ROTOR; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-593-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2	8-94121-178-0	01	1	-1007
3	BEARING; ROTOR,GEN (B) ASM PART: D = 8-97985-001-0	8-94453-230-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0	8-94456-592-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: B = 8-97187-657-2	8-97062-654-0	01	1	-1007
3	BEARING; ROTOR,GEN (E) ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-658-2	8-97248-128-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2	8-97248-128-0	01	1	1008-
3	BEARING; ROTOR,GEN (C) ASM PART: C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-98159-457-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: B = 8-97187-657-2	8-98159-457-0	01	1	1008-
5	HOLDER; BRUSH,GEN ASM PART: D = 8-97985-001-0	8-94342-673-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-94310-379-0	8-94456-603-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97026-053-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97985-001-0	8-94342-680-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94310-379-0	8-94456-614-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97026-052-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN ASM PART: D = 8-97985-001-0	8-94453-231-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN ASM PART: A = 8-94310-379-0	8-94456-591-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-97985-001-0	8-94342-672-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-97187-658-2	8-94453-149-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97187-657-2	8-97188-870-0	01	1	-
10	RECTIFIER; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-596-0	01	1	-
14	COLLAR; STEEL ASM PART: D = 8-97985-001-0	8-94453-225-0	01	1	-
14	COLLAR; STEEL ASM PART: A = 8-94310-379-0	8-94456-596-0	01	1	-
15	RETAINER; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94223-974-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: D = 8-97985-001-0	8-94453-229-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 8-94310-379-0	8-94456-590-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0	8-94456-593-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-588-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: E = 8-98284-007-0	8-98284-598-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: F = 8-98300-335-0	8-98305-117-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94167-948-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97203-880-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-585-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-599-0	01	1	-
20	FAN; GEN ASM PART: D = 8-97985-001-0	8-94453-235-0	01	1	-
20	FAN; GEN ASM PART: A = 8-94310-379-0	8-94456-587-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	1-81229-031-0	03	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 8-97187-657-2	8-94156-602-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: C = 8-97187-658-2	8-97083-014-0	04	1	-
22	STATOR; GEN ASM PART: D = 8-97985-001-0	8-94342-675-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-97187-658-2	8-94408-494-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-94310-379-0	8-94456-607-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97187-657-2	8-97203-864-0	01	1	-
22	STATOR; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-97313-437-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	1-81229-419-0	04	1	-
24	SCREW; RECTIFIER,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-97161-697-0	01	1	-
25	BUSHING; INSULATION TERMINAL (A) ASM PART: D = 8-97985-001-0	1-81229-410-0	02	1	-
25	BUSHING; INSULATION TERMINAL (B) ASM PART: D = 8-97985-001-0	1-81229-411-0	02	1	-
25	BUSHING; INSULATION TERMINAL (C) ASM PART: D = 8-97985-001-0	5-81229-105-0	02	1	-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-97985-001-0	8-94206-188-0	08	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 8-94310-379-0	8-94206-188-0	06	1	-
29	BRUSH; GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-81215-018-0	02	1	-
29	BRUSH; GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94156-593-0	02	1	-
30	SPRING; BRUSH,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-81216-002-0	02	1	-
33	WIRE; LEAD,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97071-213-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: D = 8-97985-001-0	8-97201-008-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-597-0	01	1	-
36	SCREW; FRT COVER ASM PART: D = 8-97985-001-0	8-94453-227-0	03	1	-
37	BUSHING; RR COVER,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-599-0	01	1	-
42	GASKET; RR COVER,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-608-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	1-81229-413-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: A = 8-94310-379-0	5-81229-105-0	02	1	-
57	COVER; BRUSH,GEN ASM PART: D = 8-97985-001-0	8-94342-674-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: A = 8-94310-379-0	8-94456-604-0	01	1	-
83	RING; SLIP,ROTOR,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-81229-109-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: D = 8-97985-001-0	8-94453-234-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: A = 8-94310-379-0	8-94456-586-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0	8-94456-609-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: D = 8-97985-001-0	8-97201-009-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97351-341-0	01	1	-
92	BOLT; DELIVERY,VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-19679-001-0	01	1	-
93	GASKET; CONN,VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	9-88130-081-0	04	1	-
94	CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-613-0	01	1	-
97	VALVE; VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-612-0	01	1	-
98	BOLT; VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-09000-134-0	01	1	-
99	GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-993-0	01	1	-
99	GASKET; VAC PUMP (A) ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	9-88130-126-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0	8-94456-597-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: D = 8-97985-001-0	8-97201-010-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97209-180-0	01	1	-
103	PIN; VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	9-88130-099-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-09623-017-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (C) ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-994-0	01	1	-
105	WASHER; CONN BOLT,VAC PUMP ASM PART: D = 8-97985-001-0	9-88130-087-0	02	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-989-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: D = 8-97985-001-0	8-94456-605-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: D = 8-97985-001-0	8-97063-383-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97236-693-0	01	1	-
109	VANE; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-985-0	03	1	-
109	VANE; VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-610-0	04	1	-
110	BOLT; THROUGH ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-611-0	03	1	-

90 99 96 91 99 99 106 100 109 109 108 109 104 102 104 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	1-81229-419-0	04	1	-
24	SCREW; RECTIFIER,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-97161-697-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0	8-94456-609-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: D = 8-97985-001-0	8-97201-009-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97351-341-0	01	1	-
91	BODY; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97236-694-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-991-0	01	1	-
99	GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-993-0	01	1	-
99	GASKET; VAC PUMP (A) ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	9-88130-126-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0	8-94456-597-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: D = 8-97985-001-0	8-97201-010-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97209-180-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97137-334-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	5-09623-017-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (C) ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-994-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-989-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: D = 8-97985-001-0	8-94456-605-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: D = 8-97985-001-0	8-97063-383-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97236-693-0	01	1	-
109	VANE; VAC PUMP ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94223-985-0	03	1	-
109	VANE; VAC PUMP ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-610-0	04	1	-

22 3 2 3 19 90 1 44 33 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-598-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97187-657-2	8-97188-852-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-97187-658-2	8-97188-853-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-594-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-94310-379-0	8-94456-595-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-97985-001-0	8-97063-381-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97187-657-2	8-97083-006-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97187-658-2	8-97083-010-0	01	1	-
2	ROTOR; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-593-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2	8-94121-178-0	01	1	-1007
3	BEARING; ROTOR,GEN (B) ASM PART: D = 8-97985-001-0	8-94453-230-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0	8-94456-592-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: B = 8-97187-657-2	8-97062-654-0	01	1	-1007
3	BEARING; ROTOR,GEN (E) ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: C = 8-97187-658-2	8-97248-128-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: B = 8-97187-657-2	8-97248-128-0	01	1	1008-
3	BEARING; ROTOR,GEN (C) ASM PART: C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-98159-457-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: B = 8-97187-657-2	8-98159-457-0	01	1	1008-
10	RECTIFIER; GEN ASM PART: D = 8-97985-001-0	8-94342-672-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-97187-658-2	8-94453-149-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97187-657-2	8-97188-870-0	01	1	-
10	RECTIFIER; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-596-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-94310-379-0, D = 8-97985-001-0	8-94456-585-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-599-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-97985-001-0	8-94342-675-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-97187-658-2	8-94408-494-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-94310-379-0	8-94456-607-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97187-657-2	8-97203-864-0	01	1	-
22	STATOR; GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-97313-437-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2	8-97071-213-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: D = 8-97985-001-0	8-97201-008-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: E = 8-98284-007-0, F = 8-98300-335-0	8-98284-597-0	01	1	-
44	SEAL; RR COVER,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-94156-589-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0	8-94456-609-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: D = 8-97985-001-0	8-97201-009-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97187-657-2, C = 8-97187-658-2, E = 8-98284-007-0, F = 8-98300-335-0	8-97351-341-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
