◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50784 - NKR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#72518) — 107 parça

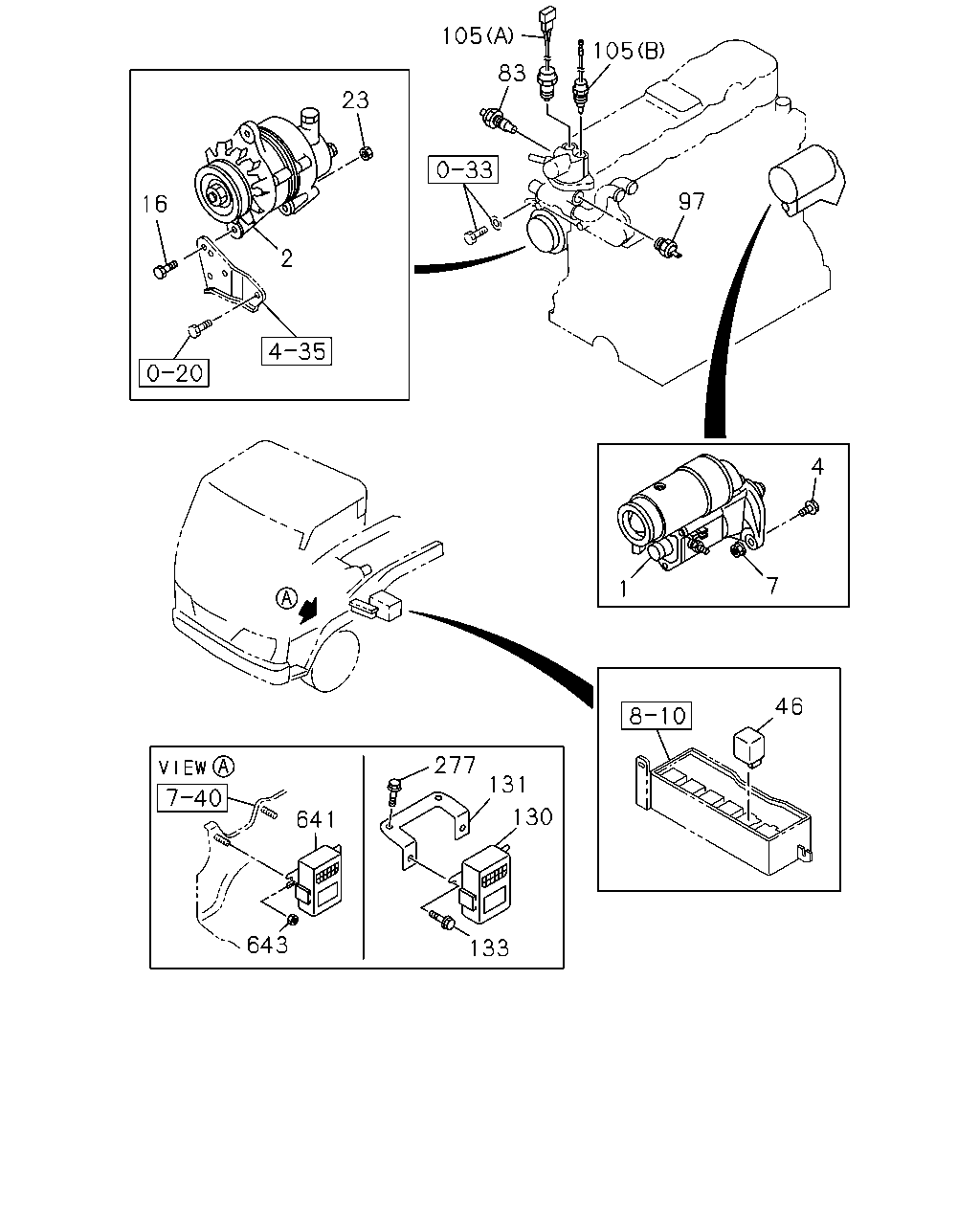

çizim 72607
105 105 83 23 97 16 2 4 7 1 46 277 131 130 641 643 133
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-94448-959-3 01 1 9704-0009 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0010-1111 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 1112- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. ISUZU BRAND<7WL> EXC. GENERATOR DENSO(7KH) 12V 50A 		8-97187-657-2 01 1 1006-1408 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A 		8-94310-379-0 01 1 9704-9708 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) EXC. EXHAUST BRAKE<NF8> 12V 40A 		8-94310-379-0 01 1 9709- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) EXHAUST BRAKE<NF8> 12V 40A 		8-97985-001-0 01 1 9709- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97187-658-2 01 1 1112-1408 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506- ● ●
4 BOLT; STARTER 8-94478-186-1 02 1 9704-0012 ●
4 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0101-0512 ●
4 BOLT; STARTER
M12X80 FLANGE 		0-28051-280-0 02 1 0601-1111 ●
4 BOLT; STARTER
M12X80 FLANGE 		0-28051-280-0 02 1 1112- ● ●
7 NUT; STARTER
M12 FLANGE 		0-91150-112-0 02 1 9704-0602 ●
7 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0603-1111 ●
7 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1112- ● ●
16 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9704-0512 ●
16 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0601-1111 ●
16 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1112- ● ●
23 NUT; GEN
M10 FLANGE 		0-91150-210-0 01 1 9704-0602 ●
23 NUT; GEN
M10 FLANGE 		0-91180-210-0 01 1 0603-1111 ●
23 NUT; GEN
M10 FLANGE 		0-91180-210-0 01 1 1112- ● ●
46 RELAY; GLOW PLUG
12V 80A 		8-97036-358-1 01 1 9704-9704 ●
46 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 9705-0307 ●
46 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 12V 80A 		8-97173-951-0 01 1 0308-1111 ●
46 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 12V 80A 		8-97173-951-0 01 1 1112- ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9704-1111 ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 1112- ● ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9704-1111 ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 1112- ● ●
97 SWITCH; THERMO,EGR CONT 8-94368-591-0 01 1 1112- ●
105 SWITCH; THERMO,QOS
(B) 		8-94121-152-1 01 1 9704-9710 ●
105 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 9711-1111 ●
105 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 1112- ● ●
105 SWITCH; THERMO,QOS
(A) 		8-94336-668-0 01 1 1112- ●
130 CONTROLLER; EGR 8-97201-734-3 01 1 1112- ●
131 BRACKET; EGR 8-97217-813-1 01 1 1112- ●
133 BOLT; EGR CONTROLLER
M6X20 FLANGE 		0-28650-620-0 02 1 1112- ●
277 BOLT; BRKT
M6X20 FLANGE 		0-28650-620-0 02 1 1112- ●
641 TIMER; QOS 8-97047-027-0 01 1 9704-9809 ●
641 TIMER; QOS 8-97215-646-0 01 1 9810-0301 ●
641 TIMER; QOS 8-97361-317-0 01 1 0302-0307 ●
641 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-3 01 1 0308-1111 ●
641 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-3 01 1 1112- ●
641 TIMER; QOS 8-97361-317-3 01 1 1112- ●
643 NUT; TIMER,QOS
M6 FLANGE 		0-91150-106-0 02 1 9704-0307 ●
643 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> M6 FLANGE 		0-91150-106-0 02 1 0308-0602 ●
643 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> M6 FLANGE 		0-91180-106-0 02 1 0603-1111 ●
643 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> M6 FLANGE 		0-91180-106-0 02 1 1112- ●
643 NUT; TIMER,QOS
M6 FLANGE 		0-91180-106-0 02 1 1112- ●

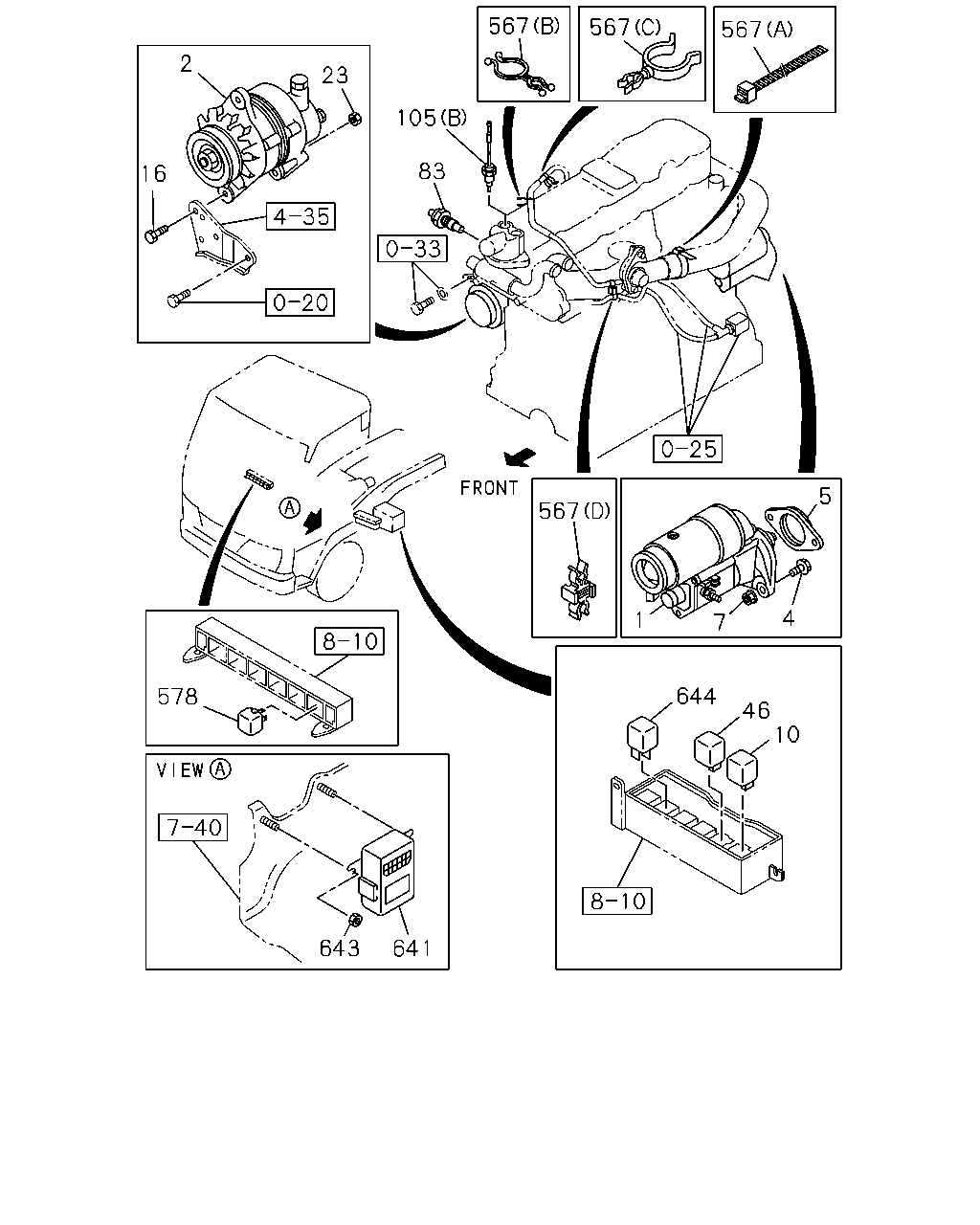

çizim 72888
567 567 567 2 23 105 83 16 5 567 4 1 7 644 578 46 10 643 641
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-94448-959-3 01 1 9704-0009 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0010-1111 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 1112- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. ISUZU BRAND<7WL> EXC. GENERATOR DENSO(7KH) 12V 50A 		8-97187-657-2 01 1 1006-1408 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A 		8-94310-379-0 01 1 9704-9708 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) EXC. EXHAUST BRAKE<NF8> 12V 40A 		8-94310-379-0 01 1 9709- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) EXHAUST BRAKE<NF8> 12V 40A 		8-97985-001-0 01 1 9709- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97187-658-2 01 1 1112-1408 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506- ● ●
4 BOLT; STARTER 8-94478-186-1 02 1 9704-0012 ●
4 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0101-0512 ●
4 BOLT; STARTER
M12X80 FLANGE 		0-28051-280-0 02 1 0601-1111 ●
4 BOLT; STARTER
M12X80 FLANGE 		0-28051-280-0 02 1 1112- ● ●
5 DISTANCE; STARTER 8-97045-783-0 01 1 9704-0009 ●
7 NUT; STARTER
M12 FLANGE 		0-91150-112-0 02 1 9704-0602 ●
7 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0603-1111 ●
7 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1112- ● ●
10 RELAY; STARTER
12V 80A 		8-97036-358-1 01 1 9704-9704 ●
10 RELAY; STARTER
12V 80A 		8-97173-951-0 01 1 9705- ●
16 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9704-0512 ●
16 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0601-1111 ●
16 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1112- ● ●
23 NUT; GEN
M10 FLANGE 		0-91150-210-0 01 1 9704-0602 ●
23 NUT; GEN
M10 FLANGE 		0-91180-210-0 01 1 0603-1111 ●
23 NUT; GEN
M10 FLANGE 		0-91180-210-0 01 1 1112- ● ●
46 RELAY; GLOW PLUG
12V 80A 		8-97036-358-1 01 1 9704-9704 ●
46 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 9705-0307 ●
46 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 12V 80A 		8-97173-951-0 01 1 0308-1111 ●
46 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 12V 80A 		8-97173-951-0 01 1 1112- ● ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9704-1111 ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 1112- ● ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9704-1111 ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 1112- ● ●
105 SWITCH; THERMO,QOS
(B) 		8-94121-152-1 01 1 9704-9710 ●
105 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 9711-1111 ●
105 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 1112- ● ●
105 SWITCH; THERMO,QOS
(A) 		8-94336-668-0 01 1 1112- ●
567 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) L=300 		1-09707-001-1 01 1 9704- ●
567 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) ID=8 & 16 		5-09707-032-0 01 1 9704- ●
567 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (C) ID=6 & 16.5 		8-94165-402-0 01 1 9704-9708 ●
567 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (D) ID=6 & 6 		8-94463-708-0 02 1 9704- ●
578 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 9704- ●
641 TIMER; QOS 8-97047-027-0 01 1 9704-9809 ●
641 TIMER; QOS 8-97215-646-0 01 1 9810-0301 ●
641 TIMER; QOS 8-97361-317-0 01 1 0302-0307 ●
641 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-3 01 1 0308-1111 ●
641 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-3 01 1 1112- ●
641 TIMER; QOS 8-97361-317-3 01 1 1112- ●
643 NUT; TIMER,QOS
M6 FLANGE 		0-91150-106-0 02 1 9704-0307 ●
643 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> M6 FLANGE 		0-91150-106-0 02 1 0308-0602 ●
643 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> M6 FLANGE 		0-91180-106-0 02 1 0603-1111 ●
643 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> M6 FLANGE 		0-91180-106-0 02 1 1112- ●
643 NUT; TIMER,QOS
M6 FLANGE 		0-91180-106-0 02 1 1112- ●
644 RELAY; COLD START DEVICE
12V 20A 		8-97060-926-1 01 1 9704-0307 ●
644 RELAY; COLD START DEVICE
FAST GLOW SYSTEM<KM6> 12V 20A 		8-97060-926-1 01 1 0308- ●
