Isuzu WW
▶
TRUCKS
▶
NKR
▶
50784 - NKR(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#72517) — 21 parça
Tümü
A - 4JB1-TC ENG
B - 4JB1 ENG
◀

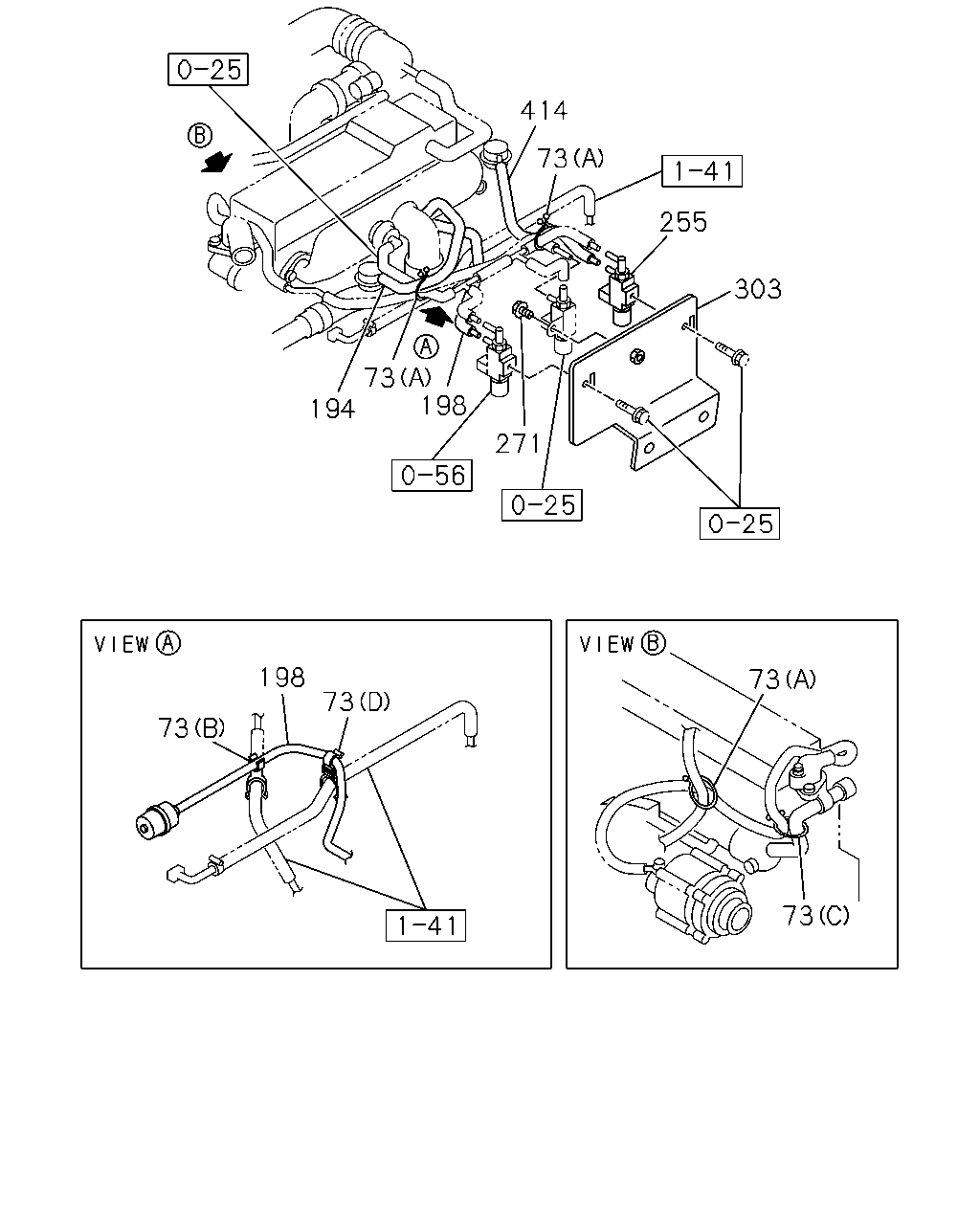

[057A] 4JB1;TURBOCHARGER,4JB1-TC(NO.2) (10 parça)

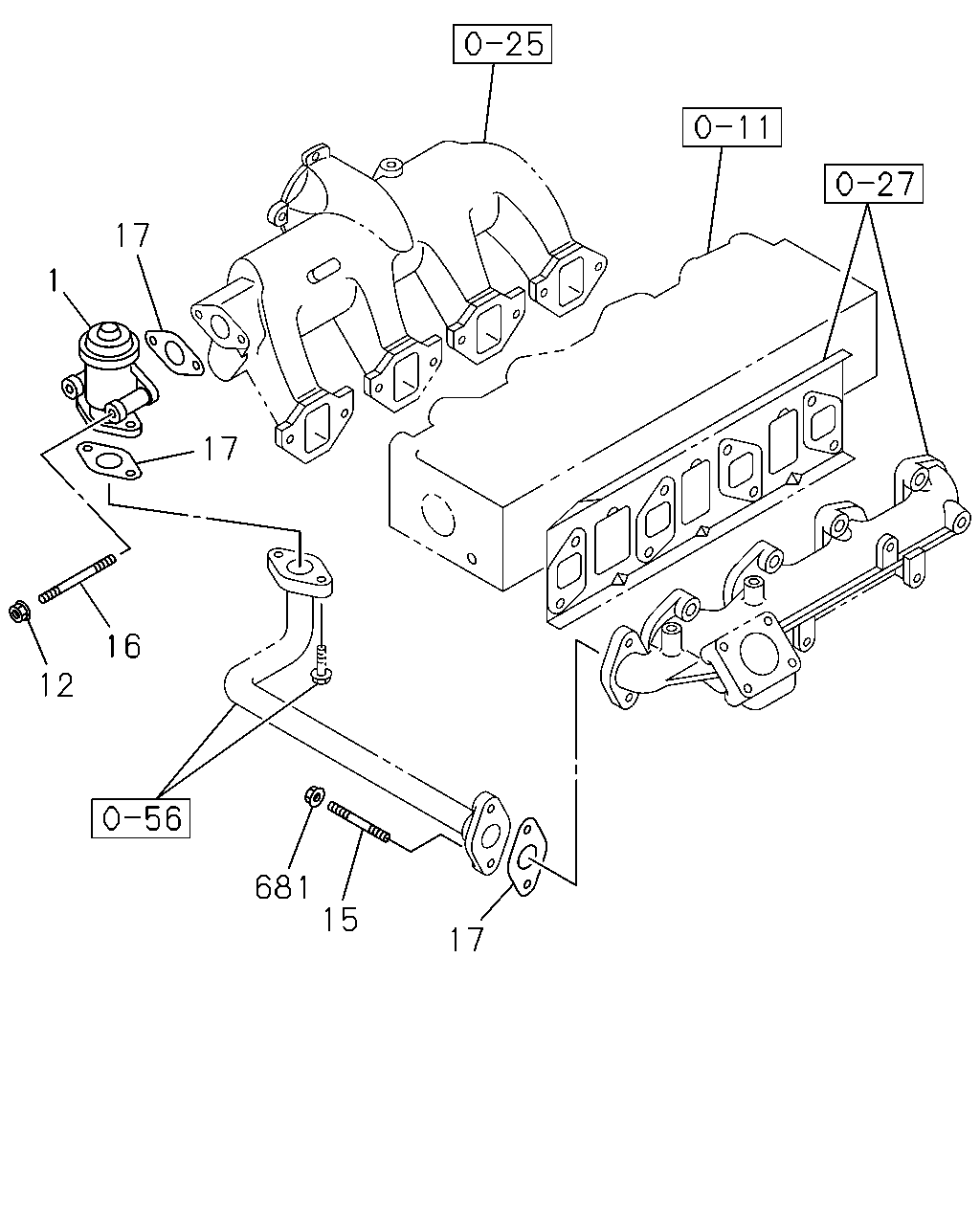

[057A] 4JB1-TC(NO.3) (6 parça)

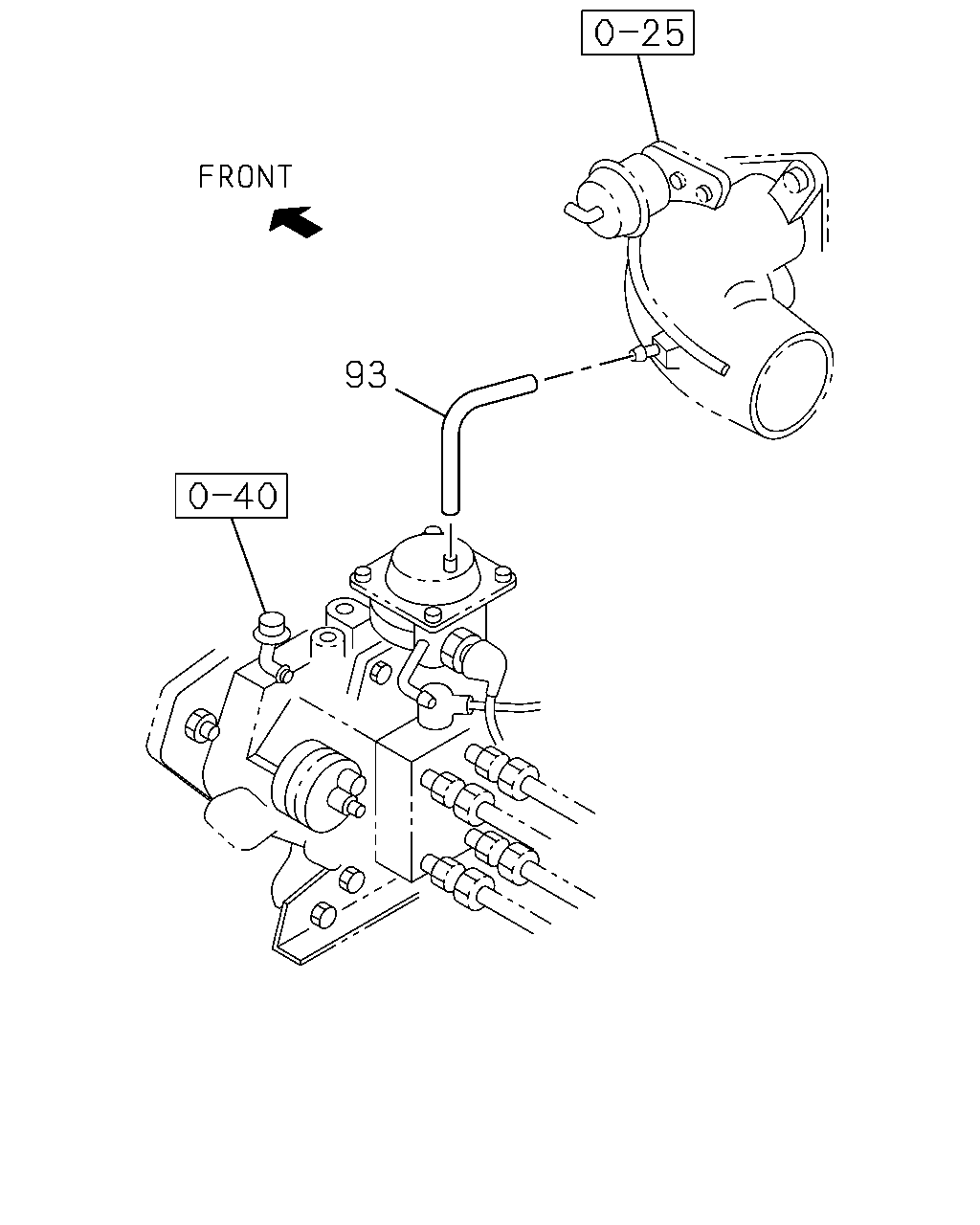

[057A] 4JB1;TURBOCHARGER(NO.1) (5 parça)
▶
414
73
255
303
73
194
198
271
198
73
73
73
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
73
CLIP; VAC HOSE
(A) ID=30
8-94315-423-0
03
1
1112-
●
73
CLIP; VAC HOSE
(B) ID=13.2 & 7.5
8-94315-426-0
01
1
1112-
●
73
CLIP; VAC HOSE
(C) ID=37
8-94481-468-0
01
1
1112-
●
73
CLIP; VAC HOSE
(D) ID=16.5 & 7
8-97226-171-0
01
1
1112-
●
194
HOSE; VAC
8-97208-495-0
01
1
1112-
●
198
HOSE; VAC,VSV
L=300 SERVICED BY L=3000
0-04930-300-0
01
1
1112-
●
255
VALVE; VAC SW,EGR CONT
8-97171-030-0
01
1
1112-
●
271
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1112-
●
303
BRACKET; VAC SW
8-97225-561-0
01
1
1112-
●
414
HOSE; RUBBER,EGR VLV TO VSV
8-97259-489-0
01
1
1112-
●
17
1
17
16
12
681
15
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; EGR
8-97208-656-4
01
1
1112-
●
12
NUT; EGR VLV
M8 FLANGE
0-91180-208-0
02
1
1112-
●
15
STUD; EGR PIPE
M8X25 L=36
8-97378-062-0
02
1
1112-
●
16
STUD; EGR VLV
M8X55 L=67
0-41010-855-0
02
1
1112-
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97192-765-0
03
1
1112-
●
681
NUT; EGR PIPE
M8 FLANGE
0-91180-208-0
02
1
1112-
●
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
93
HOSE ASM
L=130 SERVICED BY L=3000
0-04730-300-0
01
1
9704-9706
●
93
HOSE ASM
8-97183-373-0
01
1
9707-9710
●
93
HOSE ASM
8-97189-246-0
01
1
9711-9810
●
93
HOSE ASM
8-97216-313-0
01
1
9811-0209
●
93
HOSE ASM
GENERATOR DENSO(7KH) TURBOCHARGER<K51>
8-97216-313-0
01
1
0210-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
